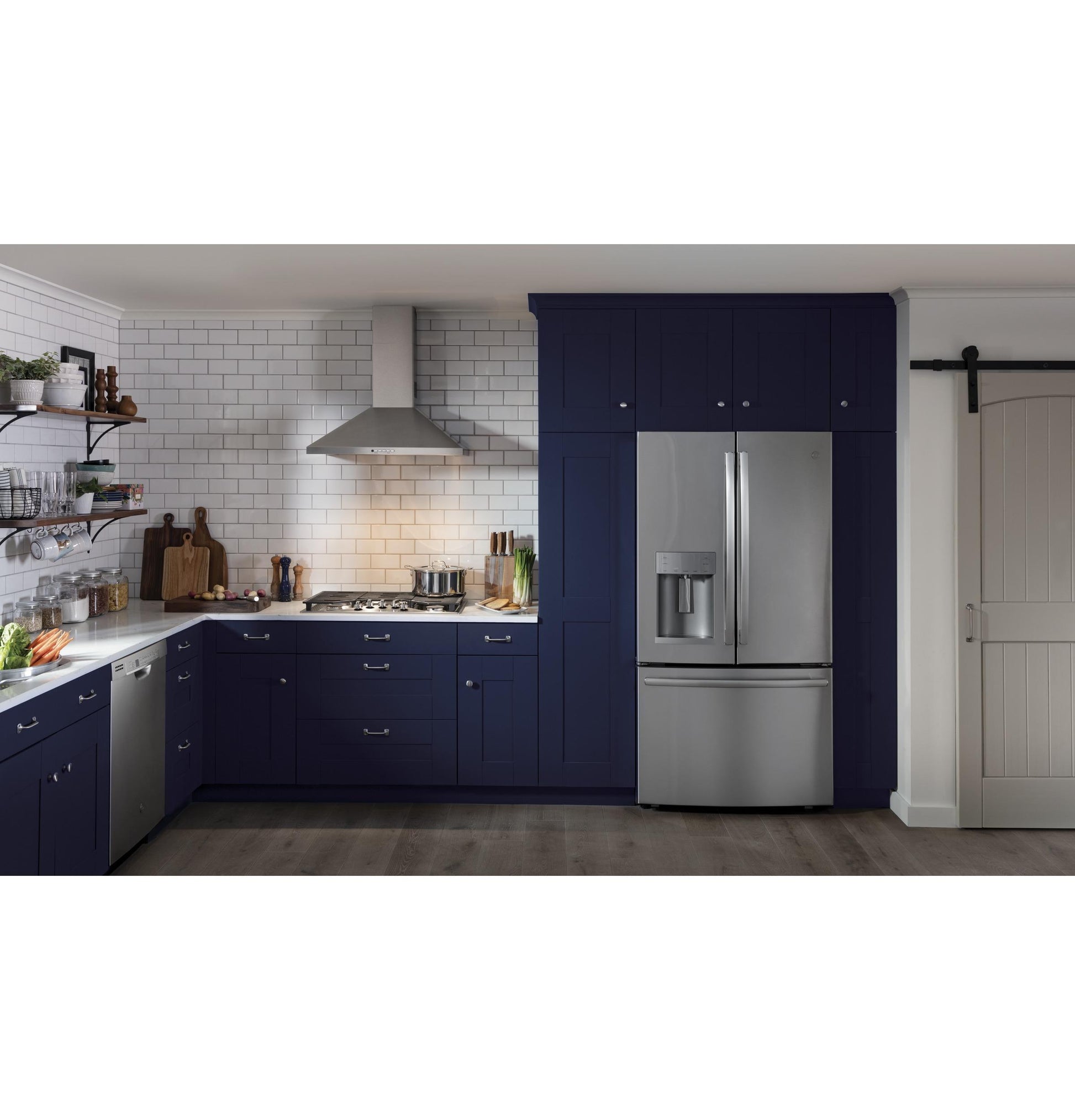

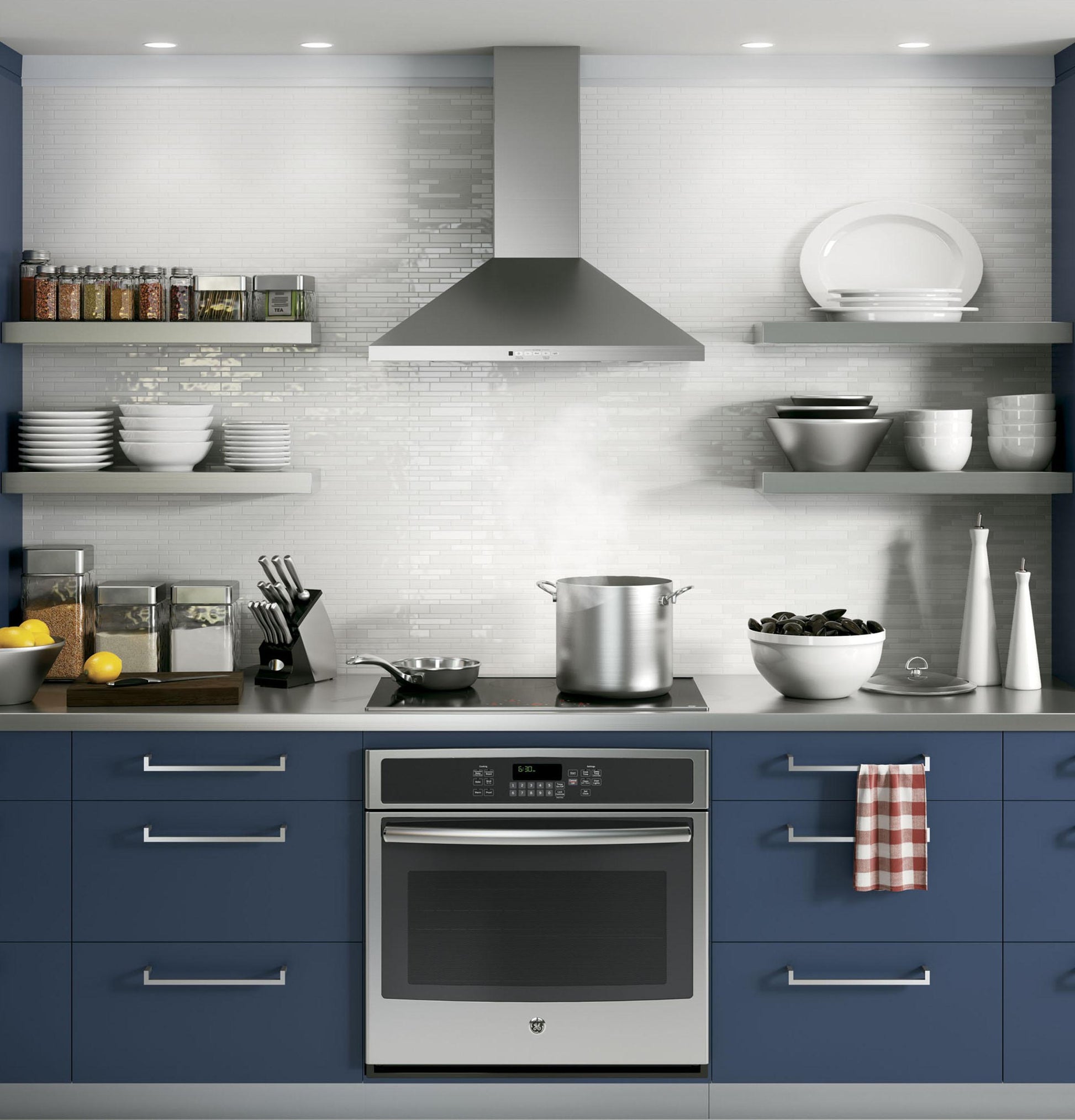

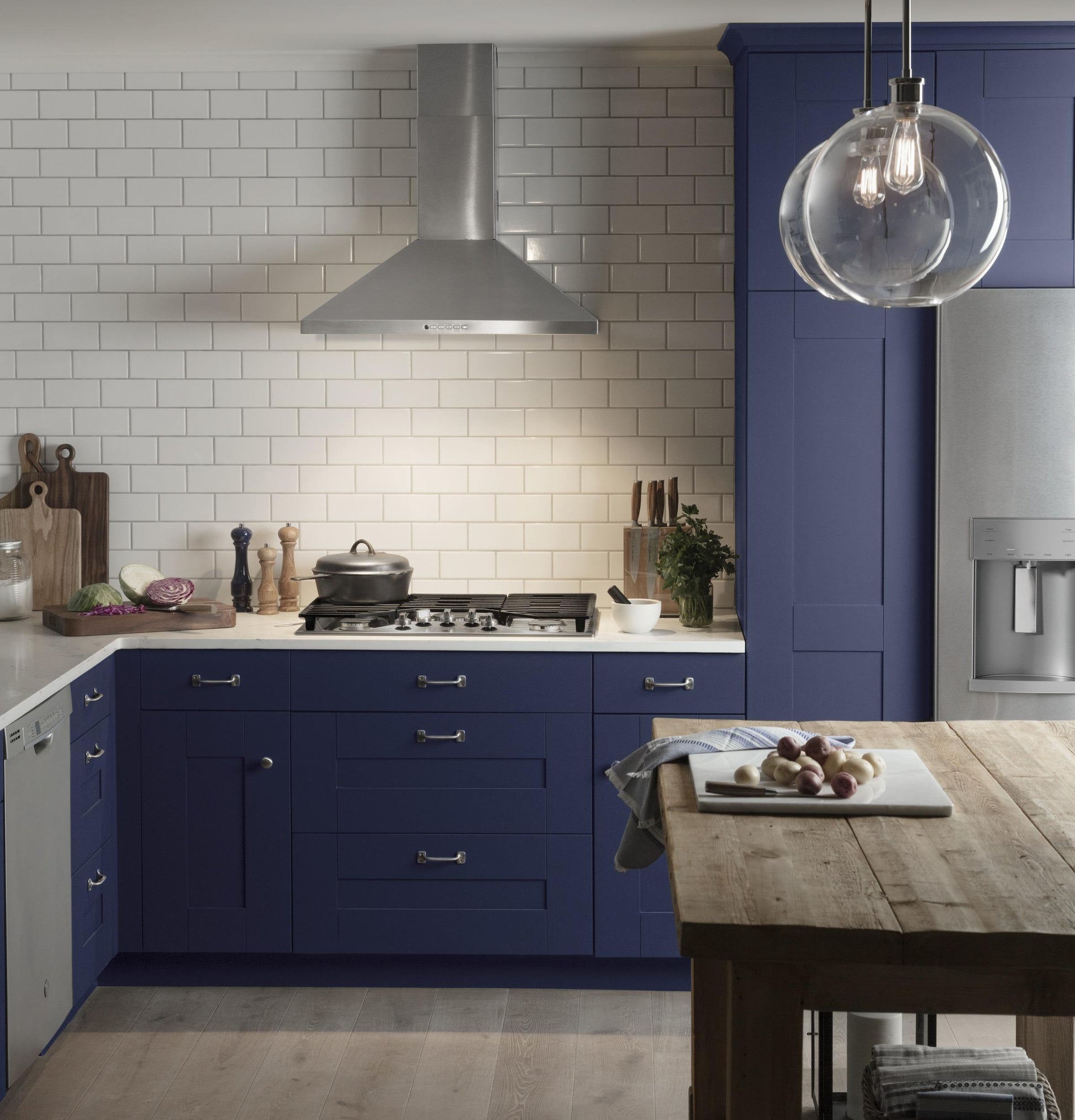

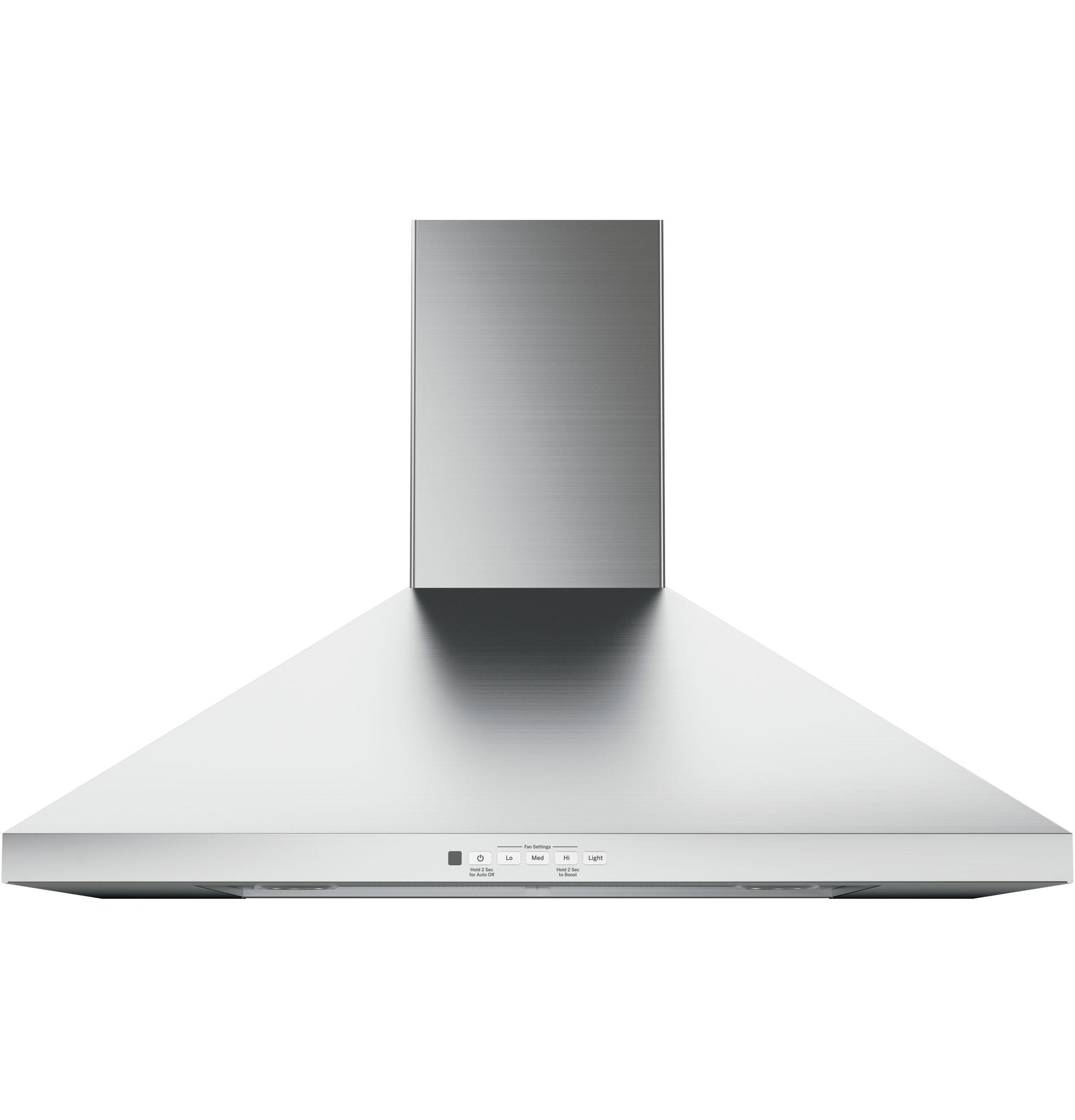

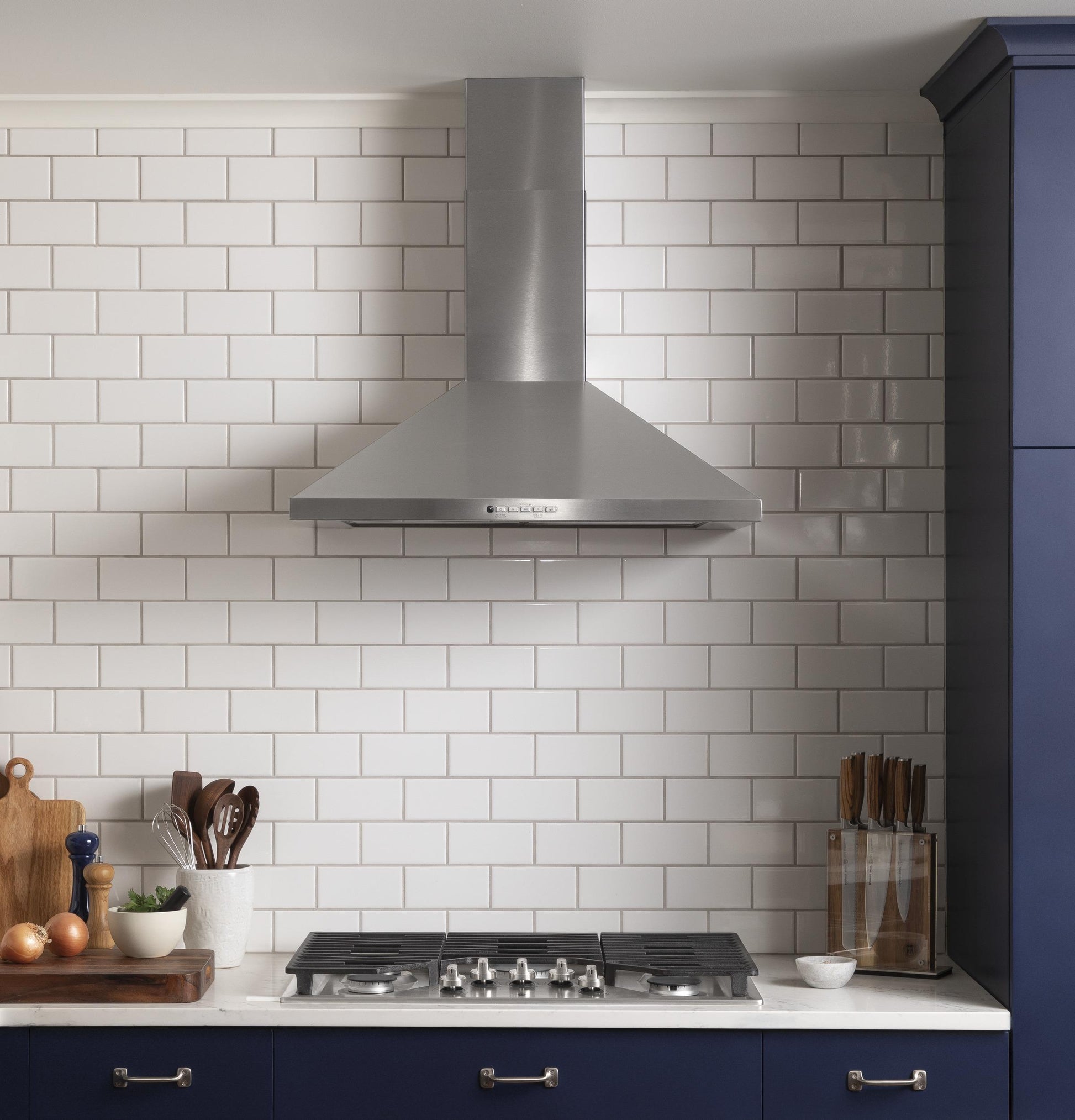

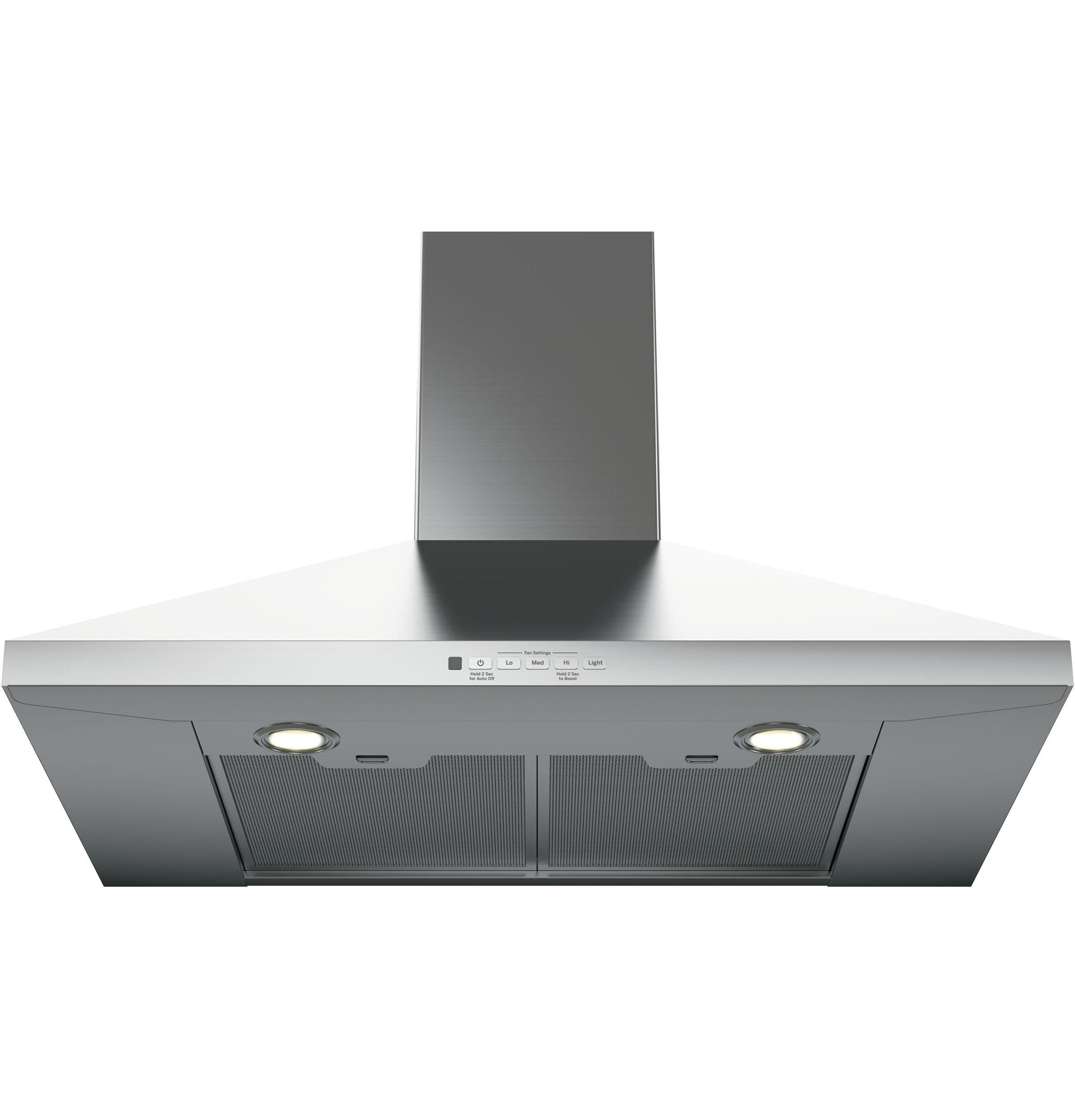

JVW5301SJSS GE® 30" Wall-Mount Pyramid Chimney Hood JVW5301SJSS

Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood

350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture

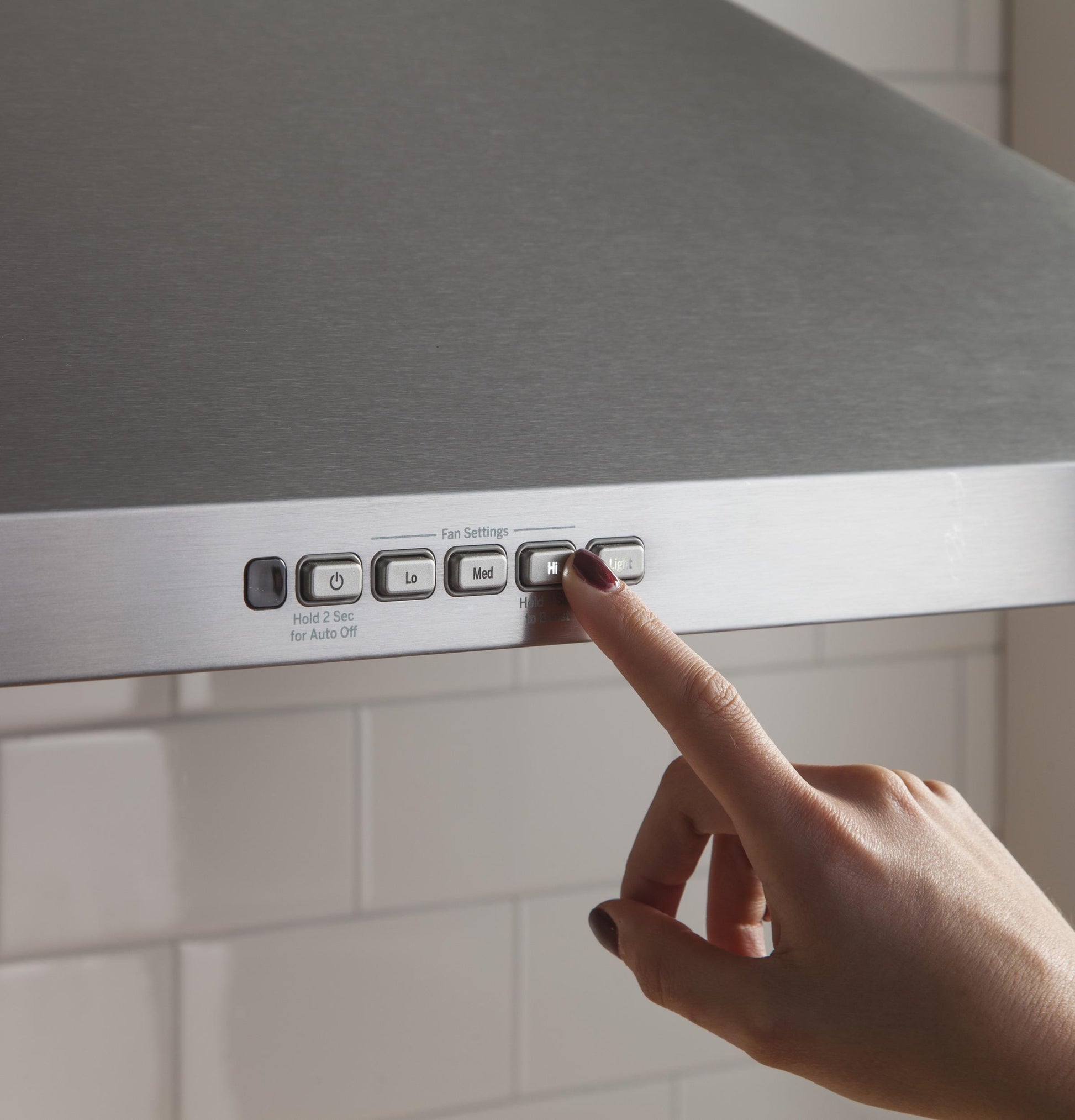

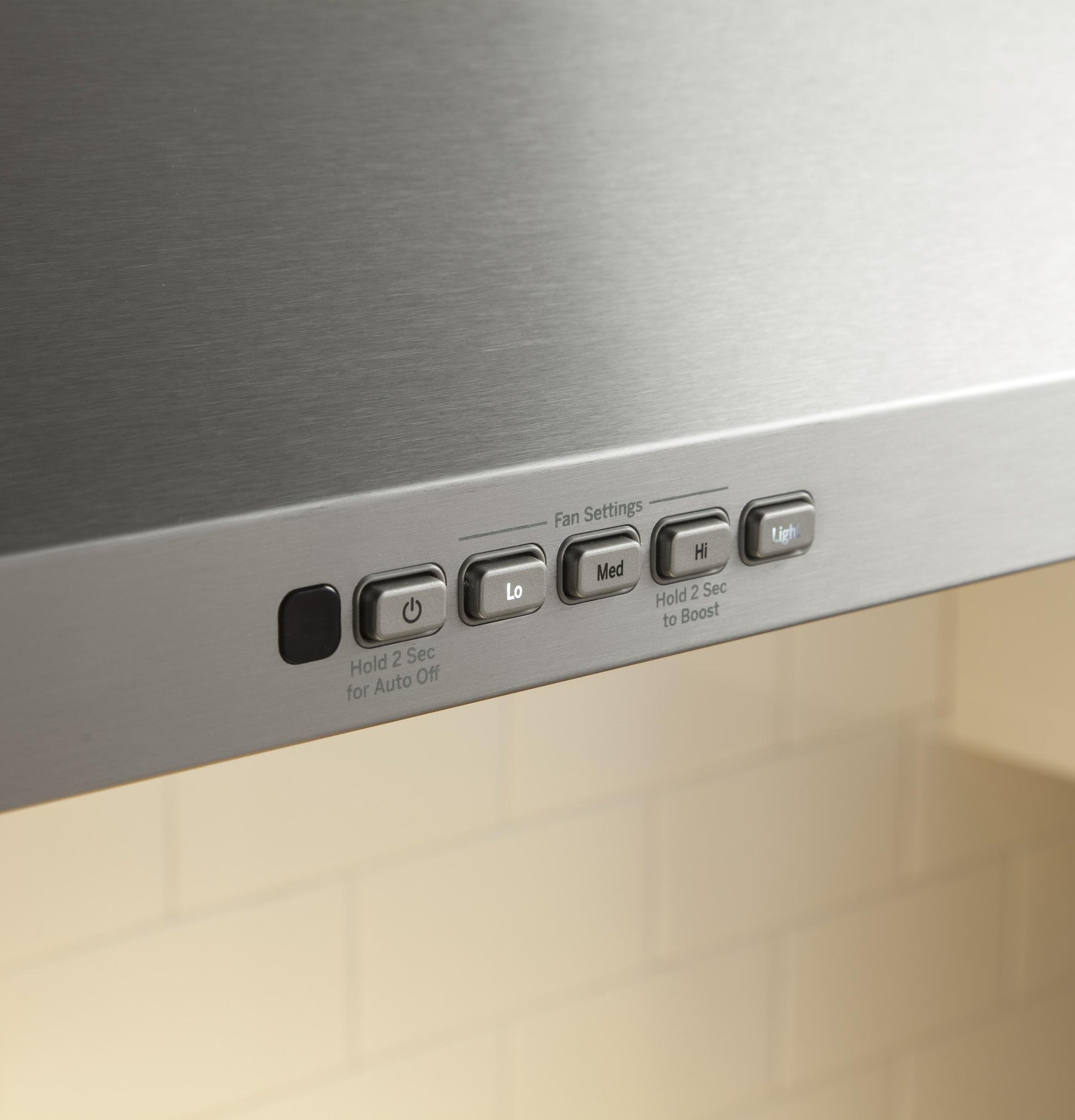

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display

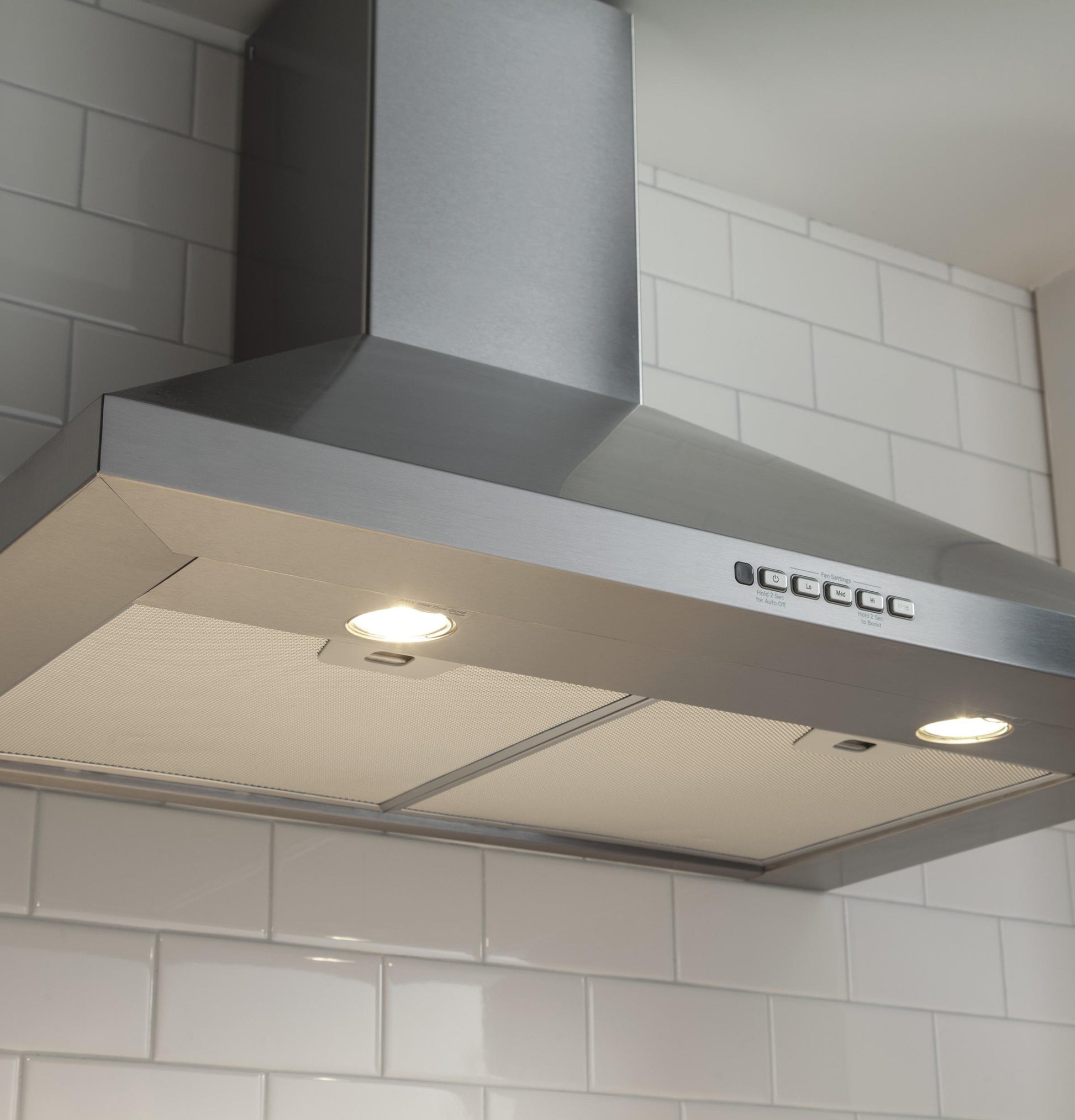

Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface

Night light
Keep a dim light on for visibility at all hours

Convertible venting options
Select recirculating or external venting

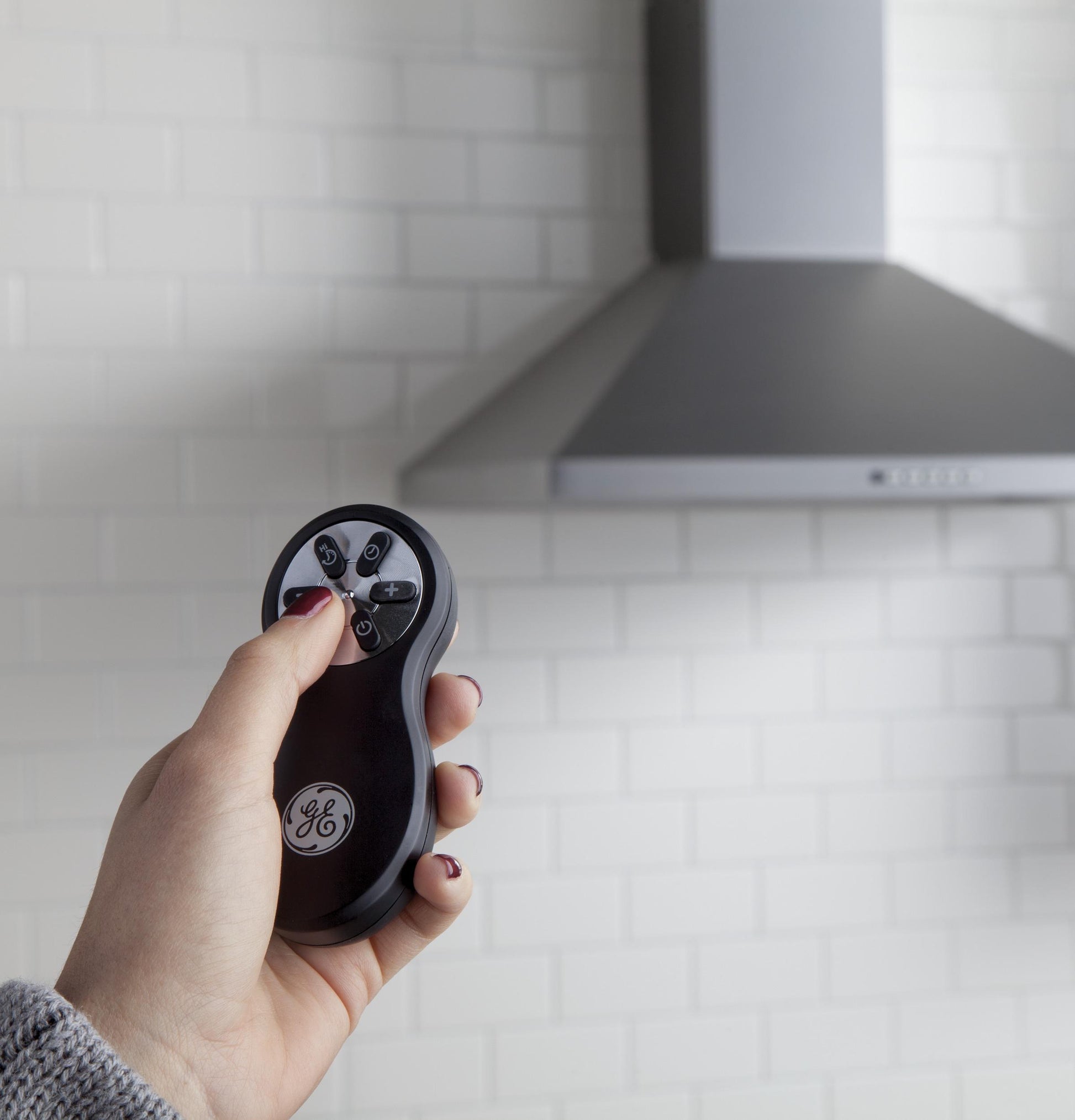

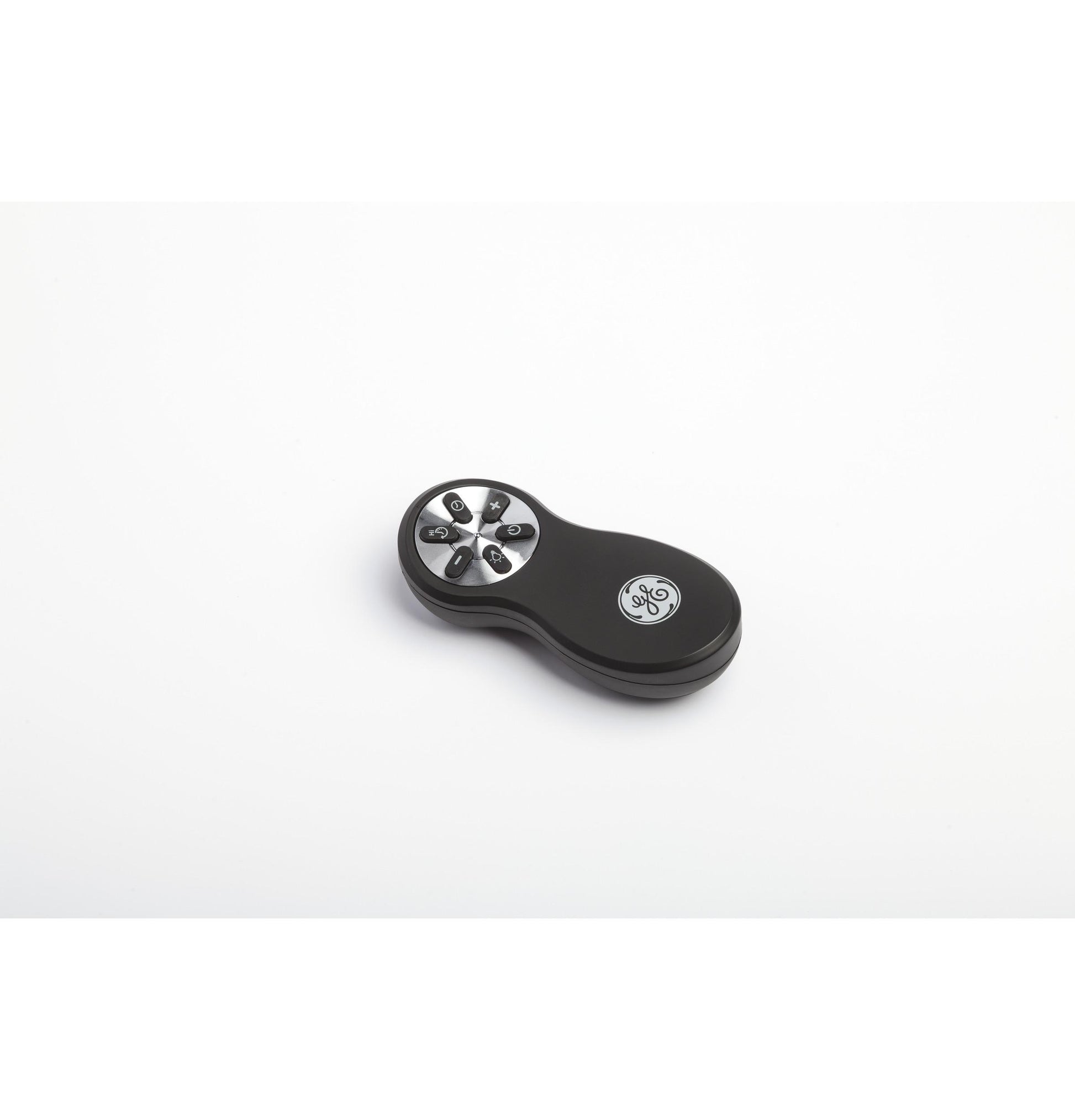

Optional remote control (JXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen

Auto-off
Set the vent hood to automatically shut off after 15 minutes

Dishwasher safe filter
Filters grease and is dishwasher-safe

FILTER
App Filter - Hood Type	Designer (includes "canopy" and "chimney")
App Filter - Venting Type	Convertible
App Filter - Cabinet Width	Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color	Backlit
Material	Metal
Color Appearance	Stainless Steel
POWER / RATINGS
Electrical Requirements	120V ; 60Hz ; 2.5A
Amp Rating at 120V	2.5
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type	Convertible
ACCESSORIES
Optional Accessories	JXCF72 - Charcoal Filter UXDC53SJSS - 10 (ft.) Ceiling Duct Cover Kit UXDC72SJSS - 9 (ft.) Ceiling Duct Cover Kit UXRC70 - Remote Control
WEIGHTS & DIMENSIONS
Cabinet Width	30 in
Net Weight	43 lb
Overall Depth	18.5 in
Approximate Shipping Weight	61 lb
Overall Height	9.875 in
Overall Width	30 in
FEATURES
Cooktop Lighting	1 Halogen
Fan Speed Control	4-Speed
Max CFM	350
Ducting	Vertical Only
Light Controls	On/Off/Night
Filter Cleaning	Dishwasher Safe
CFM/ Sones Rating	150/1.0 (Working Speed) 340/5.1 (High Speed) 350/6.6 (Boost Speed)
Exhaust Options	Recirculating Vented to Outside
Product Type	Designer Hood
6" Round Duct	Yes
Control Type	Backlit Electronic Touch
Control Location	Front
Removable Grease Filter(s)	Yes
