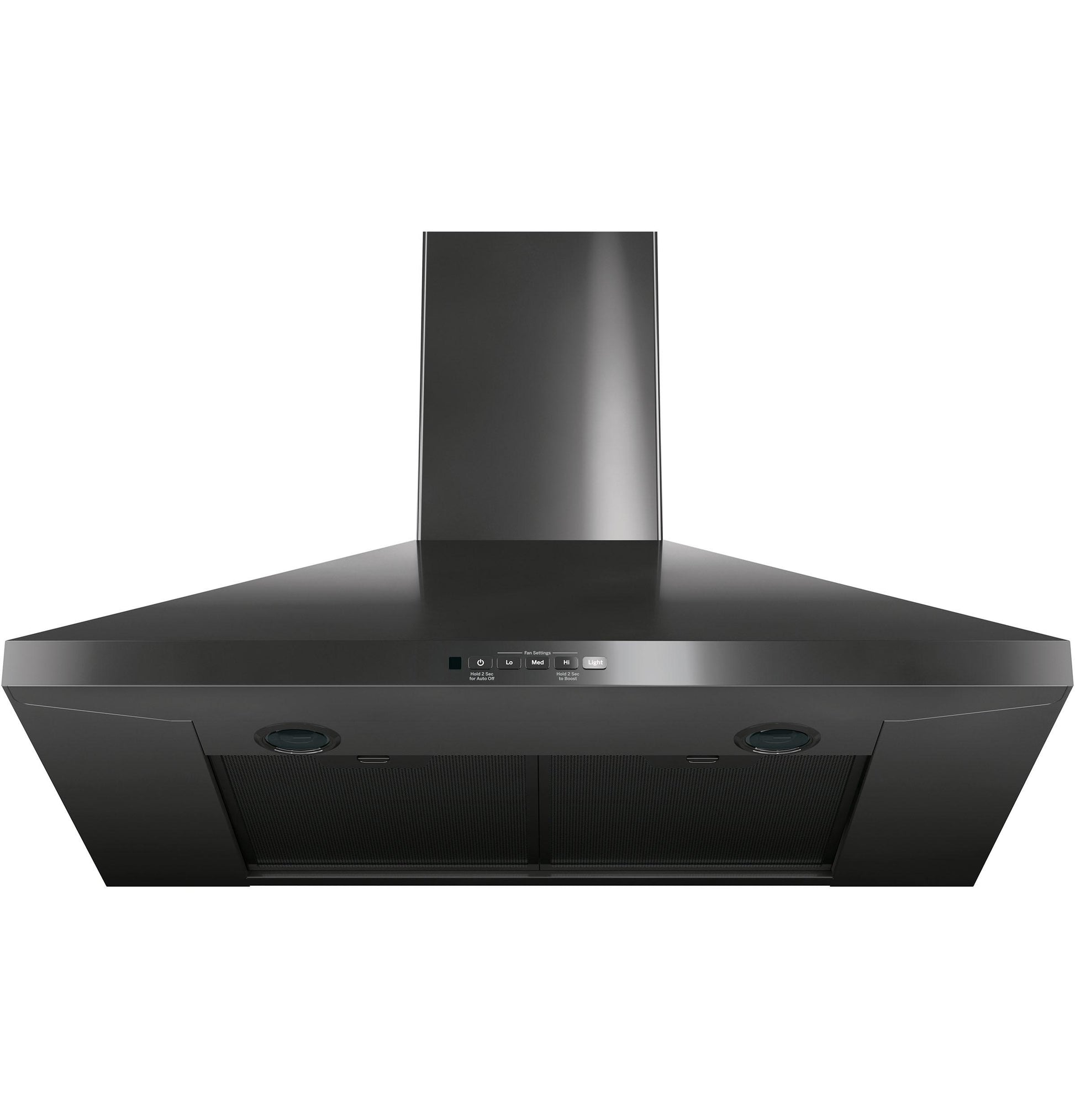

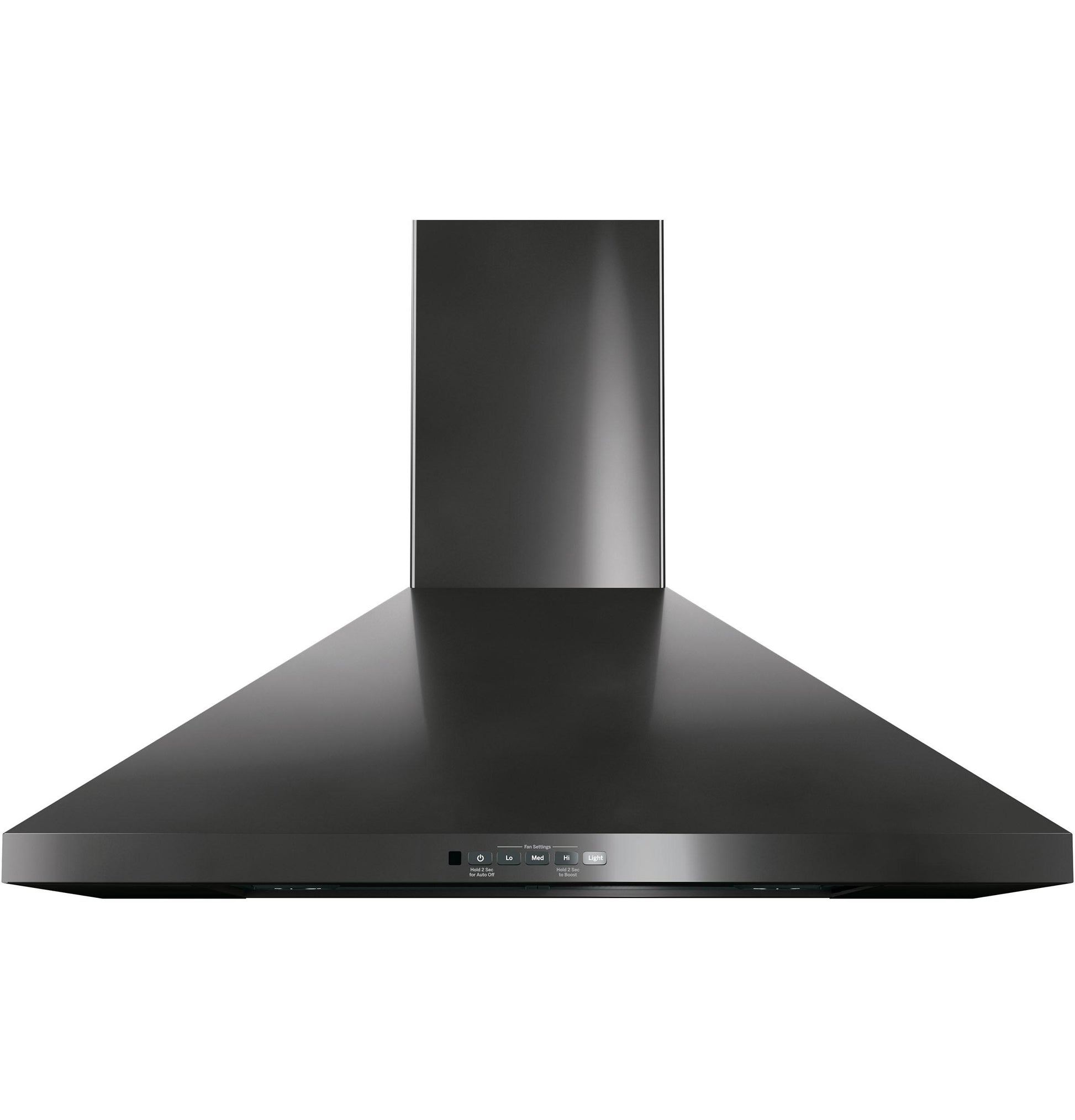

GE® 30" Wall-Mount Pyramid Chimney Hood JVW5301BJTS

SKU/Model #: JVW5301BJTS
GE® 30" Wall-Mount Pyramid Chimney Hood
Authorized Reseller
SKU/Model #: JVW5301BJTS
GE® 30" Wall-Mount Pyramid Chimney Hood
GE® 30" Wall-Mount Pyramid Chimney Hood
GE® 30" Wall-Mount Pyramid Chimney Hood
GE® 30" Wall-Mount Pyramid Chimney Hood
GE® 30" Wall-Mount Pyramid Chimney Hood
GE® 30" Wall-Mount Pyramid Chimney Hood

Product Details

  • Easy do-it-yourself Installation
  • 350-CFM venting system with boost
  • Electronic backlit controls
  • Dual halogen cooktop lighting
  • Night light
  • Convertible venting options
  • Optional remote control (JXRC70)
  • Auto-off
  • Dishwasher safe filter

Easy do-it-yourself Installation

350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display

Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface

Night light
Keep a dim light on for visibility at all hours

Convertible venting options
Select recirculating or external venting

Optional remote control (JXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen

Auto-off
Set the vent hood to automatically shut off after 15 minutes

Dishwasher safe filter
Filters grease and is dishwasher-safe

FILTER
App Filter - Hood Type Designer (includes "canopy" and "chimney")
App Filter - Venting Type Convertible
App Filter - Cabinet Width Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color Backlit
Color Appearance Fingerprint Resistant Black Stainless
POWER / RATINGS
Amp Rating at 120V 2.5
WARRANTY
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type Convertible
ACCESSORIES

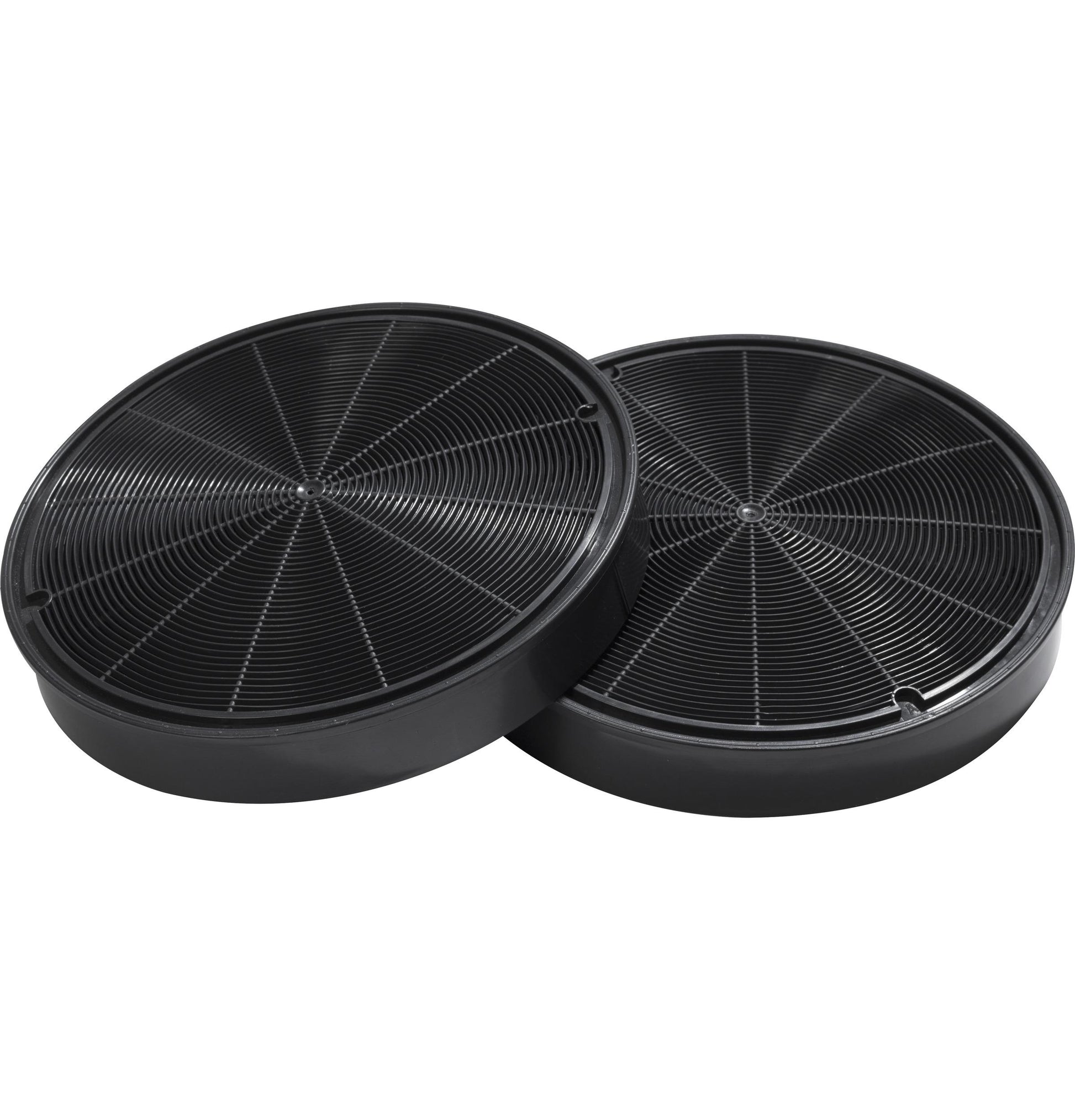

Optional Accessories JXCF72 - Charcoal Filter

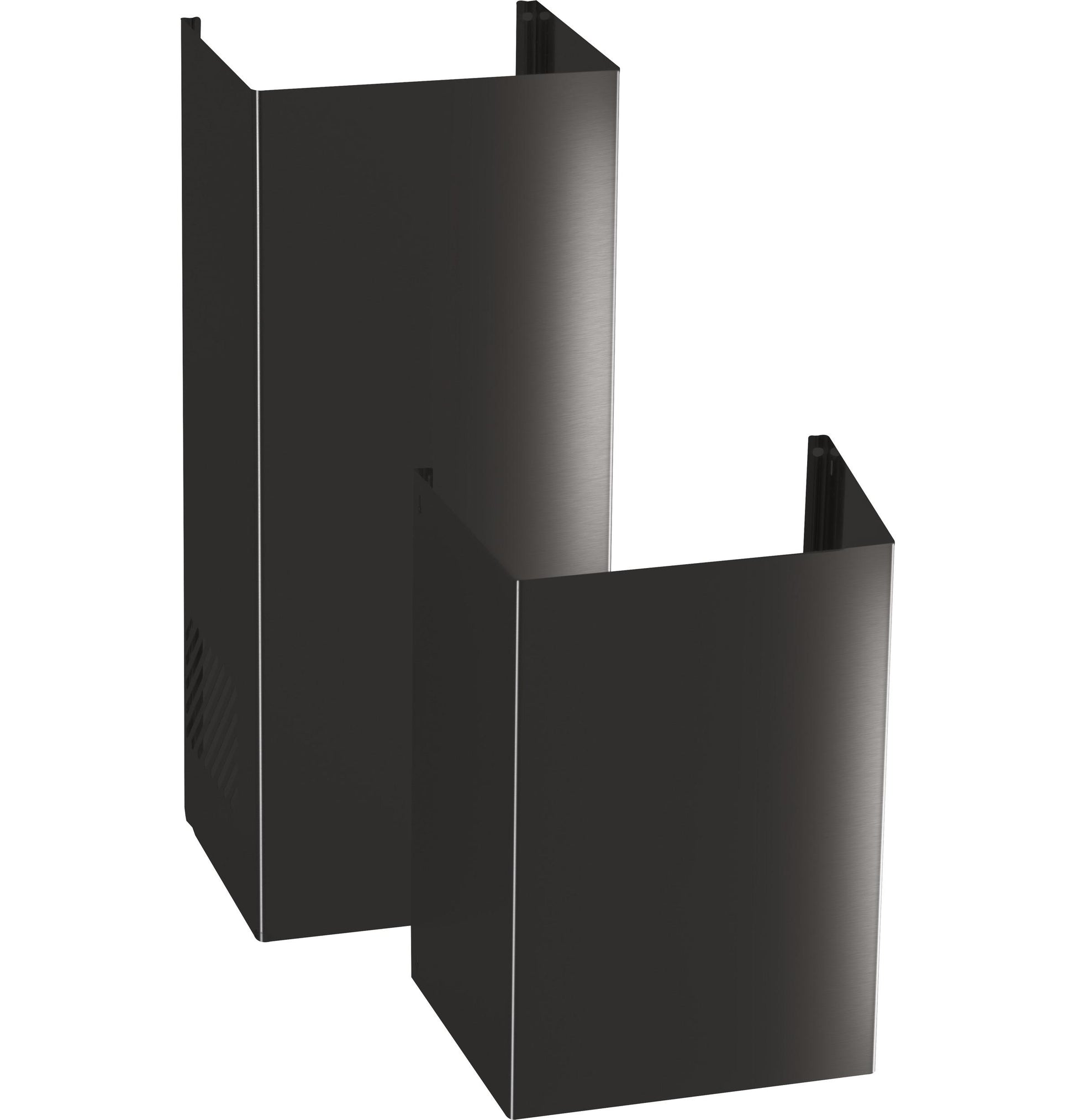

UXDC53BJTS - 10 (ft.) Ceiling Duct Cover Kit
UXDC72BJTS - 9 (ft.) Ceiling Duct Cover Kit

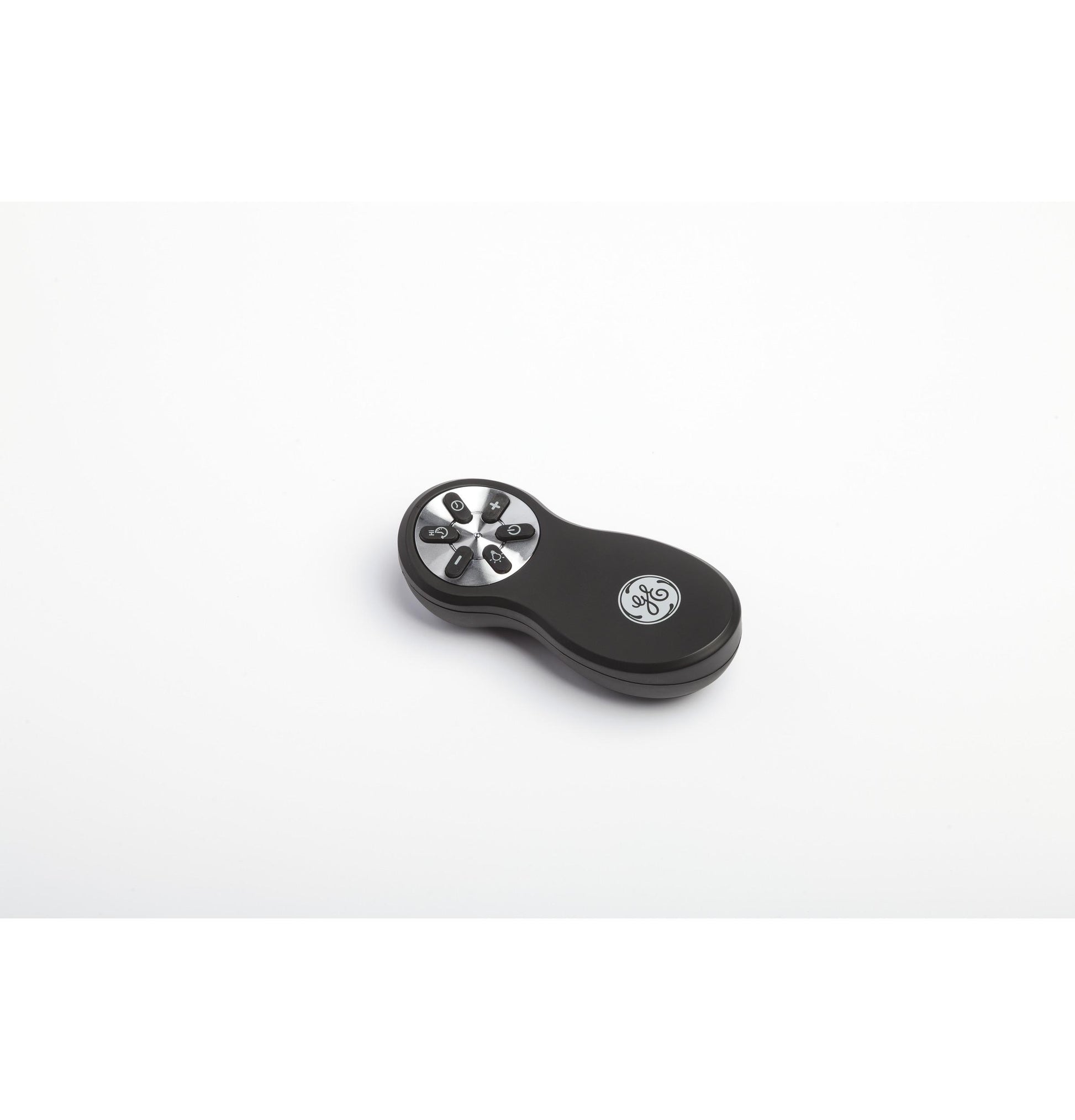

UXRC70 - Remote Control
WEIGHTS & DIMENSIONS
Cabinet Width 30 in
Net Weight 43 lb
Overall Depth 18.5 in
Approximate Shipping Weight 61 lb
Overall Height 9.875 in
Overall Width 30 in
FEATURES
Fan Speed Control 4-Speed
Cooktop Lighting Halogen
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 150/1.0 (Working Speed)
340/5.1 (High Speed)
350/6.6 (Boost Speed)
Exhaust Options Recirculating
Vented to Outside
Product Type Designer Hood
6" Round Duct Yes
Control Type Backlit
Control Location Front
Removable Grease Filter(s) Yes
