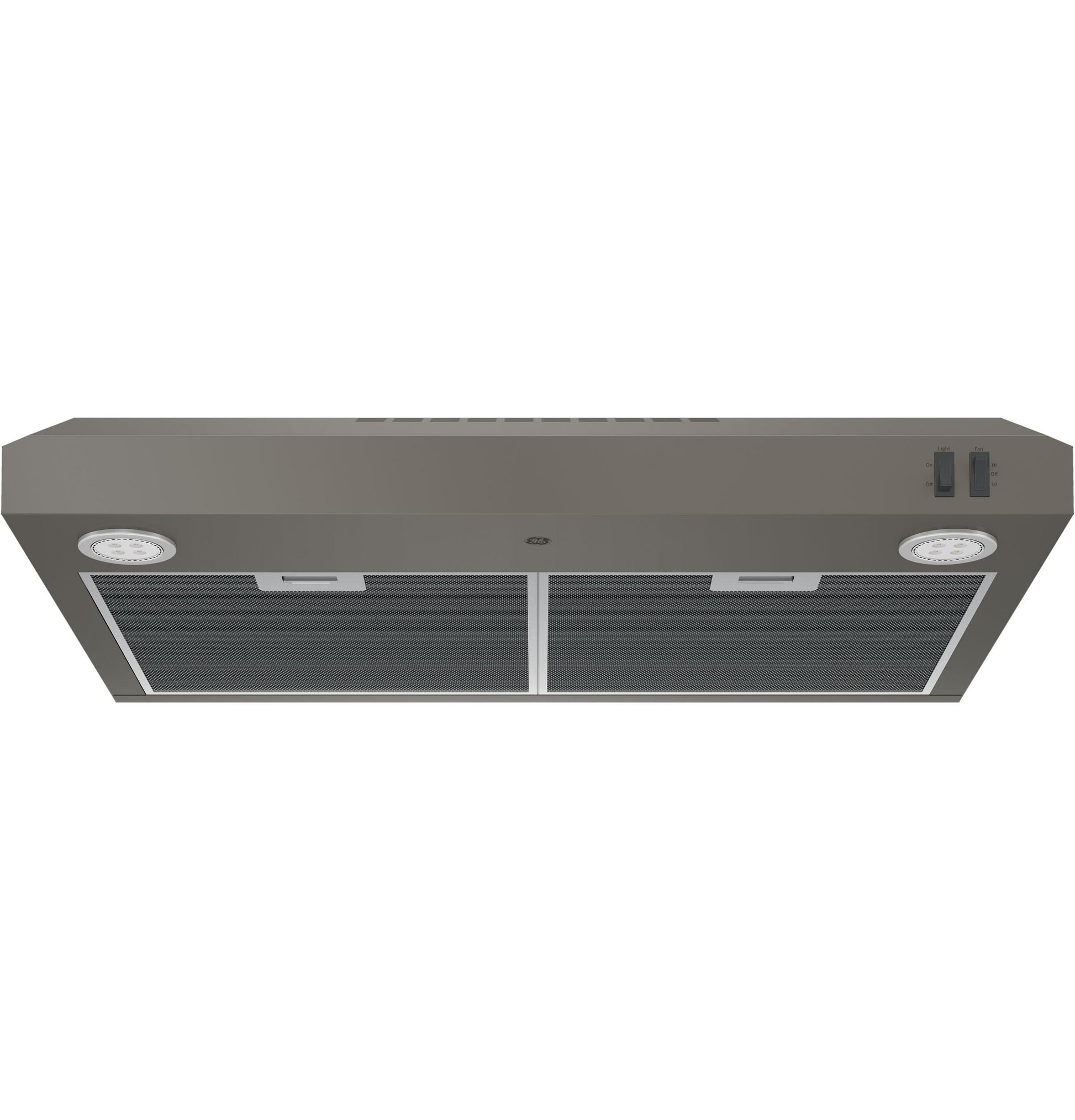

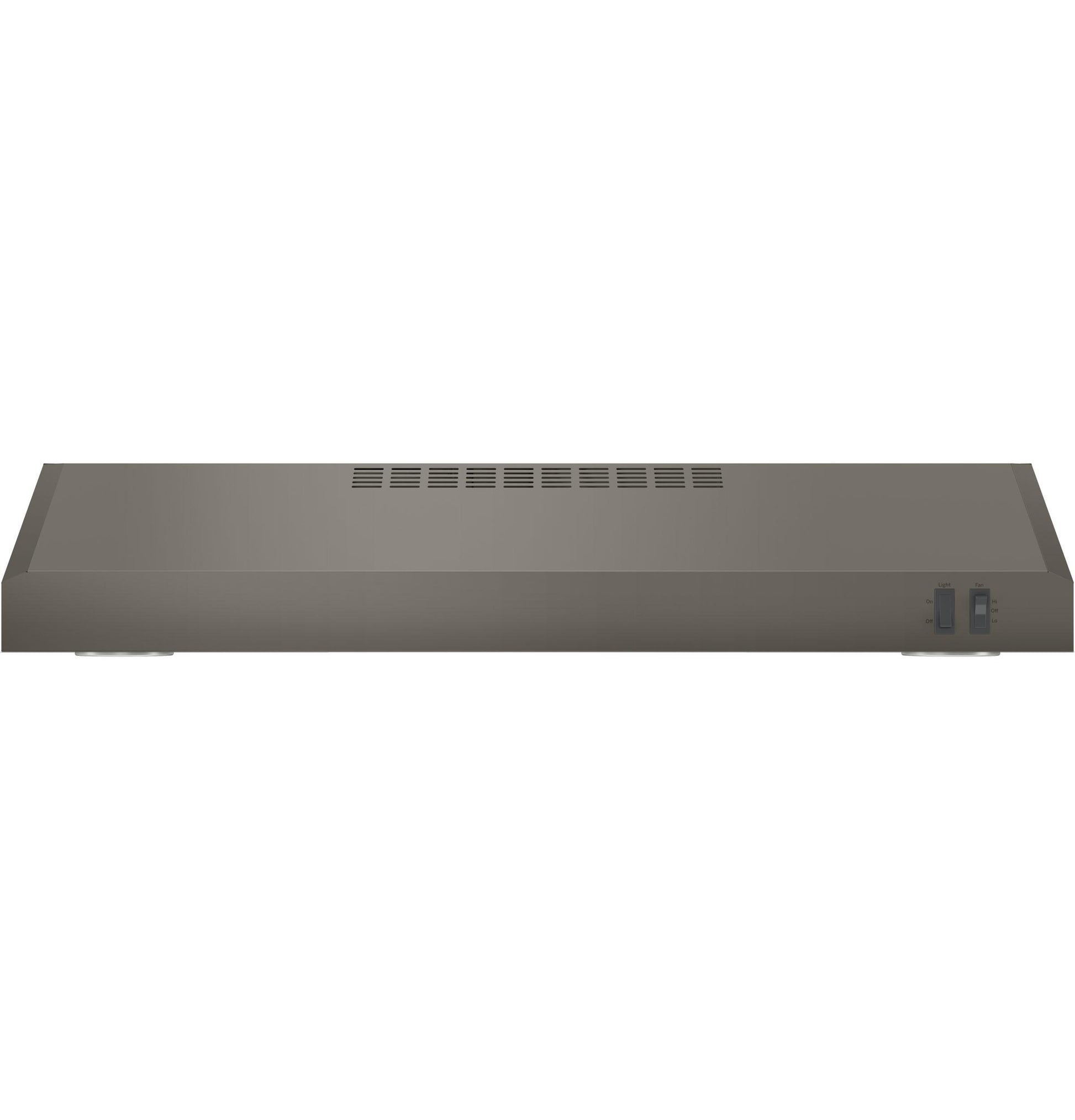

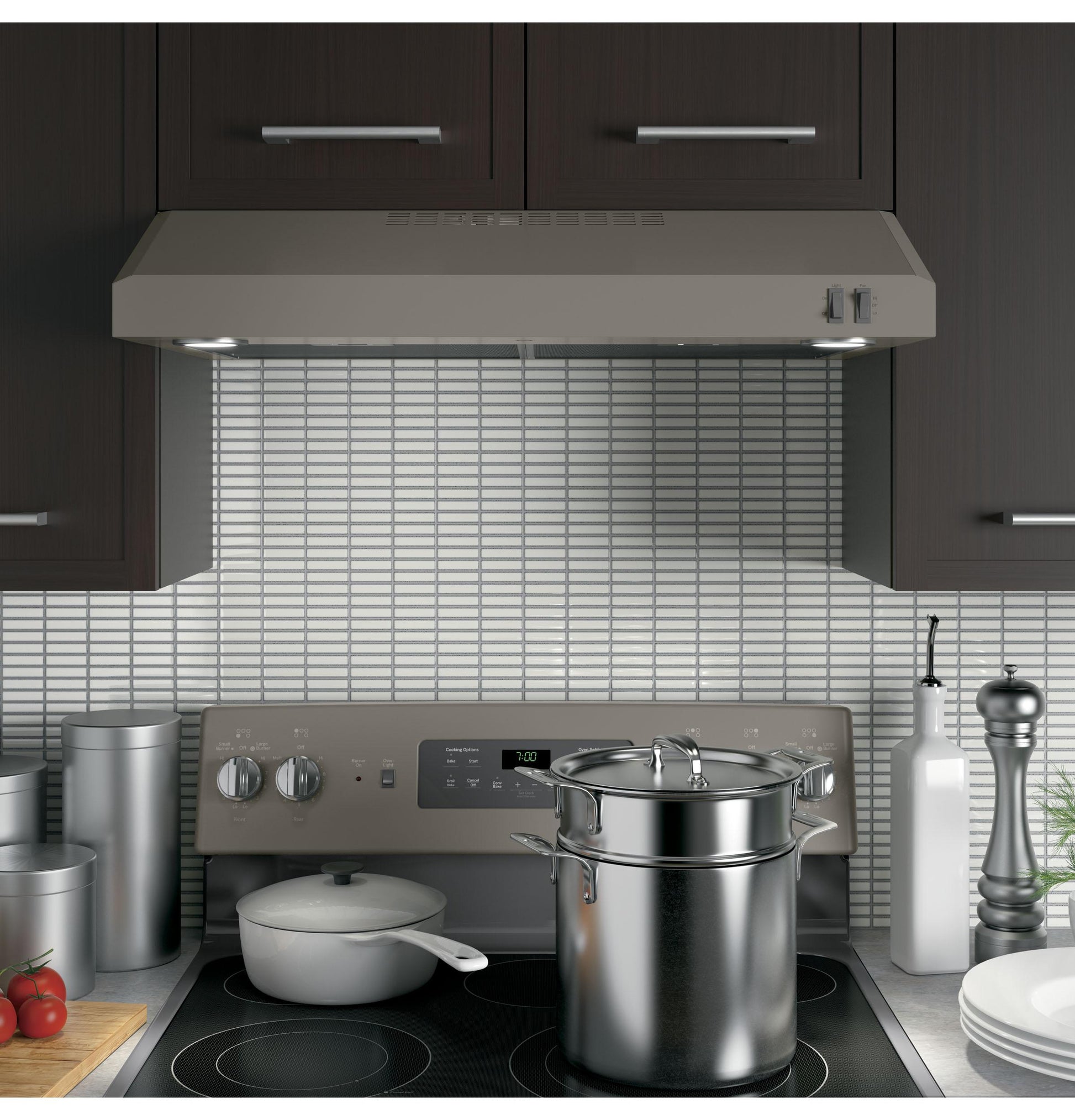

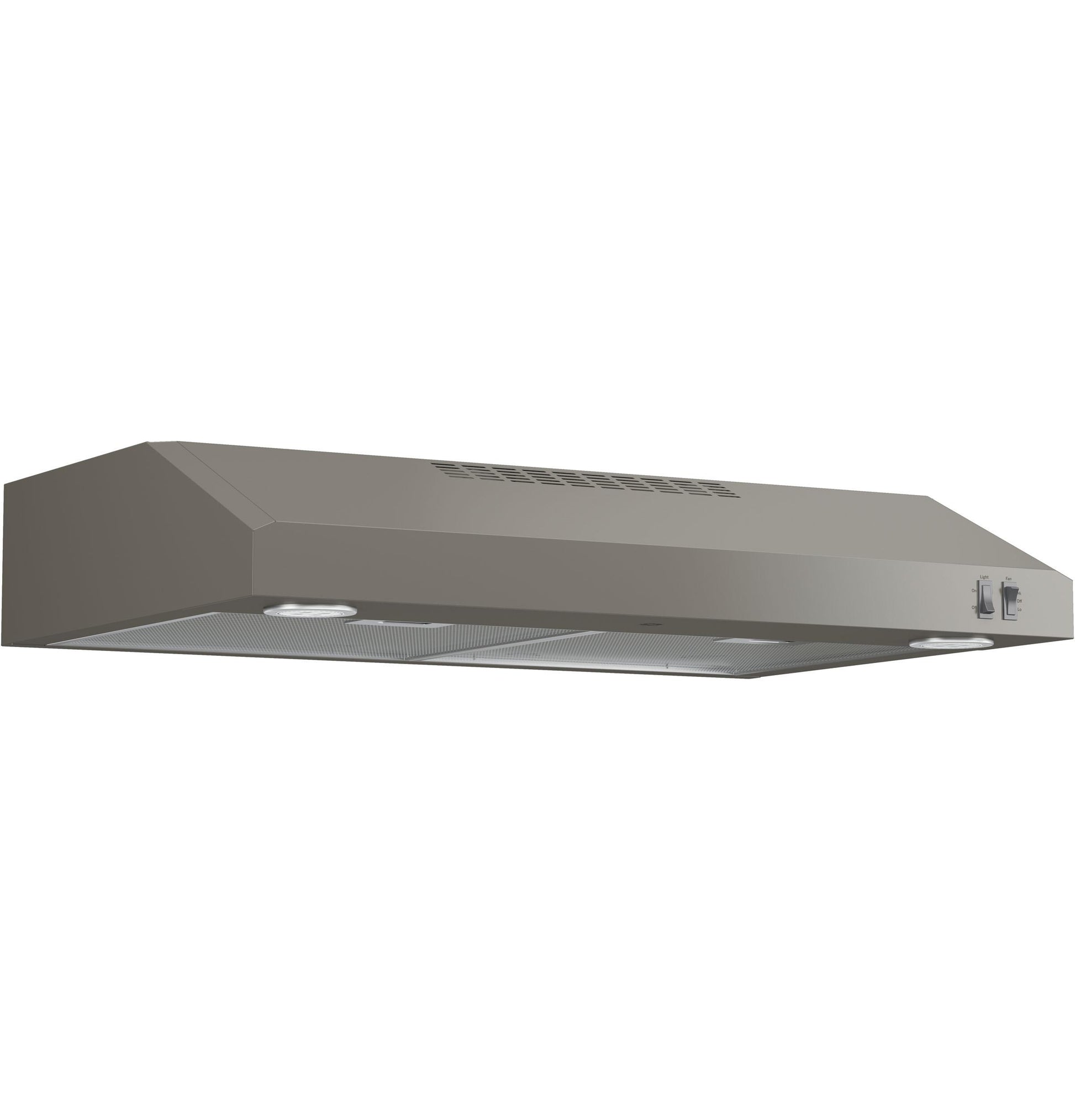

JVX5305EJES GE® ENERGY STAR® 30" Under The Cabinet Hood

Easy installation
10 minutes or less by one person

Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture

Front controls
Enjoy easy access and a subtle appearance

Dual LED lighting
Choose bright light while cooking - bulbs included

Convertible venting options
Select recirculating or external venting

Vertical and rear exhaust
Exhausts from the top or rear of the hood

Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

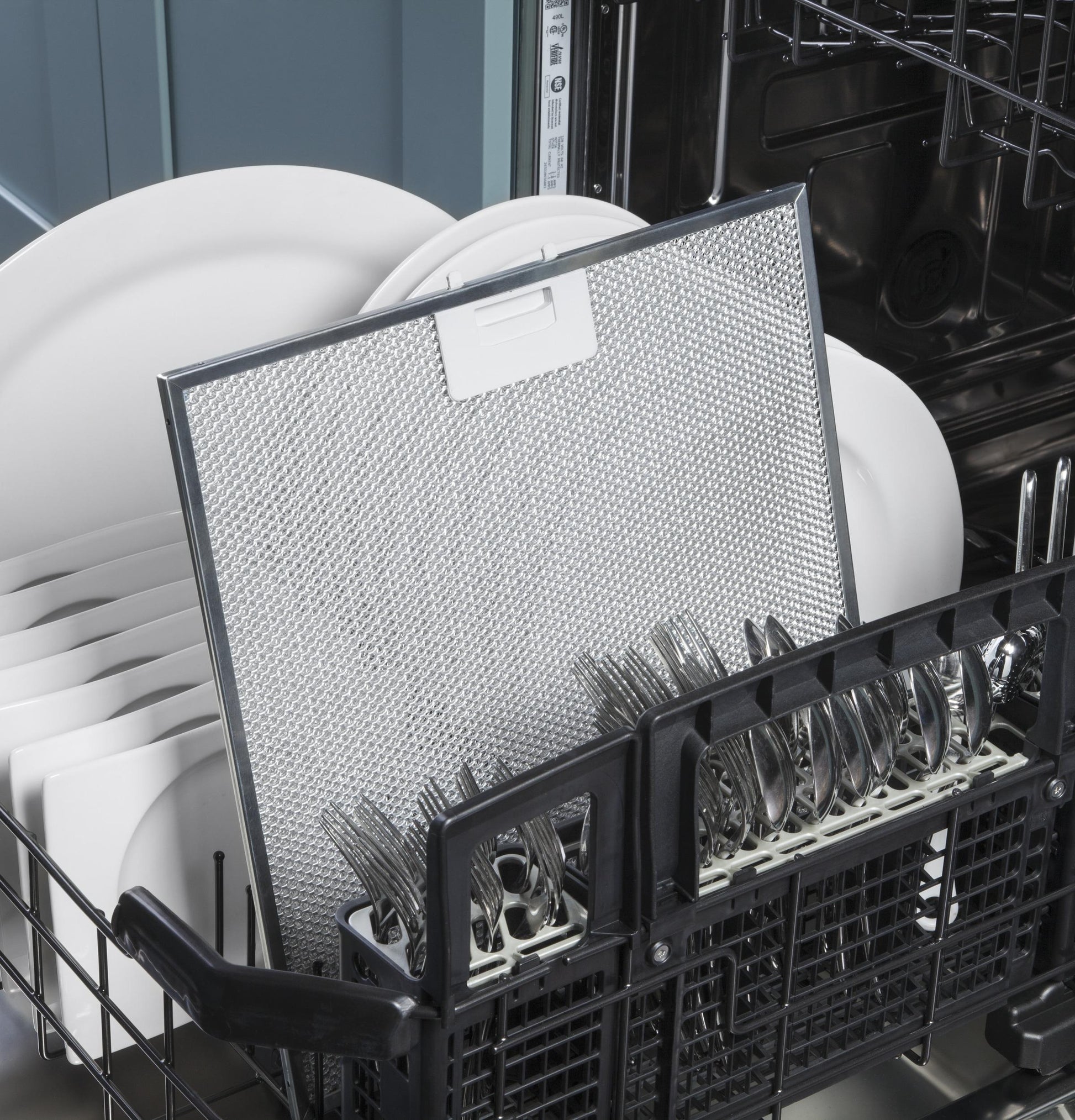

Dishwasher safe filter
Filters grease and is dishwasher-safe

FILTER
App Filter - Hood Type	Under Cabinet Hoods
App Filter - Venting Type	Convertible
App Filter - Cabinet Width	Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color	Gray
Color Appearance	Fingerprint Resistant Slate
POWER / RATINGS
Watts	87
Hertz	60
Electrical Requirements	120V
Amp Rating at 120V	1.0
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type	Convertible
ACCESSORIES
Optional Accessories	JXCF55 - Charcoal Filter JXHC1 - Power Cord Kit

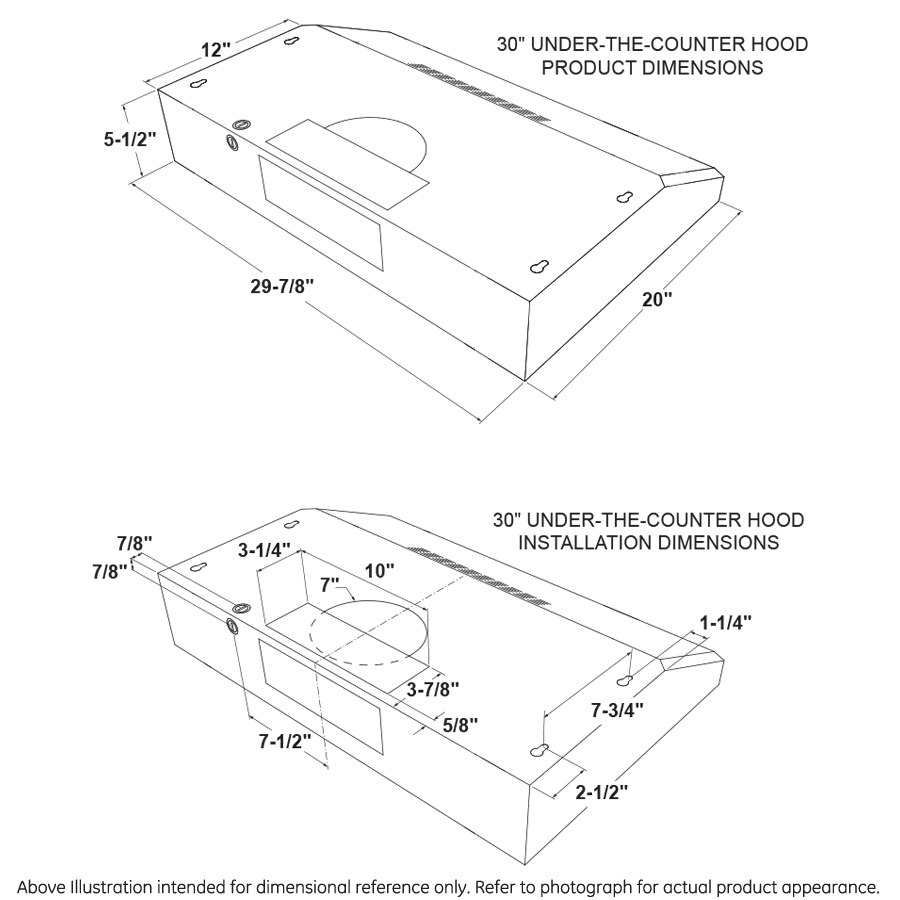

WEIGHTS & DIMENSIONS
Cabinet Width	30 in
Net Weight	20 lb
Overall Depth	20 in
Approximate Shipping Weight	27 lb
Overall Height	5.5 in
Overall Width	29.875 in
FEATURES
Cooktop Lighting	Dual LED
Fan Speed Control	2-Speed
Max CFM	270
Ducting	Vertical or Horizontal; 7" Round
Light Controls	On/Off
Filter Cleaning	Dishwasher Safe
CFM/ Sones Rating	100/1.5 (Low Speed) 270/4.5 (High Speed)
Exhaust Options	Recirculating Vented to Outside
Product Type	Under Cabinet Hood
Control Type	Rocker Switch
Control Location	Front
Removable Grease Filter(s)	Yes
