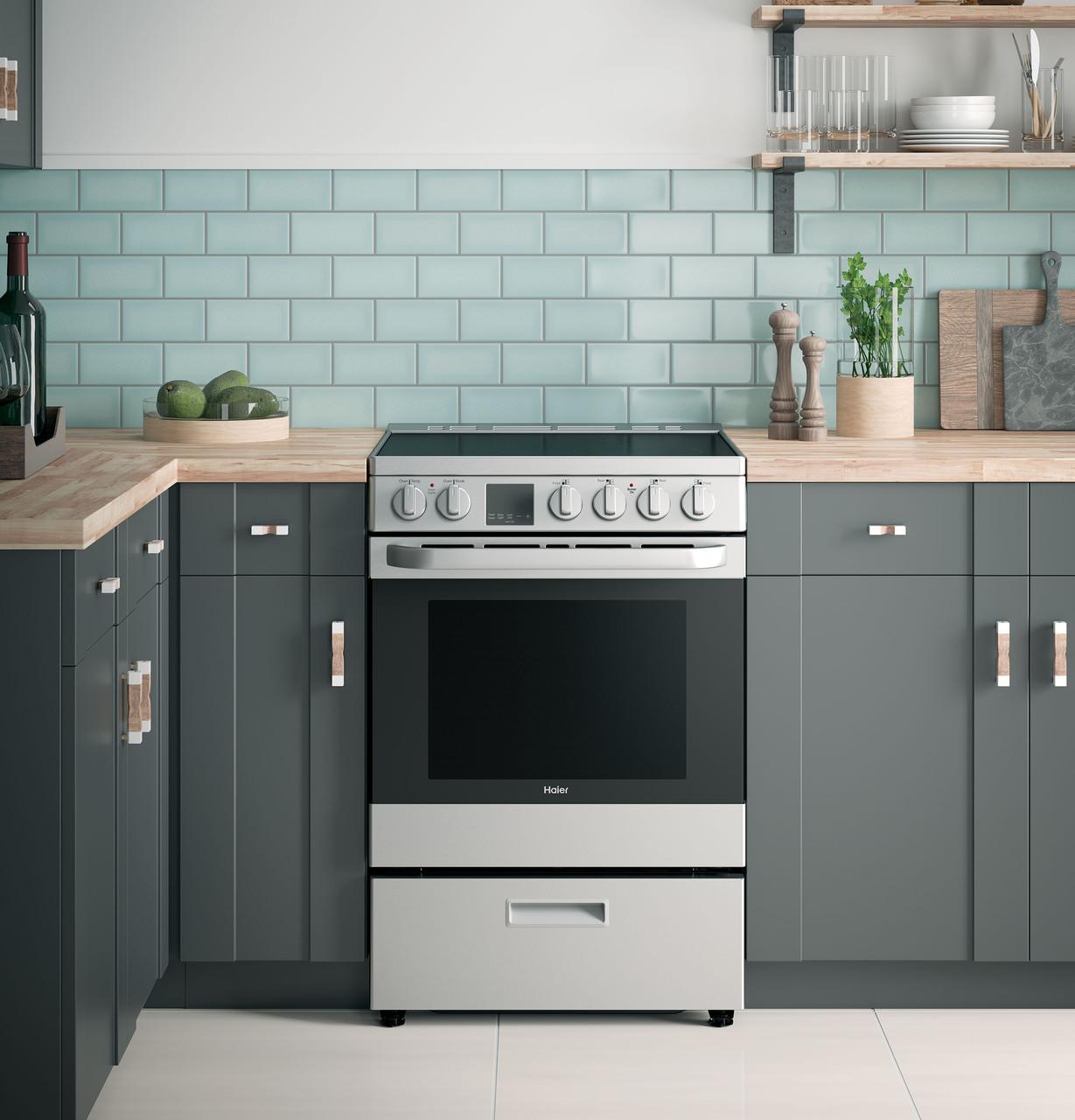

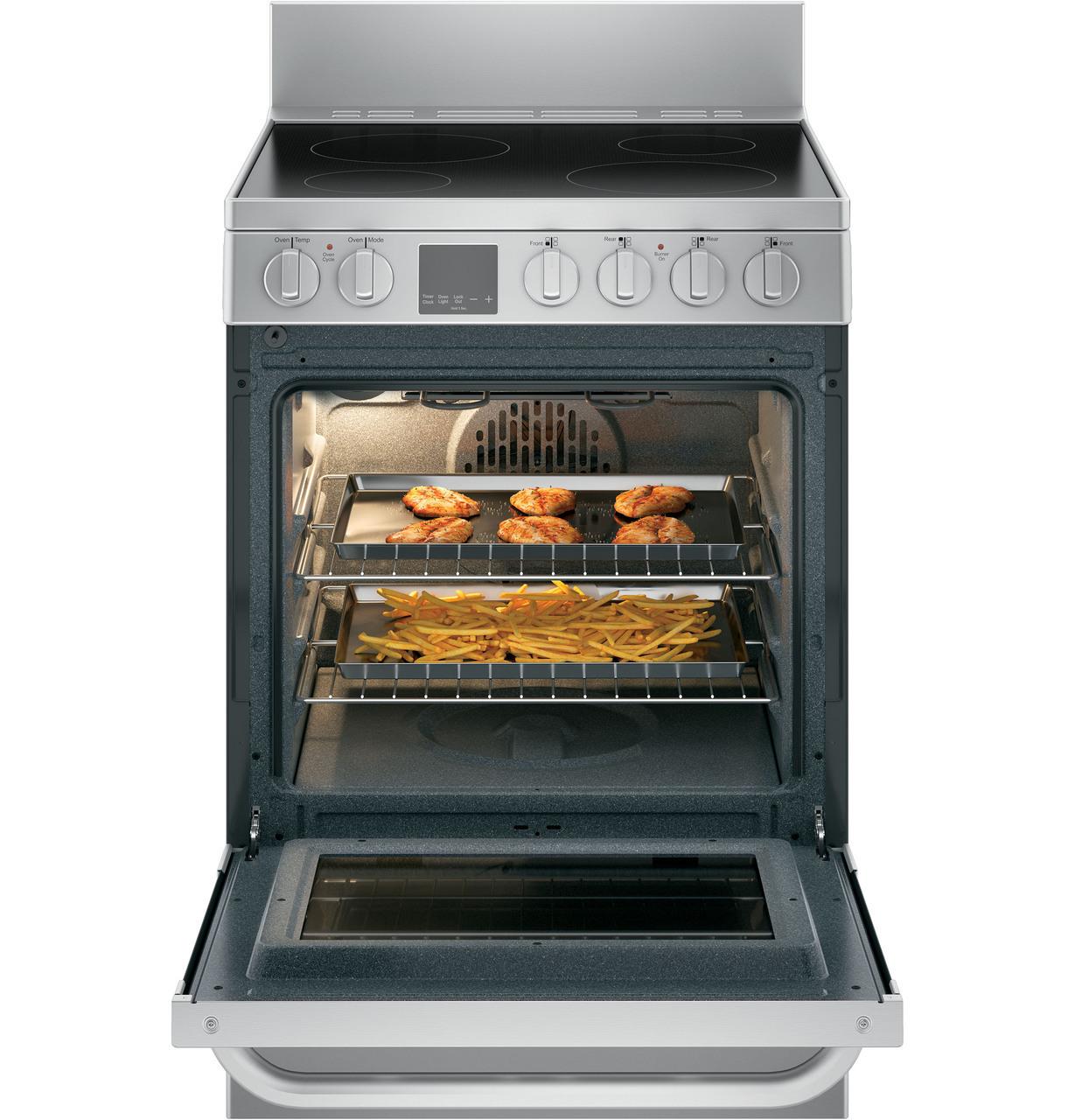

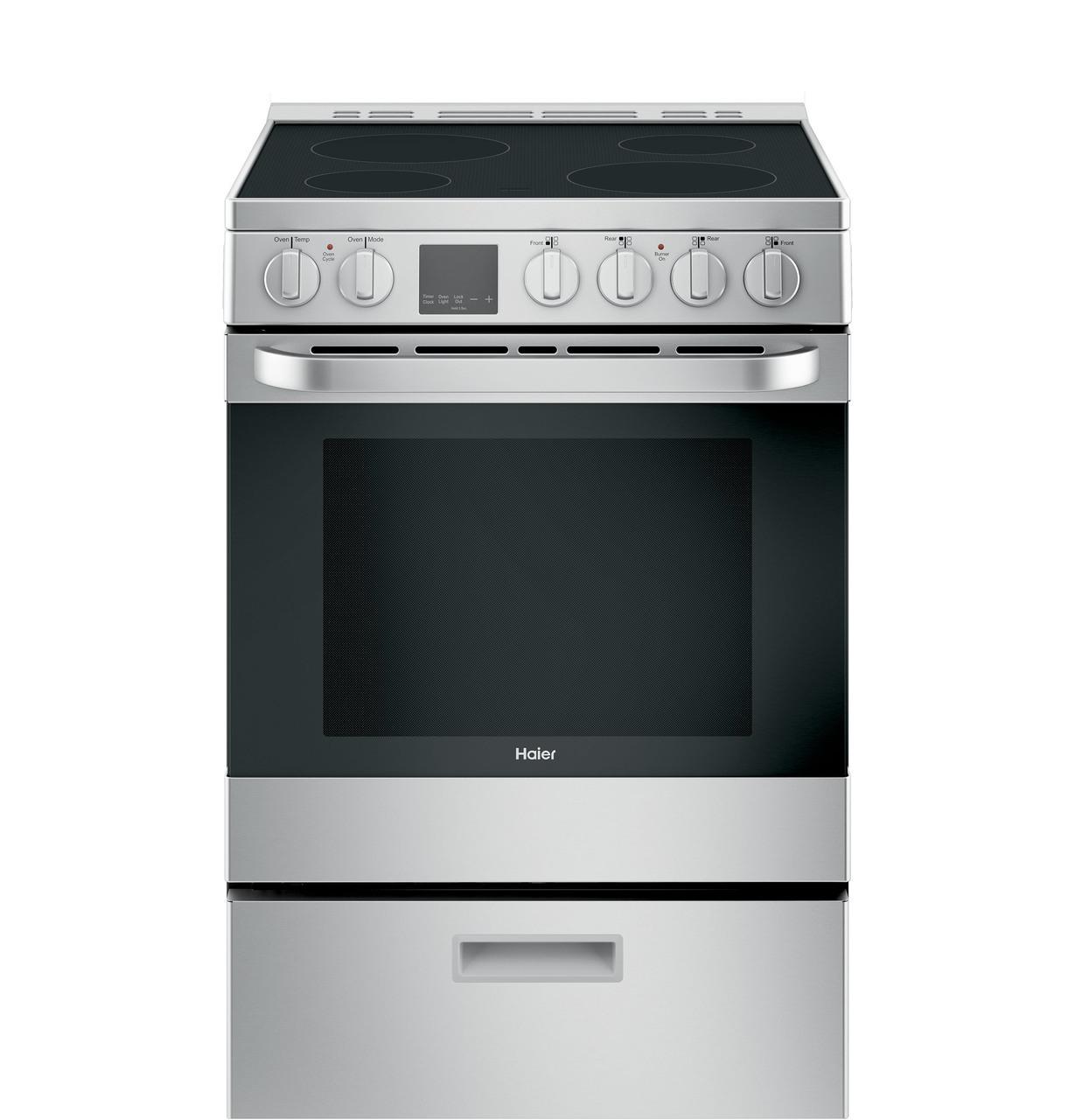

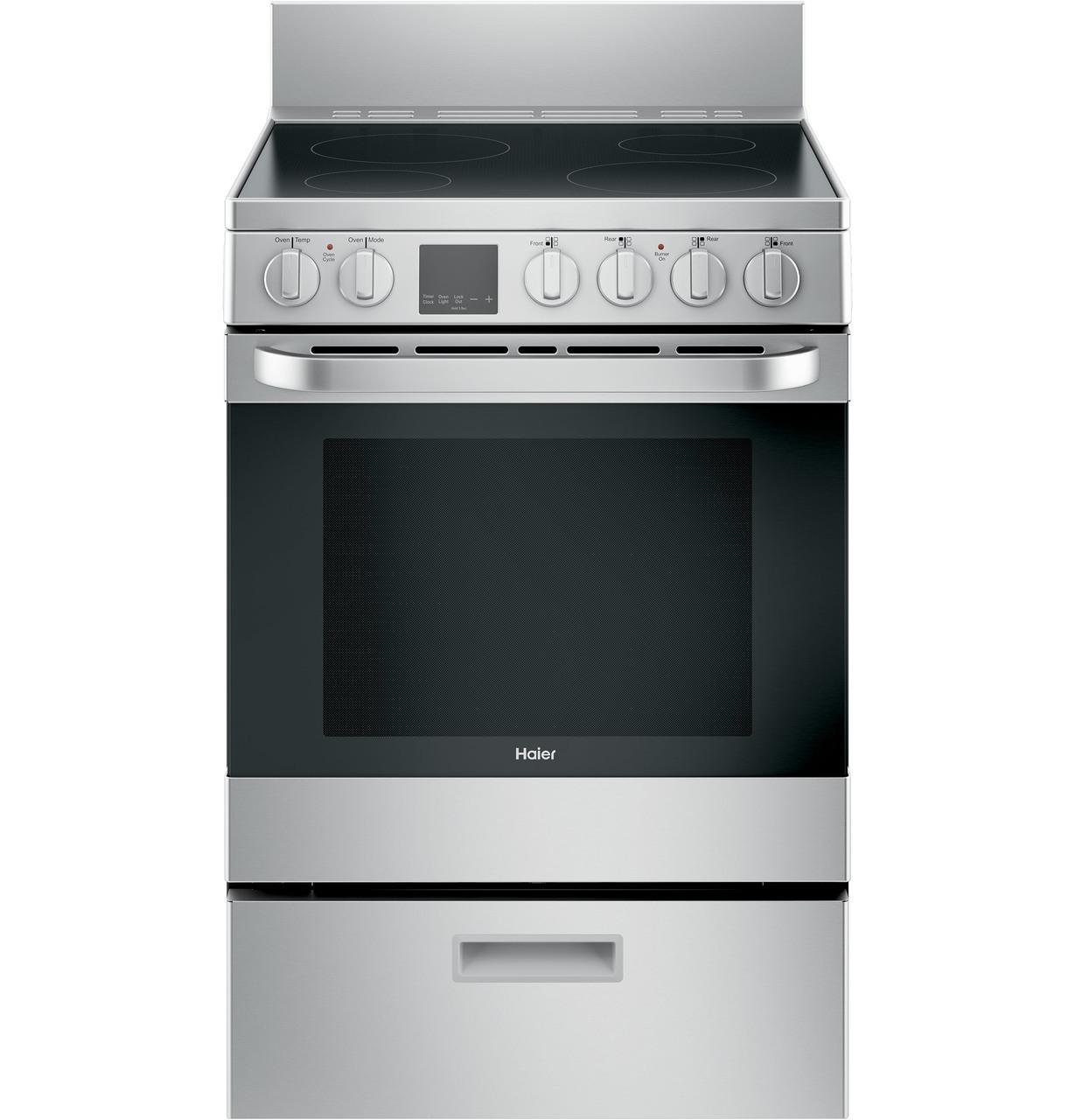

24" 2.9 Cu. Ft. Electric Range
Specs & Details | |
accessories | |

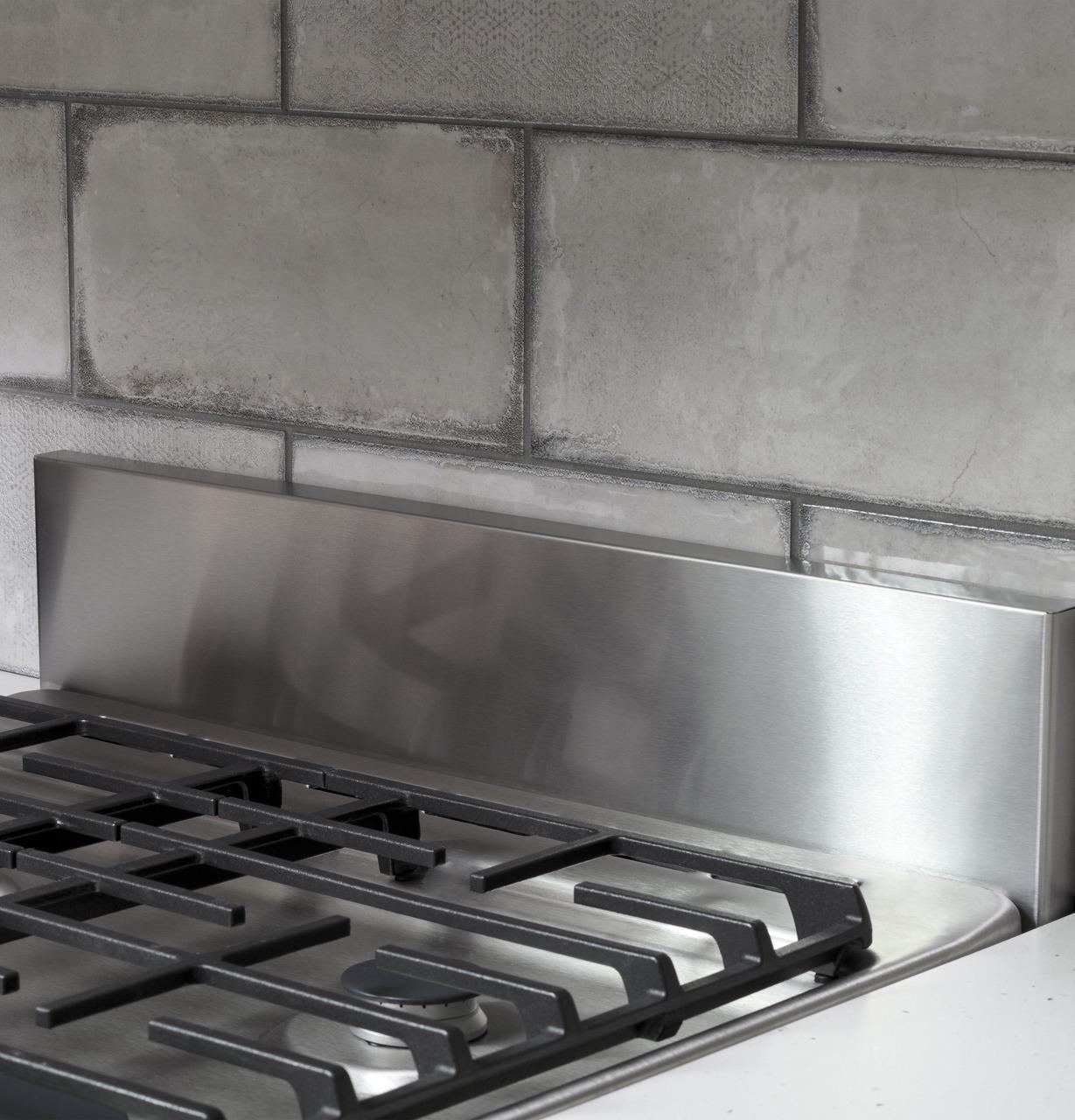

Optional Backguard | Included |
capacity | |
Total Capacity (cubic feet) | 2.90 cu ft |
power / ratings | |
Amp Rating at 208V | 35.6 |
Amp Rating at 240V | 40 |
Bake Wattage | 2700W |
Broiler Wattage | 3000W |
Electrical Requirements | 208/240V;60Hz |
KW Rating at 208V | 8.2 |
KW Rating at 240V | 10.7 |
weights & dimensions | |
Approximate Shipping Weight | 136 lb |

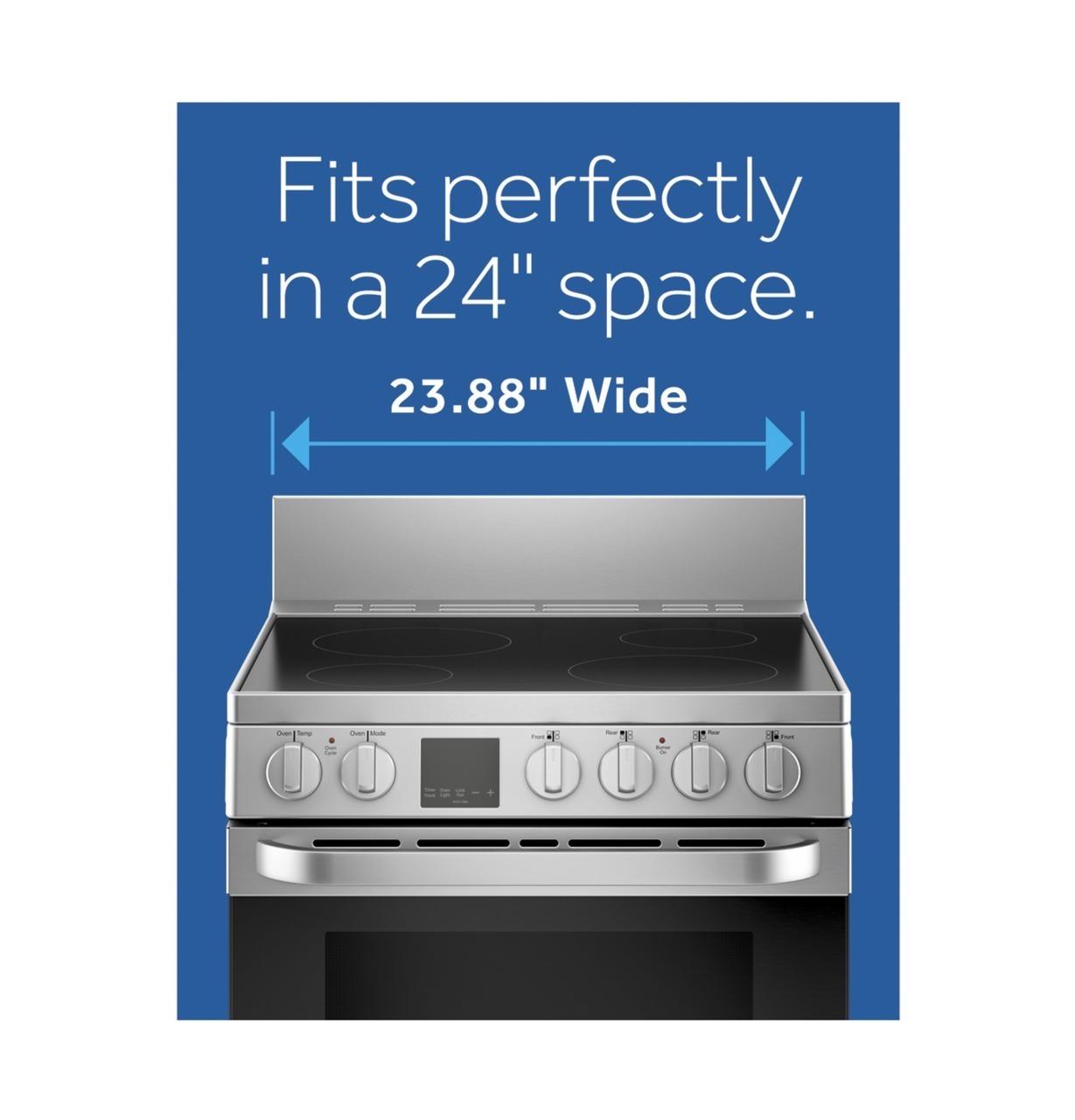

Cabinet Width | 24 in |
Depth with Door Open | 45 5/8 in |
Depth Without Handle | 25 3/4 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Net Weight | 123 lb |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
Overall Depth | 28 1/8 in |
Overall Height | 40 3/4 in |
Overall Width | 24 in |
appearance | |
Color Appearance | Stainless Steel |
Control Knobs | Stainless |
Door Swing | Pull Down |
Handle | Stainless |
Oven Door Features | Oven Window |
Textured Steel Side Panels | Yes |
features | |
Configuration | Range with Storage Drawer |
Control Location | Front |

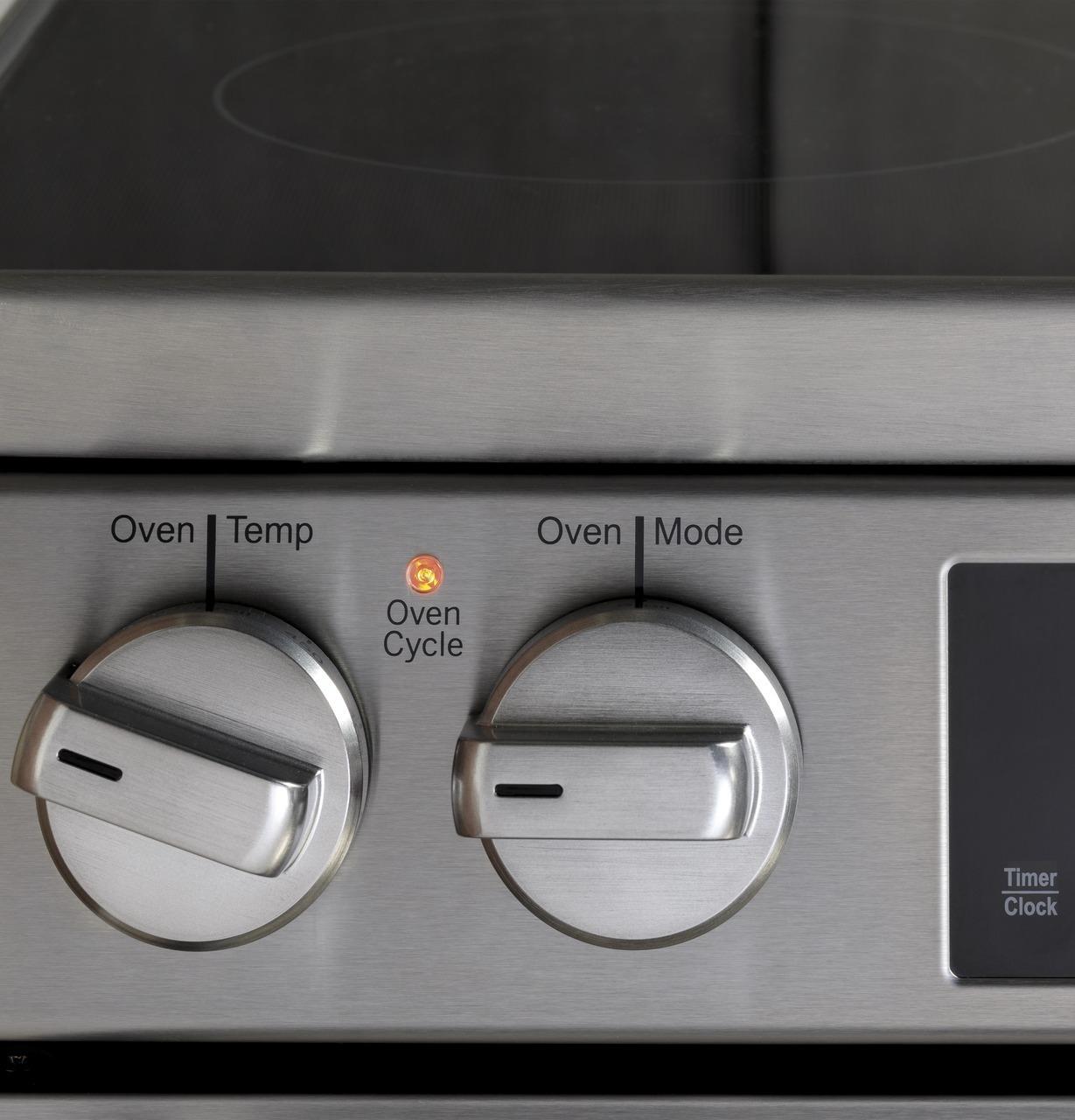

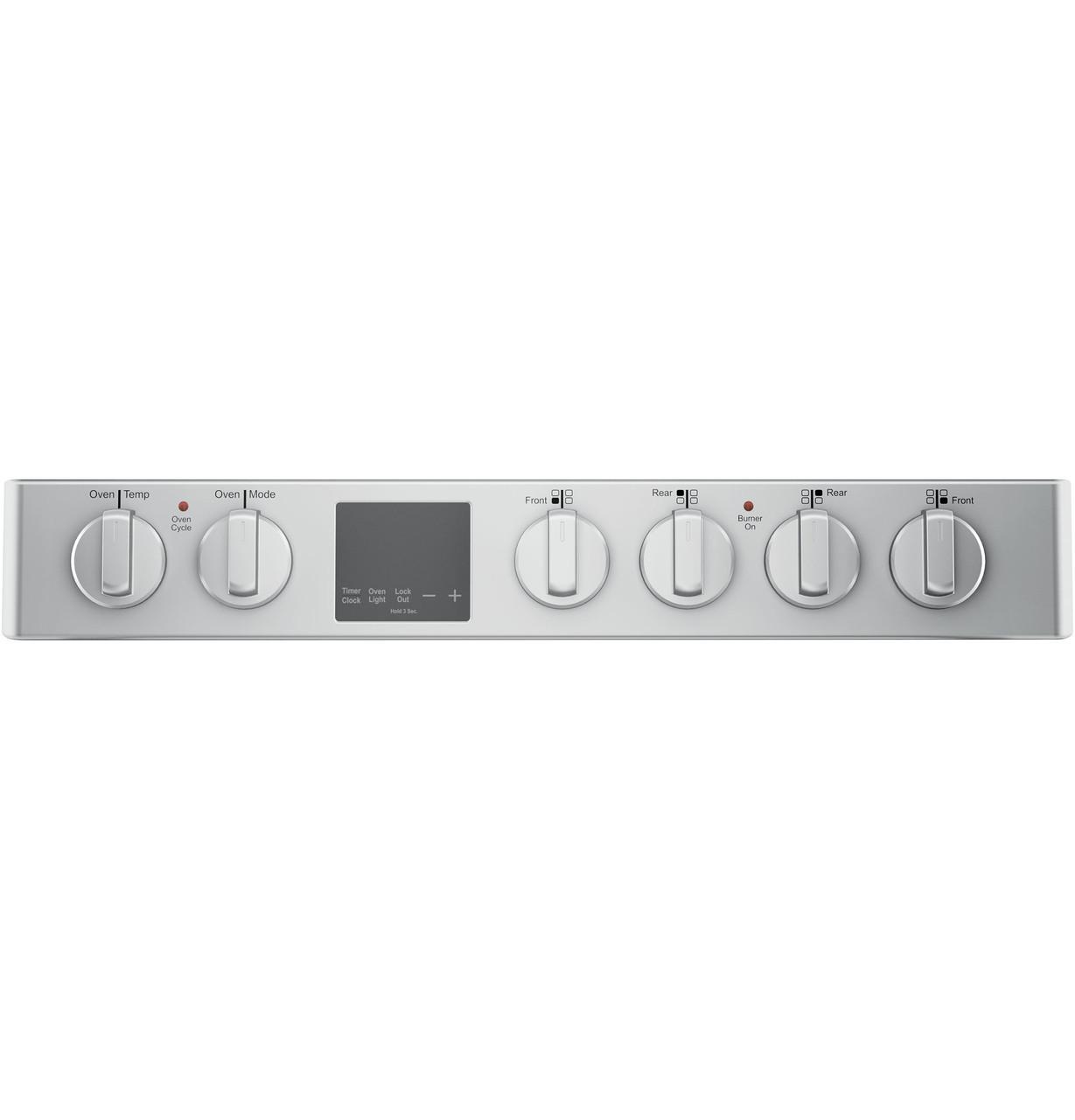

Control Type | Heavy Duty Knob |
Cooking Technology | Fan Convection |

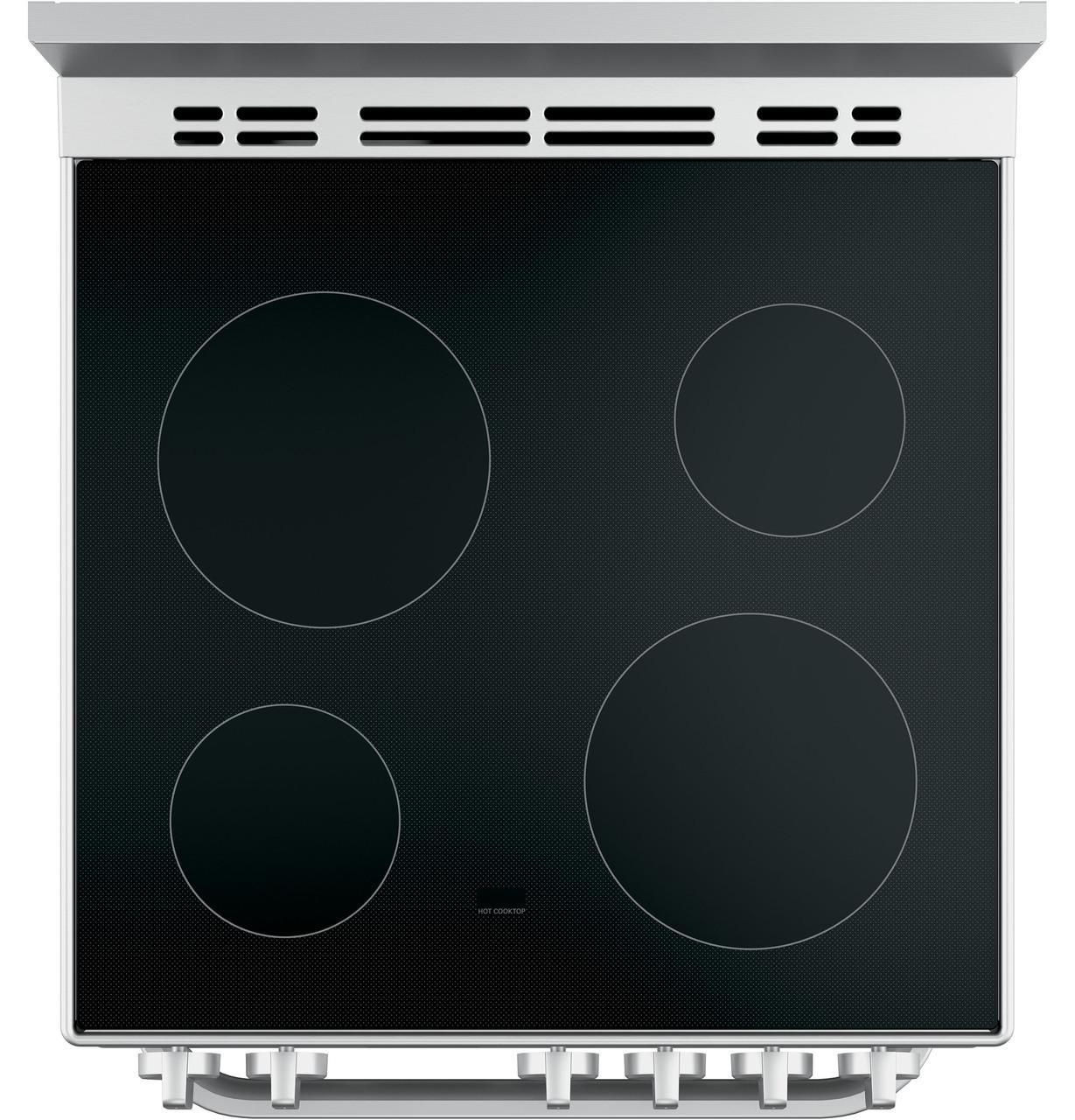

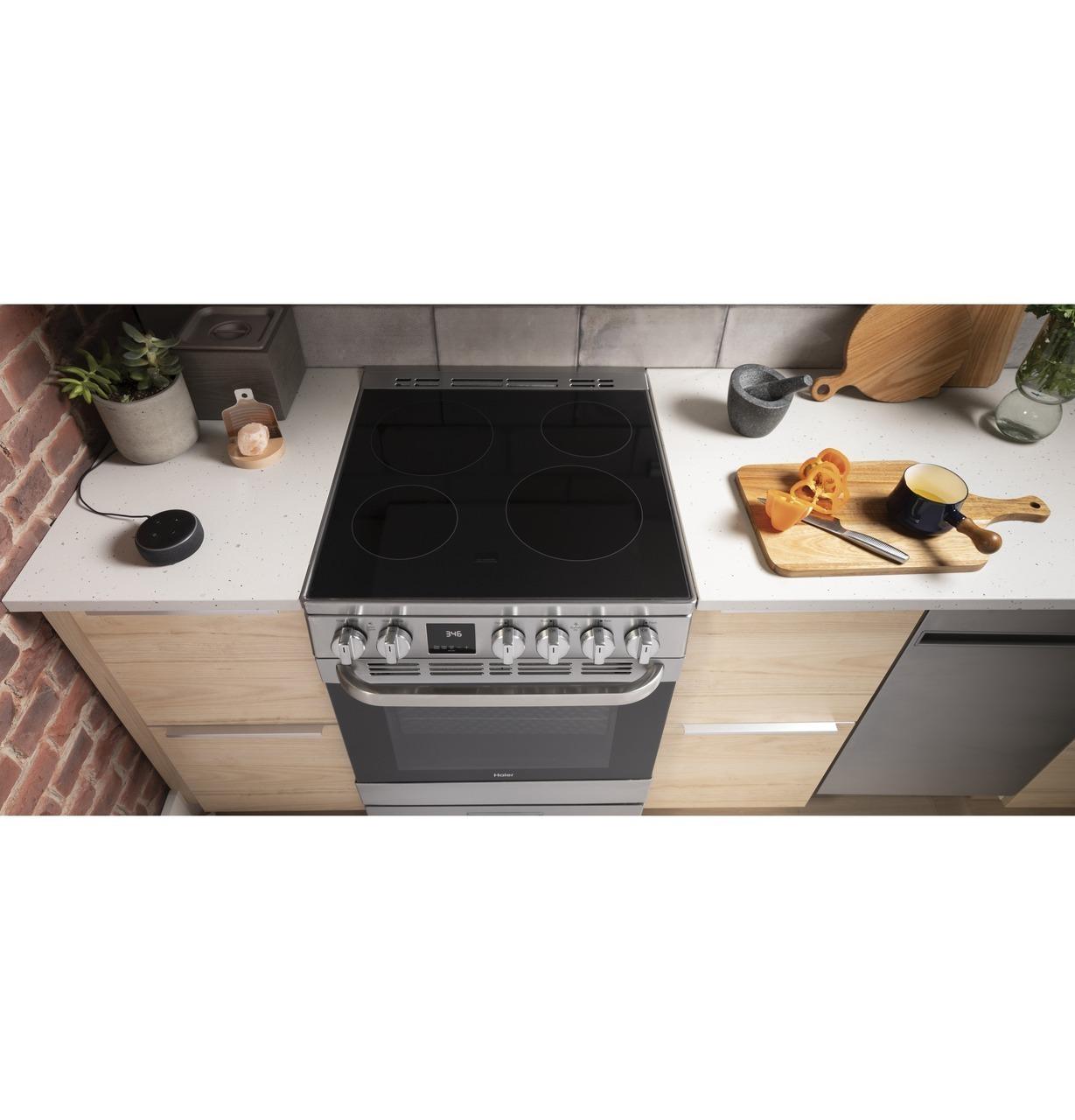

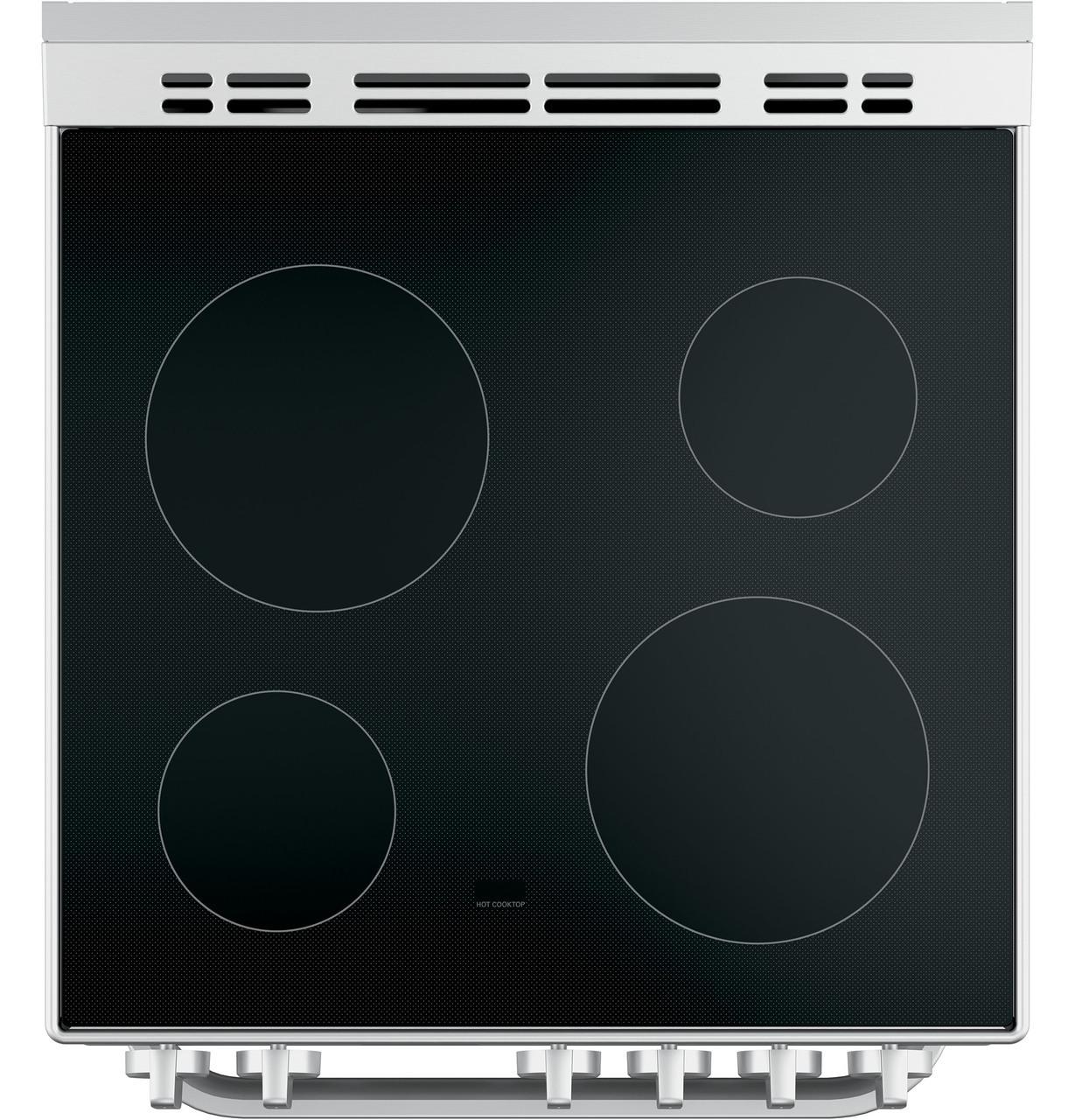

Cooktop Burner Type | Smoothtop |
Cooktop Surface | Black Glass Ceramic |
Cooktop Type | Radiant Smoothtop |
Dishwasher Safe Knobs | Yes |
Drawer Type | Storage |
Dual Ring Burners | Yes |
Element - Left Front | 6" 1200W |
Element - Left Rear | 8" 2000W |
Element - Right Front | 8" 2200W |
Element - Right Rear | 6" 1200W |
Fuel Type | Electric |
Hot Surface Indicator Lights | Yes, plus Oven Indicator Light |
Interior Oven Light | 1 |
Leveling System | 4 Leveling Legs |
Number of Convection Oven Fans | 1 |
OU Certified | No |
Oven Cleaning Type | Steam Clean |
Oven Control Features | Oven "ON" Light |
Oven Cooking Modes | Bake Broil Convection Bake |
Oven Features | 4-Pass Broil Element Clock/Timer Hidden Bake |
Oven Interior | 1 Incandescent Light Blue Gray |
Oven Rack Features | 2 Flat Nickel Racks 4 Rack Positions |
Product Type | Free-Standing Single Oven |
Sabbath Mode | Yes |
Storage Drawer Features | Removable Full-Width |
warranty | |
Labor Warranty | 1 Year |
Parts Warranty | 1 year |
Warranty Notes | See written warranty for full details |
