HAIER

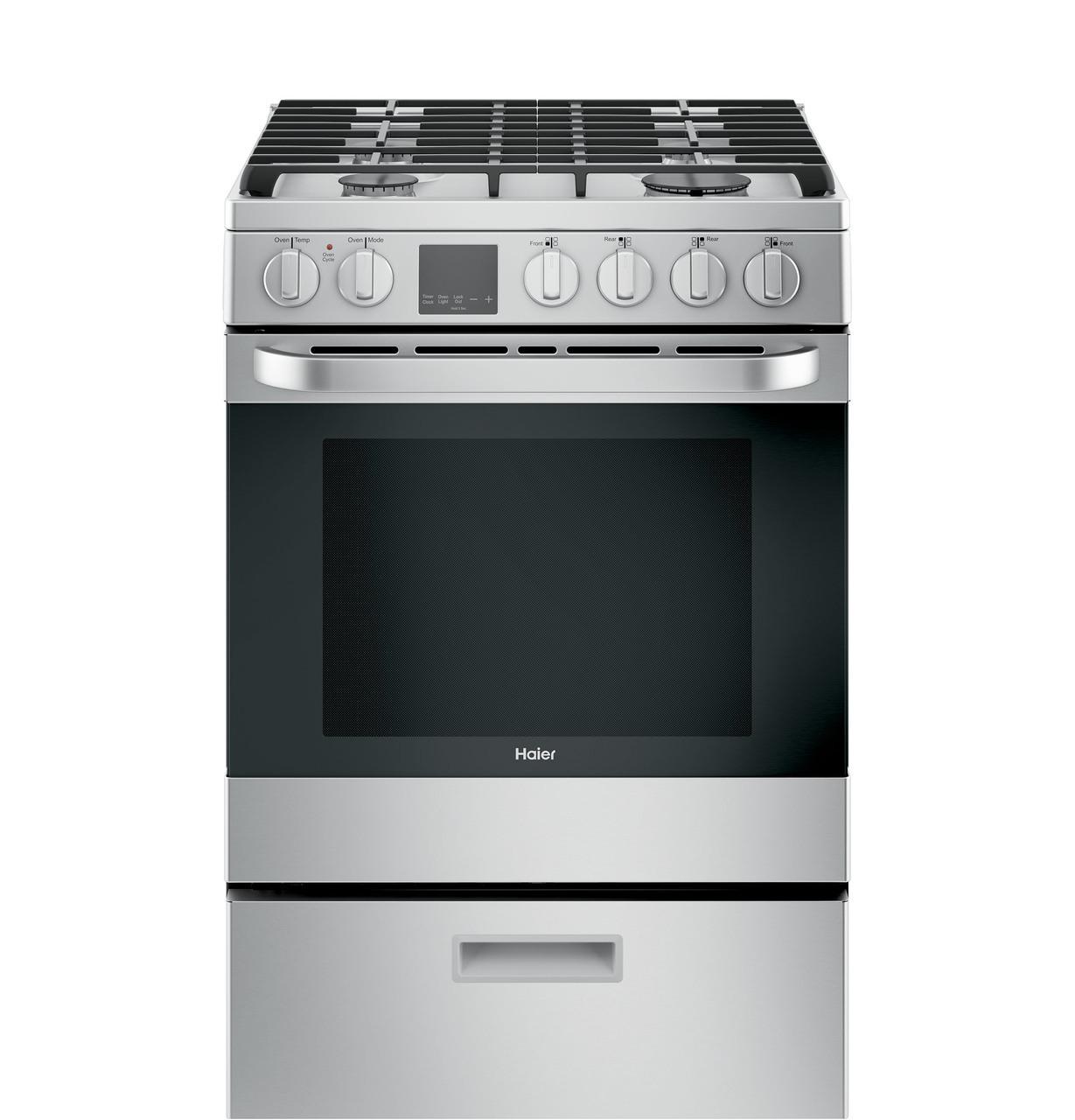

24" 2.9 Cu. Ft. Gas Free-Standing Range with Convection and Modular Backguard
Available Colors:

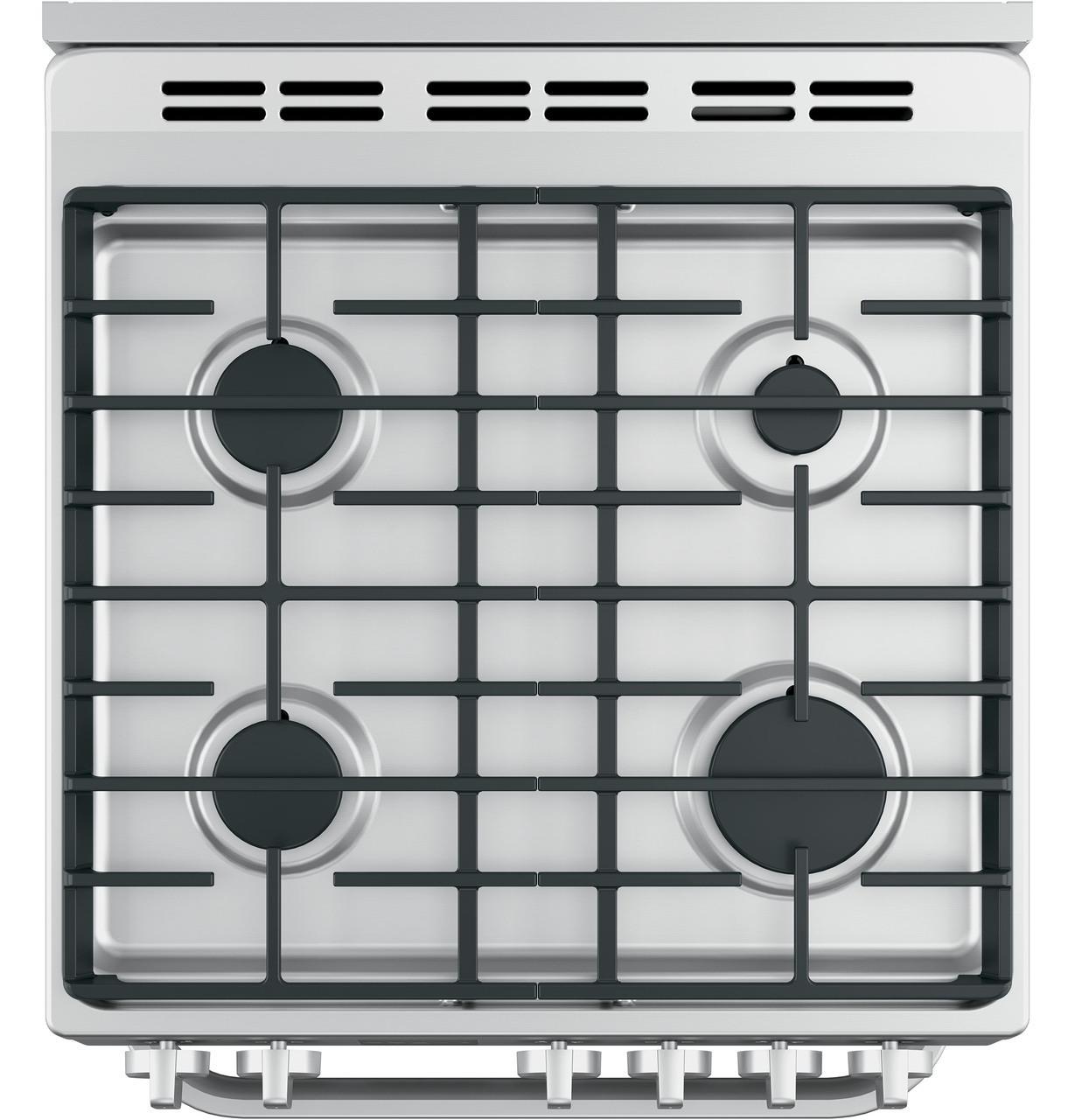

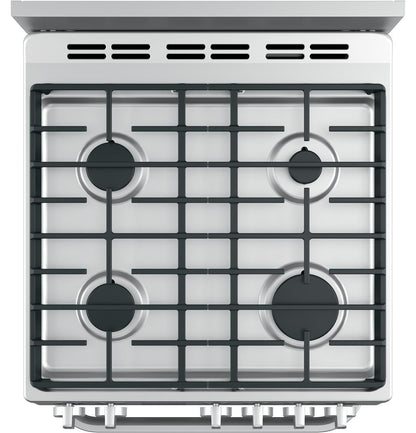

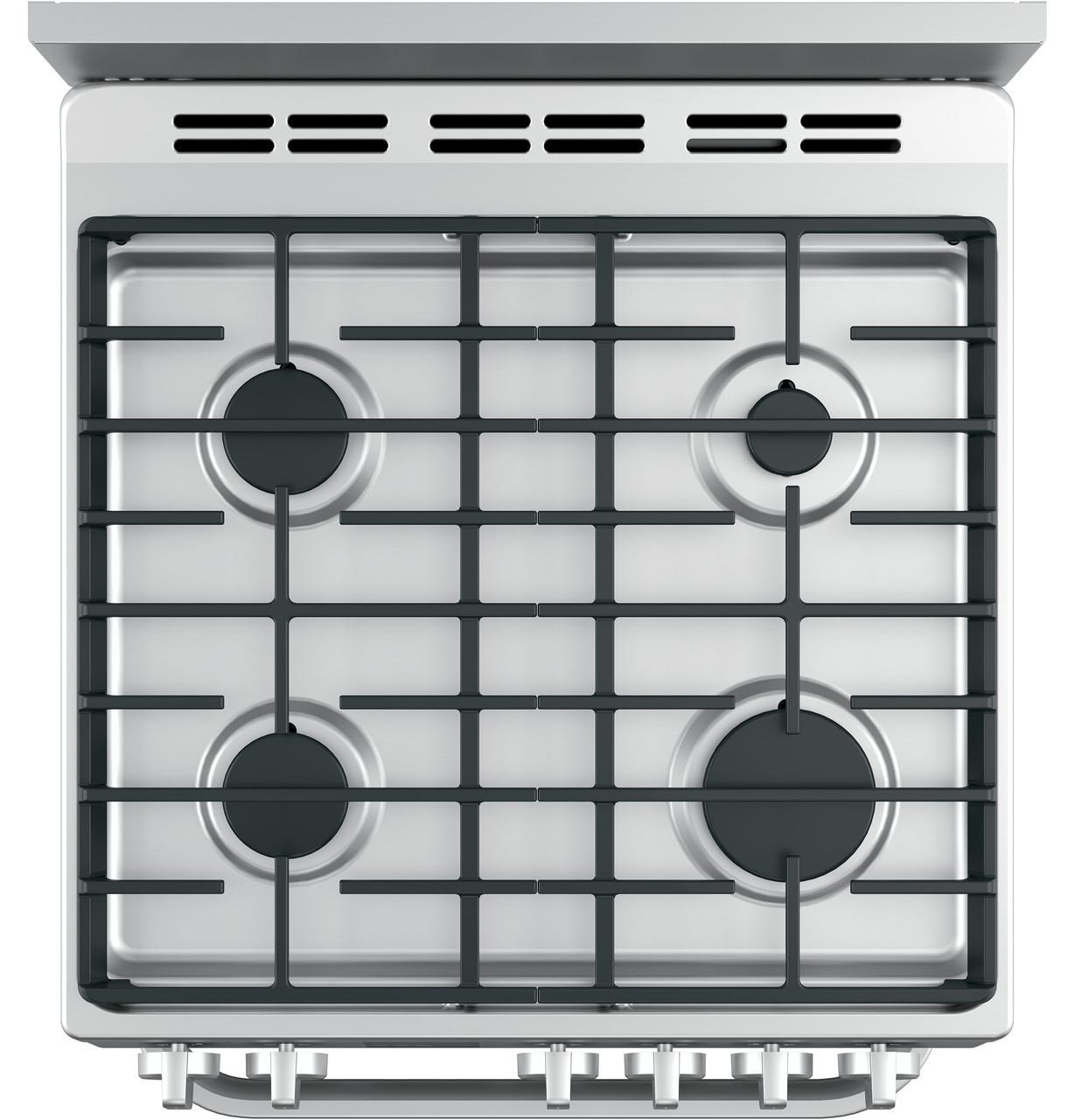

- Edge-to-edge cooktop with heavy-duty continuous cast-iron grates - Allows easy movement of cookware while providing even heat distribution with better heat retention

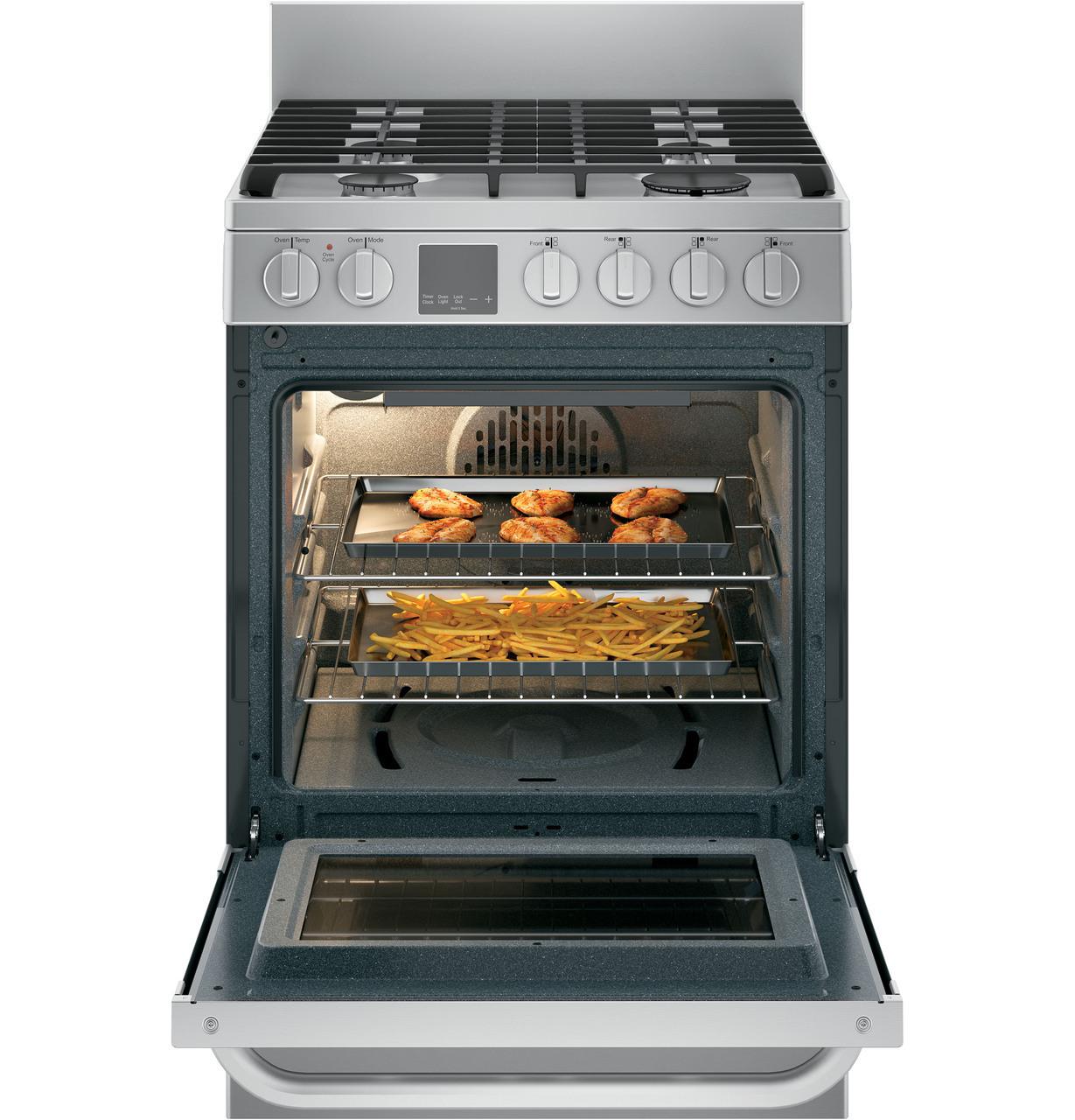

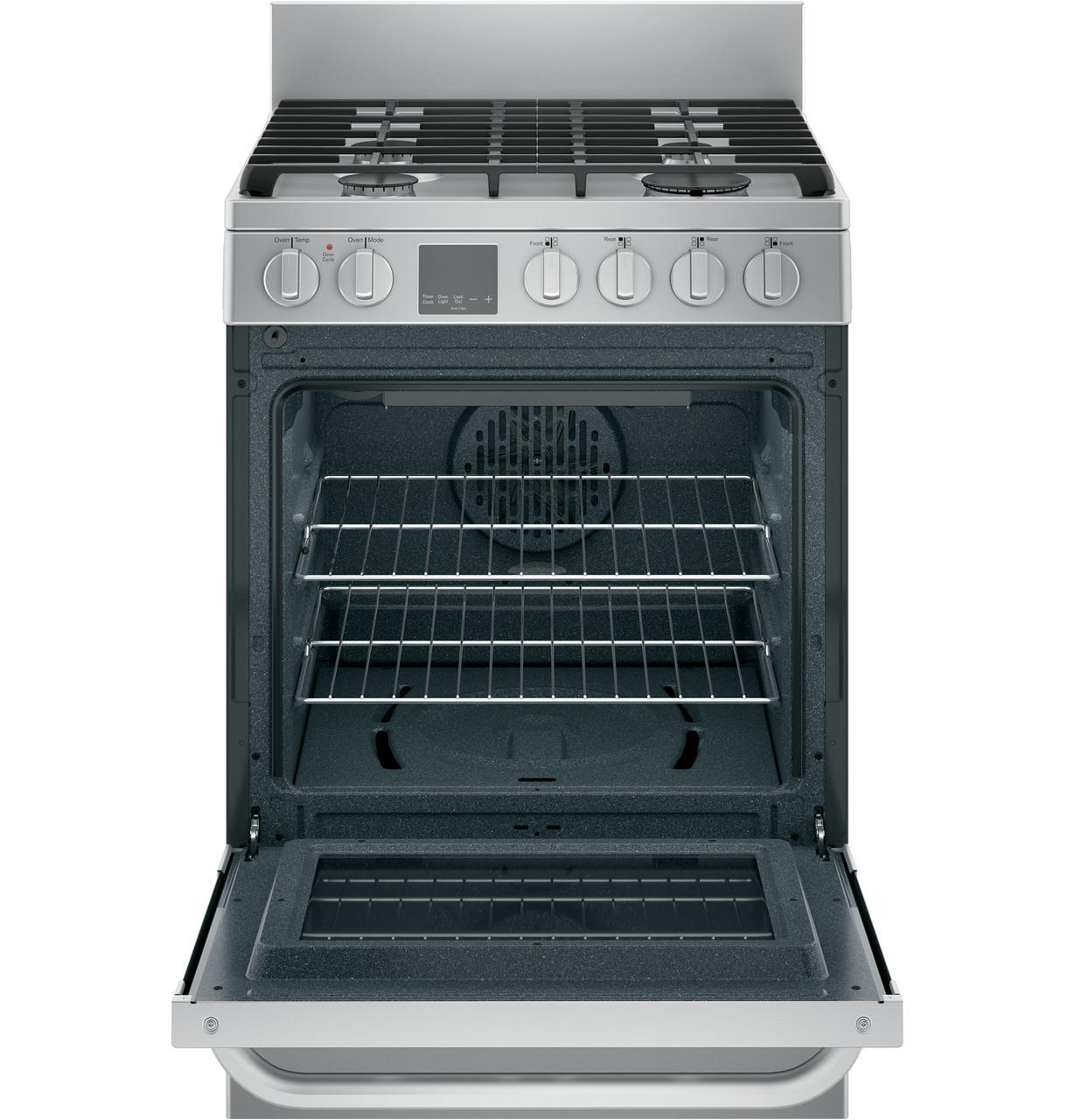

- Fan convection - Includes a rear fan to distribute hot air throughout the oven for faster, more even baking

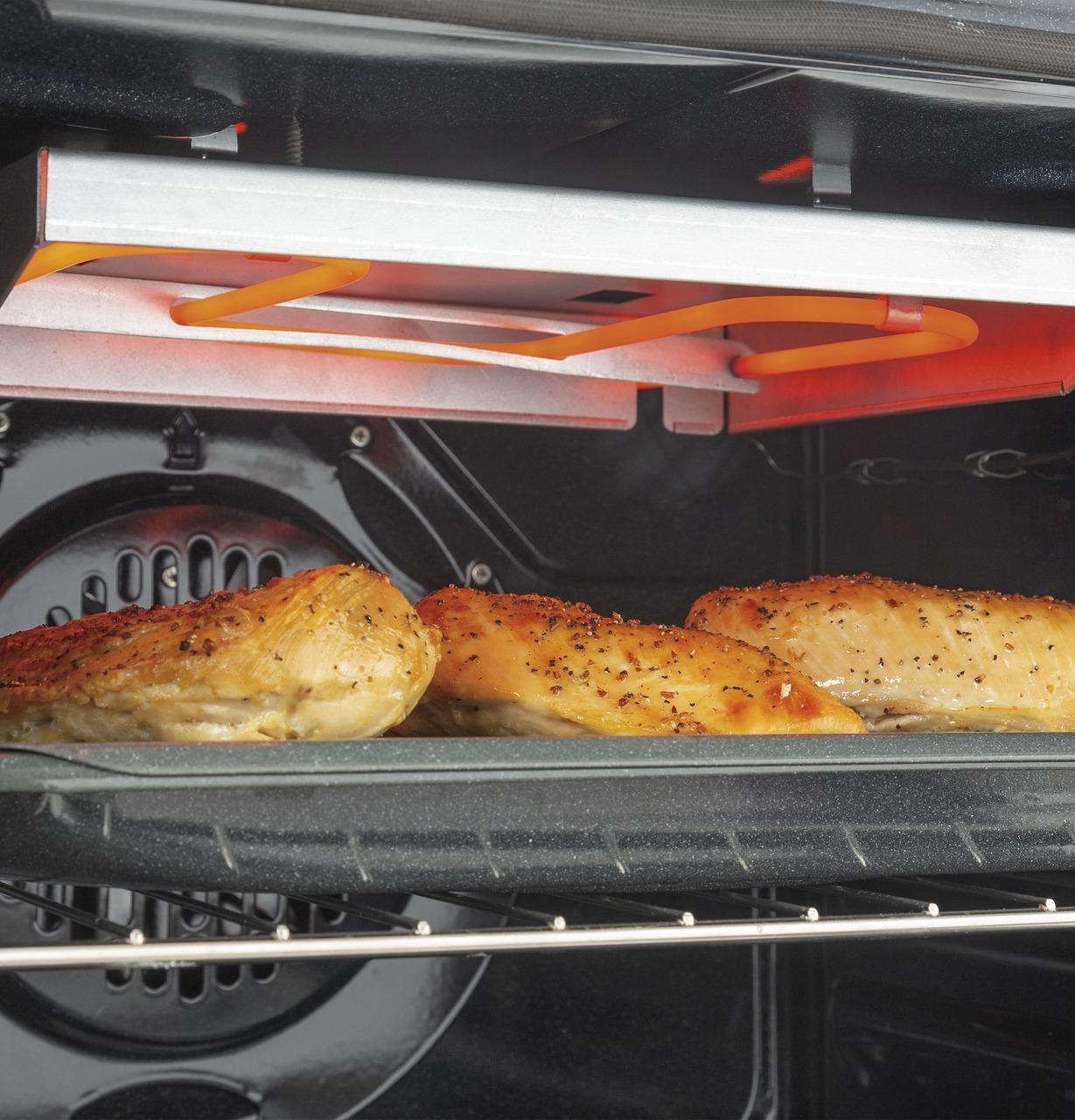

- Closed-oven broiling - Delivers concentrated heat for broiling a variety of foods
- Sealed burners - Keeps spills and crumbs contained so cleaning is always quick and easy
- Storage drawer - Stores cookware or kitchen accessories

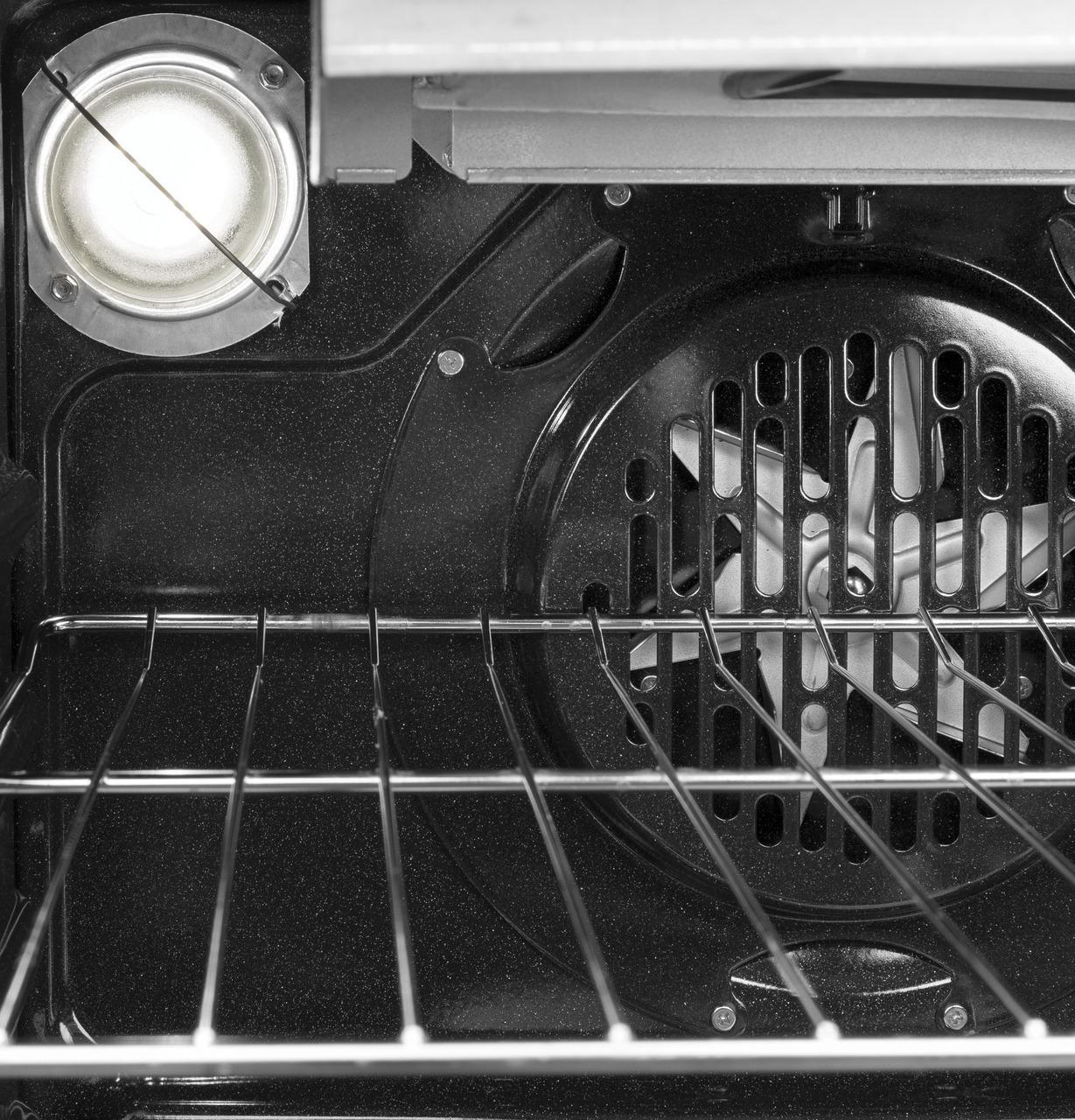

- Incandescent interior lighting - See frozen pizzas, brownies and more with total clarity thanks to bright, focused interior lighting
- Easy clean - Cooking cleanup is easy with sealed burners that contain spills and a Quick Clean, steam cleaning option that makes removing baked-on oven messes a snap

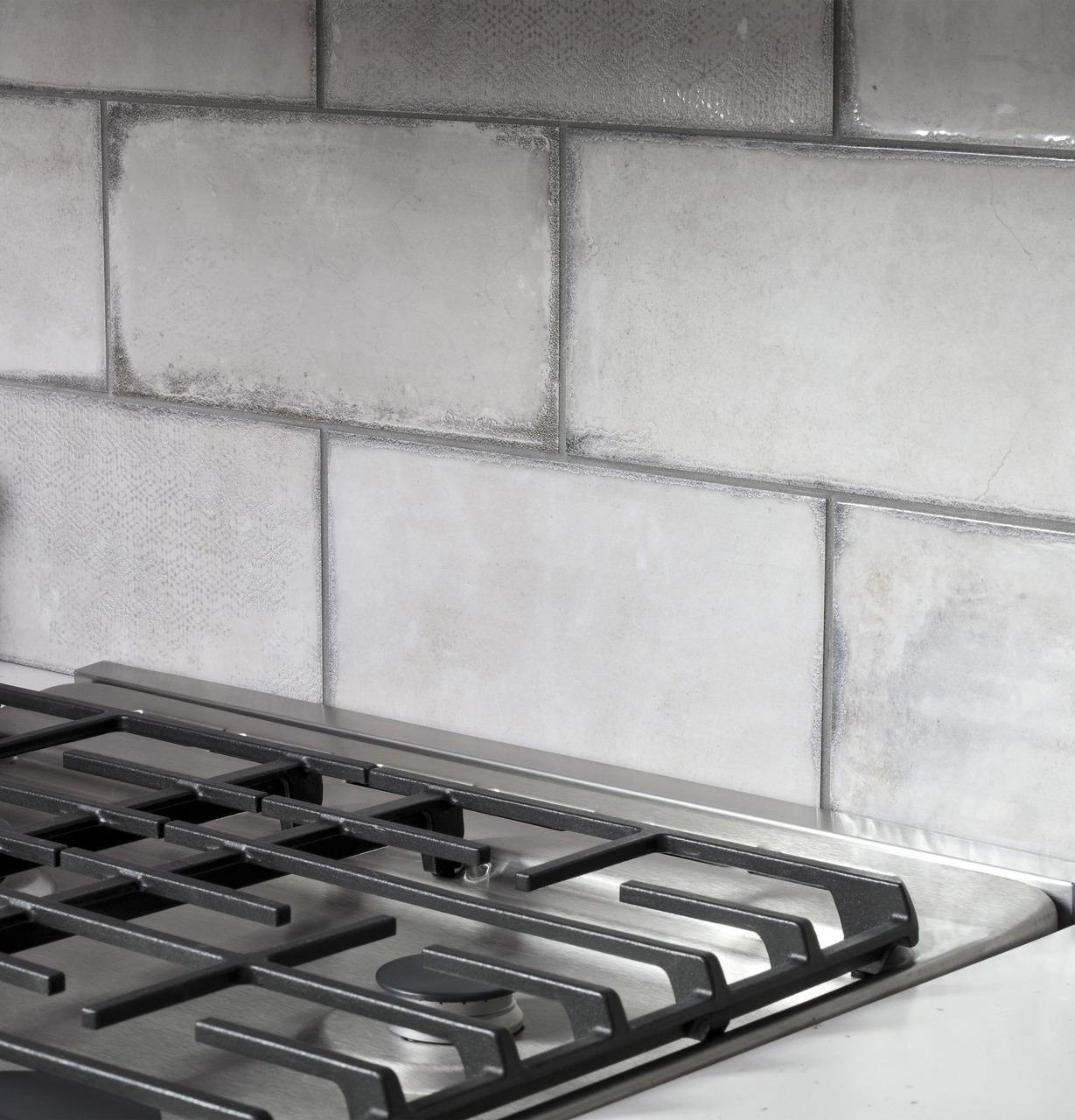

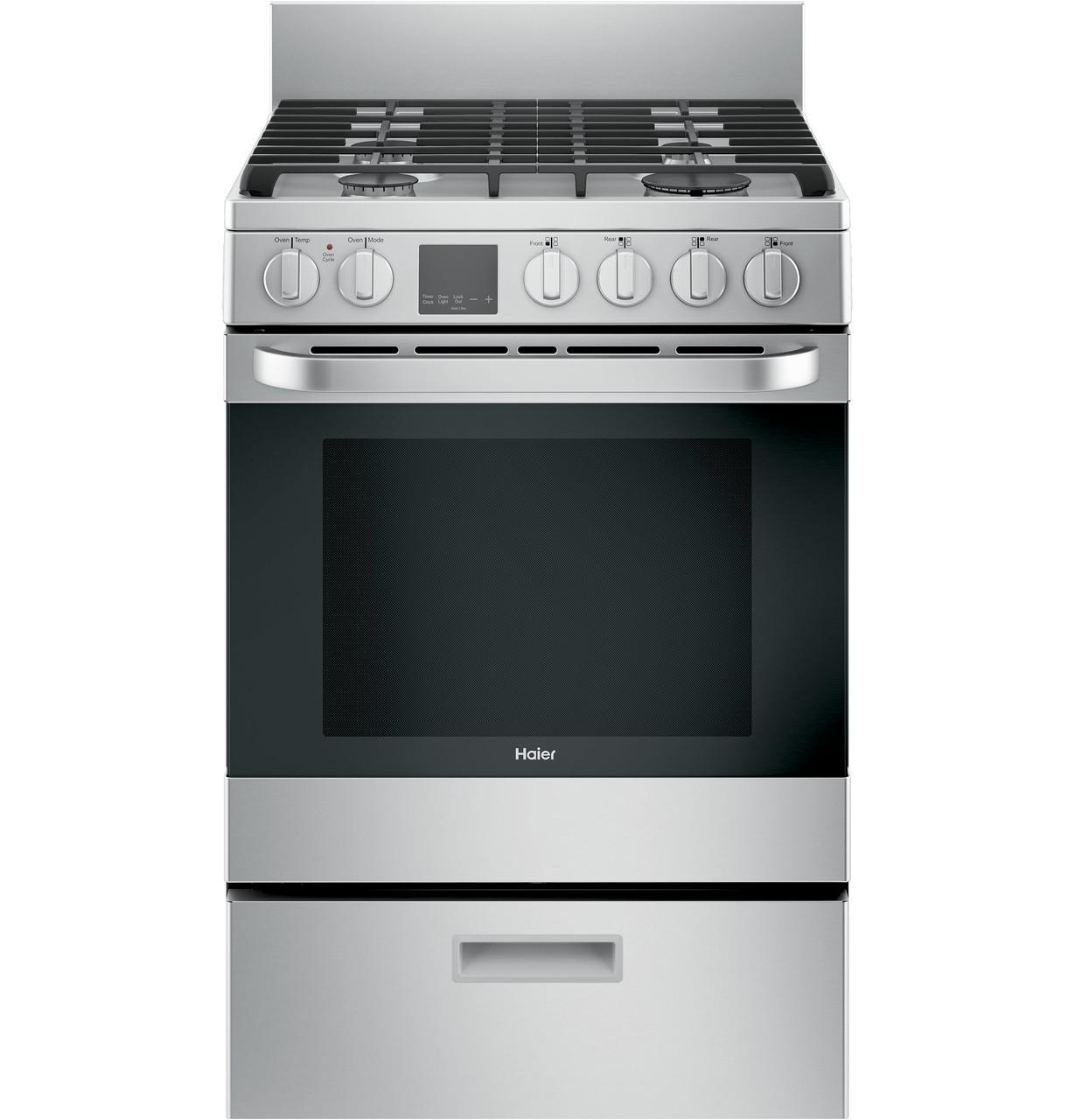

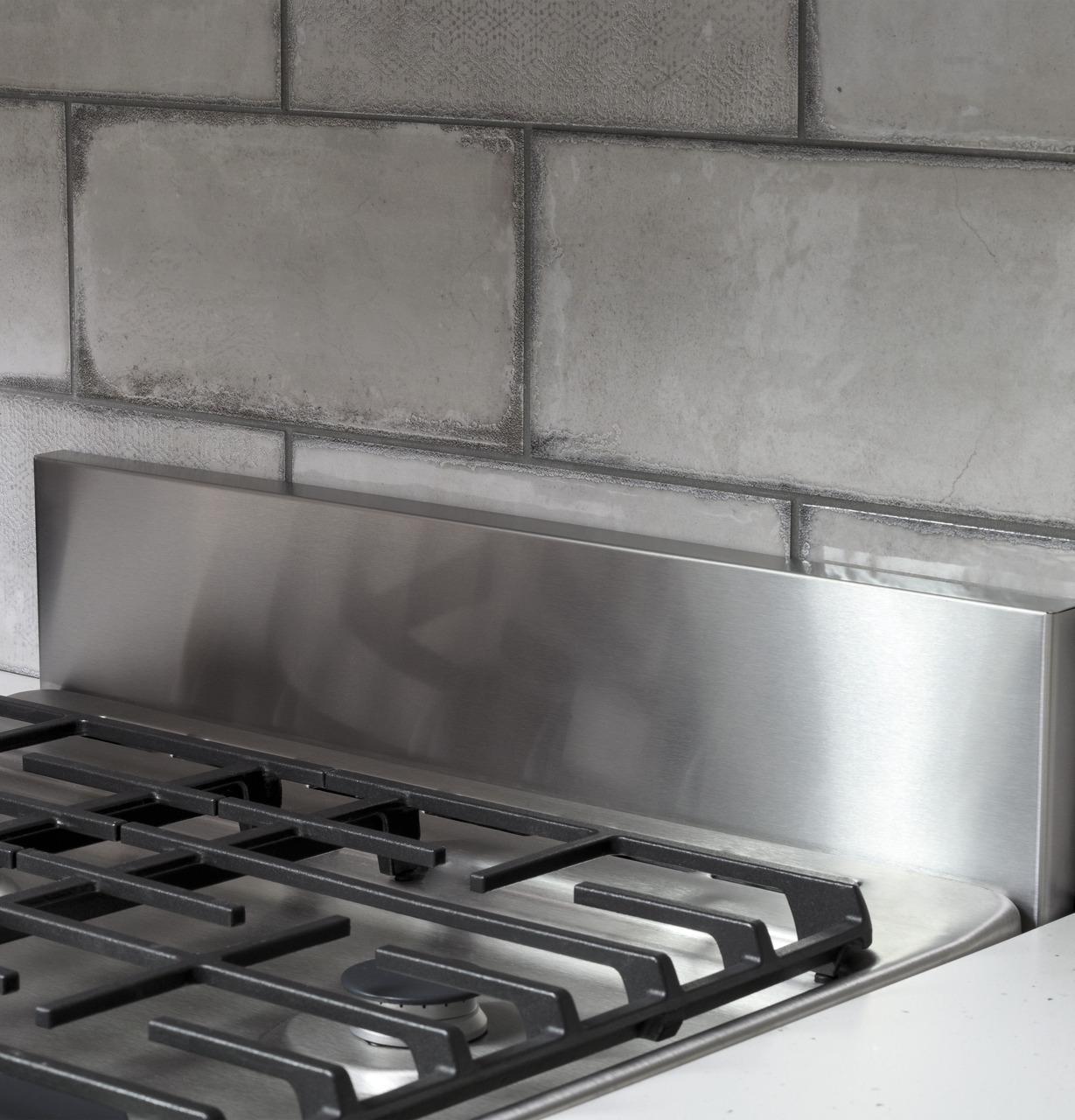

- Modular backguard - Match the look with your style. Versatile design gives you the option of a traditional look or a slide-in appearance.
- Quick clean - This convenient, steam-cleaning option makes removing baked-on oven spills ultra-quick and super easy

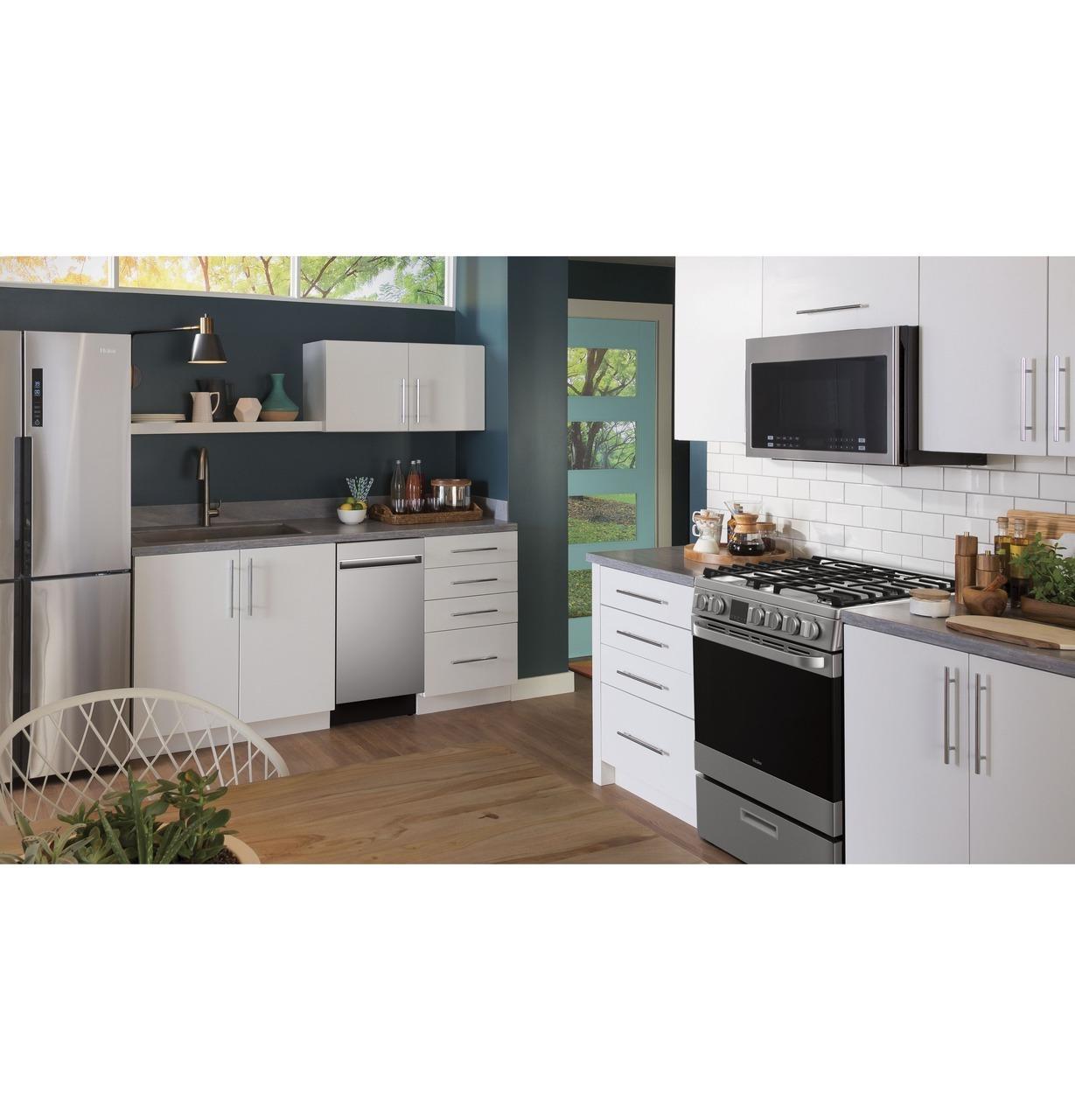

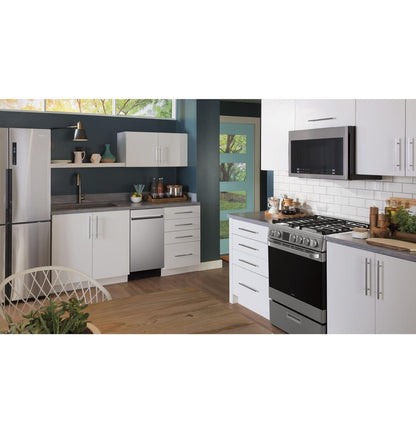

- Perfect Match over-the-range microwave - This 24" range matches the HMV1472BHS 24" over-the-range microwave in width and appearance, creating a perfect pair
Specs & Details | |
accessories | |
Optional Backguard | Included |
LP Conversion Kit | Included |
capacity | |
Total Capacity (cubic feet) | 2.9 cu ft |
power / ratings | |
Amp Rating at 240V | 15 |
Bake/Broiler BTU Rating - LP (000's BTU's) | 13.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 13.0 |
Electrical Requirements | 120V, 60Hz |
Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
weights & dimensions | |
Depth Without Handle | 25.75 in |

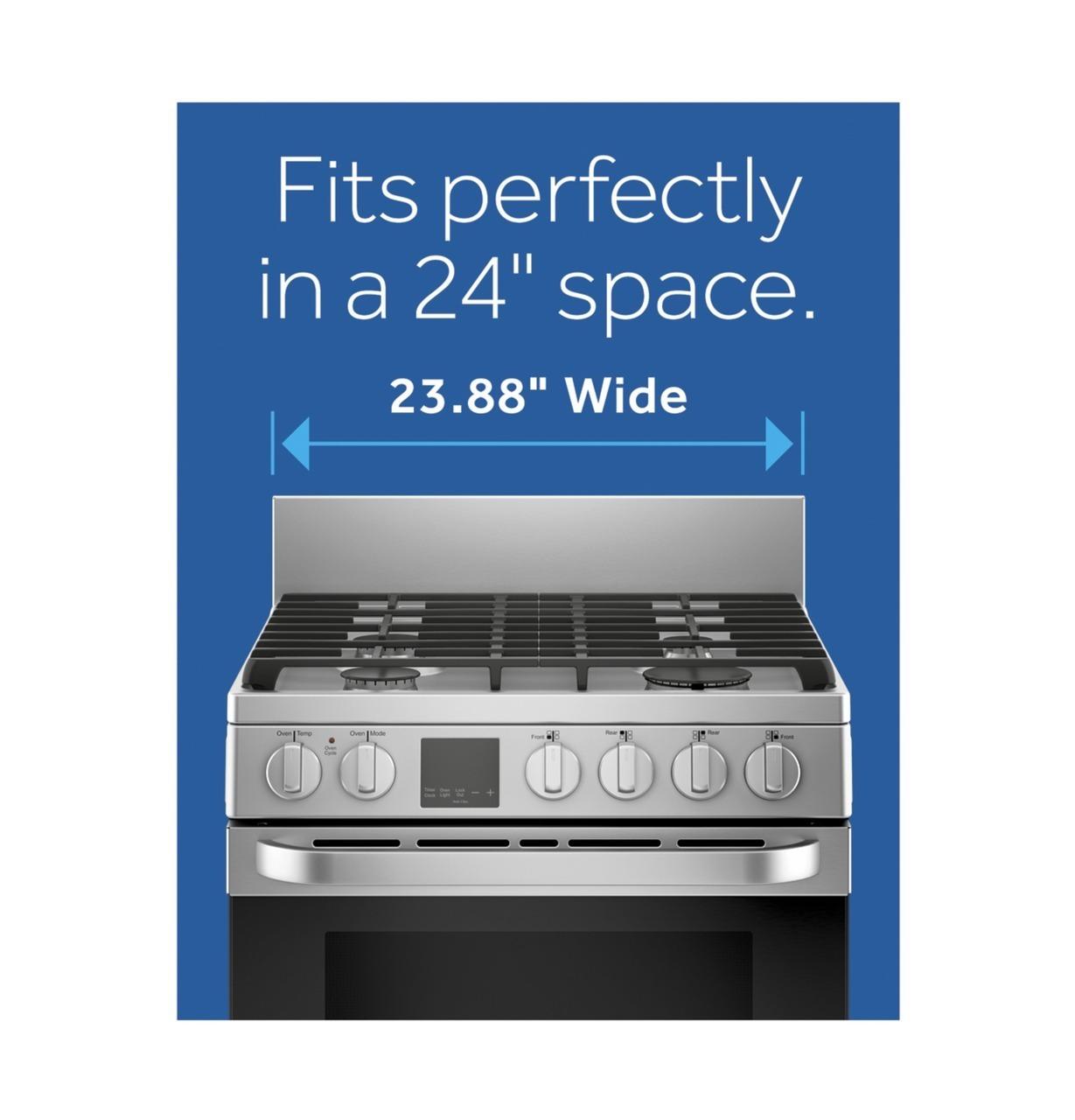

Cabinet Width | 24.0 in |
Net Weight | 108.0 lb |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
Overall Depth | 28.125 in |
Overall Height | 41.0 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Overall Width | 24.000000 in |
Depth with Door Open | 45.625 in |
appearance | |
Color Appearance | Stainless |
Control Knobs | Stainless |
Cooktop Burner Grate Color | Matte Black |
Door Swing | Pull-Down |
Handle | Stainless |
Oven Door Features | Oven Window |
Textured Steel Side Panels | Yes |
features | |
Configuration | Range with In Oven Broil |
Ignition System | Electronic |
Oven Cleaning Type | Steam Clean |
Cooktop Burner Type | Sealed |
Cooktop Surface | Deep Drawn Stainless Steel |
Burner - Left Front | 9,500 BTU |
Burner - Left Rear | 9,500 BTU |
Burner - Right Front | 15,000 BTU |
Burner - Right Rear | 5,000 BTU |
Cooktop Burner Grate Features | Continuous Grates |
Cooktop Burner Grate Material | Heavy Duty Cast Iron |
Valves (Degree of Turn) | 270 |

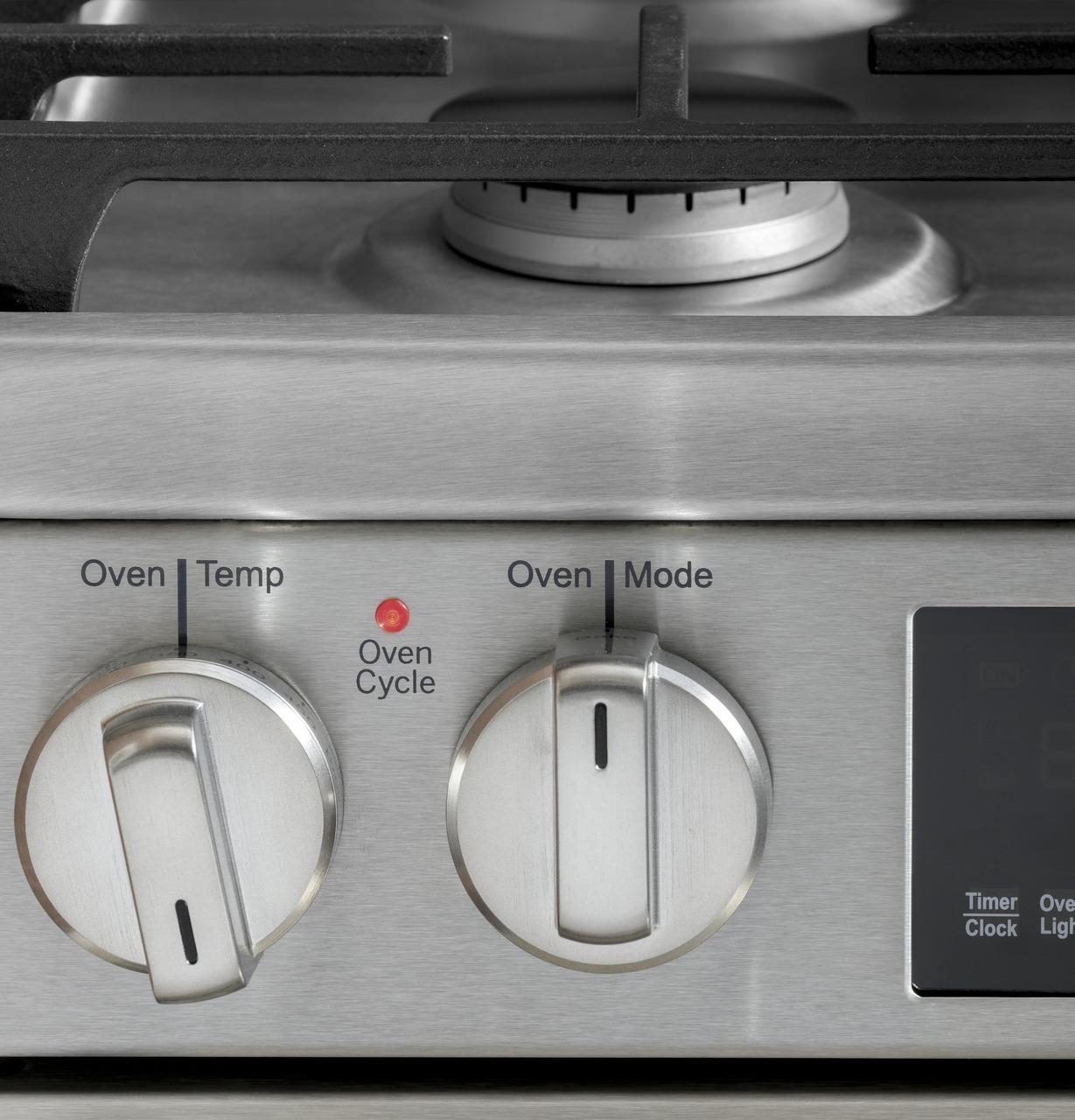

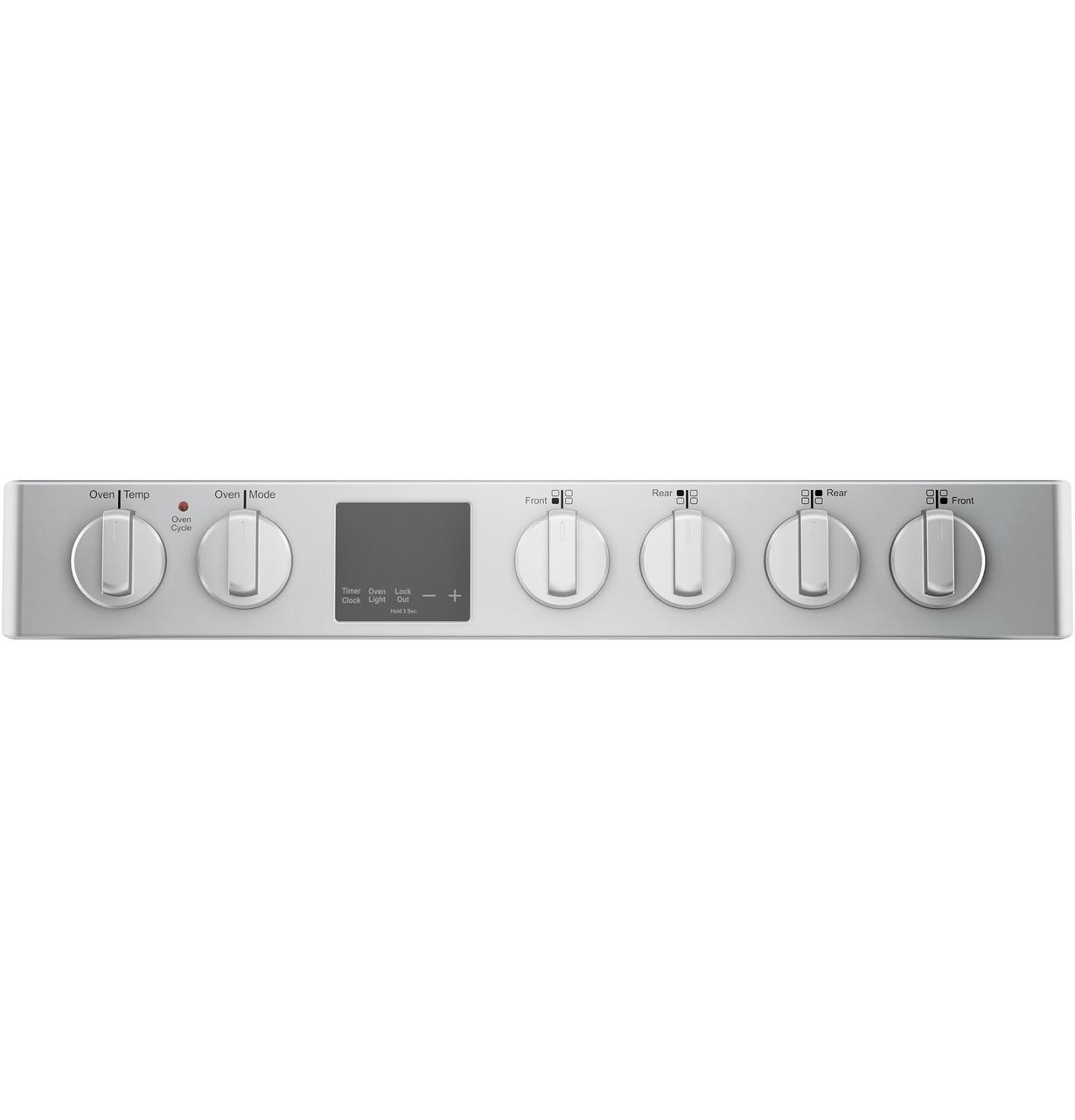

Control Type | Heavy Duty Knob |
Oven Control Features | In-Oven Broiling |
Control Location | Front |
Cooking Technology | Fan Convection |
Product Type | Free-Standing Single Oven |
Oven Features | Clock/Timer |
Dishwasher Safe Knobs | Yes |
Fuel Type | Natural Gas (factory set) |
Leveling System | 4 Leveling Legs |
Oven Cooking Modes | Bake Broil Convection Bake |
Oven Rack Features | 2 Flat Nickel Racks 4 Rack Positions |
Storage Drawer Features | Removable Full-Width |
Cooktop Type | Standard Grates |
Drawer Type | Storage |
Number of Convection Oven Fans | 1 |
Oven Interior | 1 Incandescent Light Blue Gray |
Sabbath Mode | Yes |
warranty | |
Parts Warranty | 1 year |
Labor Warranty | 1 Year |
Warranty Notes | See written warranty for full details |
