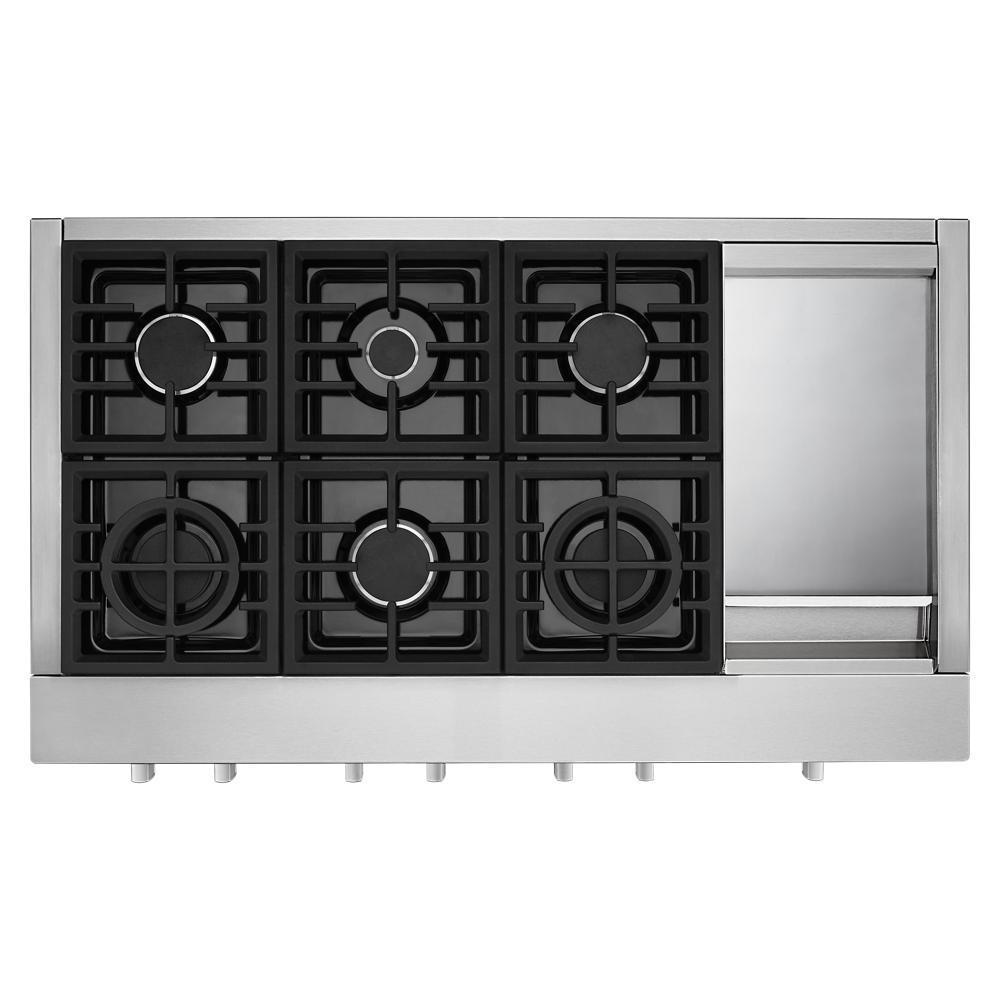

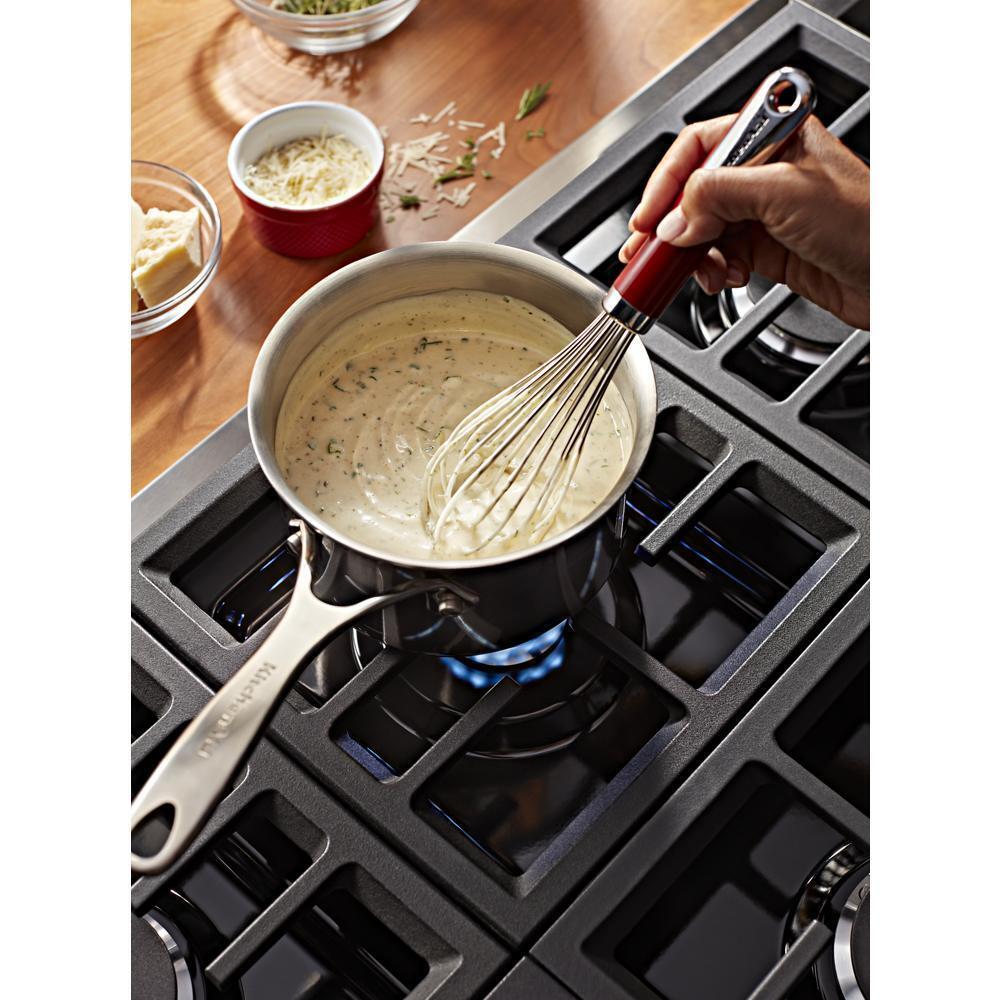

- 5,000 BTU Simmer Burner with low flame sized for small saucepans

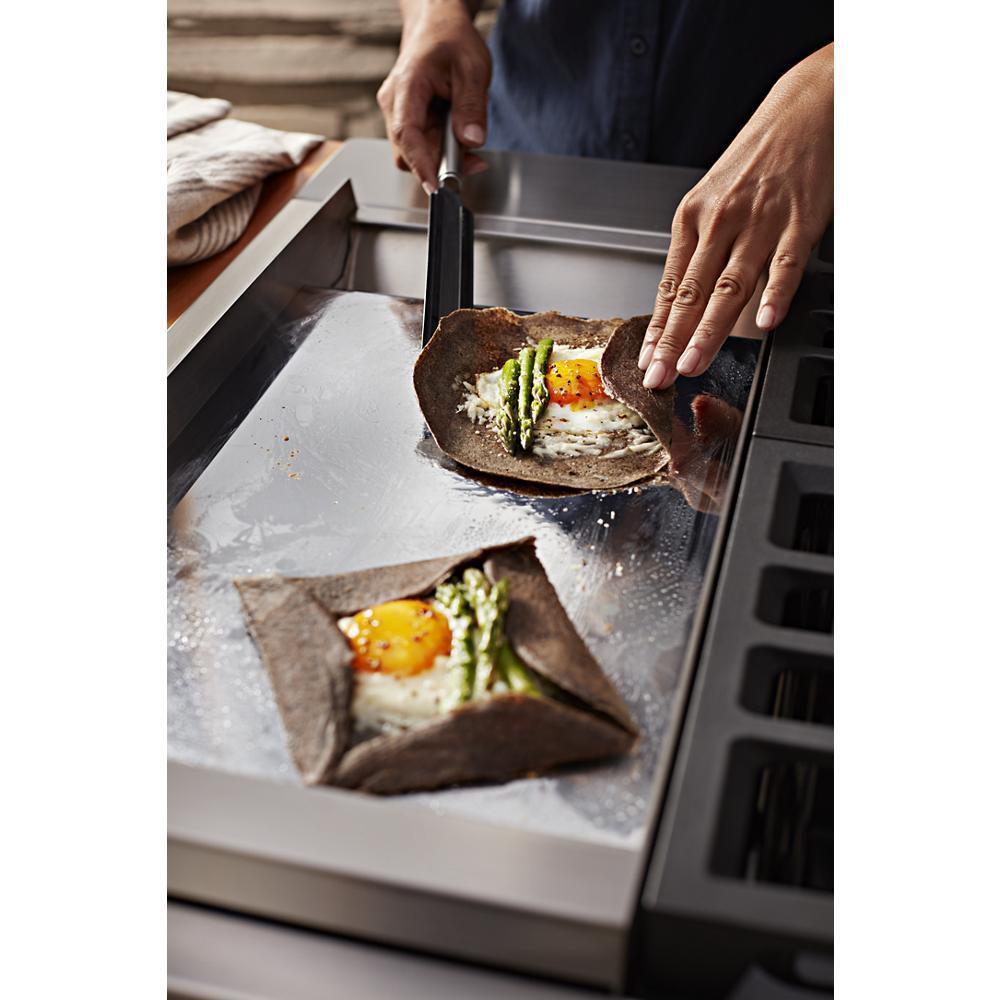

- Electric Griddle for high-heat searing and browning
- Three 15,000 BTU burners for high-heat searing and boiling
- Convertible Grates with removable inserts enable 3 heat levels
- Two 20,000 BTU Dual-Flame Burners for high- and low-heat cooking

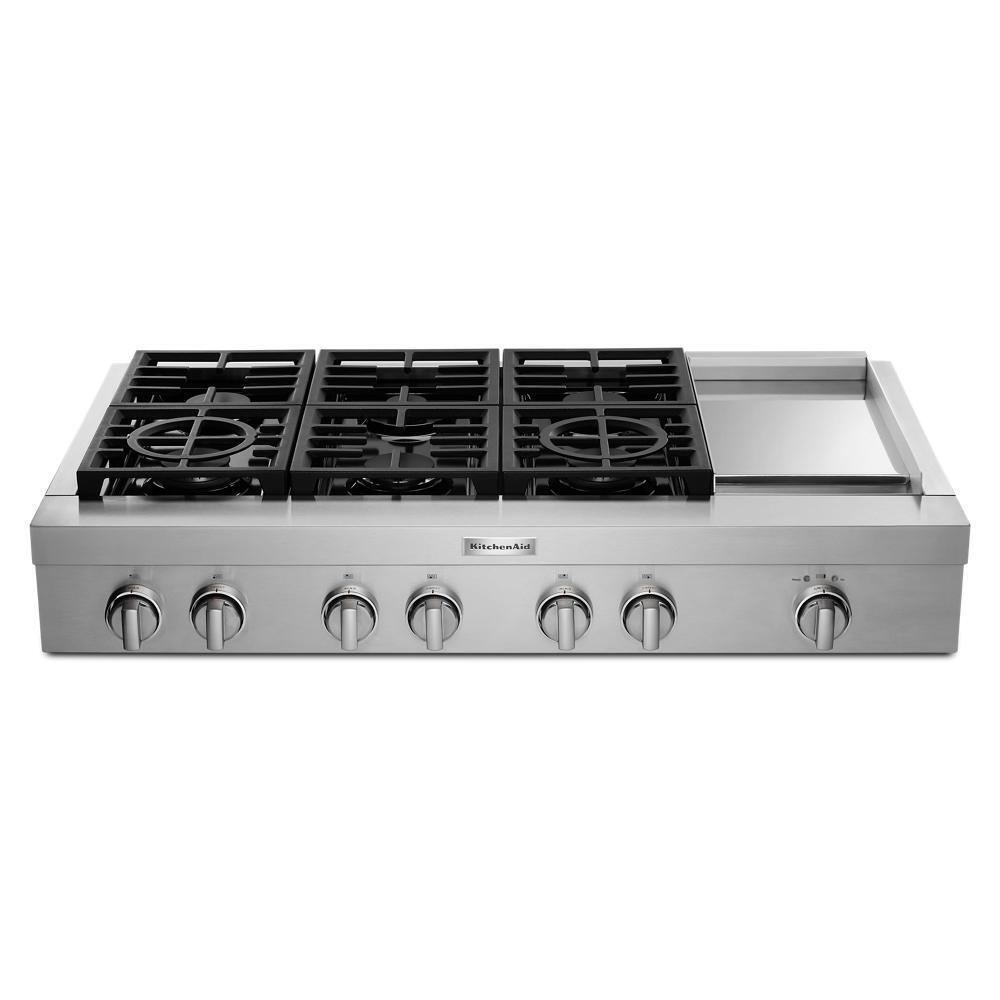

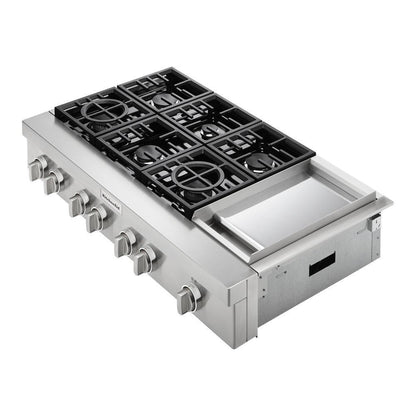

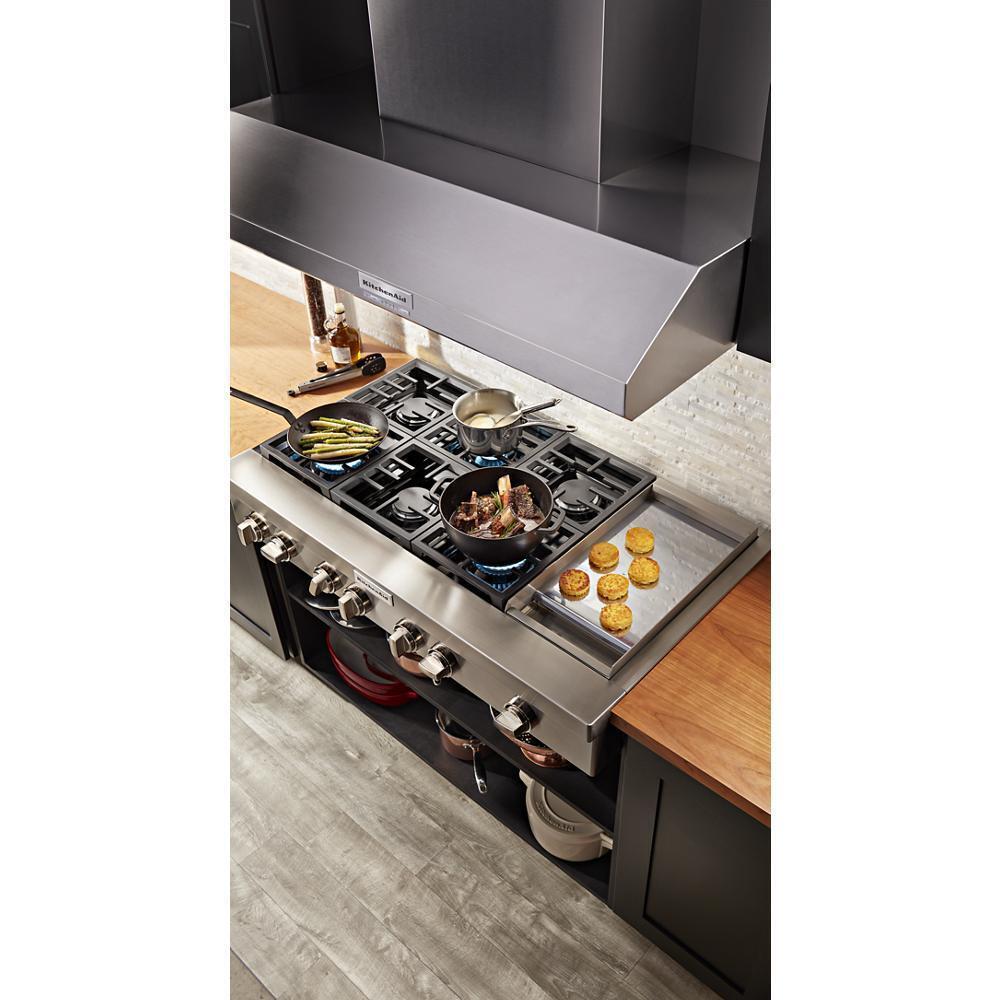

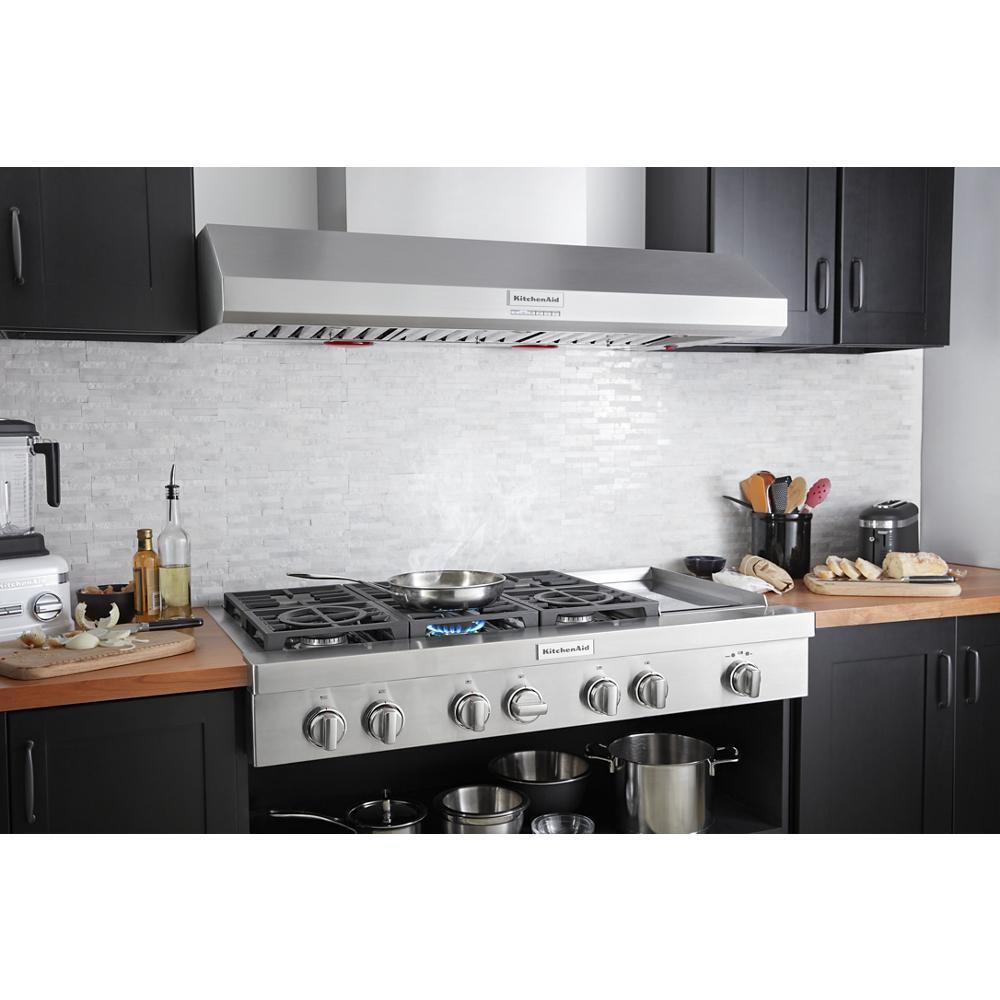

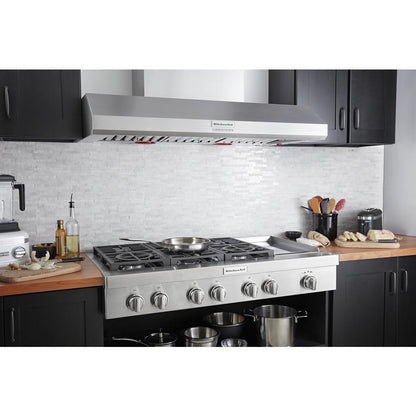

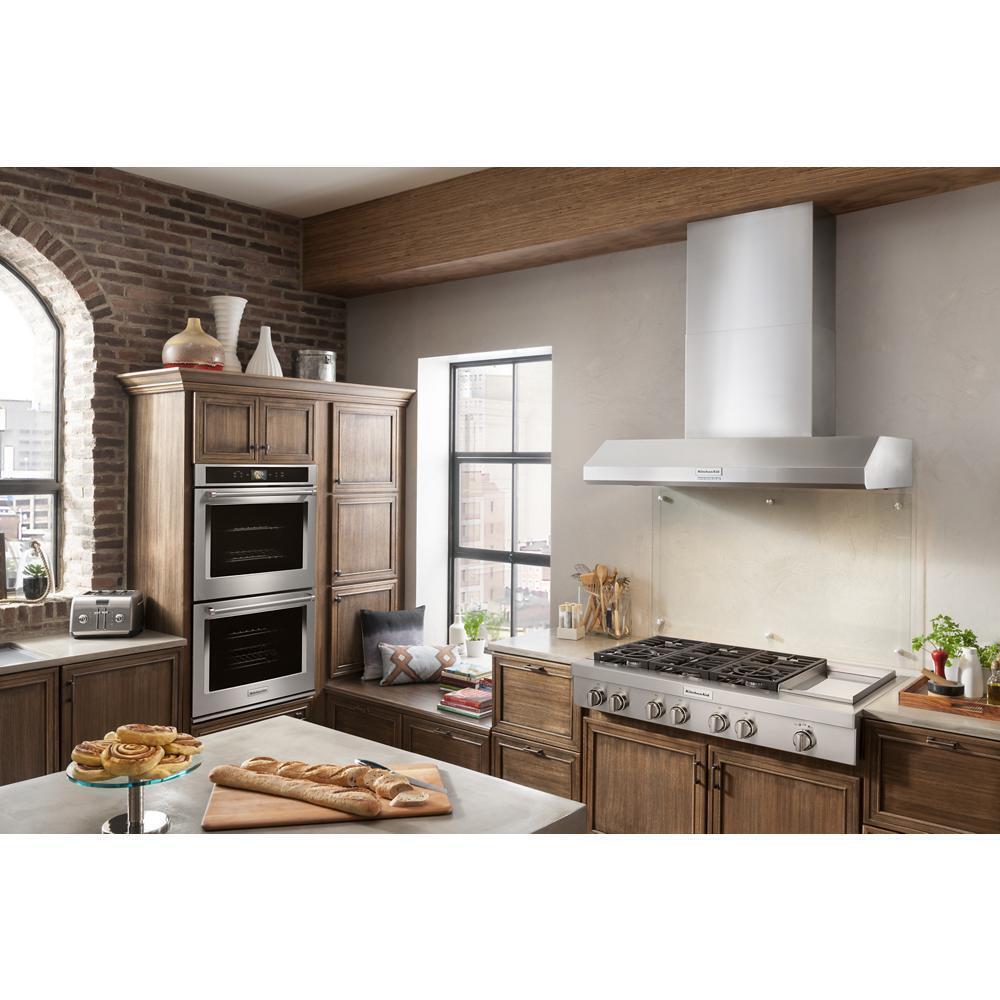

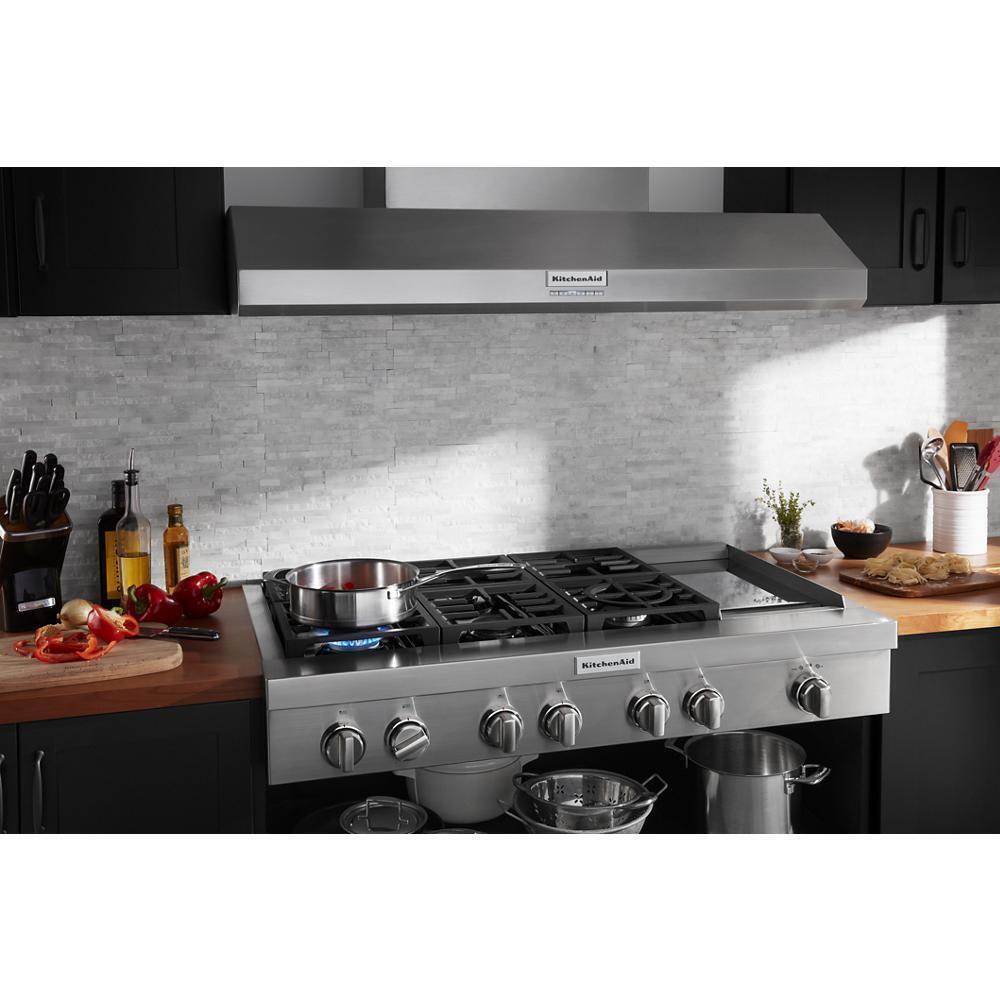

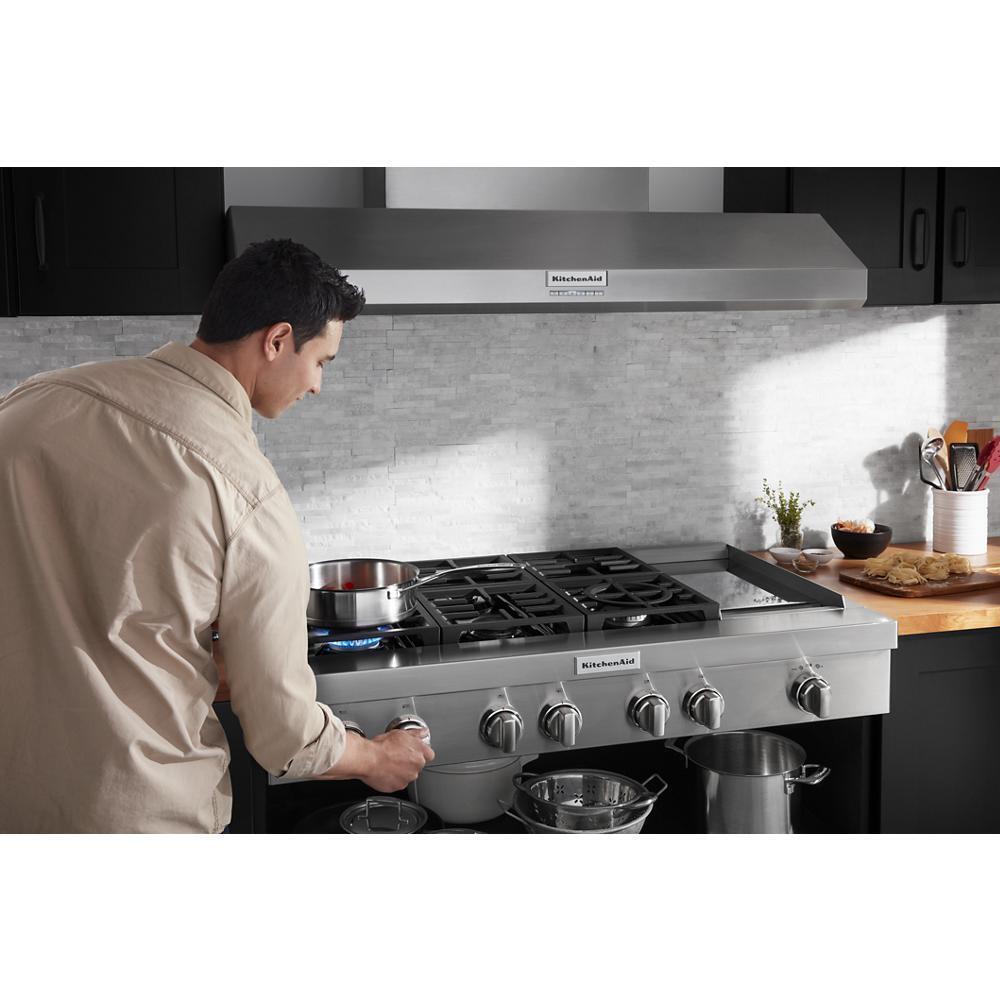

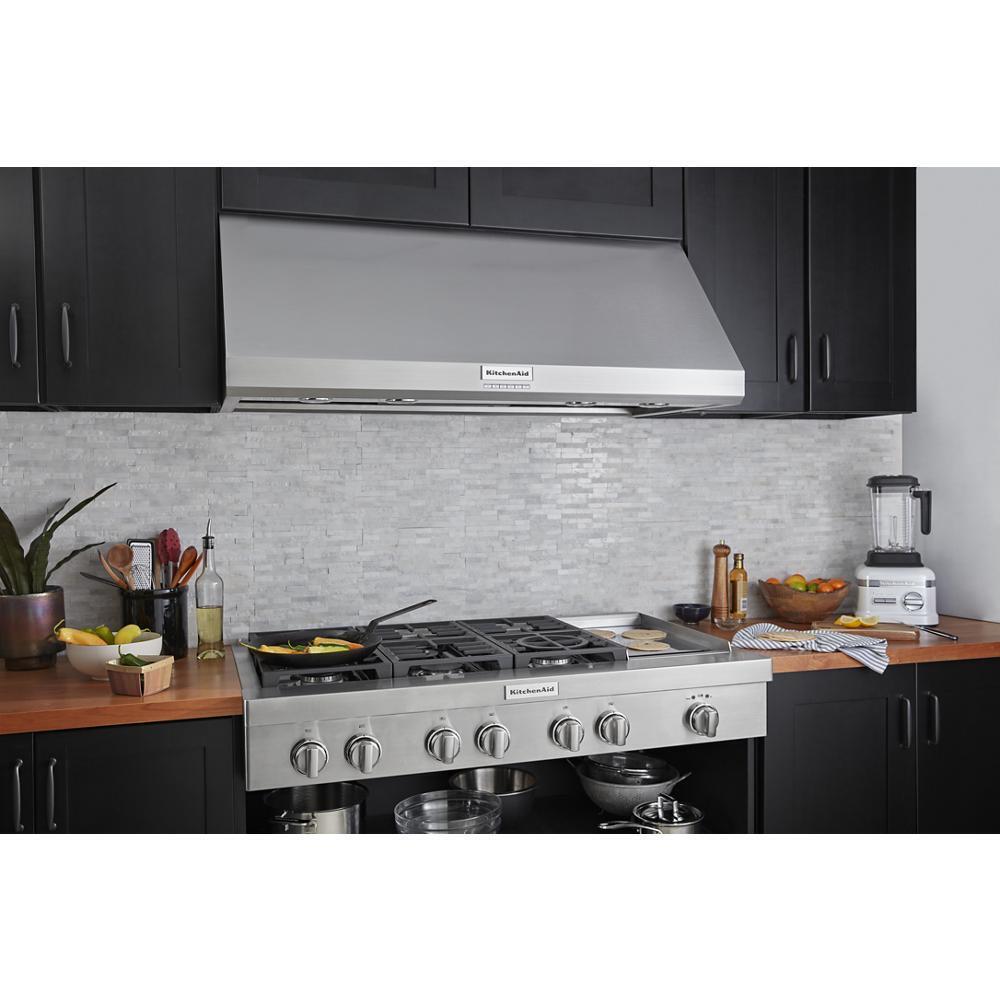

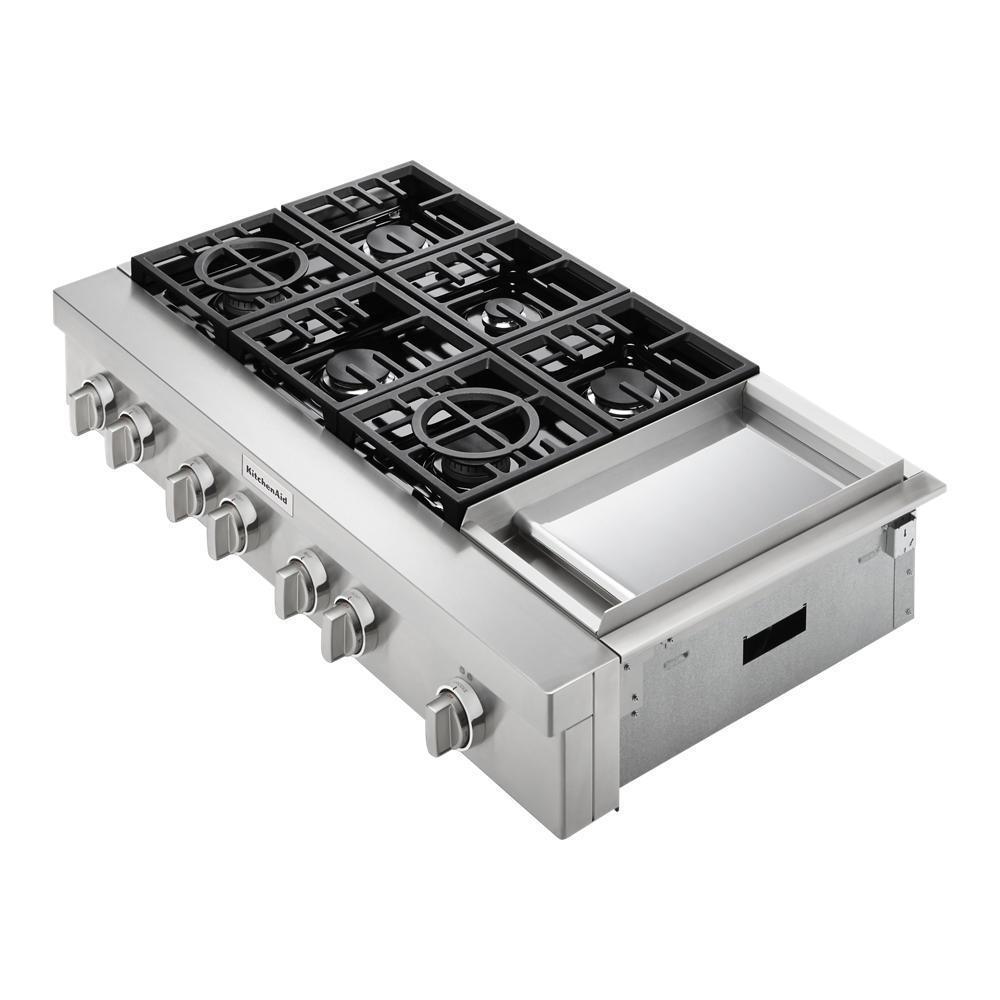

Satisfy your craving to create with a 48-inch KitchenAid® Commercial Style Rangetop with 6 burners. This gas cooktop expands your cooking capabilities with features like the Chrome Electric Griddle, two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners, a 5,000 BTU Simmer & Melt Burner perfect for small saucepans and three 15,000 BTU burners.
| Certifications | |
| Ada Compliant | No |
| Cul | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Yes, Integrated |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Flame-Sensing™ Re-ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Configuration | Burners with Integrated Griddle |
| Fuel Type | Gas |
| Installs Over Built-in Oven | No |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

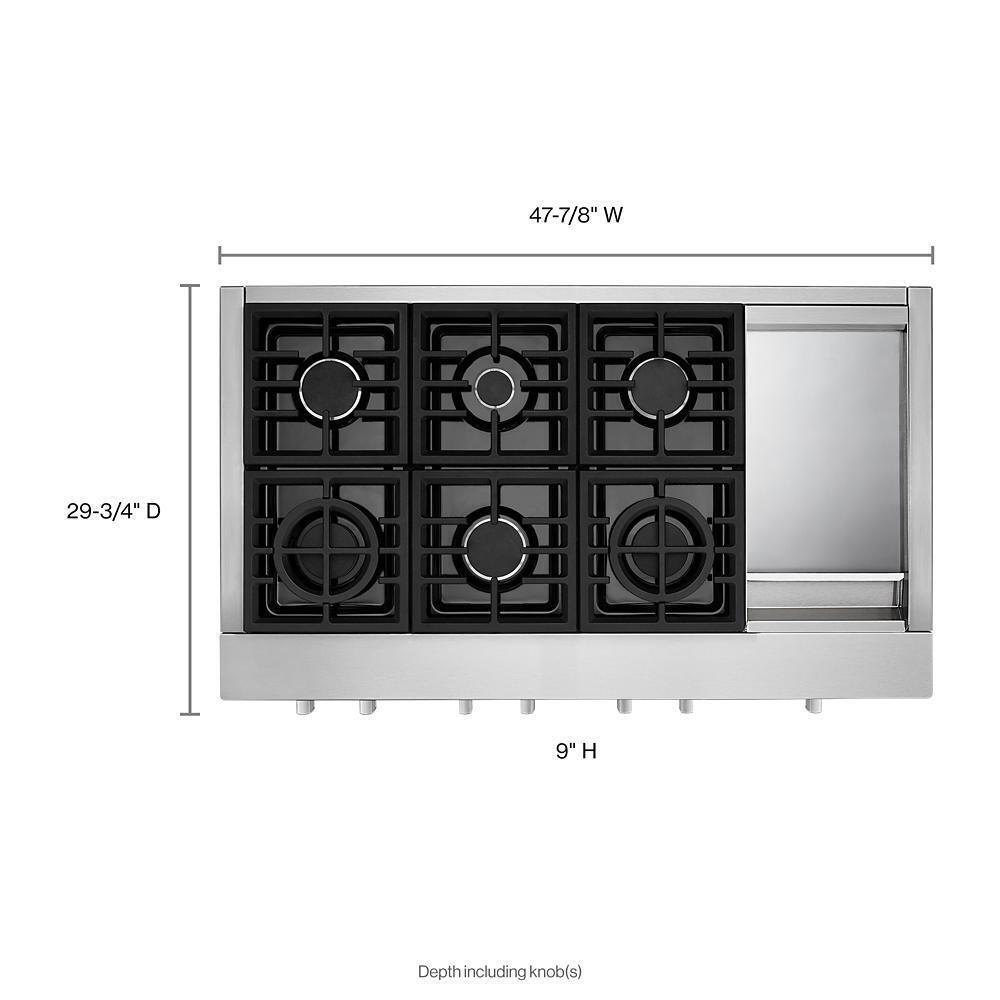

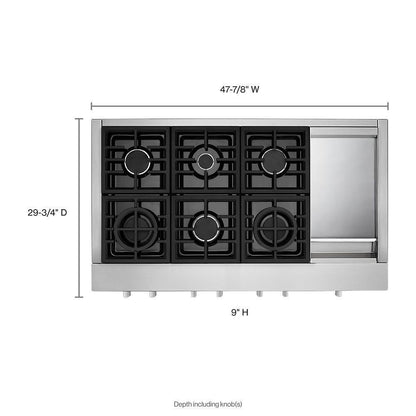

| Dimensions | |
| Product Height | 7.4375 |
| Carton Height | 19.5 |
| Gross Weight | 171 |
| Carton Depth | 34.5 |
| Carton Width | 51.75 |
| Product Depth | 27.875 |
| Cutout Depth Min | 22.25 |
| Cutout Width Max | 47.875 |
| Net Weight | 166 |
| Product Width | 47.875 |
| Cutout Width Min | 47.375 |
| Electrical | |
| 208v Compatible | No |
| Power Cord Included | Yes |
| Element/burner Details | |
| Center Front Element-burner Power | 15,000 BTU |
| Center Front Element-burner Type | Sealed Burner |
| Center Rear Element-burner Power | 5,000 BTU |
| Center Rear Element-burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burners |
| Cooktop Type | Commercial Style |
| Left Front Element-burner Power | 20,000 BTU/14,000 LP |
| Left Front Element-burner Type | Dual-Stacked Burner |
| Left Rear Element-burner Power | 15000 BTU/11000 LP |
| Left Rear Element-burner Type | Sealed Burner |
| Number of Cooking Element-burners | 6 |
| Power Boost | No |
| Right Front Element-burner Power | 15,000 BTU/11,000 LP |
| Right Front Element-burner Type | Dual-Stacked Burner |
| Right Rear Element-burner Power | 5,000 BTU/3,000 LP |
| Right Rear Element-burner Type | Sealed Burner |
| Exterior Details | |

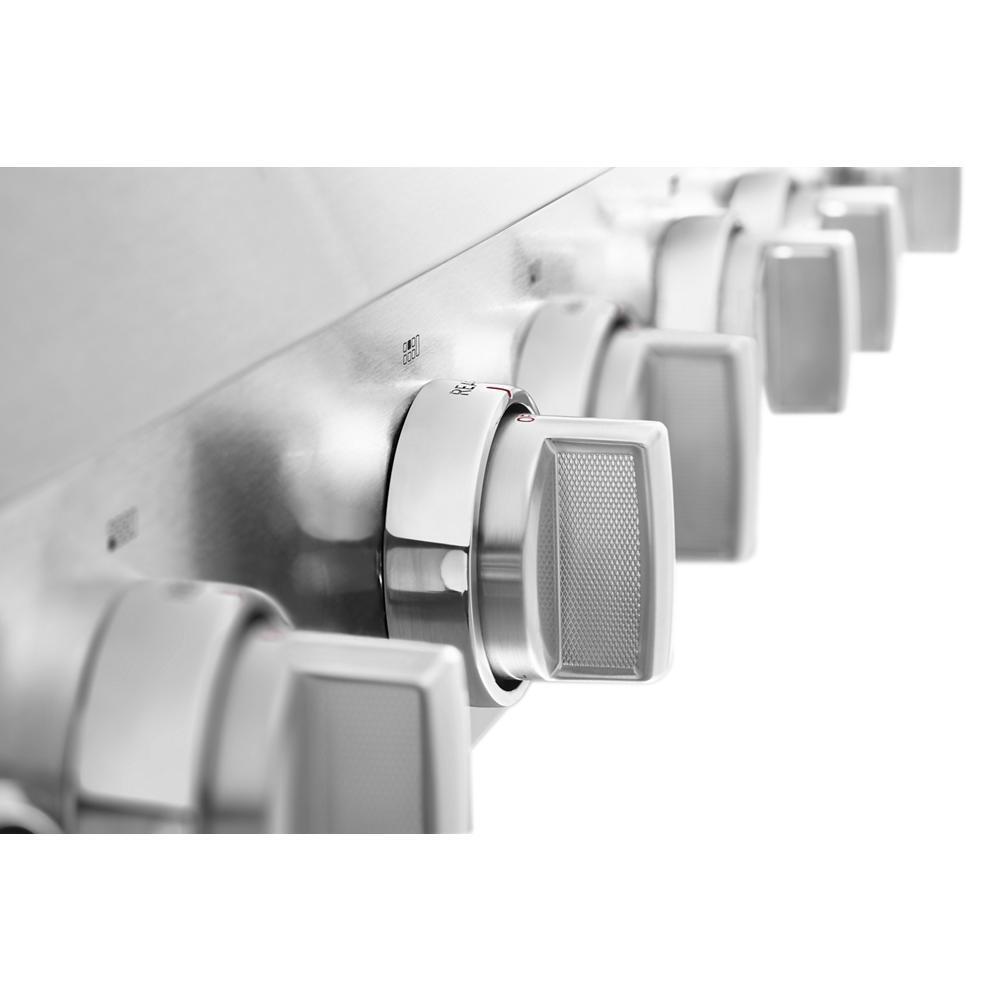

| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Grate Details | |
| Grate Details | Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates |
| Number of Grates | 6 |
| Ventilation Details | |
| Downdraft Vent | No |
