- 105K BTU Rating pairs with commercial-style range or rangetop with comparable output
- Automatic Turn On starts the fan if it detects high-heat cooking
- Four LED Lights provide bright, natural-looking light
- Four-Speed Fan with low, medium, high and power boost settings
- Commercial-Style Ventilation for KITCHENAID Ranges & Rangetops

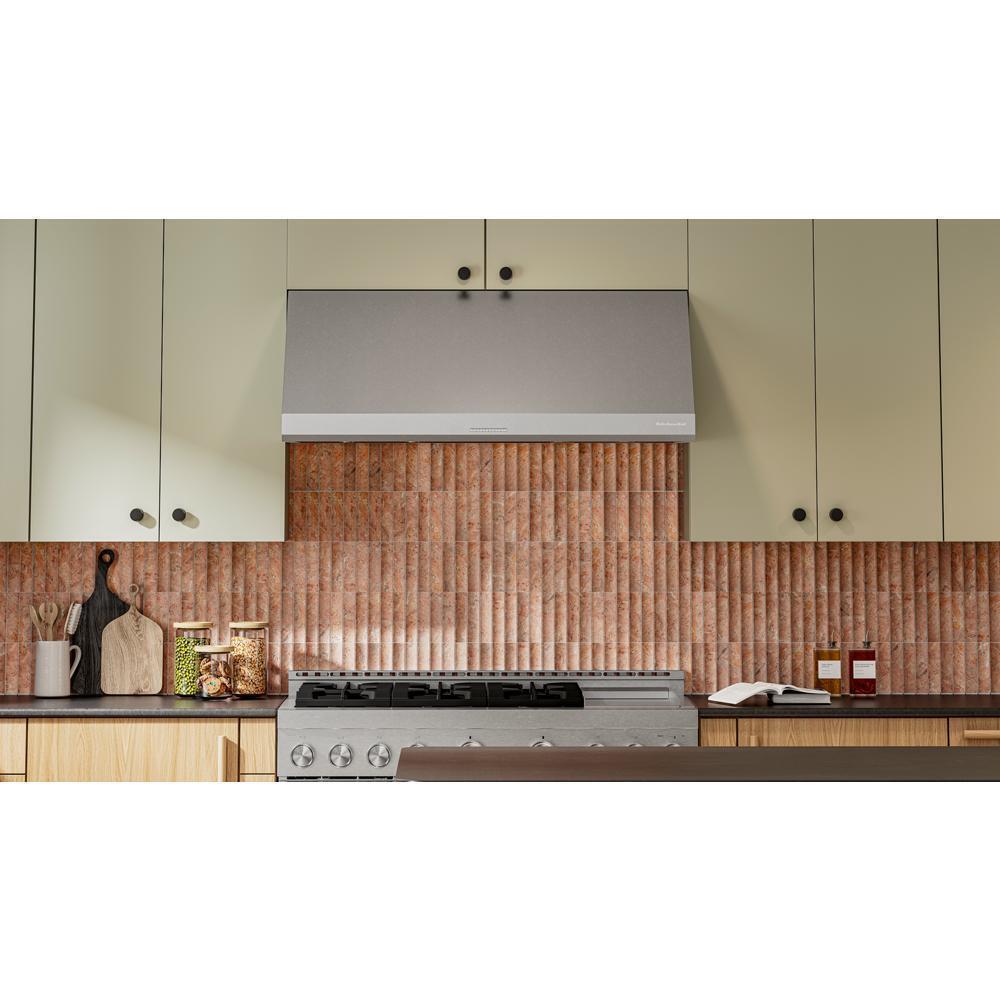

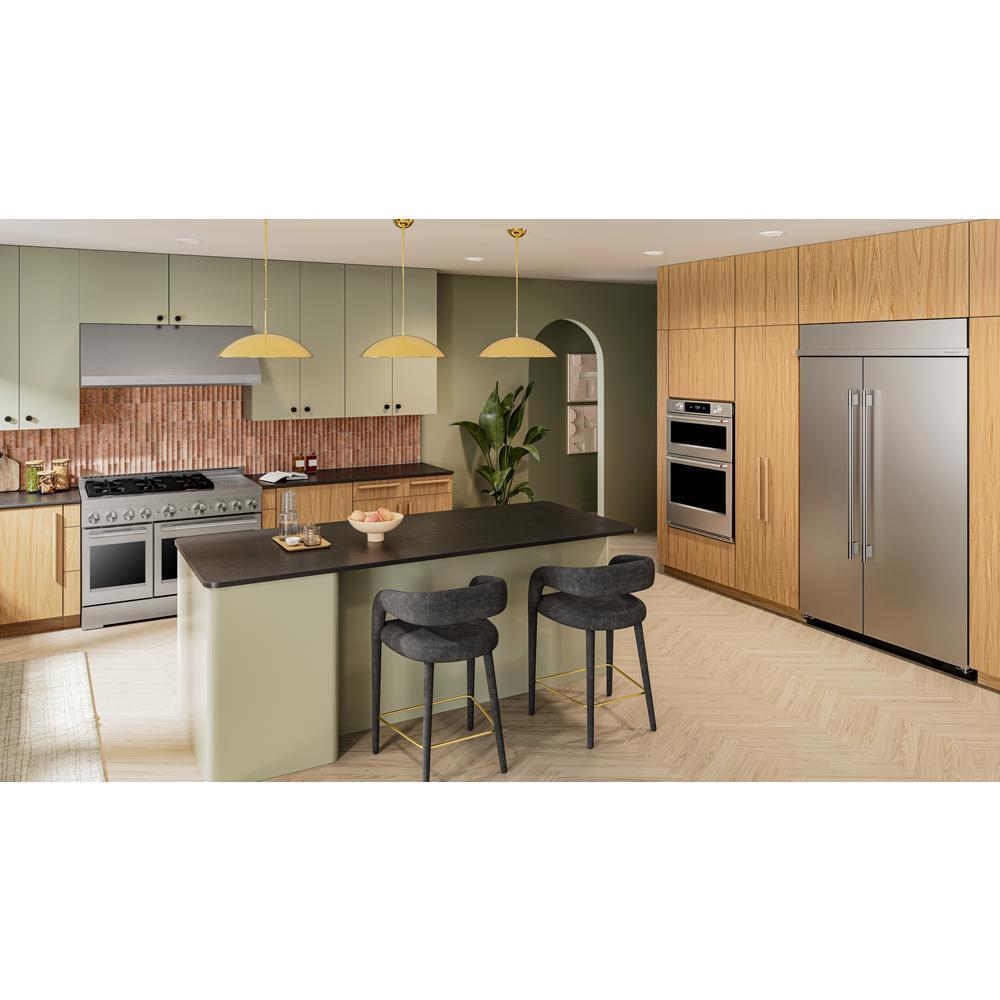

- Wall-Mount Canopy Hoods bring industrial style to home kitchens
- Power Boost sets maximum fan speed to help quickly clear the air

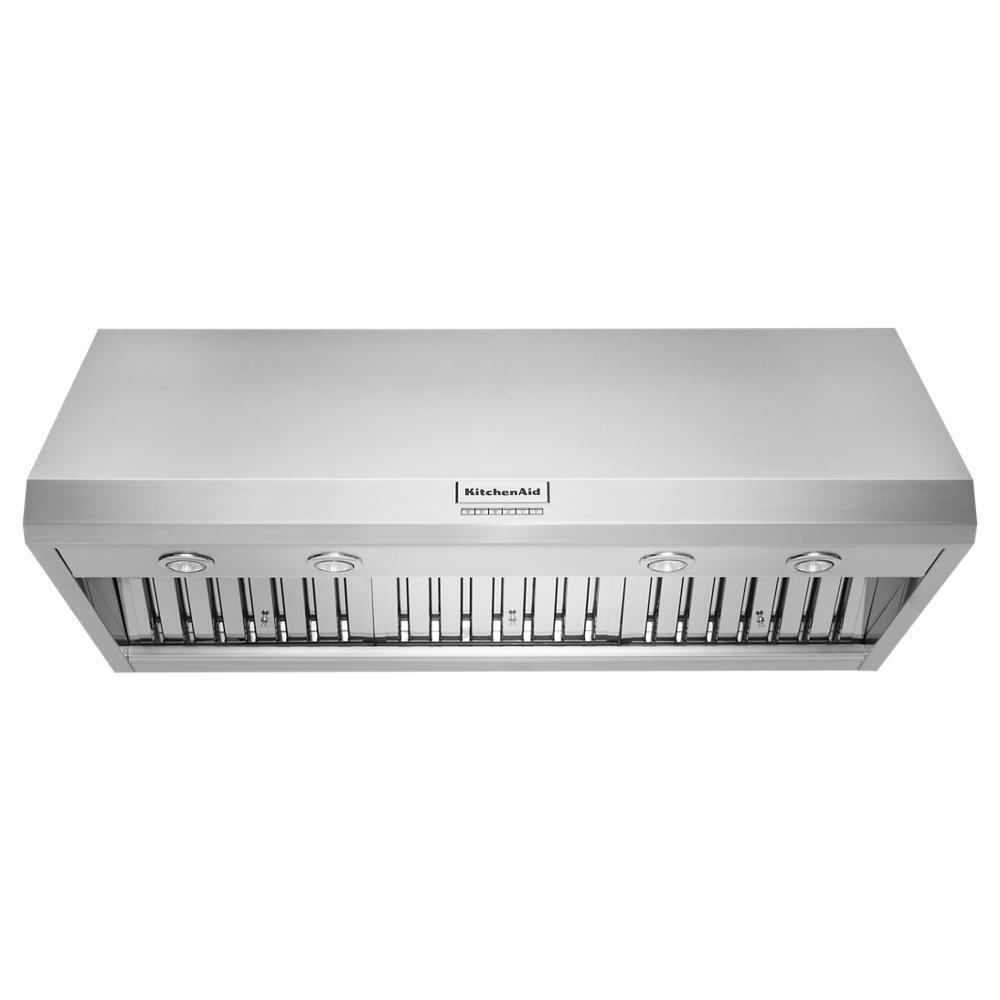

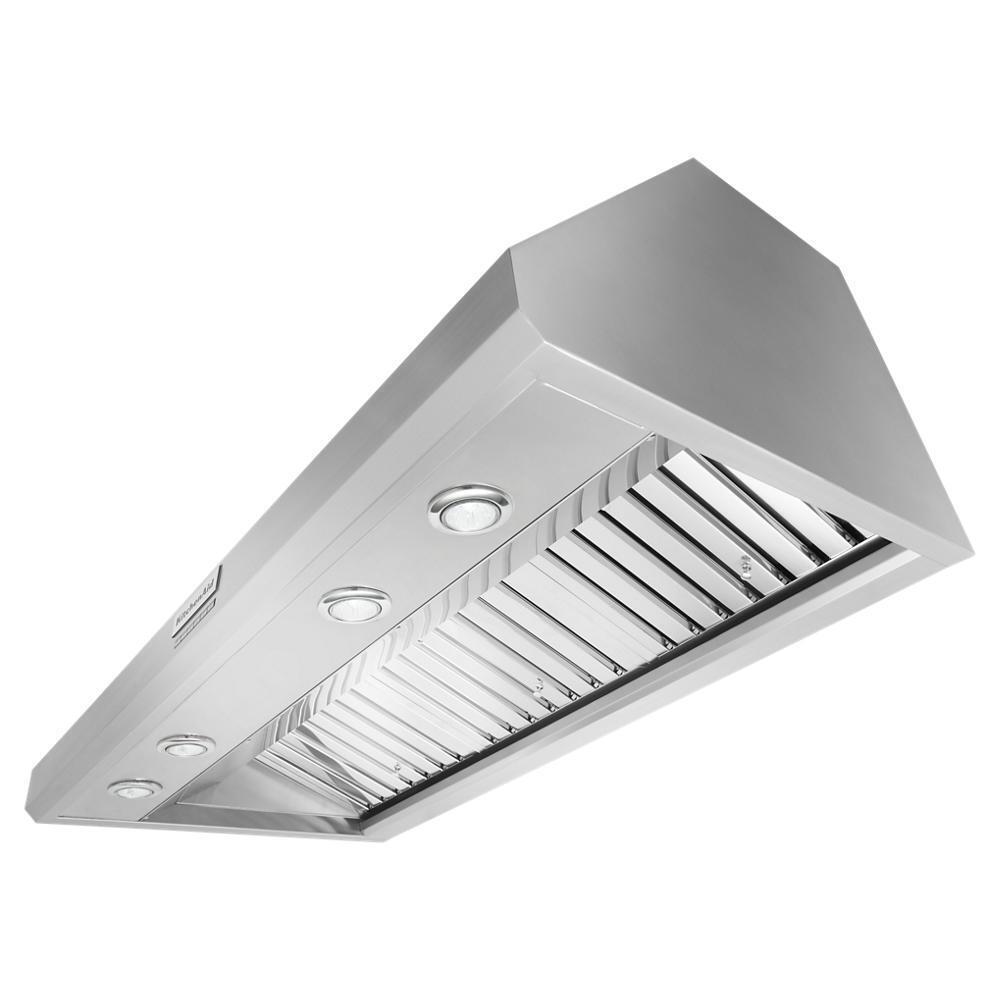

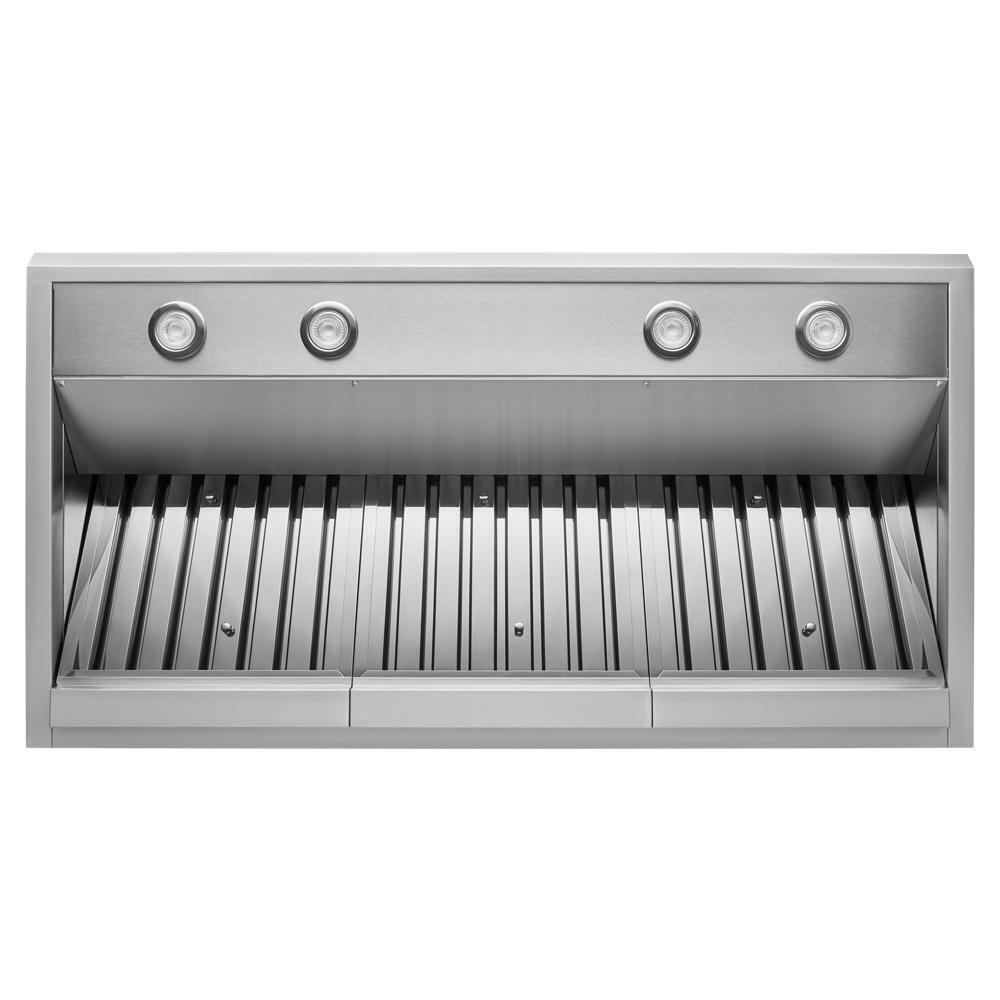

- Removable Stainless Steel Baffle Filters help capture grease and odors
- Requires commercial-style blower: 2 motor options sold separately

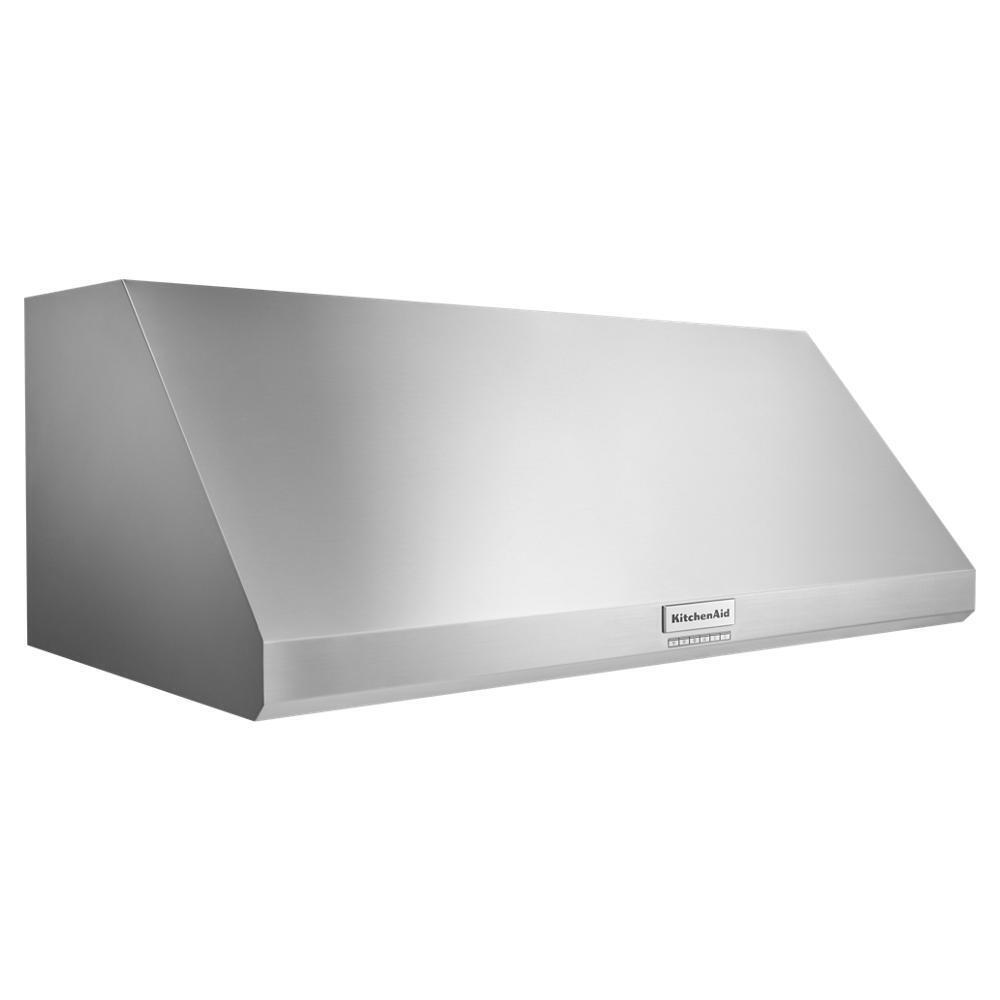

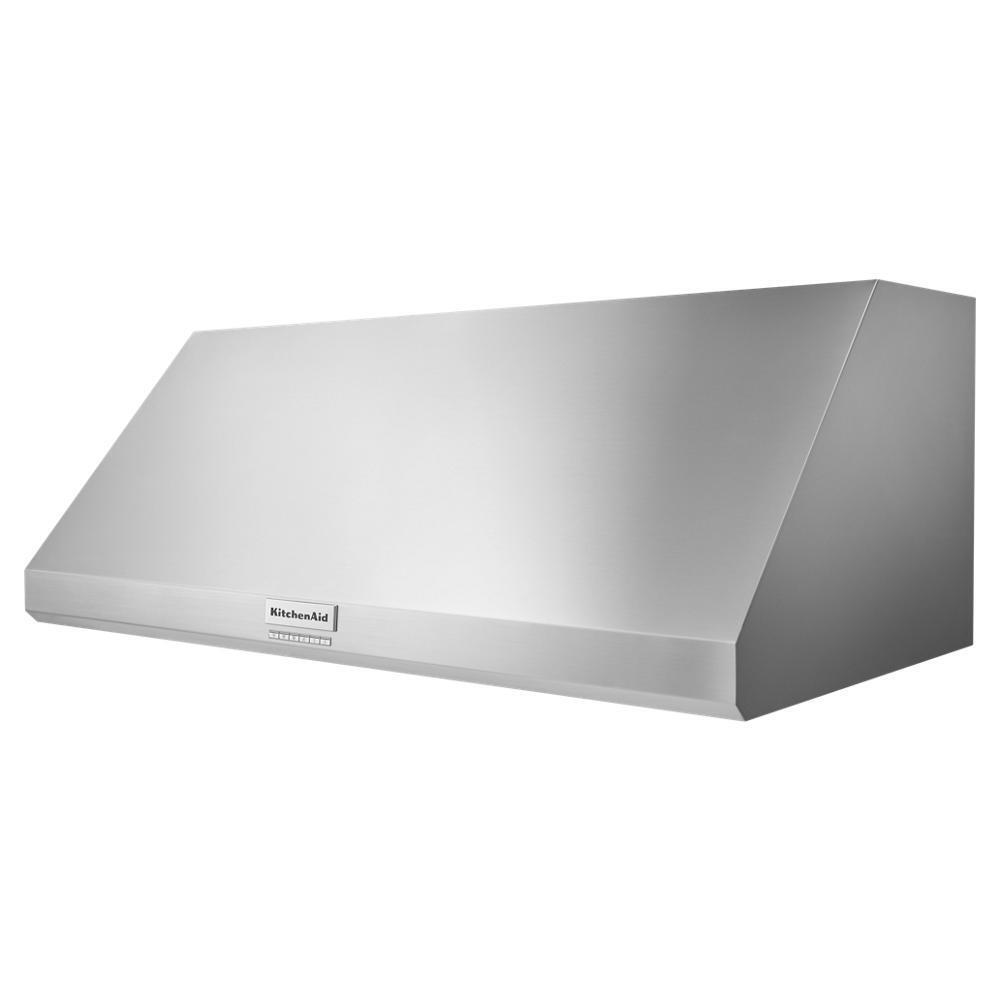

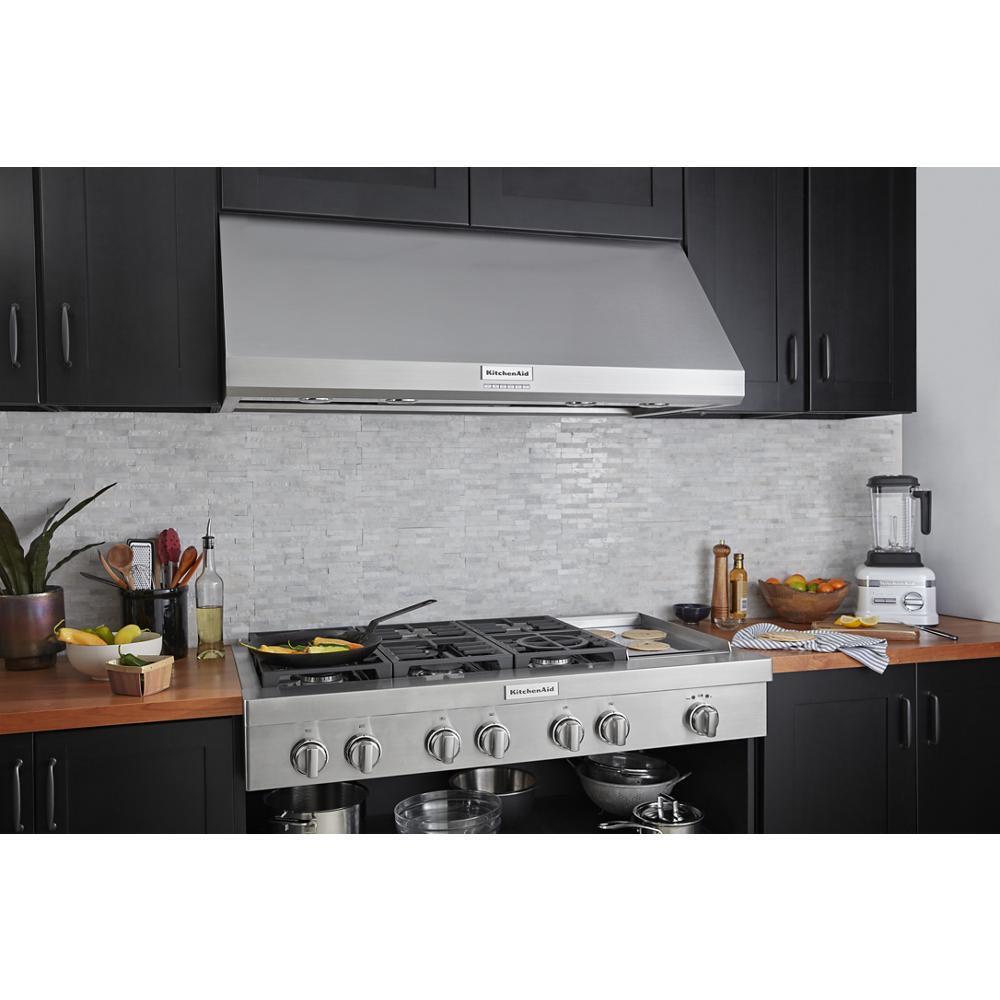

Designed to pair with 48-inch KitchenAid® Commercial-Style Ranges and Rangetops, this 48-inch wall-mount canopy range hood equips your kitchen with powerful ventilation. A 105,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners at the same time. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
| Certifications | |
| Prop65 | CA |
| Star K Certified | No |

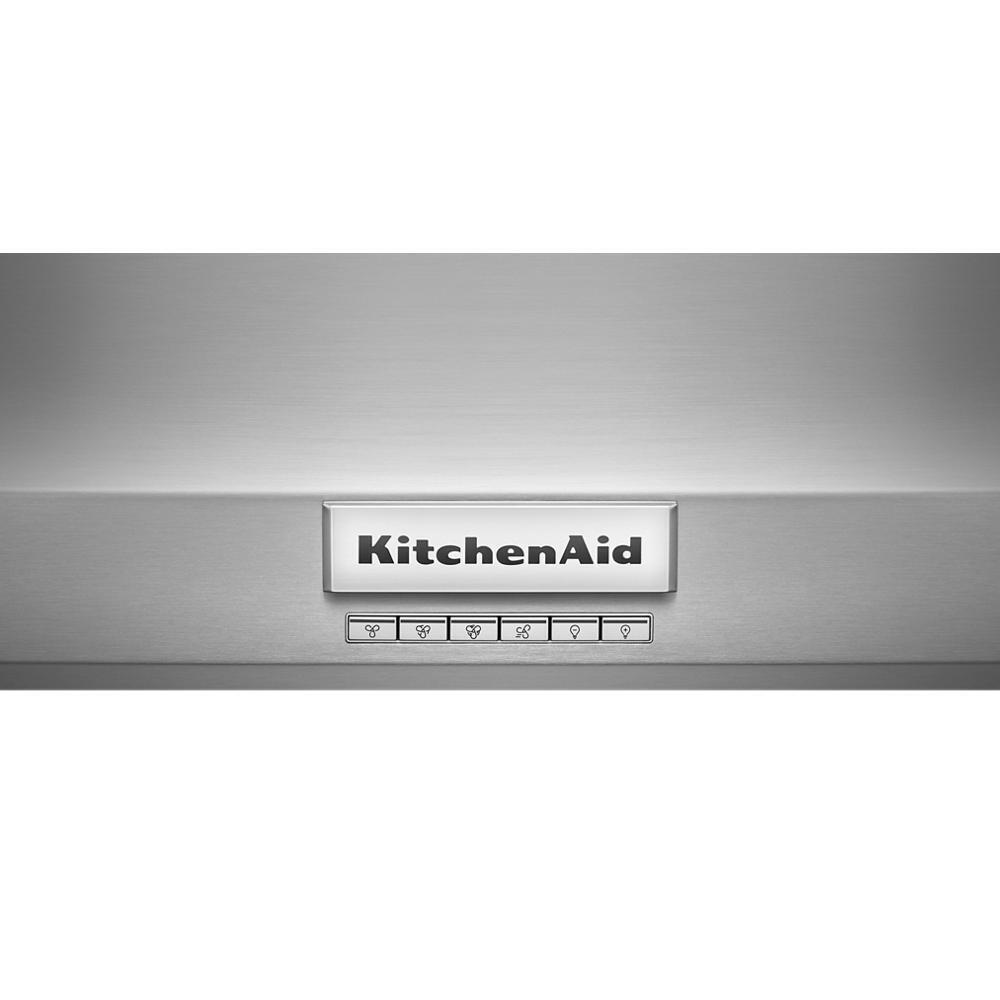

| Controls | |
| Control Location | Front |
| Control Type | Push Button |
| Details | |
| Damper Included | Yes |
| Hood Type | Wall-Mount Canopy |
| Lighting Control Type | Push Button |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 1 |
| Number of Vent Speeds | 4 |
| Task Lighting | Yes |

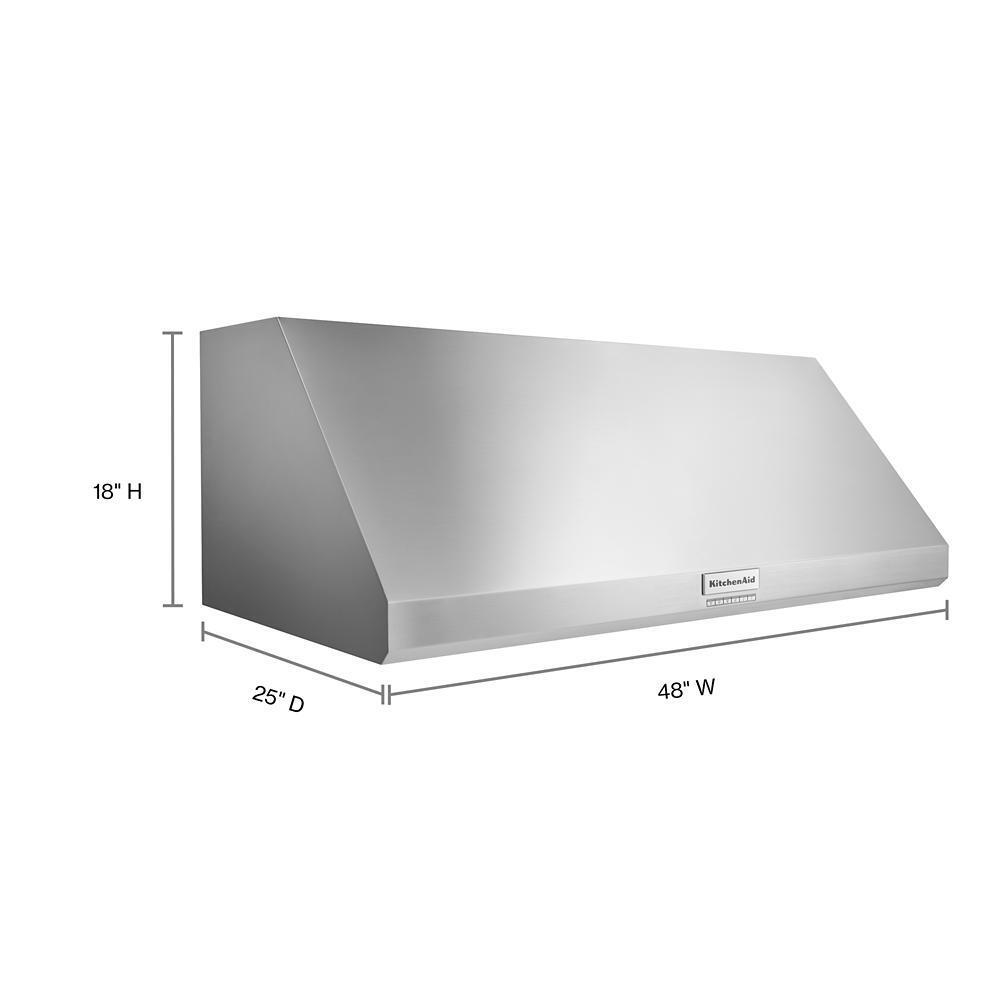

| Dimensions | |
| Canopy Height | 12 |
| Carton Depth | 30 |
| Carton Height | 24 |
| Carton Width | 53 |
| Gross Weight | 43 |
| Net Weight | 38 |
| Electrical | |
| Power Cord Included | No |
| General | |
| Energy Star® Qualified | No |
| Ventilation Details | |
| Auto Function | Auto On |
| Auto On | Yes |
| BTU Threshold | 90K/105K |
| Blower Motor | Blower Motor to be Purchased Separately |
| Blower Type | Centrifugal |
| Duct Direction | Vertical or Horizontal |
| Duct Length | 13 |
| Duct Outlet Size | 10 |
| Duct Type | Round |

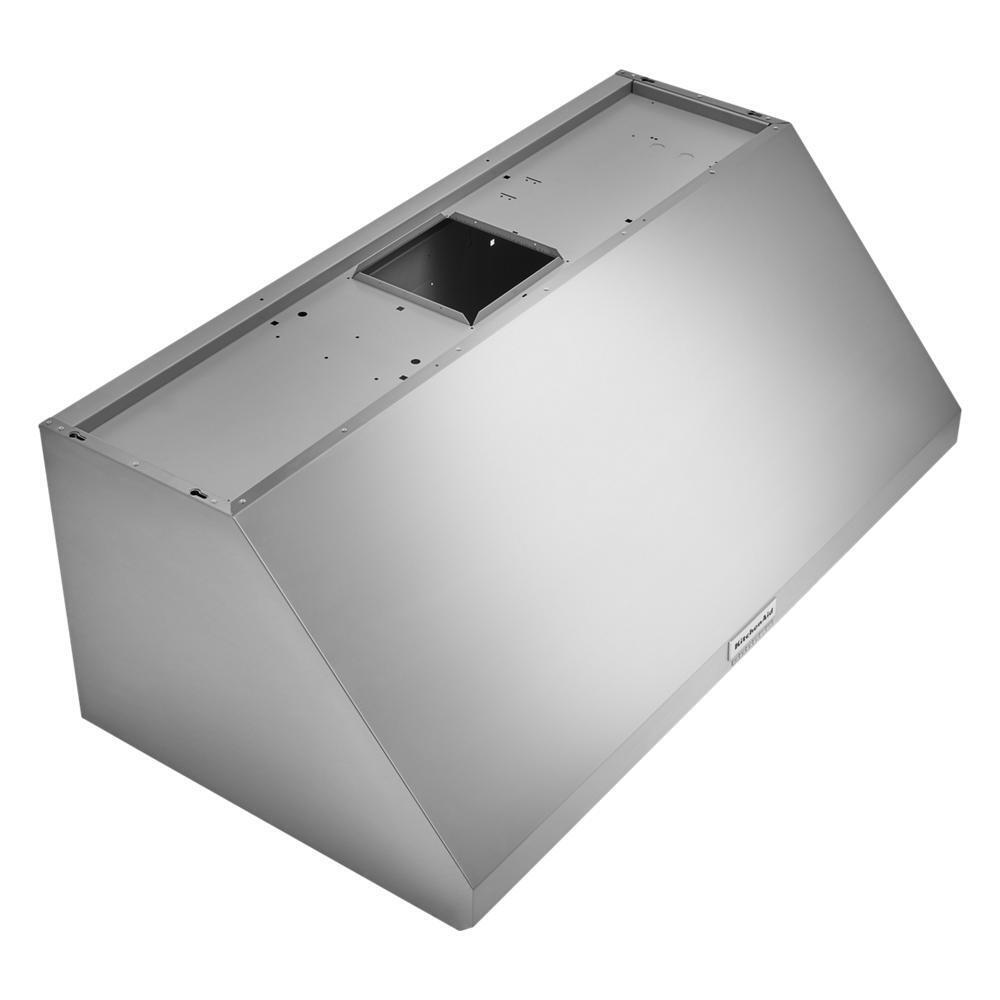

| Exhaust Vent Location | Top |
| Filters | Removable Stainless Steel Baffle Filters |
| Hvi (cfm Hs Horizontal) | 480/960 |
| Hvi (cfm Hs Vertical) | 520/970 |
| Maximum Motor Cfm | 1,170 |
| Night Light | Yes |
| Night Light Type | LED |
| Sones High Speed Horizontal | 10.5/12.5 |
| Sones High Speed Vertical | 11/12.5 |
| Sound Max Speed | 73.6 |
| Sound Max Speed (sones) | 12.5 |
| Sound Min Speed | 2.5 |
| Task Light Type | LED |
| Vent Fan Location | Side |
| Vent Material | Aluminum |
| Venting | Exterior |
