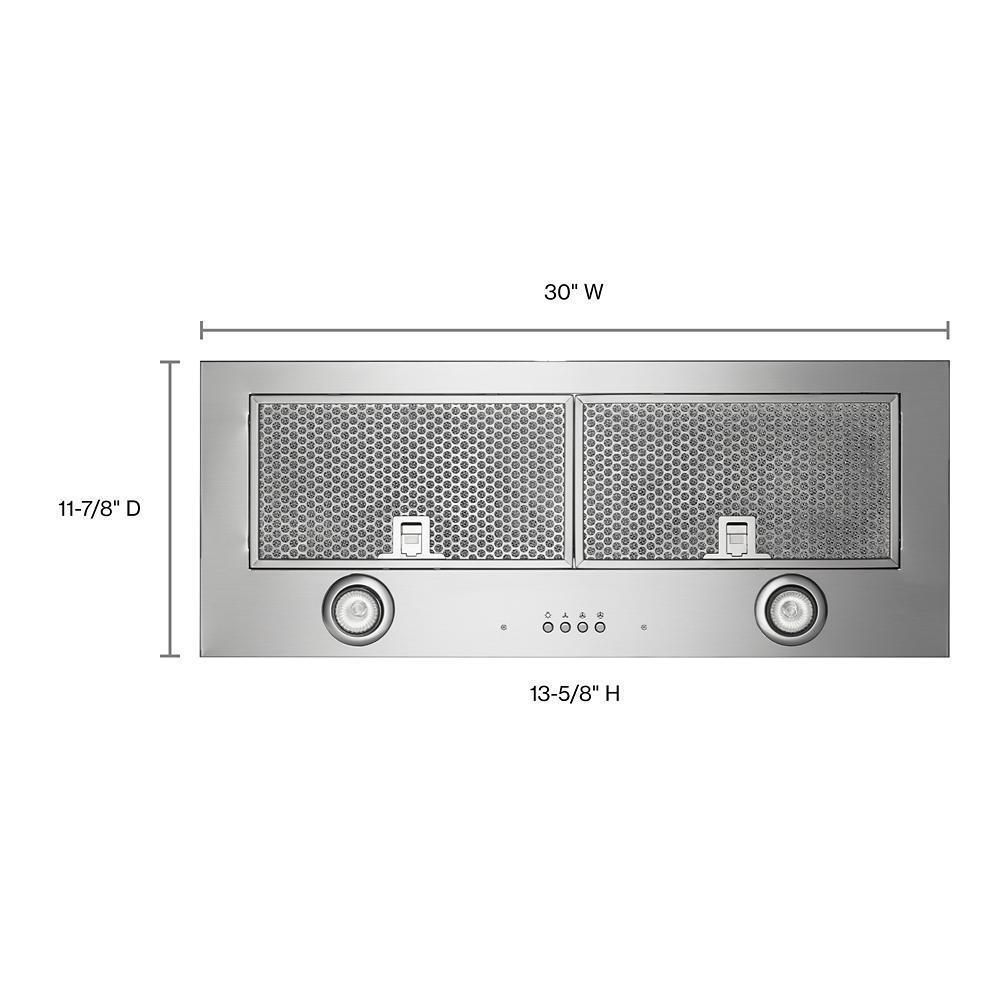

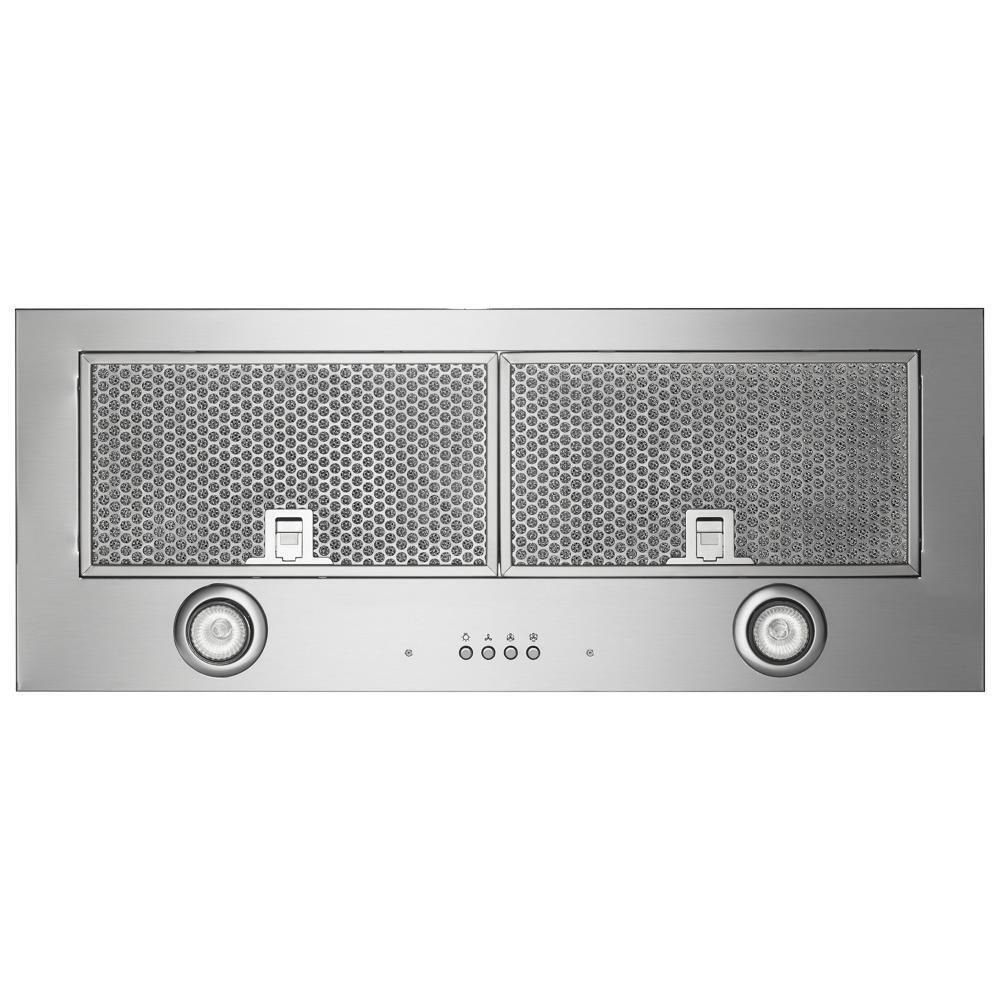

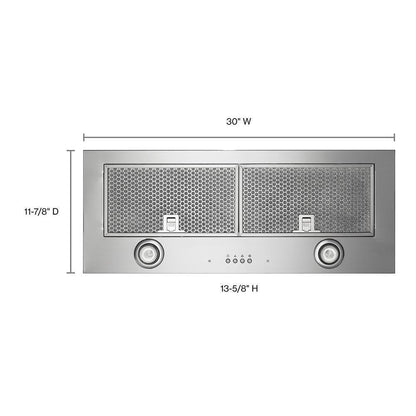

Kitchenaid UVL5430JSS 30" 400 CFM Motor Class Custom Hood Liner
Kitchenaid UVL5430JSS 30" 400 CFM Motor Class Custom Hood Liner
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Ventilation system for conventional ranges and cooktops
- Hood Liners can be concealed in cabinetry to create a custom look
- Removable Mesh Filters help capture grease and odors
- Three-Speed Fan with low, medium and high settings
- Two LED Lights provide bright, natural-looking light
Designed to pair with 30-inch KitchenAid® Ranges and Cooktops, this 30-inch 400 CFM motor class custom hood liner allows you to conceal ventilation within cabinetry, creating a style all your own. A 65,000 BTU rating keeps up with high-heat cooking on multiple burners, and three fan speeds let you choose the right setting for every cooking adventure.
| Certifications | |
| Prop65 | CA |
| Star K Certified | No |
| Controls | |
| Control Location | Hidden |
| Control Type | Push Button |
| Details | |
| Damper Included | Yes |
| Hood Type | Under Cabinet |
| Lighting Control Type | Push Button |
| Number of Night Light Settings | 1 |
| Number of Vent Speeds | 3 |
| Task Lighting | Yes |
| Dimensions | |
| Product Height | 13.625 |
| Carton Height | 16 |
| Gross Weight | 33.51 |
| Canopy Height | 13.625 |
| Carton Depth | 15 |
| Carton Width | 33 |
| Product Depth | 11.875 |
| Net Weight | 24.25 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | Yes |
| General | |
| Energy Star® Qualified | No |
| Ventilation Details | |
| Auto Function | No |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Length | 14 |
| Duct Outlet Size | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Grease Filters |
| Maximum Motor Cfm | 400 |
| Night Light | No |
| Task Light Type | LED |
| Vent Fan Location | Side |
| Venting | Exterior or Recirculating |
