- 10''/6'' Even-Heat™ Ultra Power™ Element with Simmer Setting
- 10"/6" double-ring element is perfect for large or small pans
- 6" element has 1200 watts of power to handle daily cooking needs
- 6" Even-Heat element has a low setting that can melt chocolate
- 8" element offers up to 1800-watts of power
- Control Lock disables cooking for easy cleaning when not in use
- Visually indicates when a cooking surface is on or still hot
- Touch-Activated Controls are simple to use and easy to clean

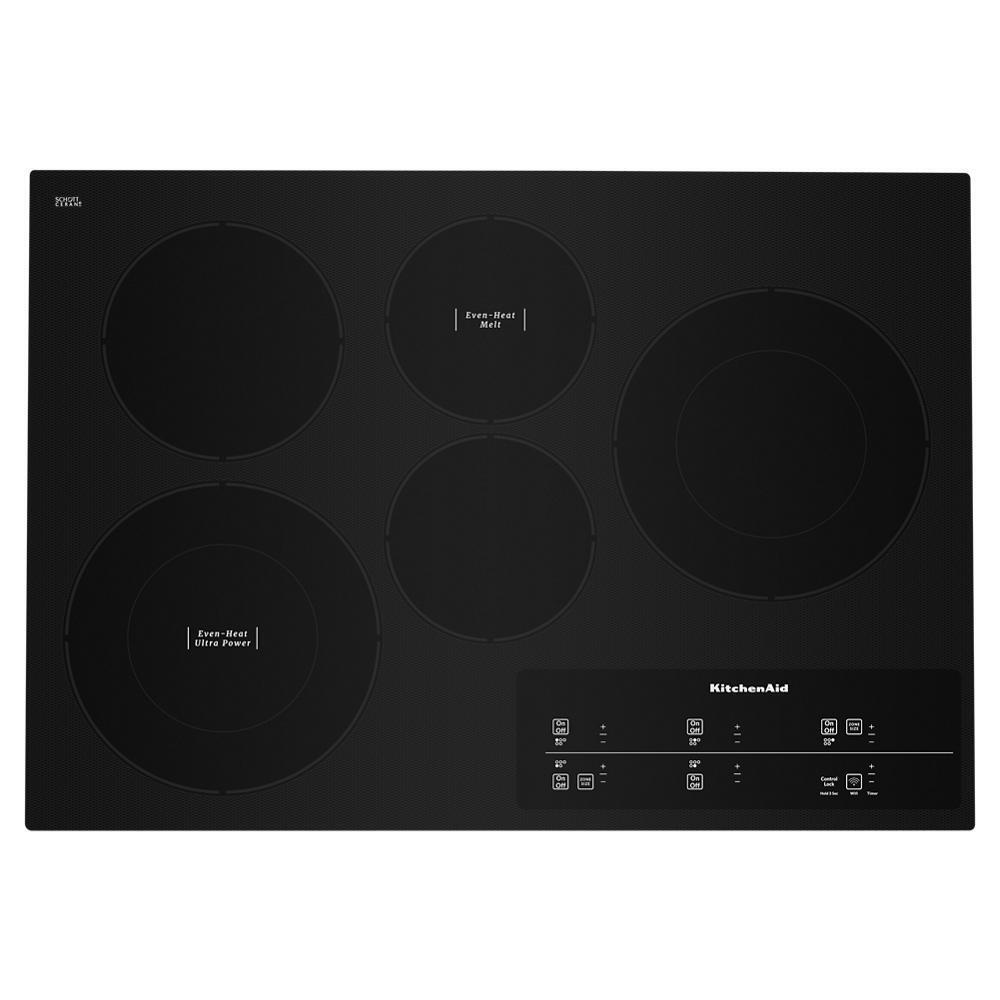

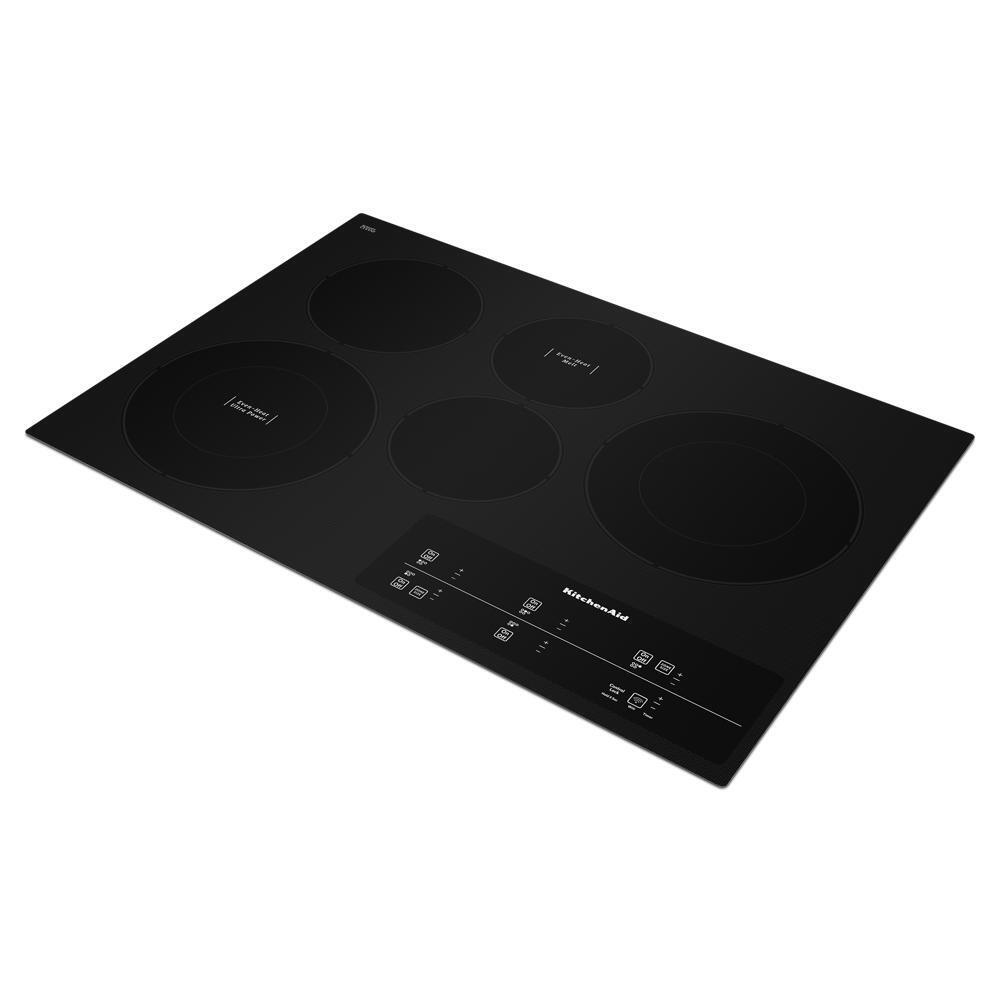

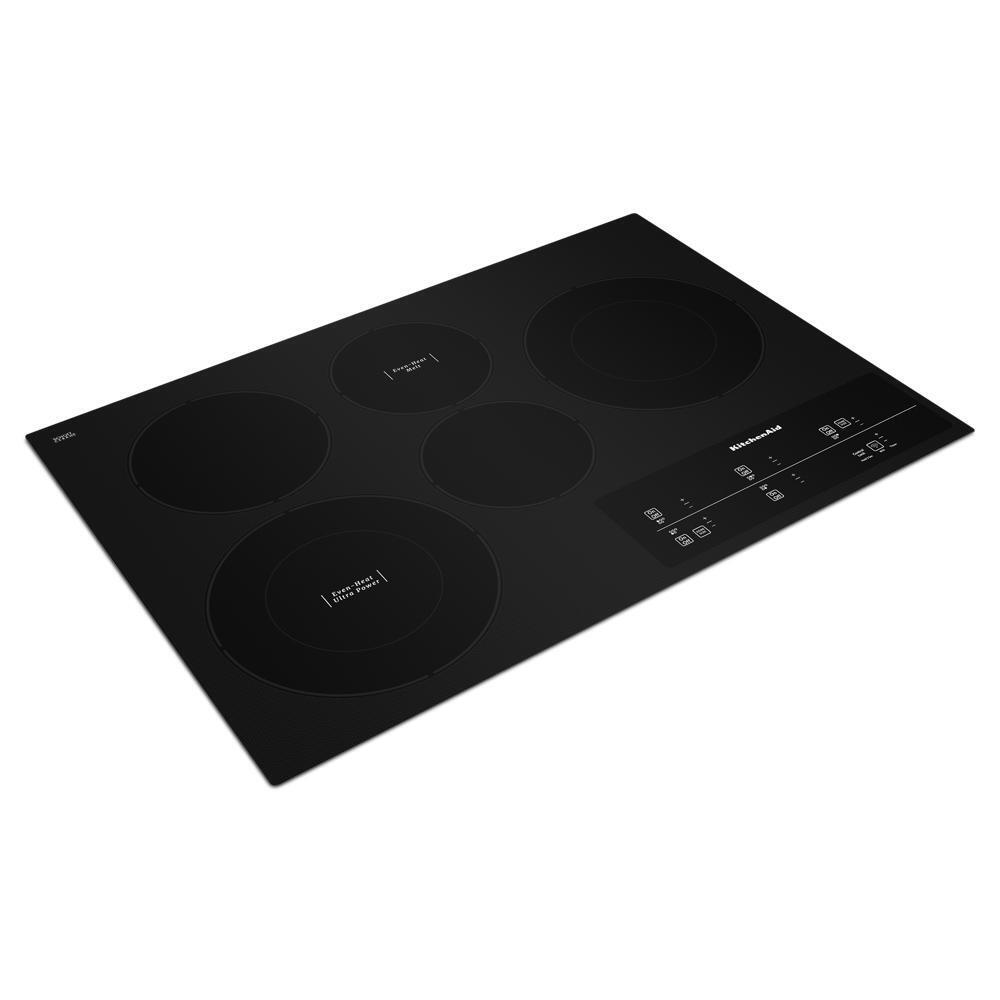

This 30" electric cooktop delivers exceptional results with the performance offered by a 10'' Even-Heat™ UltraPower™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and 10"/6" Ultra Power™ Double-Ring Round Element designed to accommodate both large stock pots and six-inch saut(eback) pans with ease and handle rapid boiling, searing and wok cooking.
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |
| Dimensions | |
| Product Height | 3.625 |
| Carton Height | 9.25 |
| Gross Weight | 46 |
| Carton Depth | 25 |
| Carton Width | 35 |
| Product Depth | 20.25 |
| Cutout Depth Min | 20.375 |
| Cutout Width Max | 29.563 |
| Net Weight | 41 |
| Product Width | 29.0 |
| Cutout Depth Max | 20.563 |
| Cutout Width Min | 29.063 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Power | 1,200W |
| Center Front Element-burner Size | 6in. |
| Center Front Element-burner Type | Standard |
| Center Rear Element-burner Power | 1,300W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Even Heat |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 3200/2300W |
| Left Front Element-burner Size | 10in./6in. |
| Left Front Element-burner Type | Even Heat Dual |
| Left Rear Element-burner Power | 1,800W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 3000W/1900W |
| Right Front Element-burner Size | 10in./6in. |
| Right Front Element-burner Type | Dual |
| General | |
| Combination Match With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Ventilation Details | |
| Downdraft Vent | No |
