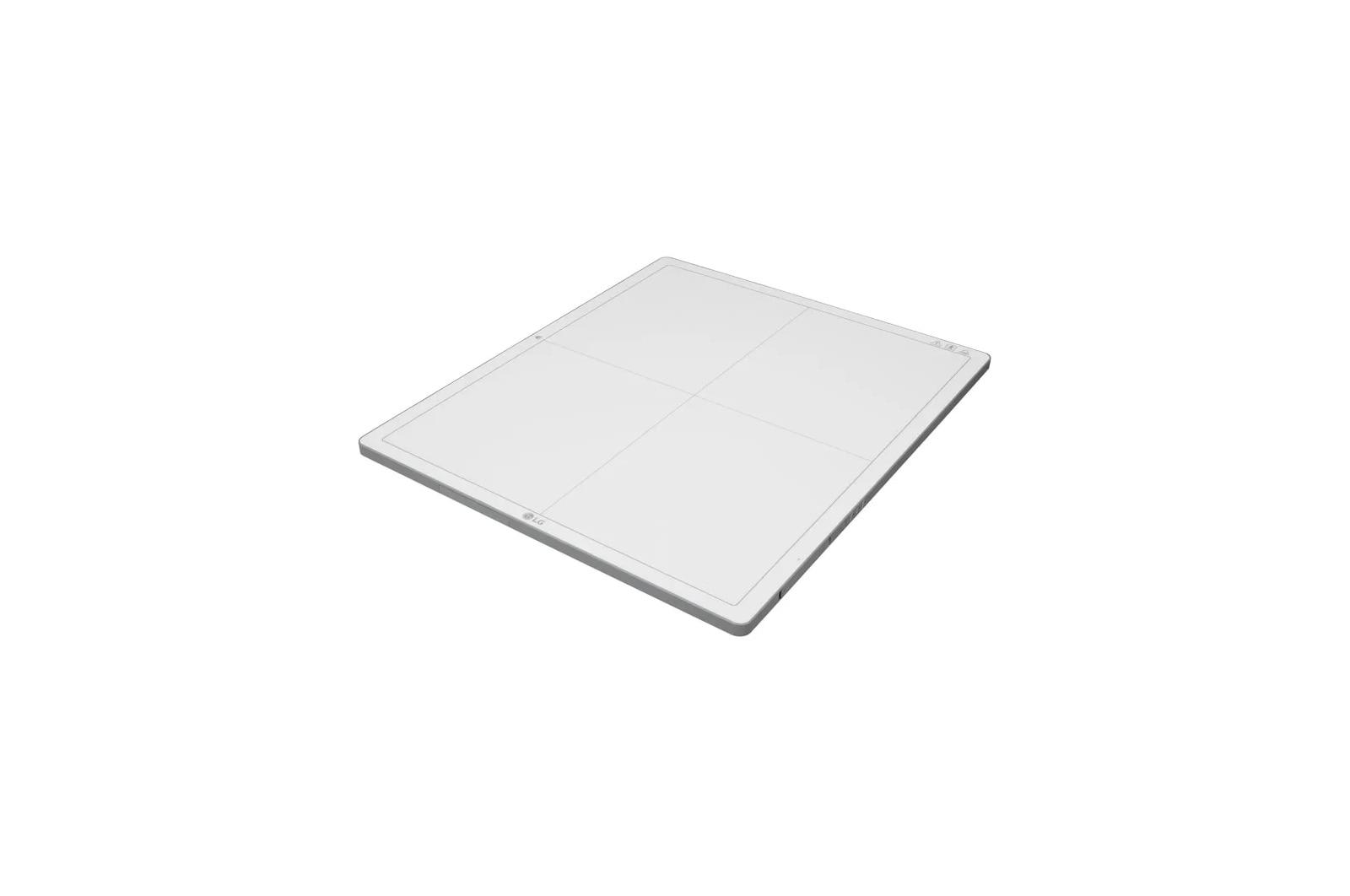

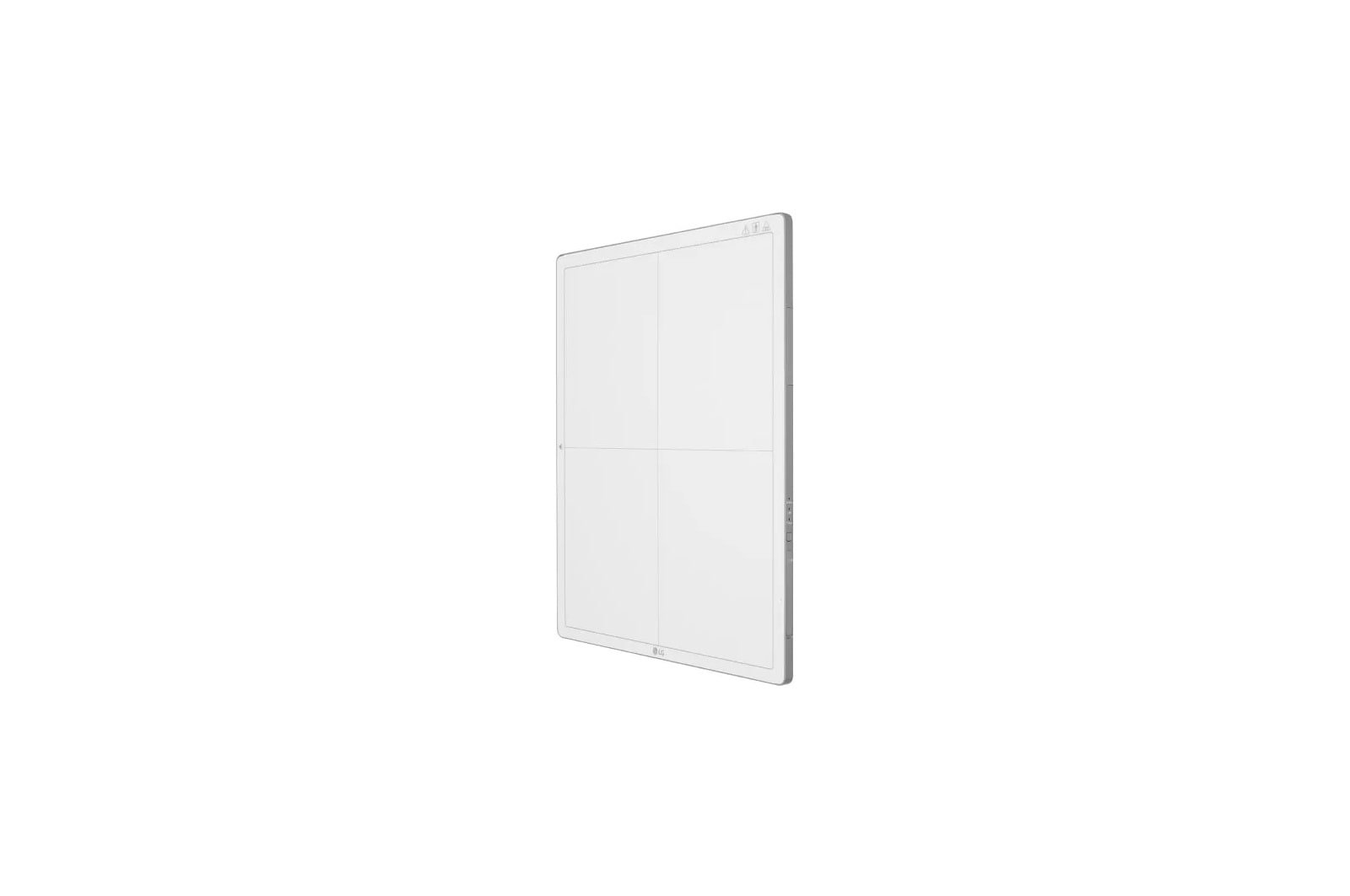

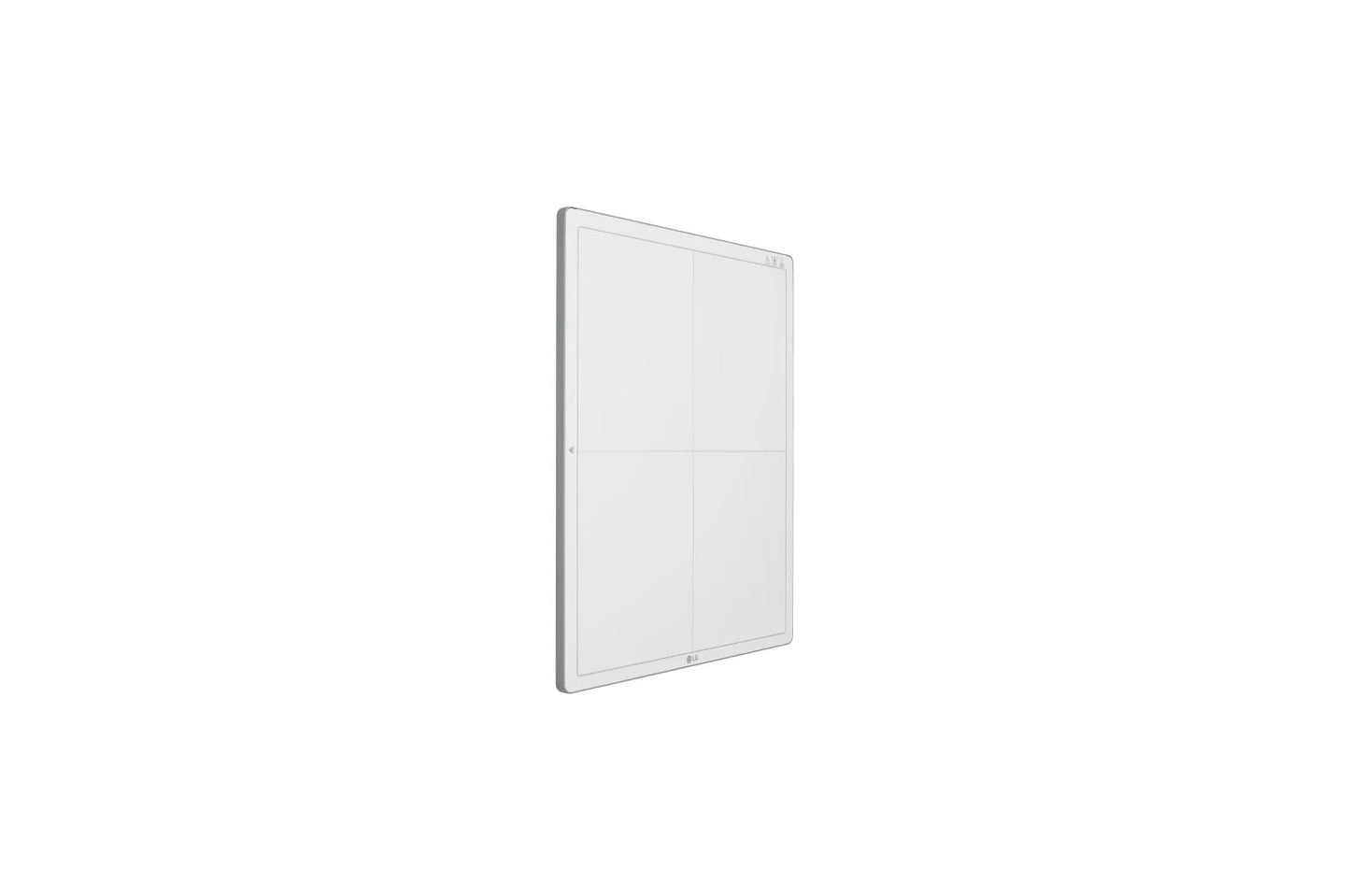

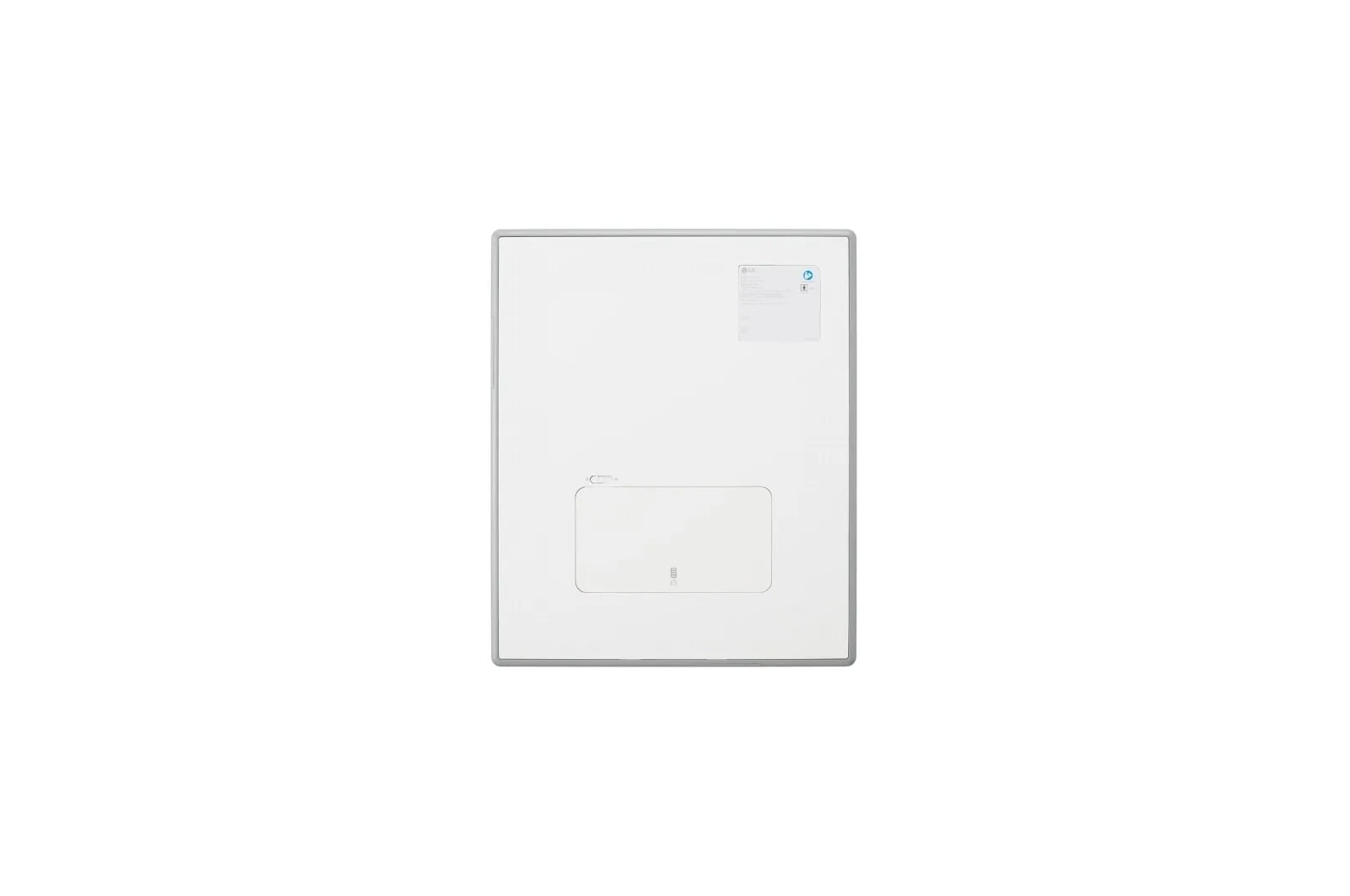

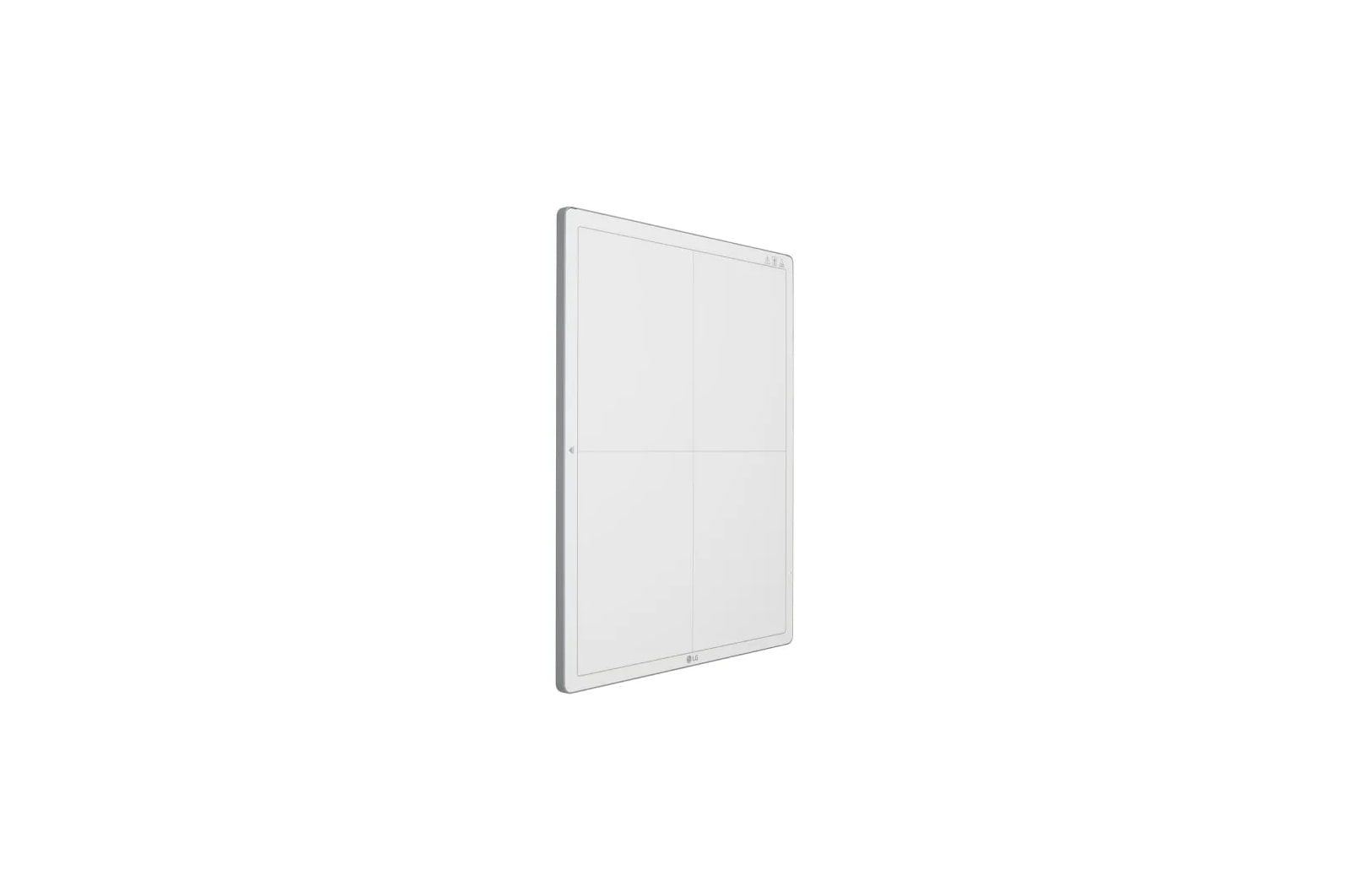

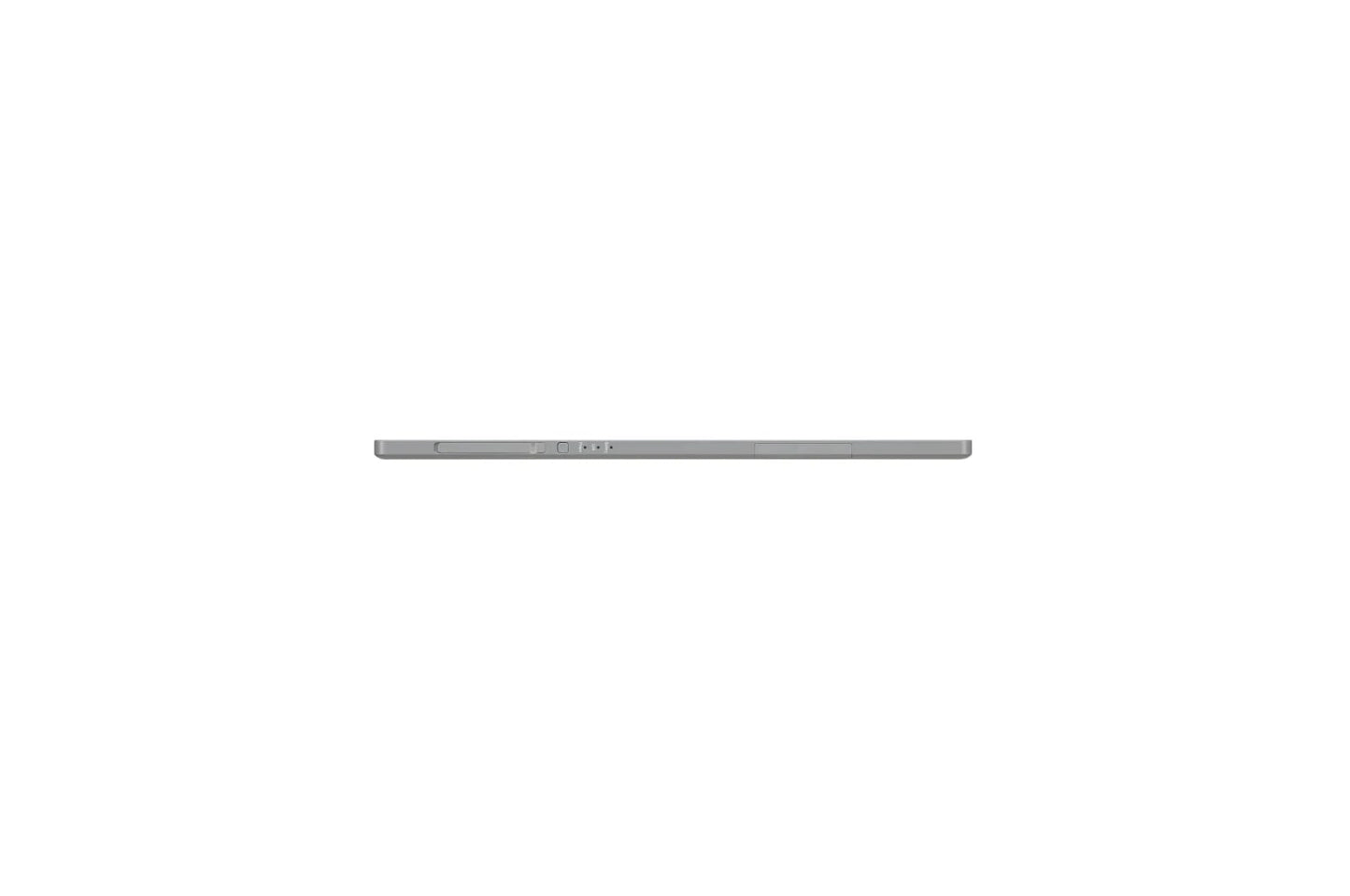

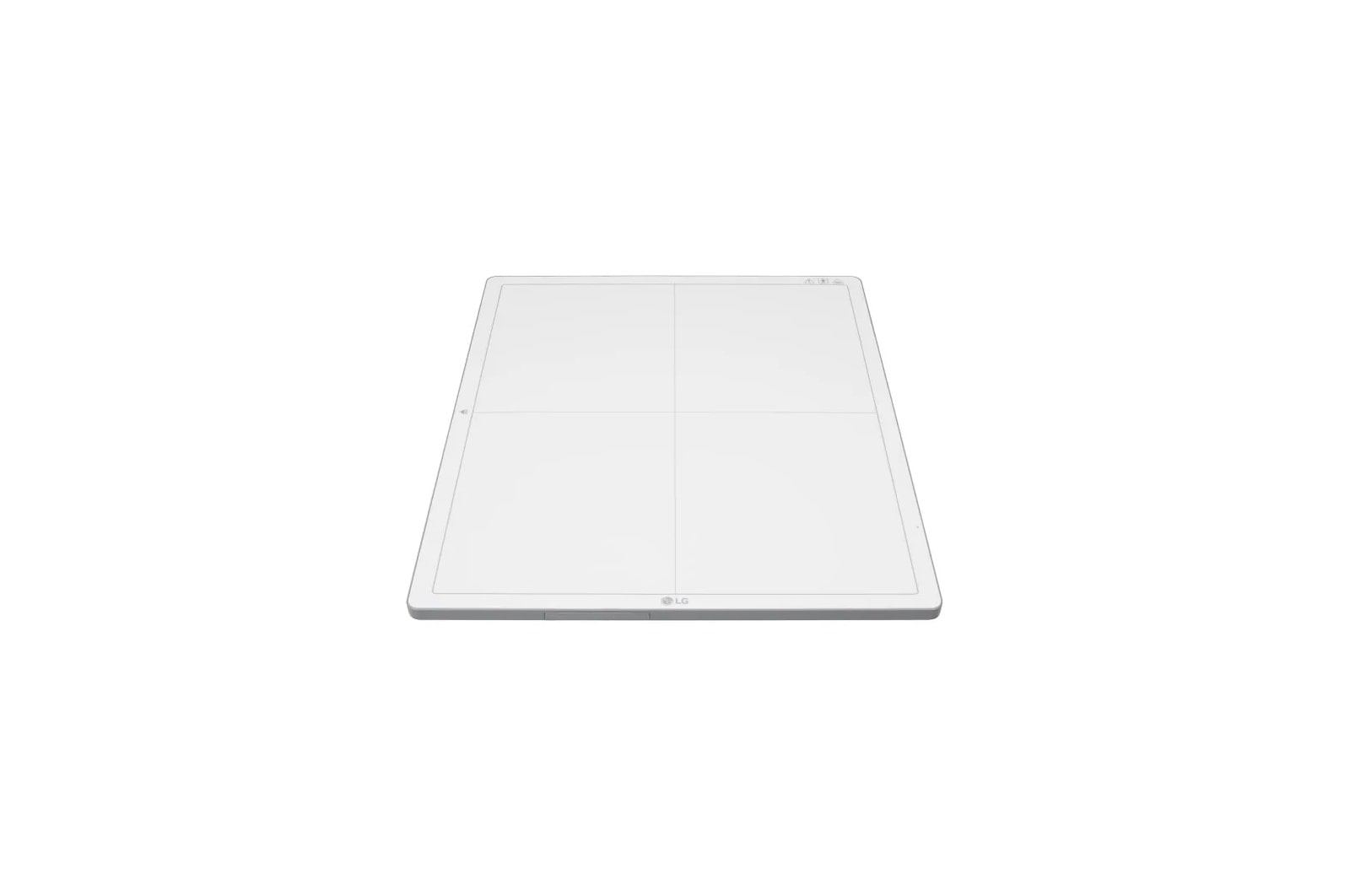

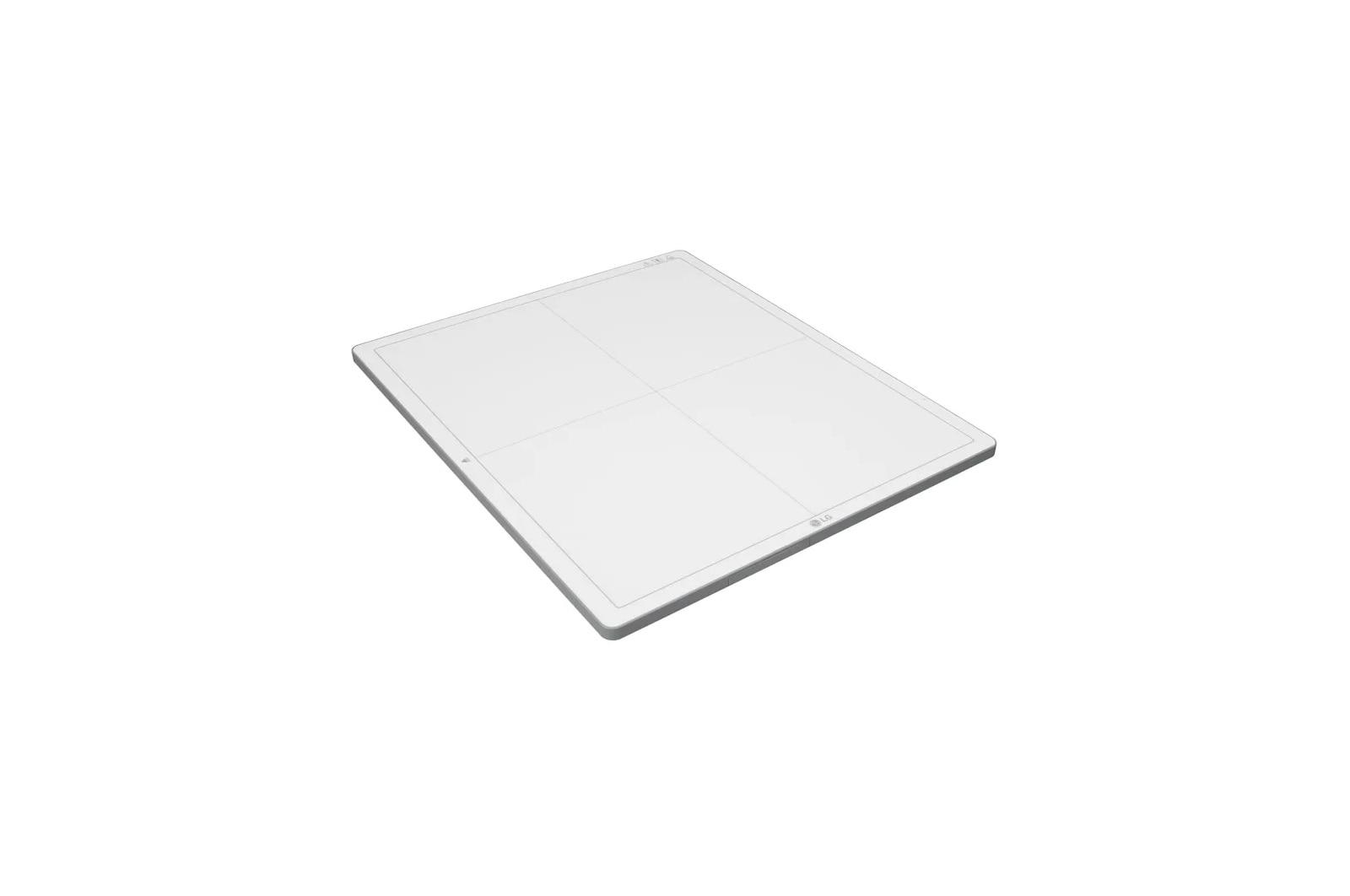

Lg 14HK701GWP Digital X-Ray Detector (DXD)
Lg 14HK701GWP Digital X-Ray Detector (DXD)
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 140 pixel size
- 16bit A/D conversion
- Raw Image in 2.5 sec. (wireless)
- Raw image in 2 sec. (wired)
- IP53: Water and Dust Resistant
- Magnesium & Carbon-fiber Body
Digital X-Ray Detector (DXD)
| Battery | |
| Duration In Standby Status | 13 hrs |
| Operating Time | 220 shots / 5.5 hrs (Typical) (Condition : Cycle Time 90 sec) |
| Charging Time | 3 hrs (Type) |
| Regulatory & Certifications | |
| IP Rating (Solid / Liquid Ingress) | IP53 |
| Detector Specifications | |
| Data Output | 16 bit |
| Cycle Time (Wireless) | 11 sec |
| Full Image Transfer (Wired) (Typ.) *Without window time | 2 sec |
| TFT Type | A-si |
| Pixel Pitch | 140 |
| Full Image Transfer (Wireless) (Typ.) *Without window time | 2.5 sec |
| Scintillator | CsI |
| Intended Use | General Radiography |
| Cycle Time (Wired) | 8 sec |
| A/D Conversion | 16 bit |
| Weight (including Battery) | 6.5 lbs / 2.95 kg |
| Image Area | |
| Number of Pixels | 2,500 x 3,052 pixels |
| TFT Active Area | 13.8 x 13.8 in / 350 x 427.28 mm |
| MTF | |
| MTF @ 0.5lp/mm (Typ.) | 89% |
| DQE | |
| DQE @ 0.1lp/mm (Typ.) | 0.72 |
| Communication | |
| Auto Exposure Detection | Yes |
| WLAN | IEEE802.11a/b/g/n/ac, 2.4 GHz / 5 GHz |
| Communication Type | Wired / Wireless |
| Durability | |
| Sensor Protection Plate | Carbon Fiber Plate |
| Maximum Load Weight (Local (Point Load)) | 220 lbs / 100 kg |
| Maximum Load Weight (Full (Uniform Load)) | 661 lbs / 300 kg |
