LG 15LN766A
Authorized Reseller

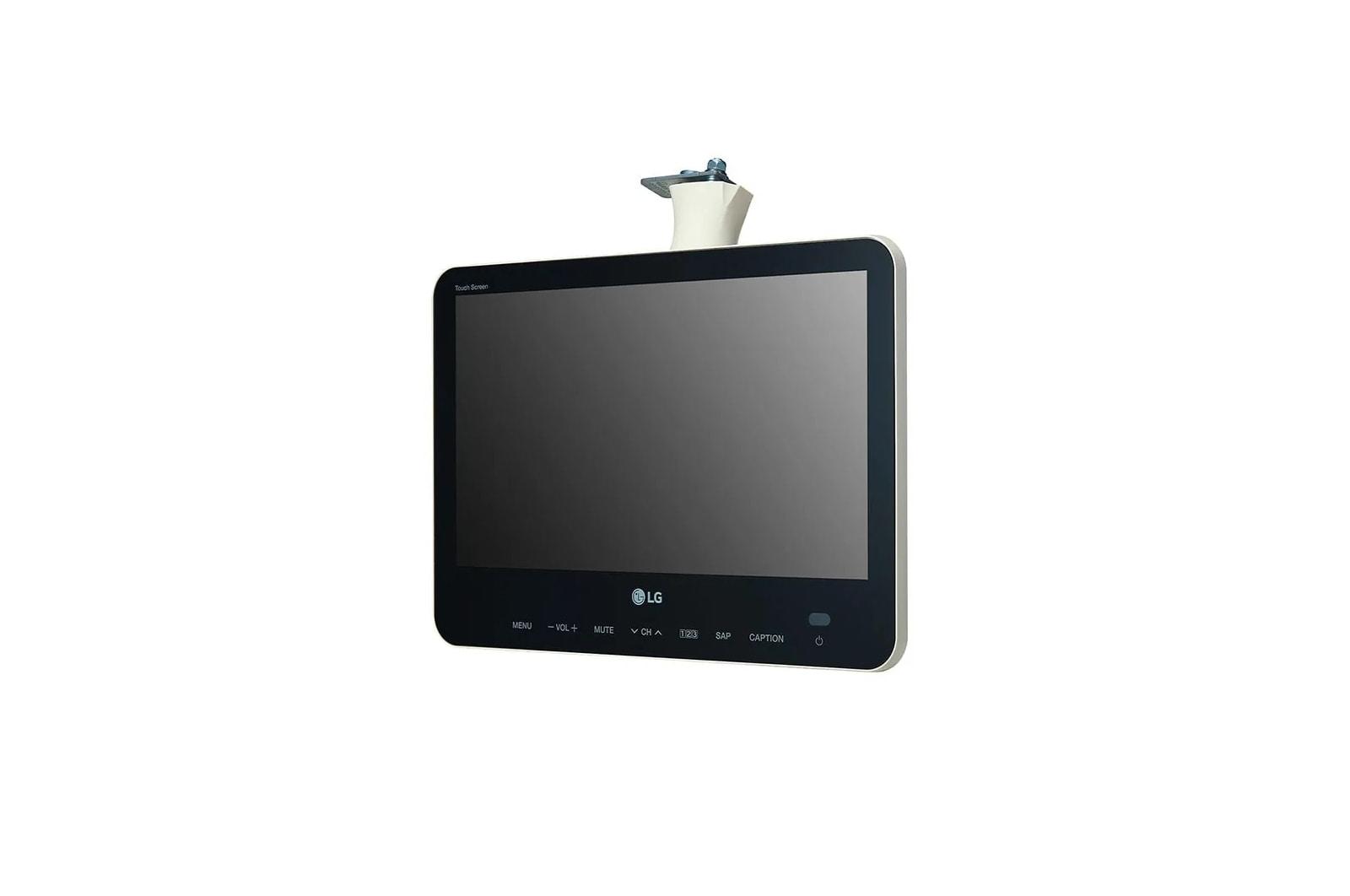

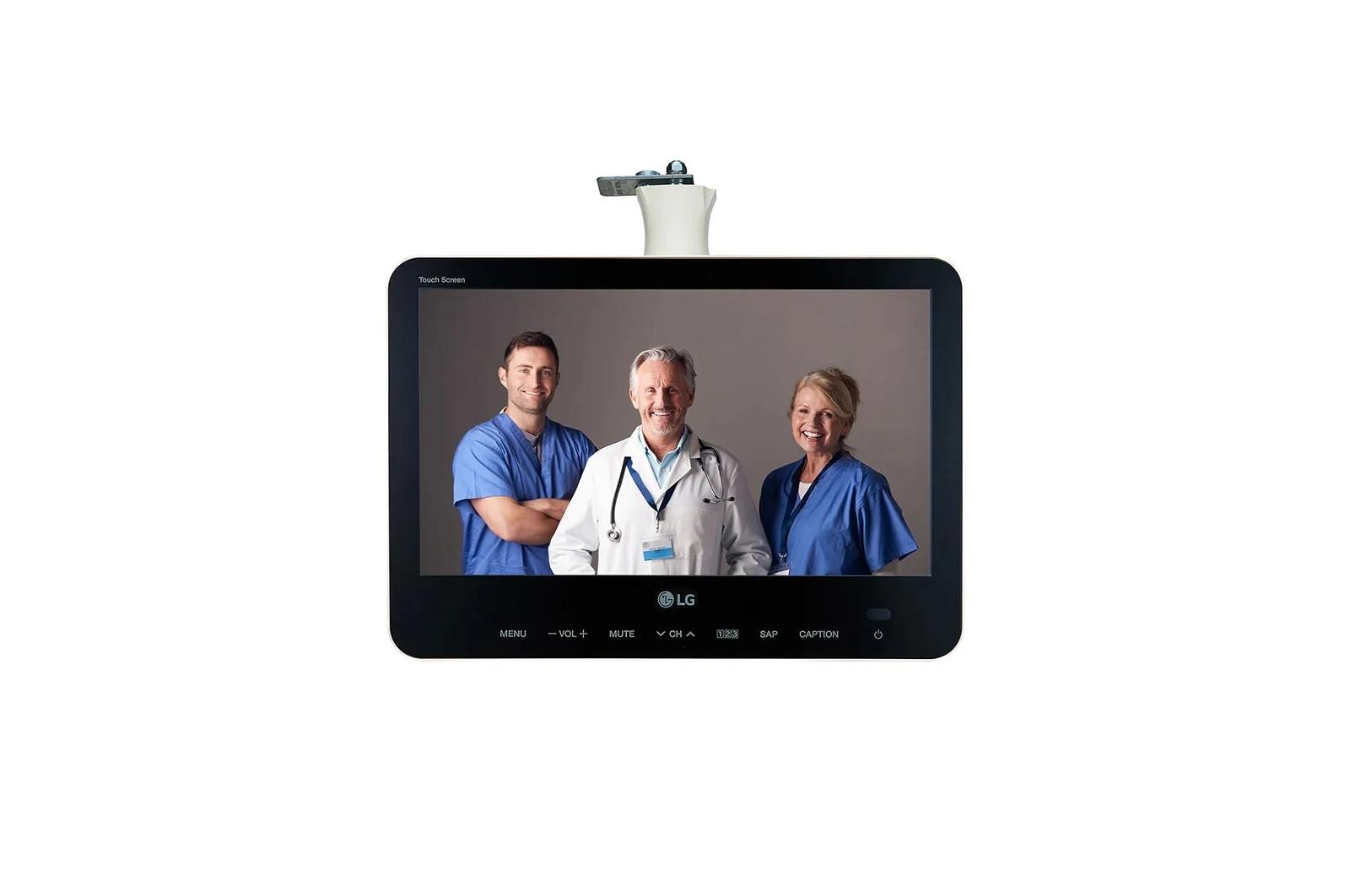

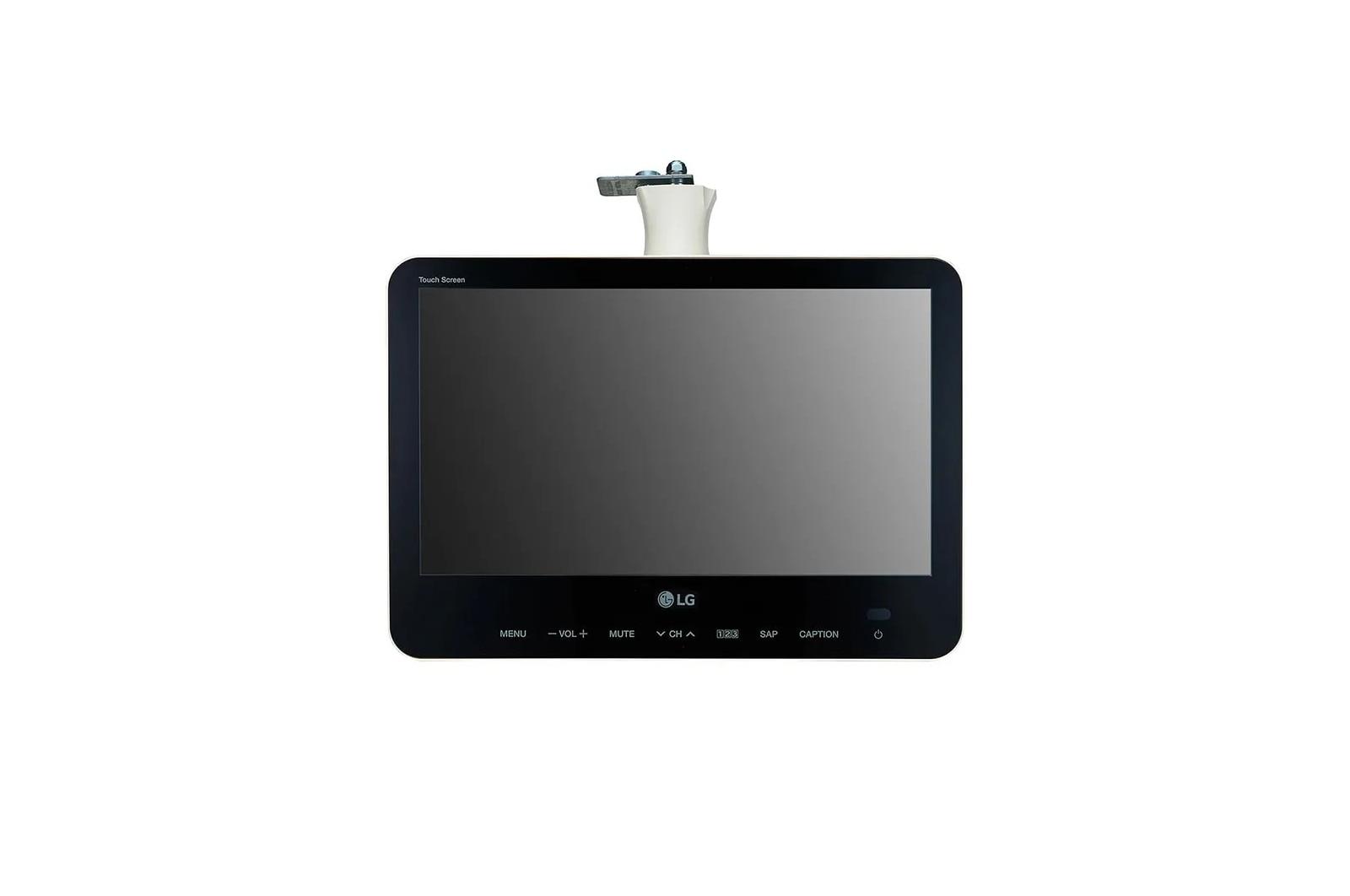

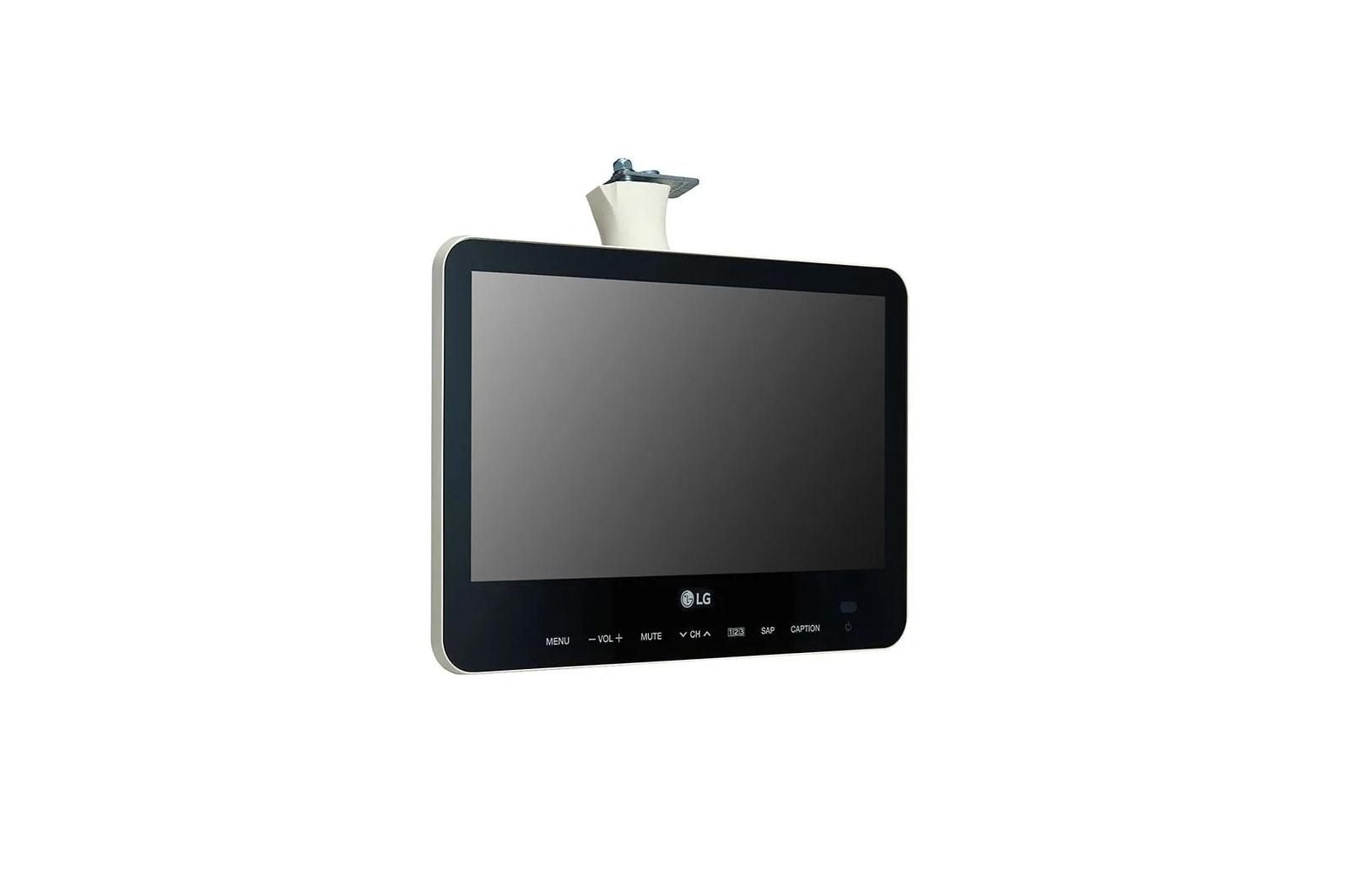

Lg 15LN766A 15.6'' FHD Pro:Centric® Touch Screen Arm TV with webOS™ 22
Lg 15LN766A 15.6'' FHD Pro:Centric® Touch Screen Arm TV with webOS™ 22
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Built-in web browser with apps
- Connect smartphones with Screen Share
- webOS® 22 allows users to play TV shows
- Pro:Centric® allows easy content management
- Reliable content playback with Pro:Idiom®
15.6'' FHD Pro:Centric® Touch Screen Arm TV with webOS™ 22
| System | |
| Operating System (OS) | webOS 22 |
| Main Processor (SoC) | No |
| Electrical | |
| Power Consumption (Max.) | 35W |
| Power Supply | Not Available |
| Optional DC Power Supply Input (AM-PW188A) | 100V-240V, AC 50/60 Hz |
| Power over Coax (PoC) | 20-34 Vac (28 V Typ.) / 22-48 Vdc (24 V Typ.) |
| Optional DC Power Supply Output (AM-PW188A) | 19V DC 3.42A |
| Power Consumption (Standby) | Less than 0.5W |
| Power Consumption (Typ.) | 33W |
| Connectivity | |
| HDMI In | Yes (x1) v2.0 |
| HDMI-ARC | Yes |
| RF In (Antenna / Cable) | Yes (x1) |
| IR In (3.5 mm) | Yes (x1) |
| RS-232C (3.5 mm) | No |
| RS-232C (D-sub 9-pin) | No |
| RJ45 (LAN) | No |
| RJ45 (AUX LAN) | No |
| RJ45 (Ethernet) | Yes (x1) |
| MPI (RJ45) | No |
| MPI (RJ12) | Yes (x1) |
| ECI (RJ12) | No |
| Service Only (3.5 mm) | No |
| USB Type-A In | Yes (x1) v2.0 |
| Simplink (HDMI-CEC) | Not Available |
| Simplink (HDMI-CEC) plus CEC-HTNG | No |
| AV In (3.5 mm) | No |
| DC In | Yes (x1) |
| Pillow Speaker Interface (6 Pin) | No |
| TV Link CFG (3.5 mm) | No |
| Audio Out (3.5 mm) | No |
| Digital Audio Out (Optical) | No |
| IR Out | No |
| Headphone Out (3.5 mm) | Yes (x1) |
| Built-in Wi-Fi | Yes |
| Port Location | Not Available |
| RF / AC In (Power Over Coax) | Yes (x1) |
| Debug (3.5 mm) | No |
| Speaker Out / Line Out | No |
| Panel | |
| Screen Size (Inches) | 15.6" |
| Panel Technology | Not Available |
| Nano Cell Technology | No |
| Back Light Type | Not Available |
| Touchscreen (P-Cap) | Yes |
| Aspect Ratio | Not Available |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | Not Available |
| TruMotion Refresh Rate | Not Available |
| Brightness (Typ.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | Not Available |
| Dynamic Contrast Ratio | Not Available |
| Viewing Angle (H x V) | Not Available |
| Response Time (G to G) | Not Available |
| AI Picture Pro | No |
| Dynamic Vivid | No |
| Lifetime | Not Available |
| HDR10 Pro | Yes |
| HDR HLG | Yes |
| Game Optimizer | No |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 2W |
| AI Acoustic Tuning | No |
| AI Sound | No |
| LG Sound Sync | Yes (Bluetooth) |
| Sound Mode | No |
| One Touch Sound Tuning | No |
| Clear Voice | No |
| Features | |
| IR Signal from Receiver (Logic High Pulses) | No |
| Update Time | No |
| VLAN ID | No |
| Embedded b-LAN | No |
| Beacon | No |
| SI Compatible (TVLink Interactive) | No |
| NTP Sync Timer | No |
| Multi-code IR | Yes |
| Voice Recognition (Standalone / Solution) | No |
| V-Lan Tag | No |
| Mobile Connection Overlay | No |
| Diagnostics | No |
| LG TV Plus App | No |
| Energy Saving Mode | No |
| External Control Interface | No |
| IoT | No |
| IR Signal from Receiver (Logic Low Pulses) | No |
| XD Engine | No |
| USB Data Cloning | No |
| Picture Mode | Not Available |
| Mechanical | |
| Color | Black |
| Back Color | White |
| Bezel Width (On Bezel) | L/R/T: 23.6 mm, B: 60.0 mm |
| Bezel Width (Off Bezel) | L/R/T: 23.3 mm, B: 59.7 mm |

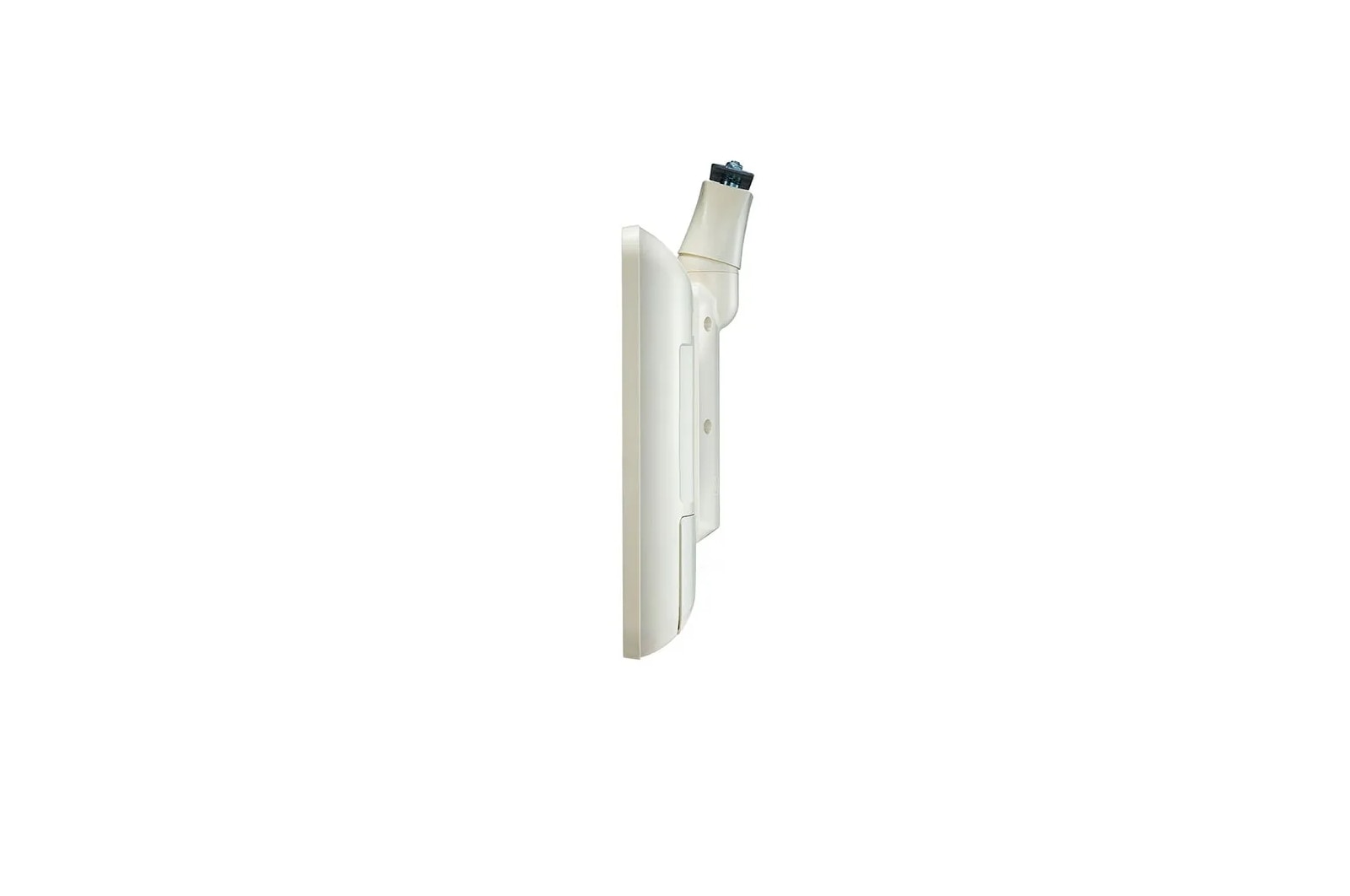

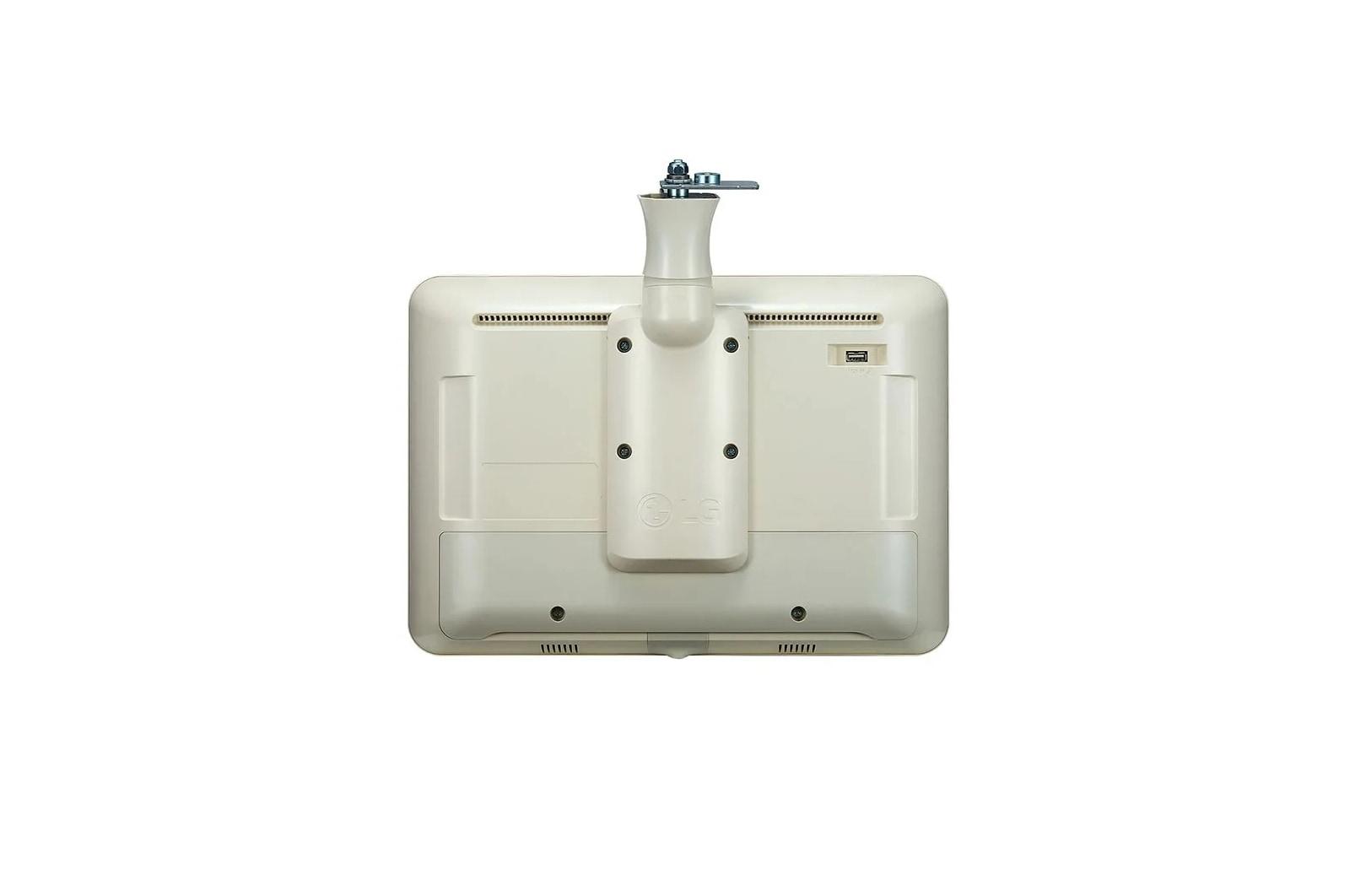

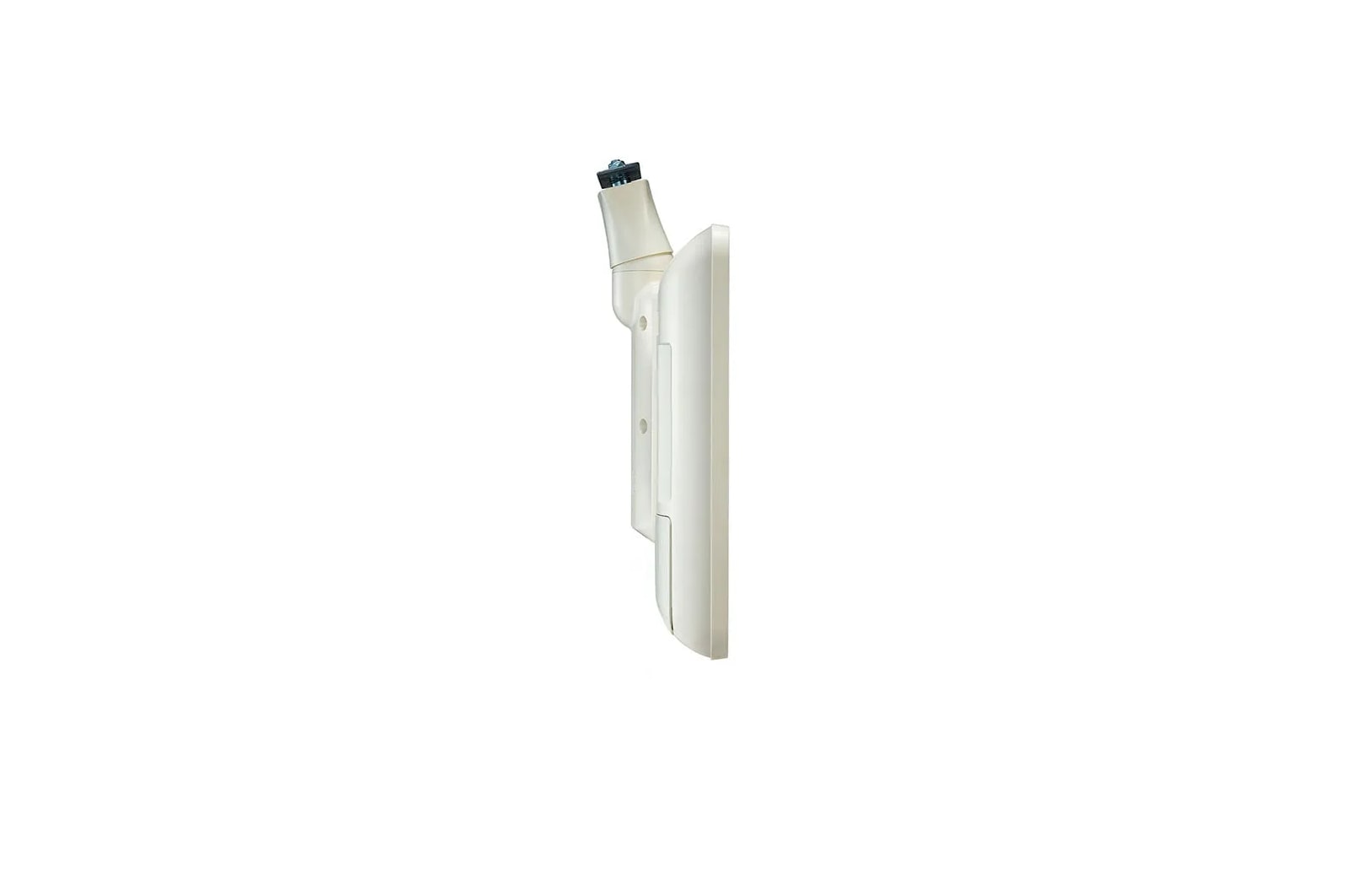

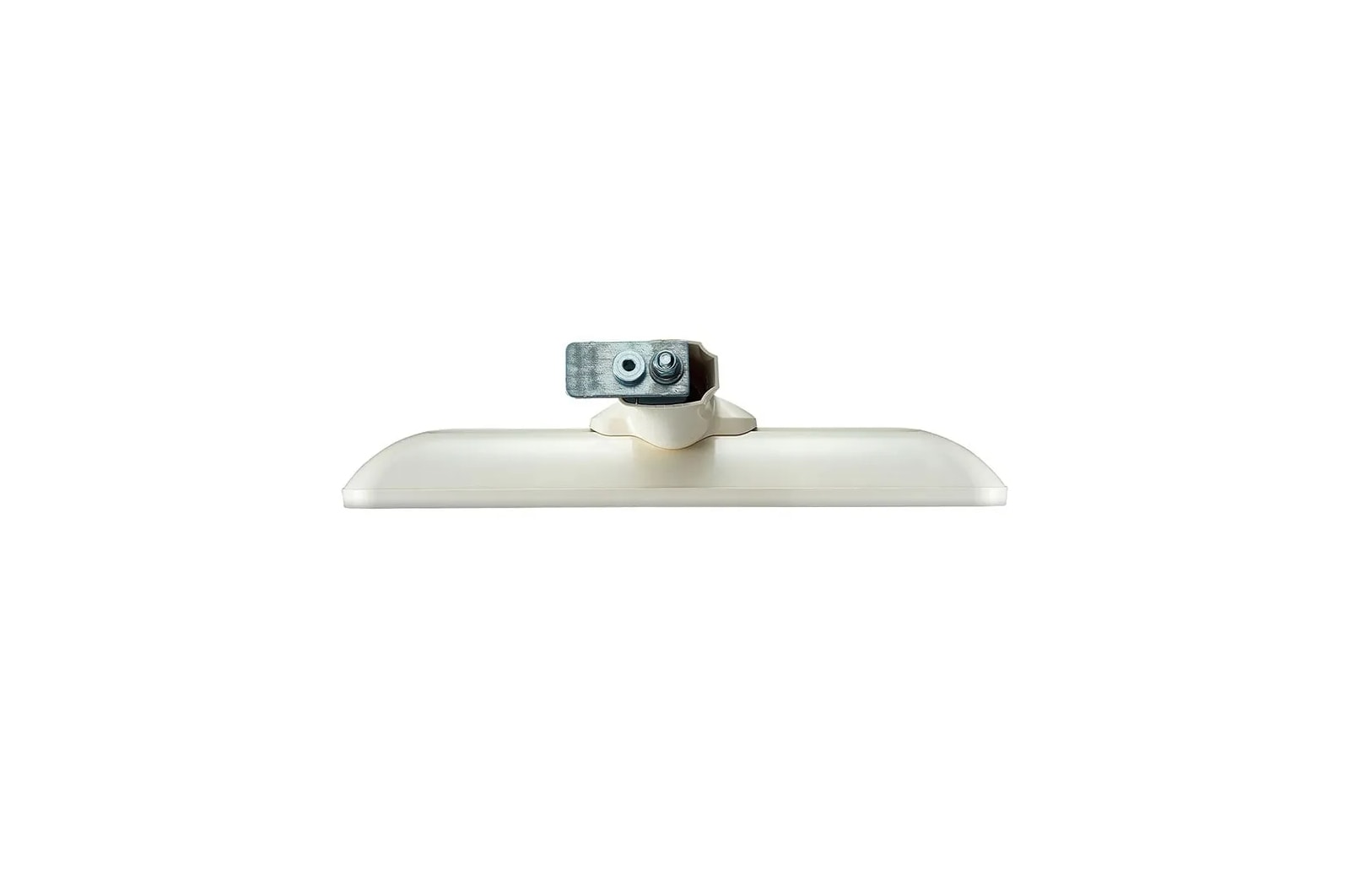

| Stand Type | Swing Arm Mount |
| Weight | 6.4 lbs / 2.9 kg |
| Weight with Stand | Not Available |
| Shipping Weight | 8.6 lbs / 3.9 kg |
| Dimensions (W x H x D) | 15.4 x 11.0 x 1.8 in / 391.4 x 278.6 x 46.1 mm |
| Dimension with Stand (W x H x D) | Not Available |
| Dimensions with Top Mount (W x H x D) | 15.4 x 11.0 x 3.2 in / 391.4 x 278.6 x 82.4 mm |
| Shipping Dimensions (W x H x D) | Not Available |
| Credenza / Security Aperture | No |
| Kensington Lock | No |
| Lock Down Plate | No |
| VESA™ Standard Mount Interface | 75 x 75 mm |
| Regulatory & Certifications | |
| UL Certification | Yes |
| NOM | No |
| CEC (Regulatory) | No |
| RoHS (Environmental) | No |
| FCC (Regulatory) | Yes |
| ISO 22196 (Antimicrobial) | Yes |
| NRCan | No |
| ETL | No |
| Conformal Coating | No |
| Warranty & Other | |
| Assembled In | Not Available |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Not Available |
| Basic Accessories (included) | RF Jumper, Swing Arm Mount (RF, MPI, LAN, HDMI cable extensions), Jack Pack Cover |
| Broadcasting | |
| Digital (Terrestrial, Cable, Satellite) | ATSC, Clear QAM |
| Analog (NTSC/SECAM/PAL) | NTSC |
| Global IPTV Support (IPStreaming) | Yes |
| MPEG-2 / MPEG-4 H.264 Decoding | No |
| Closed Caption | Not Available |
| Hospitality Solutions | |
| Pro:Centric® Smart CMS | Yes |
| Pro:Centric® Direct | Yes |
| Pro:Centric® V | Yes |
| Pro:Idiom® DRM (S/W, Mobile, Lite) | Yes |
| Pro:Idiom® Media DRM | No |
| Pro:Centric® Data Streaming (IP) | No |
| Pro:Centric® Data Streaming (RF) | No |
| Pro:Centric Server | Not Available |
| Pro:Centric® IP Return Path | No |
| HCAP (GEM / FLASH / HTML) | No |
| Service Carousel (TLX, Firmware) | No |
| Mutlicast Ready | No |
| Unicast Ready | No |
| Quick Menu Version | 5 |
| LG Server Compatibility | Not Available |
| Smart Features | |
| Smart Home (Launcher Bar) | No |
| Gallery Mode | No |
| Quick Access | No |
| Web Browser | Yes |
| Pre-loaded Apps | Yes |
| Magic Remote Compatibility | No |
| SW Clock (World Clock / Alarm) | No |
| Soft AP | Yes |
| Moving Picture Playback (SDD/Plus HD) | No |
| Auto Off / Sleep Timer | No |
| Bluetooth Audio Playback | Yes |
| Bluetooth Sound Sync (Audio Playback) | No |
| Screen Share (Miracast) | Yes |
| Smart Share | Yes |
| Multi View | No |
| Home Office | No |
| SDP Server Compatibility | Yes |
| DIAL | No |
| Hospitality Features | |
| Home (Launcher Bar) | No |
| Instant On | Yes |
| USB Auto Playback+ | No |
| Welcome Screen (Splash Image) | Yes |
| EzManager | No |
| Pillow Speaker Compatibility | No |
| Motion Eye Care | No |
| One Channel Map | LCM |
| Welcome Video | No |
| Insert Image | Yes |
| HTNG-CEC | 1.4 |
| RJP (Remote Jack Pack) Compatibility | NO |
| USB Auto Playback | No |
| Lock Mode | No |
| Installer Menu | No |
| Public Display Mode | No |
| Hotel Mode | No |
| Port Block | No |
| Software Features | |
| Wake on RF | No |
| webRTC (Real Time Communication) | No |
| Video Tag | No |
| Wake-on-LAN (WOL) | No |
| SNMP | No |
