LG 17HK700GWP
Authorized Reseller

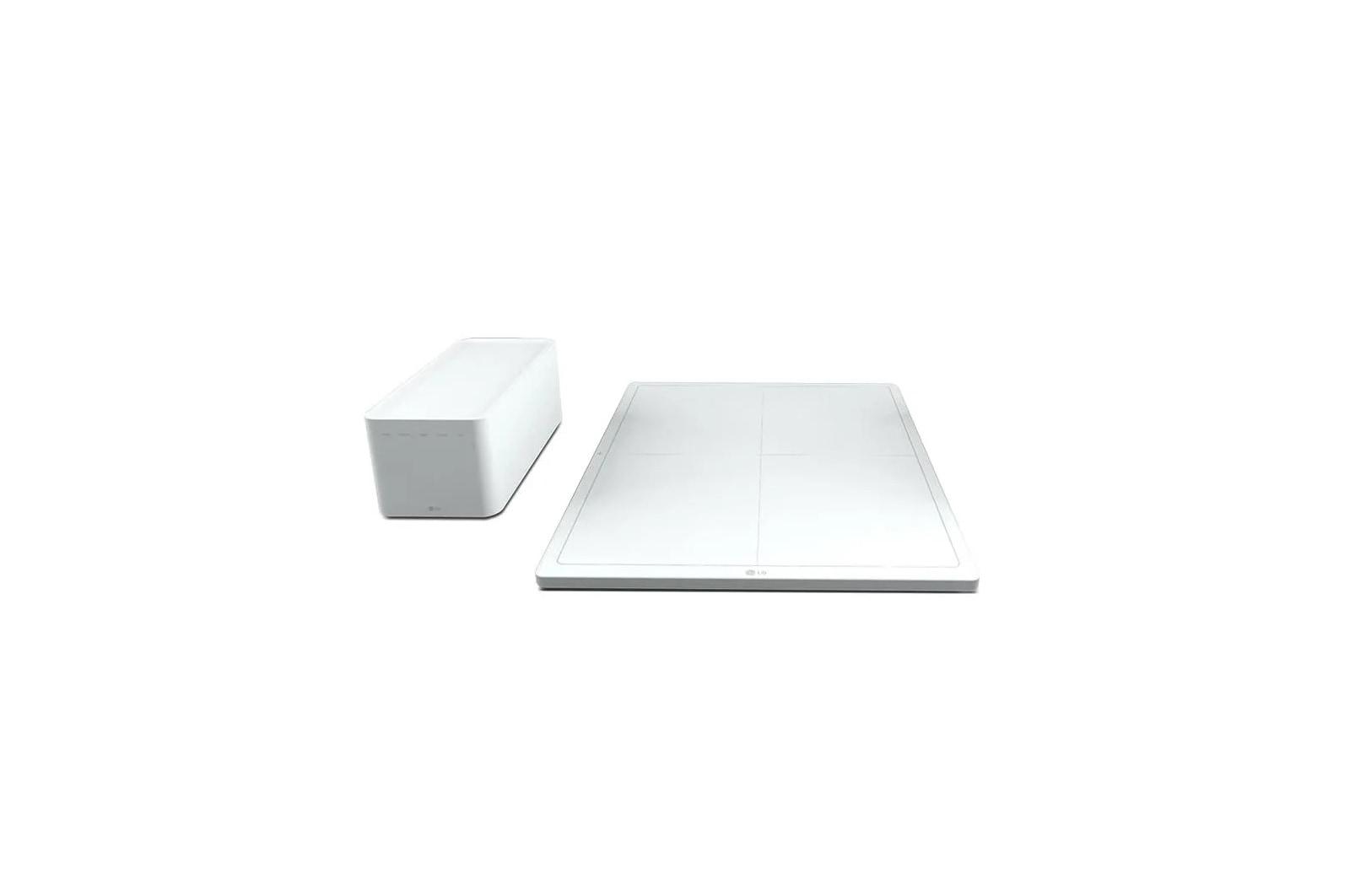

Lg 17HK700GWP Wired Digital X-ray Detector
Lg 17HK700GWP Wired Digital X-ray Detector
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Light yet durable carbon-fiber housing
- Raw image in 2 sec. (wired)
- IP53: Water and Dust Resistant
- Highly sensitive Csl AED detector (16 bit A/D conversion)
Wired Digital X-ray Detector
| Regulatory & Certifications | |
| IP Rating (Solid / Liquid Ingress) | IP53 |
| Detector Specifications | |
| Data Output | 16 bit |
| Cycle Time (Wireless) | N/A |
| Full Image Transfer (Wired) (Typ.) *Without window time | 2 sec |
| TFT Type | Not Available |
| Pixel Pitch | 140 |
| Full Image Transfer (Wireless) (Typ.) *Without window time | N/A |
| Scintillator | CsI |
| Intended Use | General Radiography |
| Cycle Time (Wired) | 8 sec |
| A/D Conversion | 16 bit |
| Image Area | |
| Number of Pixels | 3,072 x 3,072 pixels |
| TFT Active Area | 16.9 x 16.9 in / 429.3 x 429.3 mm |
| MTF | |
| MTF @ 0.5lp/mm (Typ.) | 89% |
| DQE | |
| DQE @ 0.1lp/mm (Typ.) | 0.72 |
| Communication | |
| Auto Exposure Detection | Yes |
| Communication Type | Wired |
| Wired Communication | Yes |
| Durability | |
| Sensor Protection Plate | Carbon Fiber Plate |
| Maximum Load Weight (Local (Point Load)) | 220 lbs / 100 kg |
| Maximum Load Weight (Full (Uniform Load)) | 661 lbs / 300 kg |
