LG 17HK701GWP
Authorized Reseller

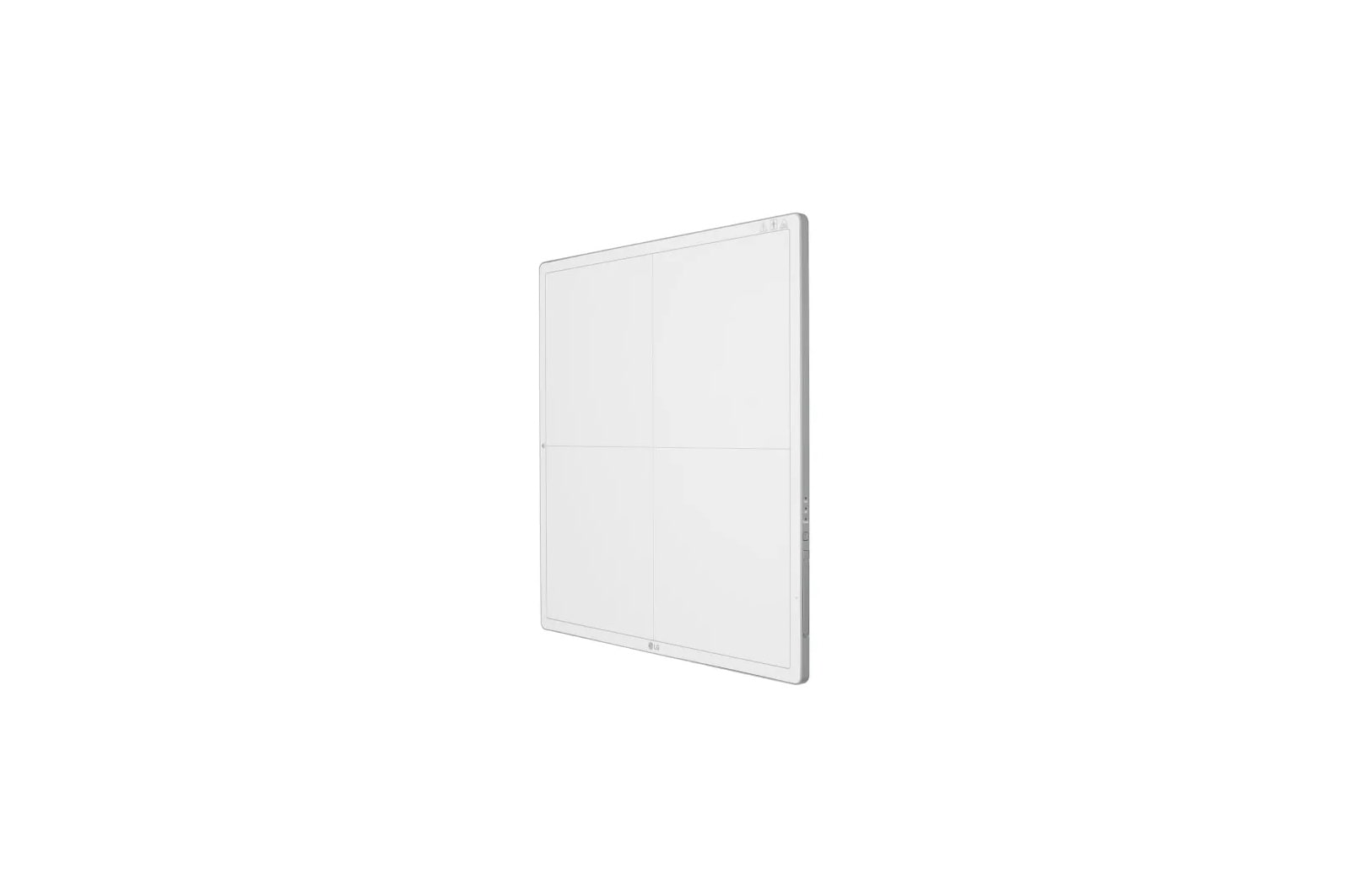

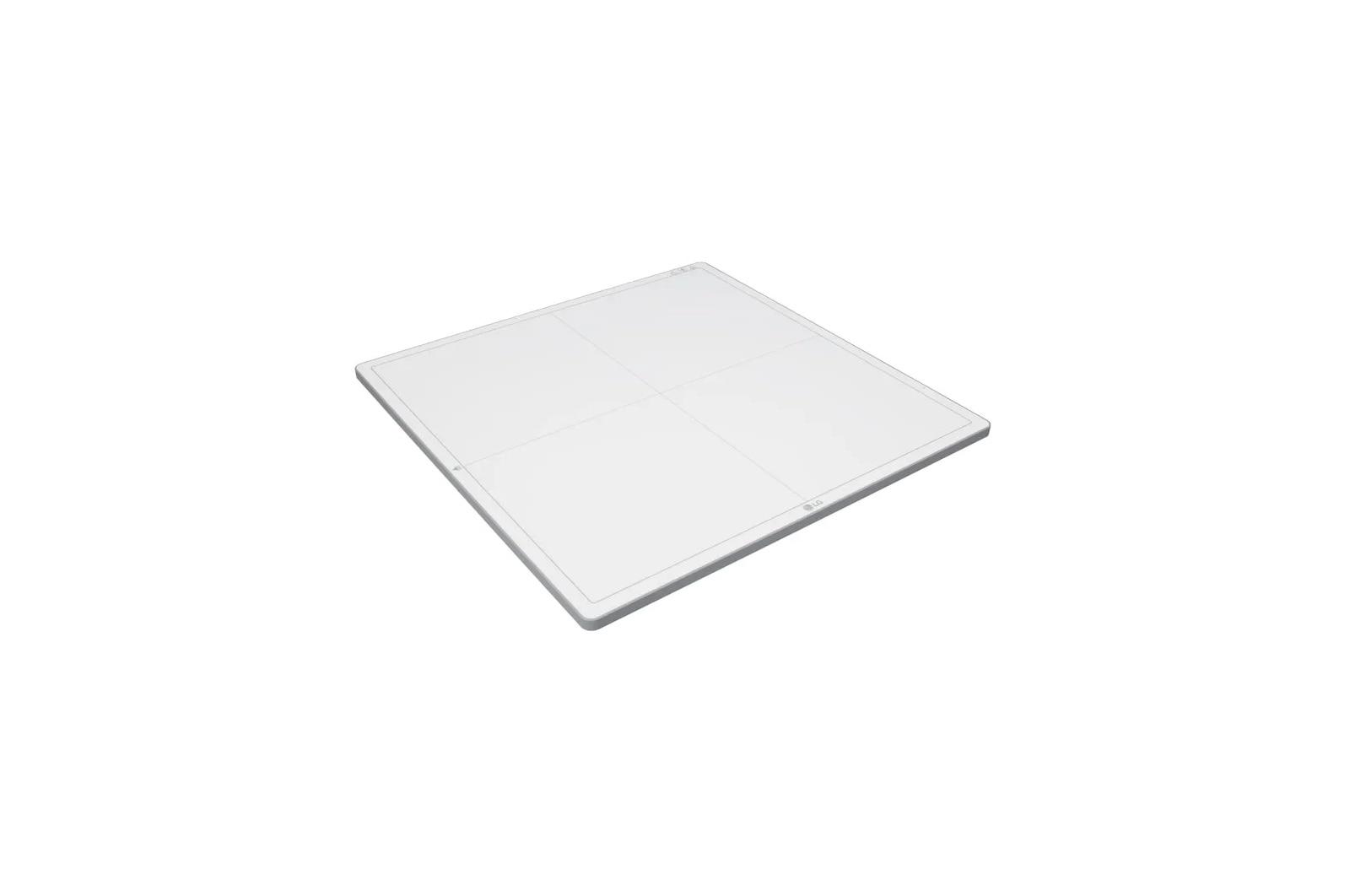

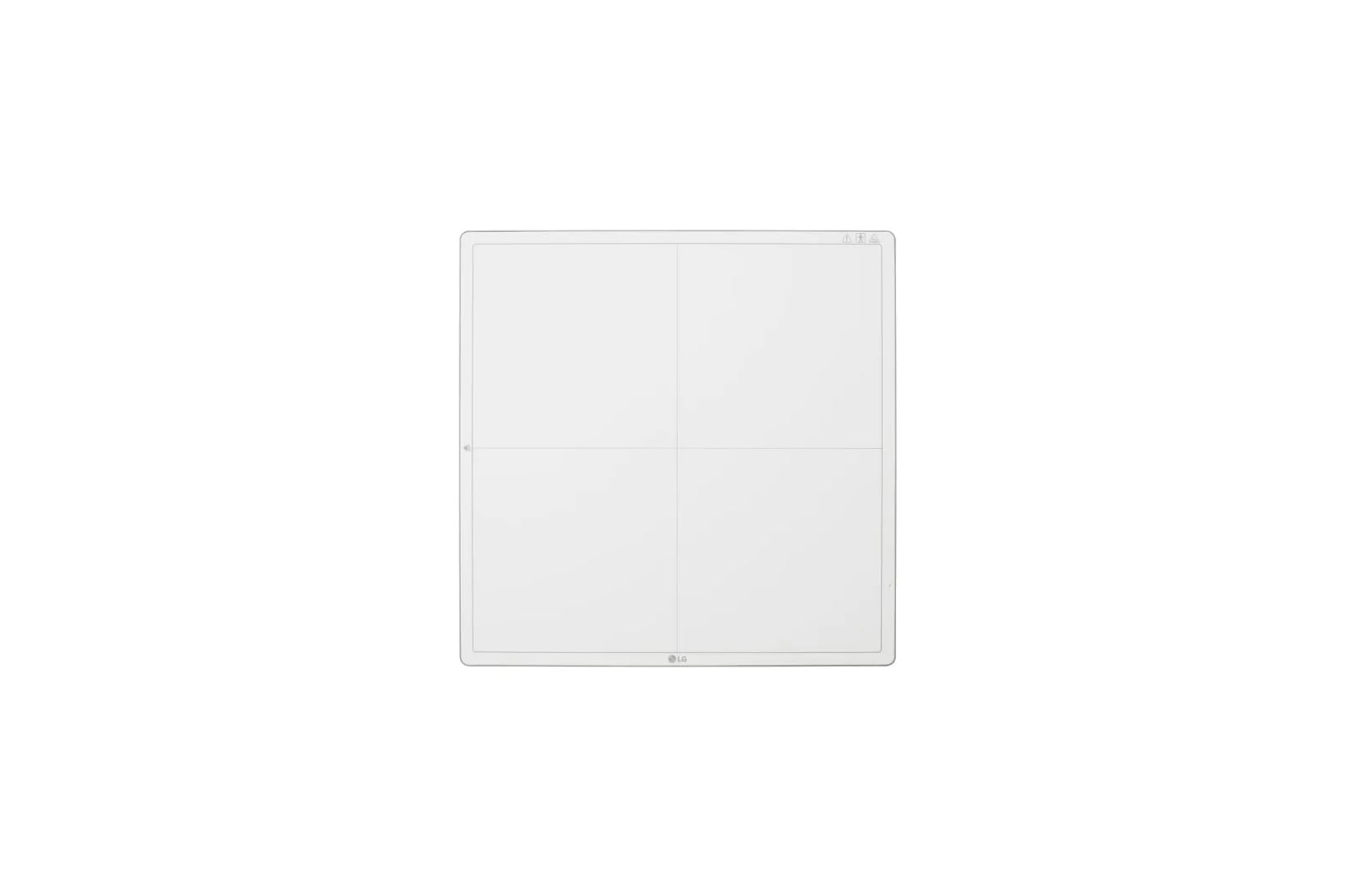

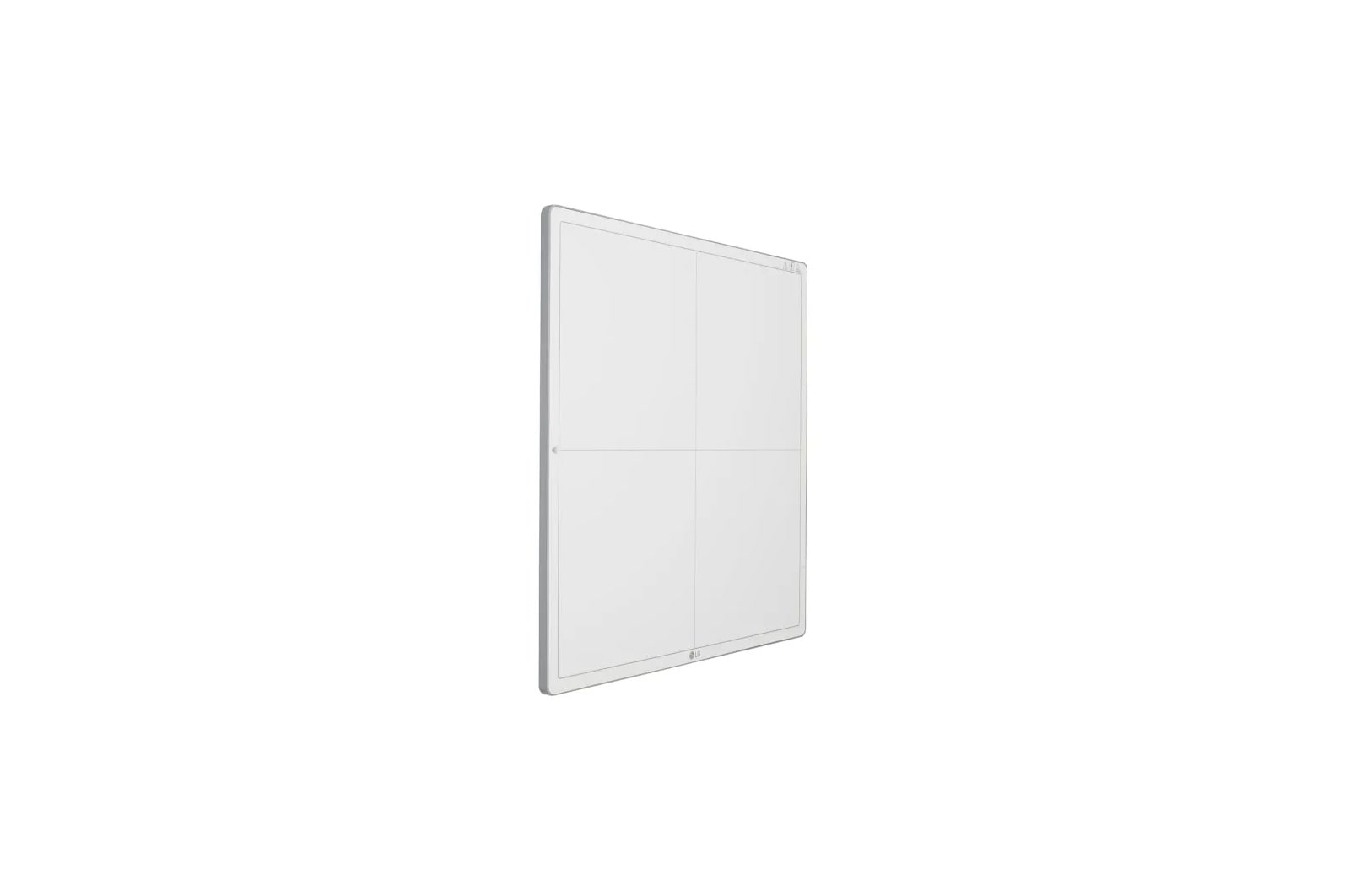

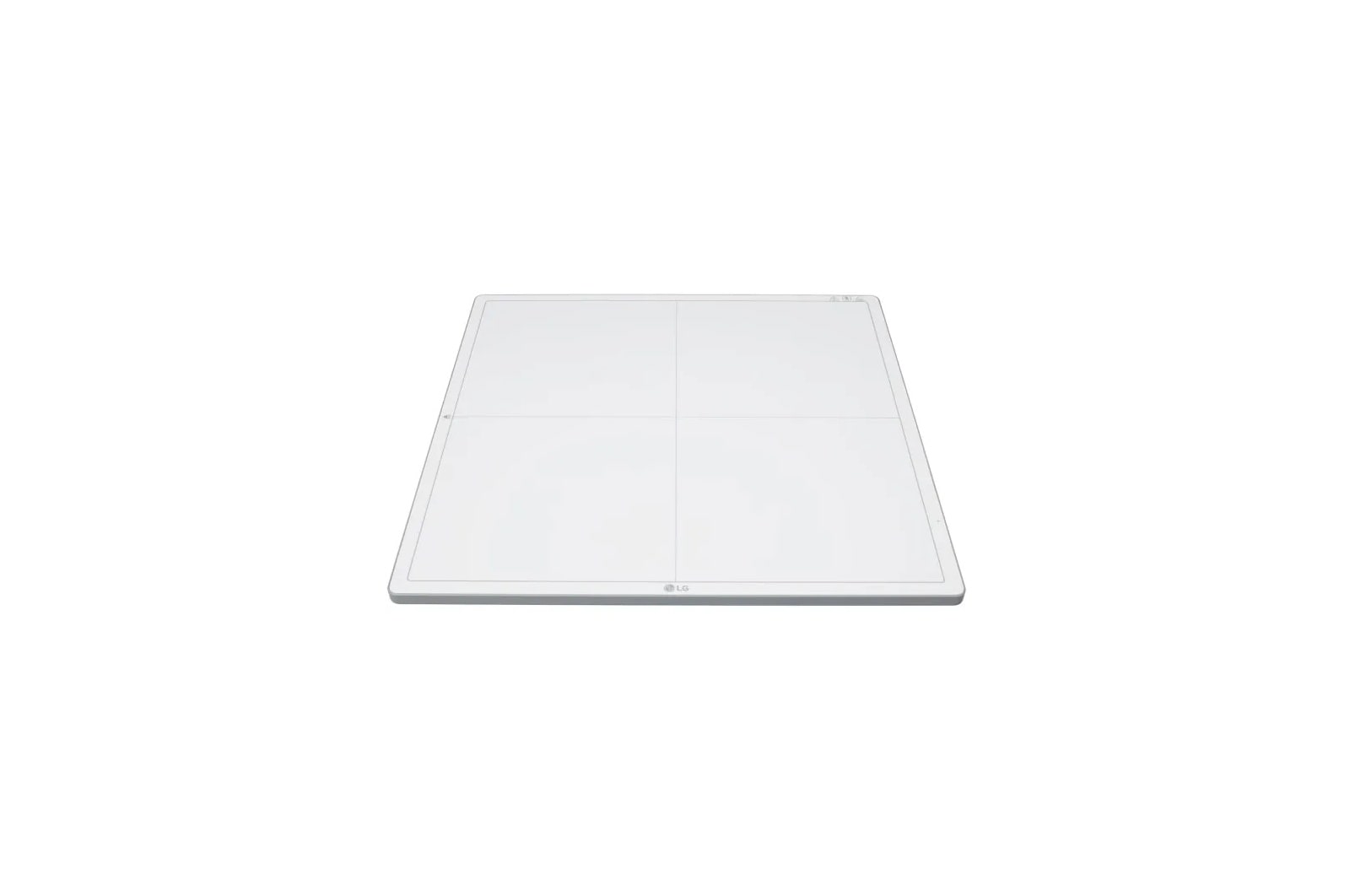

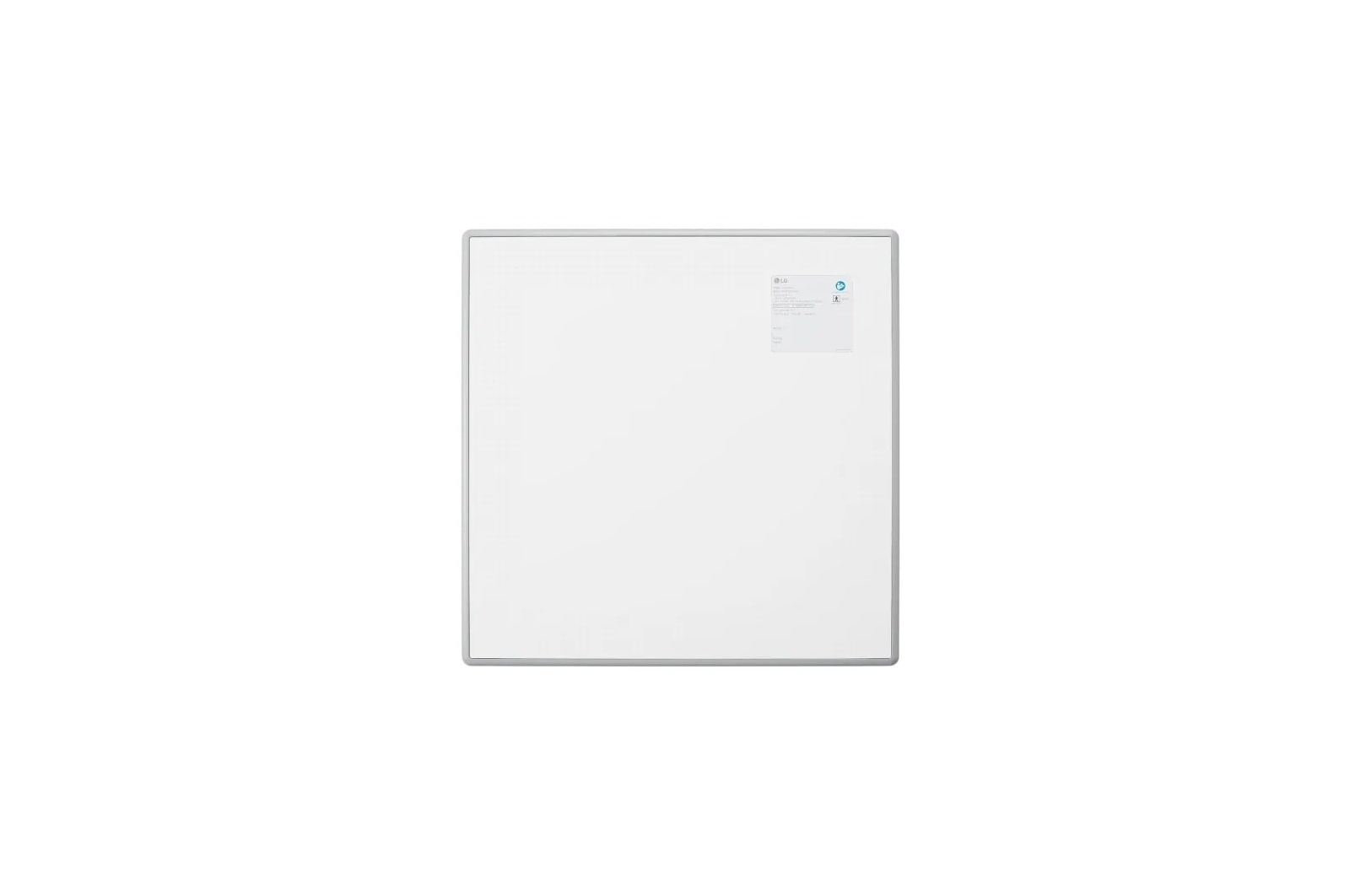

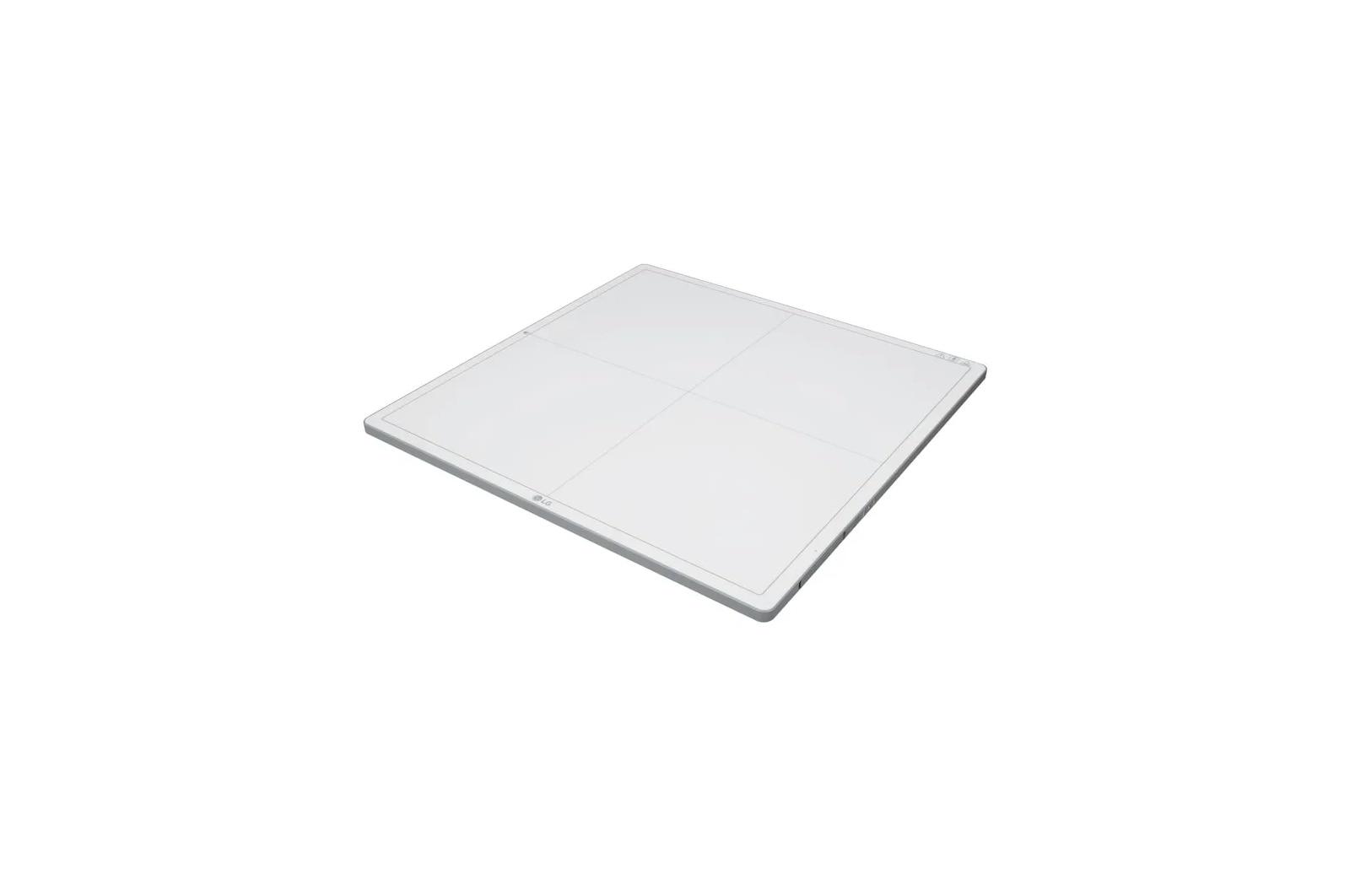

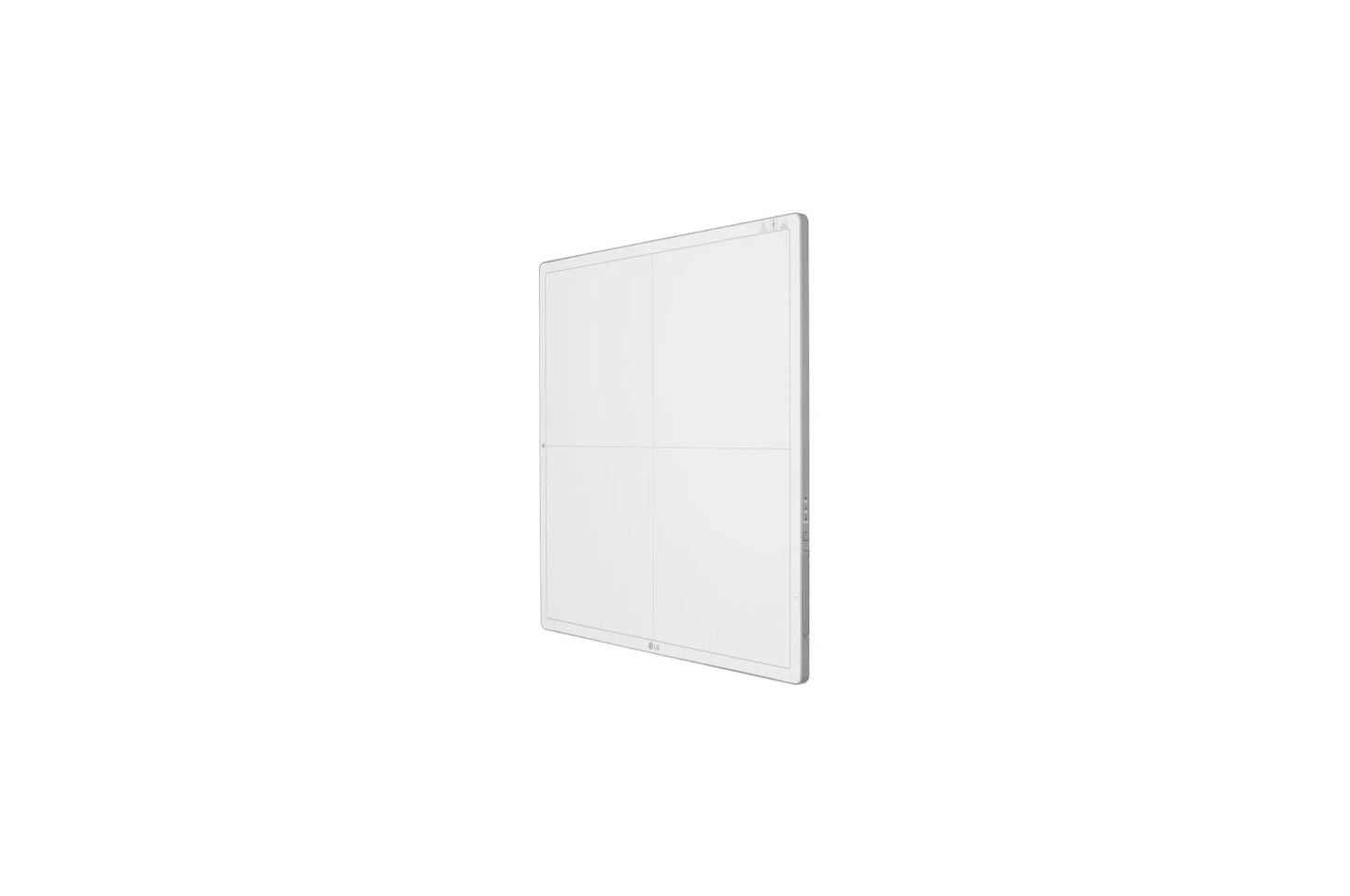

Lg 17HK701GWP Digital X-Ray Detector (DXD)
Lg 17HK701GWP Digital X-Ray Detector (DXD)
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 140 pixel size
- 16bit A/D conversion
- Raw Image in 2.5 sec. (wireless)
- Raw image in 2 sec. (wired)
- IP53: Water and Dust Resistant
- Magnesium & Carbon-fiber Body
Digital X-Ray Detector (DXD)
| AC Adapter for Battery Charger | |
| AC Power Cord | Yes |
| DC Cable length | 1,500 mm |
| Dimensions(WxDxH, mm) | 134 x 59.8 x 31mm |
| Input | 100 ~ 240VAC |
| Output | 19V/3.42A |
| weight(kg) | 0.9 kg |
| ACCESSORIES | |
| Cable | Power cord, Manin Cable 1m (LAN Cable, Sync cable Option) |
| CD | Manual, Calibration SW |
| Other | Book Manual , Outgonig Inspection sheet |
| BATTERY | |
| Battery duration in standby status | Typ. 13 hrs |
| Dimensions(WxDxH, mm) | 204.6*110.5*7.8 |
| Nominal Capacity | 30W (7.5V, 4000mAh) |
| Nominal Voltage | 7.5V |
| Operation Time | Typ. 240 shots / 6.0 hrs (Condition : Interval Time 90 sec) |
| Type | Detachable |
| weight(g) | 229.86 |
| Battery Charger | |
| Bundle battery Q'ty | 2 |
| Charging Time | 3 Hours |
| Dimensions(WxDxH, mm) | 125 x 255.5 x 90.5mm |
| Input voltage | 19V |
| Output voltage | 8.7V |
| Slot Q'ty | 3 |
| weight(kg) | 0.9 kg |
| Control Box | |
| AC Power Cord | 1.5m, White |
| Dimensions(WxDxH, mm) | 125 x 255 x 109.8mm |
| Power Input | AC100 to 240V, 47-63Hz |
| Power Output | DC24V / 2.1A |
| weight(kg) | 1.3 kg |
| Degradation | |
| A/D Conversion | 16 bit |
| Auto Exposure Detection | Yes |
| Data Output | 16 bit |
| Detachable Wire (Easy to plug / unplug) | Yes (Magnetic) |
| Expected lifetime (Gy) | 100 Gy |
| Power unit interface | Connect to Control Box |
| Sensitivity degradation at the 'end of Life' | 20% |
| Sensor | |
| Shock monitoring | Yes |
| Spatial Resolution(lp/mm) | 3.57 lp/mm |
| Unit Interface | Connect to Control Box |
| Wired Communication | Yes |
| WLAN | IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz |
| X-ray generator voltage range | 40 to 150kVp |
| X-ray period (ms) (=Window Time) | Standard: 500 ( ~4000) |
| DQE(Typ) | |
| DQE @ 0.1lp/mm | 72% |
| DQE @ 0.5lp/mm | 67% |
| DQE @ 1lp/mm | 61% |
| DQE @ 2lp/mm | 49% |
| DQE @ 3lp/mm | 28% |
| Sensitivity( lsb/uGy ) / Programmable | Typ. 600 / Yes |
| Environmetal | |
| Operating-Attitude | Less than 5000 m |
| Operating-Humidity | Less than 80% RH, No condensation |
| Operating-Pressure | 70 ~ 106 kPa |
| Operating-Temperature | 10 to 35 |
| Storage-Attitude | Less than 12,192 m |
| Storage-Humidity | Less than 90% RH, No condensation |
| Storage-Pressure | 50 ~ 106 kPa |
| Storage-Temperature | -20 to 60 |
| Main Cable(DXD-Control Box) | |
| LAN Cable (Control Box-PC) : Optional(When Buyer requires this cable, is shipped according to BOM) | (Option) |
| Length | 1m10m15m |
| Sync Cable(Control Box - X-ray Generator) : Optional(When Buyer requires this cable, is shipped acco | (Option) |
| MTF(Typ.) | |
| MTF @ 0.5lp/mm | 89% |
| MTF @ 1lp/mm | 74% |
| MTF @ 2lp/mm | 47% |
| MTF @ 3lp/mm | 29% |
| Sensor(panel)unit | |
| Cycle Time(Ethernet / WLAN) | 8sec / 11 sec (Ethernet / WLAN) |
| Falling | 40 Cm |
| Full Image(Raw Image) | Ethernet 3sec / WLAN 6 sec |
| Full Image | Wired 2 sec. (Typ.) Wireless 2.5 sec. (Typ.) |
| Image-lag (Typ.) | 0.023% |
| Input | DC24V/2.1A |
| Maximum Load Weight | Full (Uniform Load) : 300kg Local (Point Load) : 100kg |
| Number of Pixels | 3072x3072 |
| Pixel Pitch | 140 |
| Power consumption | Typ. 19.0W (No Charging), 30.5W (with Charging) |
| Scintillator | CsI |
| Sensor Protection Plate | Carbon Fiber Plate |
| TFT Active Area(mm) | 430.08x430.08 mm |
| TFT Dimensions(WxDxH, mm) | 445 x 445 mm |
| TFT Type | A-si |
| Weight(kg) / Icld. Battery (Typ.) | 3.4kg |
| X-ray sensitive Area(mm) | 430.08 x 430.08mm |
| X-ray Sensitive Pixel | 3072 x 3072 |
| Watertightness | |
| Anti-Bacteria | JIS Z 2801 0.99% |
| Cleaning and desinfecting products | Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution |
| Watertightness | Durability IP53 rated |
| WARRANTY | |
| Warranty | 36 Month |
