LG 17HQ701GBP
Authorized Reseller

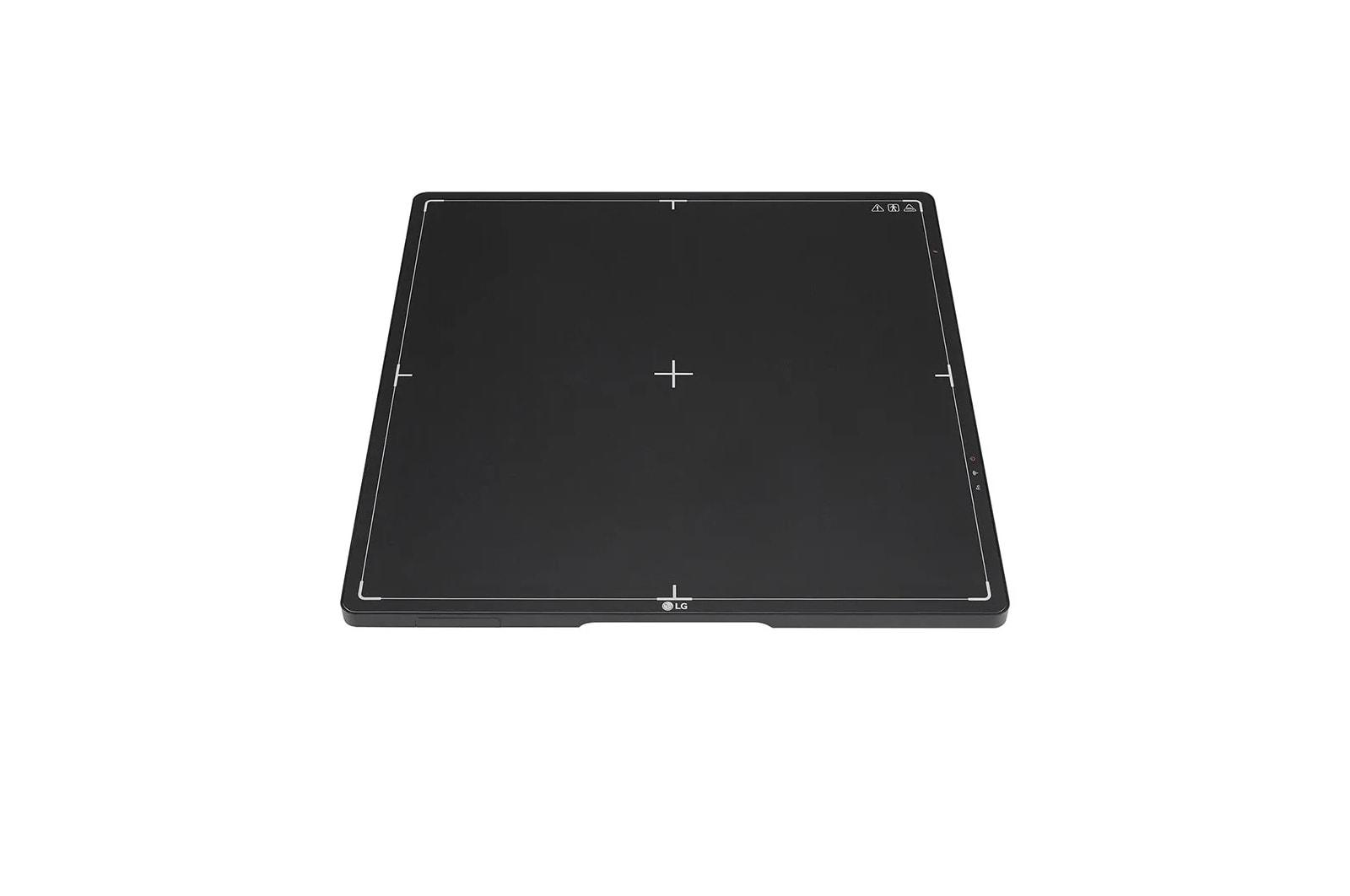

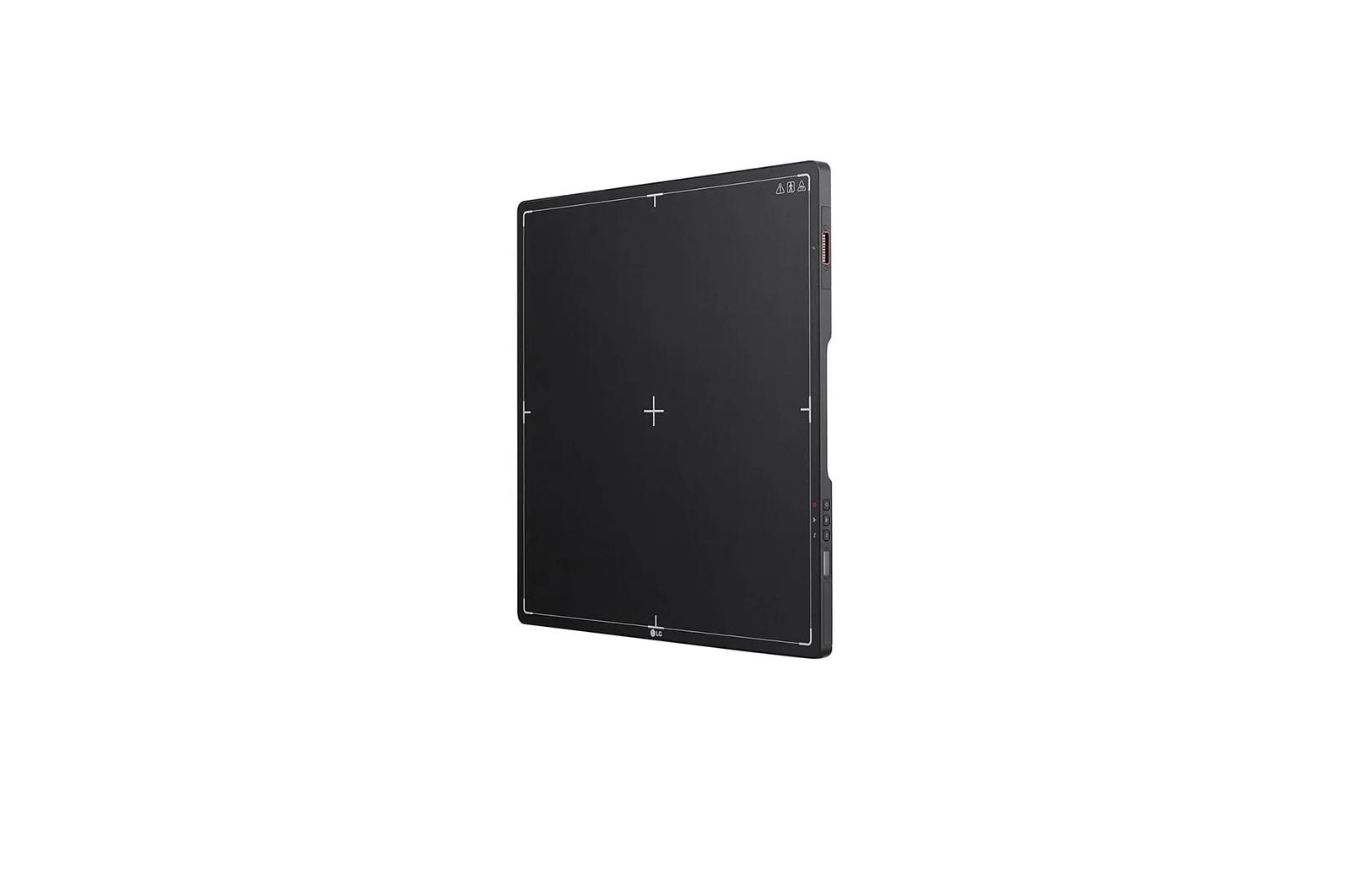

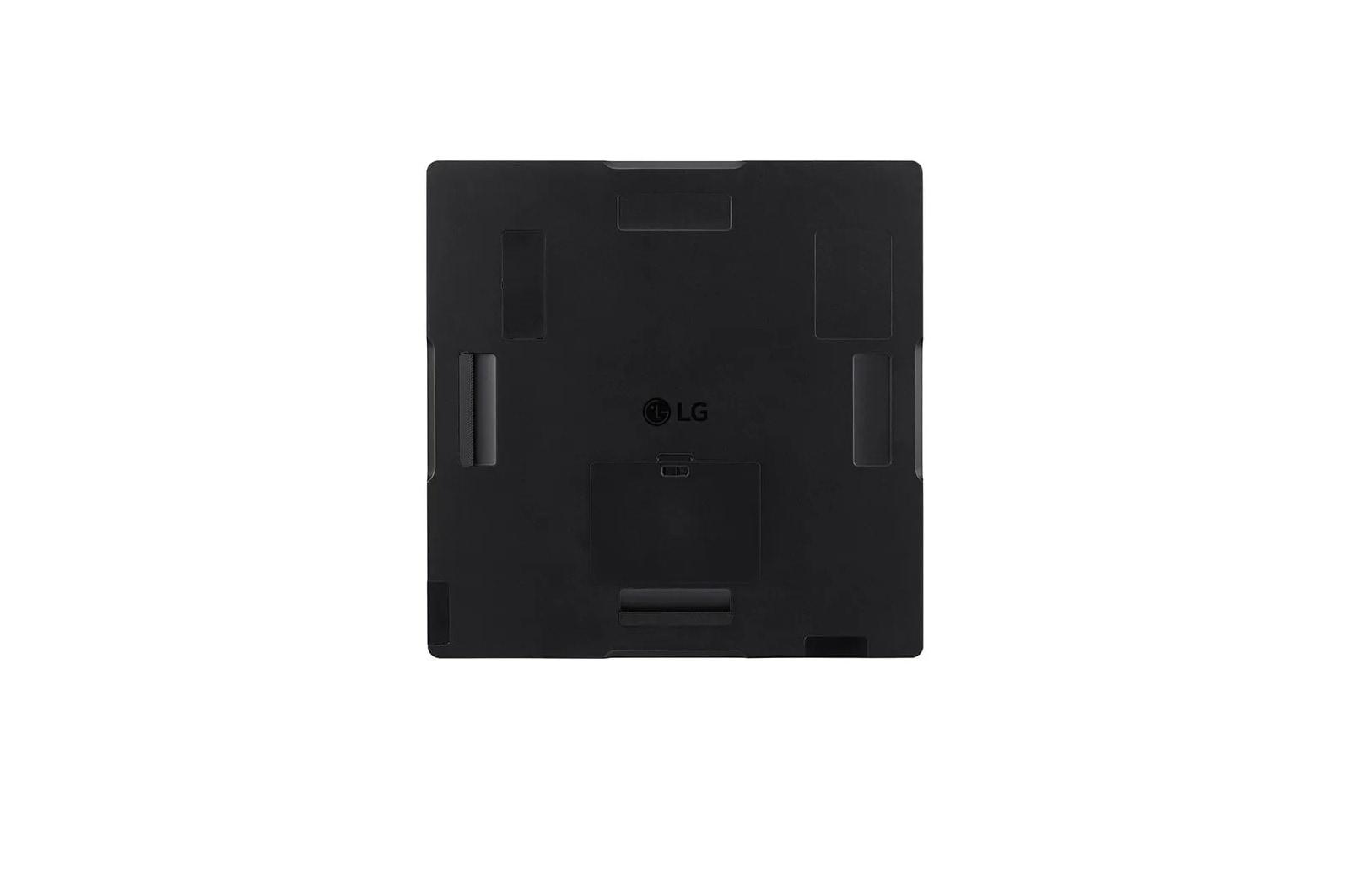

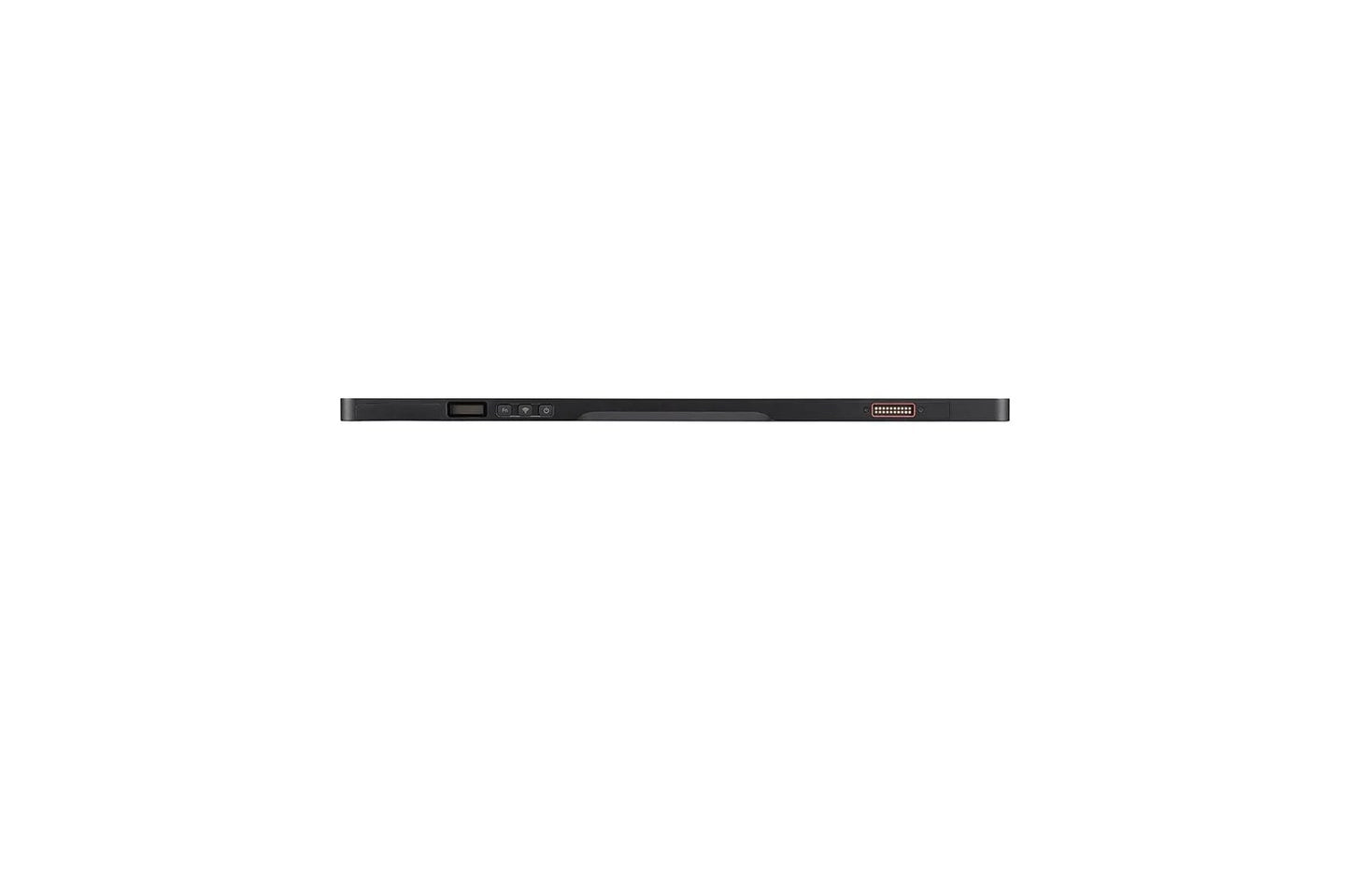

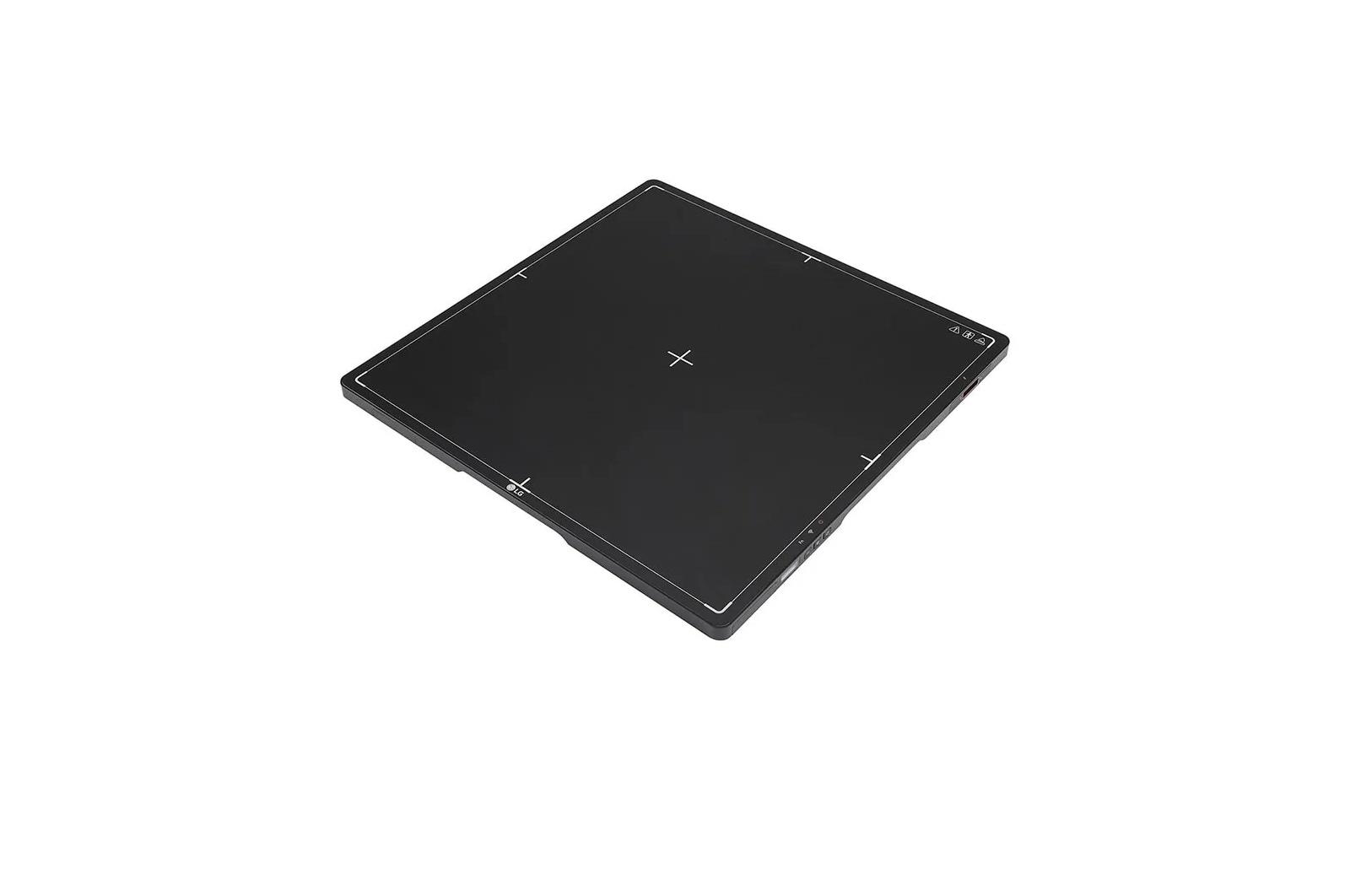

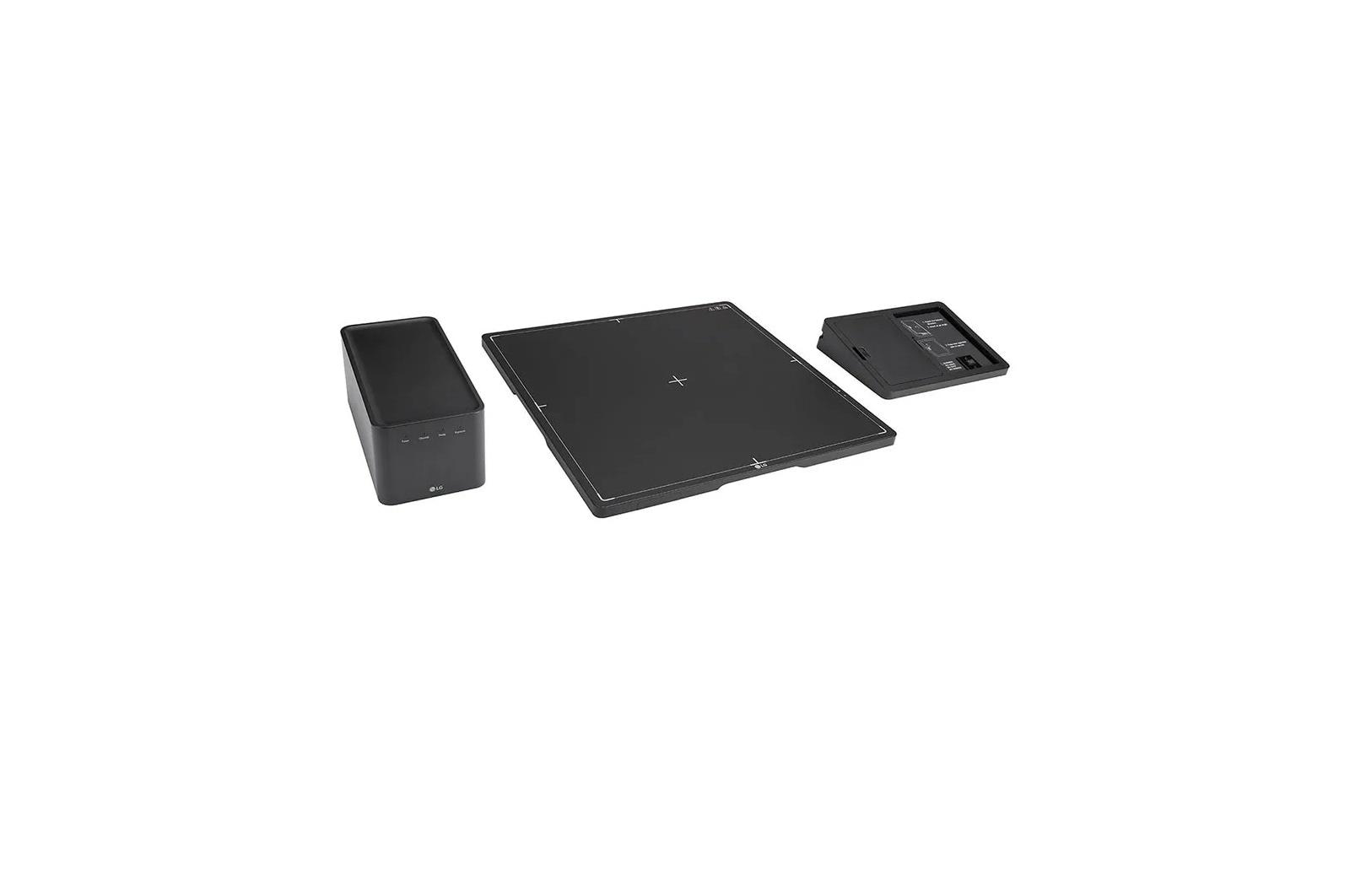

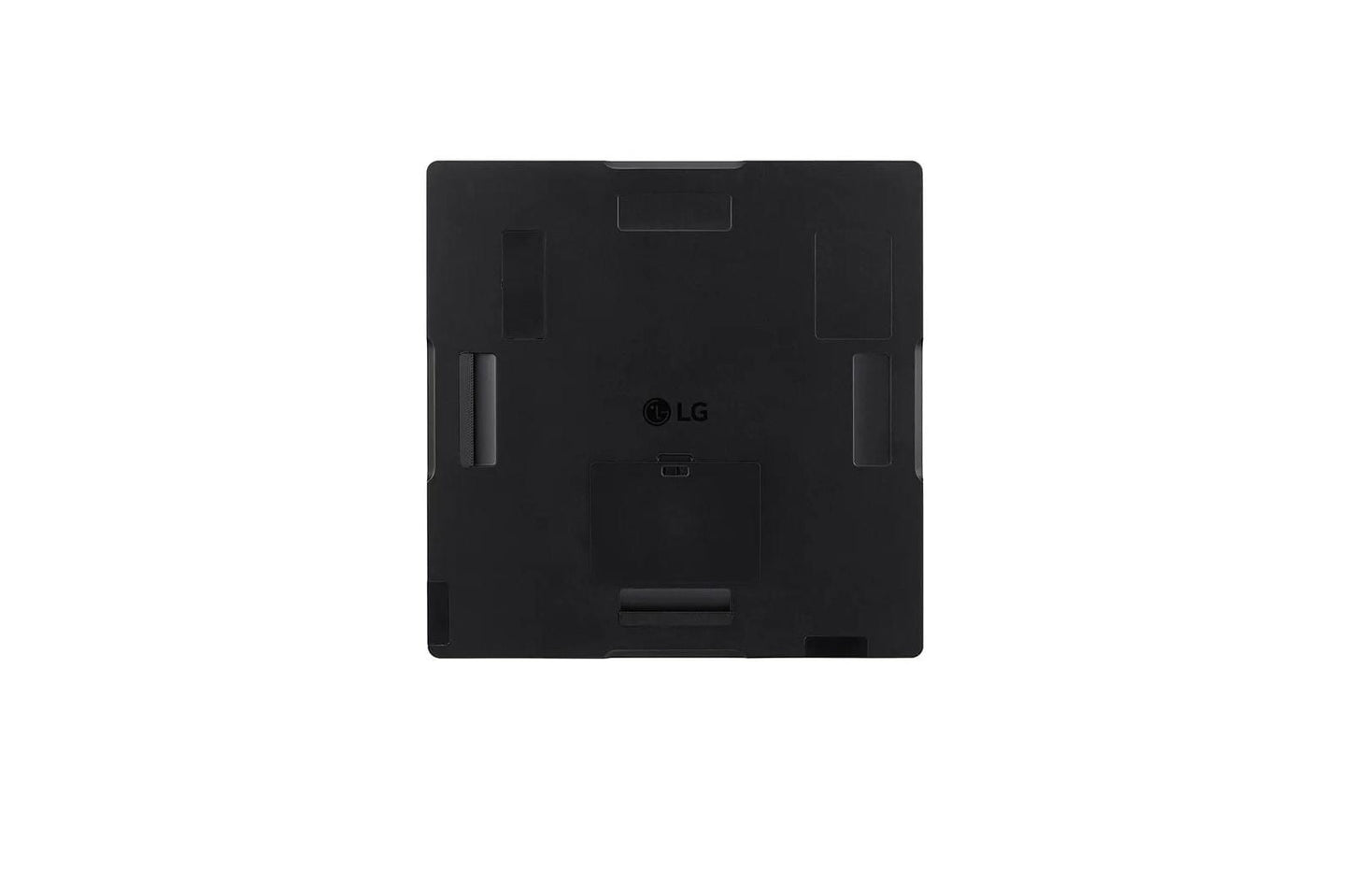

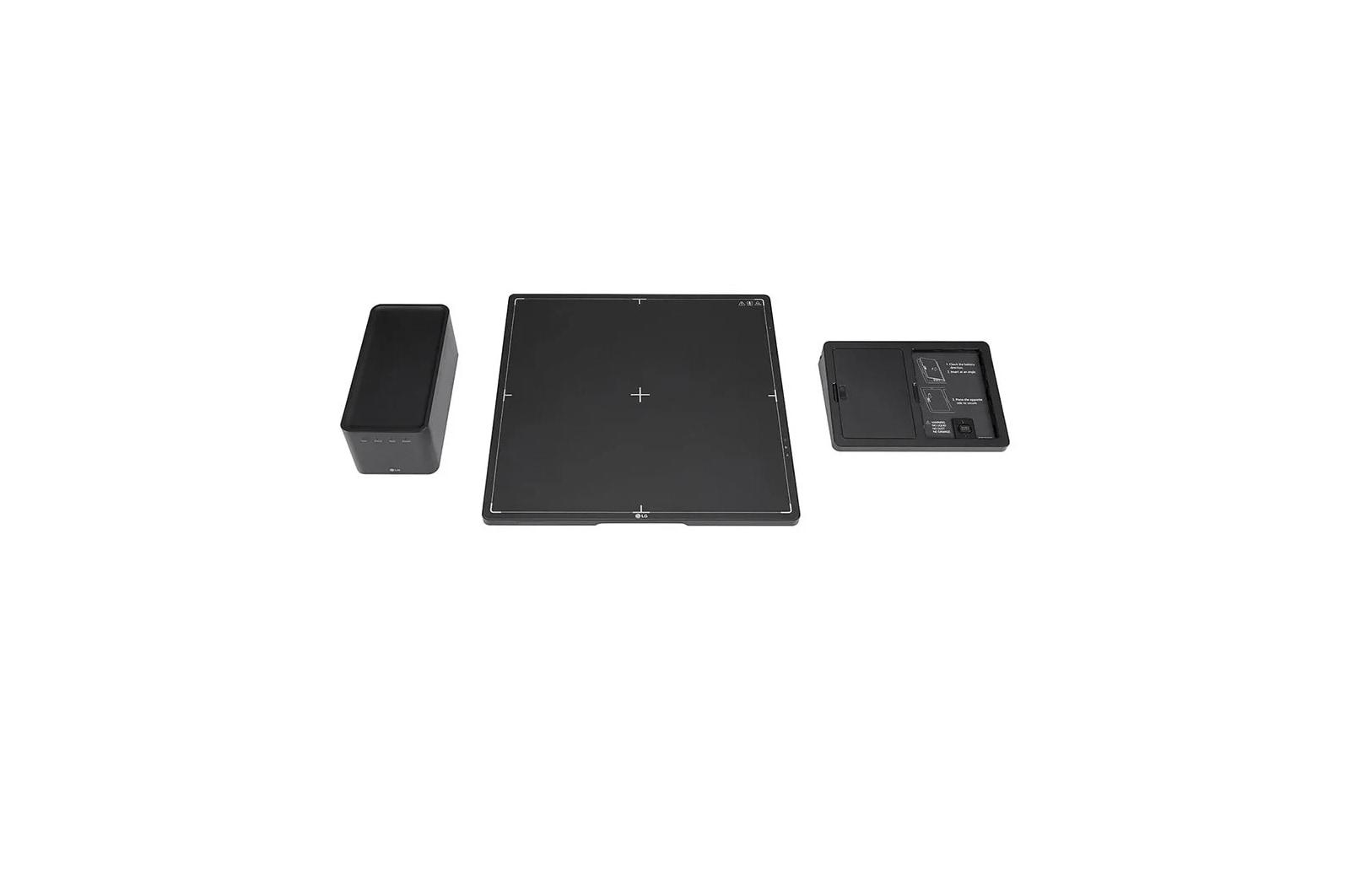

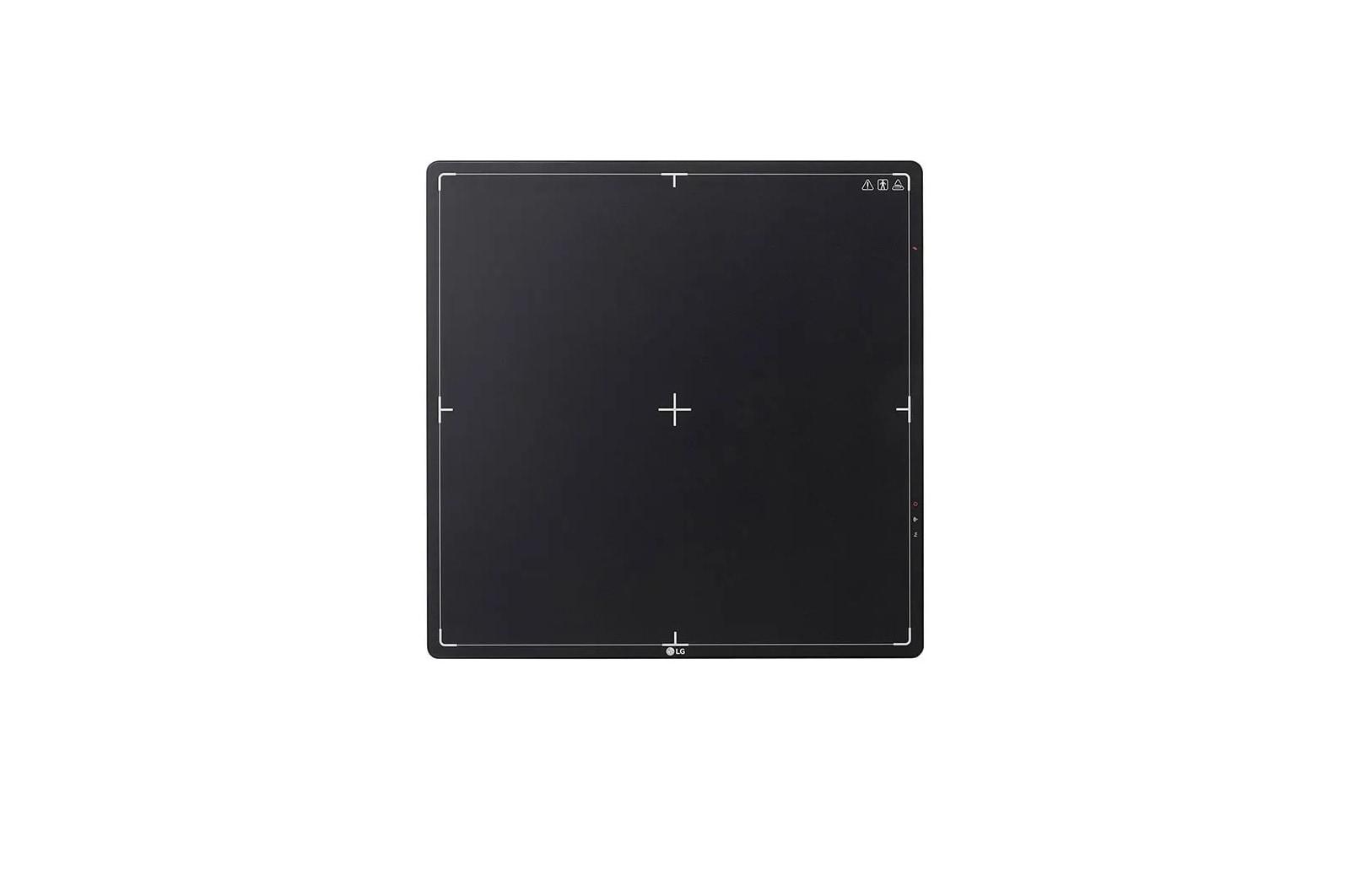

17HQ701GBP LG Digital X-ray Detector with a-Si TFTt
17HQ701GBP LG Digital X-ray Detector with a-Si TFTt
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 140 pixel sizet
- 16bit A/D conversiont
- IP68, Magnesium & Carbon-fiber Bodyt
- Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless)t
- Max. Uniform Load : 400kg / Max. Point Load : 200kgt
LG Digital X-ray Detector with a-Si TFTt
| Battery | |
| Hot Swap | Yes (1 Min) |
| Operating Time | 300 shots / 7.5 hrs (Typical) (Condition : Cycle Time 90 sec) |
| Charging Time | 3 hrs (Type) |
| Regulatory & Certifications | |
| FDA 510(k) Clearance | K221434 |
| IP Rating (Solid / Liquid Ingress) | IP68 |
| Detector Specifications | |
| Cycle Time (Wireless) | 5 sec |
| Pixel Pitch | 140 |
| Full Image Transfer (Wireless) (Typ.) *Without window time | 2 sec |
| A/D Conversion | 16 bit |
| Data Output | 16 bit |
| Full Image Transfer (Wired) (Typ.) *Without window time | 1.5 sec |
| TFT Type | A-si |
| Scintillator | CsI |
| Intended Use | General Radiography |
| Cycle Time (Wired) | 4.5 sec |
| Image Area | |
| Number of Pixels | 3,072 x 3,072 pixels |
| TFT Active Area | 16.9 x 16.9 in / 430.08 X 430.08 mm |
| MTF | |
| MTF @ 0.5lp/mm (Typ.) | 84% |
| Communication | |
| WLAN | IEEE802.11a/b/g/n/ac, 2.4 GHz / 5 GHz |
| Communication Type | Wired / Wireless |
| Auto Exposure Detection | Yes |
| Durability | |
| Sensor Protection Plate | Carbon Fiber Plate |
| Maximum Load Weight (Full (Uniform Load)) | 881.8 lbs / 400 kg |
| Maximum Load Weight (Local (Point Load)) | 440.9 lbs / 200 kg |
