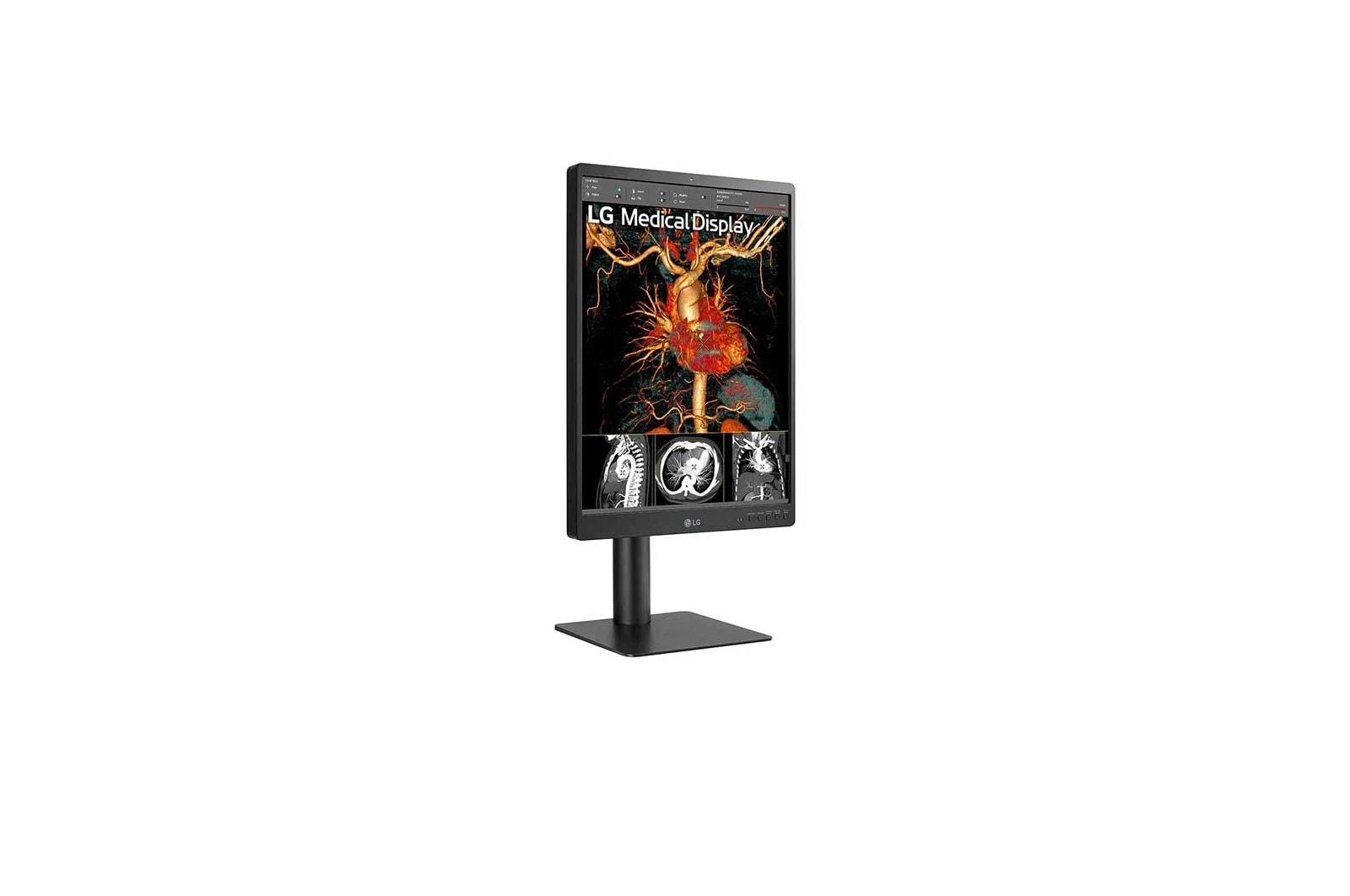

Lg 21HQ513DS 21.3" 3MP IPS Diagnostic Monitor with Ergonomic Design, Daisy Chain, and Front Sensor Calibration
Lg 21HQ513DS 21.3" 3MP IPS Diagnostic Monitor with Ergonomic Design, Daisy Chain, and Front Sensor Calibration
Couldn't load pickup availability
Check Delivery:
- 21.3-inch 3MP IPS Display
- 1100 cd/m (Typ.)
- Easy Calibration Sensor
- Pathology Mode, Focus View Mode
- Down & Wall Lighting
- Ergonomic Design
- See details in crisp color with Pathology Mode
- Select, magnify, and focus on areas of concern with Focus View
- Equipped with a variety of sensors to create an optimized diagnostic environment
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to the 21HQ513D's Multi-Resolution Mode, you can adjust the monitor's resolution to 3MP or 2MP.
Incredible Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope to help healthcare professionals make their diagnoses.
Energy Efficiency & Strong Security
The Presence Sensor automatically turns off the display when no motion is detected. You can save energy and help with patient privacy.
Fully Focus on the Region of Interest
With Focus View Mode, this monitor allows you to review a specific part of the medical image closely. This will enable professionals to focus entirely on the image's region of interest for diagnosis.
Auto Luminance Sensor
The Auto Luminance Sensor automatically adjusts screen brightness according to the ambient lighting conditions. As a result, it helps to reduce eye strain by maintaining an optimal screen brightness.
Manage Quality Control
The Integrated Front Sensor allows for calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Ideal Diagnostic Workspace
Down and Wall Lighting Modes reduce the contrast between the monitors' brightness and ambient lighting conditions, allowing you to work comfortably without adjusting the lighting to view paper documents in the darkroom.
Hot Key Controls
Five Hot Keys make changing between screen modes more straightforward and intuitive than operating through an onscreen menu. The Hot Keys are fast and easy to use while working, allowing you to change mode and lighting settings without disrupting your workflow.
*Image infill for illustration purposes only.
Reducing Clutter on Your Desk and Simplifying Cable Management

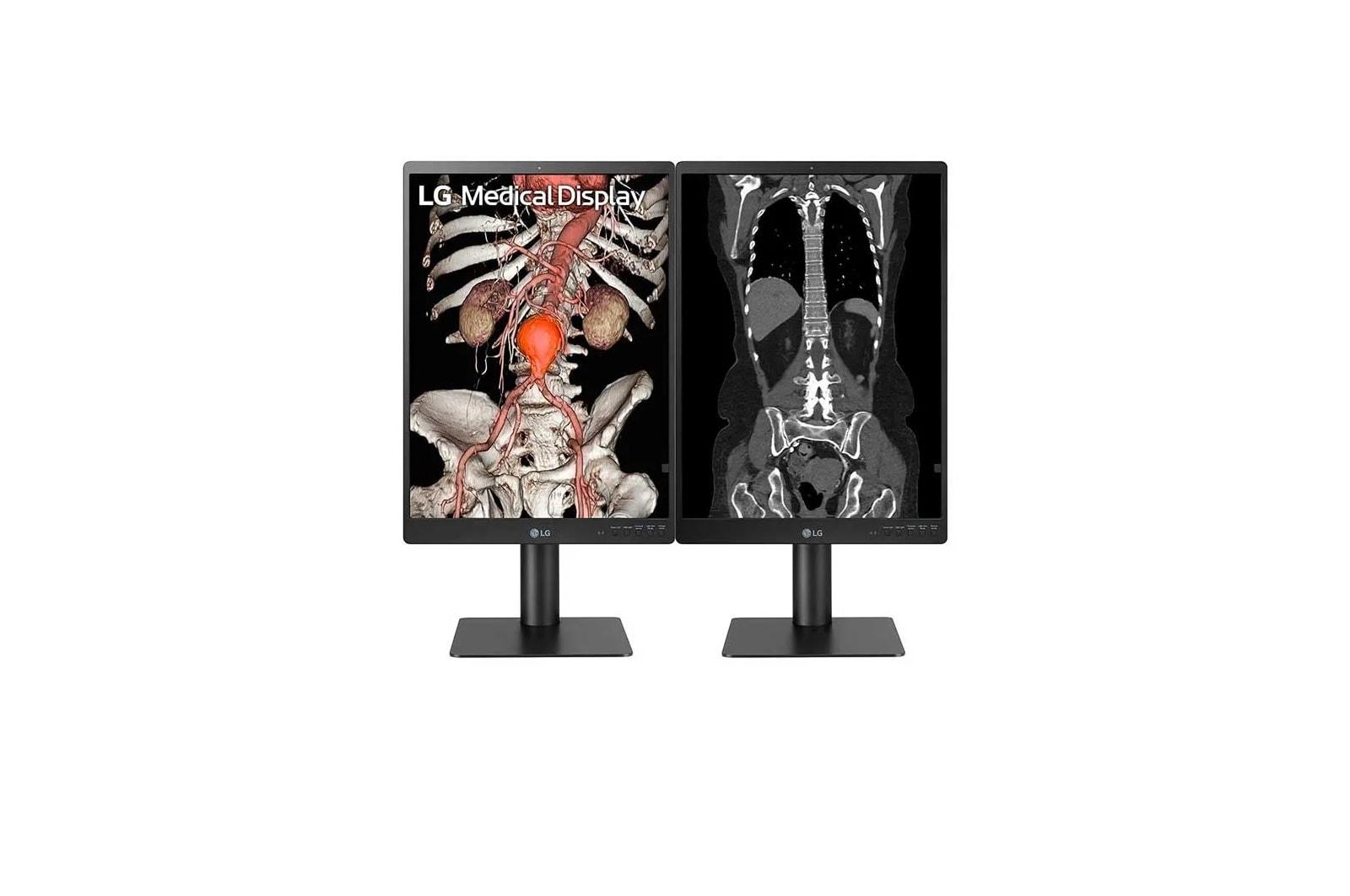

With 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup, you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
*Image infill for illustration purposes only.

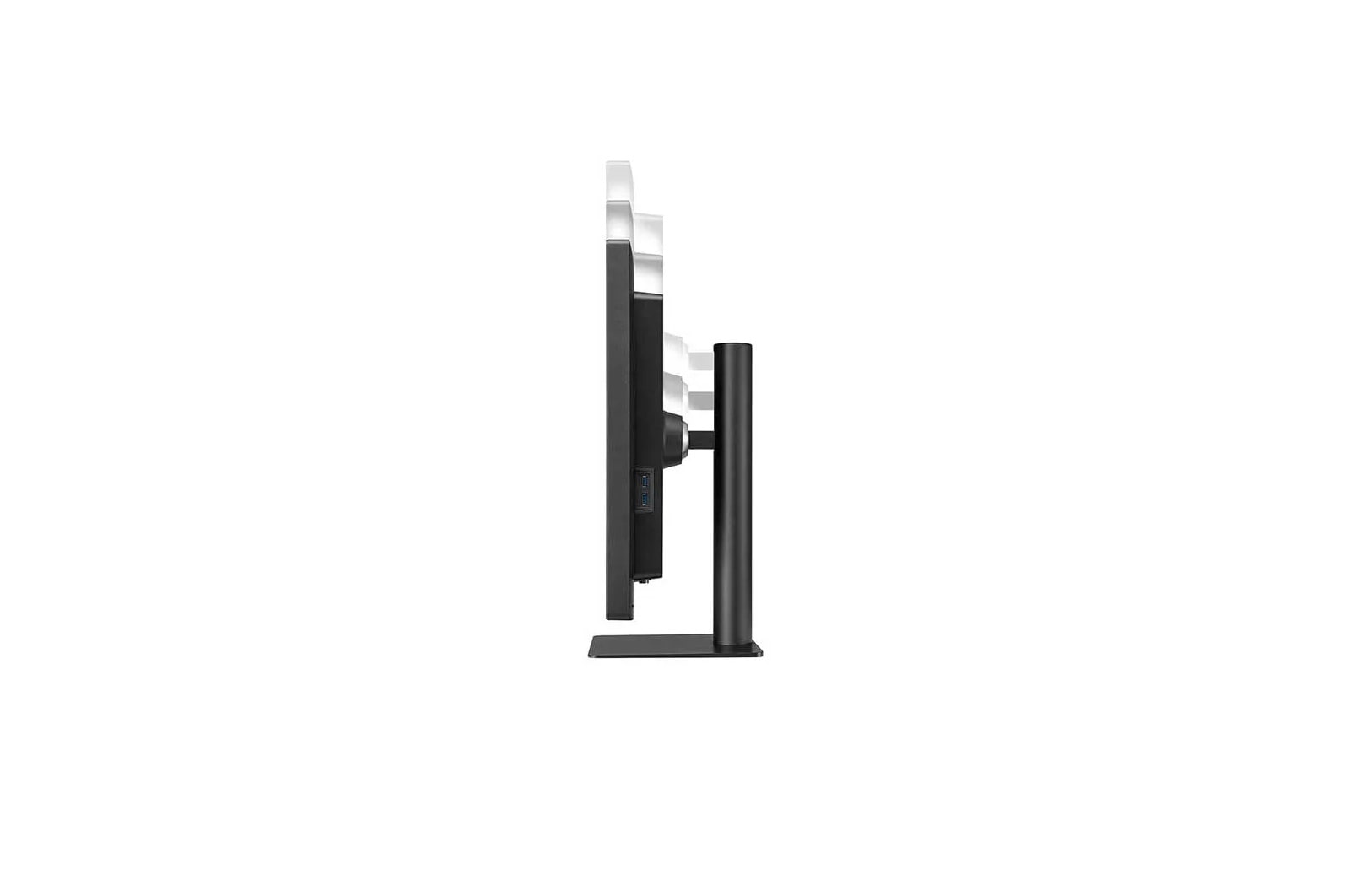

Easy and Comfortable Workspace
Designed to be adjustable for posture, healthcare professionals can review images comfortably with the 21HQ513D.
| Electrical | |
| Power Consumption (Max.) | 120W |
| Power Consumption (Power Off) | Less than 0.3W |
| Power Type | Not Available |
| Power Consumption (Sleep Mode) | Not Available |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac, 50/60 Hz |
| DC Output | Not Available |

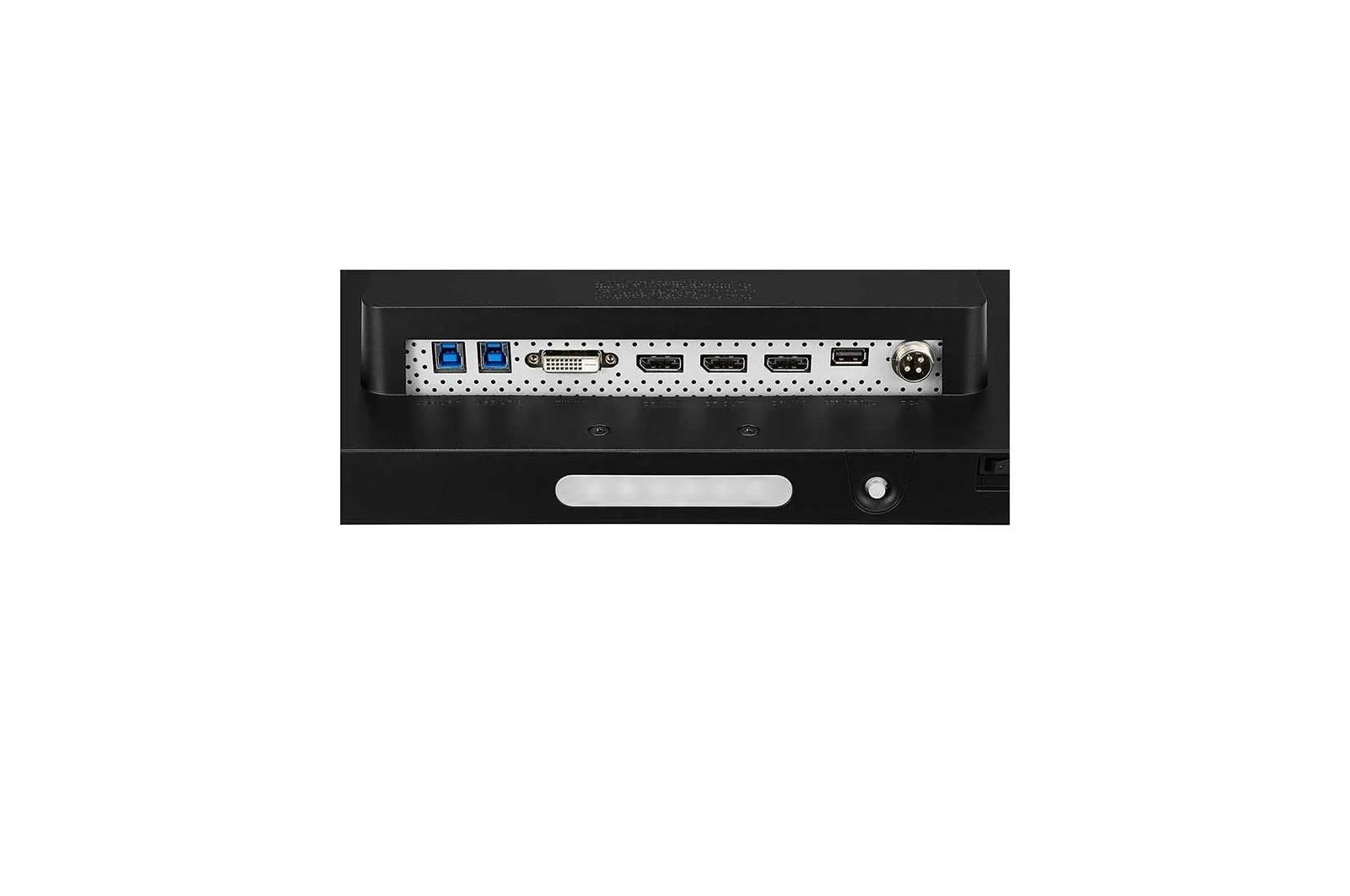

| Connectivity | |
| HDMI In | No |
| HDMI (Max. Resolution at Hz) | No |
| HDMI (w/o VRR) | Not Available |
| DVI-D In | No |
| DVI In | Yes (x1) |
| DVI (V Frequency) | Not Available |
| DVI (Max Resolution at Hz) | Not Available |
| DisplayPort In | Yes (x2) |
| DisplayPort (w/o VRR) | Not Available |
| DisplayPort (Max. Resolution at Hz) | Not Available |
| RS-232C In (D-sub 9-pin) | No |
| USB Type-A (Downstream) | Yes (x2) |
| USB Type-B (Upstream) | Yes (x2) |
| S-Video | No |
| 3G-SDI In | No |
| 12G-SDI In (3.5 mm) | No |
| AC In | Yes |
| DC In (4 pin) | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Output Jack Location | No |
| DVI Out | No |
| 3G-SDI Out | No |
| 12G-SDI Out (3.5 mm) | No |
| Headphone Out (3.5 mm) | No |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | Yes (3MP/@60Hz) |
| Signal Input Jack Location | No |
| Panel | |
| Screen Size (Inches) | 21" |
| Diagonal (Inches) | 21.3 |
| Panel Type | IPS |
| Backlight Type | Not Available |
| Aspect Ratio | 3:4 |
| Resolution | 1536 x 2048 (3MP) |
| Pixel Pitch | Not Available |
| Brightness (Typ.) | 1,100 cd/m2 |
| Contrast Ratio | 1800:1 |
| Color Gamut | NTSC 72% |
| Color Depth (Number of Colors) | Not Available |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Surface Treatment (Anti Glare) | Yes |
| Surface Treatment (Hard Coating) | Not Available |
| HDR | No |
| HDR Effect | No |
| Features | |
| Screen Flip | No |
| Quick Charge | No |
| DDC/CI | No |
| Original Ratio | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | Yes |
| Uniformity Compensation | No |
| Light Box Mode | Yes |
| Key Lock | No |
| Calibration Software | LG PerfectLum |
| Failover Input Switch | No |
| User Preset Quick Setting | No |
| 4 Screen Split | No |
| Color Temperature | No |
| Uniformity | No |
| Super Resolution+ | Yes |
| HW Calibration | Yes (with internal Front Sensor) |
| Automatic Standby | No |
| Brightness Stabilization | No |
| DynaMic Sync Mode (Thru Mode) | No |
| Pathology Mode | Yes |
| Six Axis Control | No |
| HDCP | No |
| Factory Calibration | No |
| DICOM Compliant | Yes |
| Brightness Uniformity Correction | No |
| BLS (ALS) | No |
| Color Calibrated | No |
| Multi-resolution Mode | 3 / 2 MP |
| Gamma | No |
| Picture Mode | Yes |
| Mechanical | |
| Adjustable Stand | Yes |
| Base Detachable | Not Available |
| One Click Stand Set-up | Yes |
| Stand Height Range | 4.3 in / 110 mm |
| Tilt (Angle) | -5°~20° |
| Swivel (Angle) | Not Available |

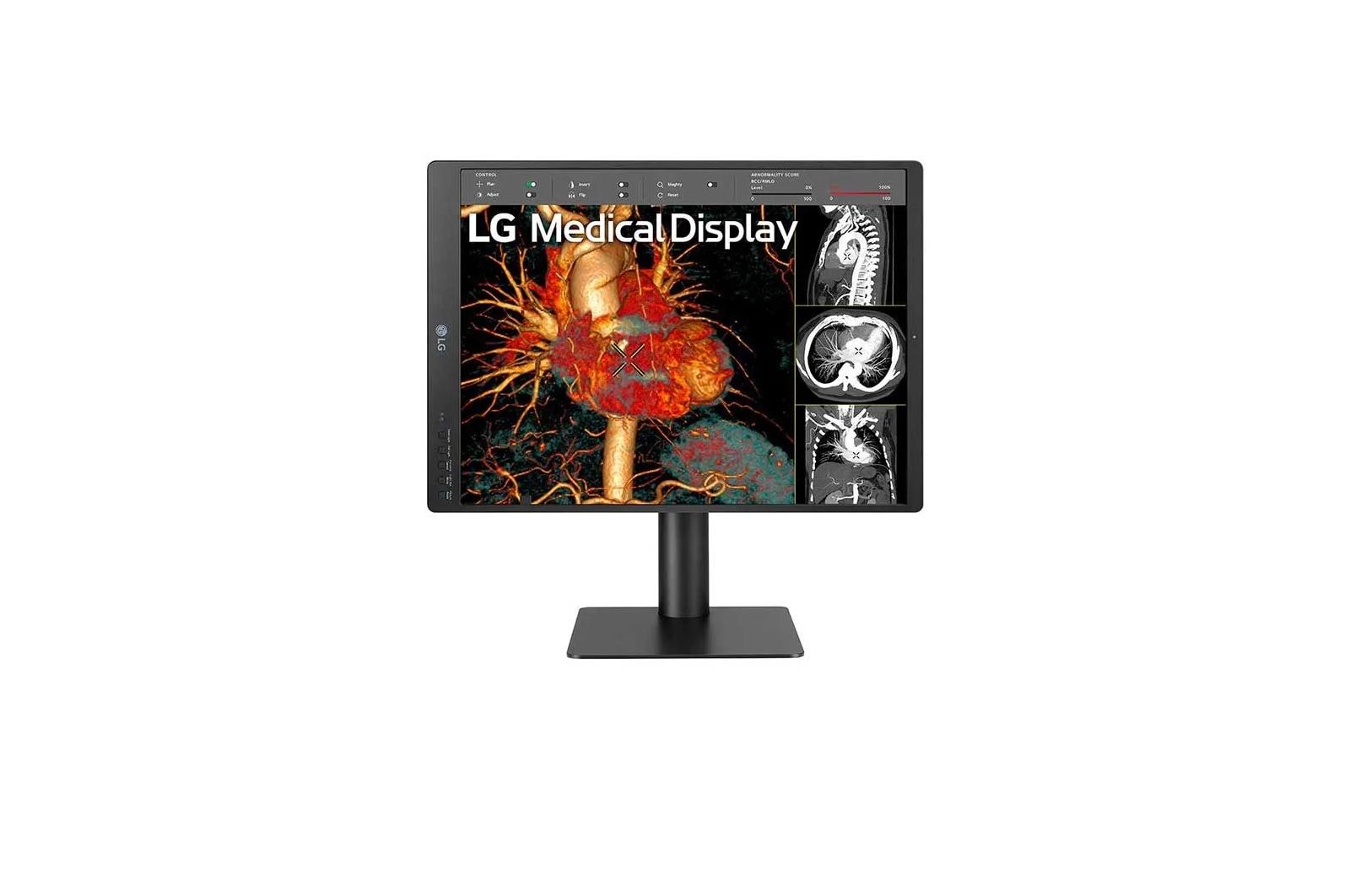

| Pivot | 90° |
| Weight | 15.4 lbs / 7.0 kg |
| Weight with Stand | 11.0 lbs / 5.0 kg |
| Shipping Weight | Not Available |
| Dimensions (W x H x D) | Not Available |
| Dimension with Stand (W x H x D) | Not Available |
| Shipping Dimensions (W x H x D) | Not Available |
| LG Software Compatible | |
| On Screen Control | Not Available |
| Dual Controller | Yes |
| Regulatory & Certifications | |
| Impact Protection | No |
| ICES-003 | No |
| Windows 10 | No |
| EN (EN 60950-1/EN55032, 55024) | No |
| MFDS (KR) | No |
| CE MDD (EU) | No |
| CE (Regulatory) | No |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | No |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | No |
| CMDR (Canada) | No |
| RoHS (Environmental) | No |
| GMP | No |
| IP Rating (Solid / Liquid Ingress) (Front) | No |
| TGA / RCM (Australia) | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | No |
| TAA Compliance | Yes |
| CE (MDD 93/42/EEC, 2007/47/EC) | No |
| CISPR (Global) | No |
| REACH (Environmental) | No |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | No |
| WEEE | No |
| FDA (US) | No |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | No |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | No |
| KGMP | No |
| ISO13485 | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | No |
| UL/cUL Certification | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 5 Year Limited |
| UPC | 1 95174 09167 8 |
| Protective Glass | |
| Thickness | No |
| Anti-Reflective | No |
| Anti-Fingerprint | No |
| Software Features | |
| Picture-by-Picture (PBP) | No |
| Picture-in-Picture (PIP) | No |
| Smart Energy Saving | No |
| Flicker Safe | Yes |
| Reader Mode | No |
| Black Stabilizer® | No |
| Text Mode | Yes |
| USB Plug & Play | No |
| User Convenience | |
| Auto Luminance Sensor | Yes |
| Presence Sensor | Yes |
| Hot Key | Yes (5 Keys - Down Light / Wall Light / Presence Sensor / Light Box Mode / Picture Mode) |
| Lighting | Yes (Down/Wall) |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | No |
| LED Color (Power save mode) | Not Available |
| Key Location | No |
| Key Number (Power Key Included) | No |
