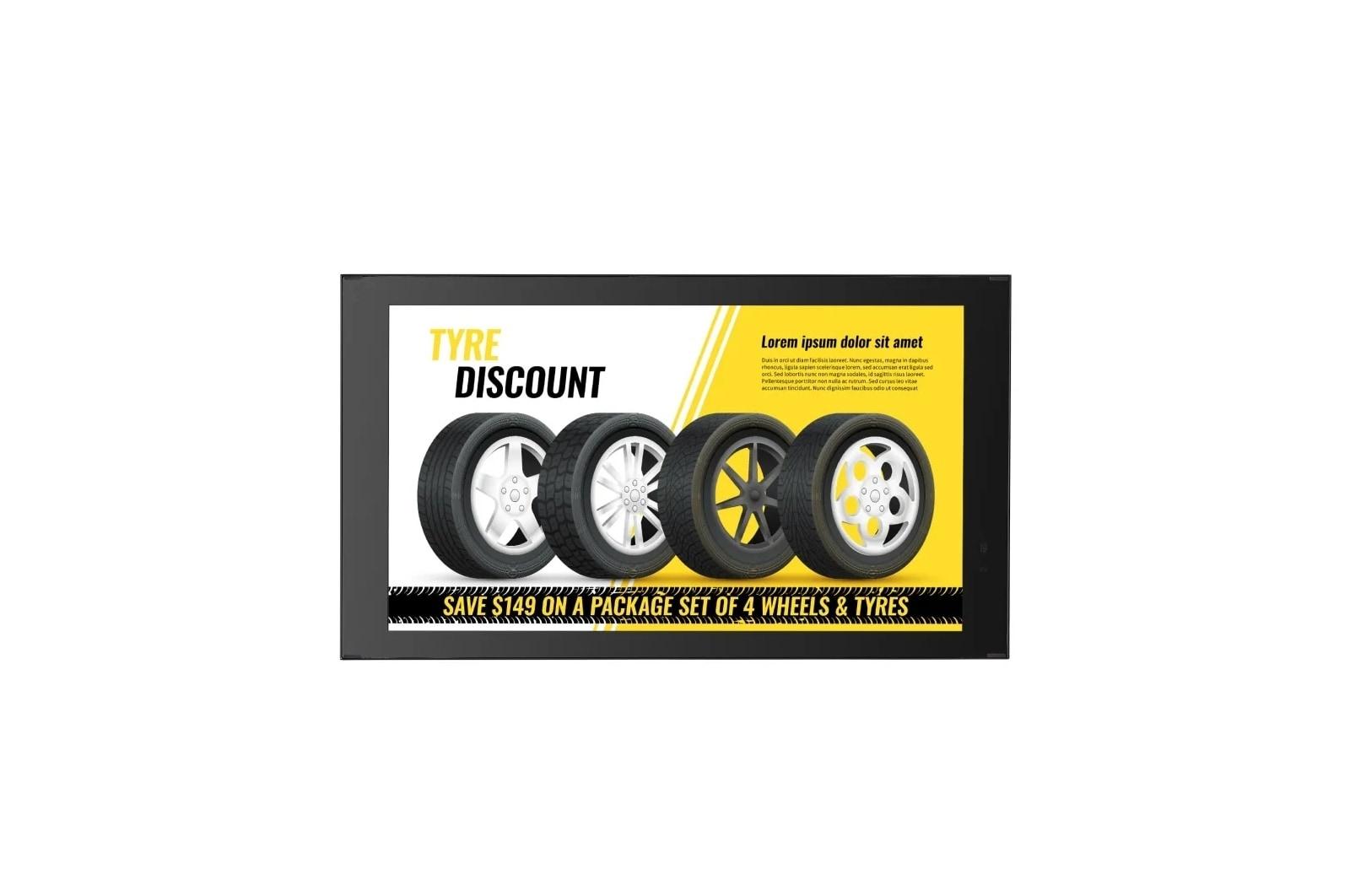

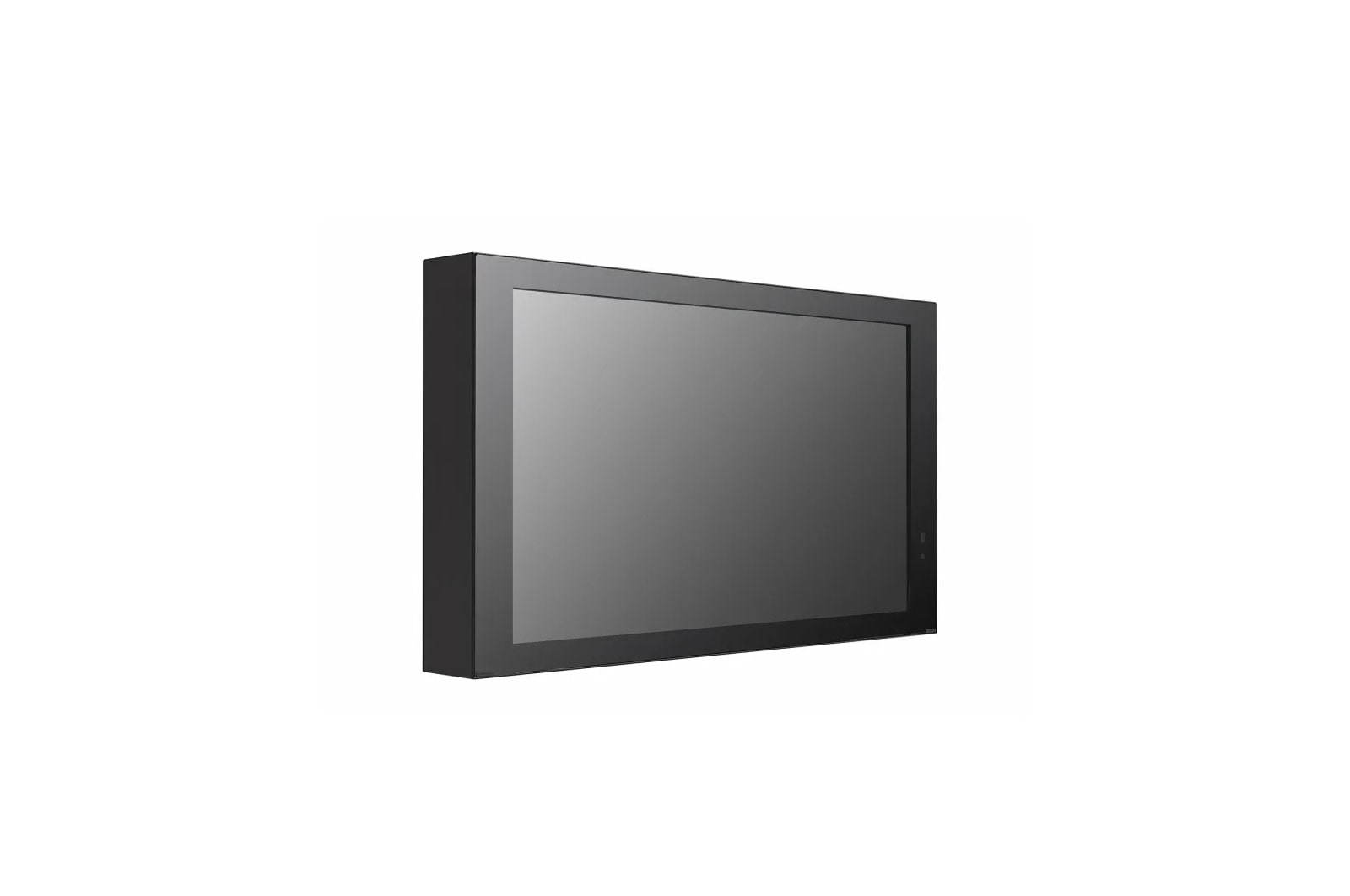

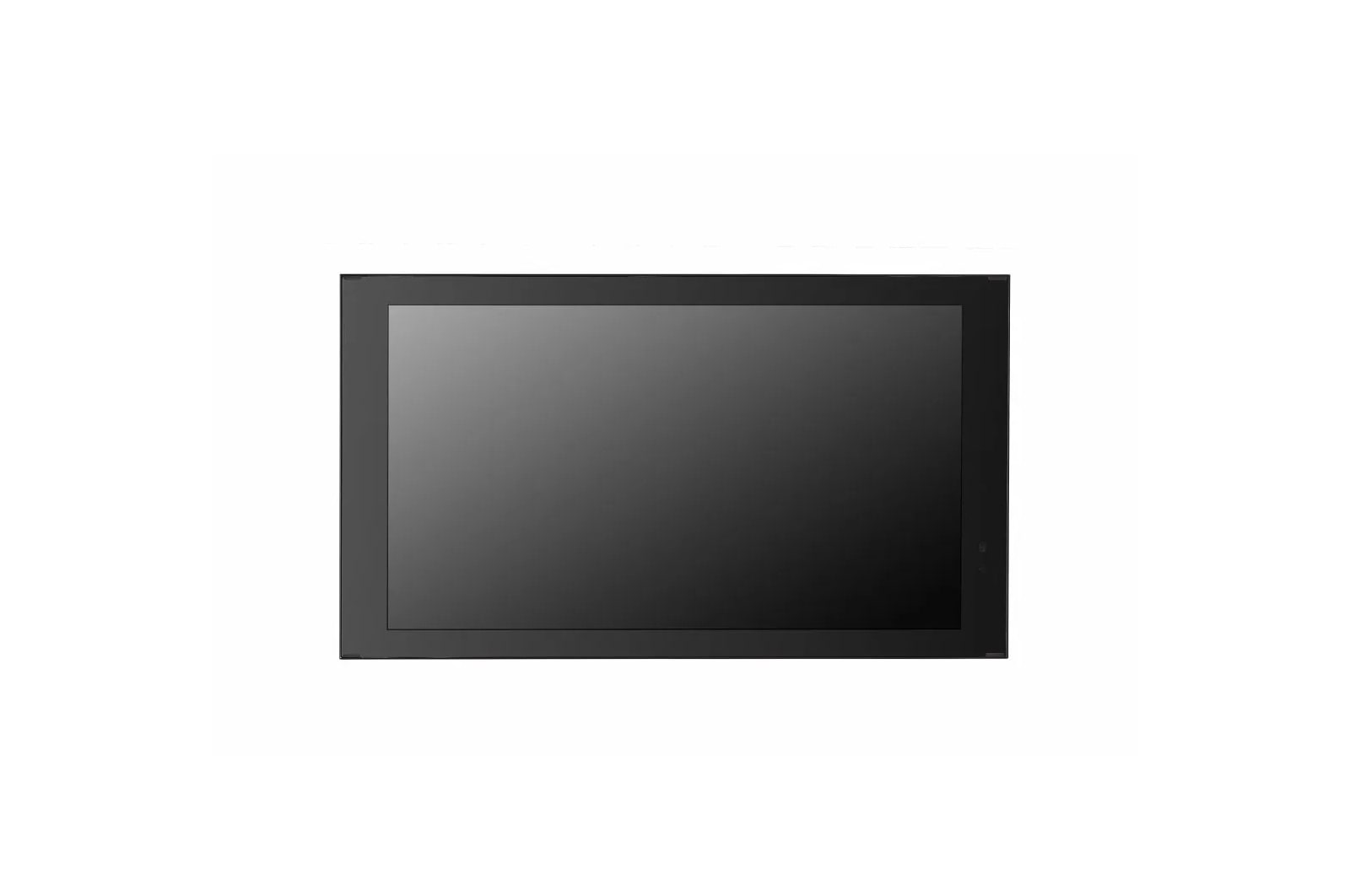

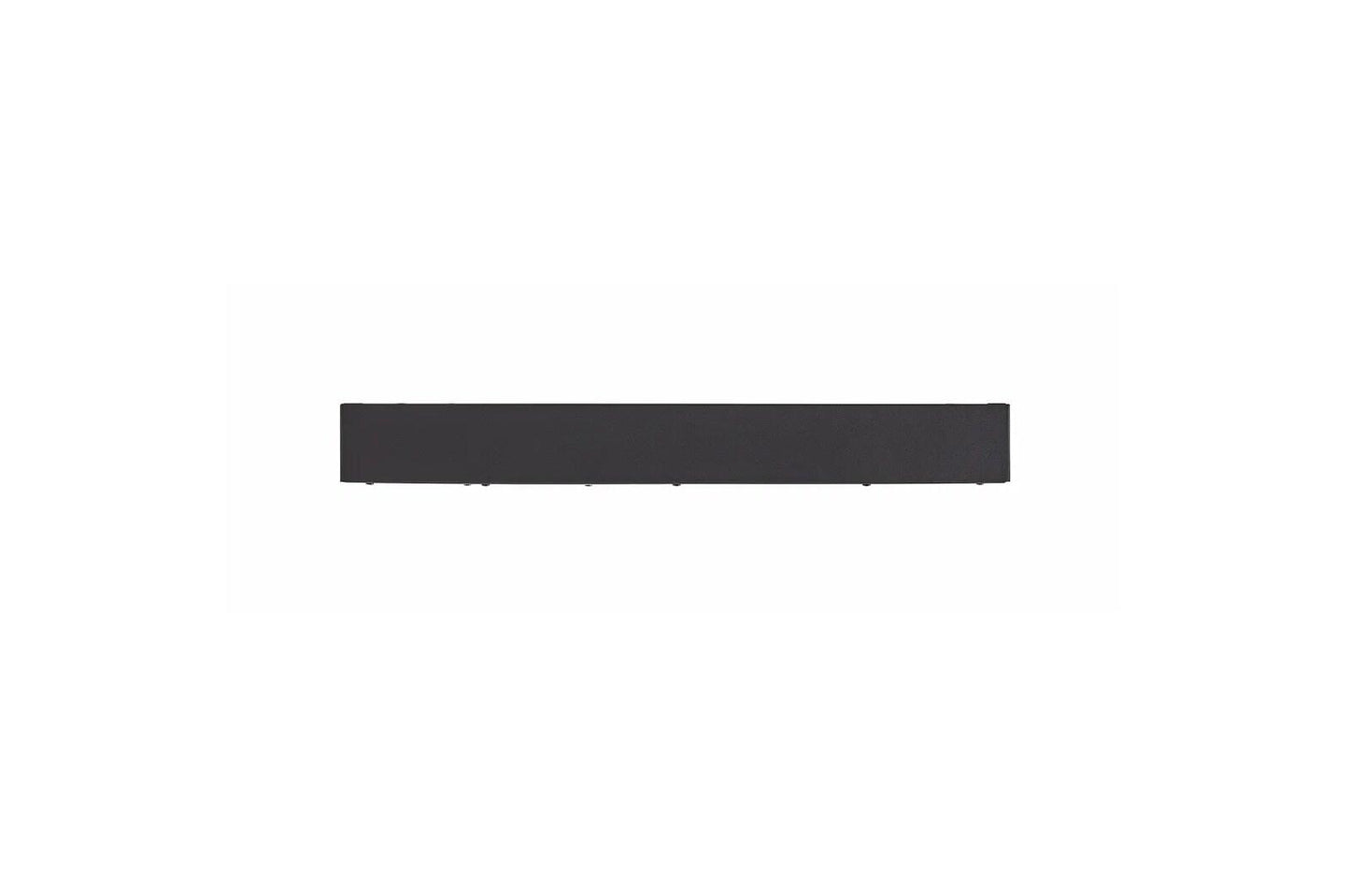

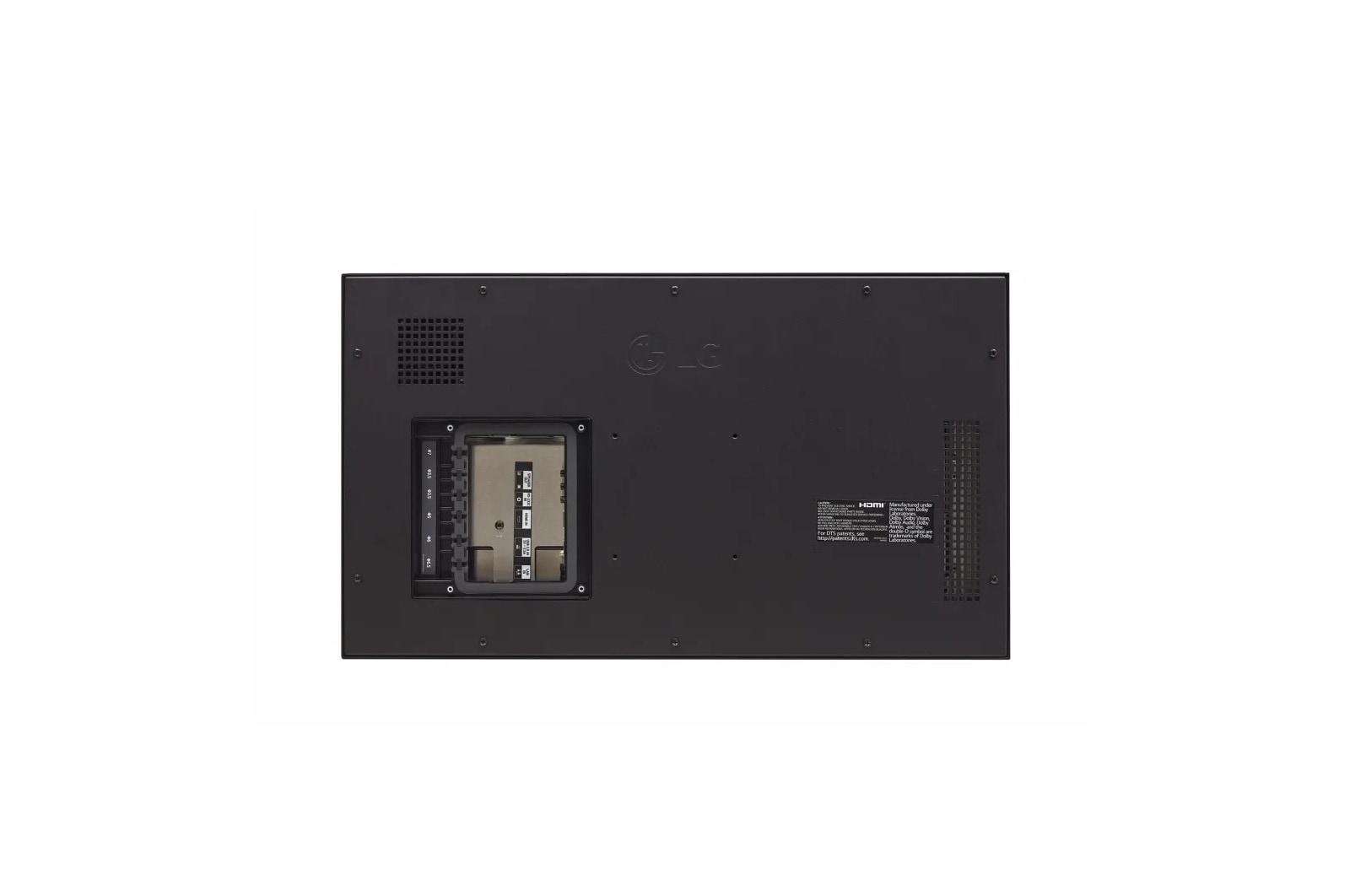

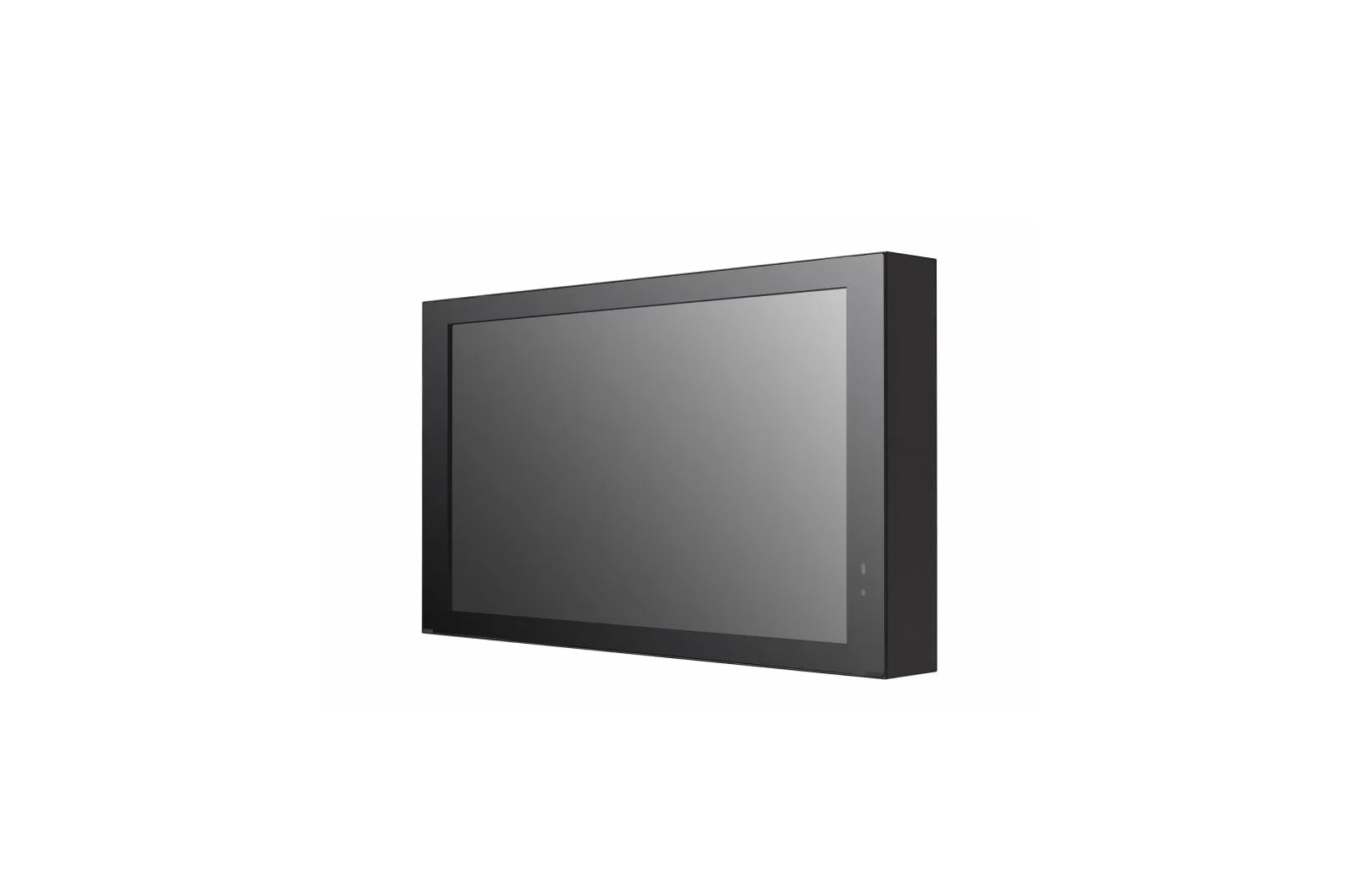

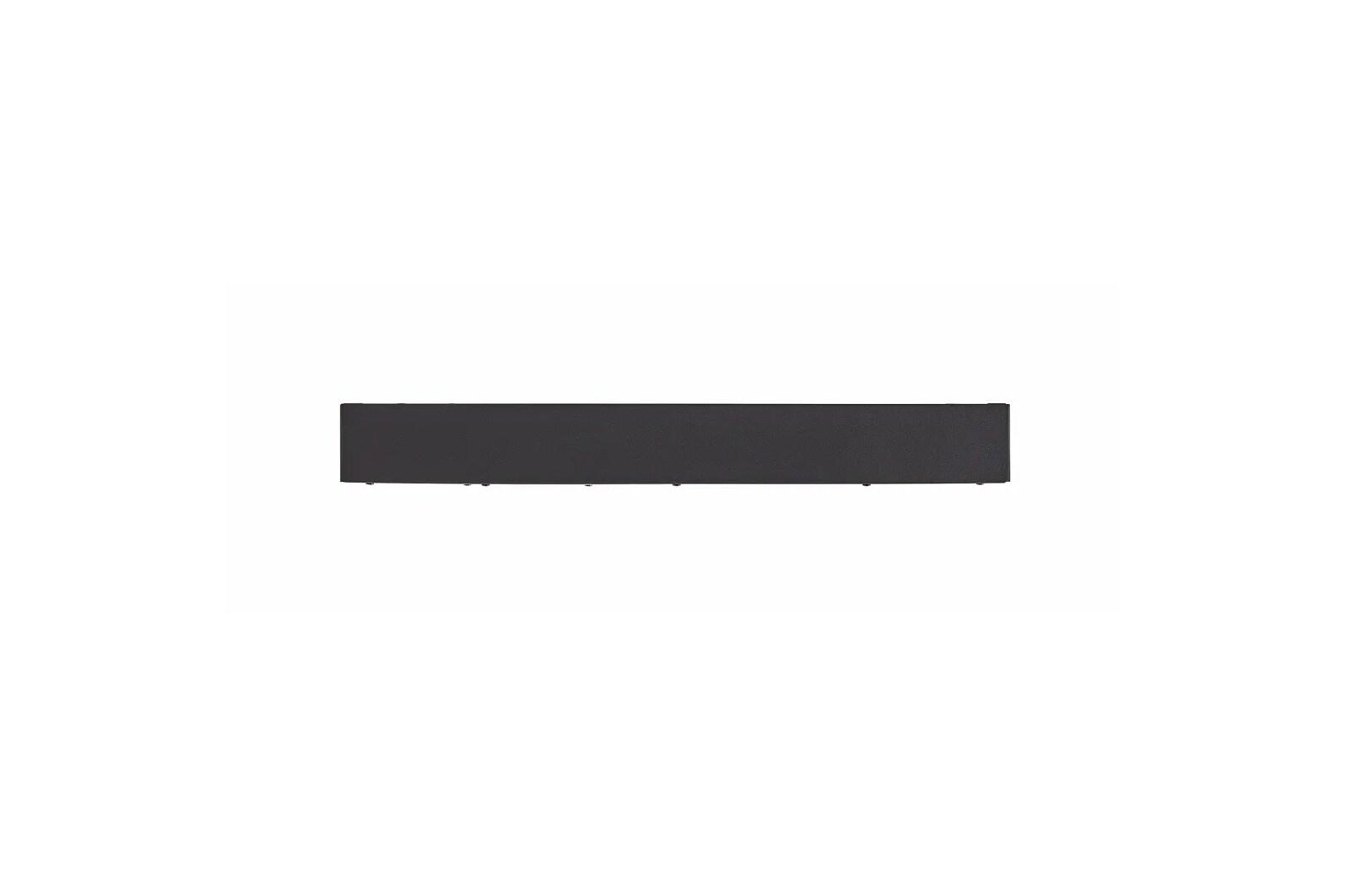

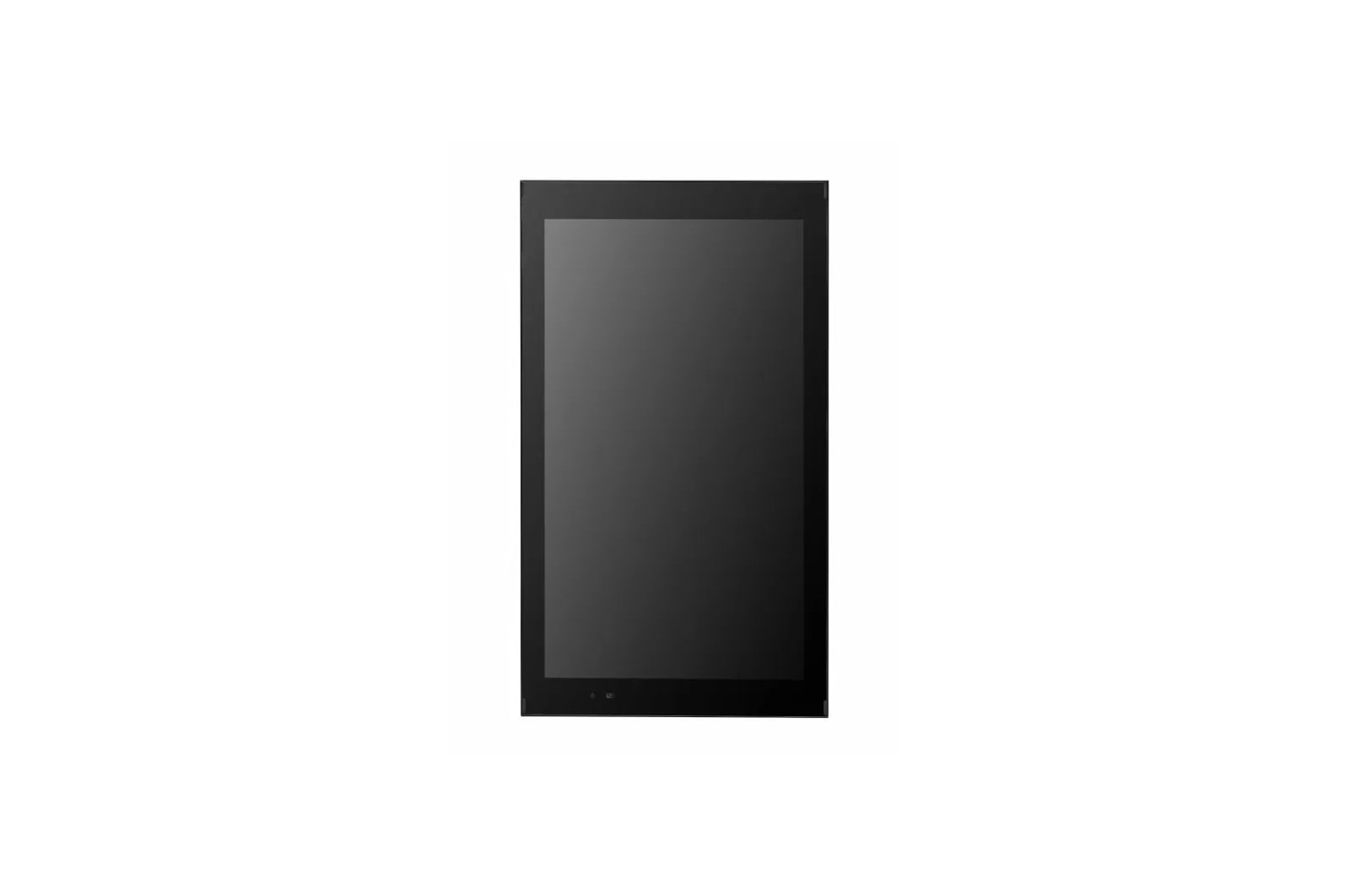

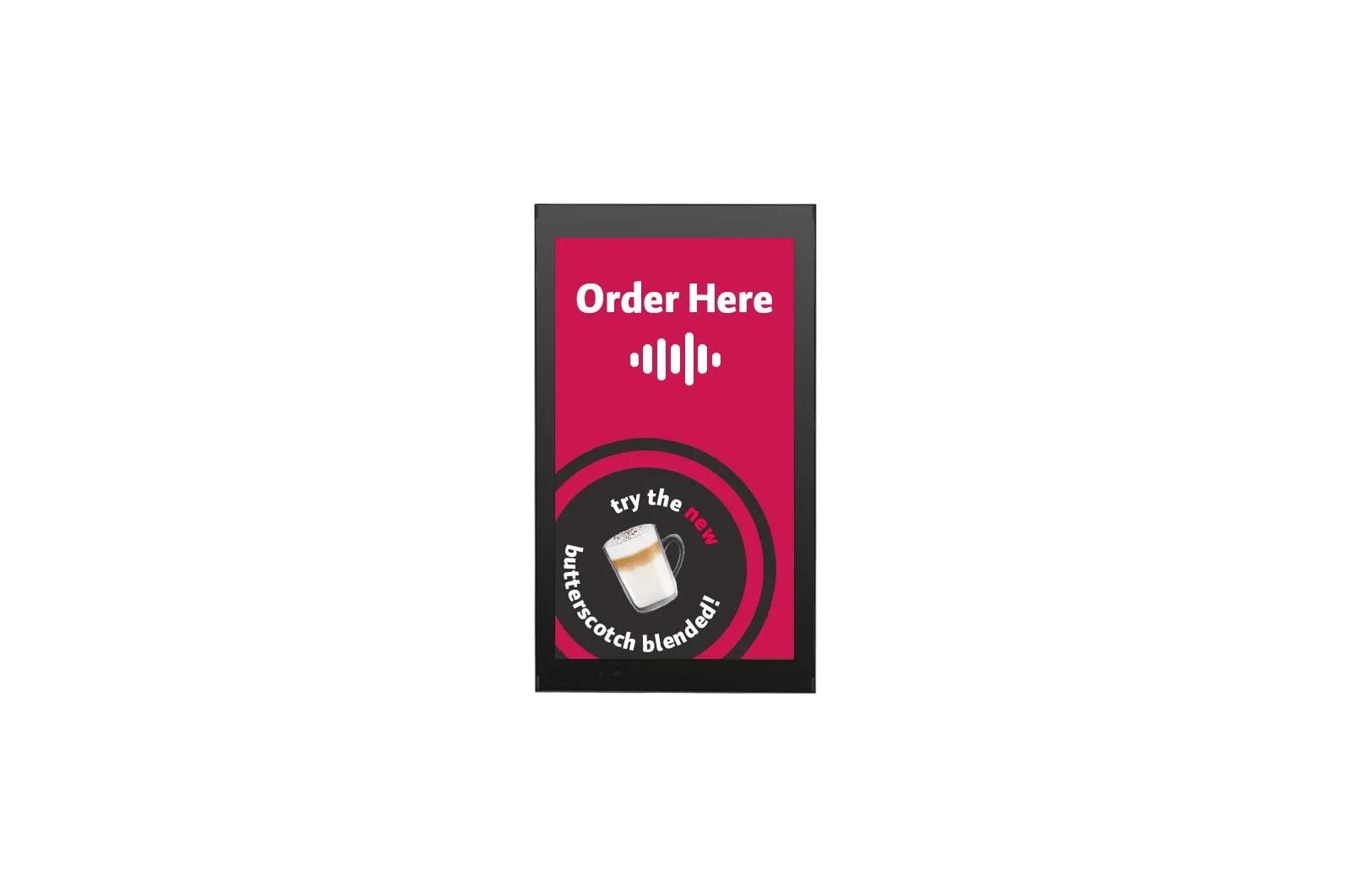

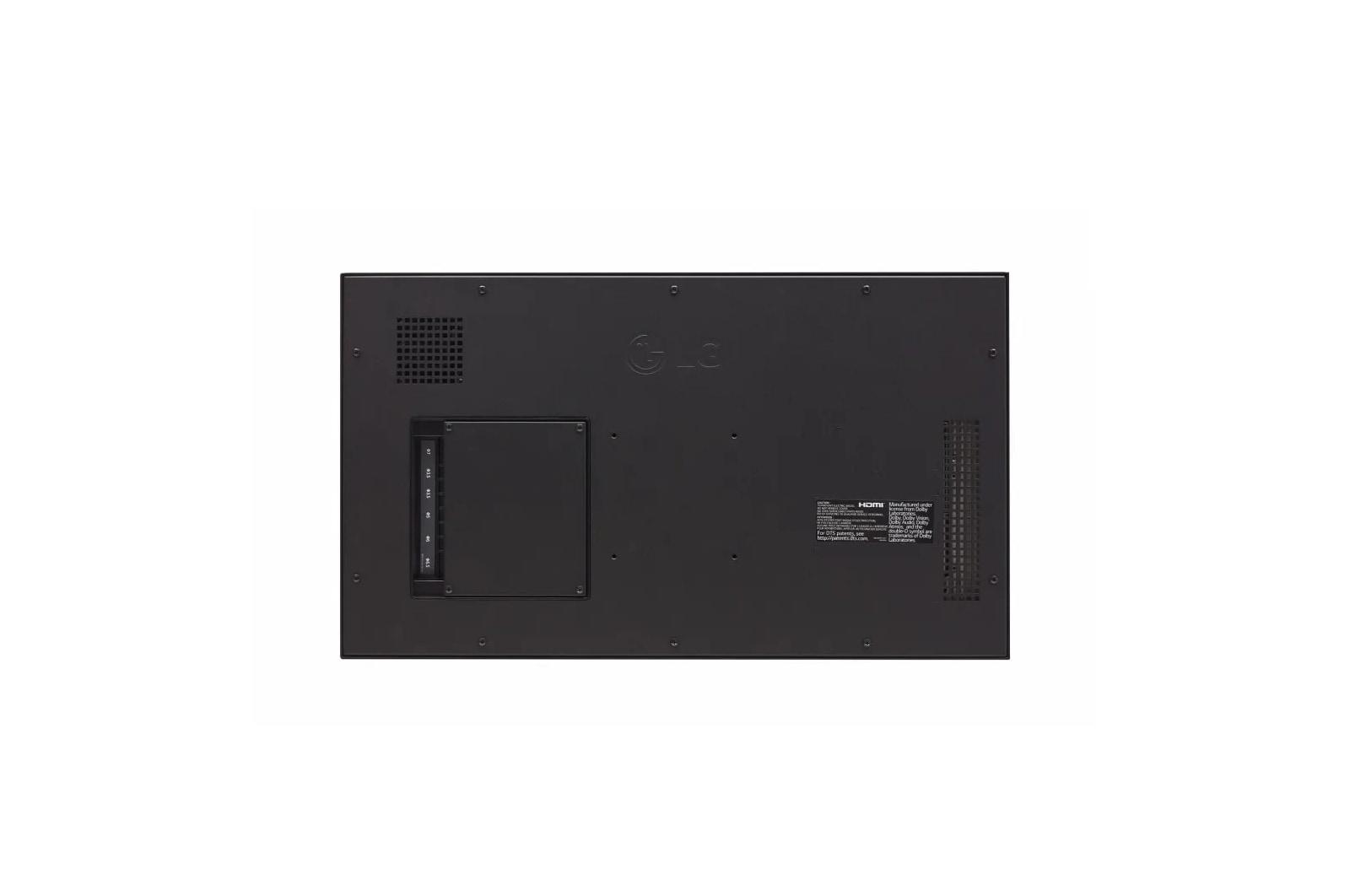

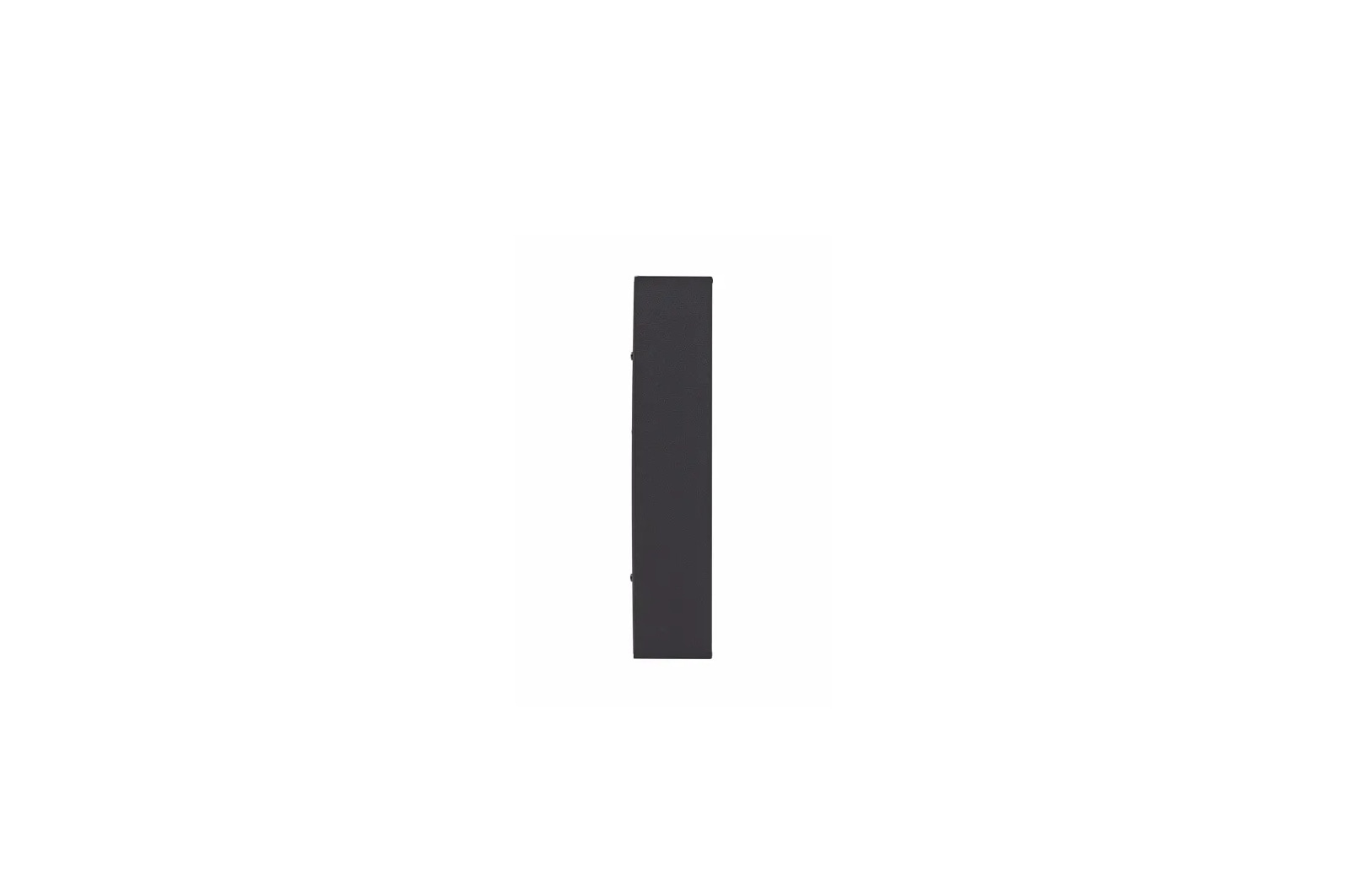

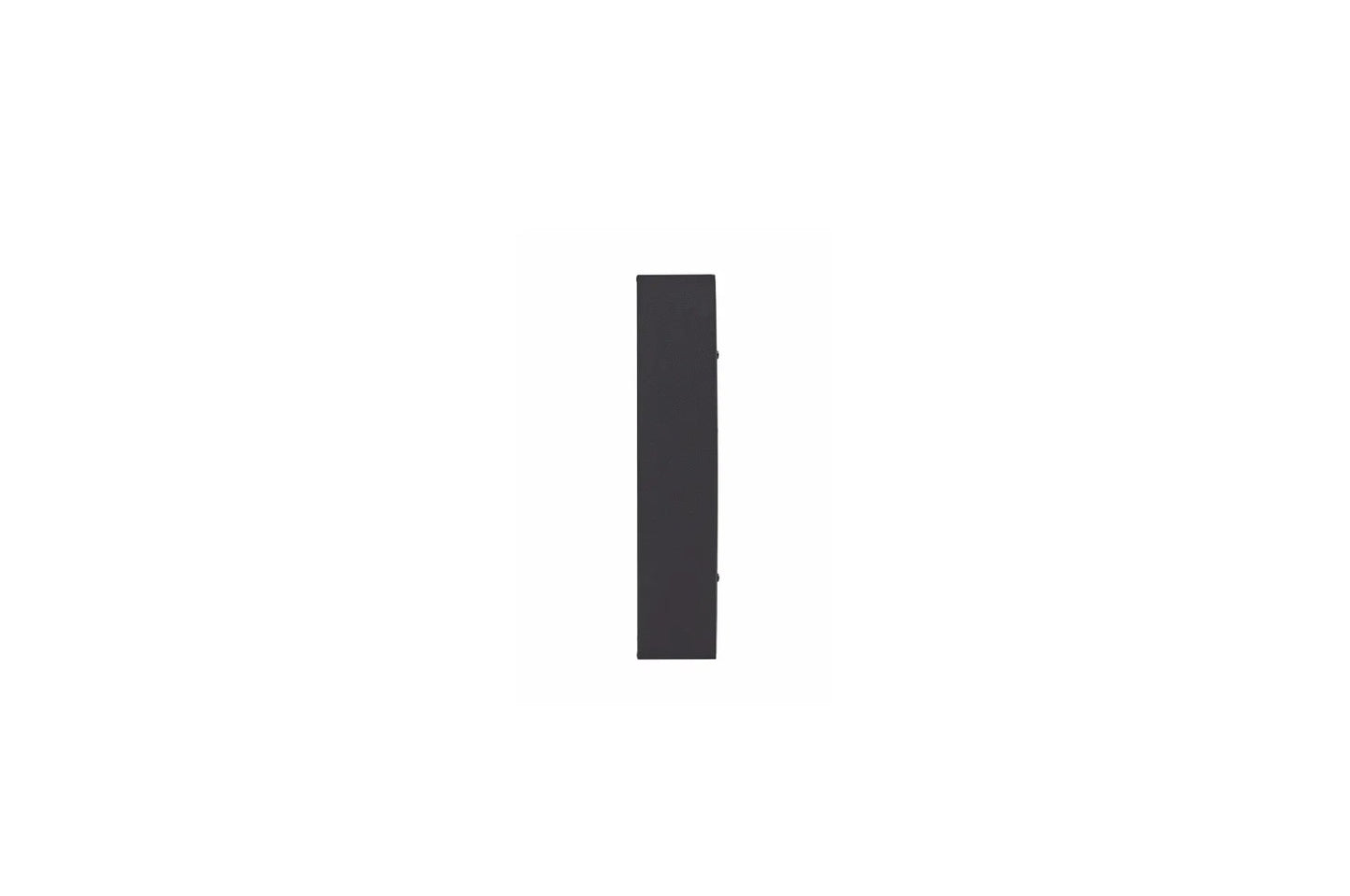

Lg 22XE1J 21.5" FHD IP-rated Outdoor Signage

Item Not Available

Check Delivery:

Brightness (Typ, w/ Glass) : 1,500 nits
IP56 Rated
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS™ Smart Platform
Web-based Monitoring Solution

21.5" FHD IP-rated Outdoor Signage

System
Operating System (OS)	webOS™ 4.1
Processor	No
Graphics	No
Storage	No
Internal Memory	16 GB (eMMC)
Electrical
Power Consumption (Max.)	115W
Power Supply	100-240 Vac, 50/60 Hz
Power Consumption (Power Off)	Less than 0.5W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)	40W
BTU Heat Generation (Max.)	393 BTU
BTU Heat Generation (Typ.)	290 BTU
Power Consumption (Typ.)	85W
Connectivity
HDMI In	Yes (x2) HDCP 2.2/1.4
IR In (3.5 mm)	No
IR In (3.5 mm)	No
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	No
DisplayPort In	No
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x1) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	No
Audio Out (3.5 mm)	No
Touch USB	No
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	No
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	Yes (x1) L/R, 10W+10W
Bluetooth	No
Daisy Chain	No
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	22"
Panel Technology	IPS (AHVA)
Backlight Type	Edge
Aspect Ratio	16:9
Native Resolution	1920 x 1080 (FHD)
Refresh Rate	60 Hz
Brightness (Typ.)	1,500 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1000:1
Dynamic Contrast Ratio	800000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	16.7 Million Colors, 8 bit
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	25 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	25%
Surface Treatment (Anti Glare)	Yes
Surface Treatment (Hard Coating)	3H
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 70,000 Hrs

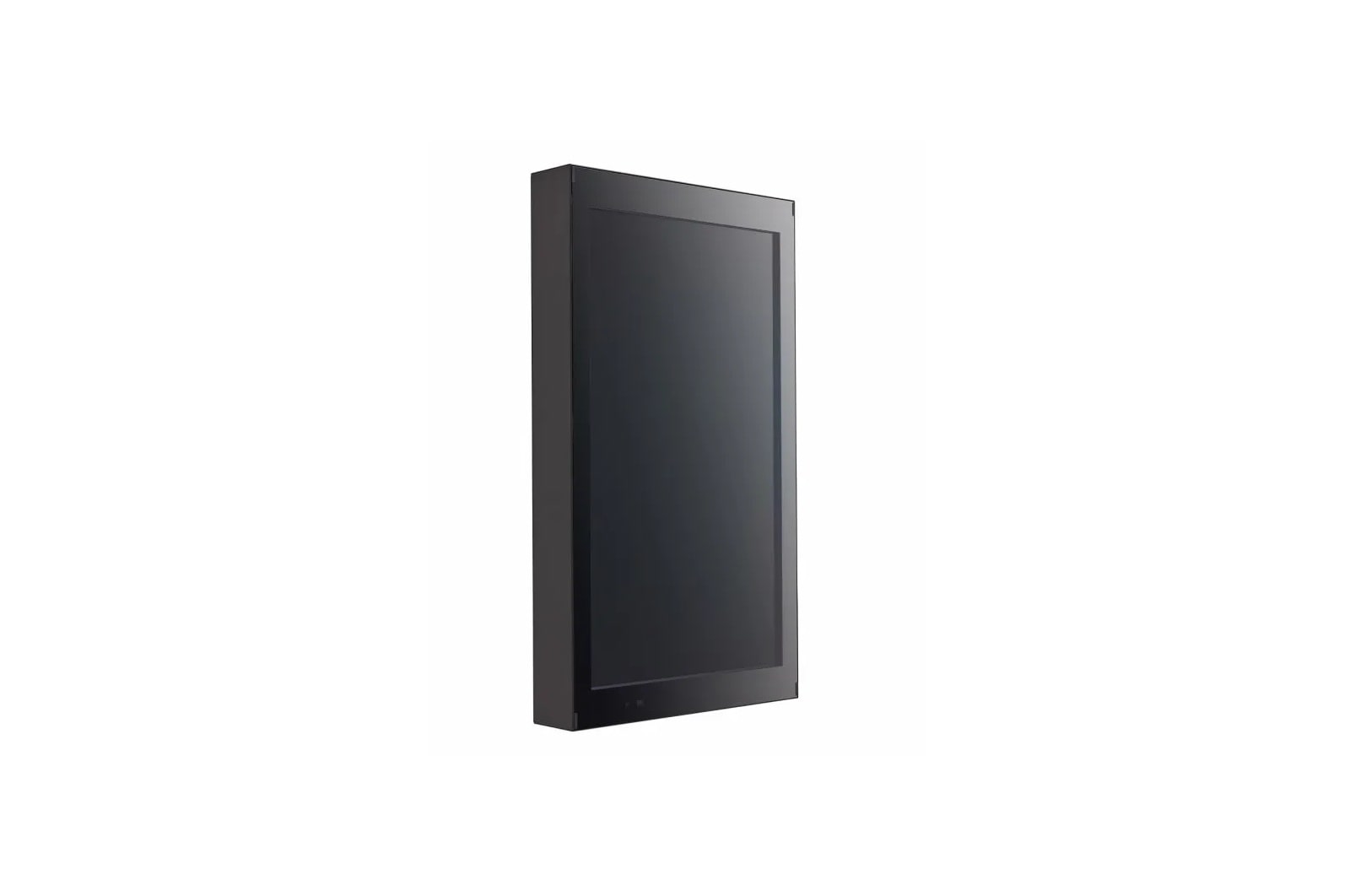

Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	Yes
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	No
Beacon	No
Play Via URL	Yes
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T: 24.0 mm, R/L: 38.3 mm, B: 24.0 mm
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Not Available
Tilt (Face Down)	Yes ( -15 )
Tilt (Face Up)	No
Weight	18.3 lbs / 8.3 kg
Weight Signage Box	N/A
Weight with Stand	N/A
Shipping Weight	22.0 lbs / 10 kg
Dimensions (W x H x D)	21.9 x 12.6 x 2.6 in / 557.3 x 319.8 x 65 mm
Dimensions with Stand (W x H x D)	N/A
Dimensions with Pemnut (W x H x D)	N/A
Dimensions Signage Box (W x H x D)	N/A
Shipping Dimensions (W x H x D)	24.9 x 15.5 x 7.4 in / 632 x 394 x 187 mm
Conformal Coating (Power Board)	Yes
Handle	No
VESA™ Standard Mount Interface	100 x 100 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	Yes
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	No
SuperSign™ Cloud	No
Mobile CMS	No
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	IP56
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	No
Warranty & Other
Assembled In	South Korea
Warranty	3 Year Limited
Onscreen Display Languages	Arab, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e
Optional Accessories	No
UPC	1 95174 01439 4
Basic Accessories (included)	Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Adapter
Touch Panel
Available Object Size for Touch	No
Response Time (PC Win10, Education Mode)	No
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	No
Multi Touch Point (Max.)	No
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	No
Protective Glass
Thickness	2 mm
Degree of Protection	N/A
Tempered / Chemical Strengthening	Chemical Strengthening
Anti-Reflective	Yes
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	Yes
Shatter-Proof	Yes
Heat Dissipation	Heat exchange
Heater	No
Noise Level	No
Smart Features
Screen Share	No
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	No
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	Yes
Acceleration (Gyro) Sensor	Yes
Current Sensor	No
BLU Sensor	No
Power Indicator	Yes
Proximity Sensor	No
Humidity Sensor	Yes
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	No
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	No
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	No
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (x4) Max One HDMI input
PM mode	No
Picture-in-Picture (PIP)	No
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	No
Tile Mode Setting	No
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	5% to 100%
Operation Temperature (Portrait)	N/A
Operation Temperature	-20°F to 122°F / -30°C to 50°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
