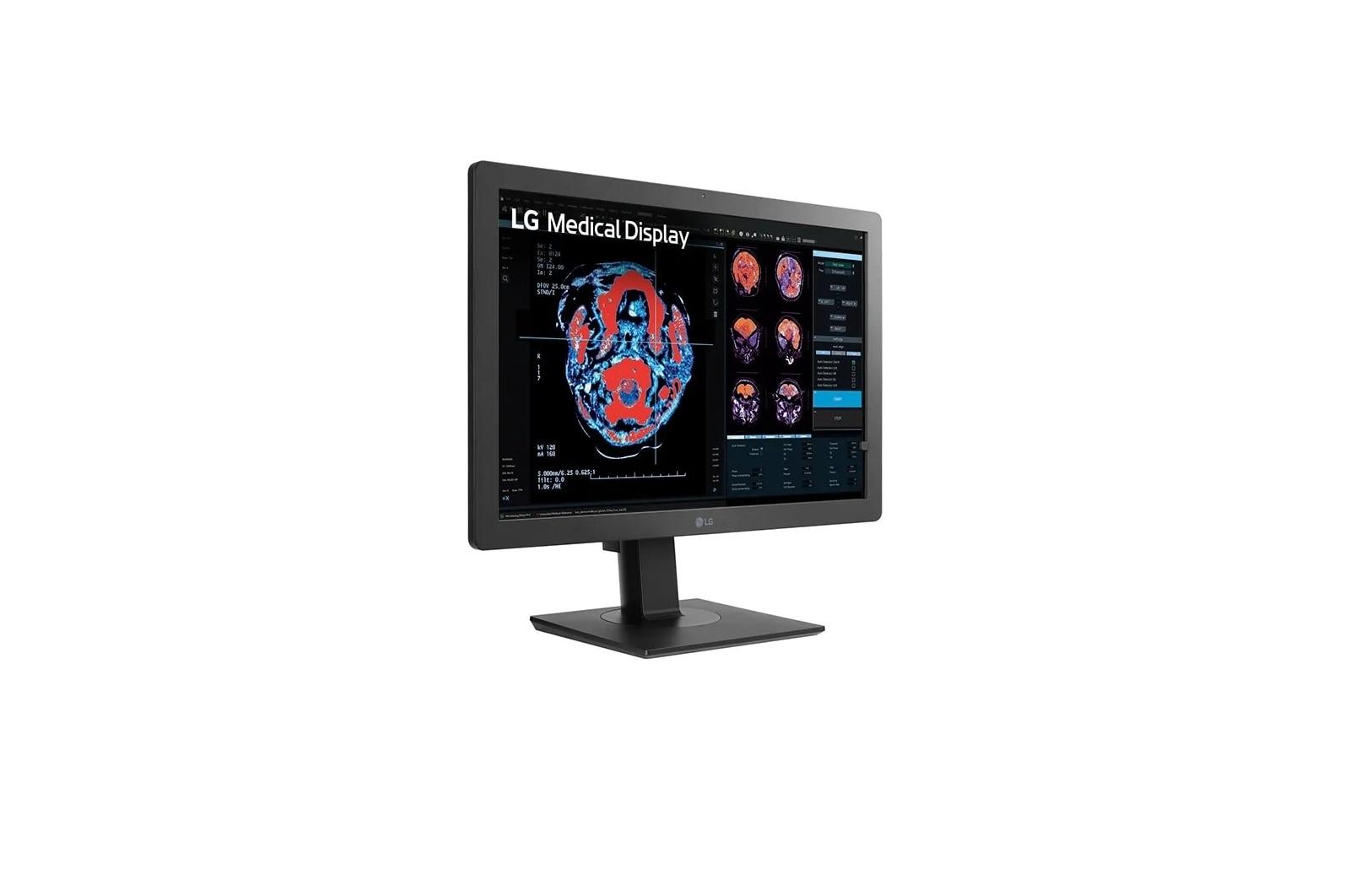

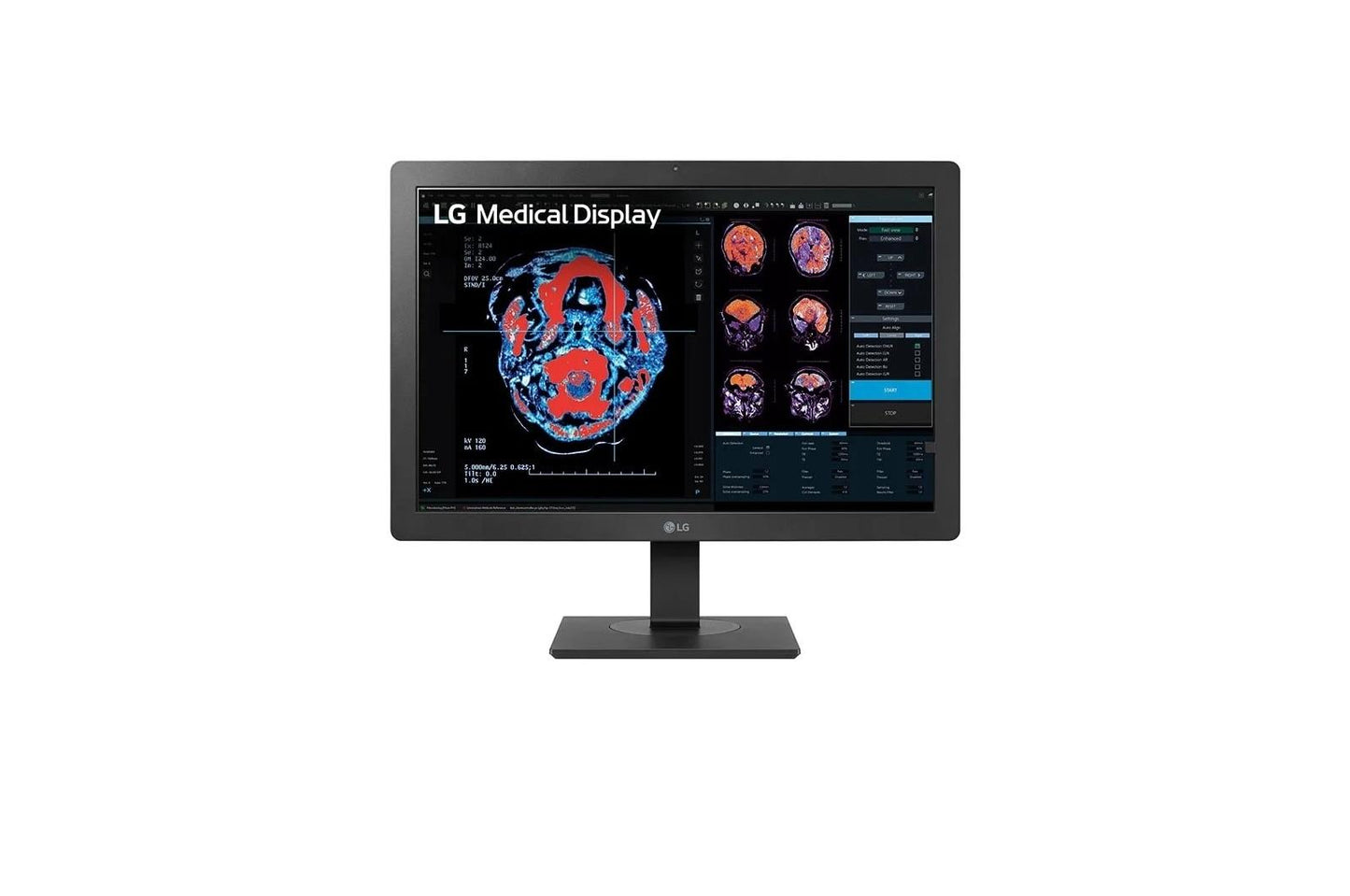

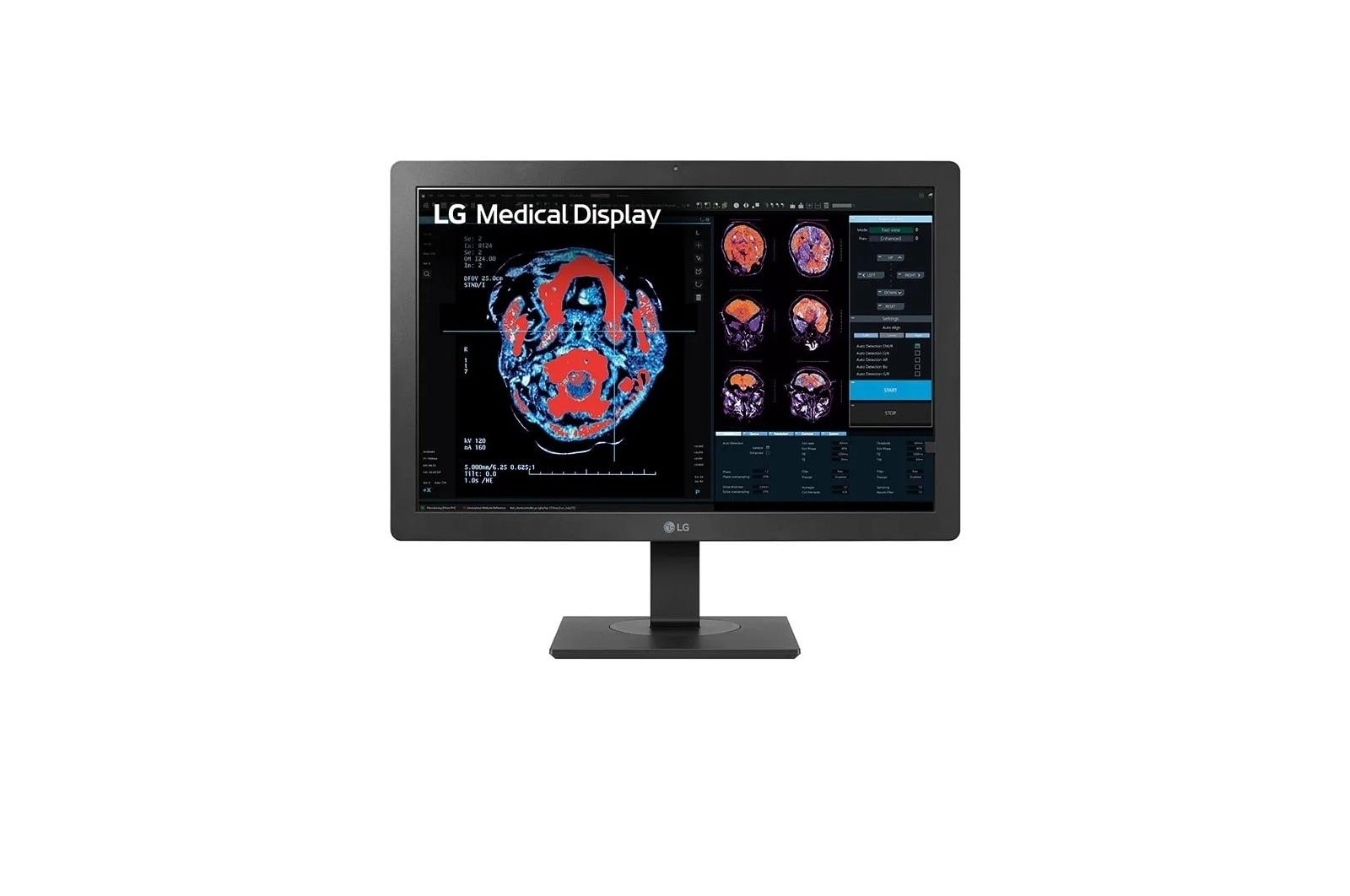

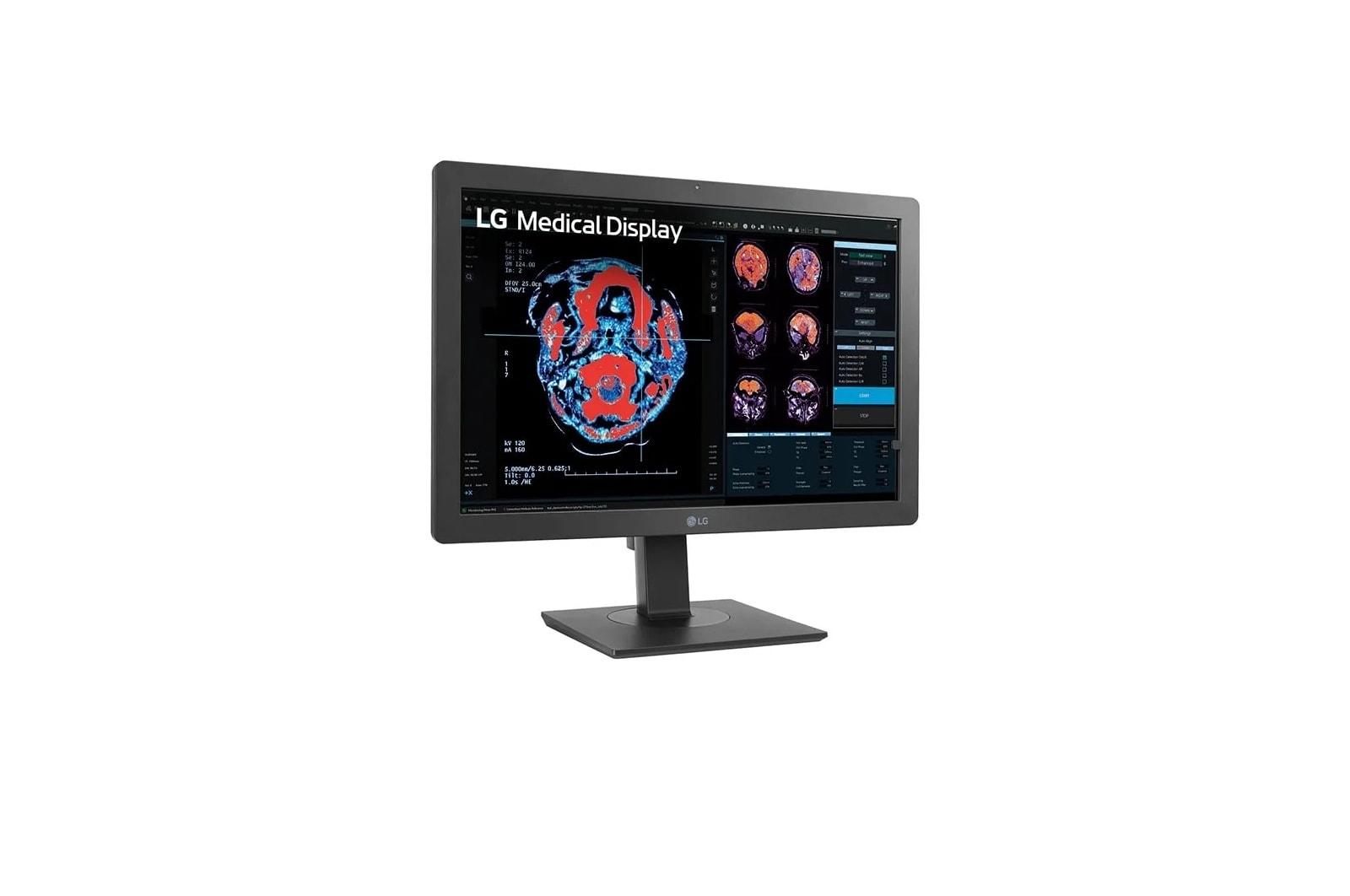

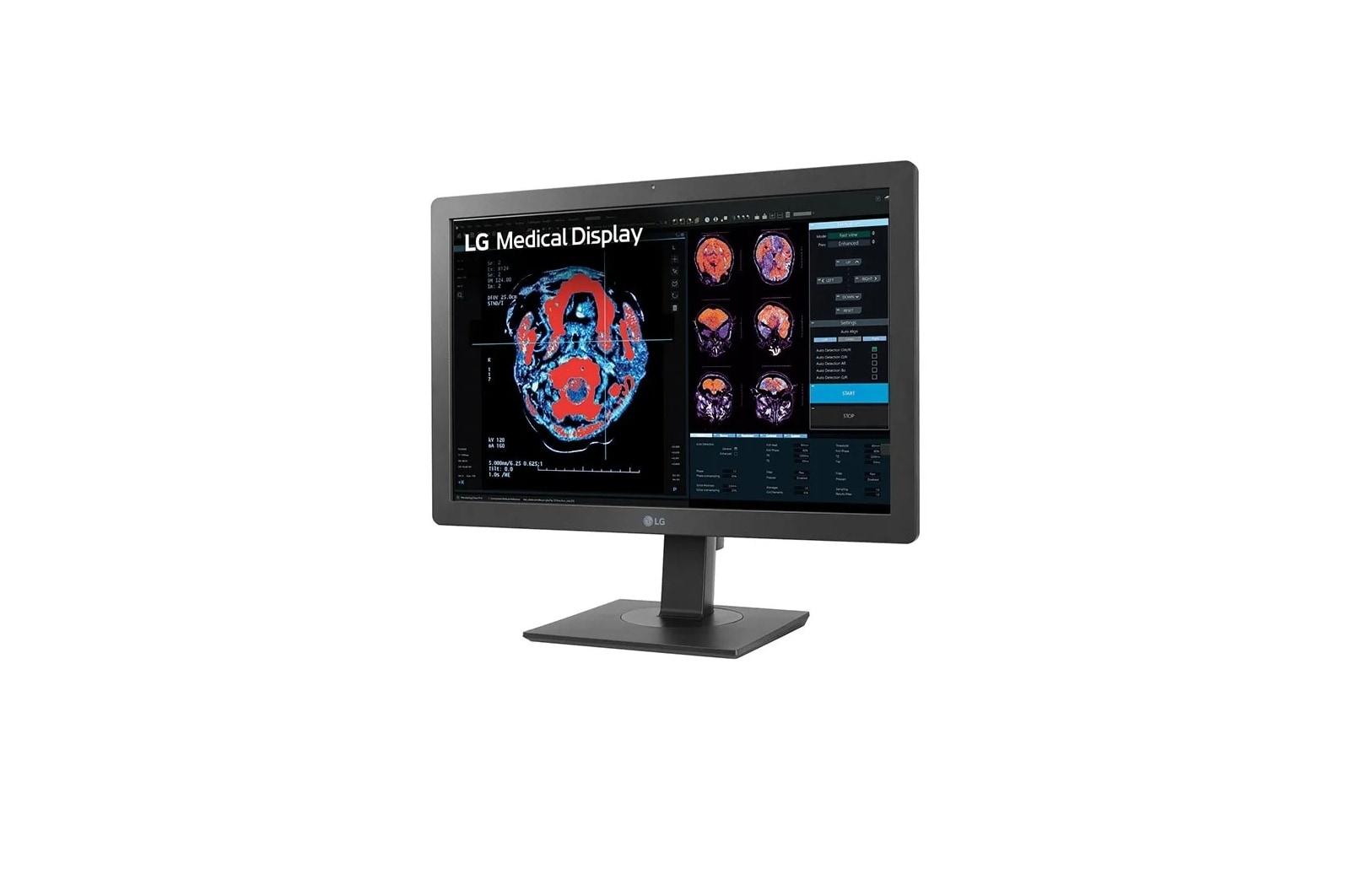

Lg 24HR513CB 24-inch 2MP IPS Diagnostic Monitor
Lg 24HR513CB 24-inch 2MP IPS Diagnostic Monitor
Item Not Available
Couldn't load pickup availability
Check Delivery:
- General Radiology Viewing
- Internal Front Calibration Sensor
- Focus View Mode & Pathology Mode
- Convenient Management with LCS* Medical
- Supports Daisy Chain & Variety of Interfaces
- User-friendly Monitor Stand with Bi-Directional Auto Pivot Support
24-inch 2MP IPS Diagnostic Monitor
| Electrical | |
| Power Consumption (Max.) | 65W |
| Power Consumption (Power Off) | Not Available |
| Power Type | Not Available |
| Power Consumption (Sleep Mode) | Not Available |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac, 50/60 Hz |
| DC Output | Not Available |

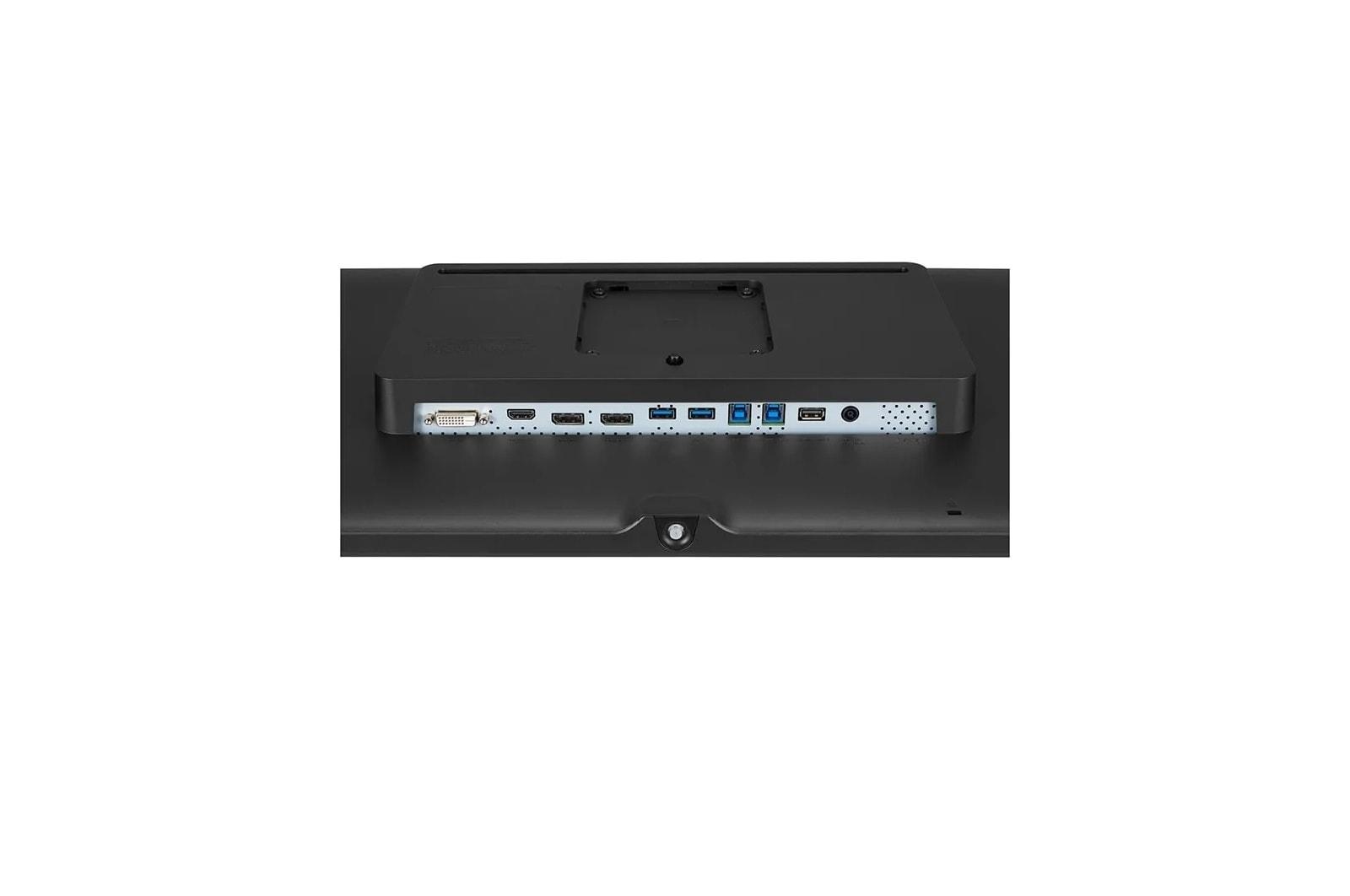

| Connectivity | |
| HDMI In | Yes (x1) |
| HDMI (Max. Resolution at Hz) | Not Available |
| HDMI (w/o VRR) | Not Available |
| DVI In | No |
| DVI (V Frequency) | Not Available |
| DVI (Max Resolution at Hz) | Not Available |
| DisplayPort In | Yes (x1) |
| DisplayPort (w/o VRR) | Not Available |
| DisplayPort (Max. Resolution at Hz) | Not Available |
| RS-232C In (D-sub 9-pin) | No |
| USB Type-A (Downstream) | Yes (x2) |
| USB Type-B (Upstream) | Yes (x2) USB 3.0 |
| S-Video | No |
| 3G-SDI In | No |
| 12G-SDI In (3.5 mm) | No |
| AC In | No |
| DC In (4 pin) | No |
| DisplayPort Out | Yes (x1) |
| Audio Output Jack Location | No |
| DVI Out | No |
| 3G-SDI Out | No |
| 12G-SDI Out (3.5 mm) | No |
| Headphone Out (3.5 mm) | No |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | Yes |
| Signal Input Jack Location | Not Available |
| Panel | |
| Screen Size (Inches) | 24" |
| Panel Type | IPS |
| Backlight Type | Not Available |
| Aspect Ratio | 16:10 |
| Pixel Pitch | Not Available |
| Brightness (Typ.) | 600 cd/m |
| Contrast Ratio | 1000:1 |
| Color Depth (Number of Colors) | Not Available |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Surface Treatment (Anti Glare) | Yes |
| Surface Treatment (Hard Coating) | No |
| HDR | No |
| HDR Effect | No |
| Features | |
| Screen Flip | No |
| Quick Charge | No |
| DDC/CI | No |
| Original Ratio | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | Yes |
| Uniformity Compensation | No |
| Light Box Mode | No |
| Key Lock | No |
| Calibration Software | LG Calibration Studio |
| DICOM Mode | Yes |
| DPM | No |
| Failover Input Switch | No |
| User Preset Quick Setting | No |
| 4 Screen Split | No |
| Color Temperature | No |
| Uniformity | No |
| Super Resolution+ | Yes |
| HW Calibration | Yes |
| Automatic Standby | No |
| DynaMic Sync Mode (Thru Mode) | No |
| Pathology Mode | Yes |
| Six Axis Control | No |
| HDCP | No |
| DICOM Calibrated | Yes |
| Factory Calibration | No |
| DICOM Compliant | Yes |
| Brightness Uniformity Correction | No |
| BLS (ALS) | No |
| Color Calibrated | No |
| Multi-resolution Mode | No |
| Gamma | No |
| Picture Mode | Custom, Mono, Pathology, Text, DICOM, DICOM (Custom), Calibration 1, Calibration 2 |
| Mechanical | |
| Color | Black |
| Adjustable Stand | Yes |
| Base Detachable | No |
| One Click Stand Set-up | No |

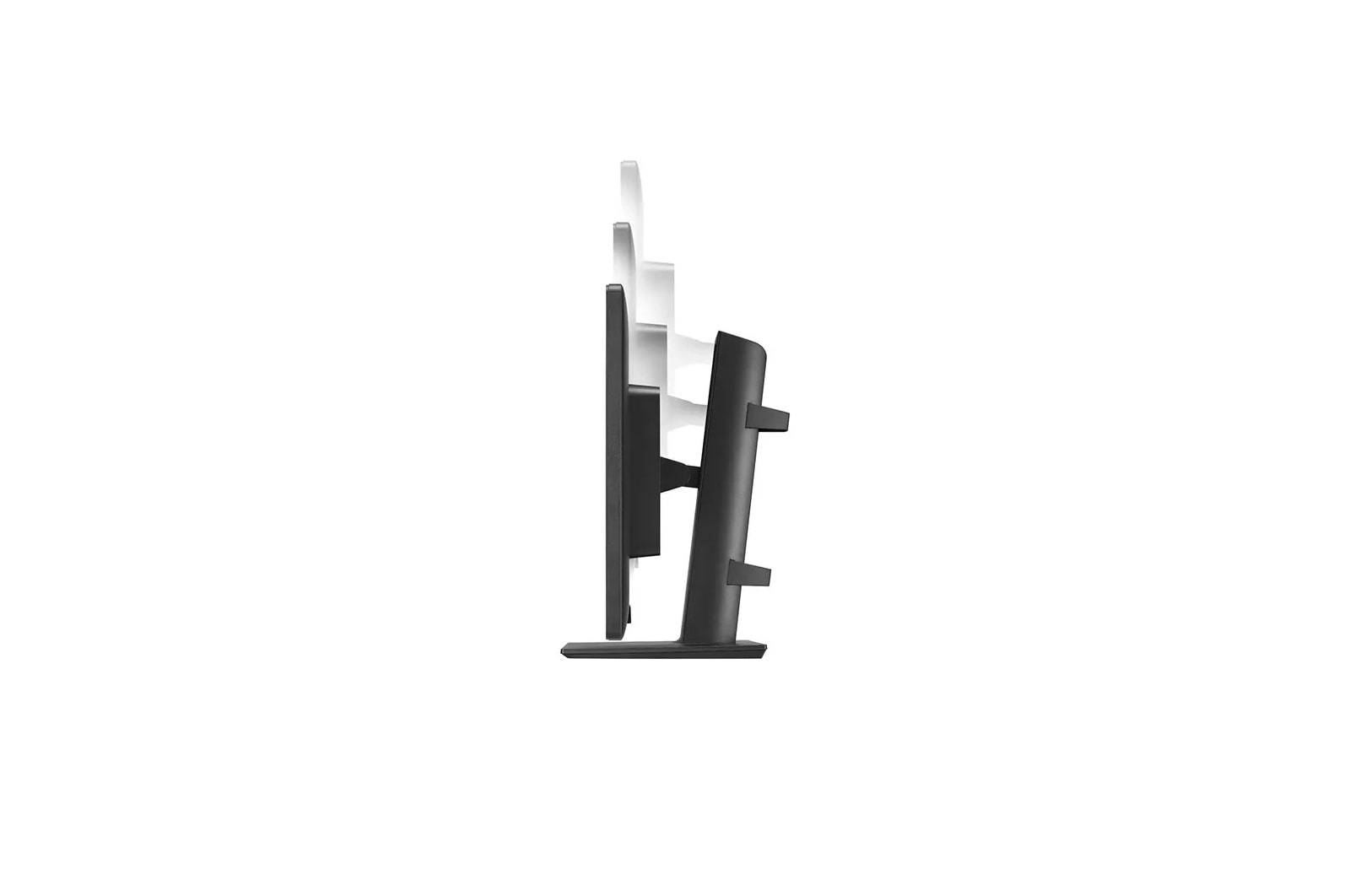

| Stand Height Range | 5.9 in / 150 mm |
| Tilt (Angle) | -5° ~ 25° |
| Swivel (Angle) | -45° ~ +45° |
| Pivot | Bi-Directional |
| Weight | 10.0 lbs / 4.35 kg |
| Weight with Stand | 15.7 lbs / 7.1 kg |
| Shipping Weight | Not Available |
| Dimensions (W x H x D) | Not Available |
| Dimension with Stand (W x H x D) | Not Available |
| Shipping Dimensions (W x H x D) | Not Available |
| VESA™ Wall Mount | Not Available |
| LG Software Compatible | |
| On Screen Control | Not Available |
| Dual Controller | Yes |
| Regulatory & Certifications | |
| Impact Protection | No |
| ICES-003 | No |
| Windows 10 | No |
| EN (EN 60950-1/EN55032, 55024) | No |
| MFDS (KR) | No |
| CE MDD (EU) | No |
| CE (Regulatory) | No |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | No |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | No |
| CMDR (Canada) | No |
| RoHS (Environmental) | No |
| GMP | No |
| IP Rating (Solid / Liquid Ingress) (Front) | No |
| TGA / RCM (Australia) | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | No |
| TAA Compliance | No |
| CE (MDD 93/42/EEC, 2007/47/EC) | No |
| CISPR (Global) | No |
| REACH (Environmental) | No |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | No |
| WEEE | No |
| FDA (US) | No |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | No |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | No |
| KGMP | No |
| ISO13485 | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | No |
| UL/cUL Certification | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| UPC | 1 95174 08021 4 |
| Protective Glass | |
| Thickness | No |
| Anti-Reflective | No |
| Anti-Fingerprint | No |
| Software Features | |
| Picture-by-Picture (PBP) | No |
| Picture-in-Picture (PIP) | No |
| Smart Energy Saving | No |
| Flicker Safe | Yes |
| Reader Mode | Yes |
| Black Stabilizer® | No |
| Text Mode | Yes |
| USB Plug & Play | No |
| User Convenience | |
| Auto Luminance Sensor | Yes |
| Presence Sensor | No |
| Hot Key | No |
| Lighting | No |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | Not Available |
| LED Color (Power save mode) | Not Available |
| Key Location | Not Available |
| Key Number (Power Key Included) | Not Available |
