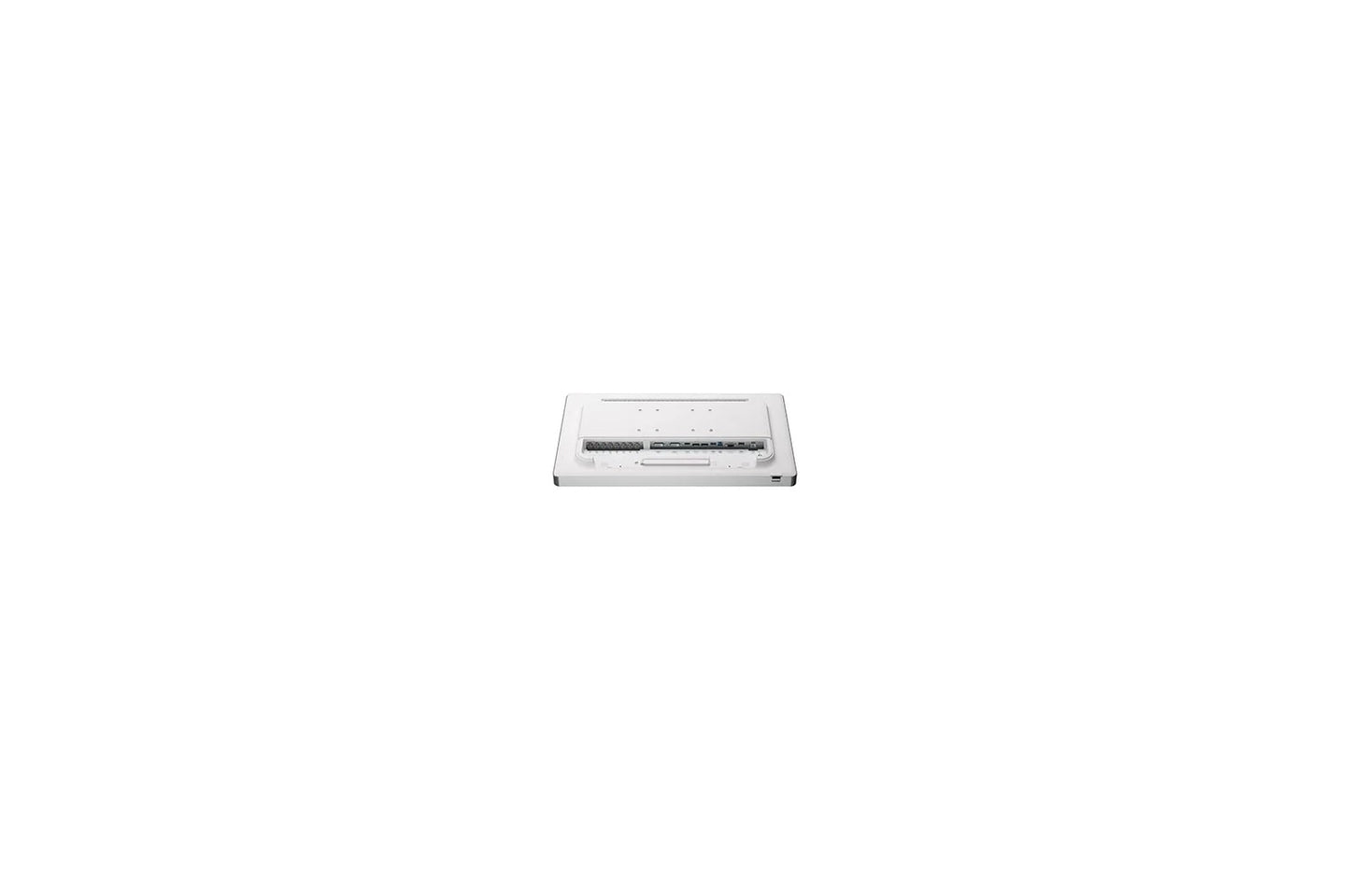

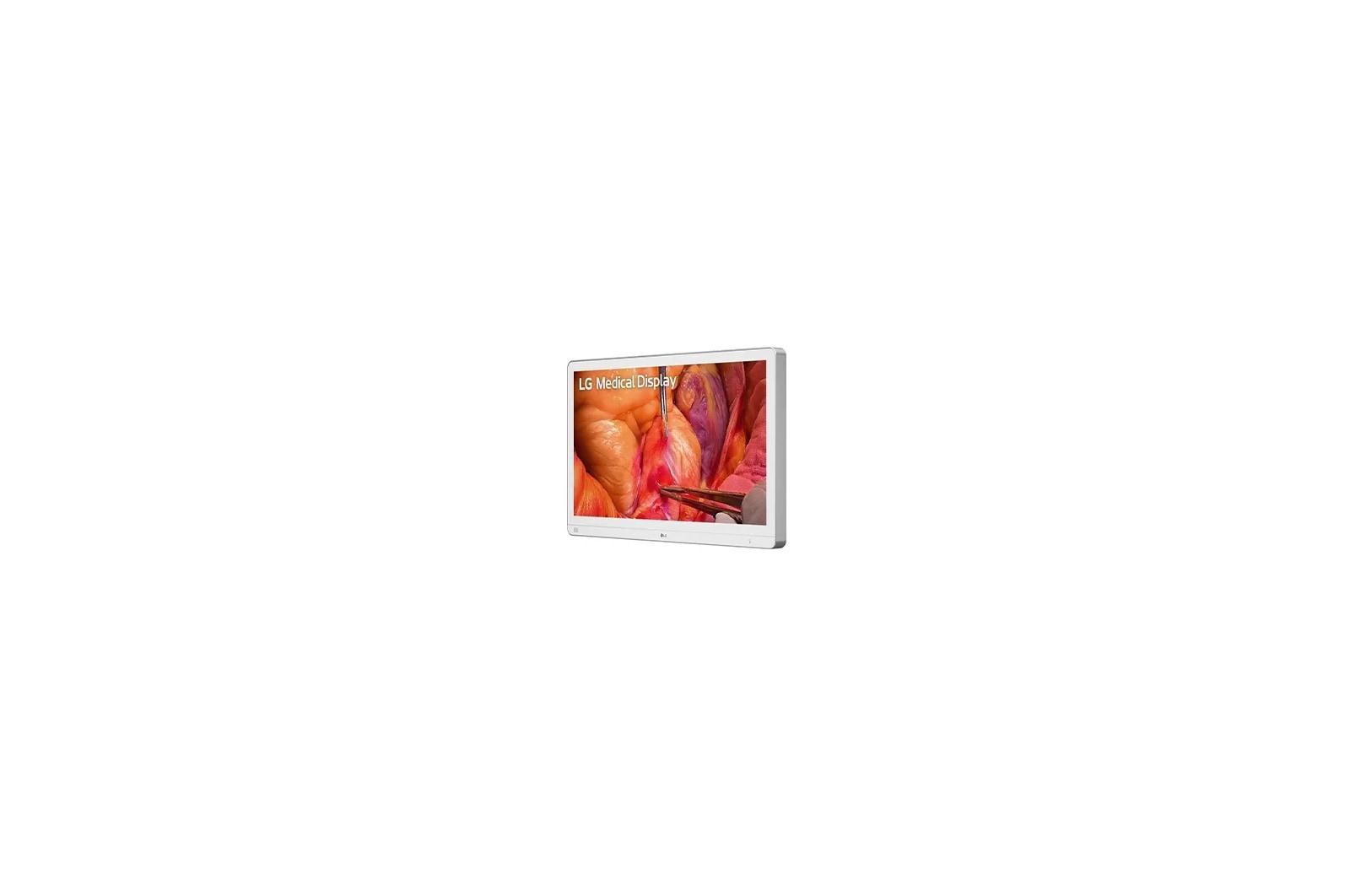

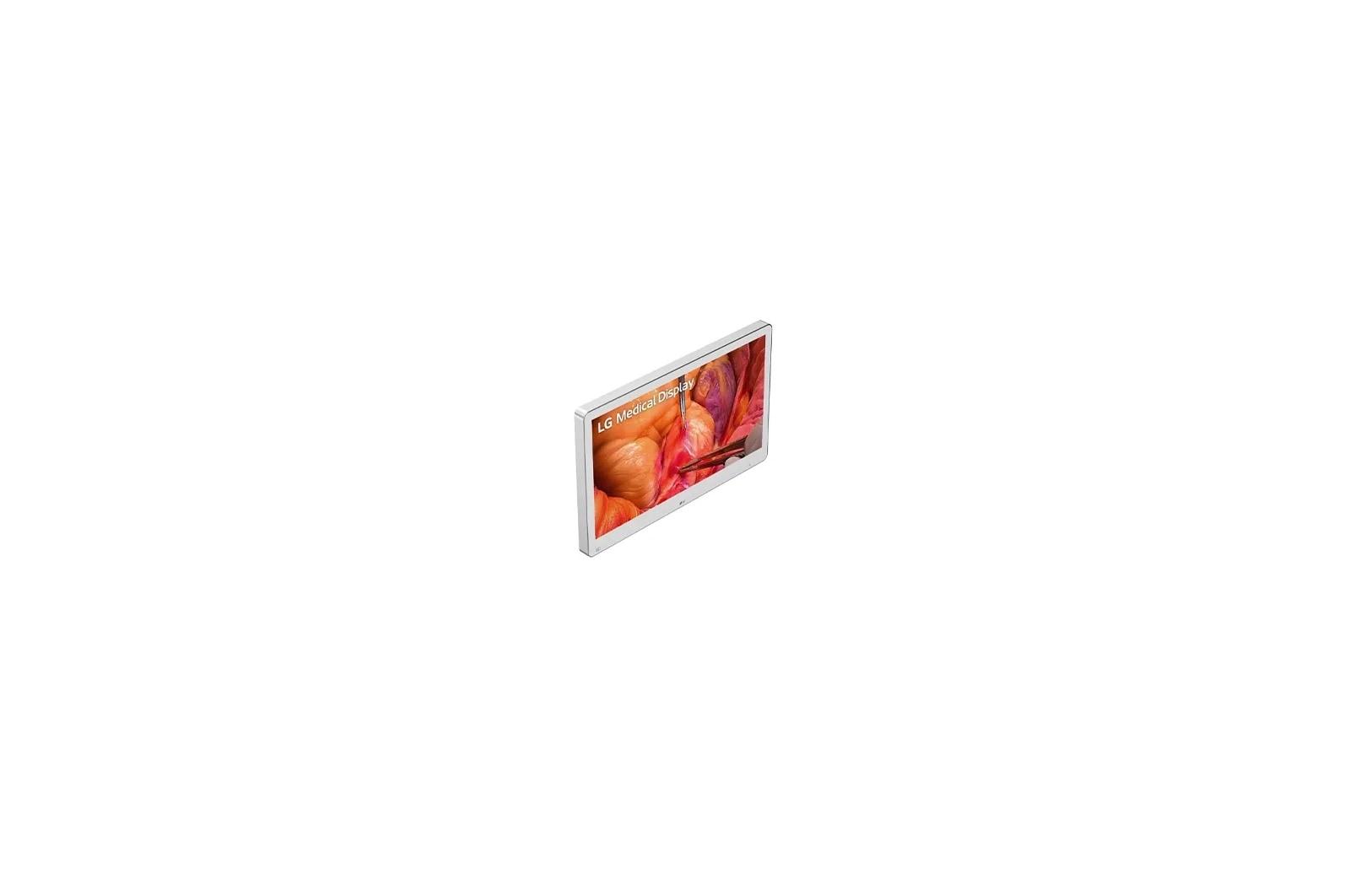

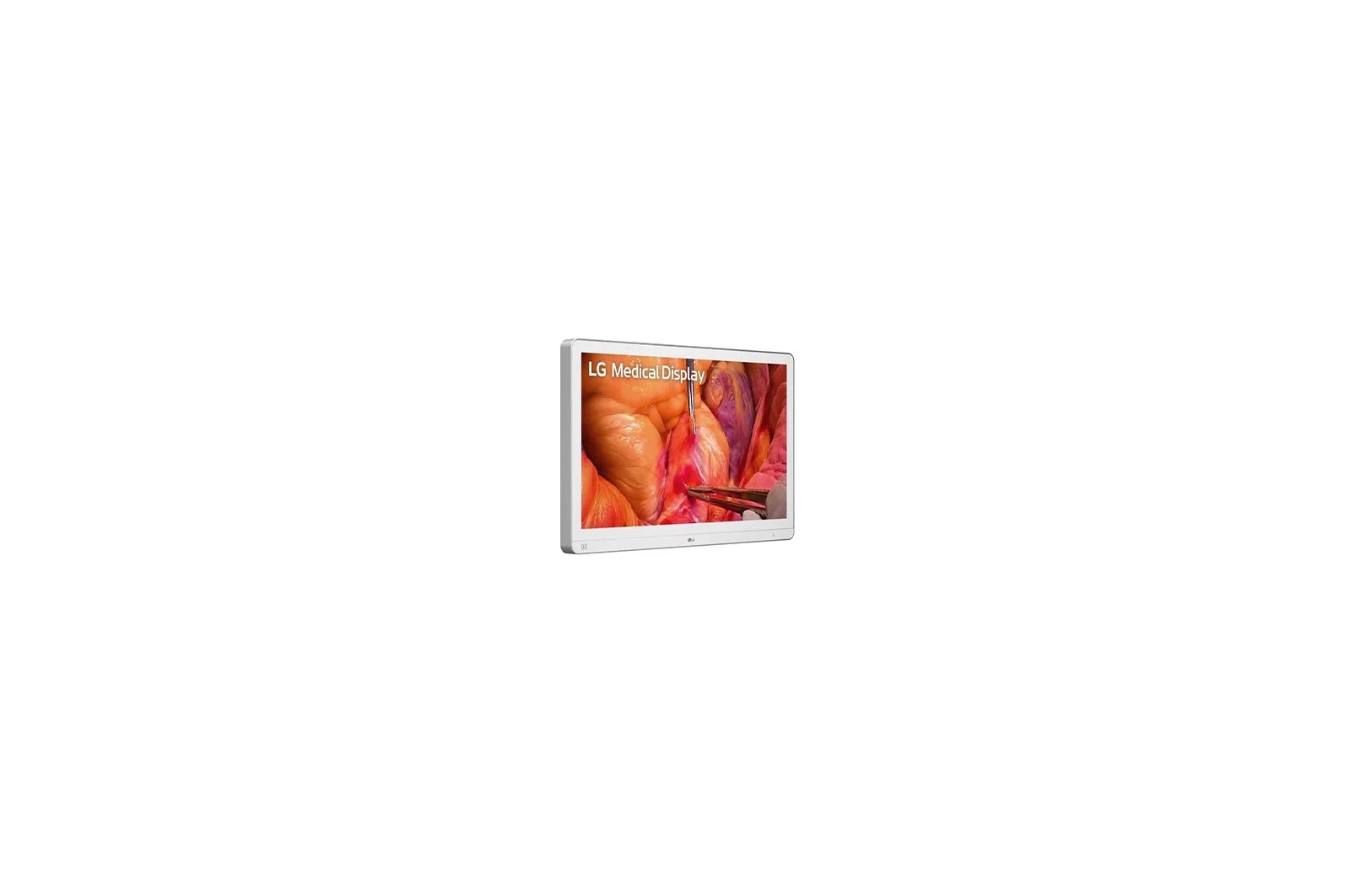

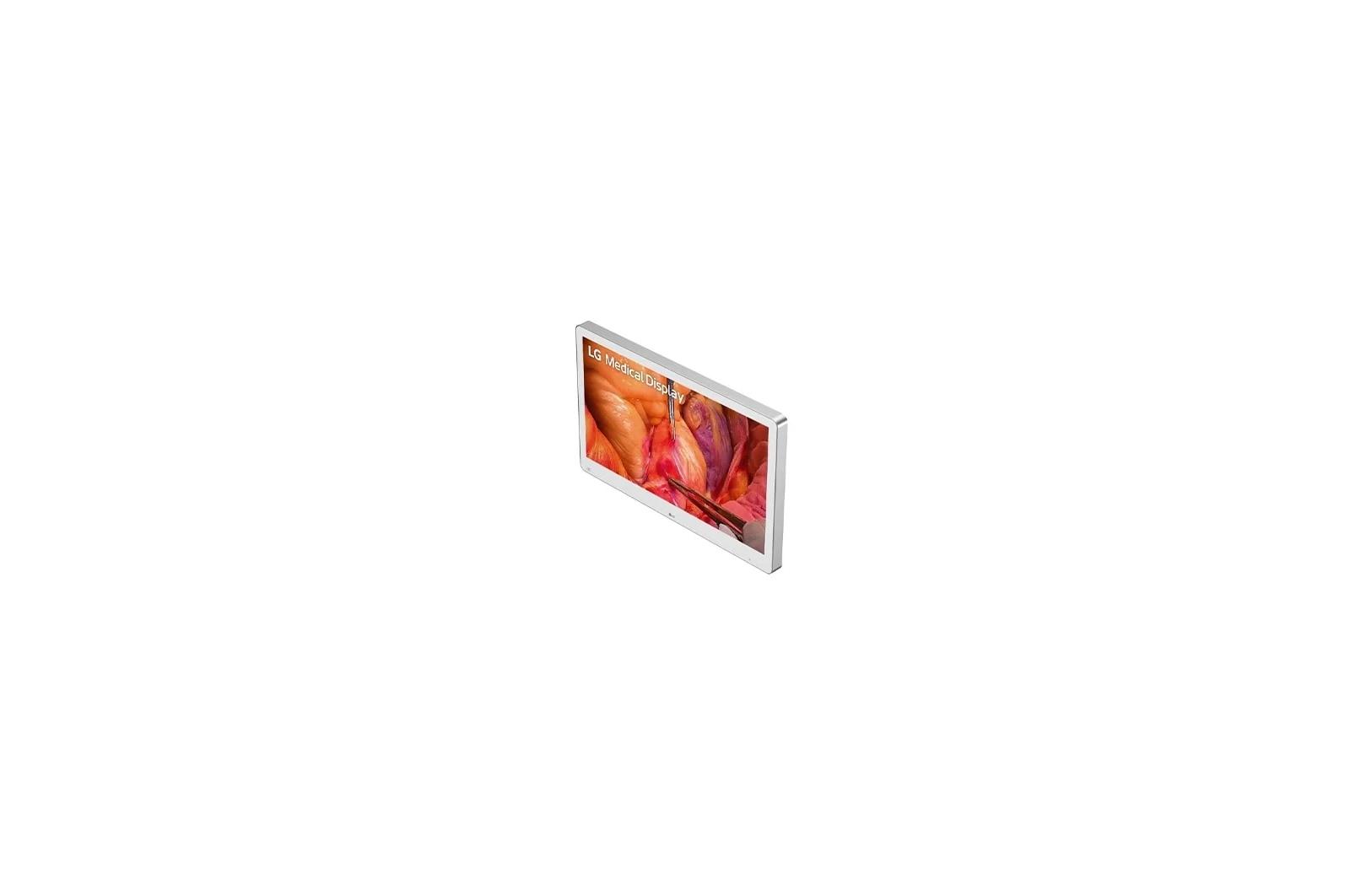

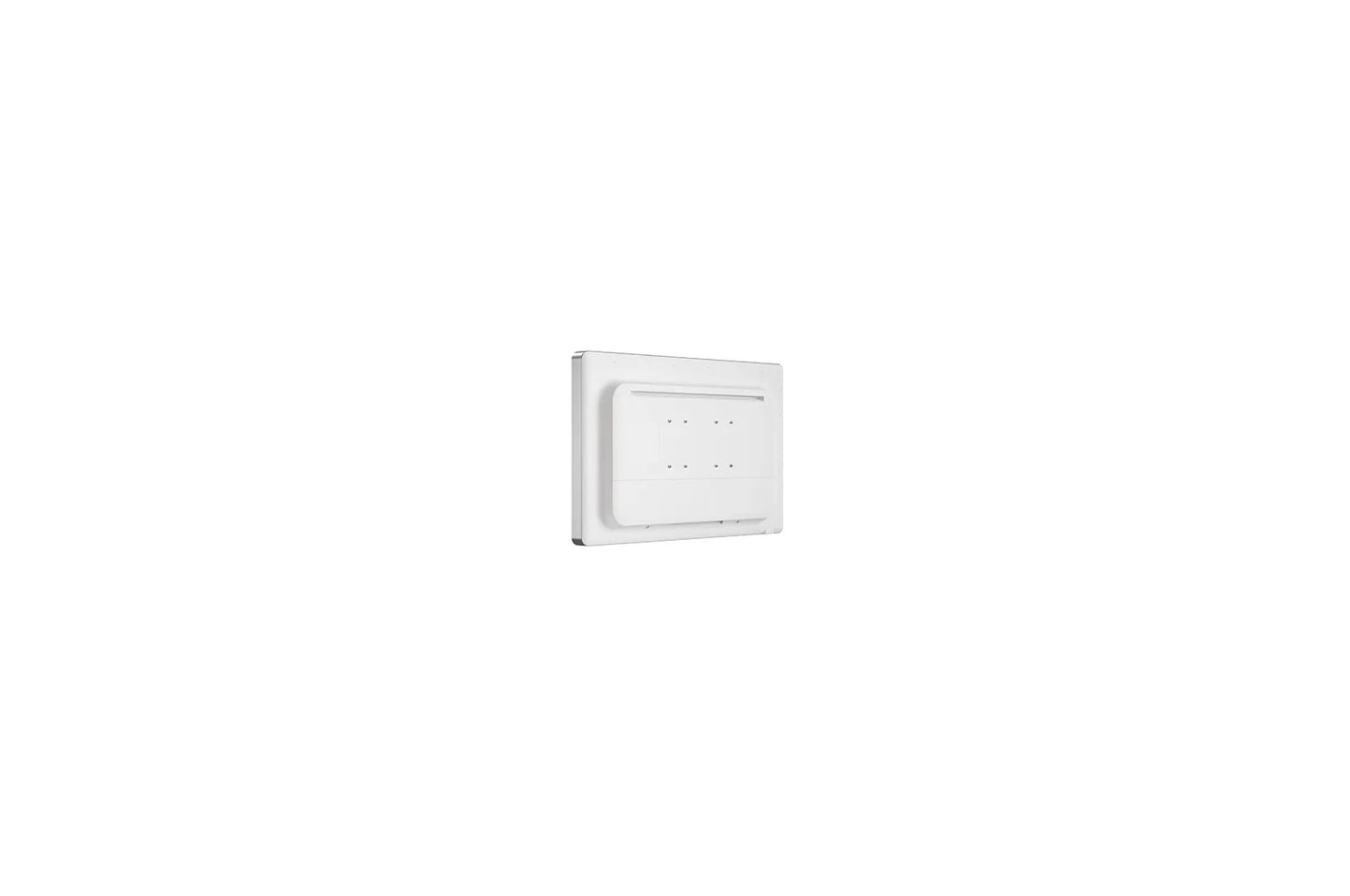

Lg 27HS714SW 27" 4K Mini-LED Surgical Monitor
Lg 27HS714SW 27" 4K Mini-LED Surgical Monitor
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Equipped with 1.5K Local Dimming zones, enhancing the dynamic contrast ratio up to 1,000,000 : 1
- Engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps
- The 27HS714S-W supports 12G-SDI, which enables long- distance transmission of 4K signals over a single coaxial cable
- View a combination of laparoscopic and endoscopic images while monitoring vital signs with up to 4 PBP & PIP
27" 4K Mini-LED Surgical Monitor
| Electrical | |
| Power Type | Not Available |
| Power Consumption (Sleep Mode) | Not Available |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac, 50/60 Hz |
| Power Consumption (Max.) | 120W |
| Power Consumption (Power Off) | Less than 0.3W |
| DC Output | No |
| Connectivity | |
| HDMI In | Yes (x1) |
| HDMI (Max. Resolution at Hz) | No |
| HDMI (w/o VRR) | Not Available |
| DVI-D In | Yes (x1) |
| DVI In | No |
| DVI (V Frequency) | Not Available |
| DVI (Max Resolution at Hz) | Not Available |
| DisplayPort In | Yes (x1) |
| DisplayPort (w/o VRR) | Not Available |
| DisplayPort (Max. Resolution at Hz) | Not Available |
| RS-232C In (D-sub 9-pin) | No |
| USB Type-A (Downstream) | Yes (x1) USB 3.0 |
| USB Type-B (Upstream) | Yes (x1) USB 3.0 |
| S-Video | No |
| 3G-SDI In | Yes |
| 12G-SDI In (3.5 mm) | Yes (x1) |
| AC In | Yes |
| DC In (4 pin) | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Output Jack Location | No |
| DVI Out | Yes (x1) |
| 3G-SDI Out | Yes |
| 12G-SDI Out (3.5 mm) | Yes (x1) |
| Headphone Out (3.5 mm) | No |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | No |
| Signal Input Jack Location | No |
| Panel | |
| Screen Size (Inches) | 27" |
| Diagonal (Inches) | 27 |
| Panel Type | IPS |
| Backlight Type | Mini-LED |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 (4K UHD) |
| Pixel Pitch | Not Available |
| Brightness (Typ.) | 800 cd/m |
| Contrast Ratio | 1000:1 |
| Color Gamut | DCI-P3 98% (CIE 1976) |
| Color Depth (Number of Colors) | 10 bit |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Surface Treatment (Anti Glare) | Yes |
| Surface Treatment (Hard Coating) | No |
| HDR | HDR 10 |
| HDR Effect | Yes |
| Features | |
| Color Temperature | No |
| Screen Flip | Mirror Mode & Rotation Mode |
| Quick Charge | No |
| DDC/CI | No |
| Uniformity | No |
| Super Resolution+ | No |
| HW Calibration | Yes |
| Automatic Standby | No |
| Brightness Stabilization | 500 cd/m |
| Original Ratio | No |
| DynaMic Sync Mode (Thru Mode) | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | No |
| Uniformity Compensation | No |
| Light Box Mode | No |
| Pathology Mode | No |
| Key Lock | No |
| Six Axis Control | No |
| HDCP | No |
| DICOM Calibrated | Not Available |
| Calibration Software | LG Calibration Studio |
| Factory Calibration | No |
| DICOM Mode | Not Available |
| DPM | No |
| Failover Input Switch | Yes |
| DICOM Compliant | Yes |
| User Preset Quick Setting | No |
| Brightness Uniformity Correction | No |
| BLS (ALS) | No |
| Color Calibrated | No |
| 4 Screen Split | No |
| Multi-resolution Mode | No |
| Gamma | No |
| Picture Mode | No |
| Mechanical | |
| Color | Not Available |
| Adjustable Stand | No |
| Base Detachable | No |
| One Click Stand Set-up | No |
| Stand Height Range | No |
| Tilt (Angle) | Not Available |
| Swivel (Angle) | Not Available |
| Pivot | No |
| Weight | 19.4 lbs / 8.8 kg |
| Weight with Stand | No |
| Shipping Weight | No |
| Dimensions (W x H x D) | Not Available |
| Dimension with Stand (W x H x D) | Not Available |
| Shipping Dimensions (W x H x D) | Not Available |

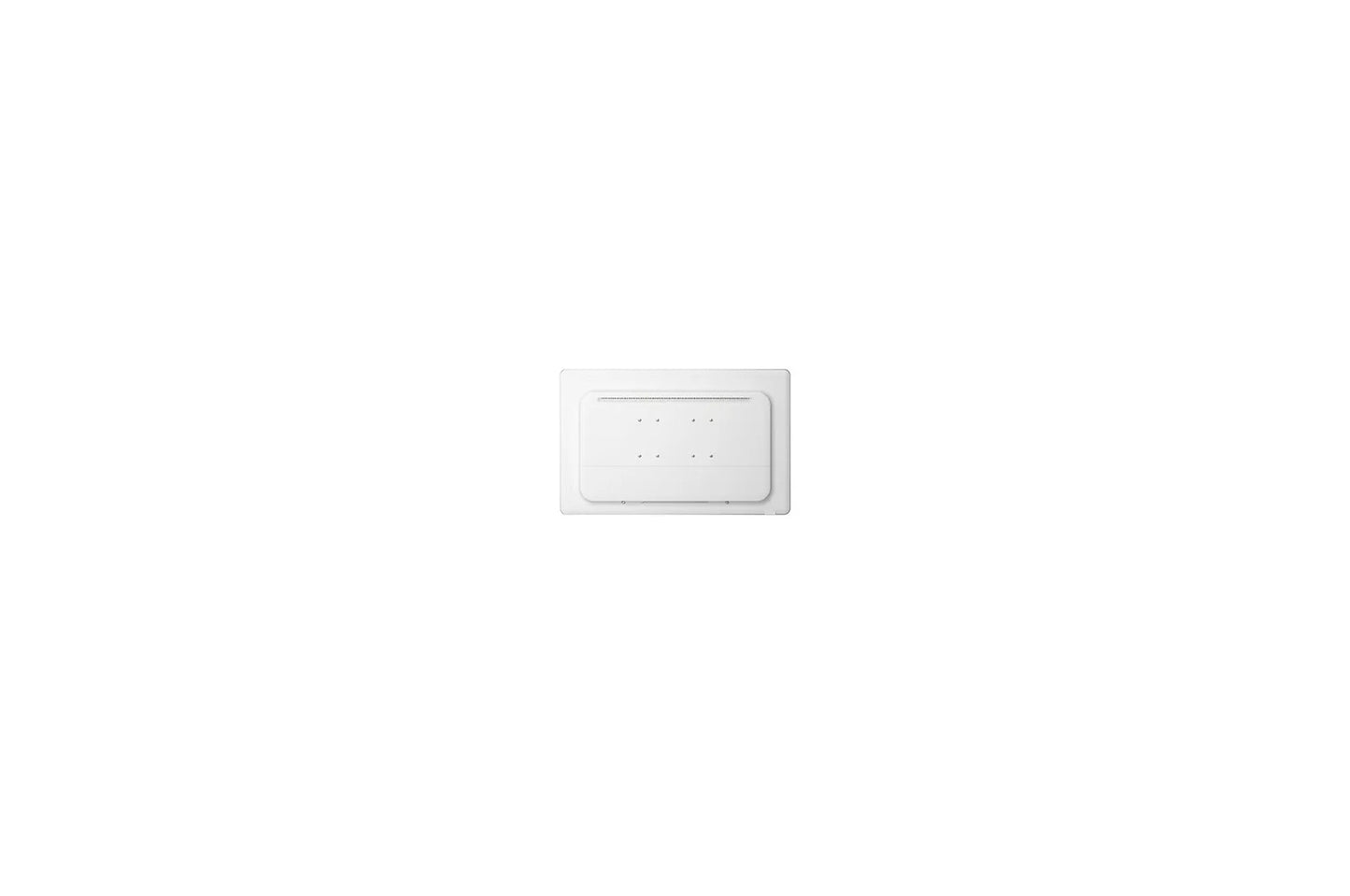

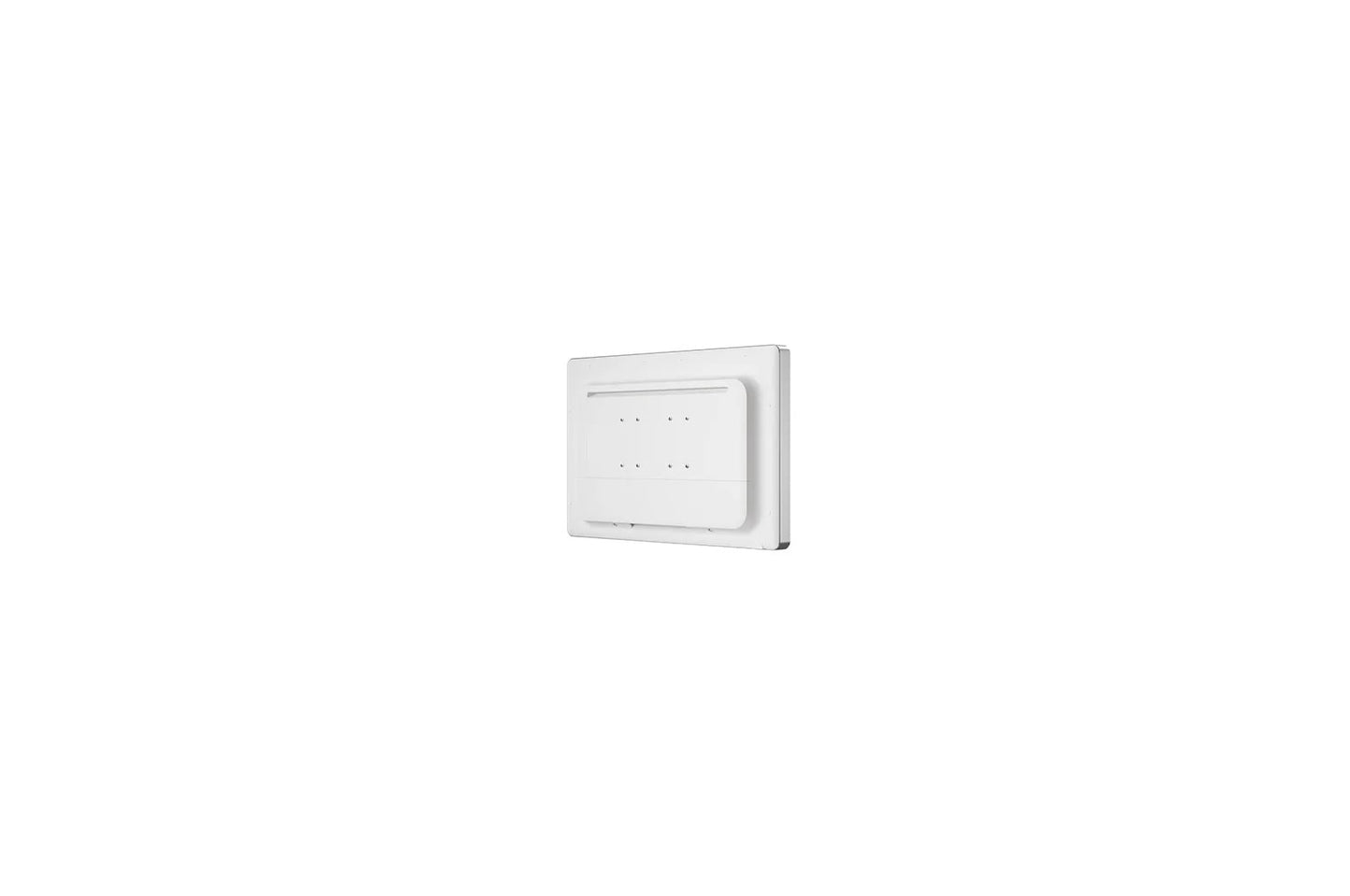

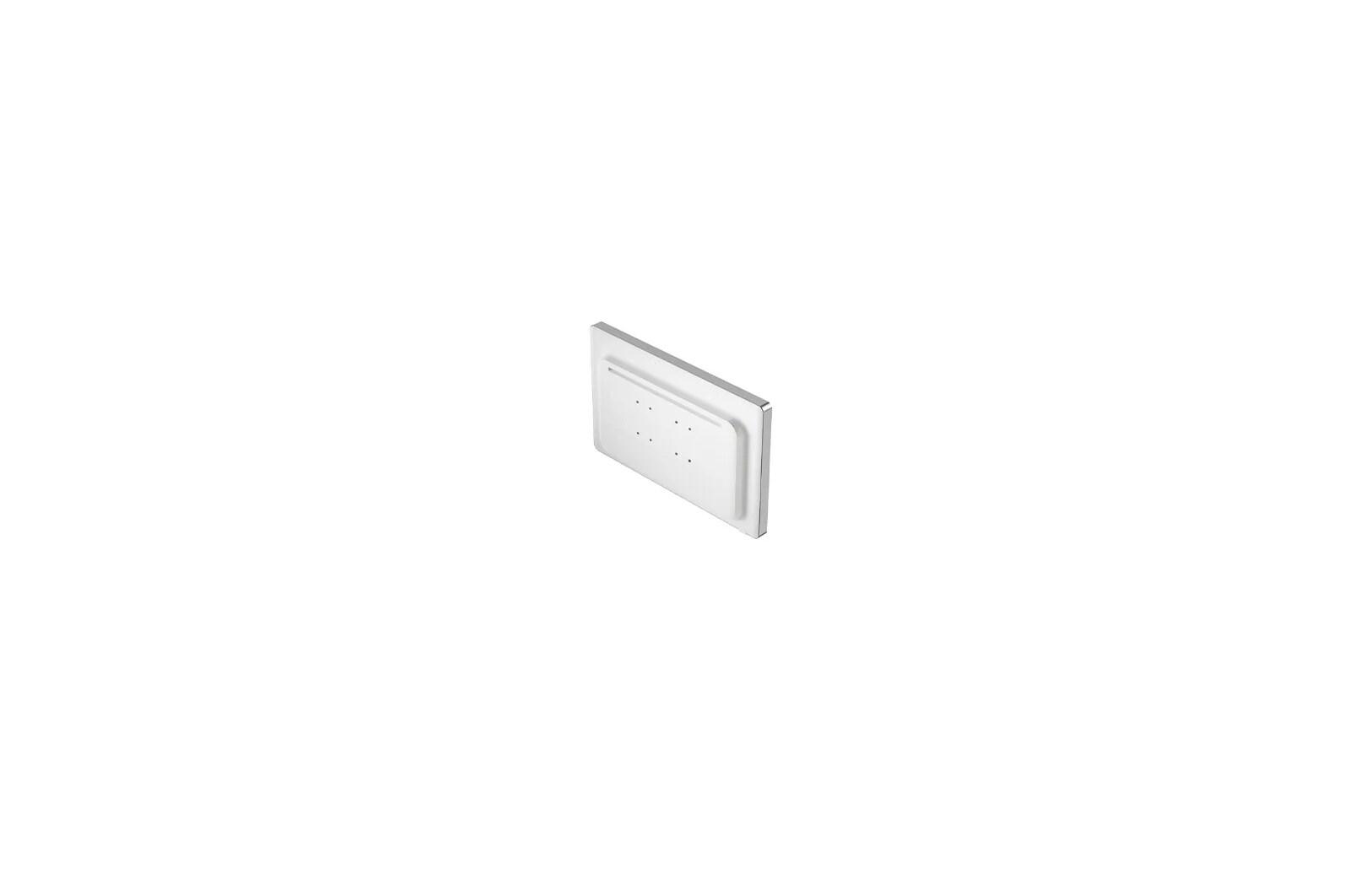

| VESA™ Wall Mount | 200 x 100 mm |
| LG Software Compatible | |
| On Screen Control | No |
| Dual Controller | No |
| Regulatory & Certifications | |
| Impact Protection | No |
| ICES-003 | No |
| Windows 10 | No |
| CISPR (Global) | No |
| EN (EN 60950-1/EN55032, 55024) | No |
| MFDS (KR) | No |
| REACH (Environmental) | No |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | No |
| WEEE | No |
| CE MDD (EU) | No |
| FDA (US) | No |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | No |
| CE (Regulatory) | No |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | No |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | No |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | No |
| CMDR (Canada) | No |
| RoHS (Environmental) | No |
| GMP | No |
| IP Rating (Solid / Liquid Ingress) (Front) | No |
| TGA / RCM (Australia) | No |
| KGMP | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | No |
| ISO13485 | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | No |
| TAA Compliance | No |
| CE (MDD 93/42/EEC, 2007/47/EC) | No |
| UL/cUL Certification | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| UPC | 195174113950 |
| Protective Glass | |
| Thickness | No |
| Anti-Reflective | Yes |
| Anti-Fingerprint | Yes |
| Software Features | |
| Picture-by-Picture (PBP) | Yes |
| Picture-in-Picture (PIP) | Yes |
| Smart Energy Saving | No |
| Flicker Safe | No |
| Reader Mode | No |
| Black Stabilizer® | No |
| Text Mode | No |
| USB Plug & Play | No |
| User Convenience | |
| Lighting | No |
| Auto Luminance Sensor | No |
| Presence Sensor | No |
| Hot Key | No |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | No |
| LED Color (Power save mode) | Not Available |
| Key Location | Not Available |
| Key Number (Power Key Included) | No |
