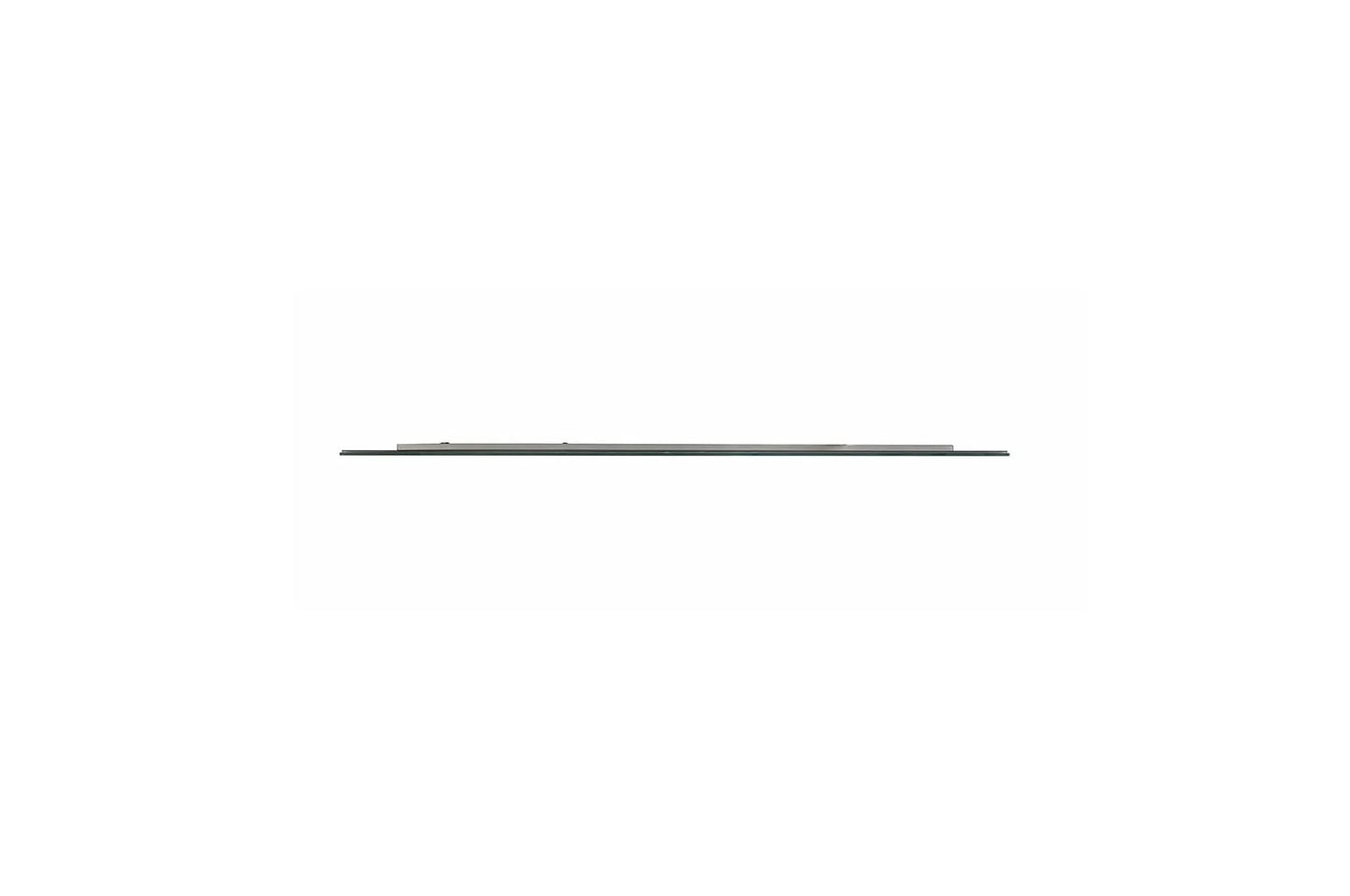

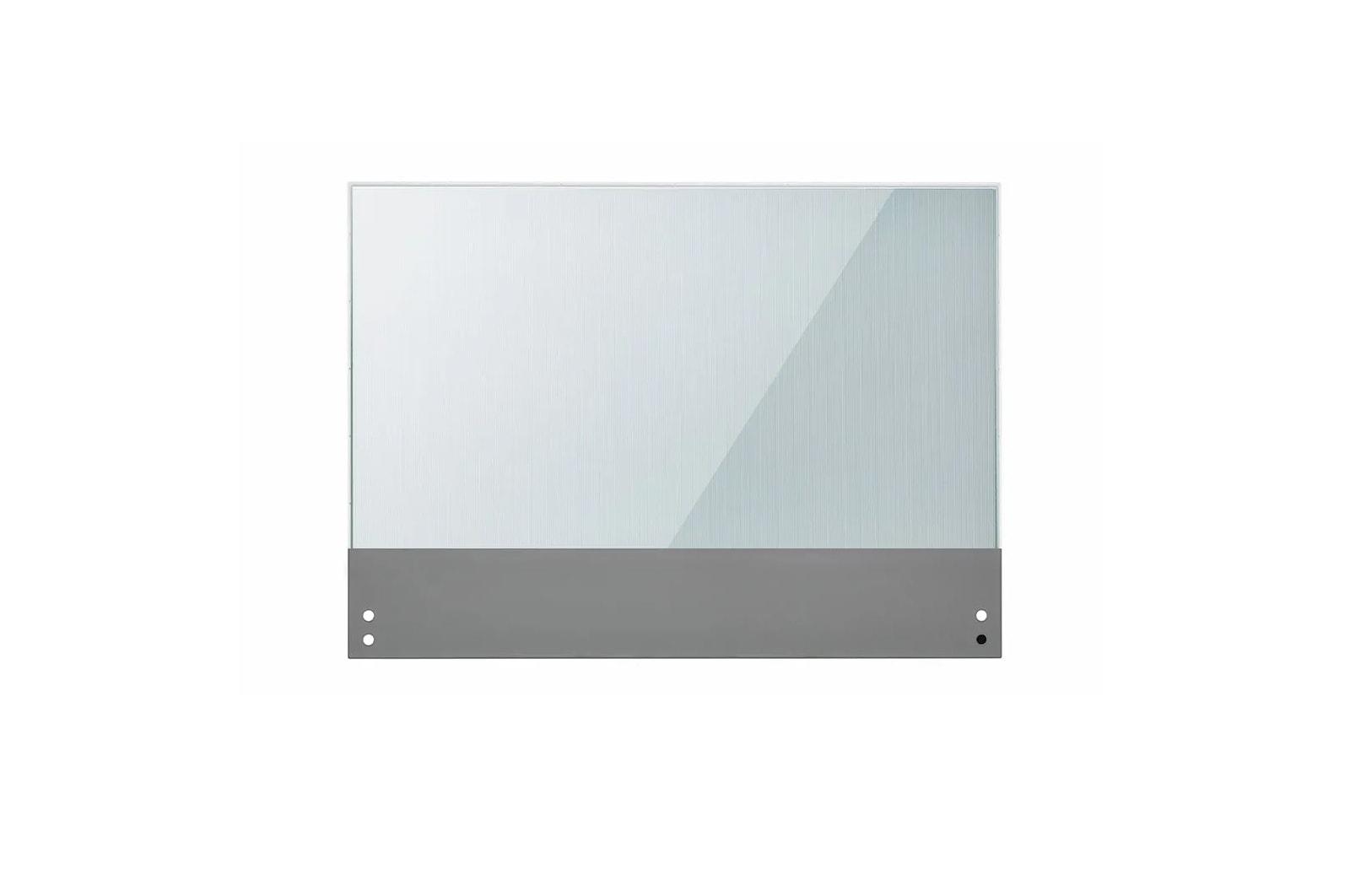

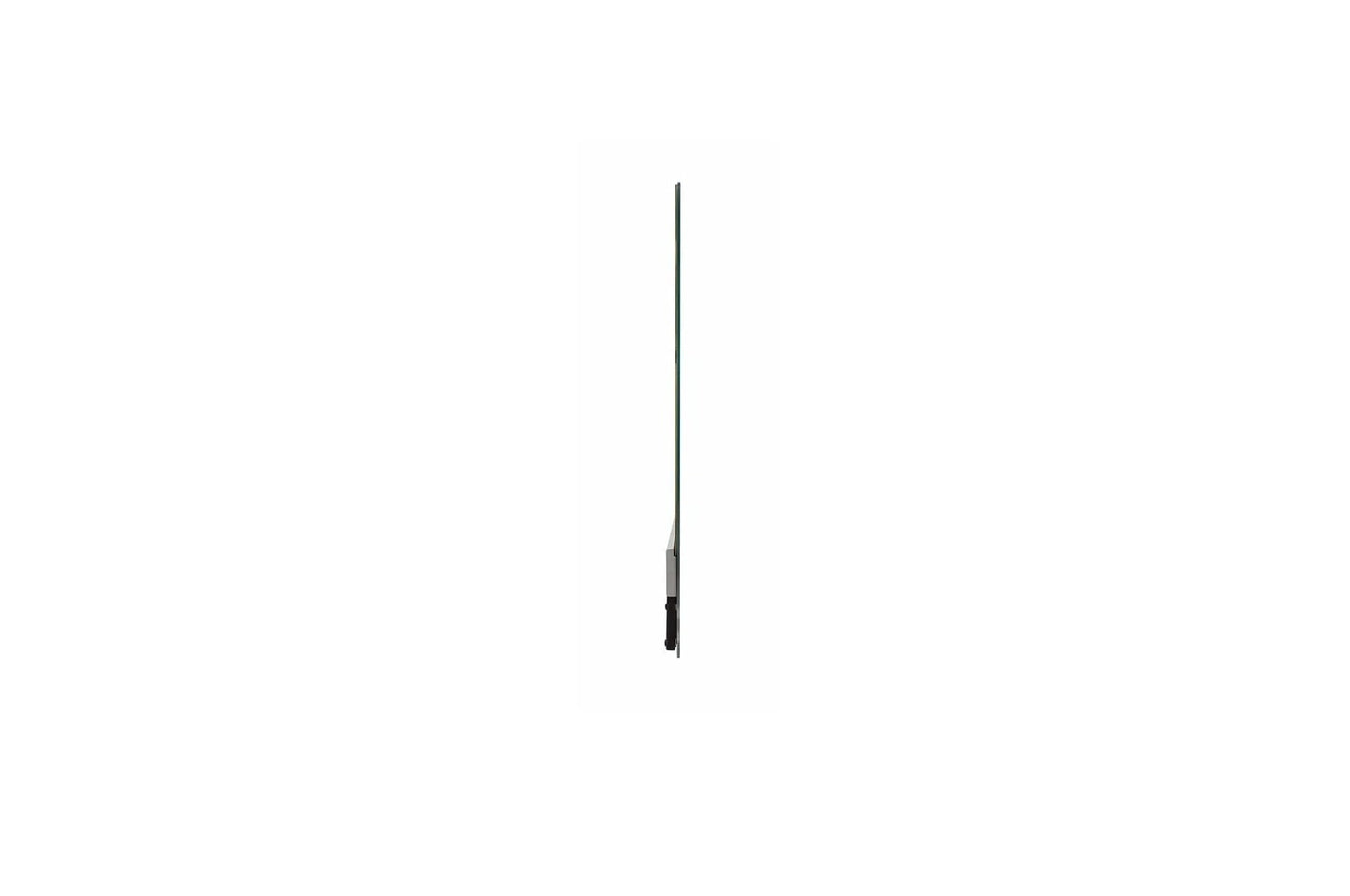

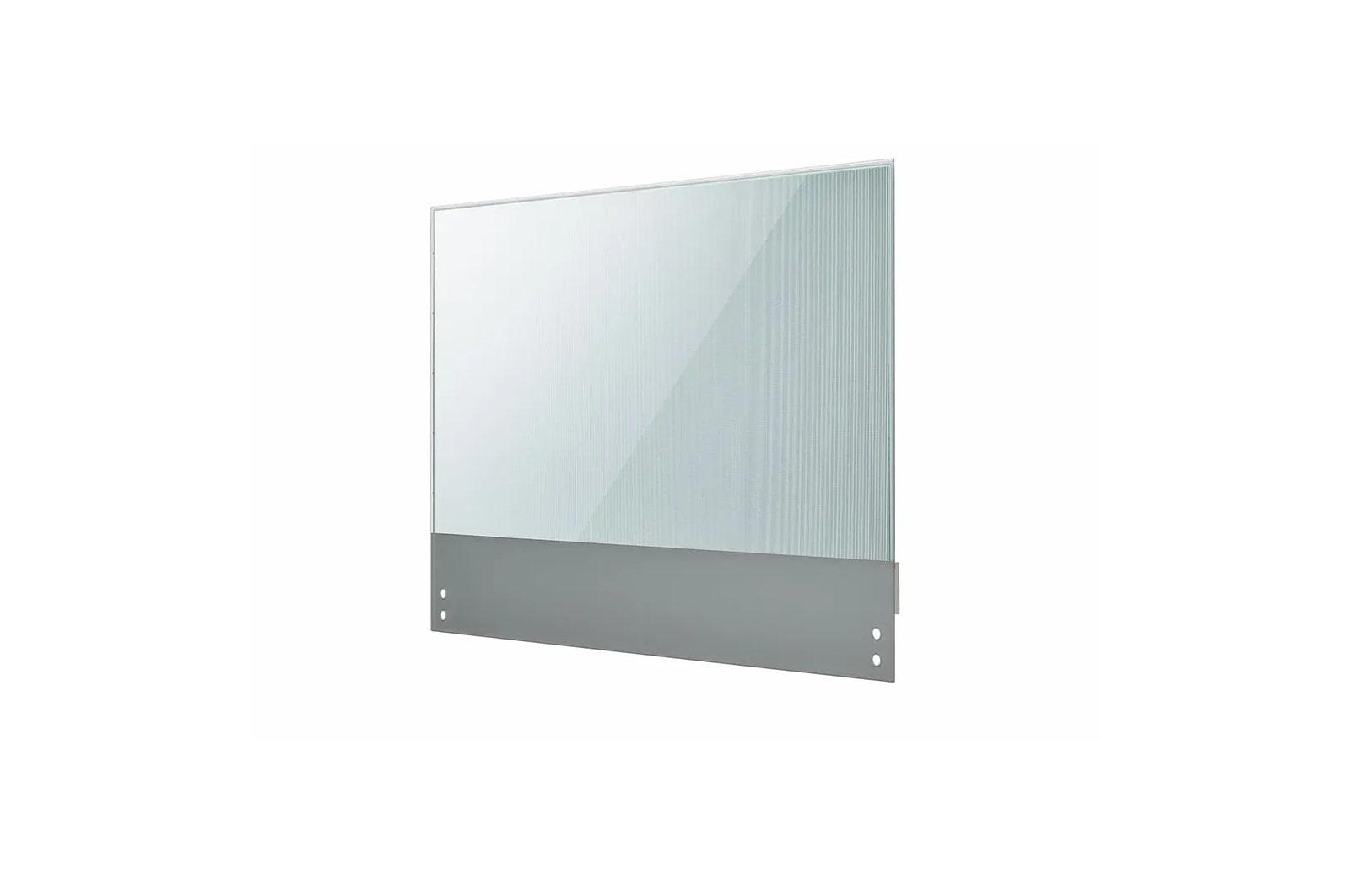

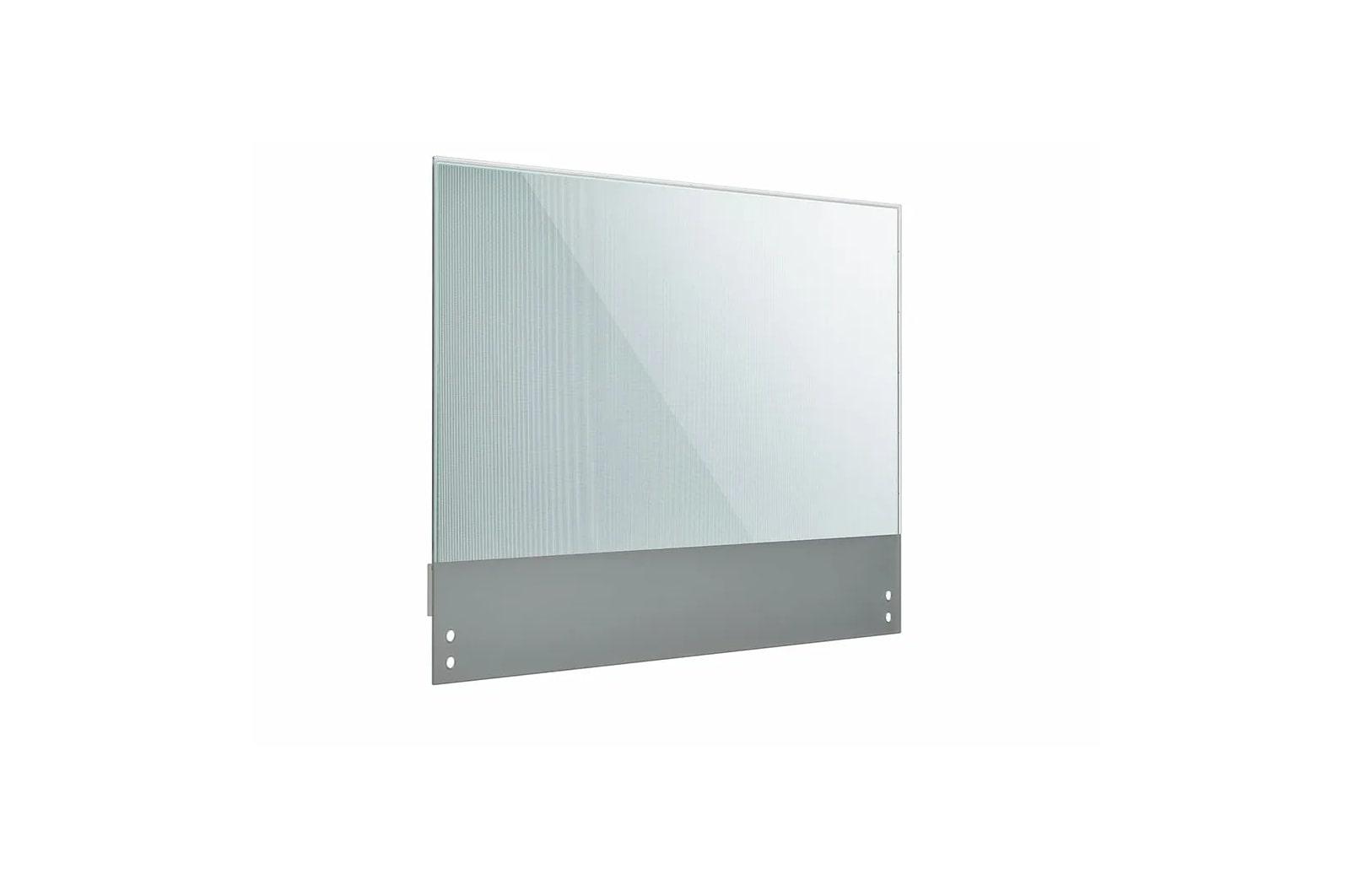

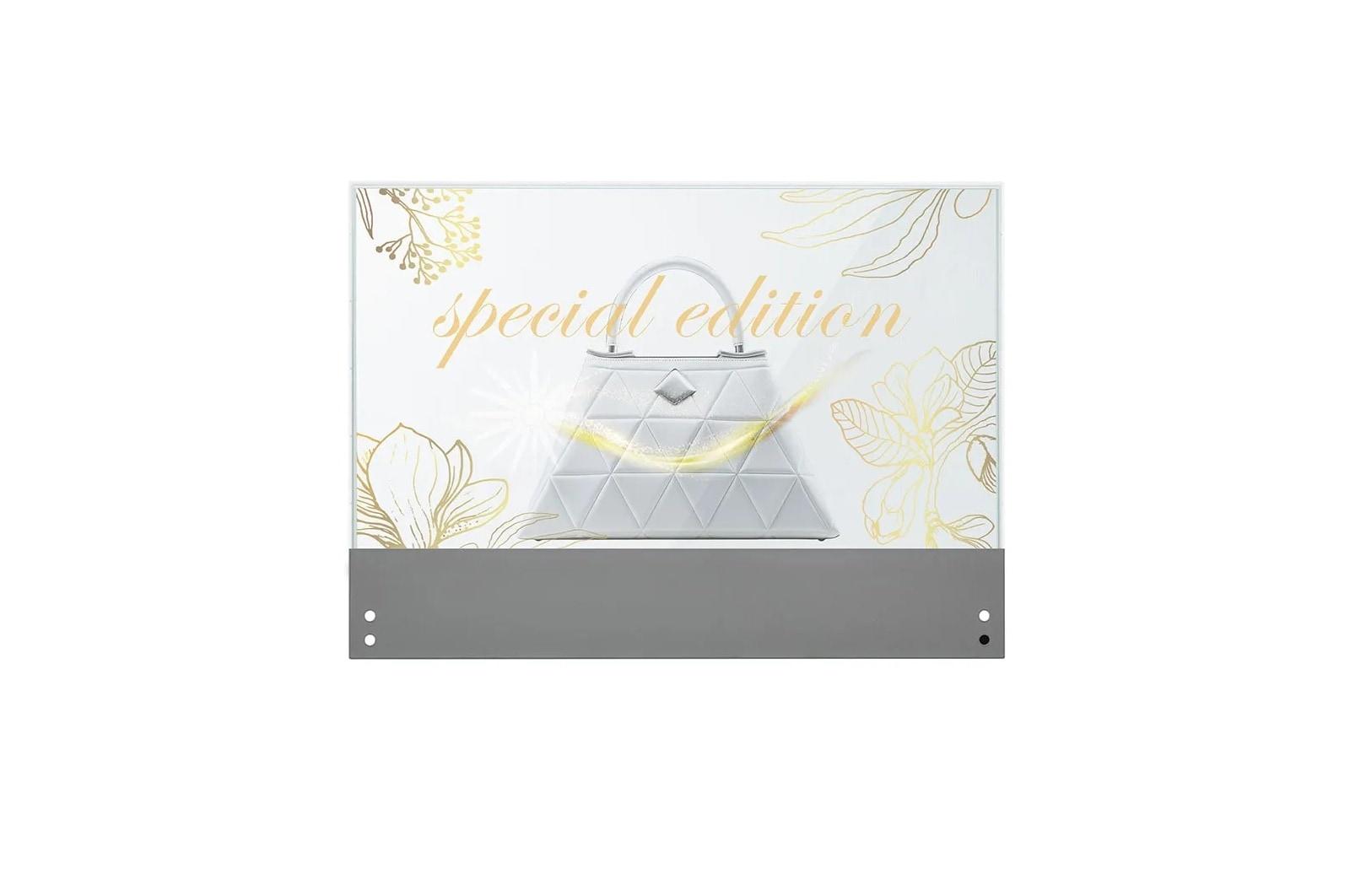

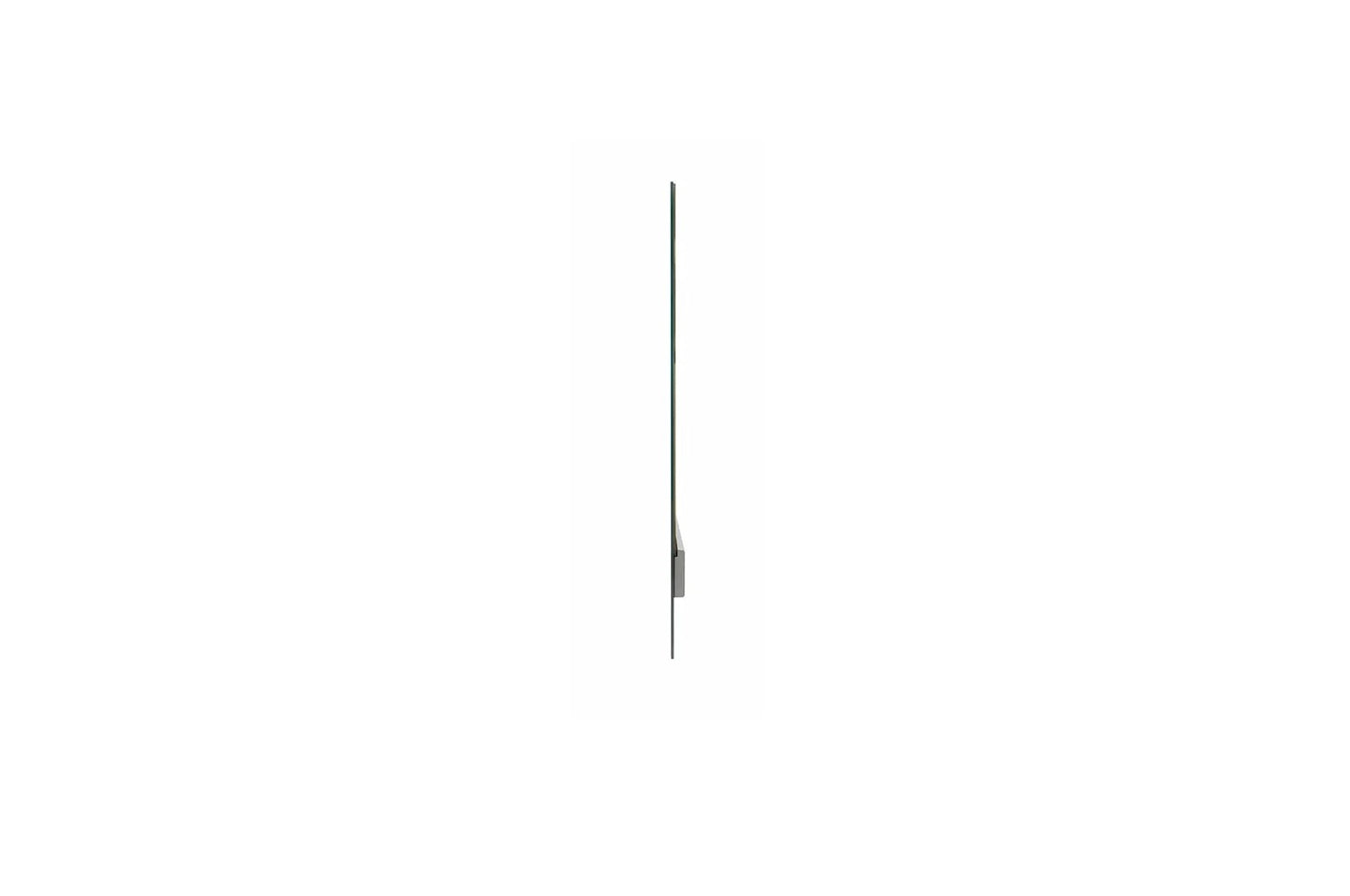

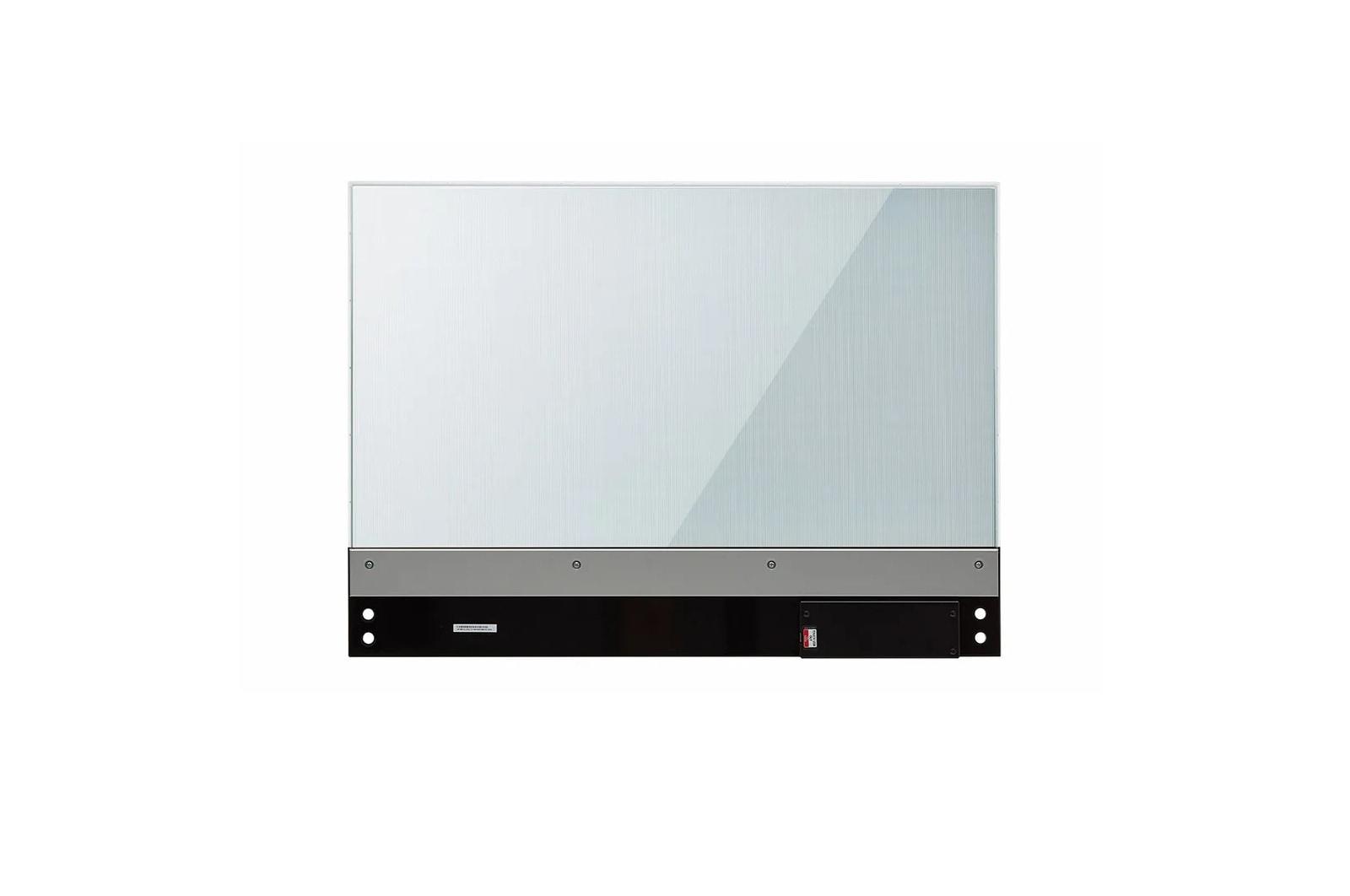

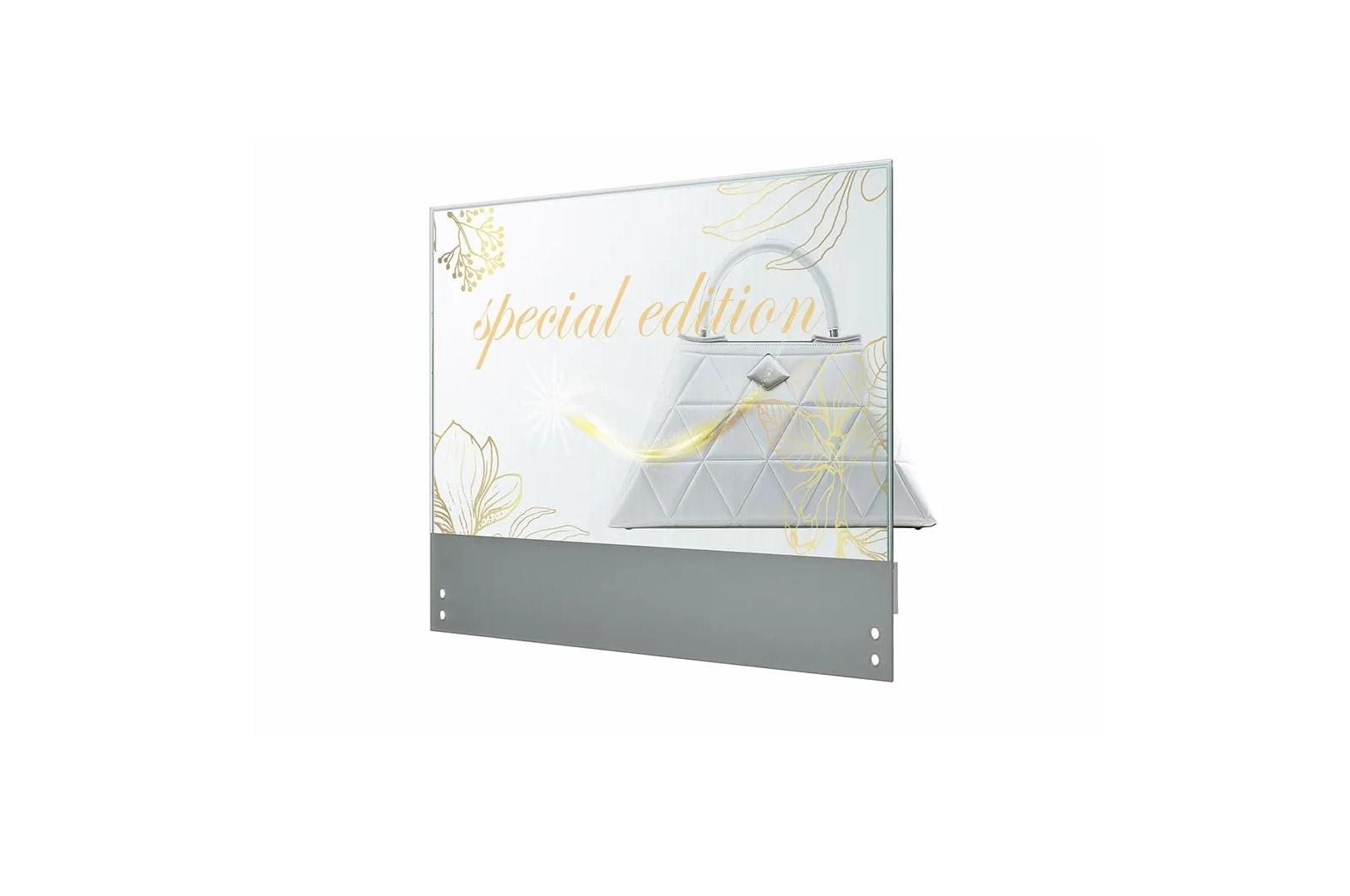

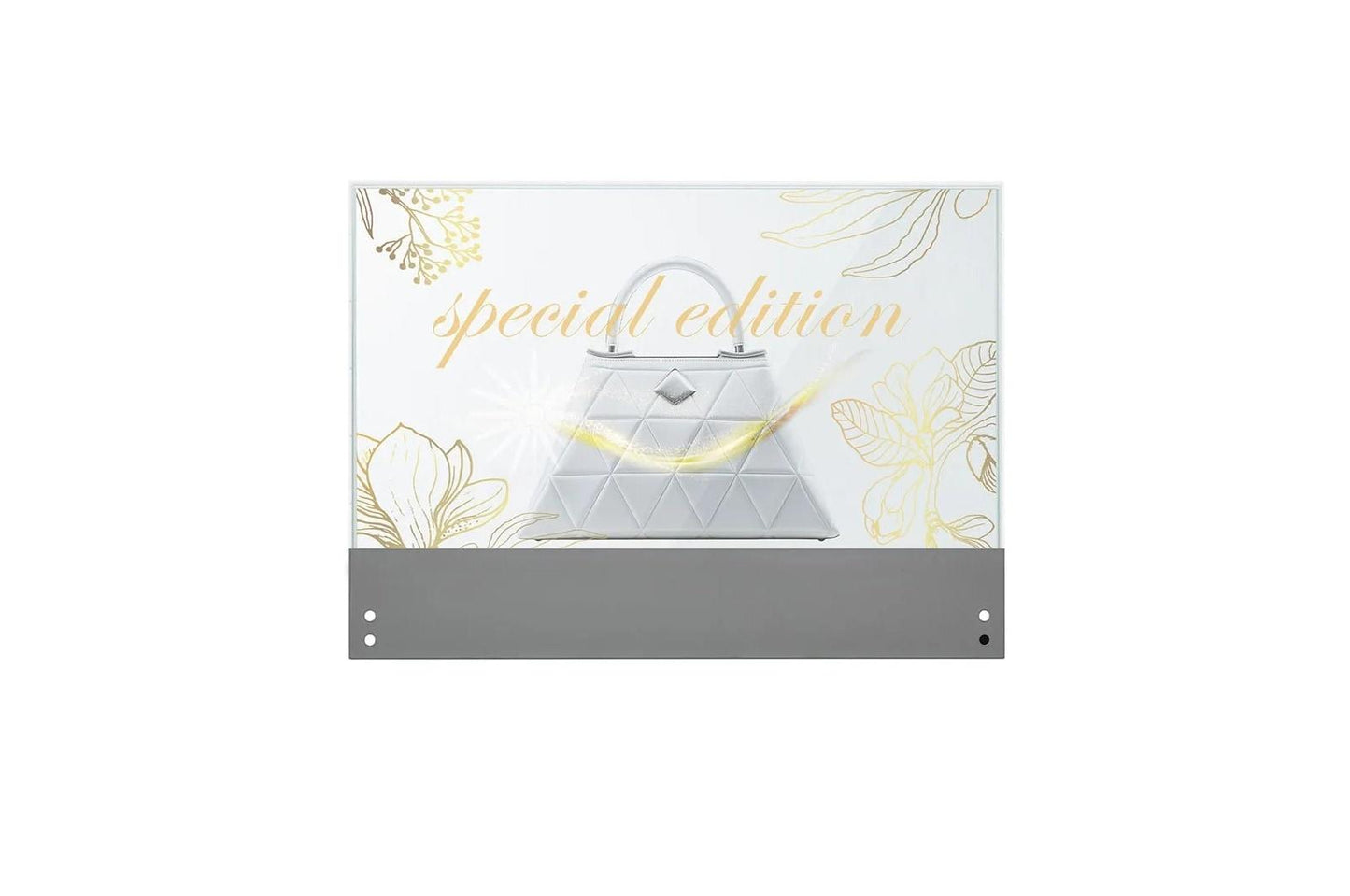

Lg 30EW5TPA Transparent OLED Touch Signage
Lg 30EW5TPA Transparent OLED Touch Signage
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Brightness (Typ.) : 200 / 600 nit (APL 100% / 25%, Without Glass)
- Transparency : 37% (Set)
- Bezel : 7.9 mm (T/R/L), 114.7 mm
- Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
- P-Cap Touch, Tempered Front Glass (3T)
Transparent OLED Touch Signage
| System | |
| Operating System (OS) | webOS™ 7.5 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 16 GB (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 86W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in Power |
| PoE Type | N/A |
| PoE Power Class | N/A |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | Yes |
| BTU Heat Generation (Max.) | 294 BTU |
| BTU Heat Generation (Typ.) | 154 BTU |
| Power Consumption (Typ.) | 45W |
| Connectivity | |
| HDMI In | Yes (x1) HDCP 2.2/1.4 |
| IR In (3.5 mm) | Yes |
| IR In (3.5 mm) | Yes |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | Yes (x1) USB 2.0 Type B |
| IR Out | Sharing RS-232C Out |
| RJ45 (LAN) Out | Yes (x1) |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | Not Available |
| Built-in Wi-Fi | No |
| Panel | |
| Screen Size (Inches) | 30" |
| Panel Technology | OLED |
| Backlight Type | OLED |
| Aspect Ratio | 16:9 |
| Native Resolution | 1366 x 768 (HD) |
| Refresh Rate | 120 Hz |
| Brightness (Typ.) | 200 / 600 nits (APL 100% / 25%, without Glass) |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 200000:1 |
| Dynamic Contrast Ratio | No |
| Color Gamut | BT709 110% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 1 ms |
| Moving Picture Response Time | 8 ms |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | 5H |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 18/7 (Moving Content Only) |
| Lifetime | Up to 30,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | 37% (Set) |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | No |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | No |
| Play Via URL | No |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/R/L: 3.5 mm, B: 23 mm |
| Bezel Width (On Bezel) | Not Available |
| Bezel Width (Off Bezel) | Not Available |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 198.6 lbs / 90.1 kg |
| Weight Signage Box | N/A |
| Weight with Stand | N/A |
| Shipping Weight | 270.9 lbs / 122.9 kg |
| Dimensions (W x H x D) | 98.8 x 44.2 x 3.7 in / 2,510.6 x 1,123.1 x 93.6 mm |
| Dimensions with Stand (W x H x D) | No |
| Dimensions with Pemnut (W x H x D) | No |
| Dimensions Signage Box (W x H x D) | No |
| Shipping Dimensions (W x H x D) | 105.0 x 11.0 x 51.4 in / 2,668 x 280 x 1,305 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | Yes |
| VESA™ Standard Mount Interface | No |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | No |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | No |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| Basic Accessories (included) | Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3 m x 4 ea / 3 m x 2 ea for Connection between Panel and Signage Box), HDMI Cable (3 m), Micro to A Type USB Cable (3 m, for Connection between Touch and Signage Box), A to B Type USB Cable (Touch Out), Screw (M4 x L22, 12 ea / M4 Nut 12 ea / M3 x L5.5 (Silver), M3 x L5.5 (Black) 8 ea / Shield Cover Assy, Rubber Damper 4 ea, Touch Cable Holder 2 ea, MCX Cable Holder 2 ea |
| Touch Panel | |
| Available Object Size for Touch | Greater than 8 mm |
| Response Time (PC Win10, Education Mode) | No |
| Touch Response Time (G to G) | Less than 100 ms |
| Writing Height | No |
| Accuracy (Typ.) | 2 mm |
| Interface | USB 2.0 |
| Active Pen Interface | No |
| Multi Touch Point (Max.) | 10 Points |
| Protection Glass Transmission | 85% |
| Protective Glass Thickness | 3.0 T (Anti-reflection / Anti-finger Print) |
| Operating System Support | Windows 10/11 |
| Protective Glass | |
| Thickness | 4 mm |
| Degree of Protection | No |
| Tempered / Chemical Strengthening | Thermal Tempering |
| Anti-Reflective | Yes |
| Anti-Reflective Coating | 5% |
| Anti-Reflective Film | No |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | Yes |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | Yes |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | No |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | No |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | No |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | No |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | No |
| Network Ready | No |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | Yes (4) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | No |
| Tile Mode Setting | No |
| External Input Rotation | No |
| No Signal Image | No |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | N/A |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
