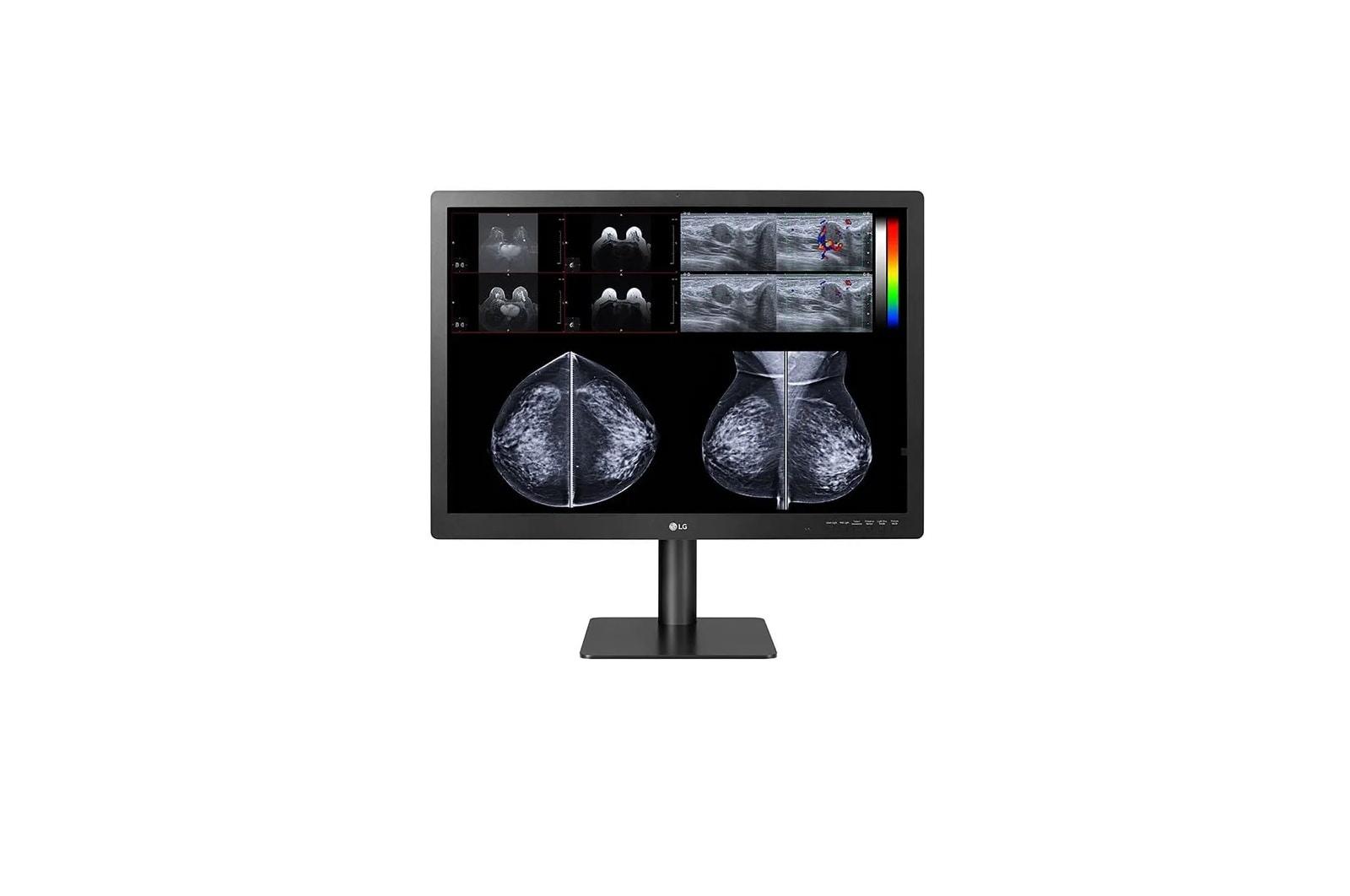

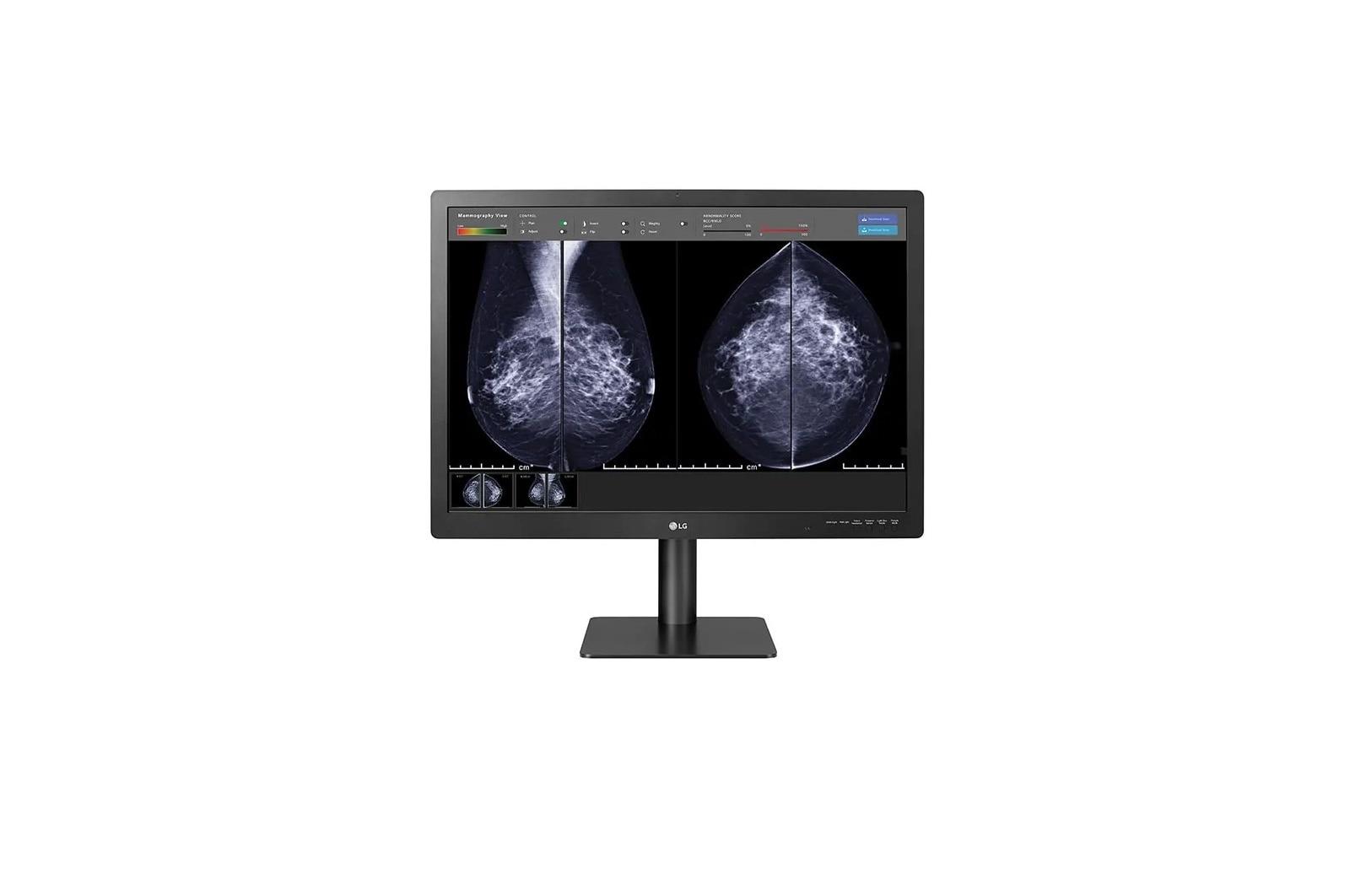

Lg 31HN713DB 31" 12MP (4200x2800) IPS Diagnostic Monitor for Mammography with Multi-resolution Modes, Pathology Mode, Self-calibration, Focus View, PBP and Dual Controller
Lg 31HN713DB 31" 12MP (4200x2800) IPS Diagnostic Monitor for Mammography with Multi-resolution Modes, Pathology Mode, Self-calibration, Focus View, PBP and Dual Controller
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 31-inch 12MP (4200x2800) IPS Display
- Multi-resolution Mode (12/6MP)
- 1080 cd/ (Typ.)
- Pathology Mode, Focus View Mode
- Lighting (Down/Wall Lighting)
31" 12MP (4200x2800) IPS Diagnostic Monitor for Mammography with Multi-resolution Modes, Pathology Mode, Self-calibration, Focus View, PBP and Dual Controller
| Electrical | |
| Power Consumption (Max.) | 180W |
| Power Consumption (Power Off) | Less than 0.3W |
| Power Type | External Power (Adapter) |
| Power Consumption (Sleep Mode) | Not Available |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac, 50/60 Hz |
| DC Output | 24V, 7.5A |

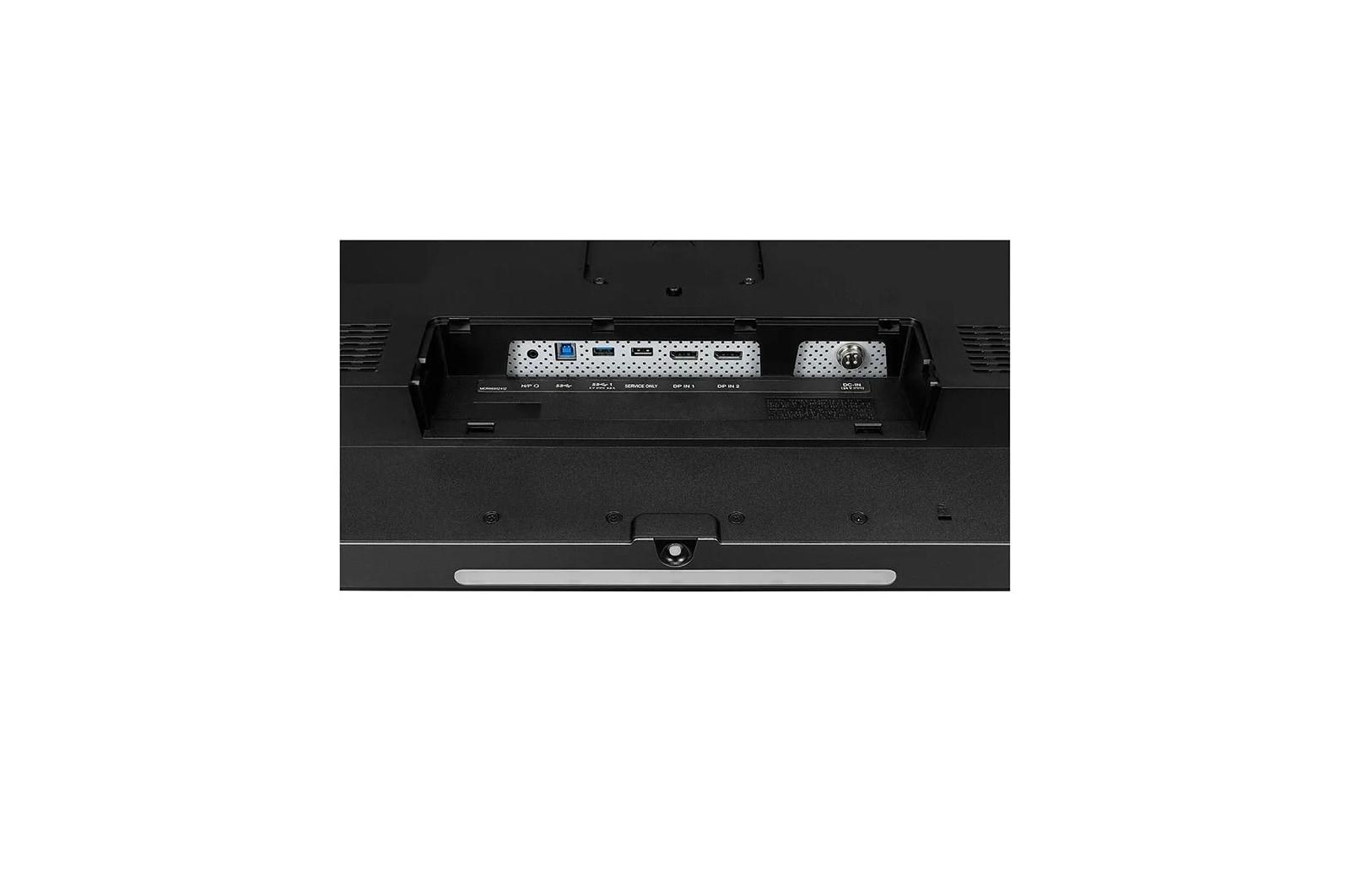

| Connectivity | |
| HDMI In | No |
| HDMI (Max. Resolution at Hz) | Not Available |
| HDMI (w/o VRR) | Not Available |
| DVI In | No |
| DVI (V Frequency) | Not Available |
| DVI (Max Resolution at Hz) | Not Available |
| DisplayPort In | Yes (x2) |
| DisplayPort (w/o VRR) | Not Available |
| DisplayPort (Max. Resolution at Hz) | Not Available |
| RS-232C In (D-sub 9-pin) | No |
| USB Type-A (Downstream) | Yes (x3) |
| USB Type-B (Upstream) | Yes (x1) |
| S-Video | No |
| 3G-SDI In | No |
| 12G-SDI In (3.5 mm) | No |
| AC In | No |
| DC In (4 pin) | No |
| DisplayPort Out | No |
| Audio Output Jack Location | No |
| DVI Out | No |
| 3G-SDI Out | No |
| 12G-SDI Out (3.5 mm) | No |
| Headphone Out (3.5 mm) | Yes (x1) |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | No |
| Signal Input Jack Location | Not Available |
| Panel | |
| Screen Size (Inches) | 31" |
| Diagonal (Inches) | N/A |
| Panel Type | IPS |
| Backlight Type | LED |
| Aspect Ratio | 3:2 (Color) |
| Resolution | 4200 x 2800 (12MP) |
| Pixel Pitch | 0.18159 mm x 0.18159 mm |
| Brightness (Typ.) | 1080 cd/m |
| Contrast Ratio | 1800:1 |
| Color Gamut | sRGB over 97% (Coverage) |
| Color Depth (Number of Colors) | 10 bit |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Response Time (G to G) (Off-setting) | 14 ms |
| Surface Treatment (Anti Glare) | Yes |
| Surface Treatment (Hard Coating) | 3H |
| HDR | No |
| HDR Effect | No |
| Features | |
| Screen Flip | No |
| Quick Charge | No |
| DDC/CI | No |
| Original Ratio | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | Yes |
| Uniformity Compensation | No |
| Light Box Mode | Yes |
| Key Lock | No |
| Calibration Software | LG PerfectLum |
| DICOM Mode | No |
| DPM | No |
| Failover Input Switch | No |
| User Preset Quick Setting | No |
| 4 Screen Split | No |
| Color Temperature | No |
| Uniformity | No |
| Super Resolution+ | No |
| HW Calibration | Yes (with internal Front Sensor) |
| Automatic Standby | No |
| Brightness Stabilization | Yes |
| DynaMic Sync Mode (Thru Mode) | No |
| Pathology Mode | Yes |
| Six Axis Control | No |
| HDCP | No |
| DICOM Calibrated | No |
| Factory Calibration | No |
| DICOM Compliant | Yes |
| Brightness Uniformity Correction | Yes |
| BLS (ALS) | No |
| Color Calibrated | No |
| Multi-resolution Mode | 12 / 6 MP |
| Gamma | No |
| Picture Mode | No |
| Mechanical | |
| Color | Matte Black |
| Adjustable Stand | Yes |
| Base Detachable | No |
| One Click Stand Set-up | Not Available |
| Stand Height Range | 4.3 in / 110 mm |
| Tilt (Angle) | -5°~15° |
| Swivel (Angle) | 15° |
| Pivot | Not Available |
| Weight | 23.6 lbs / 10.7 kg |
| Weight with Stand | 30.9 lbs / 14 kg |
| Shipping Weight | 47.4 lbs / 21.5 kg |
| Dimensions (W x H x D) | 27.7 x 19.7 x 3.3 in / 704.7 x 499.5 x 83.2 mm |
| Dimension with Stand (W x H x D) | 27.7 x 26.1 x 11 in / 704.7 x 662.6 x 280 mm |
| Shipping Dimensions (W x H x D) | 39.3 x 13.3 x 25.4 in / 999 x 337 x 644 mm |
| VESA™ Wall Mount | Not Available |
| LG Software Compatible | |
| On Screen Control | Not Available |
| Dual Controller | Not Available |
| Regulatory & Certifications | |
| Impact Protection | No |
| ICES-003 | No |
| Windows 10 | No |
| EN (EN 60950-1/EN55032, 55024) | Yes |
| MFDS (KR) | Yes |
| CE MDD (EU) | No |
| CE (Regulatory) | Yes (MDR) |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | Yes |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | FCC Part 15 Class A |
| CMDR (Canada) | No |
| RoHS (Environmental) | Yes |
| GMP | No |
| IP Rating (Solid / Liquid Ingress) (Front) | No |
| TGA / RCM (Australia) | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | Yes |
| TAA Compliance | Yes |
| CE (MDD 93/42/EEC, 2007/47/EC) | No |
| CISPR (Global) | No |
| REACH (Environmental) | Yes |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | Yes |
| WEEE | Yes |
| FDA (US) | FDA (510 (k) (Class II)) |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | Yes |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | No |
| KGMP | No |
| ISO13485 | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | No |
| UL/cUL Certification | ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1 |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 5 Year Limited |
| Accessories Included | Calibration Report, DP Cable, Power Adapter & Cord, USB Cable |
| UPC | 1 95174 00482 1 |
| Protective Glass | |
| Thickness | No |
| Anti-Reflective | No |
| Anti-Fingerprint | No |
| Software Features | |
| Picture-by-Picture (PBP) | Yes (2 PBP) |
| Picture-in-Picture (PIP) | No |
| Smart Energy Saving | No |
| Flicker Safe | Yes |
| Reader Mode | Yes |
| Black Stabilizer® | No |
| Text Mode | Yes |
| USB Plug & Play | No |
| User Convenience | |
| Auto Luminance Sensor | Yes |
| Presence Sensor | Yes |
| Hot Key | No |
| Lighting | Yes (Down/Wall) |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | Not Available |
| LED Color (Power save mode) | Not Available |
| Key Location | Not Available |
| Key Number (Power Key Included) | Not Available |
