Lg 32HL512DB 31.5'' 8MP (3840x2160) Nano IPS Color Diagnostic Monitor with Multi Resolution and Clinical Pathology Modes, Auto Luminance Calibration, PBP/Dual Controller & Ergonomic Stand
Lg 32HL512DB 31.5'' 8MP (3840x2160) Nano IPS Color Diagnostic Monitor with Multi Resolution and Clinical Pathology Modes, Auto Luminance Calibration, PBP/Dual Controller & Ergonomic Stand
Item Not Available
Couldn't load pickup availability
Check Delivery:
- NanoIPS Technology
- DICOM Calibrated to Primary Diagnostic Guidelines
- Brightness Stabilization

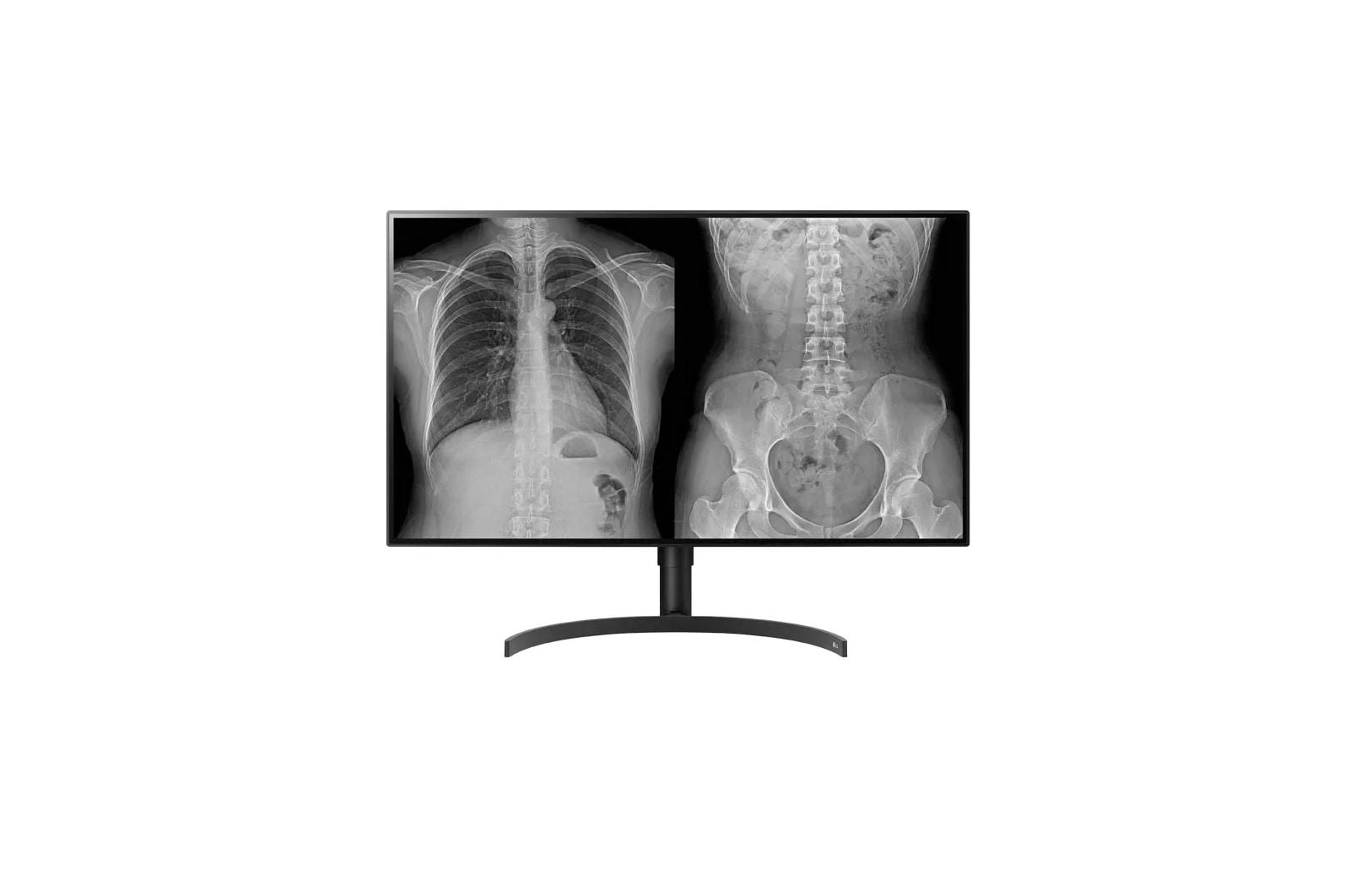

- Picture by Picture / Two 4 MP Screen Operation
- Display Port and HDMI Video Inputs
- Support Nvidia, AMD & Intel Graphics
31.5'' 8MP (3840x2160) Nano IPS Color Diagnostic Monitor with Multi Resolution and Clinical Pathology Modes, Auto Luminance Calibration, PBP/Dual Controller & Ergonomic Stand
| Electrical | |
| Power Consumption (Max.) | 65W |
| Power Consumption (Power Off) | Not Available |
| Power Type | External Power (Adapter) |
| Power Consumption (Sleep Mode) | Less than 0.5W |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac |
| DC Output | 19V, 3.42A |
| Connectivity | |
| HDMI In | Yes (x1) v2.0 |
| HDMI (Max. Resolution at Hz) | Not Available |
| HDMI (w/o VRR) | Not Available |
| DVI In | No |
| DVI (V Frequency) | Not Available |
| DVI (Max Resolution at Hz) | Not Available |
| DisplayPort In | Yes (x2) v1.4 |
| DisplayPort (w/o VRR) | Not Available |
| DisplayPort (Max. Resolution at Hz) | Not Available |
| RS-232C In (D-sub 9-pin) | No |
| USB Type-A (Downstream) | Yes (x1) USB 2.0 |
| USB Type-B (Upstream) | Yes (x1) USB 2.0 |
| S-Video | No |
| 3G-SDI In | No |
| 12G-SDI In (3.5 mm) | No |
| AC In | No |
| DC In (4 pin) | No |
| DisplayPort Out | No |
| Audio Output Jack Location | No |
| DVI Out | No |
| 3G-SDI Out | No |
| 12G-SDI Out (3.5 mm) | No |
| Headphone Out (3.5 mm) | No |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | No |
| Signal Input Jack Location | Not Available |
| Panel | |
| Screen Size (Inches) | 32" |
| Diagonal (Inches) | 31.5 |
| Panel Type | IPS |
| Backlight Type | Not Available |
| Aspect Ratio | 16:09 |
| Resolution | 3840 x 2160 (4K UHD) |
| Pixel Pitch | 0.18159 mm x 0.18159 mm |
| Brightness (Typ.) | 450 cd/m |
| Contrast Ratio | 1300:1 |
| Color Gamut | DCI-P3 98% (CIE 1976) |
| Color Depth (Number of Colors) | Not Available |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Response Time (G to G) (Off-setting) | 14 ms |
| Surface Treatment (Anti Glare) | Yes |
| Surface Treatment (Hard Coating) | 3H |
| HDR | HDR 10 |
| HDR Effect | Yes |
| Features | |
| Screen Flip | No |
| Quick Charge | No |
| DDC/CI | No |
| Original Ratio | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | No |
| Uniformity Compensation | No |
| Light Box Mode | No |
| Key Lock | No |
| Calibration Software | LG PerfectLum |
| DICOM Mode | No |
| DPM | No |
| Failover Input Switch | No |
| User Preset Quick Setting | No |
| 4 Screen Split | No |
| Color Temperature | No |
| Uniformity | Yes |
| Super Resolution+ | Yes |
| HW Calibration | Yes |
| Automatic Standby | No |
| Brightness Stabilization | No |
| DynaMic Sync Mode (Thru Mode) | No |
| Pathology Mode | Yes |
| Six Axis Control | No |
| HDCP | No |
| DICOM Calibrated | Yes |
| Factory Calibration | No |
| DICOM Compliant | No |
| Brightness Uniformity Correction | No |
| BLS (ALS) | Yes |
| Color Calibrated | No |
| Multi-resolution Mode | No |
| Gamma | No |
| Picture Mode | Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM (Clinical), DICOM (Diagnostic), Calibration 1, Calibration 2, Custom, Vivid, Standard |
| Mechanical | |
| Color | Black |

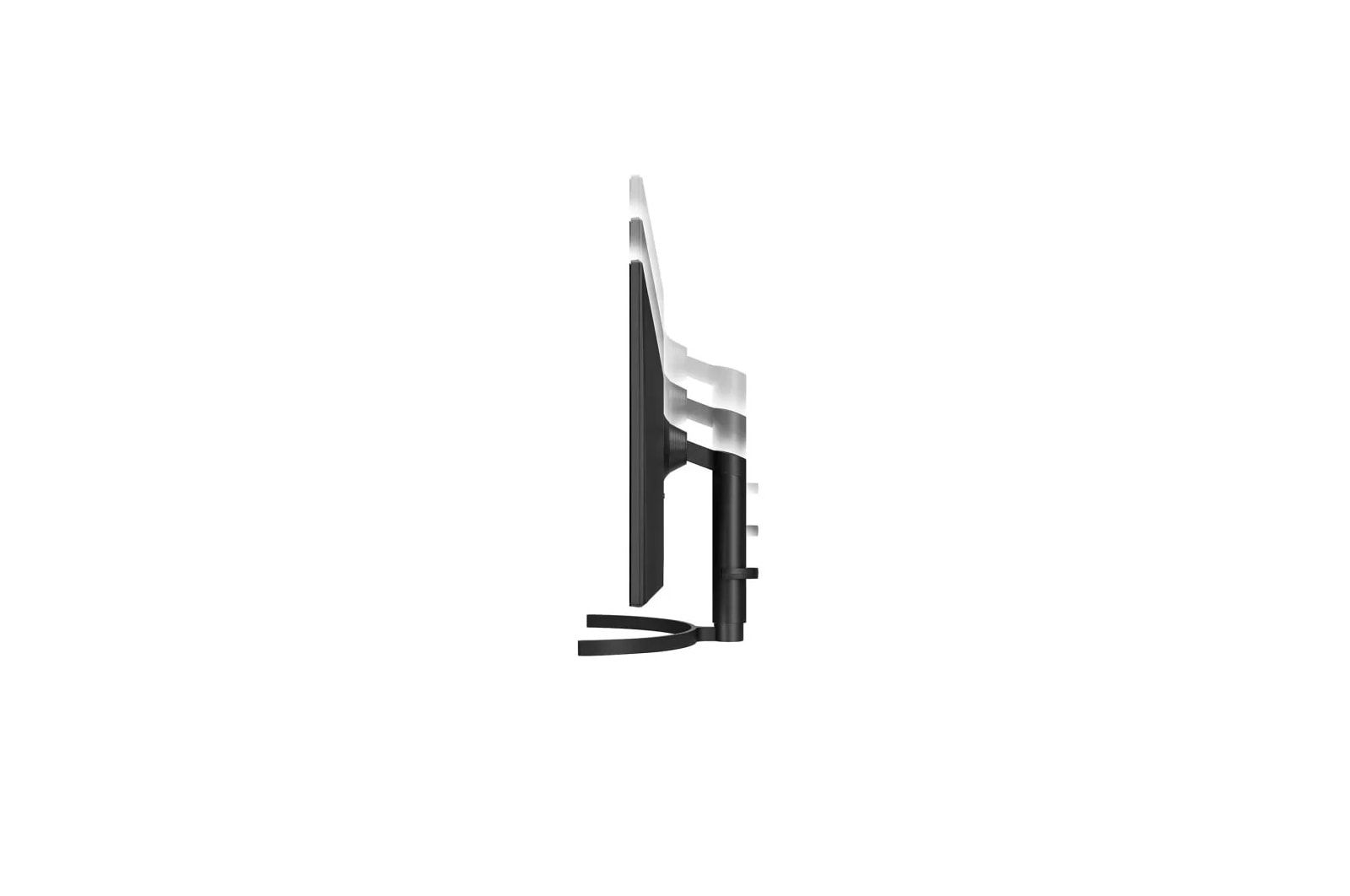

| Adjustable Stand | Yes |
| Base Detachable | No |
| One Click Stand Set-up | Not Available |
| Stand Height Range | Not Available |
| Tilt (Angle) | Not Available |
| Swivel (Angle) | Not Available |
| Pivot | Not Available |
| Weight | 13.0 lbs / 5.9 kg |
| Weight with Stand | 16.1 lbs / 7.3 kg |
| Shipping Weight | 24.4 lbs / 11.1 kg |
| Dimensions (W x H x D) | 28.3 x 16.3 x 1.8 in / 718.2 x 414.3 x 45.1 mm |
| Dimension with Stand (W x H x D) | 28.3 x 23.2 x 9.1 in / 718.2 x 590.0 x 231.2 mm |
| Shipping Dimensions (W x H x D) | 33.0 x 21.8 x 9.4 in / 838 x 553 x 240 mm |
| VESA™ Wall Mount | 100 x 100 mm |
| LG Software Compatible | |
| On Screen Control | Yes |
| Dual Controller | Not Available |
| Regulatory & Certifications | |
| Impact Protection | No |
| ICES-003 | No |
| Windows 10 | No |
| EN (EN 60950-1/EN55032, 55024) | No |
| MFDS (KR) | Yes |
| CE MDD (EU) | No |
| CE (Regulatory) | Yes |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | No |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | FCC Part 15 Class A |
| CMDR (Canada) | No |
| RoHS (Environmental) | Yes |
| GMP | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | No |
| TGA / RCM (Australia) | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | Yes |
| TAA Compliance | Yes |
| CE (MDD 93/42/EEC, 2007/47/EC) | Yes |
| CISPR (Global) | No |
| REACH (Environmental) | Yes |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | No |
| WEEE | Yes |
| FDA (US) | FDA Class II |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | No |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | Yes |
| KGMP | Yes |
| ISO13485 | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | No |
| UL/cUL Certification | UL60601-1 |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 5 Year Limited |
| OSD Language | 17 Language |
| Accessories Included | Calibration Report, Calibration Software, Display Port Cable, HDMI Cable, Power Adapter, Power Cord |
| UPC | 7 19192 63454 1 |
| Protective Glass | |
| Thickness | No |
| Anti-Reflective | No |
| Anti-Fingerprint | No |
| Software Features | |
| Picture-by-Picture (PBP) | Yes |
| Picture-in-Picture (PIP) | No |
| Smart Energy Saving | Yes |
| Flicker Safe | Yes |
| Reader Mode | No |
| Black Stabilizer® | Yes |
| Text Mode | No |
| USB Plug & Play | No |
| User Convenience | |
| Auto Luminance Sensor | No |
| Presence Sensor | No |
| Hot Key | No |
| Lighting | No |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | Not Available |
| LED Color (Power save mode) | Not Available |
| Key Location | Not Available |
| Key Number (Power Key Included) | Not Available |
