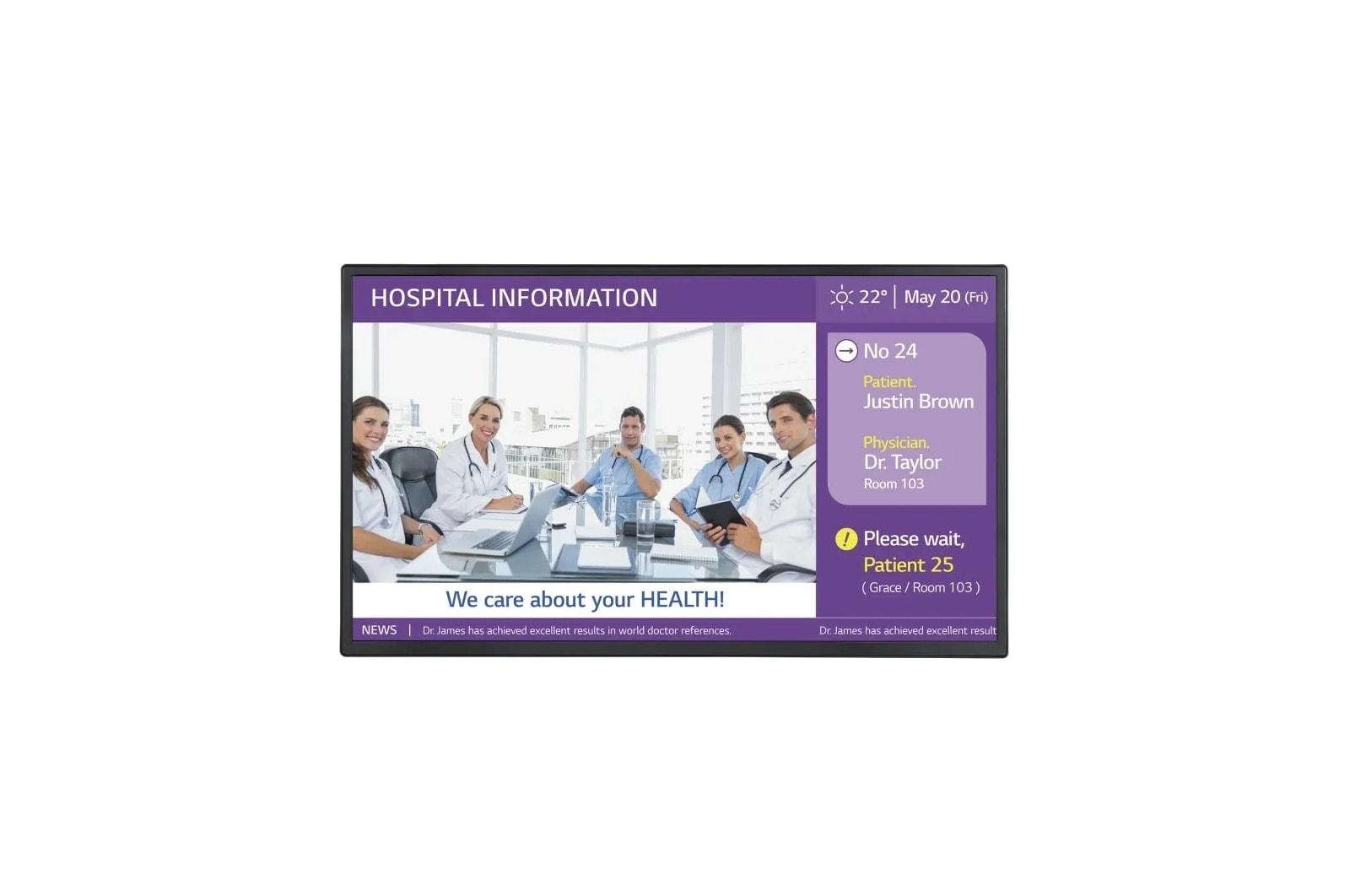

Lg 32ML5KB 32" ML5K Series FHD Healthcare Digital Signage

Item Not Available

Check Delivery:

400 nit Brightness and 1% Haze Surface Treatment for Clear Viewing Indoors
FHD Resolution (1920x1080) Creates Crisps, Clear Images for Dr. & Patients
LG WebOS 6.0 Platform
Supports Crestron Connected
Portrait & Landscape
Up to 50,000 hours lifetime 24/7

32" ML5K Series FHD Healthcare Digital Signage

System
Operating System (OS)	webOS™ 6.0
Processor	No
Graphics	No
Storage	No
Internal Memory	16 GB (eMMC)
Electrical
Power Consumption (Max.)	75W
Power Supply	120 Vac, 50/60 Hz (41.1 - 57 V for PoE++)
Power Consumption (Power Off)	1W
Power Type	Built-in Power / PoE++
PoE Type	PoE++ : Type 3 802.3bt
PoE Power Class	Class 6
Power Consumption (Display Power Management - DPM)	1W
Power Consumption (Smart Energy Saving - 70%)	38.5W
BTU Heat Generation (Max.)	256 BTU
BTU Heat Generation (Typ.)	188 BTU
Power Consumption (Typ.)	55W
Connectivity
HDMI In	Yes (x2) HDMI1DMI2: HDCP 2.2/1.4
IR In (3.5 mm)	Yes
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	No
DisplayPort In	No
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1), PoE++
USB Type-A In	Yes (x2) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	No
Audio Out (3.5 mm)	Yes (x1)
Touch USB	No
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Daisy Chain	No
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	32"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	1920 x 1080 (FHD)
Refresh Rate	60 Hz
Brightness (Typ.)	AC Mode 400 nits PoE Mode 200 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1200:1
Dynamic Contrast Ratio	1000000:1
Color Gamut	BT709 95%
Color Depth (Number of Colors)	16.7 Million Colors, 8 bit
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	9 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	1%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	No
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	Yes (x2) 10W
Features
Crestron Certified Compatibility	Yes
Beacon	Yes
Play Via URL	Yes
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T/R/L : 13.0 mm, B : 18.0 mm
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Not Available
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	12.6 lbs / 5.7 kg
Weight Signage Box	N/A
Weight with Stand	N/A
Shipping Weight	16.3 lbs / 7.4 kg
Dimensions (W x H x D)	28.7 x 16.9 x 2.2 in / 729.4 x 428.9 x 55.5 mm
Dimensions with Stand (W x H x D)	N/A
Dimensions with Pemnut (W x H x D)	Not Available
Dimensions Signage Box (W x H x D)	No
Shipping Dimensions (W x H x D)	31.9 x 20.1 x 5.2 in / 810.0 x 510.0 x 132.0 mm
Conformal Coating (Power Board)	No
Handle	No
VESA™ Standard Mount Interface	200 x 200 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	No
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
CE Marking (Regulatory)	No
ISTA6 (Packaging)	No
ERP (Environmental)	No
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	Mexico
Warranty	5 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e
Optional Accessories	N/A
UPC	1 95174 04427 8
Basic Accessories (included)	Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, 3.5mm to RS232C Adapter
Touch Panel
Available Object Size for Touch	No
Touch Response Time (G to G)	No
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	No
Multi Touch Point (Max.)	No
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	No
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	Yes
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	Yes
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	No
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	No
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (4)
PM mode	Yes
Picture-in-Picture (PIP)	No
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	N/A
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
