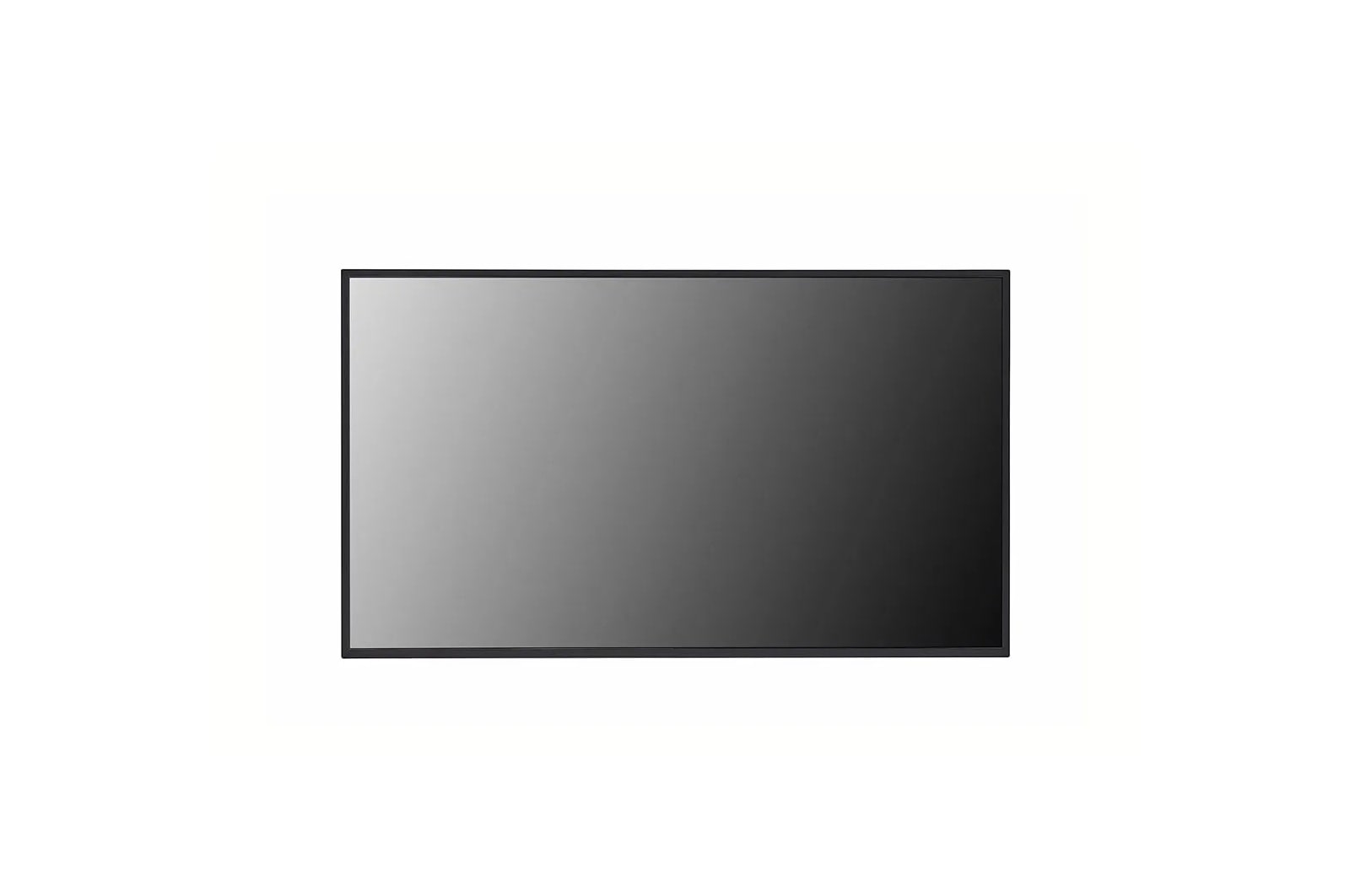

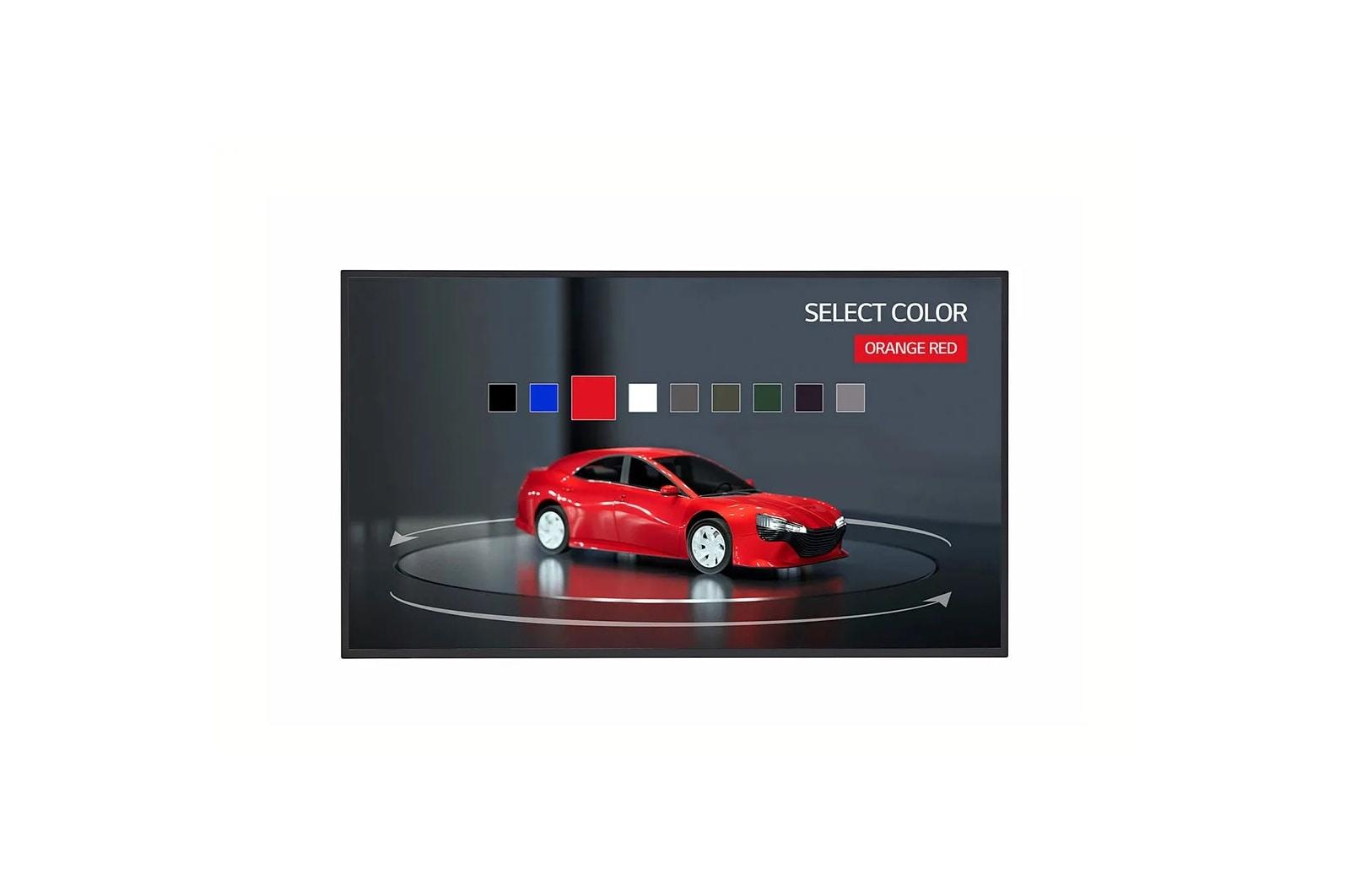

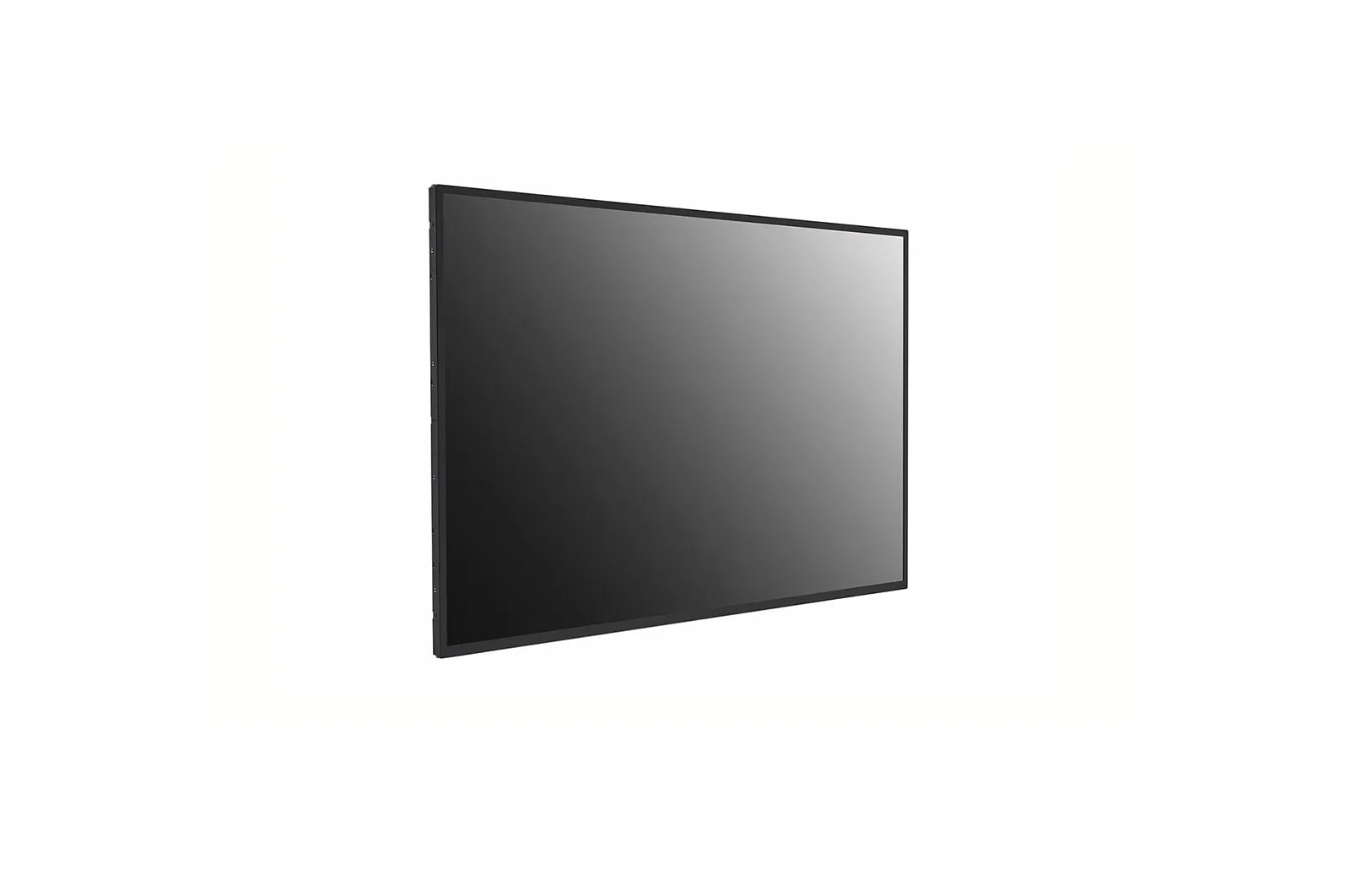

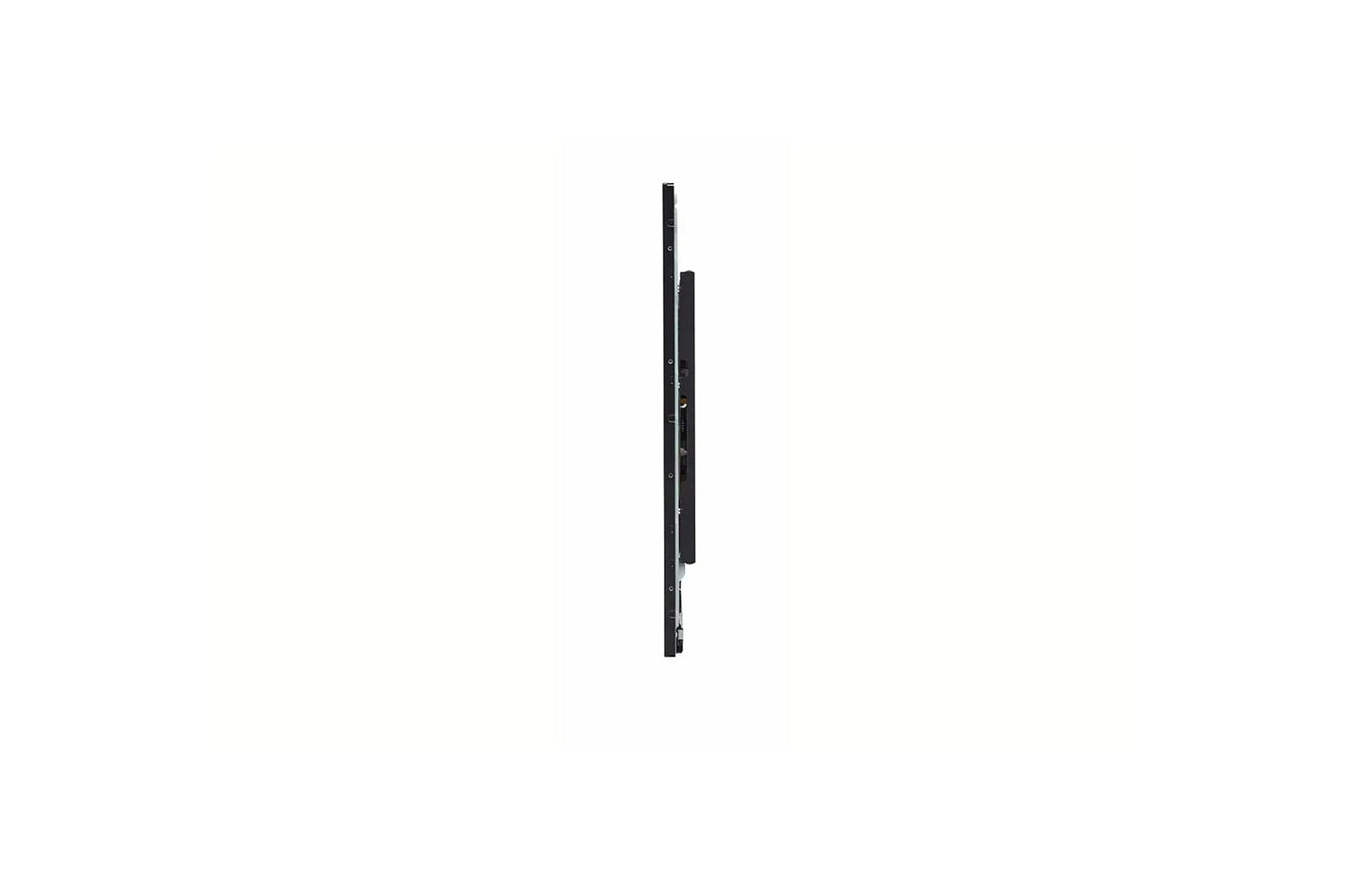

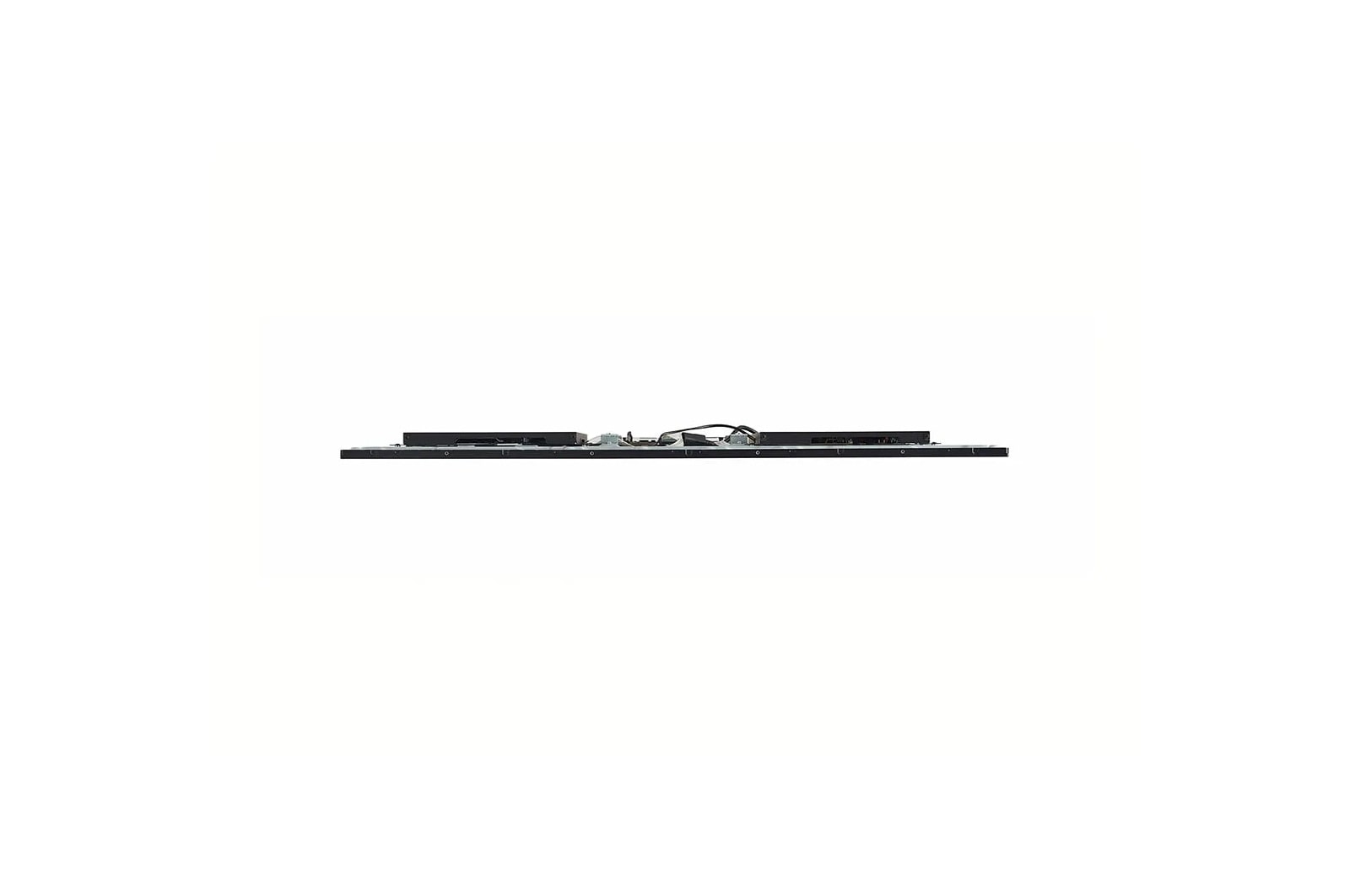

Lg 32TNF5PB 32'' TNF5P Series FHD IPS In-Cell Multi-Touch Display with webOS™ 6.0, 500 nits Brightness

Item Not Available

Check Delivery:

32" Full HD (1920x1080) IPS Display
Multi-Touch Point : Max. 10 Points
WebOS™ 6.0, Pro:Idiom, Embedded CMS, Compatible with LG SuperSign Software
Portrait, Landscape and 45(degree) Tilt
500 nits brightness
Operation 24/7 with Life up to 50,000 Hours

32'' TNF5P Series FHD IPS In-Cell Multi-Touch Display with webOS™ 6.0, 500 nits Brightness

System
Operating System (OS)	webOS™ 6.0
Processor	No
Graphics	No
Storage	No
Internal Memory	8 GB (System 5 GB + Available 2.48 GB) (eMMC)
Electrical
Power Consumption (Max.)	65W
Power Supply	100-240 Vac, 50/60 Hz
Power Consumption (Power Off)	Less than 0.5W
Power Type	Built-in Power
PoE Type	No
PoE Power Class	No
Power Consumption (Display Power Management - DPM)	Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)	39W
BTU Heat Generation (Max.)	222 BTU/Hr
BTU Heat Generation (Typ.)	188 BTU/Hr
Power Consumption (Typ.)	55W
Connectivity
HDMI In	Yes (2) HDCP 1.4
IR In (3.5 mm)	Yes (x1)
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	No
DisplayPort In	No
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x1) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	No
Audio Out (3.5 mm)	Yes
Touch USB	Yes (x1) USB 2.0 Type B
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	No
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Bluetooth	No
Daisy Chain	No
Built-in Wi-Fi	No
Panel
Screen Size (Inches)	32"
Panel Technology	IPS (in-cell touch)
Backlight Type	Edge
Aspect Ratio	16:9
Native Resolution	1920 x 1080 (FHD)
Refresh Rate	60 Hz
Brightness (Typ.)	500 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1000:1
Dynamic Contrast Ratio	Not Available
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	8 bit, 16.7 Million Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	9 ms
Surface Treatment (Haze)	3%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	No
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	Yes
Beacon	No
Play Via URL	Yes
Cisco Certified Compatibility	Yes
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T/L/R: 11.3 mm, B: 12.3 mm
Tilt (Face Down)	No
Tilt (Face Up)	Yes (Max 45°)
Weight	12.3 lbs / 5.6 kg
Weight with Stand	N/A
Shipping Weight	15.0 lbs / 6.8 kg
Dimensions (W x H x D)	28.5 x 16.5 x 1.5 in / 723.0 x 419.4 x 39.1 mm
Dimensions with Stand (W x H x D)	N/A
Dimensions with Pemnut (W x H x D)	N/A
Shipping Dimensions (W x H x D)	32.0 x 20.1 x 5.6 in / 812 x 510 x 142 mm
Conformal Coating (Power Board)	Yes
Handle	No
VESA™ Standard Mount Interface	200 x 200 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	No
SuperSign™ Cloud	Yes
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
Carbon Trust	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	Korea
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Simplified, Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Spanish, Swedish, T rk e
UPC	1 95174 08454 0
Basic Accessories (included)	1.5m Power Cord, 1.8m USB Cable (Type A-Type B) User Manual, QSG, Remote Control (includes 2 batteries), RS232C Adapter, IR Receiver
Touch Panel
Available Object Size for Touch	> 0.6 mm
Response Time (PC Win10, Education Mode)	< 90 ms
Touch Response Time (G to G)	No
Writing Height	No
Accuracy (Typ.)	3.5 mm
Interface	USB 2.0
Active Pen Interface	No
Multi Touch Point (Max.)	MAX 10 Points
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	Windows 10
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	No
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	No
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	No
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	Yes
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	No
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	No
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	No
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (x4)
PM mode	Yes
Picture-in-Picture (PIP)	No
Local Network Sync	No
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	No
External Input Rotation	No
No Signal Image	No
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	Not Available
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
