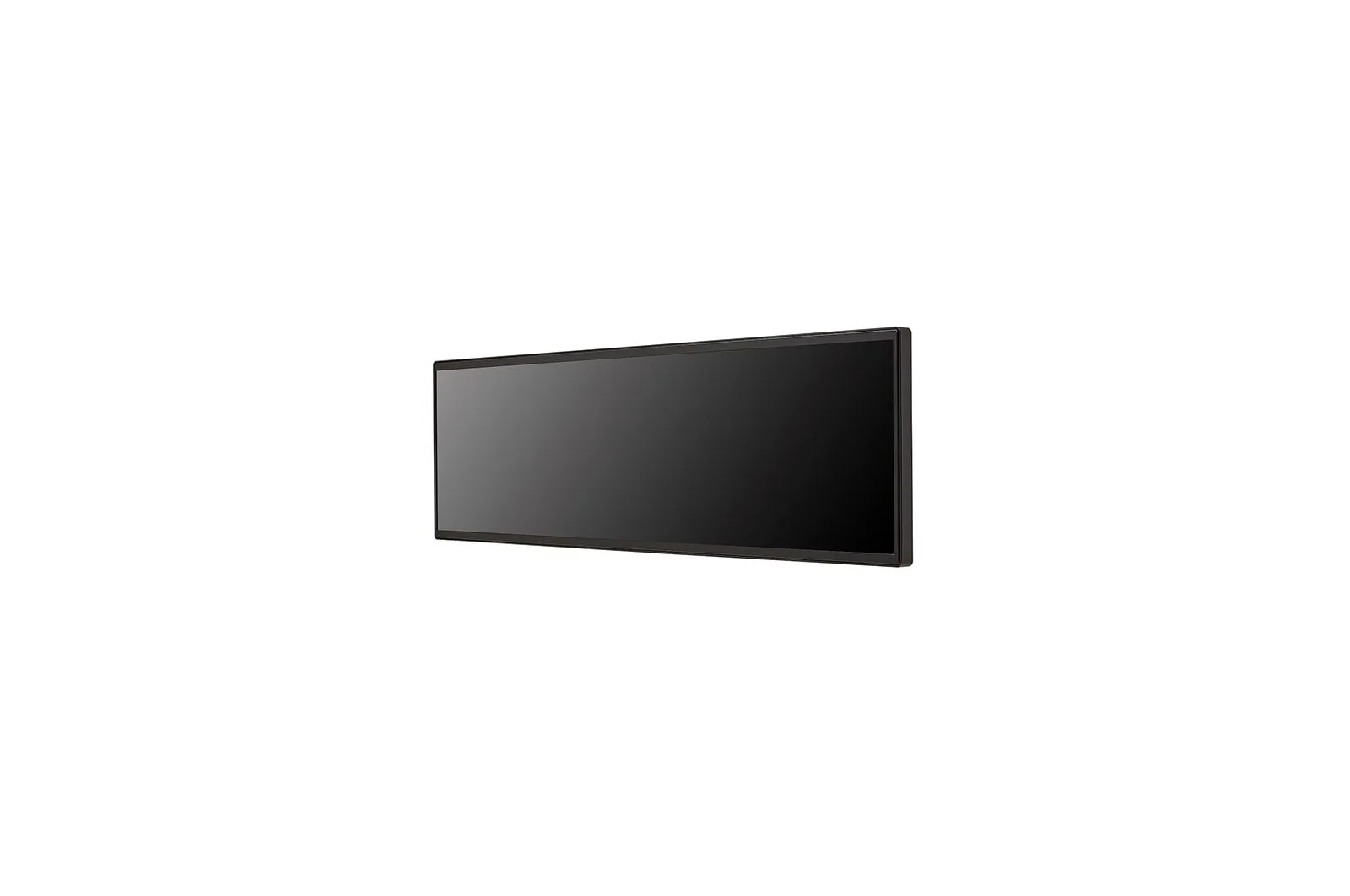

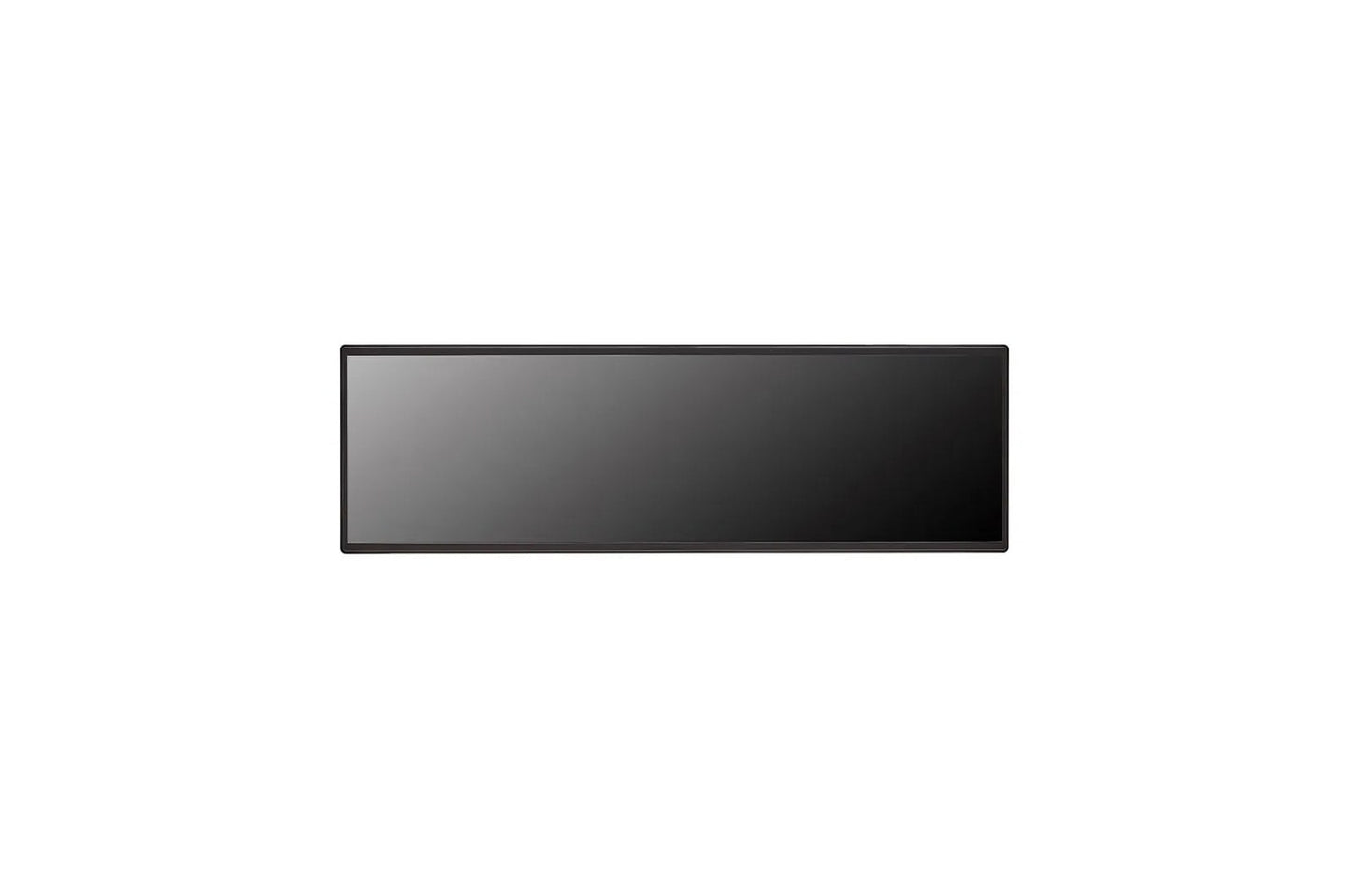

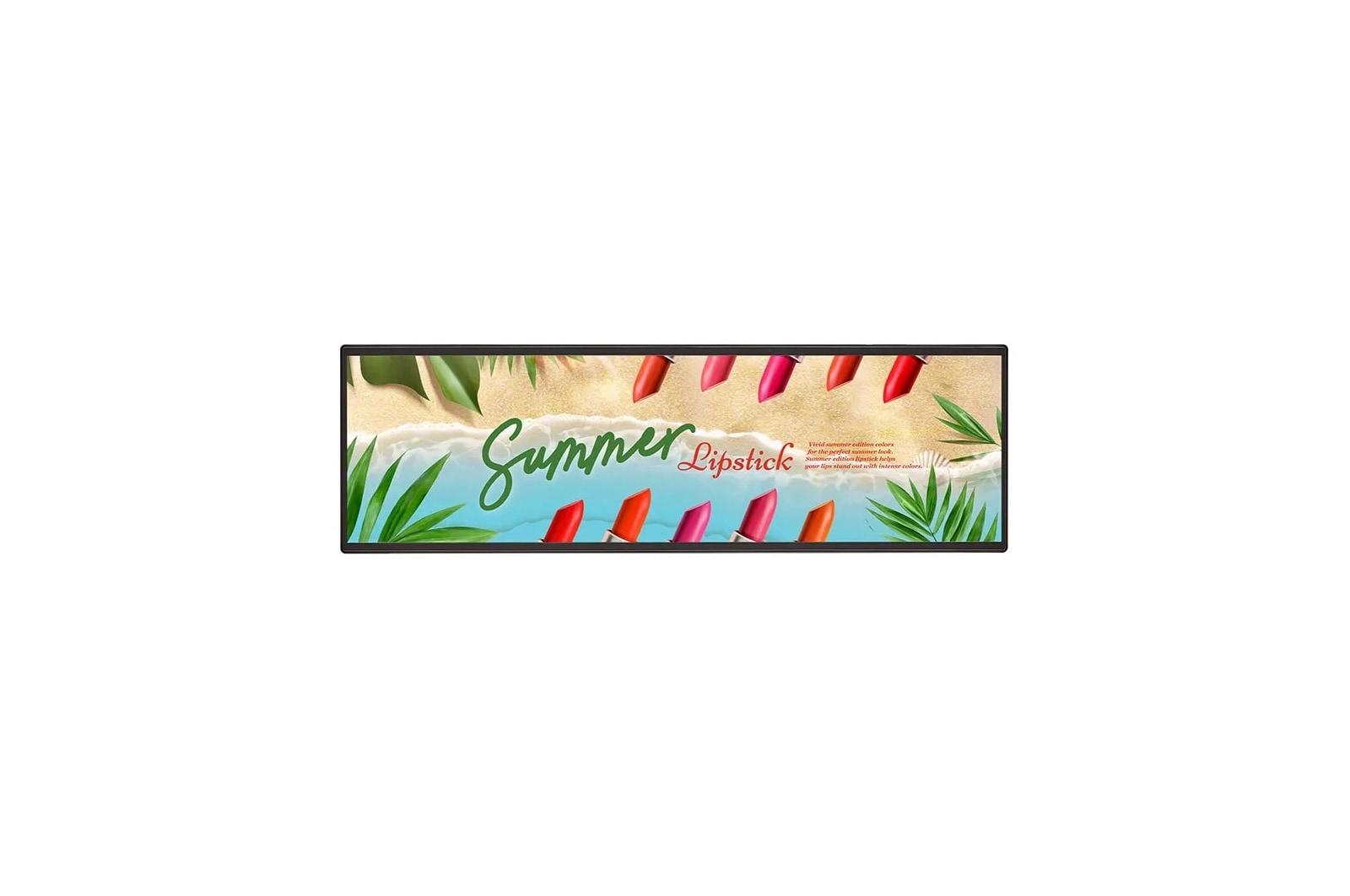

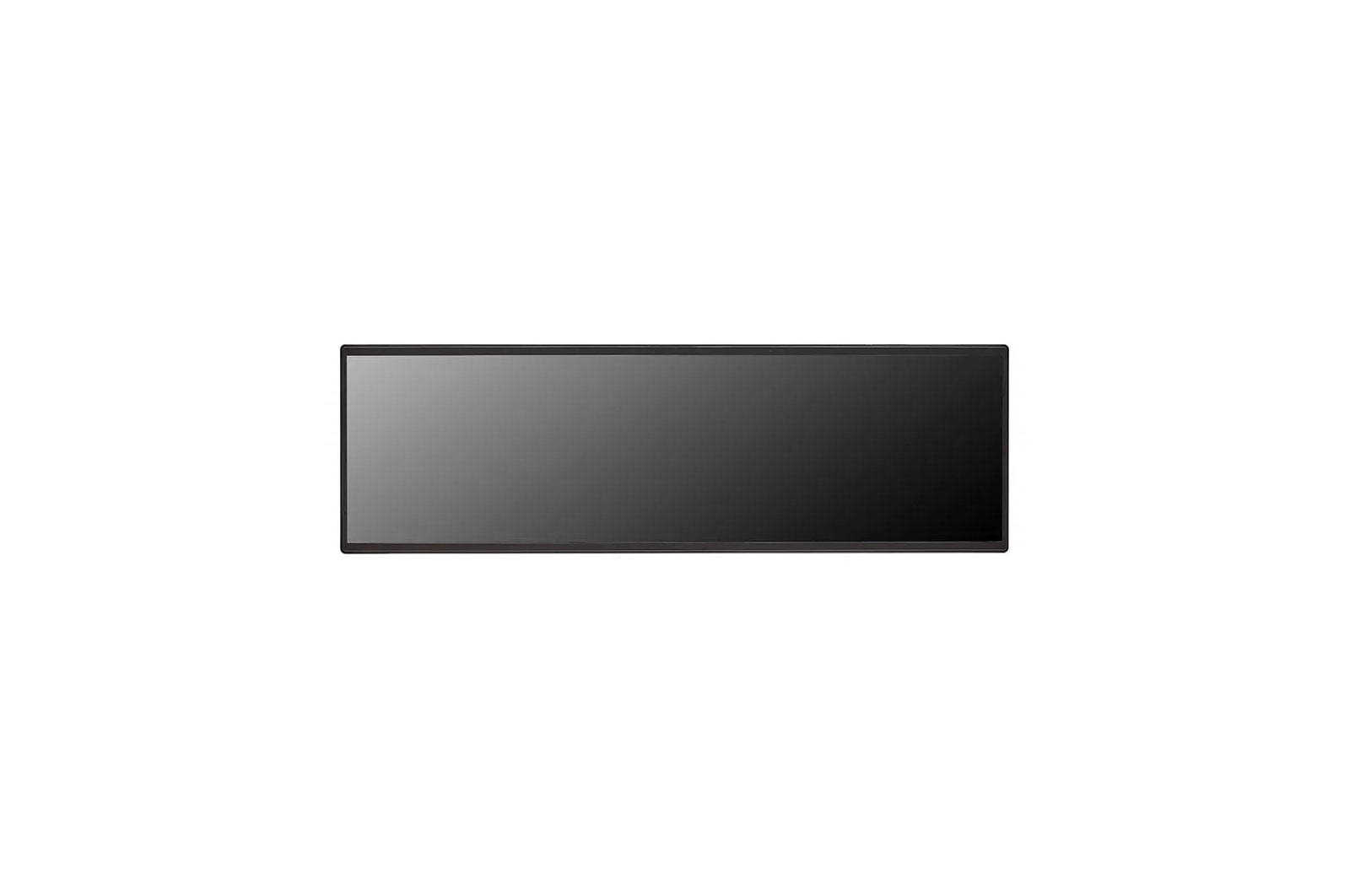

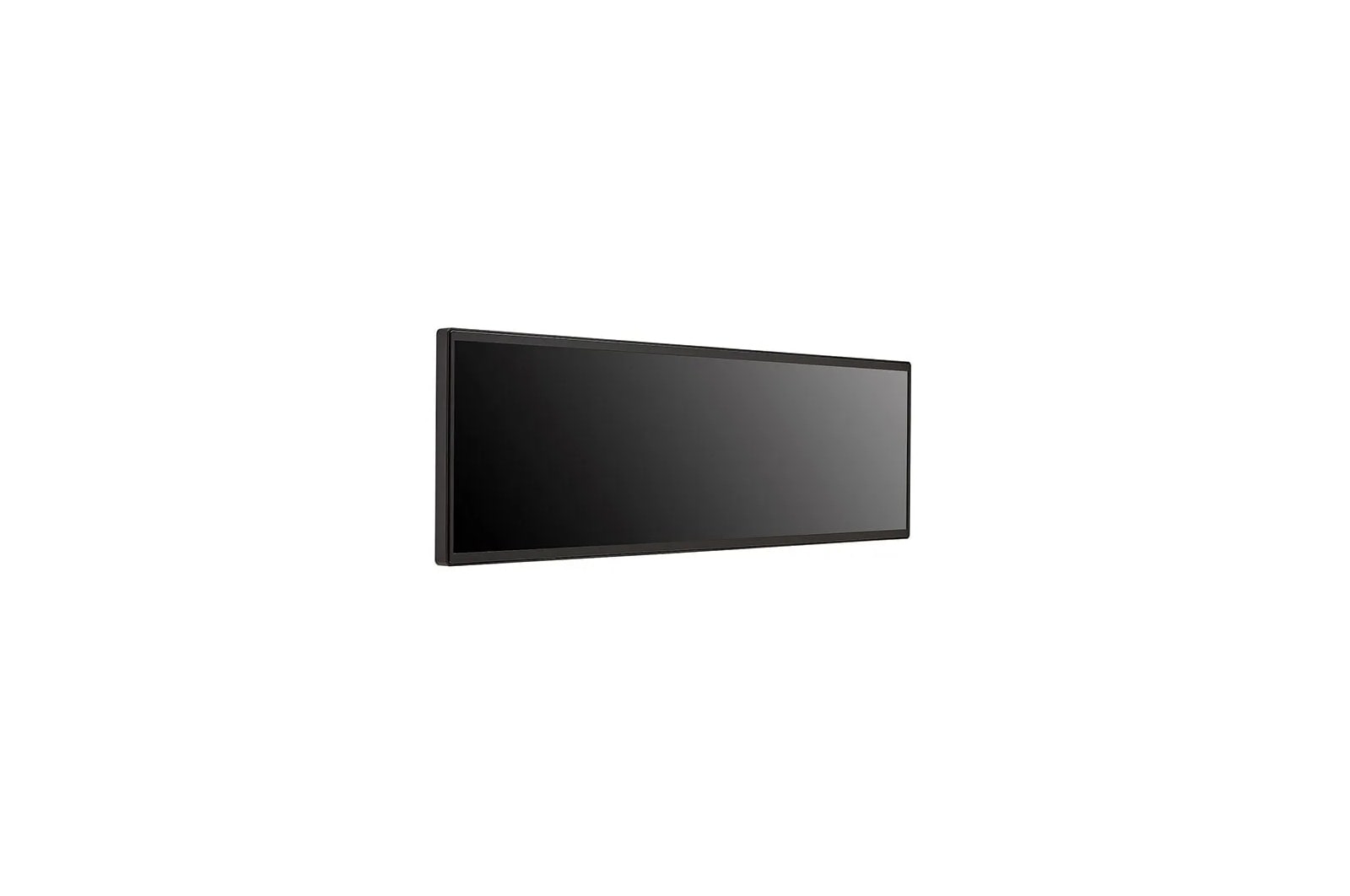

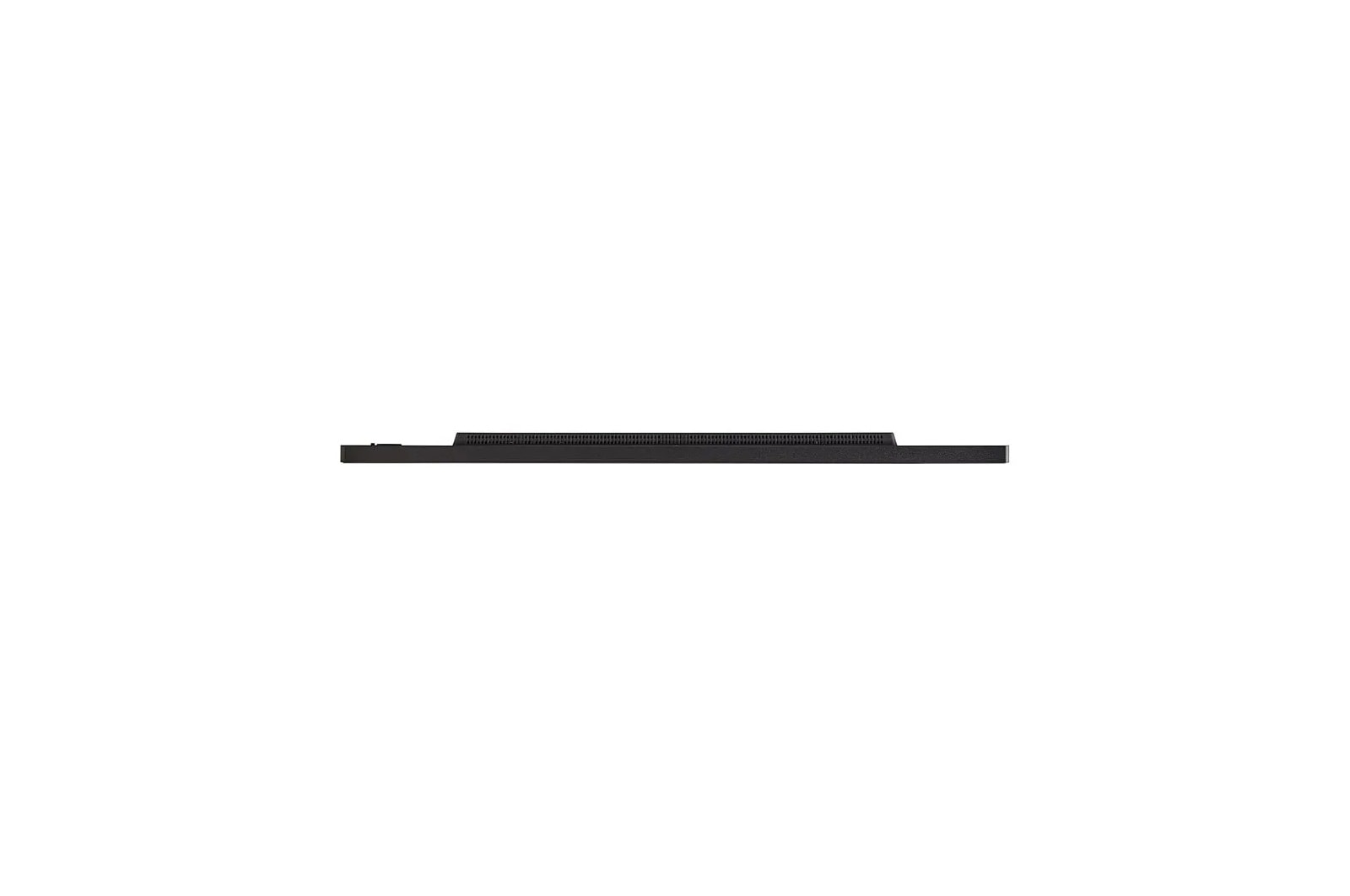

Lg 37BH7NH 37" FHD IPS (ADS) 32:9 Ultra Stretch Signage with 700 nits Brightness, webOS™ 6.0, & 30(degree) Tilt

Item Not Available

Check Delivery:

37" FHD (1,920x540) IPS (ADS) with 32:9 Aspect Ratio
700 nits Brightness, 30(degree) tilt with 178(degree) x 178(degree) Viewing Angles
webOS™ 6.0 Smart Signage Platform
Picture-by-Picture and and Portrait & Landscape Mode
Compatible with LG SuperSign Softwares
Lifetime upto 50,000 hours, 24/7

37" FHD IPS (ADS) 32:9 Ultra Stretch Signage with 700 nits Brightness, webOS™ 6.0, & 30(degree) Tilt

System
Operating System (OS)	webOS™ 6.0
Processor	No
Graphics	No
Storage	No
Internal Memory	16 GB (eMMC)
Electrical
Power Consumption (Max.)	50W
Power Supply	120 Vac, 50/60 Hz
Power Consumption (Power Off)	1W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	1W
BTU Heat Generation (Max.)	230 BTU
Power Consumption (Typ.)	40W

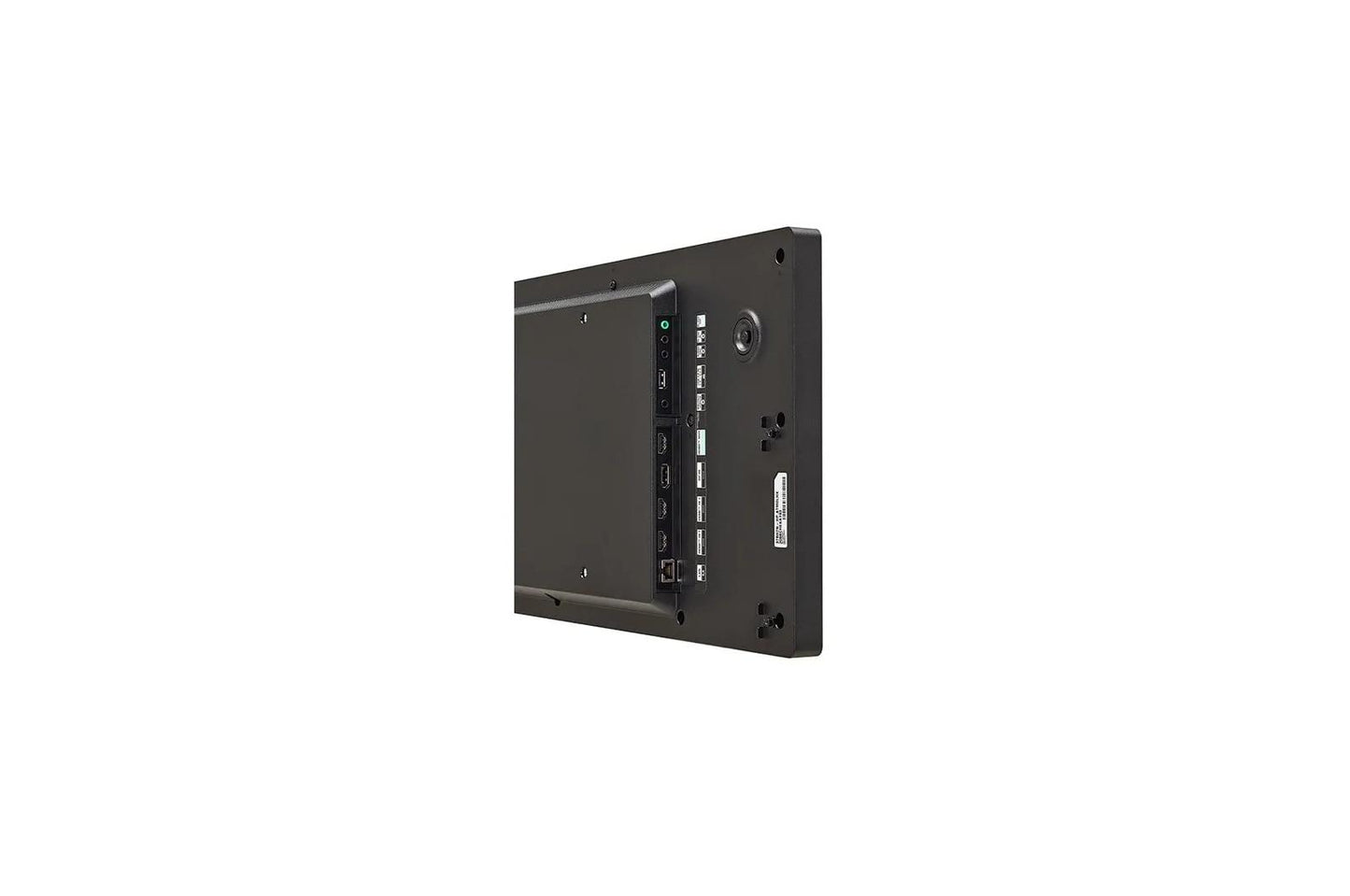

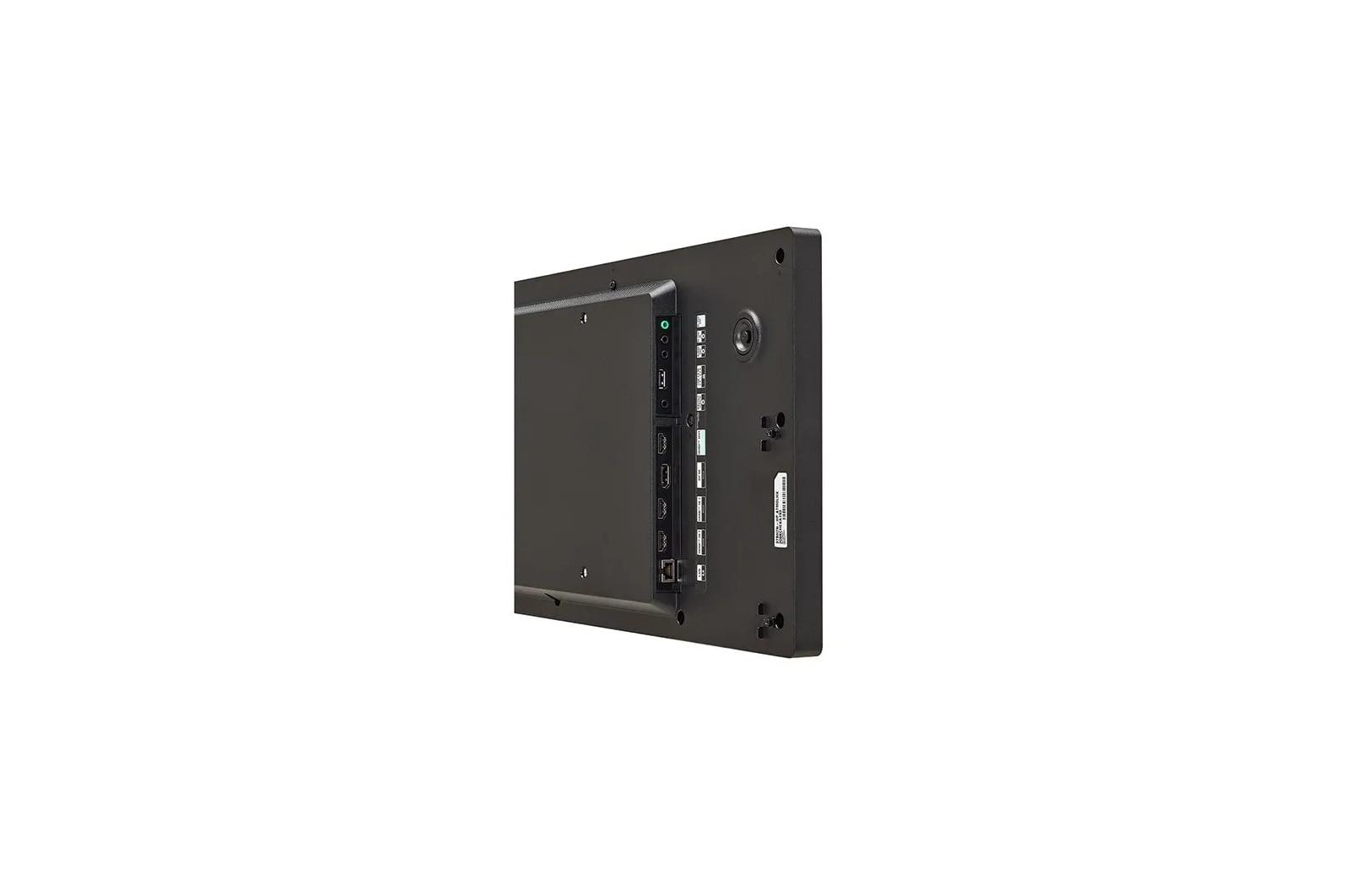

Connectivity
HDMI In	Yes (x2) HDMI1/2: HDCP 2.2/1.4
IR In (3.5 mm)	Yes
IR In (3.5 mm)	Yes
RGB In	Yes
DisplayPort In	Yes
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x1) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	Yes (x1)
Audio Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Bluetooth	No
Daisy Chain	Yes
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	37"
Panel Technology	IPS (ADS)
Backlight Type	Edge
Aspect Ratio	32:9
Native Resolution	1920 x 540 (FHD)
Refresh Rate	60 Hz
Brightness (Typ.)	700 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1100:1
Dynamic Contrast Ratio	1000000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	16.7 Million Colors, 8 bit
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	14 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	25%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	3H
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	No
Beacon	Yes
Play Via URL	No
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	Not Available
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	T: 15.6 mm, R/L: 9.3 mm, B: 15.6 mm
Tilt (Face Down)	Yes
Weight	15.4 lbs / 7 kg
Weight Signage Box	N/A
Weight with Stand	No
Shipping Weight	19.8 lbs / 9 kg
Dimensions (W x H x D)	36.3 x 11.4 x 1.7 in / 922.3 x 288.3 x 43.5 mm
Dimensions with Stand (W x H x D)	Not Available
Dimensions with Pemnut (W x H x D)	N/A
Dimensions Signage Box (W x H x D)	N/A
Conformal Coating (Power Board)	Yes

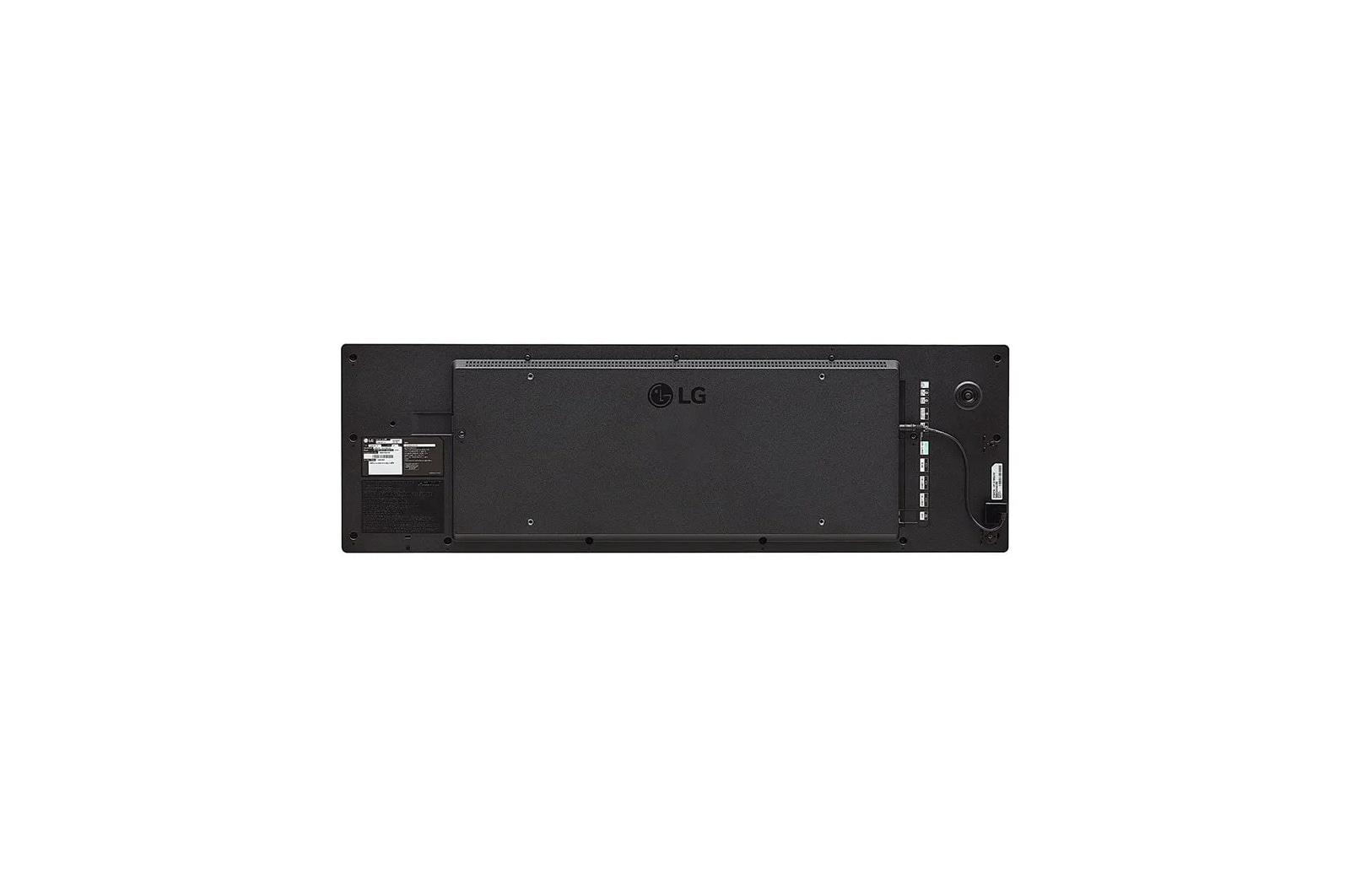

VESA™ Standard Mount Interface	400 x 200 mm
Overlay Touch Compatibility	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	No
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	South Korea
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
UPC	1 95174 06999 8
Basic Accessories (included)	Remote Controller, Power Cord (1.55 m), QSG, Regulation Book, Phone to RS-232C Gender, Power Cord Clip
Touch Panel
Available Object Size for Touch	No
Response Time (PC Win10, Education Mode)	No
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	No
Multi Touch Point (Max.)	No
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	No
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	No
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	Yes
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	Yes (2)
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (x4)
PM mode	Yes
Picture-in-Picture (PIP)	No
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	N/A
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
