LG 49UP5QE
Authorized Reseller

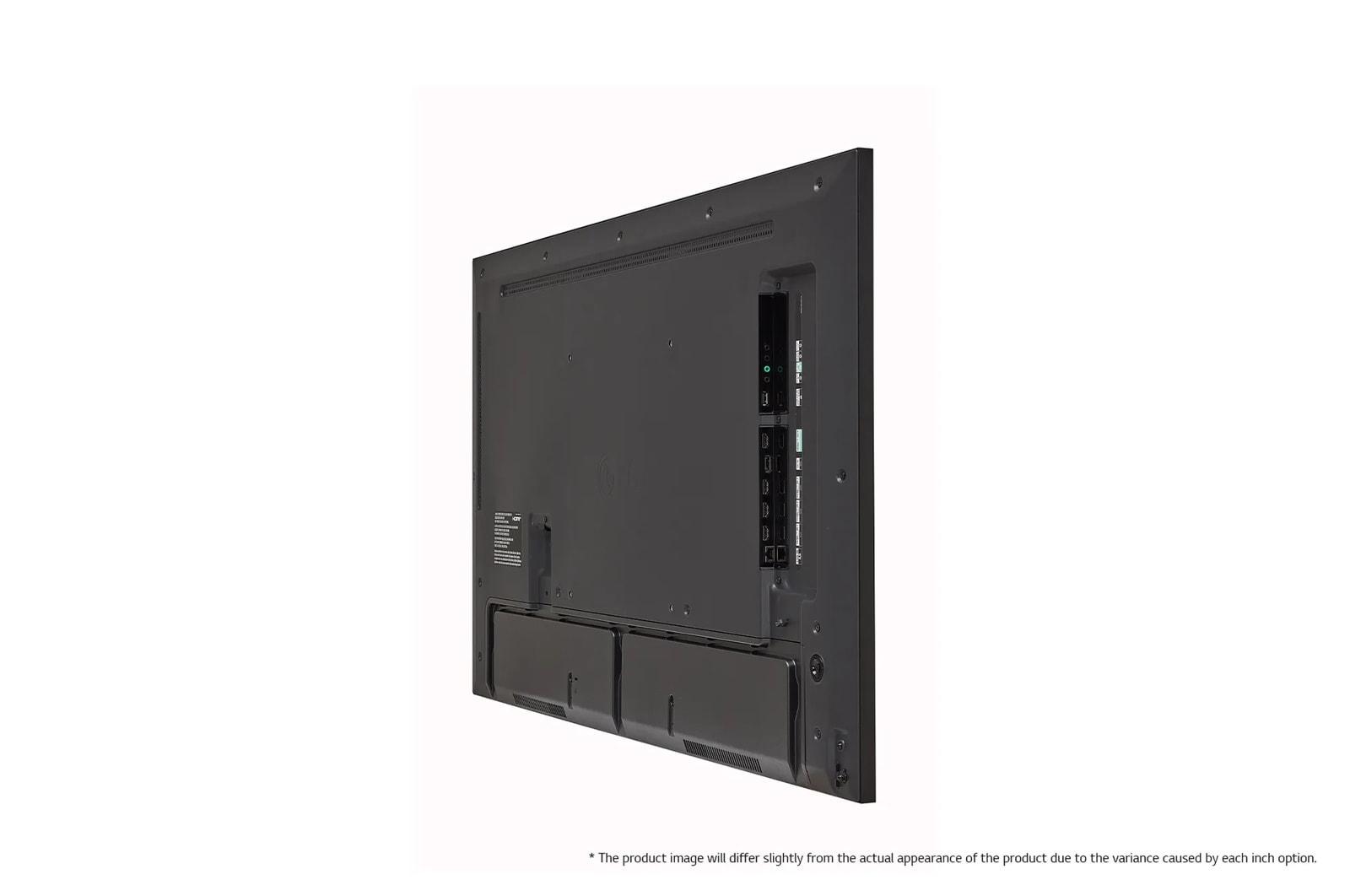

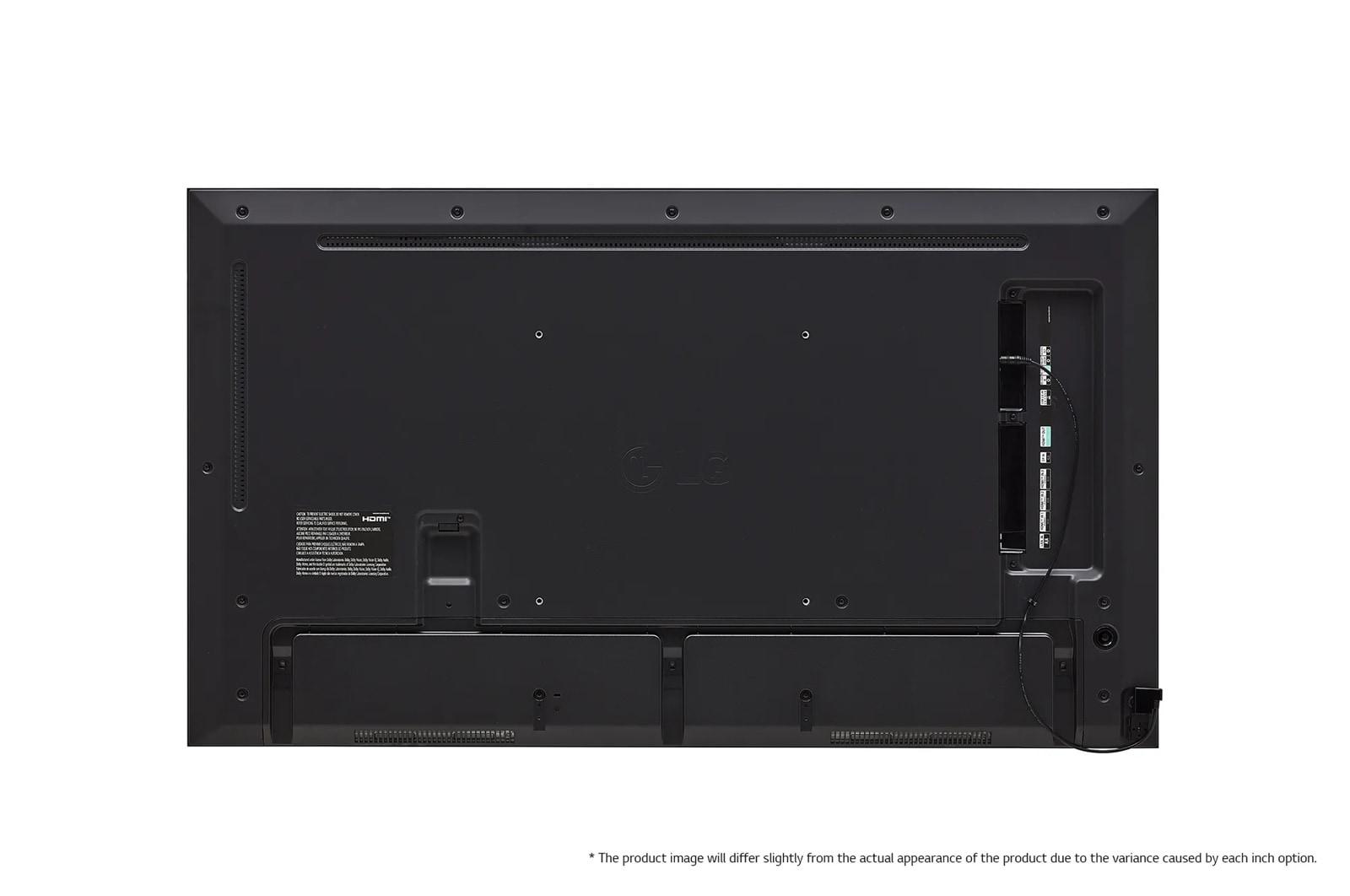

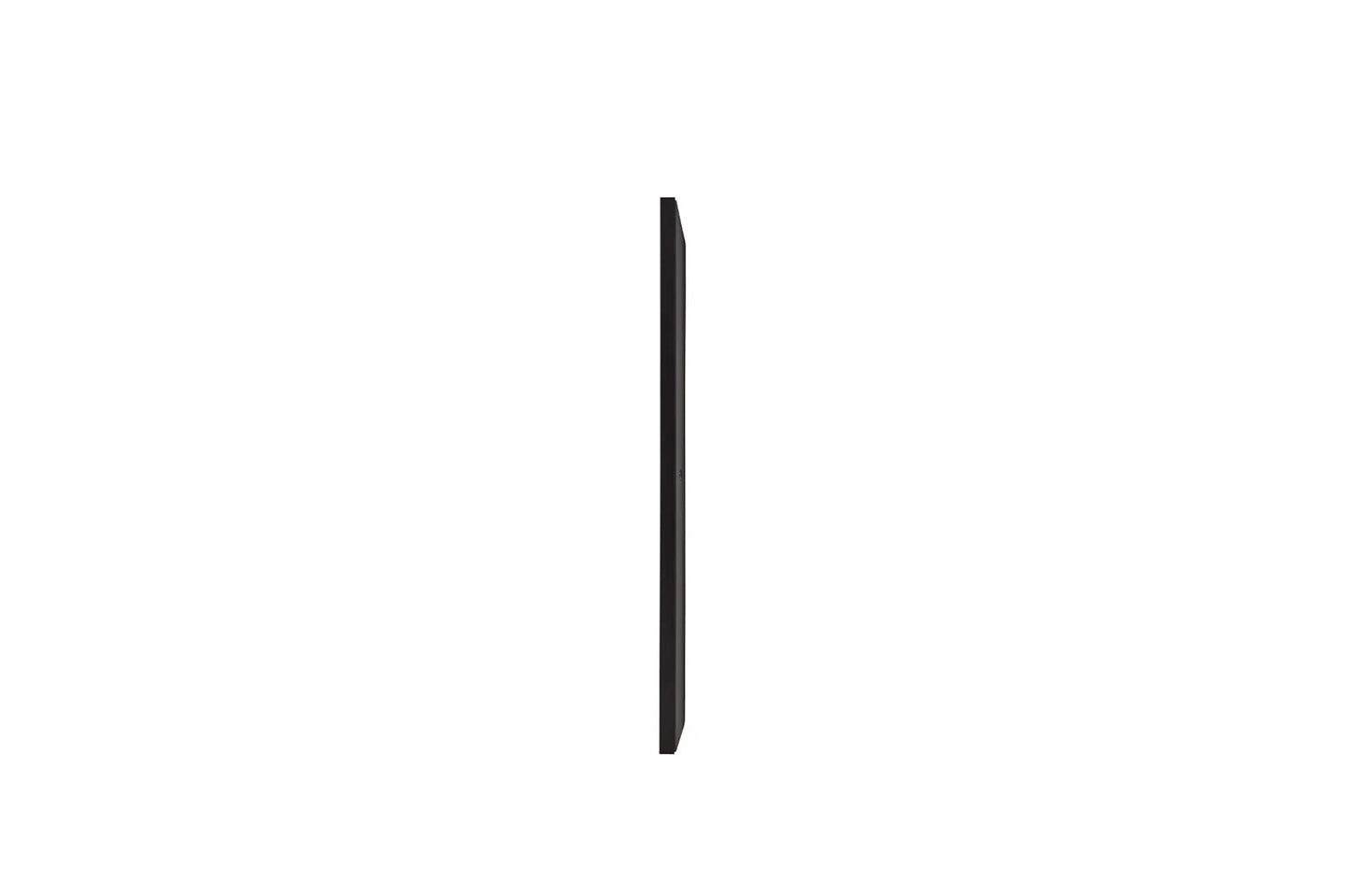

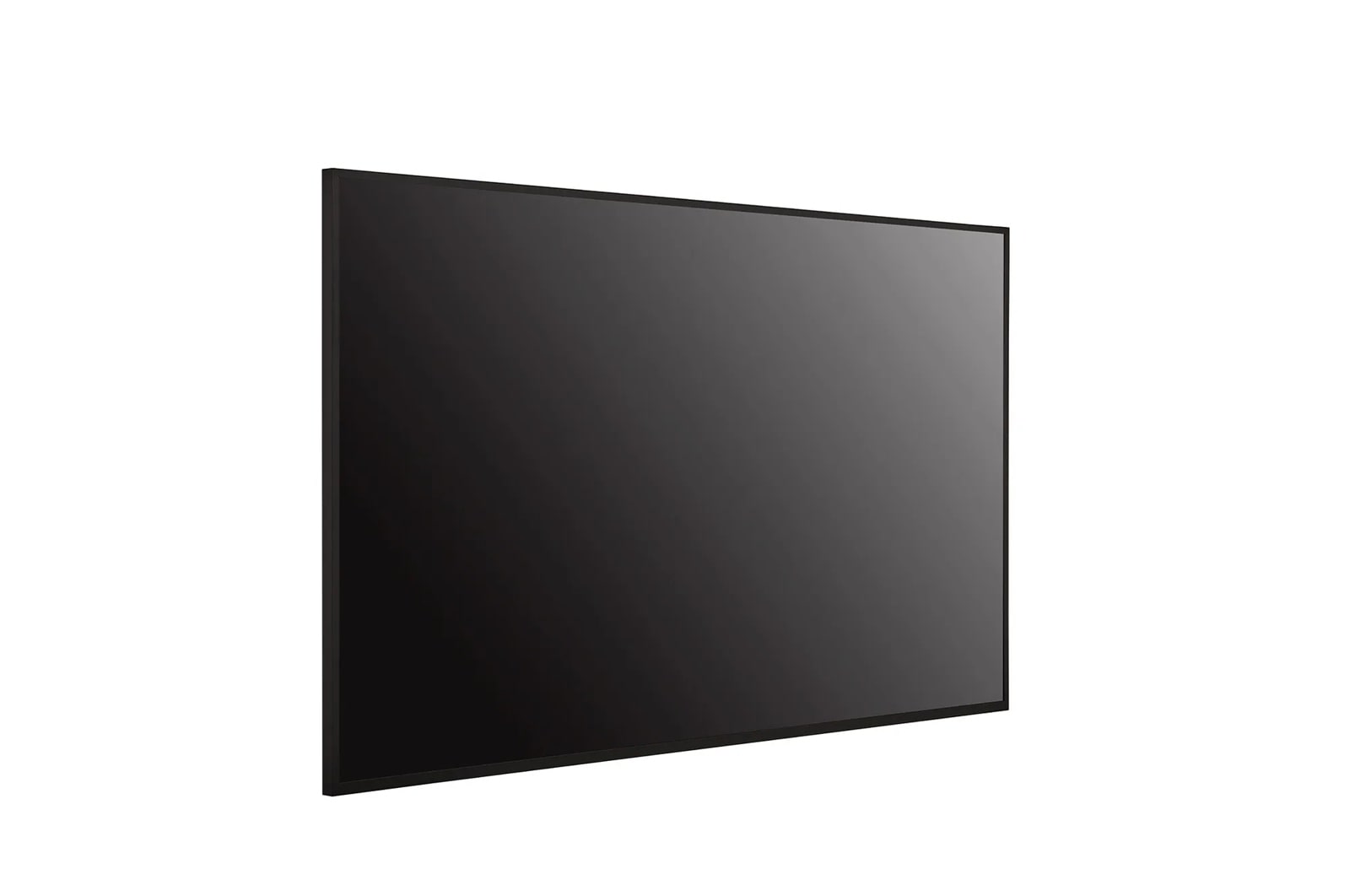

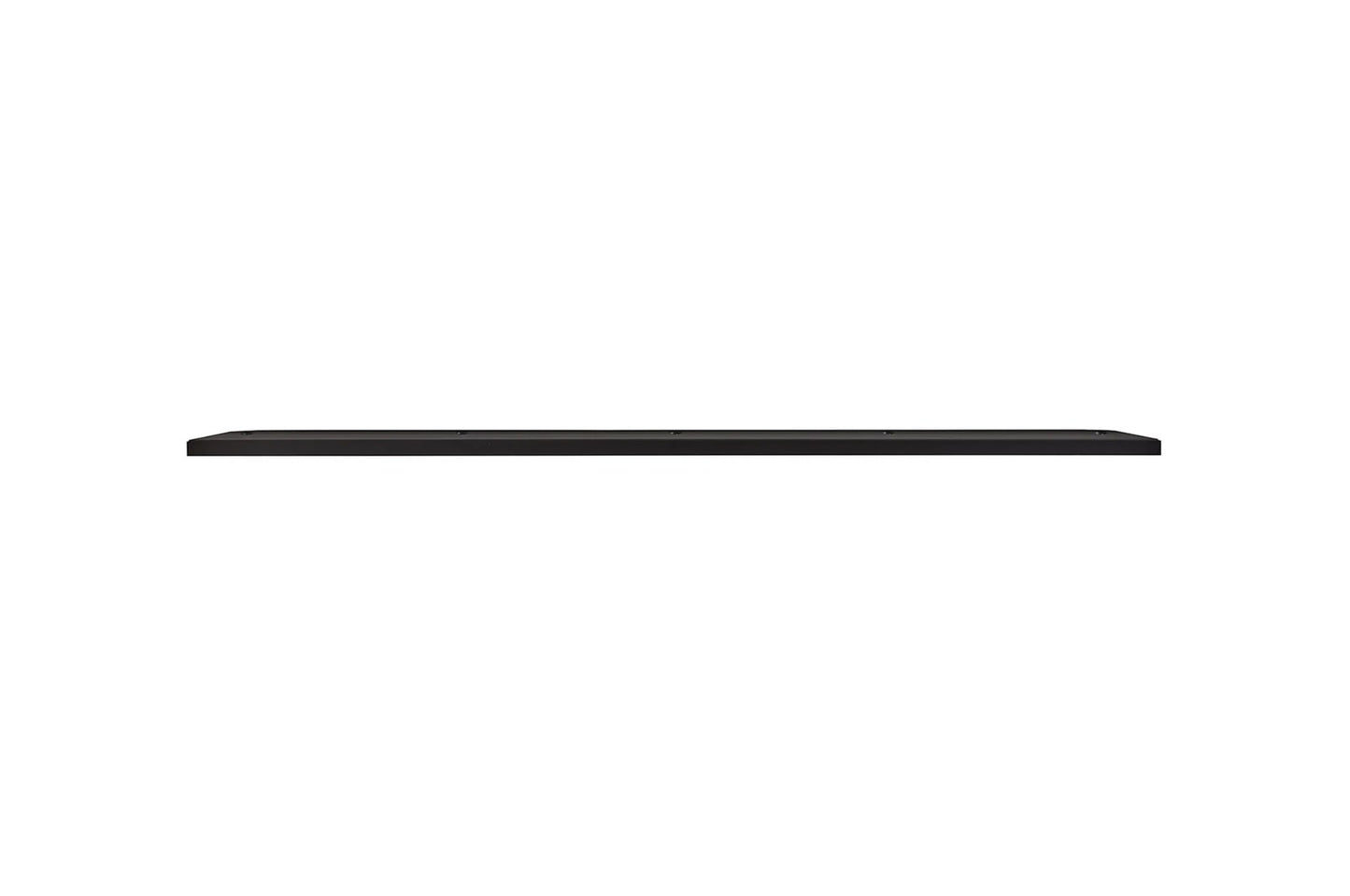

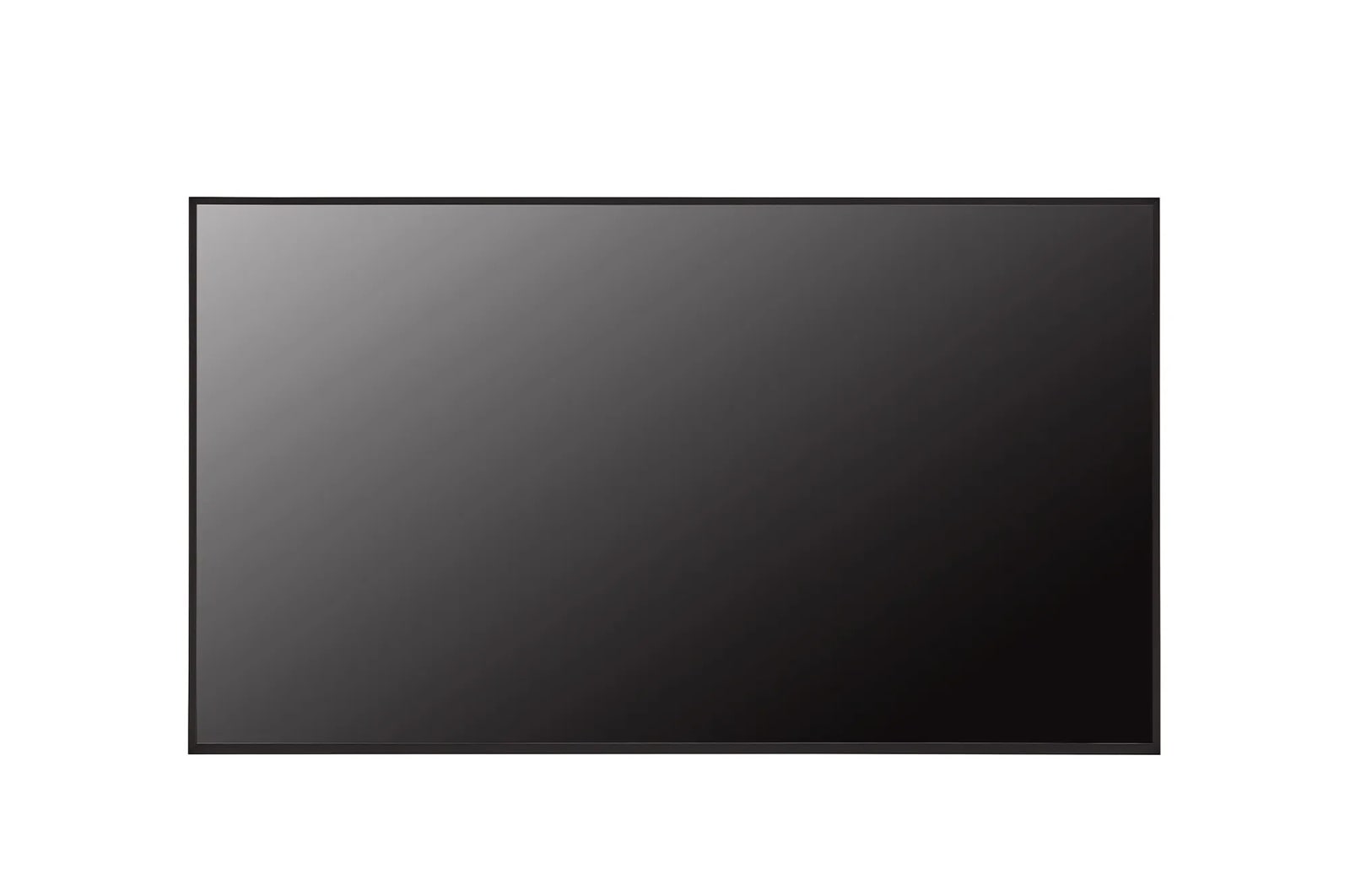

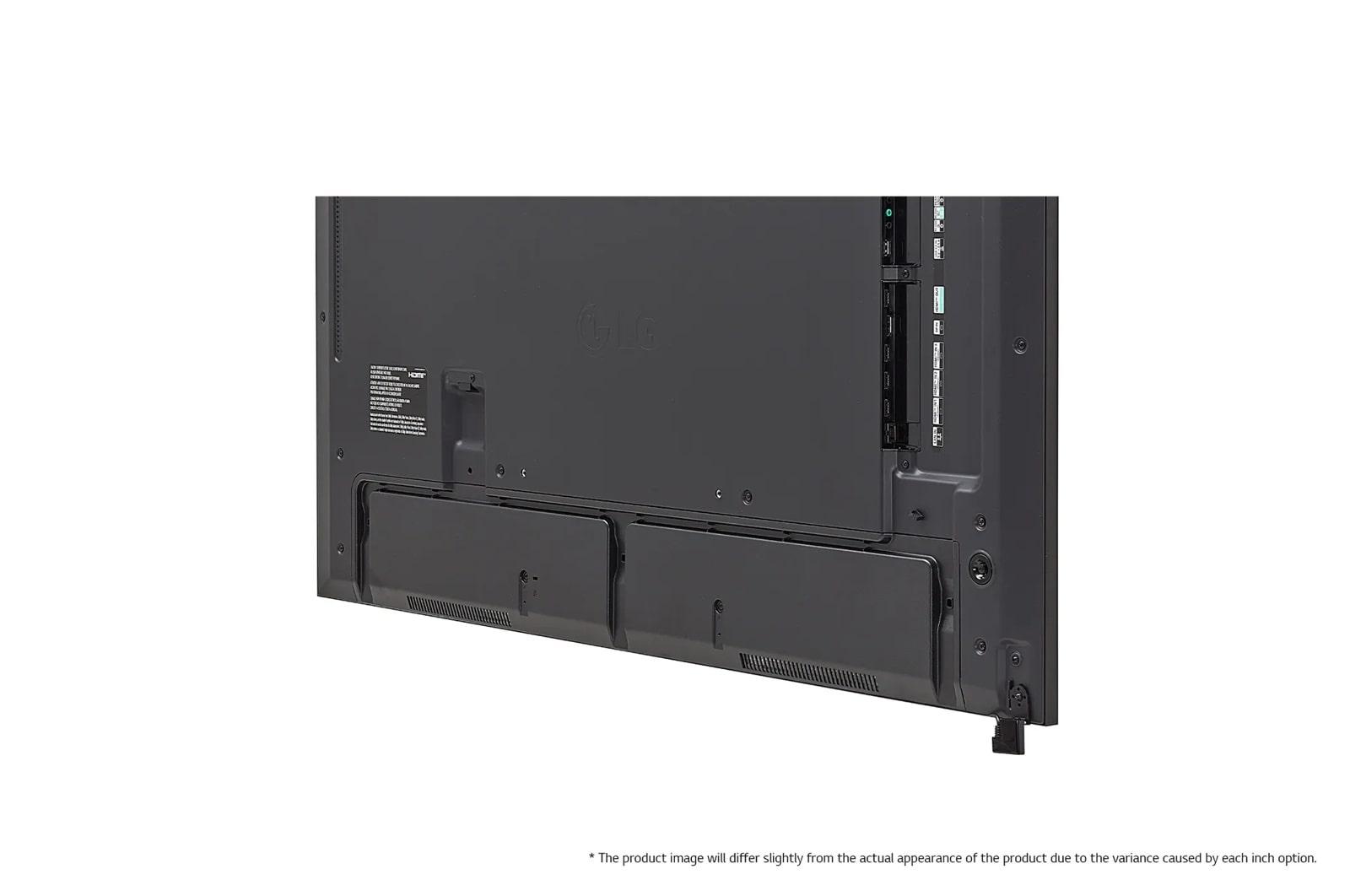

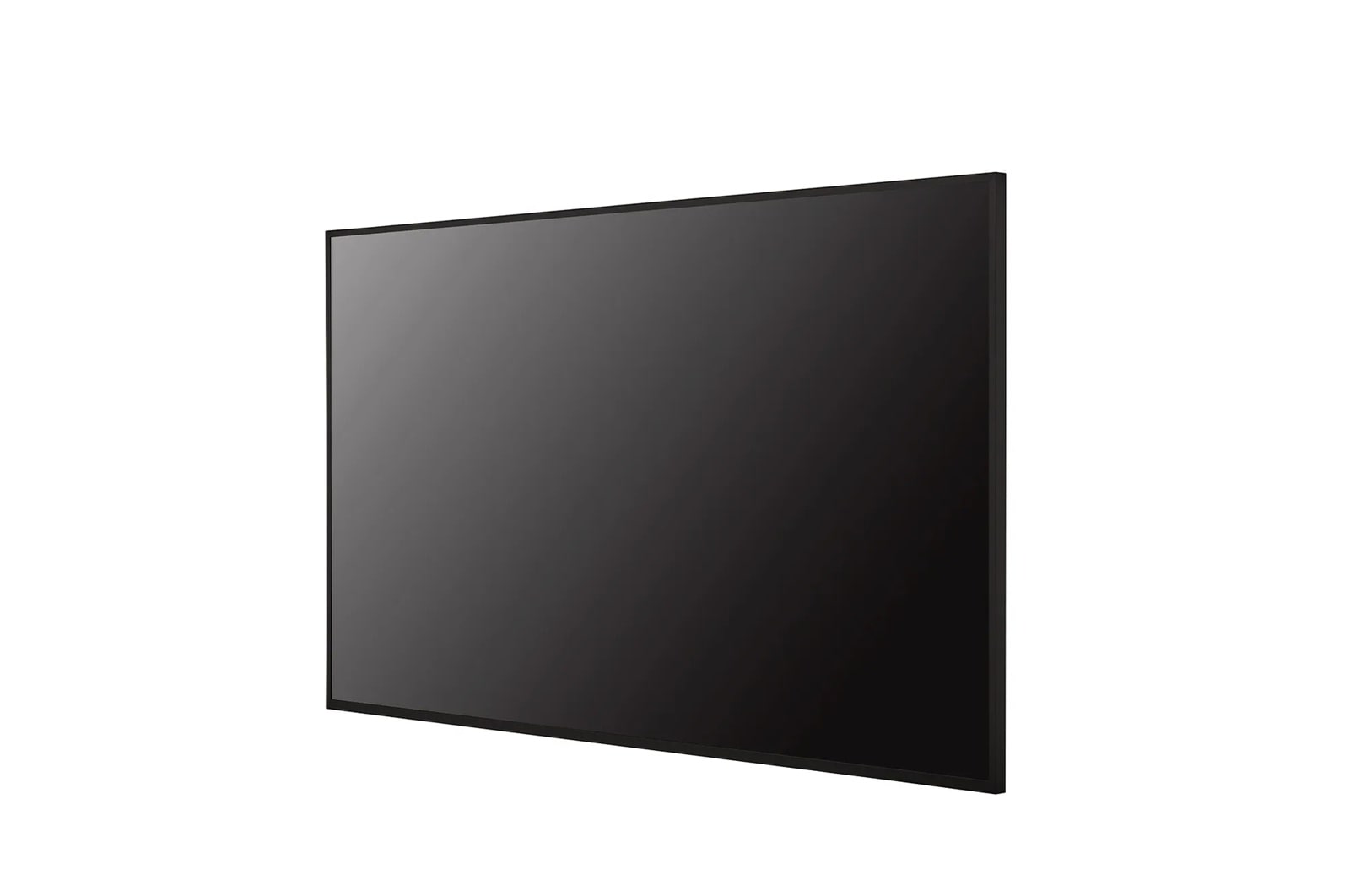

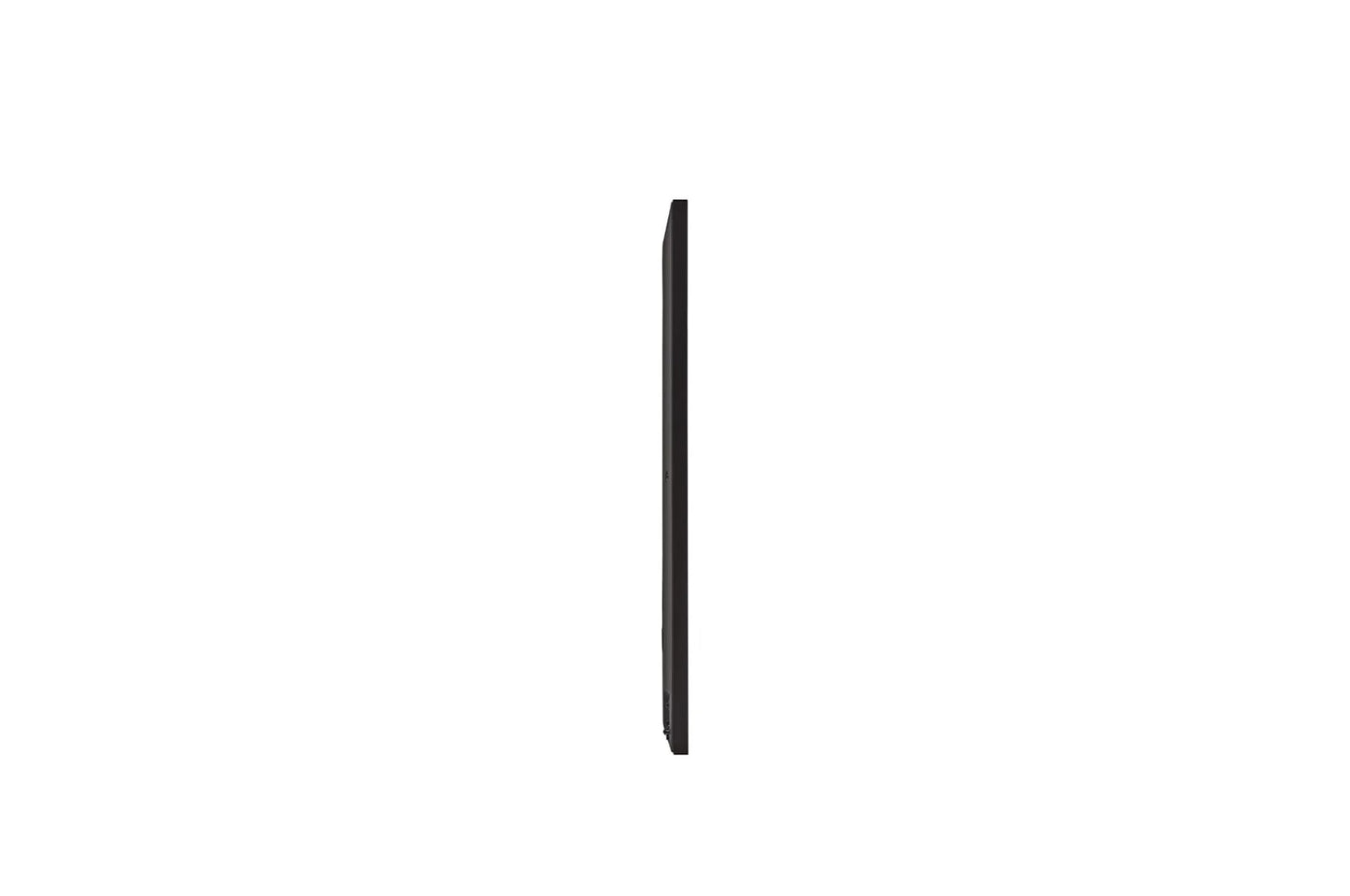

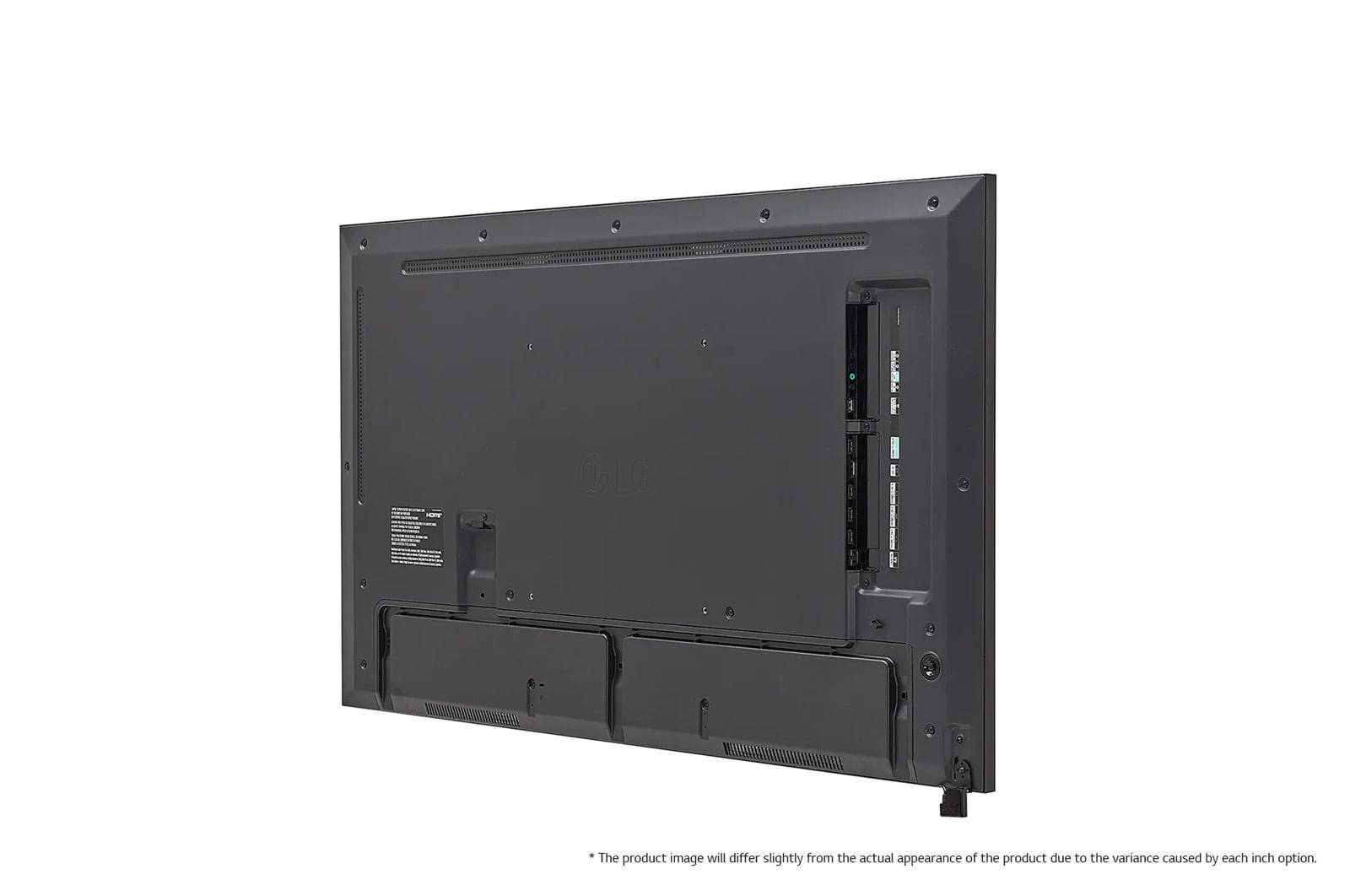

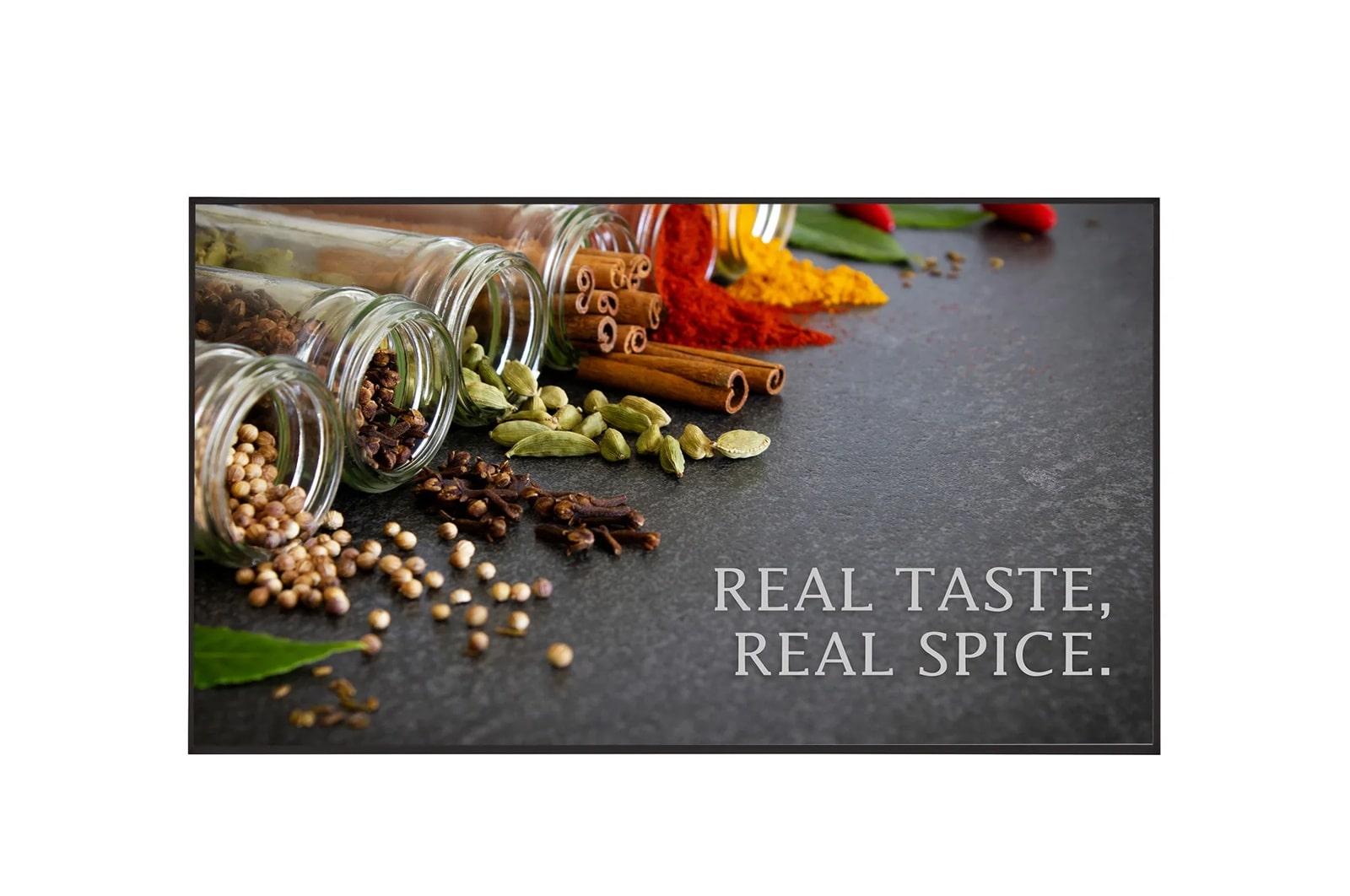

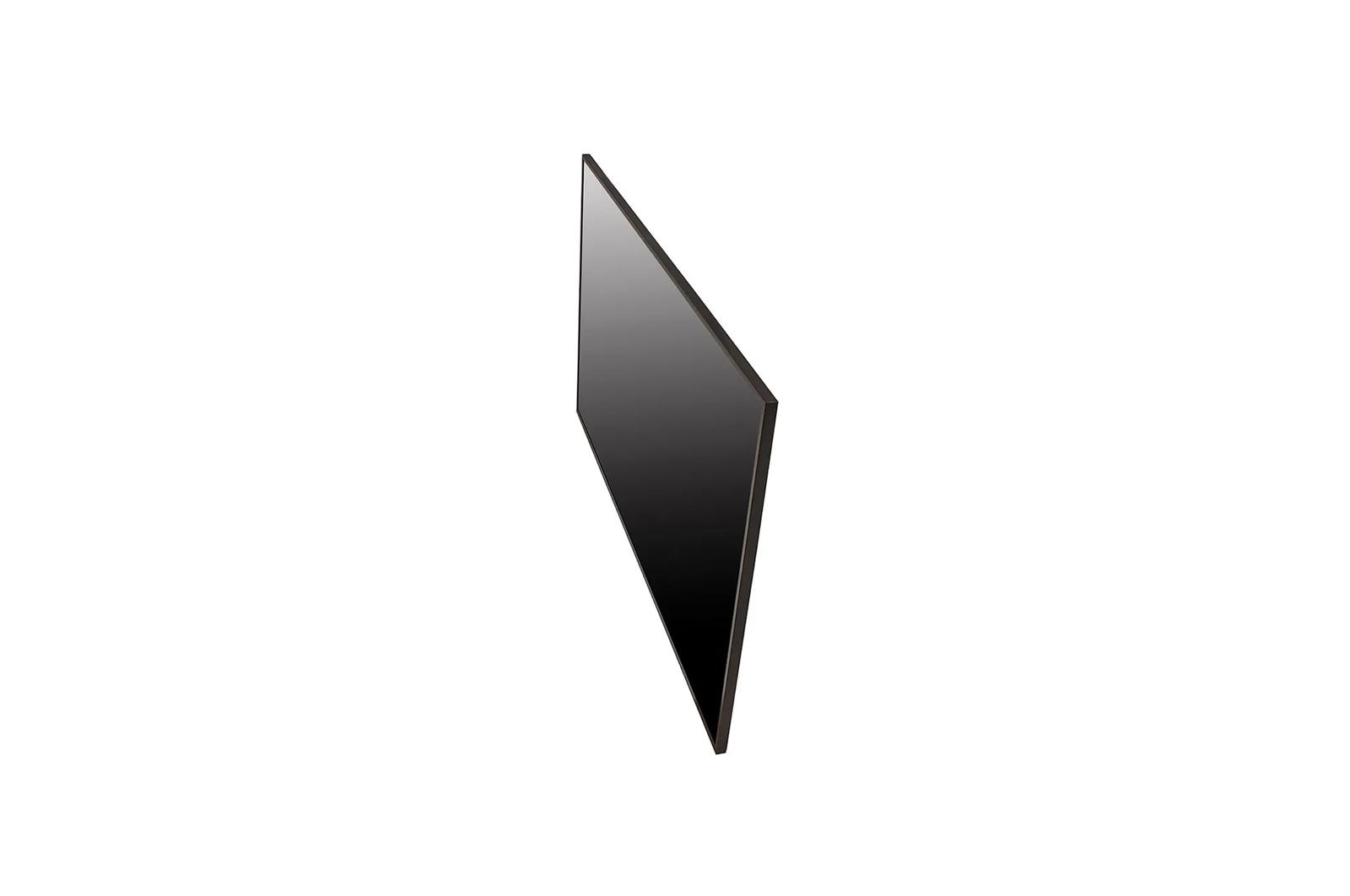

Lg 49UP5QE 49" UP5Q-E Series UHD Signage with webOS™, 500 nits Brightness, Conformal Coating, WiFi, SuperSign™ compatible
Lg 49UP5QE 49" UP5Q-E Series UHD Signage with webOS™, 500 nits Brightness, Conformal Coating, WiFi, SuperSign™ compatible
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Resolution : 3,840 x 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 8.9 mm (T/R/L), 2.9 mm
- Surface Treatment (Haze) : 28%
49" UP5Q-E Series UHD Signage with webOS™, 500 nits Brightness, Conformal Coating, WiFi, SuperSign™ compatible
| System | |
| Operating System (OS) | webOS™ 8.0 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 32 GB |
| Electrical | |
| Power Consumption (Max.) | 140W |
| Power Supply | AC 100-240V~, 50/60 Hz |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 61 W |
| BTU Heat Generation (Max.) | 478 BTU/Hr |
| BTU Heat Generation (Typ.) | 297 BTU/Hr |
| Power Consumption (Typ.) | 87 W |
| Connectivity | |
| HDMI In | Yes (x3) HDCP2.2/1.4 |
| IR In (3.5 mm) | Yes (x1) |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 2.2/1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | No |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | No |
| IR Out | No (Support IR daisy chain via RS-232C In/Out) |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | No |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 49" |
| Panel Technology | IPS |
| Backlight Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Color Gamut | BT709 95% |
| Color Depth (Number of Colors) | 10 bit (D), 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 28% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | Up to 50,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Crestron Certified Compatibility | Yes |
| Beacon | Yes |
| Play Via URL | Yes |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/R/L: 8.9mm |
| Bezel Width (On Bezel) | B: 12.9mm |
| Bezel Width (Off Bezel) | Not Available |
| Tilt (Face Down) | Yes (Max 30 degree, 40 C temperature) |
| Tilt (Face Up) | No |
| Weight | Not Available |
| Weight Signage Box | 29.98 lbs / 13.6 kg |
| Weight with Stand | Not Available |
| Shipping Weight | 35.49 lbs / 16.1 kg |
| Dimensions (W x H x D) | Not Available |
| Dimensions with Stand (W x H x D) | Not Available |
| Dimensions with Pemnut (W x H x D) | Not Available |
| Dimensions Signage Box (W x H x D) | 43.13 x 24.83 x 1.16 in / 1,095.6 x 630.8 x 29.7mm (without IR) |
| Shipping Dimensions (W x H x D) | 47.83 x 28.97 x 5.98 in / 1,215.0 x 736.0 x 152.0mm |
| Conformal Coating (Power Board) | Yes (Partial) |
| Handle | No |
| VESA™ Standard Mount Interface | 300 x 300 mm |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | Yes |
| FCC (Regulatory) | EMC Class B |
| IP Rating (Solid / Liquid Ingress) | IP5X |
| TAA Compliance | No |
| CE Marking (Regulatory) | No |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | Yes |
| Warranty & Other | |
| Assembled In | Mexico |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Simplified, Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Spanish, Swedish, T rk e |
| Optional Accessories | Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) |
| UPC | 195174125878 |
| Basic Accessories (included) | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA) |
| Touch Panel | |
| Available Object Size for Touch | No |
| Response Time (PC Win10, Education Mode) | No |
| Touch Response Time (G to G) | No |
| Writing Height | No |
| Accuracy (Typ.) | No |
| Interface | No |
| Active Pen Interface | No |
| Multi Touch Point (Max.) | No |
| Protection Glass Transmission | No |
| Protective Glass Thickness | No |
| Operating System Support | Not Available |
| Protective Glass | |
| Thickness | No |
| Degree of Protection | No |
| Tempered / Chemical Strengthening | No |
| Anti-Reflective | No |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | No |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | No |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | Yes |
| Hospitality Features | |
| Pro:Idiom® | Yes |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | Yes |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | Yes |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | Yes (4) |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | Yes |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (x6) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | No |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
