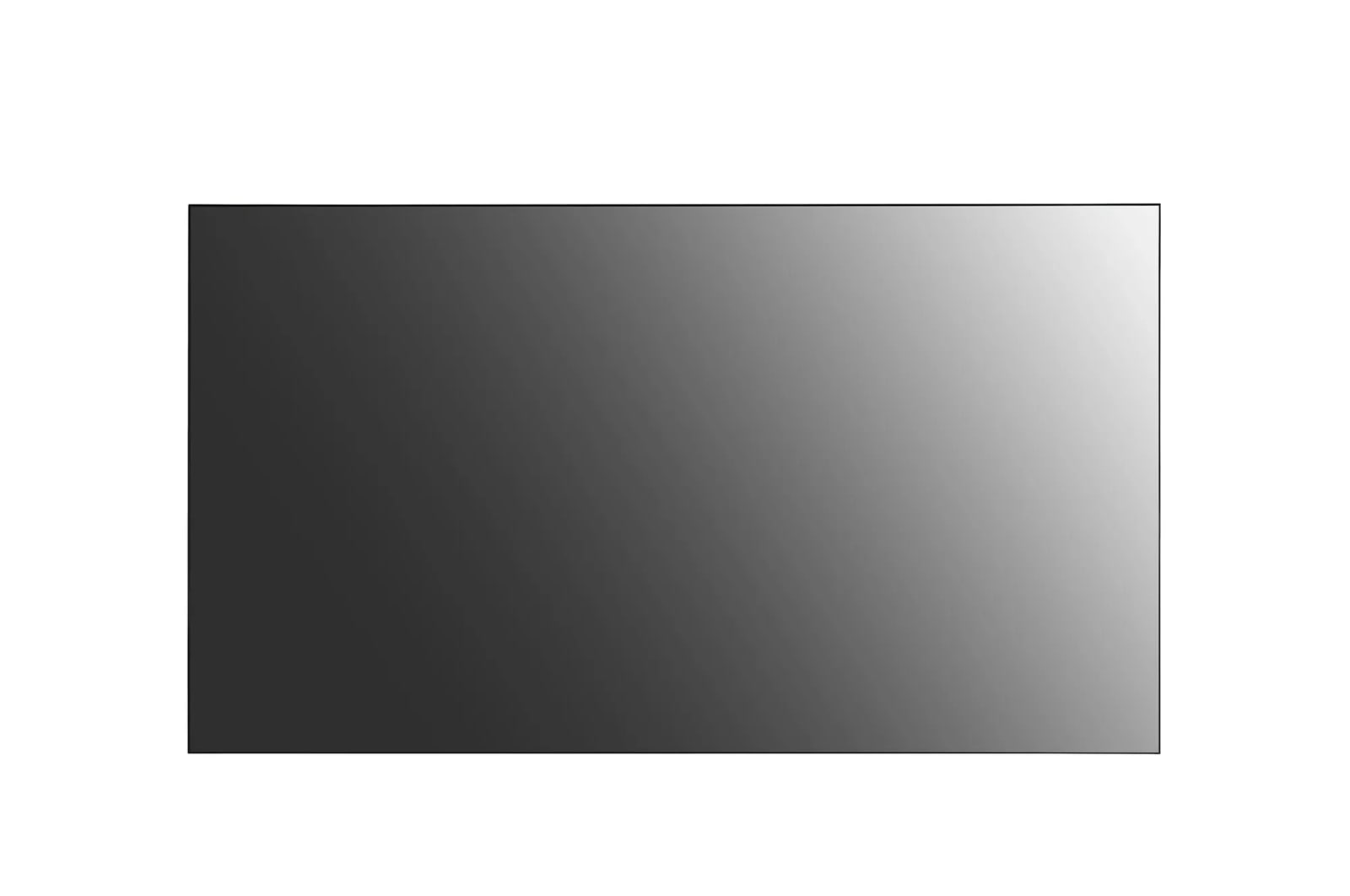

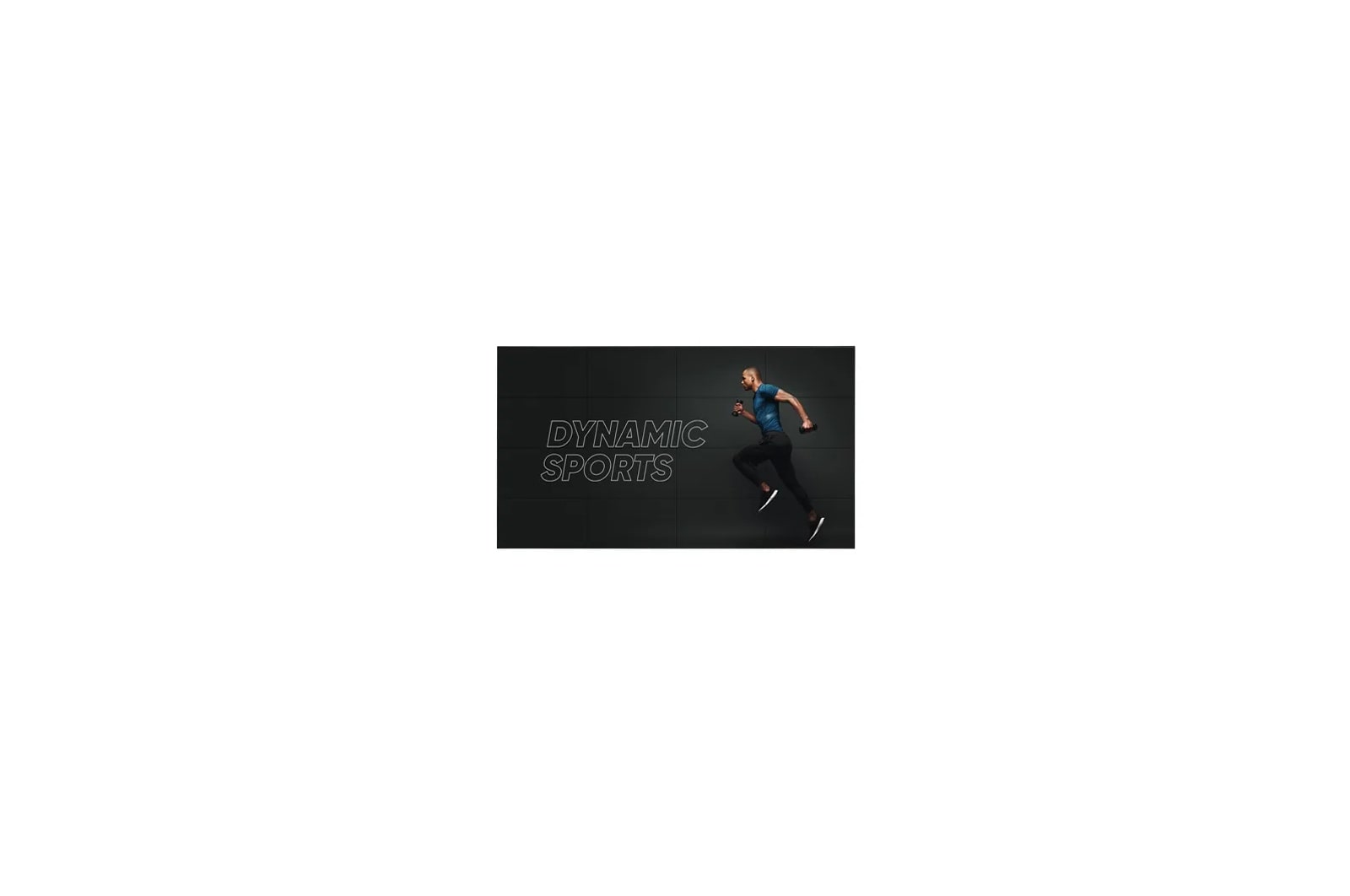

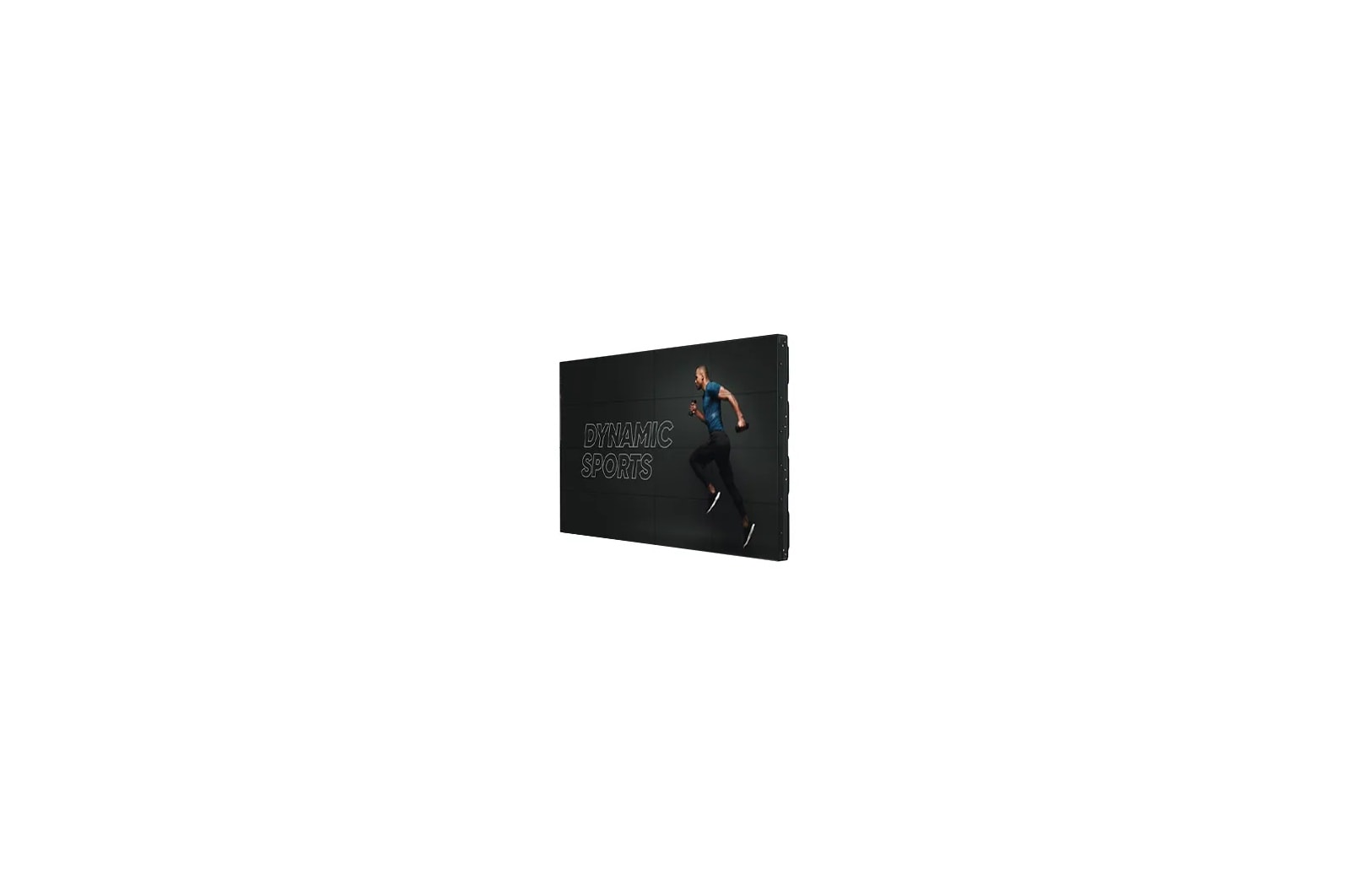

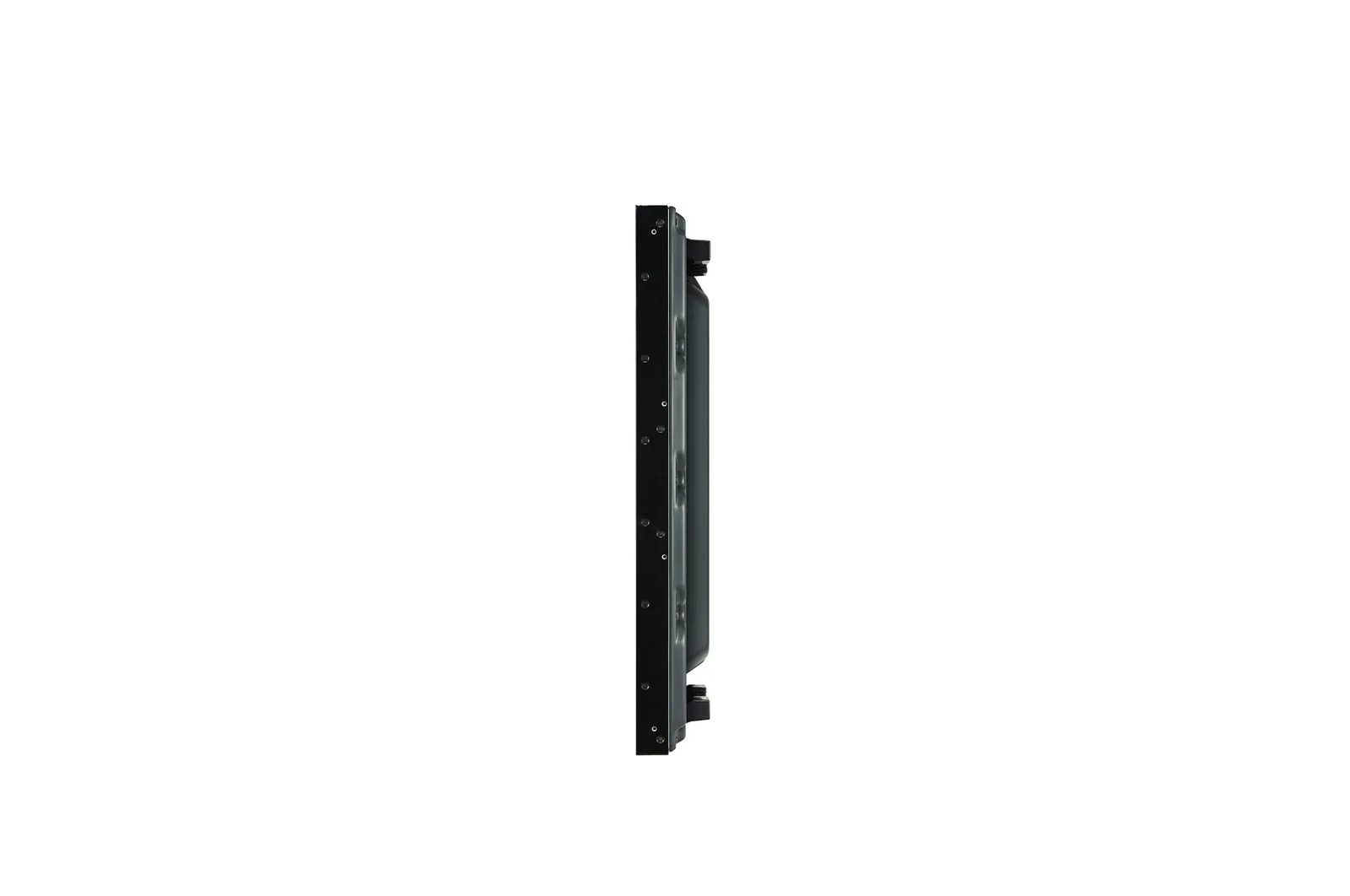

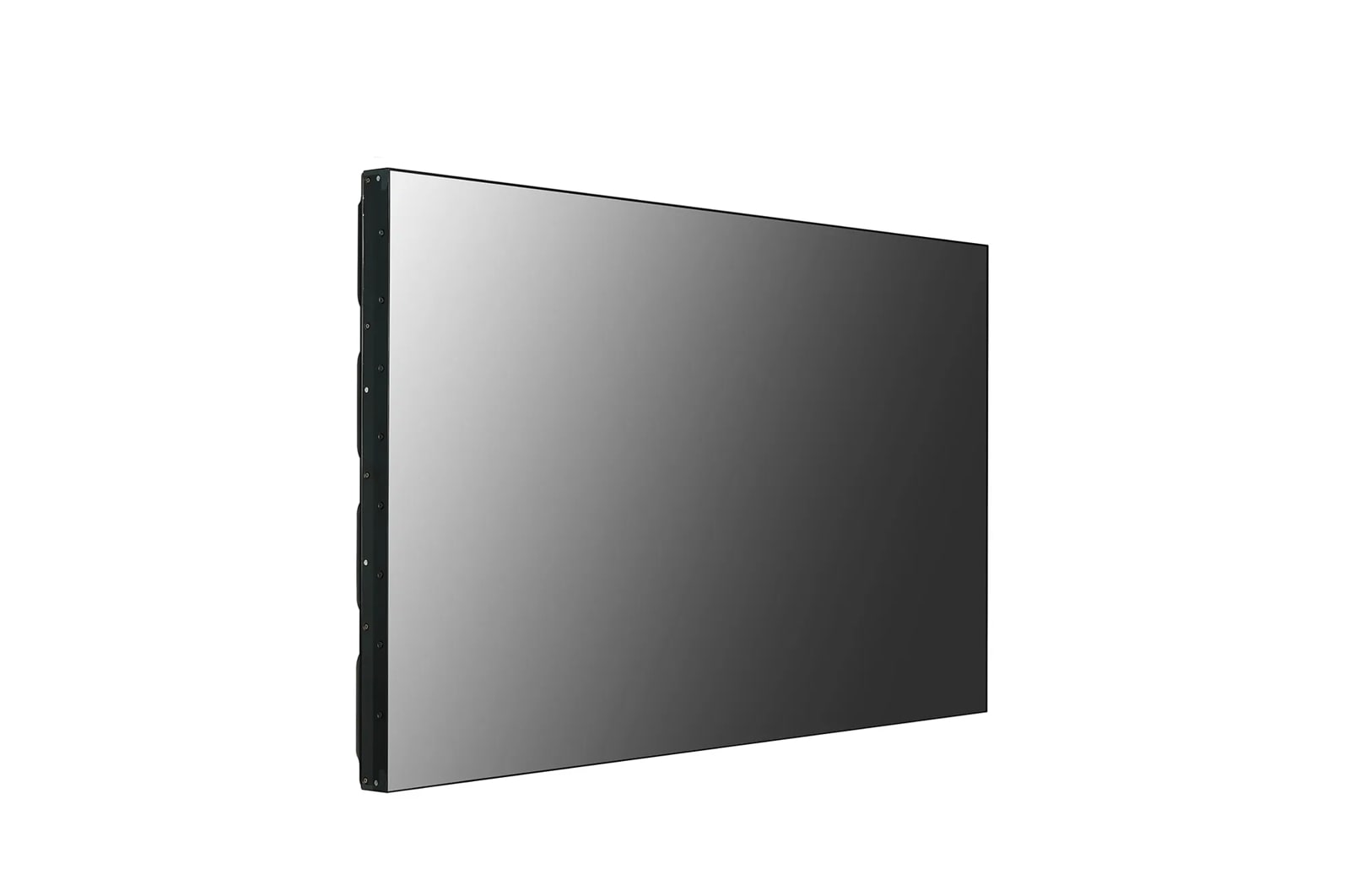

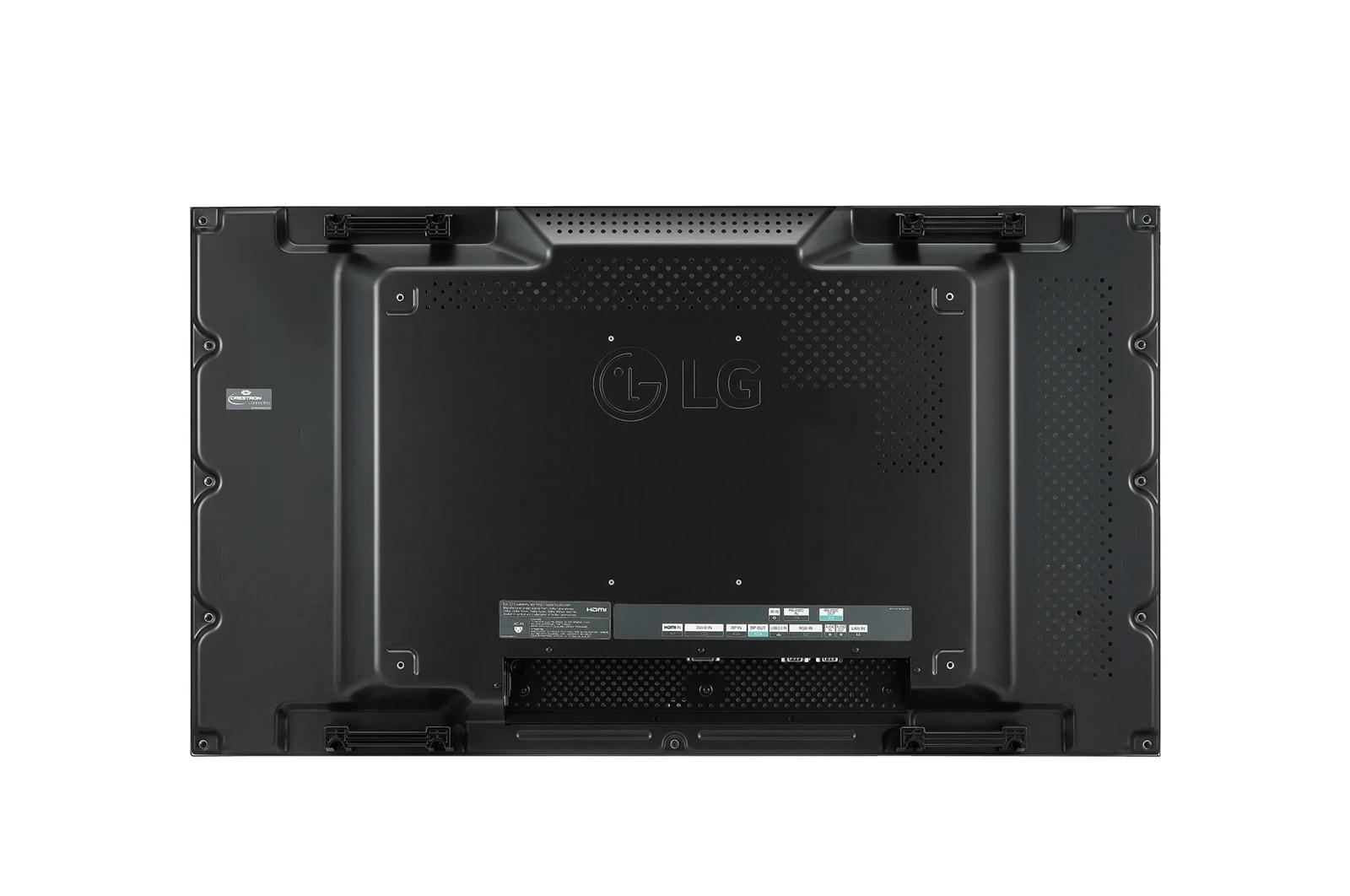

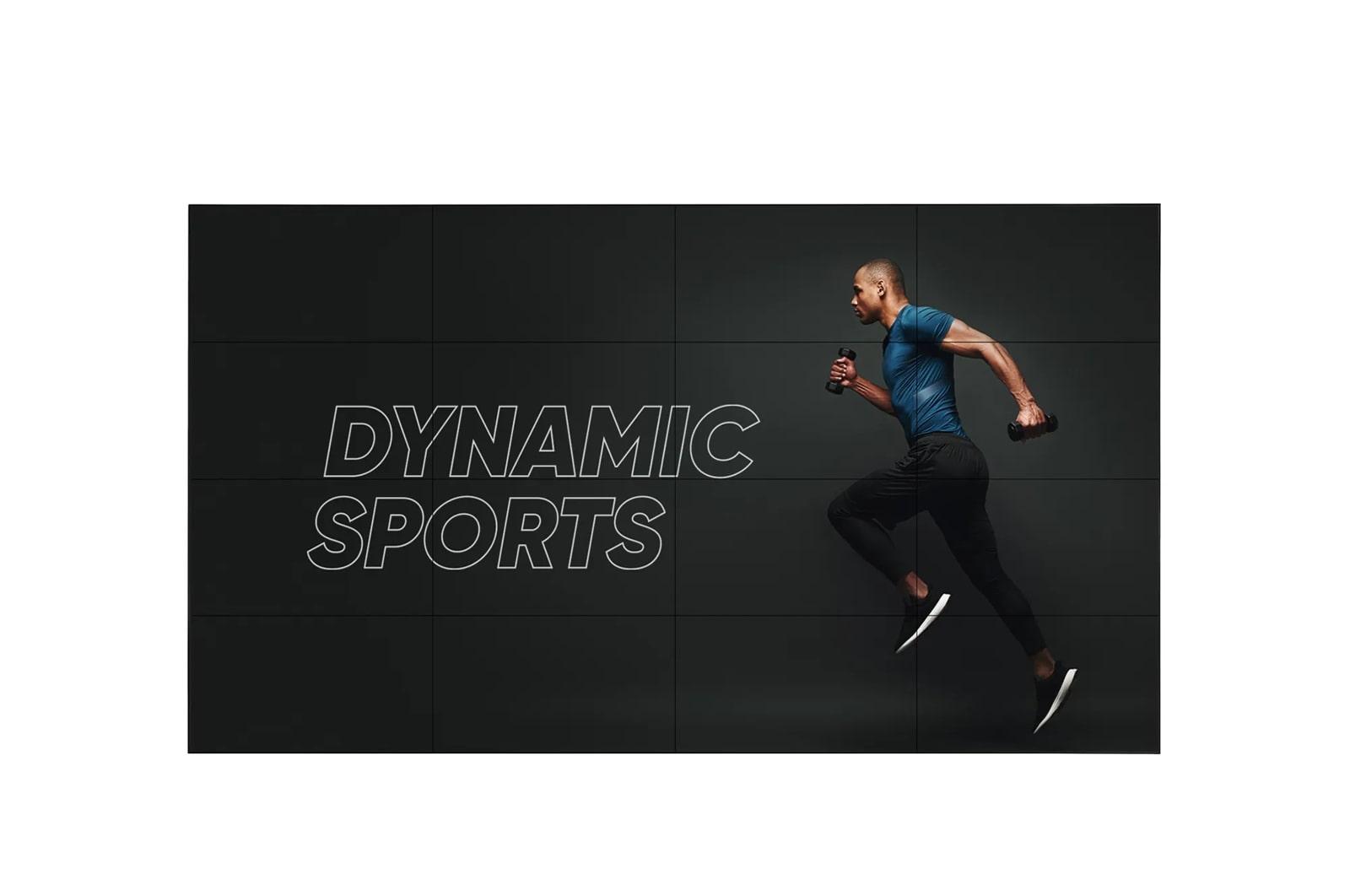

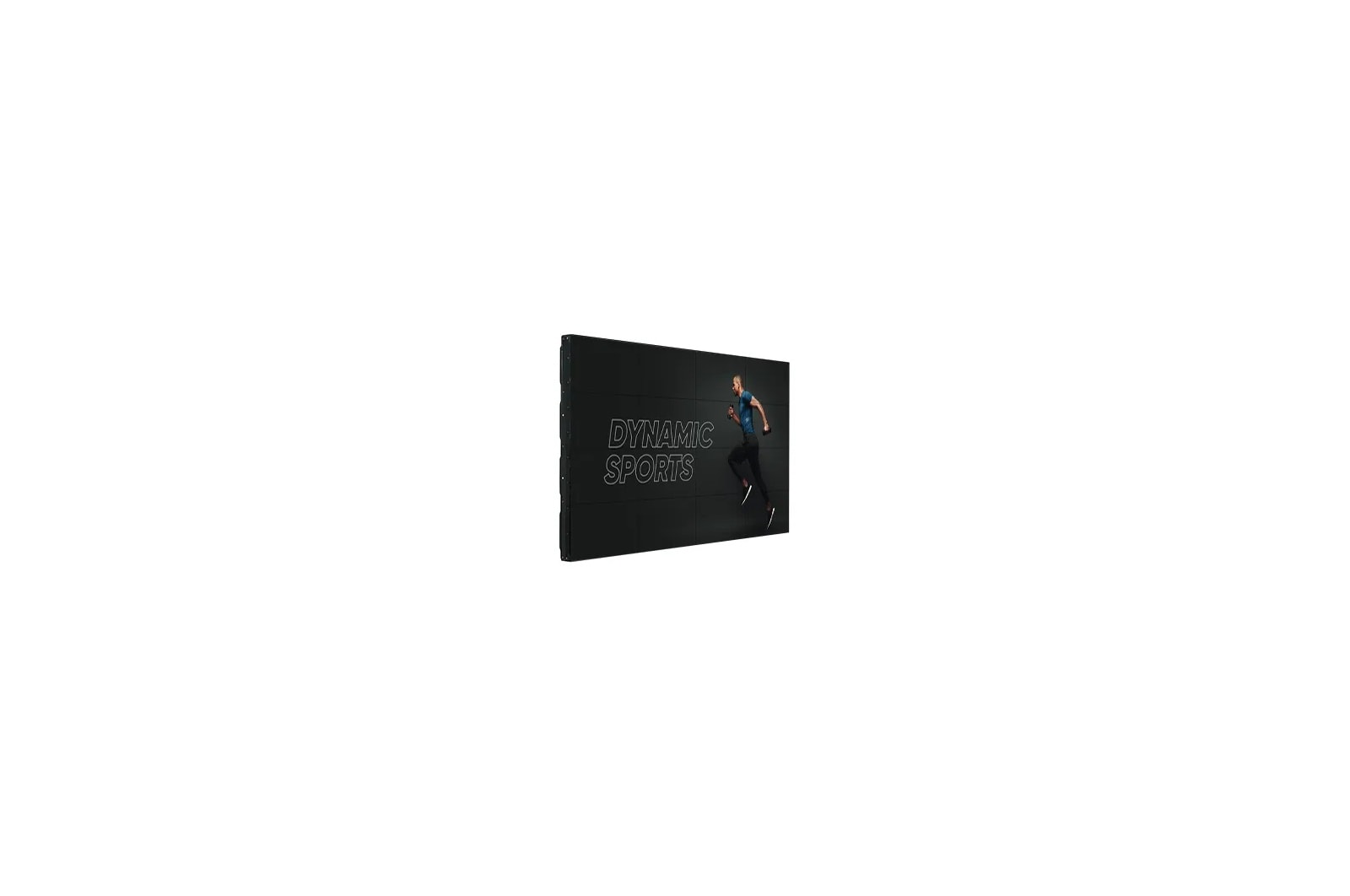

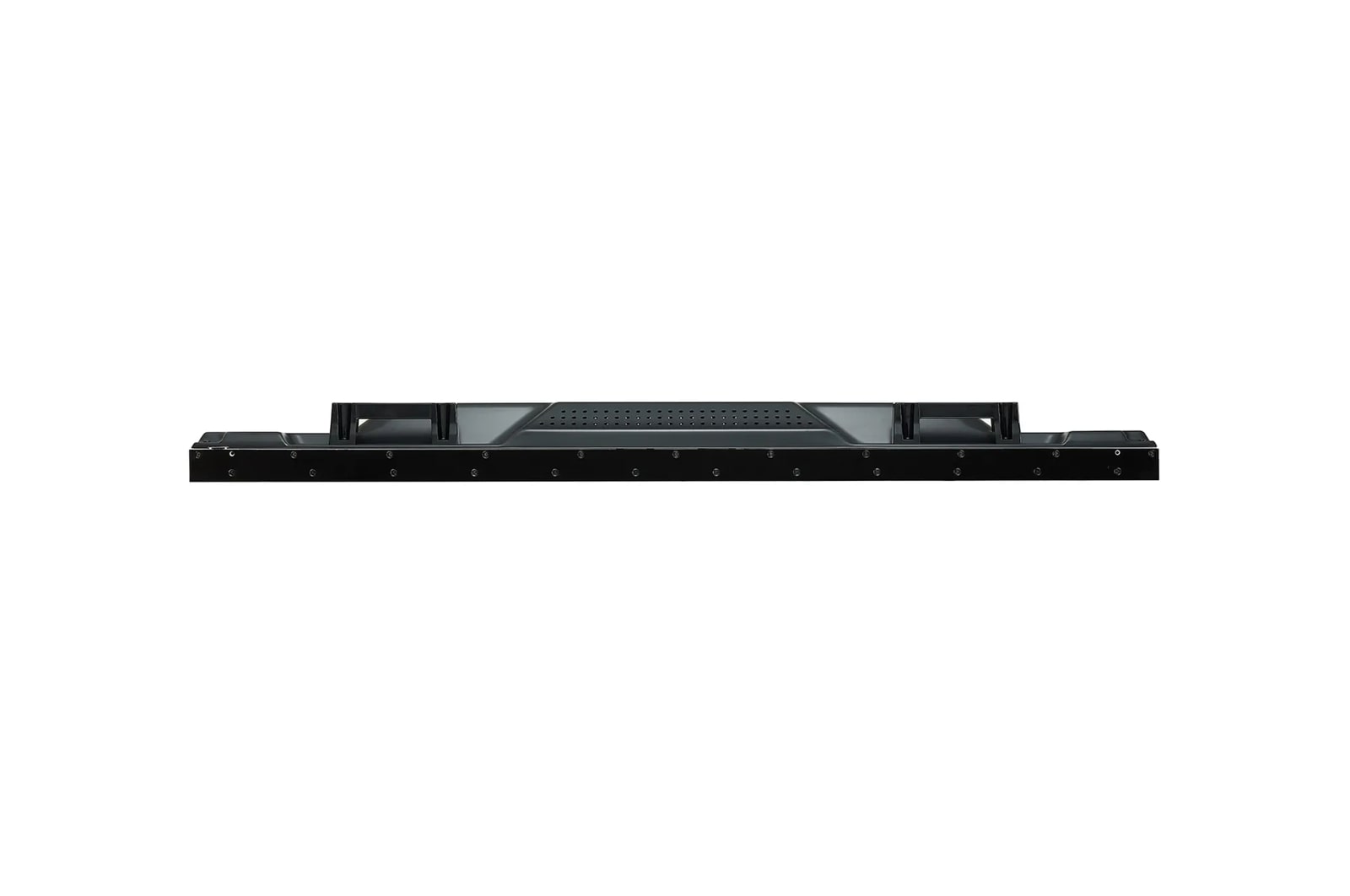

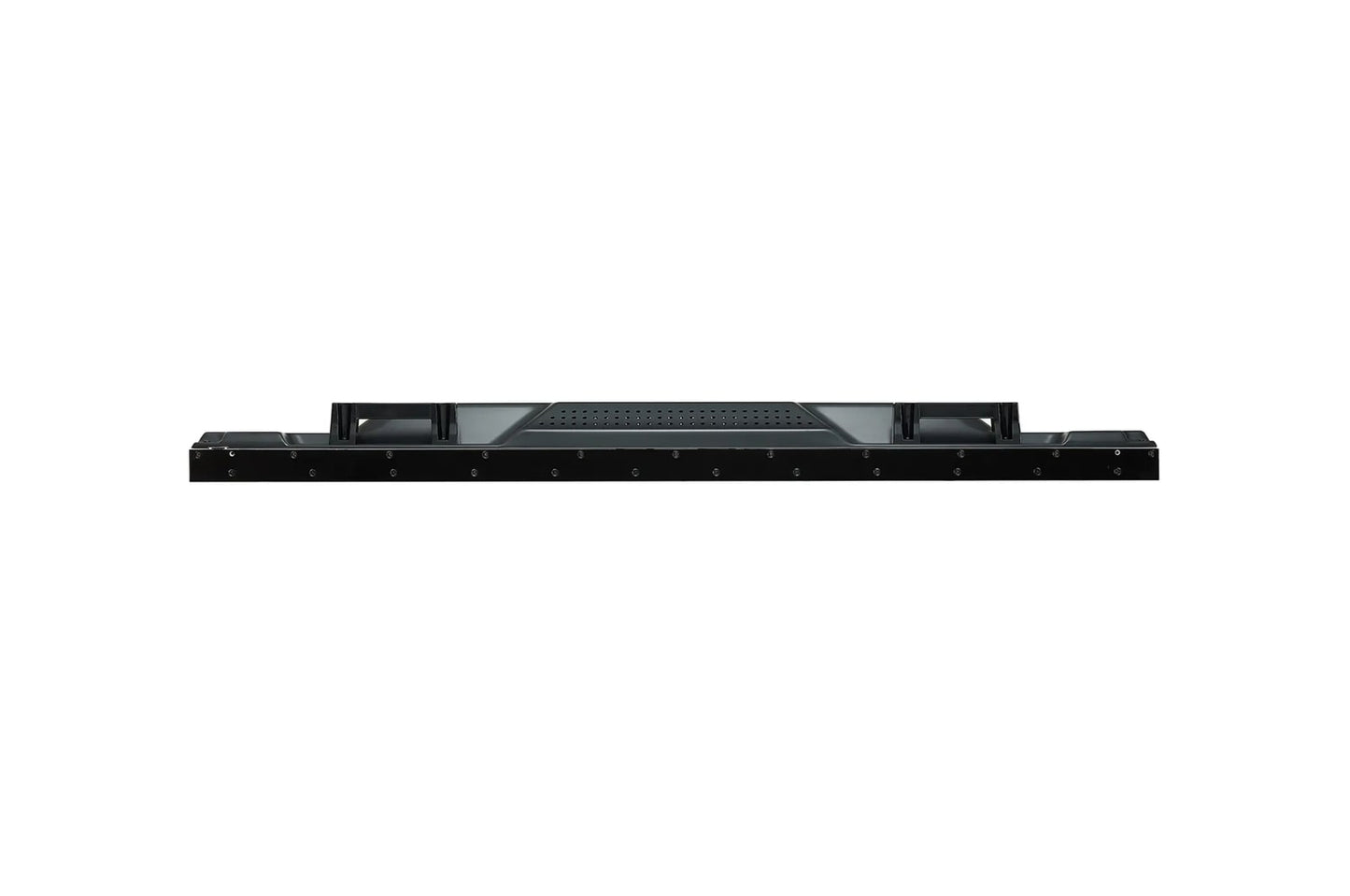

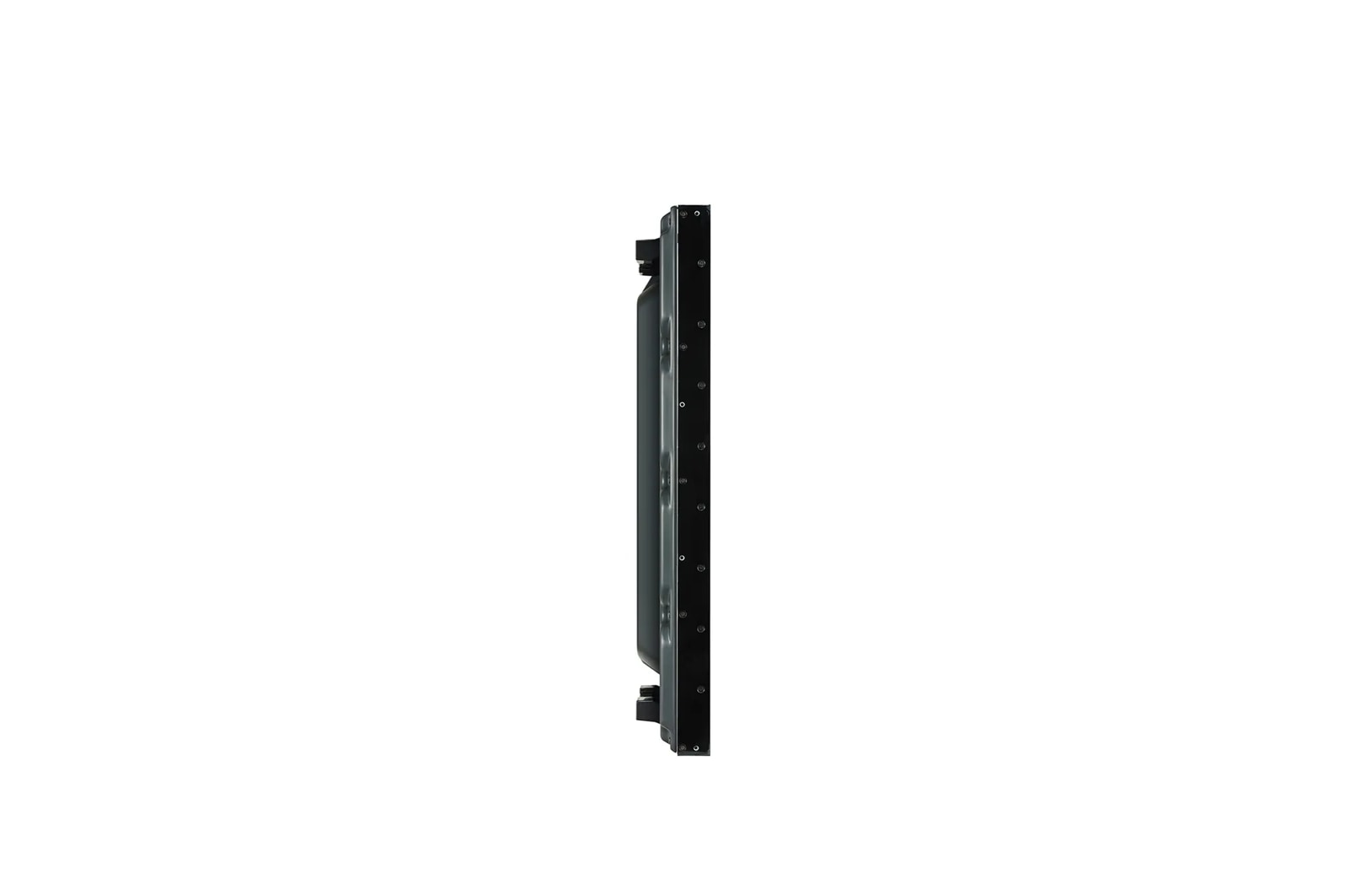

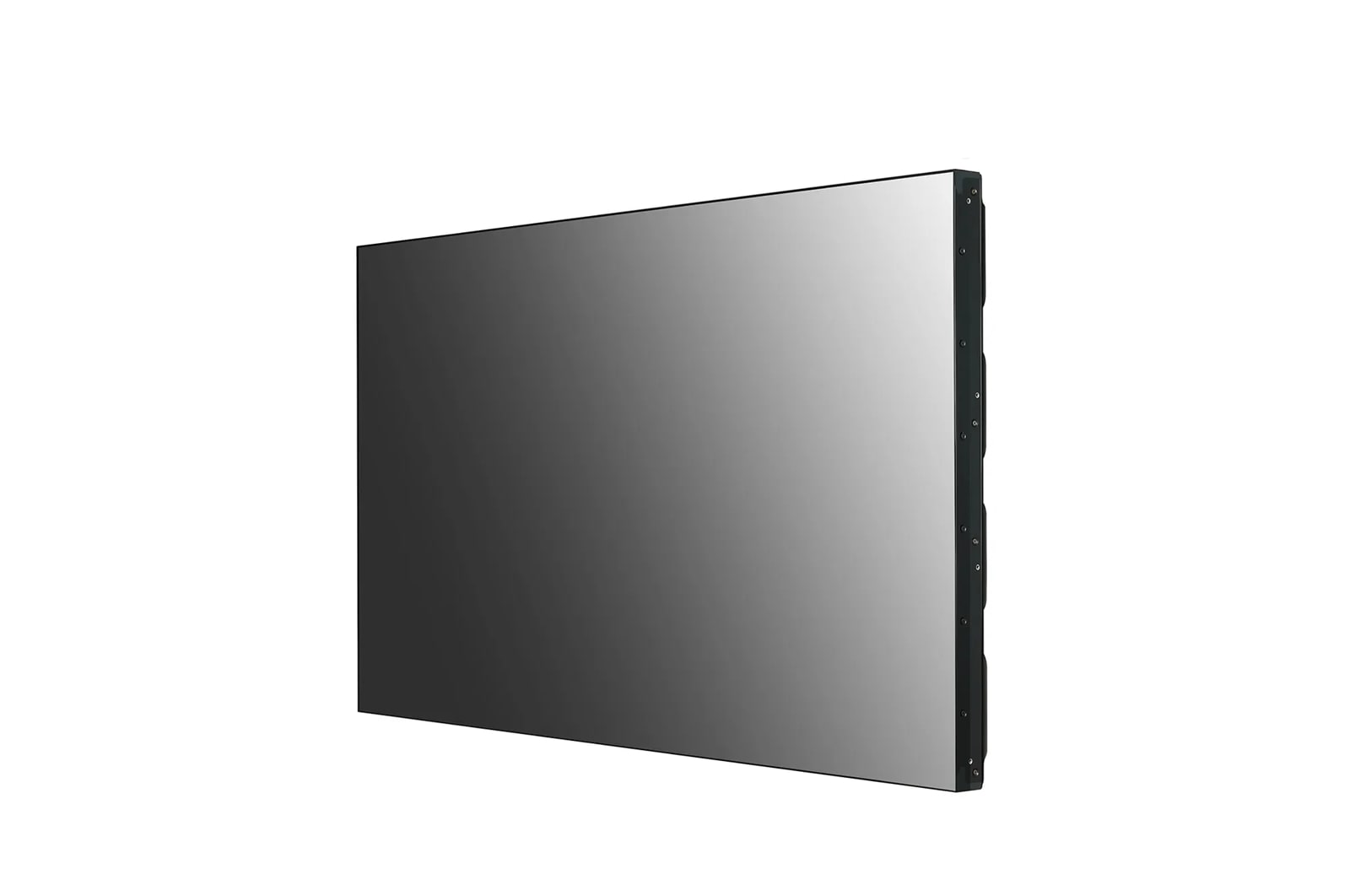

Lg 49VL5PJA 49'' VL5PJ-B Series FHD Video Wall
Lg 49VL5PJA 49'' VL5PJ-B Series FHD Video Wall
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 49" 1,920 x 1,080 (FHD) IPS Display
- Daisy chain capability with image gap reduction
- Built-in system-on-chip and webOS smart signage platform
- Maintenance is easy and fast with the optional LG ConnectedCare service
- Operates 24/7 up to 60,000 hours
49'' VL5PJ-B Series FHD Video Wall
| System | |
| Operating System (OS) | webOS™ 4.1 |
| Internal Memory | 8 GB |
| Electrical | |
| Power Type | Built-in Power |
| Power Consumption (Max.) | 120W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Power Off) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 70W |
| BTU Heat Generation (Max.) | 409 BTU/Hr |
| BTU Heat Generation (Typ.) | 375 BTU/Hr |
| Power Consumption (Typ.) | 110W |
| Connectivity | |
| HDMI In | Yes (x2) HDCP 2.2 |
| IR In (3.5 mm) | Yes (x1) |
| DVI-D In | Yes (x1) HDCP 1.4 |
| RGB In | No |
| Audio In (3.5 mm) | Yes |
| DisplayPort In | Yes (x1) HDCP 2.2 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) USB 2.0 |
| USB Type-C In | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1), input : HDMI / DVI / DP |
| Audio Out (3.5 mm) | Yes |
| Touch USB | No |
| IR Out | No |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | Yes (input HDMI, DP, DVI / Output DP) |
| Built-in Wi-Fi | No |
| Panel | |
| Screen Size (Inches) | 49" |
| Panel Technology | IPS |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nits |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 500000:1 |
| Color Gamut | NTSC 72% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Surface Treatment (Haze) | 3% |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | 60,000 Hrs |
| Orientation | Portrait / Landscape |
| Features | |
| Failover | Yes |
| Crestron Certified Compatibility | Yes |
| Play Via URL | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/L: 2.25 mm, R/B: 1.25 mm |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 39.2 lbs / 17.8 kg |
| Shipping Weight | 48.3 lbs / 21.9 kg |
| Dimensions (W x H x D) | 42.4 x 23.9 x 3.5 in / 1,077.6 x 607.8 x 89.7 mm |
| Shipping Dimensions (W x H x D) | 47.8 x 30.6 x 10.4 in / 1,214 x 778 x 263 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| LG Software Compatible | |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ CMS | Yes |
| SuperSign™ Cloud | No |
| Mobile CMS | No |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | IP5X |
| Energy Star (Environmental) | Energy Star 8.0 |
| TAA Compliance | No |
| CE Marking (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Mexico |
| Onscreen Display Languages | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| UPC | 1 95174 01392 2 |
| Basic Accessories (included) | Remote Control (including battery 2ea), Power Cord,nRS232C cable, DP cable, IR Receiver, Guide Bracket,nScrews, Manual |
| Hospitality Features | |
| Pro:Idiom® | Yes |
| Wake on LAN | Yes |
| Hardware Features | |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | Yes |
| Current Sensor | No |
| Local Key Operation | No |
| BLU Sensor | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| Gapless Playback | Yes |
| W/B Setting by Grayscale | No |
| Picture-by-Picture (PBP) | No |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (x4) |
| Control Manager | Yes |
| PM mode | Yes |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | Yes |
| Status Mailing | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Auto Set ID | Yes |
| Scan Inversion | Yes |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Brightness Compensation | No |
| Booting Logo Image | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| Operation Temperature (Portrait) | Not Available |
