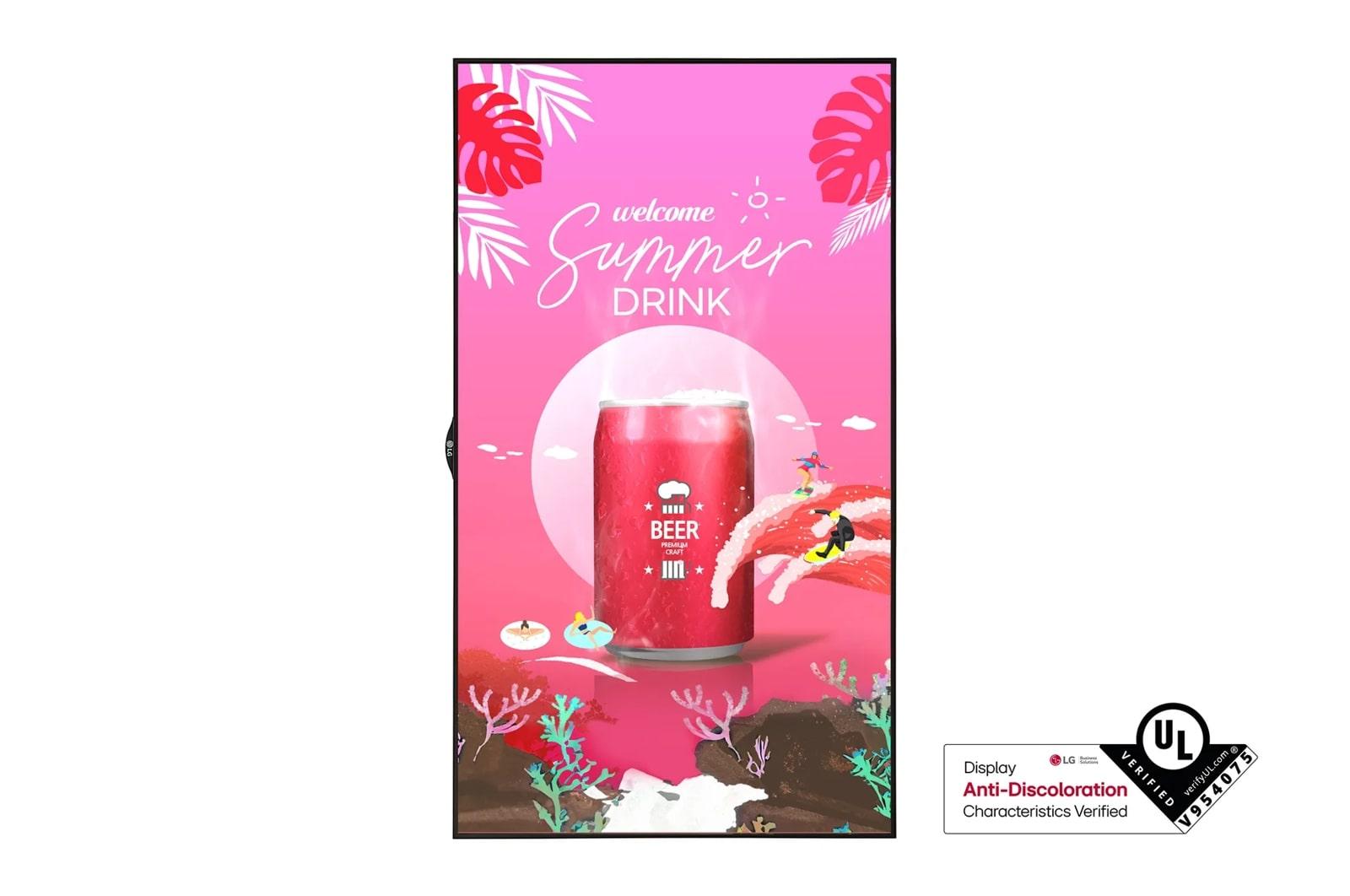

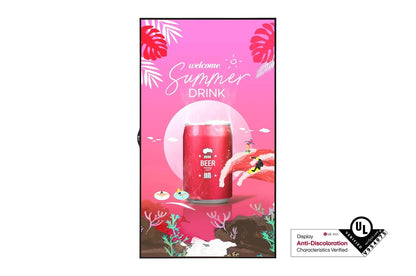

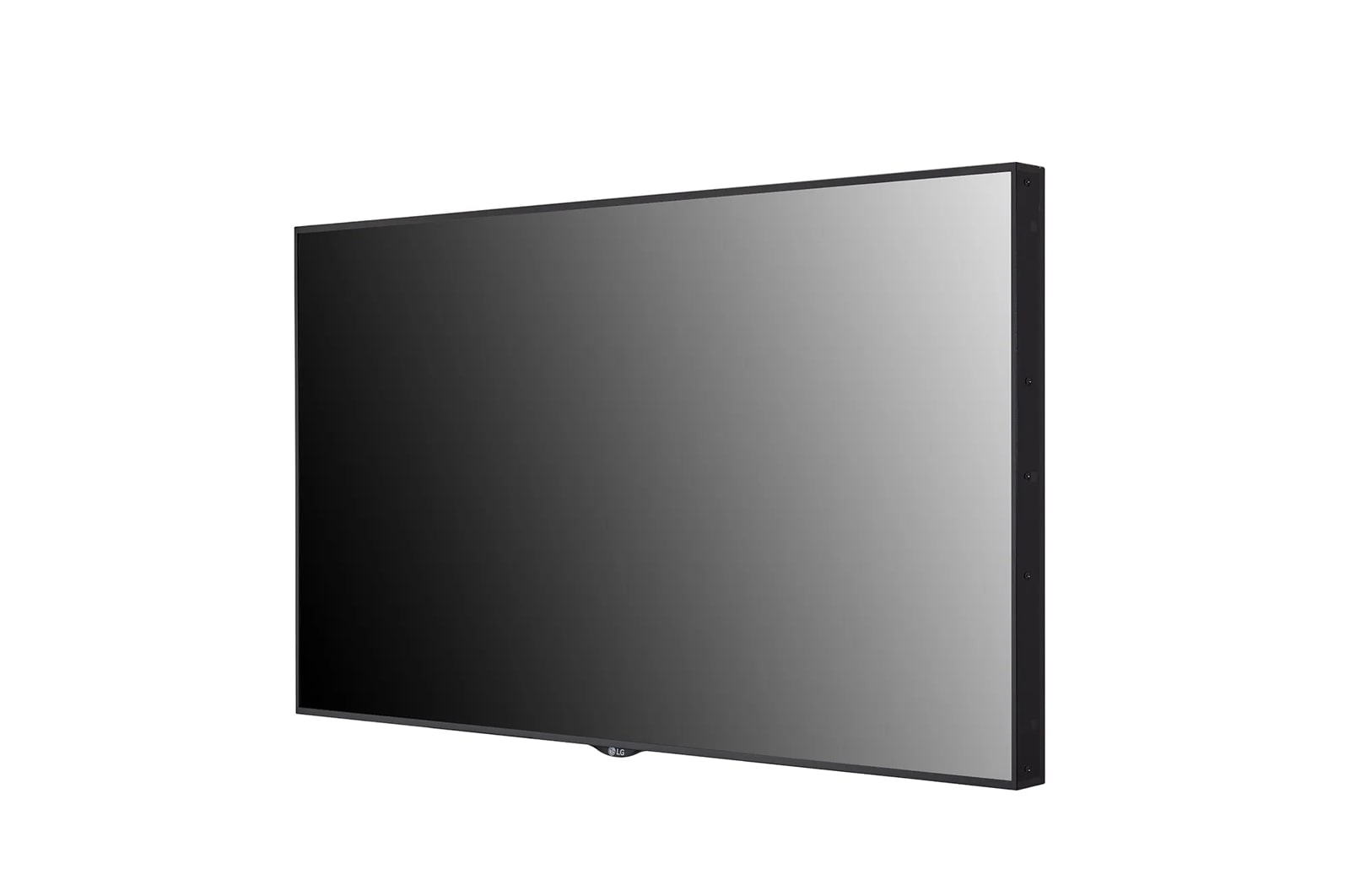

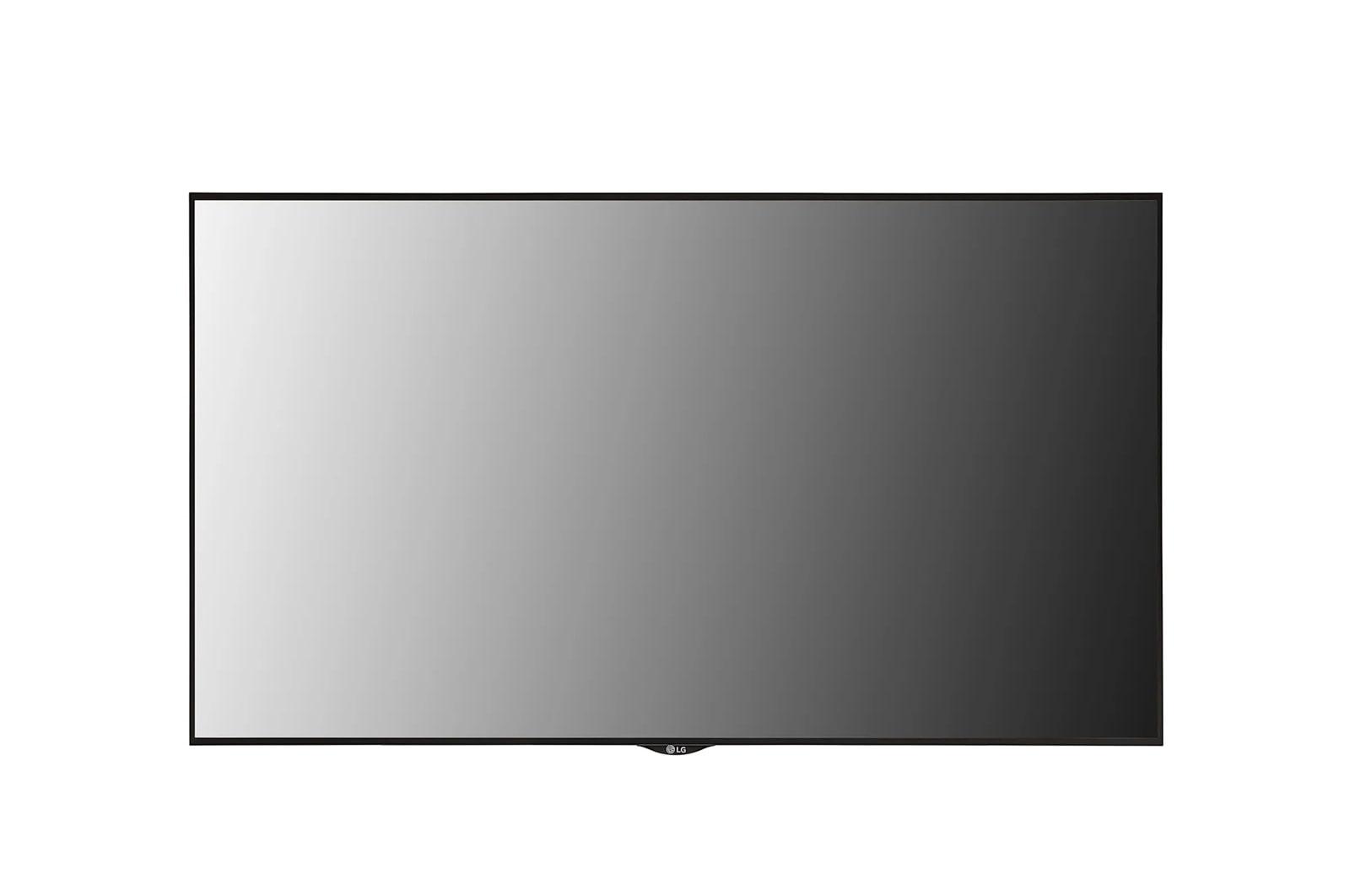

Lg 49XS4PB 49'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
Lg 49XS4PB 49'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
Couldn't load pickup availability
Check Delivery:
- 49" 1,920 x 1,080 (FHD) IPS, M+ Display with 4,000 nits brightness
- World's first UL Verified display for anti-discoloration characteristics
- Durable design with conformal coating & a wide operating temperature
- Easy maintenace with webOS™ 6.0
- Compatible with LG Control Manager, ConnectedCare® & SuperSign® Cloud for easy control & management*
- Easy maintenance with webOS™ 6.0

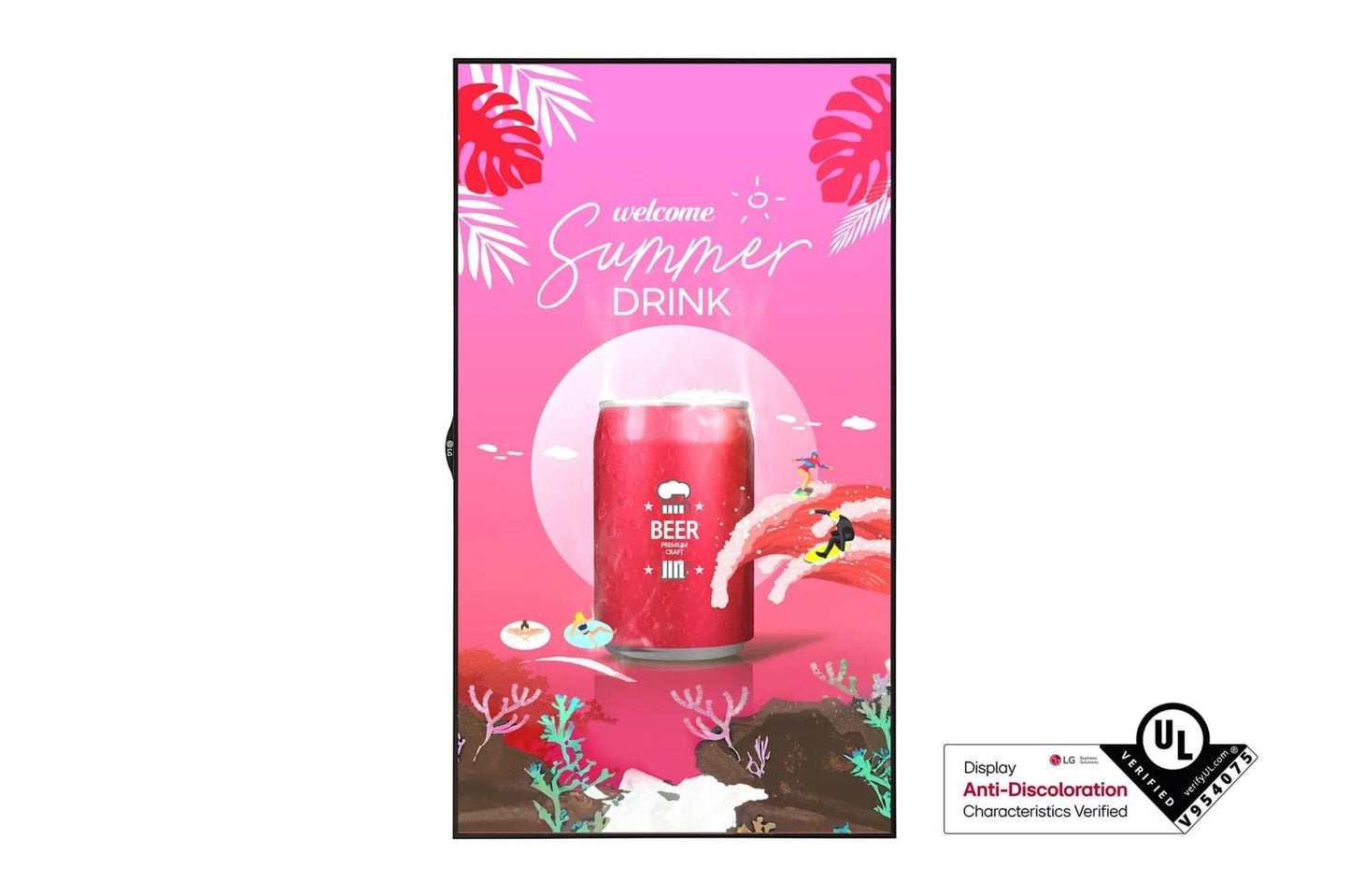

By focusing on the pain points of our customers, we obtained the world's first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent screen-yellowing', while safeguarding display quality and performance stability.
Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.
Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.
High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG's web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.
Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0 to 40 .
Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.
Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.
Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.
Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.
| System | |
| Operating System (OS) | webOS™ 6.0 |
| Processor | N/A |
| Graphics | No |
| Storage | No |
| Internal Memory | 16 GB (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 375W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | Less than 0.5W |
| Power Type | Built-in Power |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | Less than 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 135 W |
| BTU Heat Generation (Max.) | 1,279 BTU |
| BTU Heat Generation (Typ.) | 1,177 BTU |
| Power Consumption (Typ.) | 345 W (Full White), 141 W (IEC 62087) |

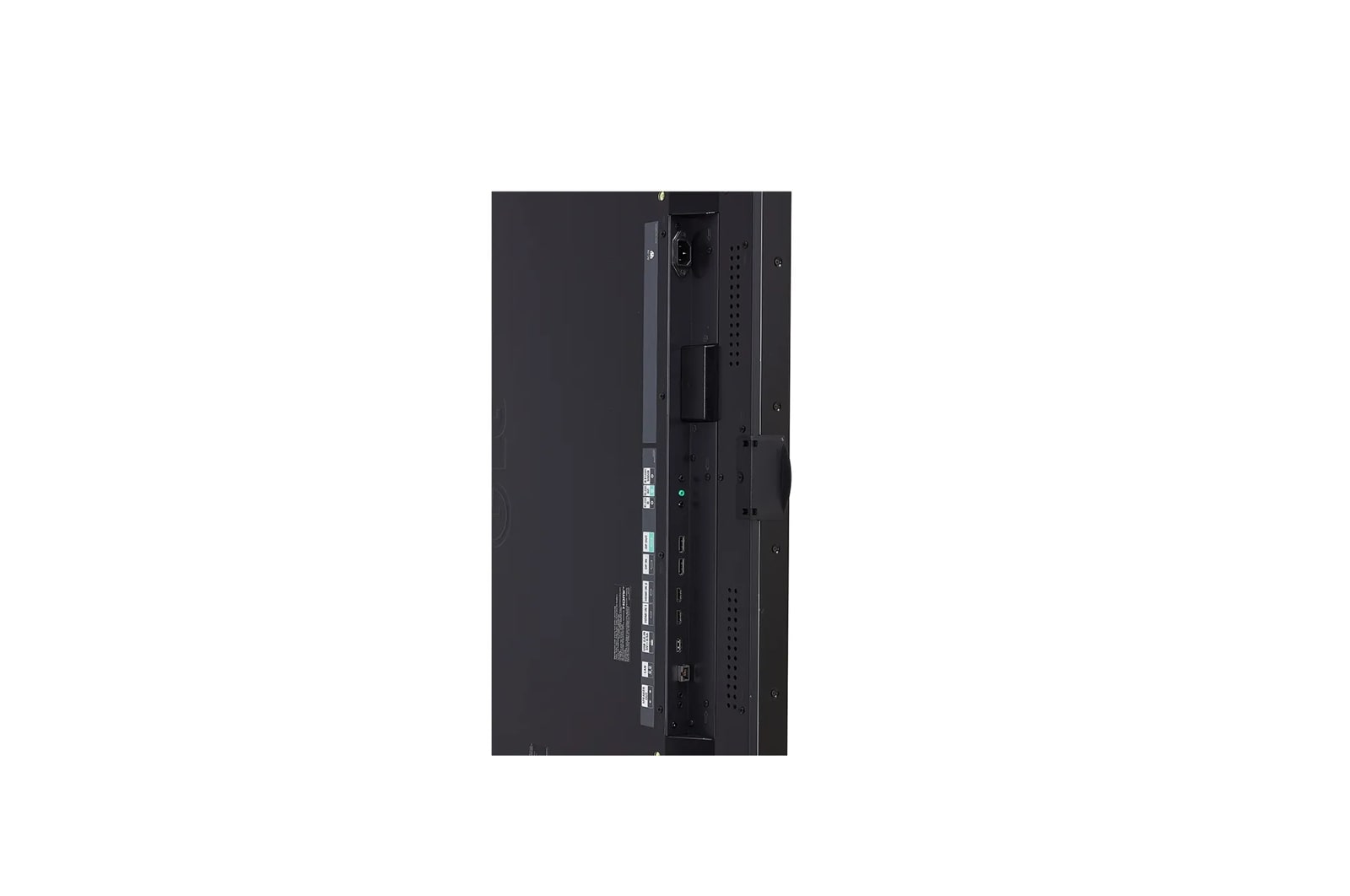

| Connectivity | |
| HDMI In | Yes (x2) HDMI 1.4 |
| IR In (3.5 mm) | Yes (x1) |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) v2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Out (3.5 mm) | No |
| Touch USB | No |
| IR Out | Sharing RS-232C Out |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | Yes (x1) |
| Bluetooth | Yes |
| Daisy Chain | Yes |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 49" |
| Panel Technology | IPS, M+ |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 4000 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | 3,200 nits |
| Contrast Ratio | 1300:1 |
| Dynamic Contrast Ratio | 500000:1 |
| Color Gamut | NTSC 68% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | Up to 50,000 Hours |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | Yes |
| Audio/Sound | |
| Built-in Speakers | No |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | Yes |
| Play Via URL | Yes |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | 9 / 6.5 / 6.5 / 9 mm |
| Tilt (Face Down) | N/A |
| Tilt (Face Up) | N/A |
| Weight | 45.9 lb / 20.8 kg |
| Weight with Stand | N/A |
| Shipping Weight | 55.8 lb / 25.3 kg |
| Dimensions (W x H x D) | 43 x 24.7 x 3.3 in / 1092.7 x 626.4 x 83.5 mm |
| Dimensions with Stand (W x H x D) | N/A |
| Dimensions with Pemnut (W x H x D) | N/A |
| Shipping Dimensions (W x H x D) | 46.5 x 8.3 x 28.5 in. 1,181 x 212 x 725 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | Yes |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | No |
| SuperSign™ Cloud | Yes |
| Mobile CMS | No |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| Carbon Trust | No |
| FCC (Regulatory) | EMC Class B |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | Yes |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| Optional Accessories | WM-L640V (Landscape Wall Mount) (Stand is not available), WM-P640V (Portrait Wall Mount) (Stand is not available) |
| UPC | 1 95174 09215 6 |
| Basic Accessories (included) | Remote Controller, Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver (w/ Ambient Light Sensor), RS-232C Adapter,, IR Sheet |
| Touch Panel | |
| Available Object Size for Touch | N/A |
| Response Time (PC Win10, Education Mode) | N/A |
| Touch Response Time (G to G) | N/A |
| Writing Height | No |
| Accuracy (Typ.) | No |
| Interface | No |
| Active Pen Interface | N/A |
| Multi Touch Point (Max.) | No |
| Protection Glass Transmission | N/A |
| Protective Glass Thickness | N/A |
| Operating System Support | N/A |
| Protective Glass | |
| Thickness | No |
| Degree of Protection | No |
| Tempered / Chemical Strengthening | No |
| Anti-Reflective | No |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | No |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | No |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | Yes |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Built-in Cooling Fan | Yes |
| Acceleration (Gyro) Sensor | Yes |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | Yes (2) |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | No |
| Backlight Sync | Yes |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | Yes |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (4 Ext. Source (x2), Video (x4)) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Brightness Compensation | Yes |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | Not Available |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C (w/o Direct Sunlight), 32°F to 86°F / 0°C to 30°C (Direct Sunlight) |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
