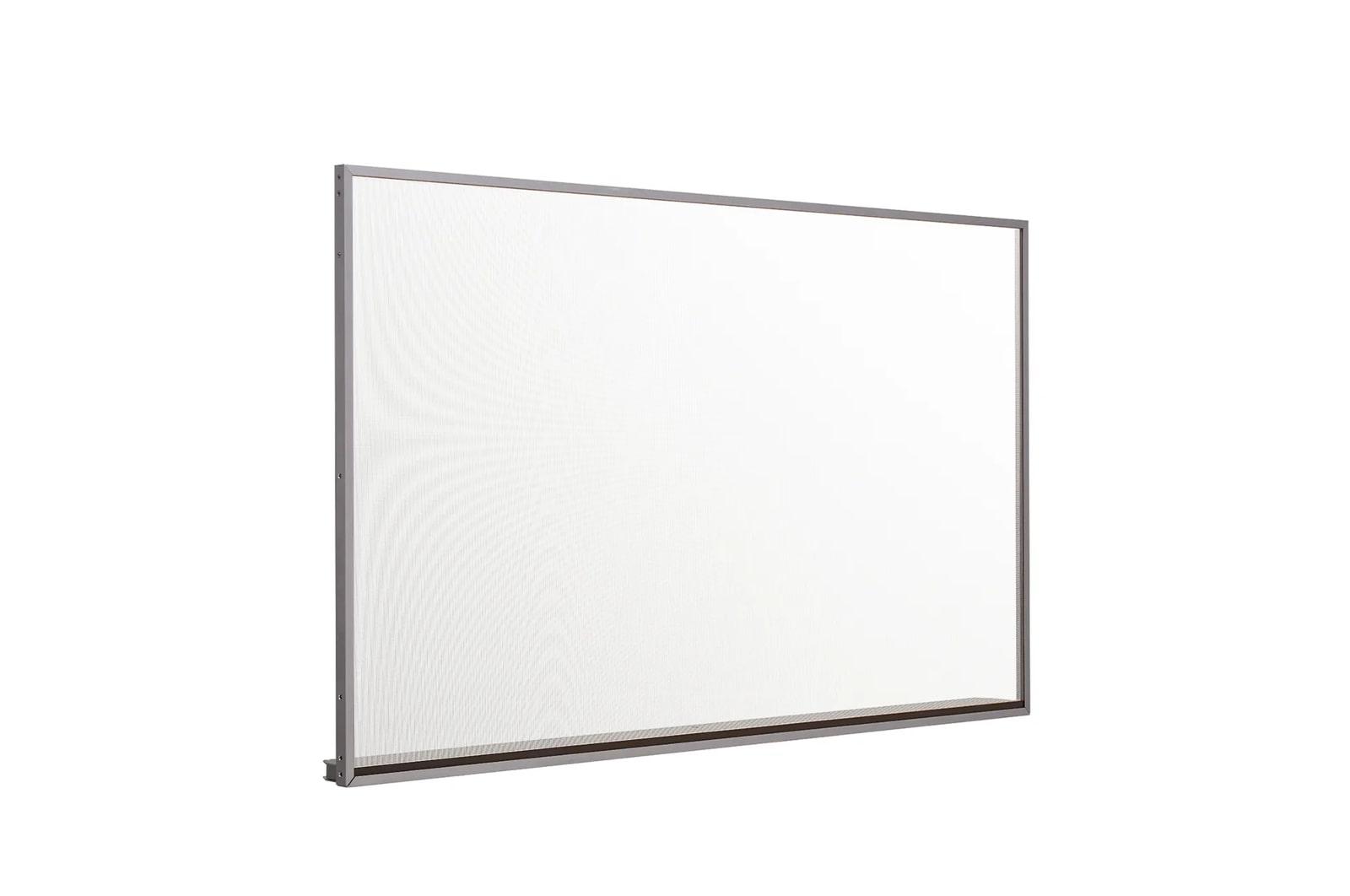

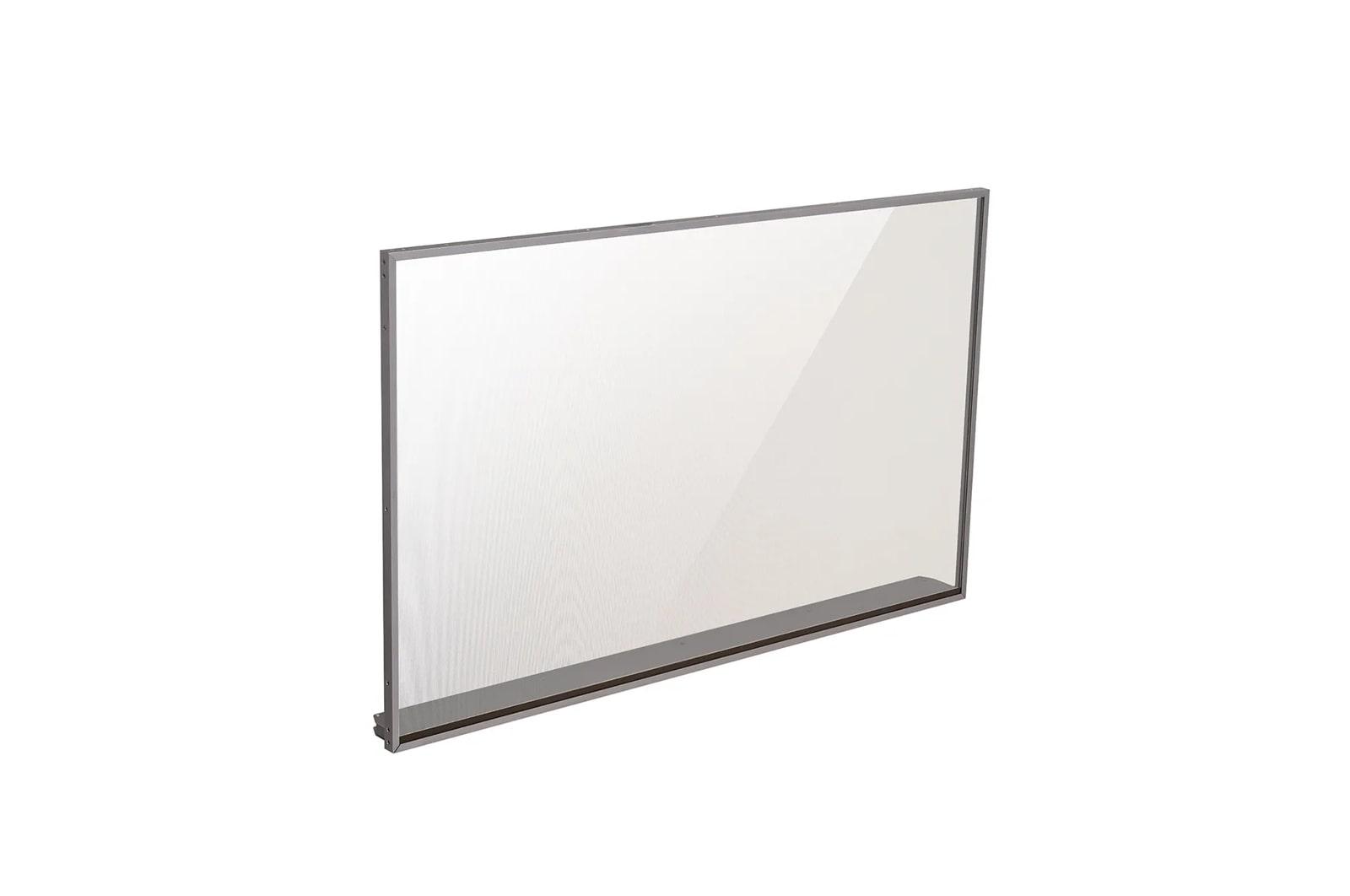

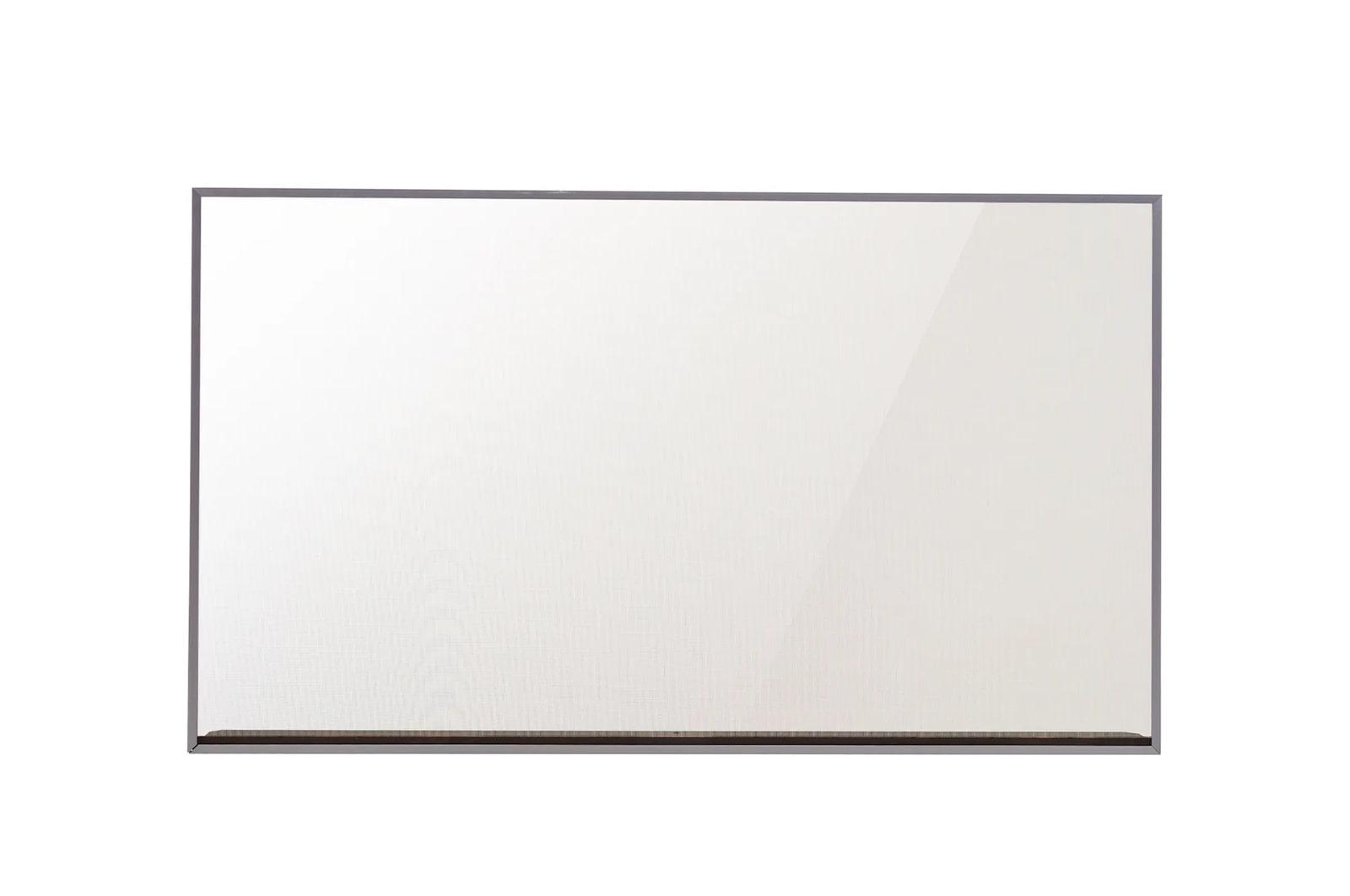

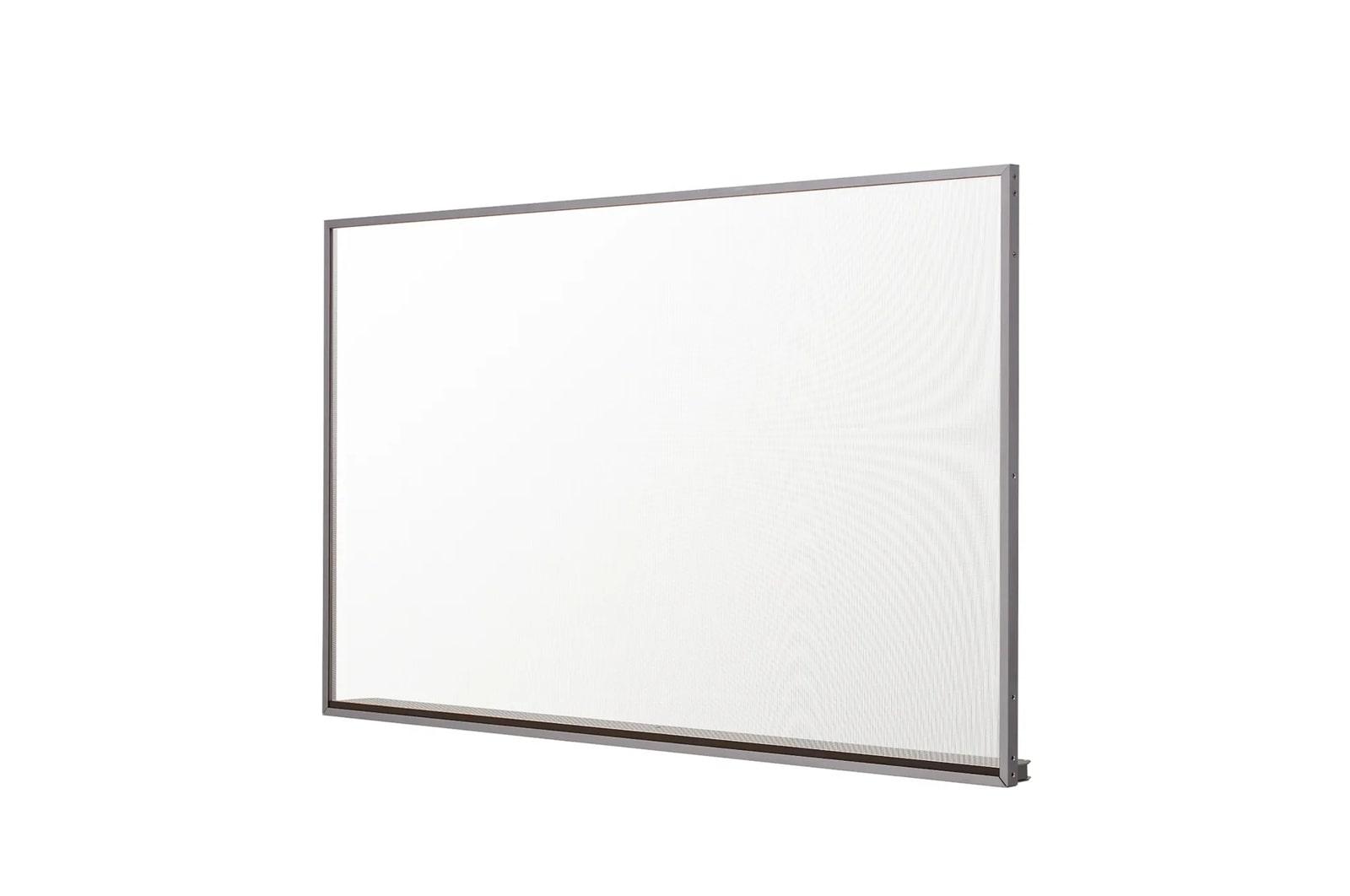

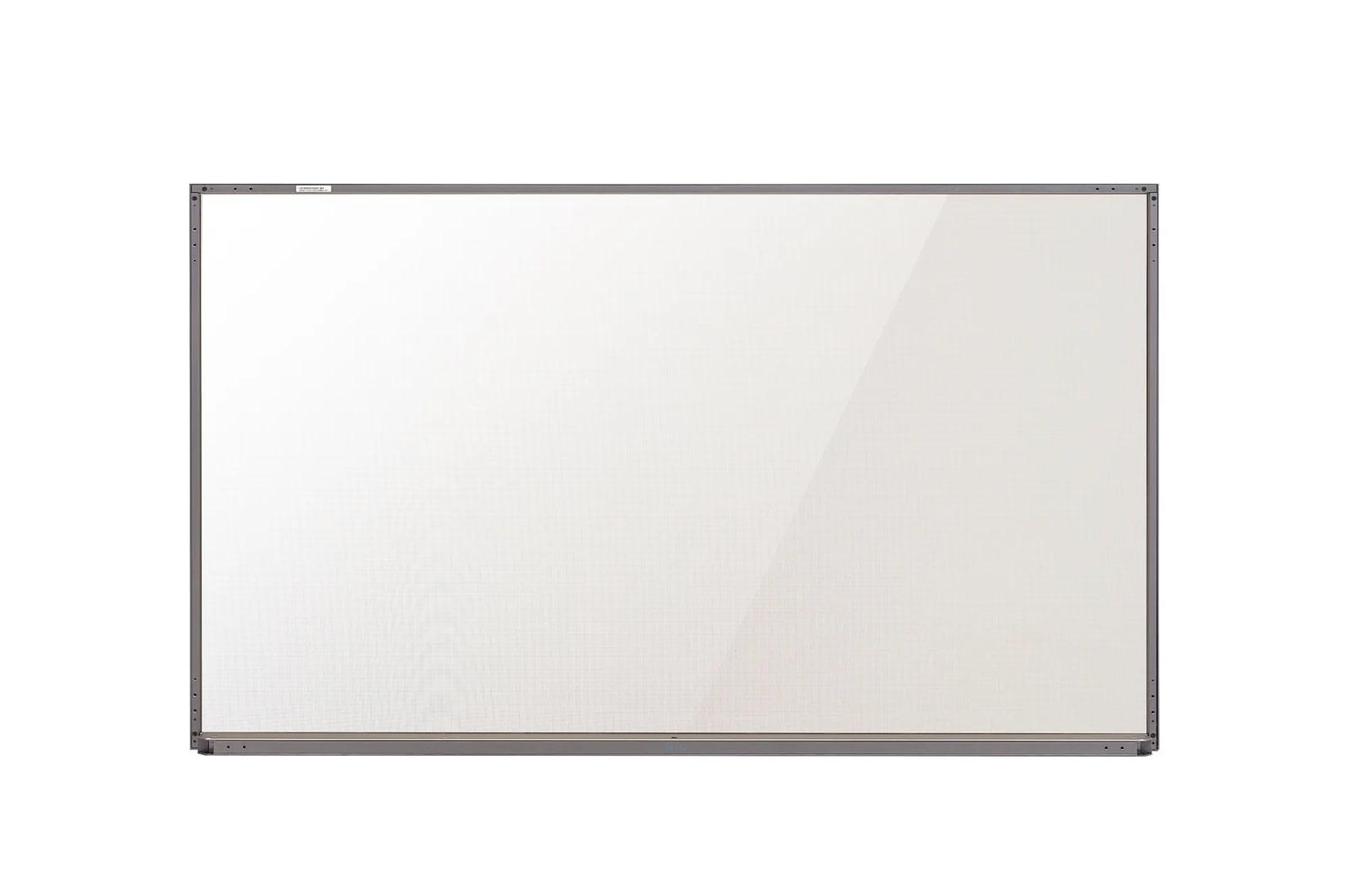

Lg 55EW5PM 55'' Transparent OLED with Expandable Design
Lg 55EW5PM 55'' Transparent OLED with Expandable Design
Couldn't load pickup availability
Check Delivery:
- 55" 1,920 x 1,080 (FHD) OLED
- 43% Transparency
- Expandable design to create transparent video walls
- Features webOS 7.5 & is compatible with LG SuperSign software
- Operates 18 / 7 (Moving Content Only) & lifetime up to 30,000 hours

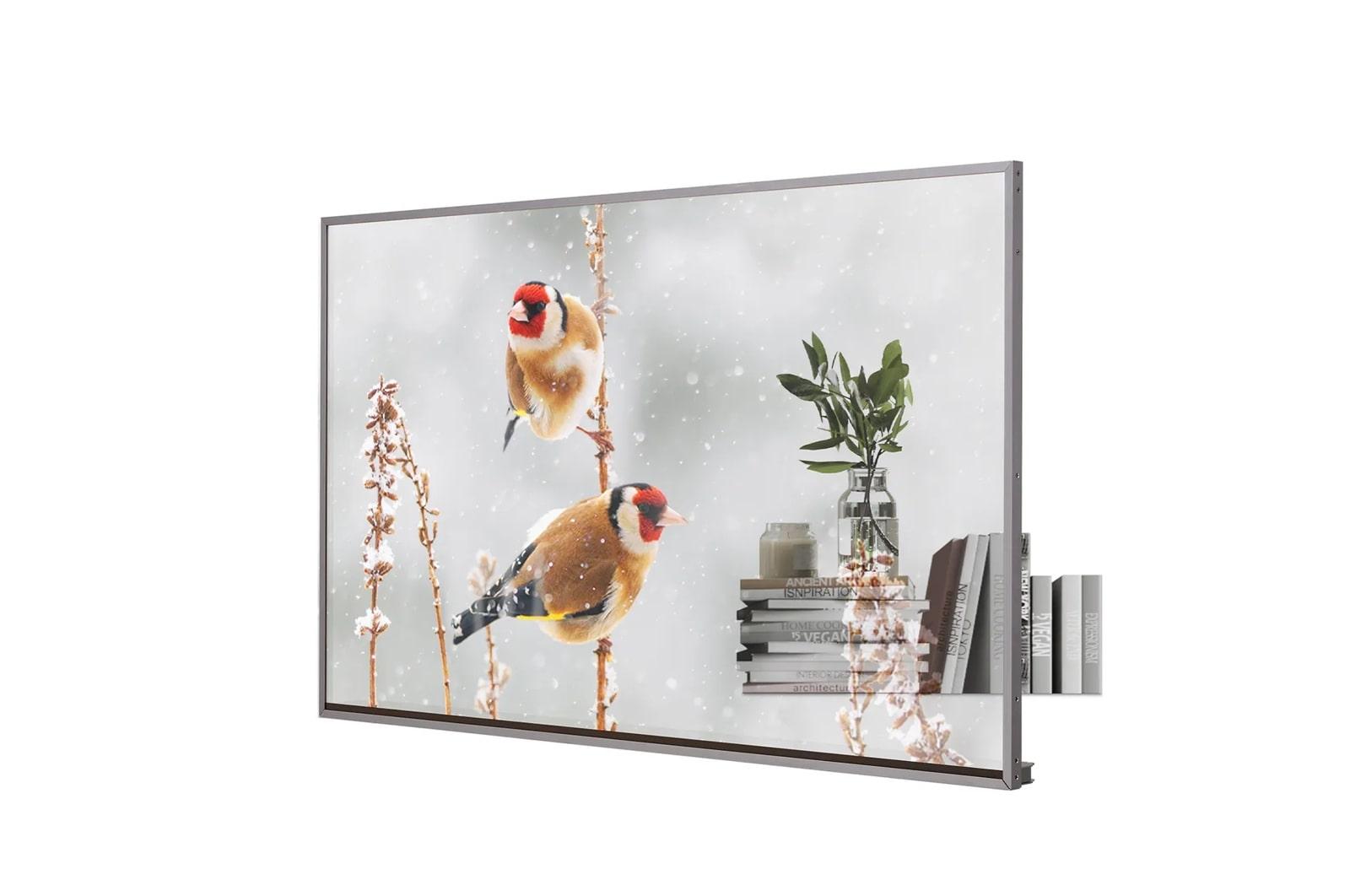

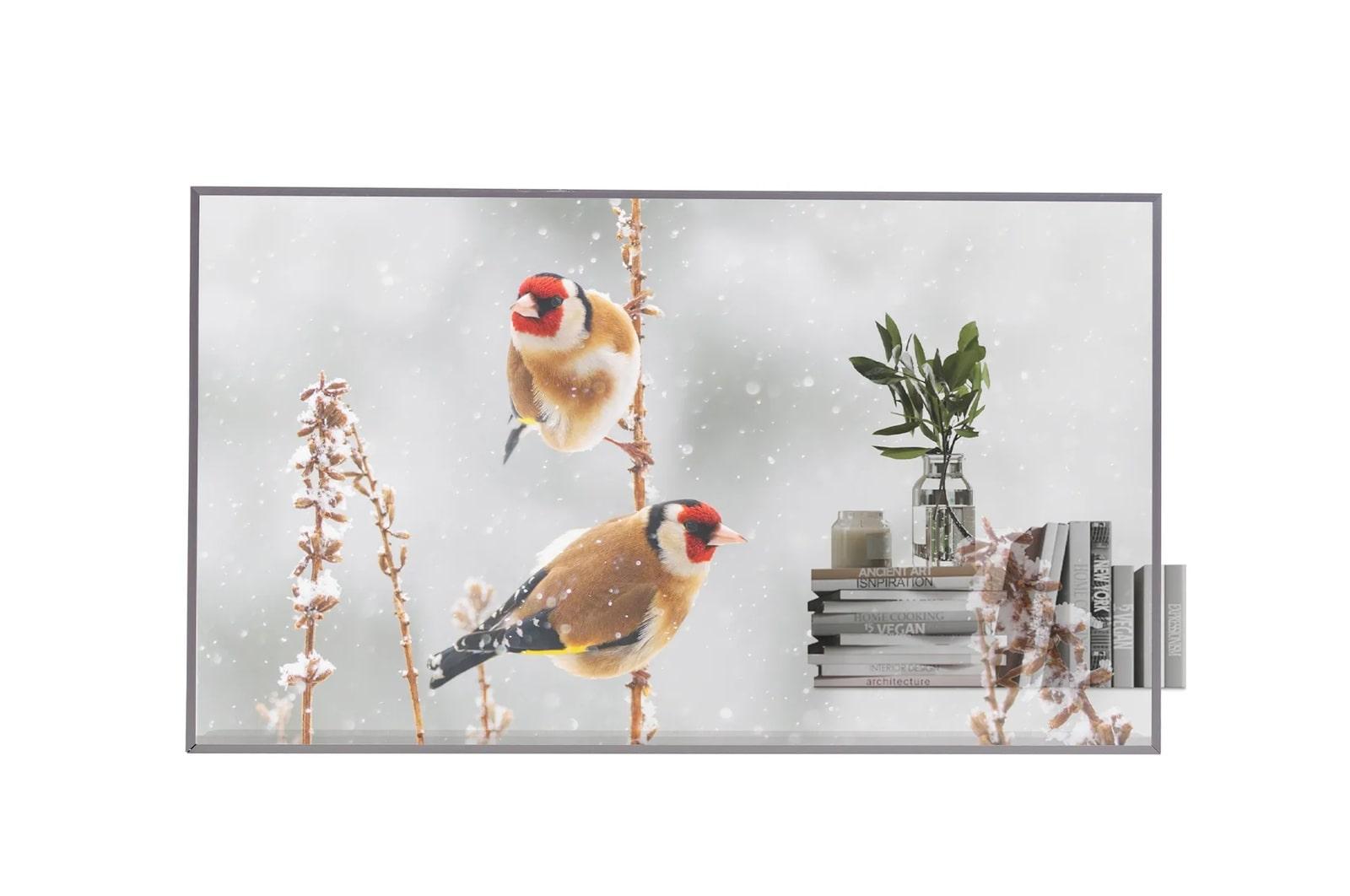

LG OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43% transparency.* It clearly displays objects behind the screen while overlaying additional information directly in front of them.
*Images are simulated for illustration purposes only. Transparency Testing Conducted in 2022 by LG Display Using a Hazemeter
Sleek Elegance in Transparency
Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.
*Images are simulated for illustration purposes only.
Expandable Design
Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.
*Images are simulated for illustration purposes only.

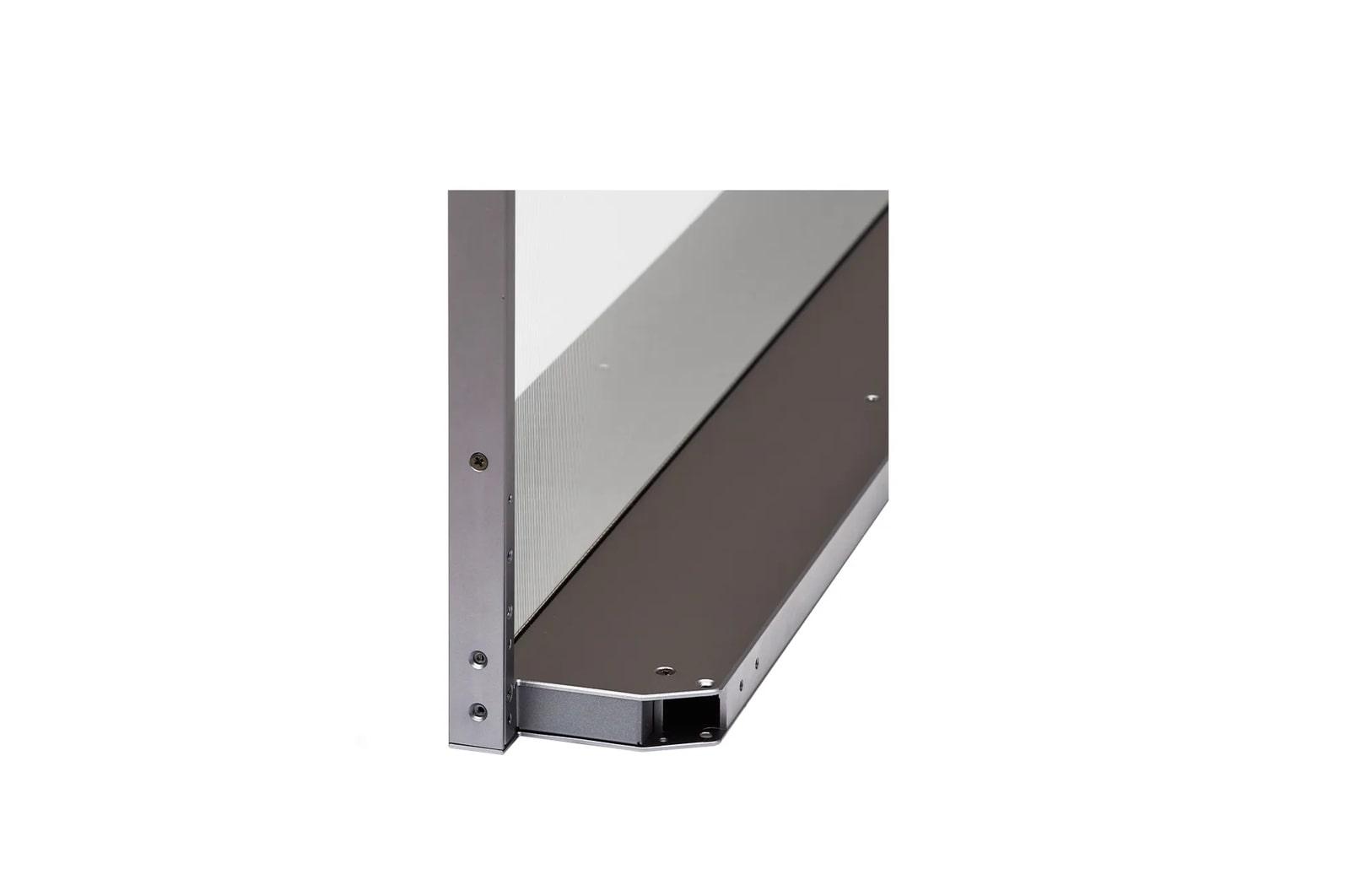

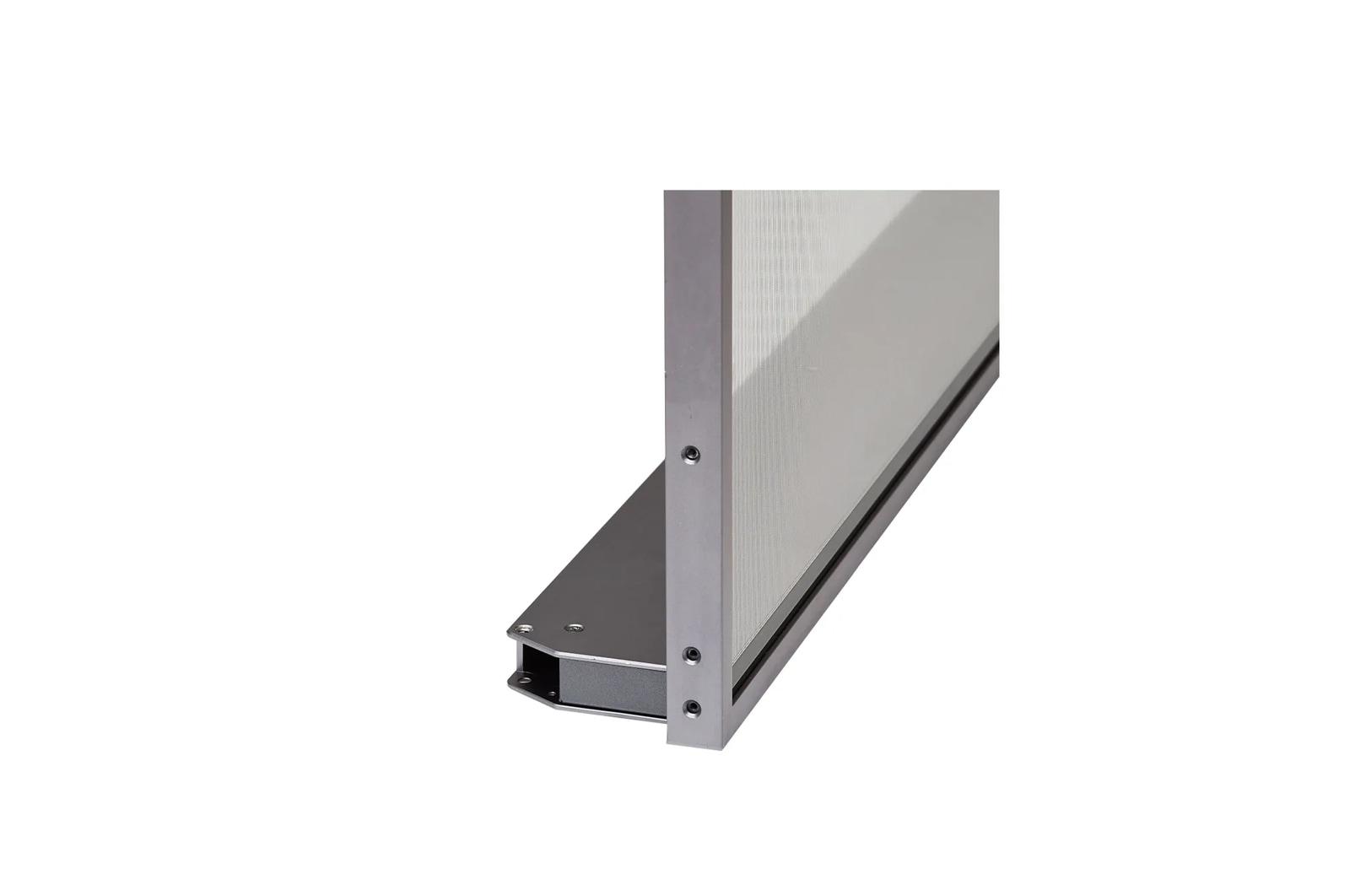

Convenience of Installation & Stability
This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product's rigidity. Additionally, M4 apertures, which are widely-used globally, are incorporated into all rear corners to facilitate installation.
Elevates Virtually Any Setting
Experience the marvel of LG's state-of-the-art Transparent OLED Signage, designed for use in various spaces. This product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.
| System | |
| Operating System (OS) | webOS™ 7.5 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 16 GB (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 230W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in Power |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| BTU Heat Generation (Max.) | 785 BTU |
| BTU Heat Generation (Typ.) | 239 BTU |
| Power Consumption (Typ.) | 70W |

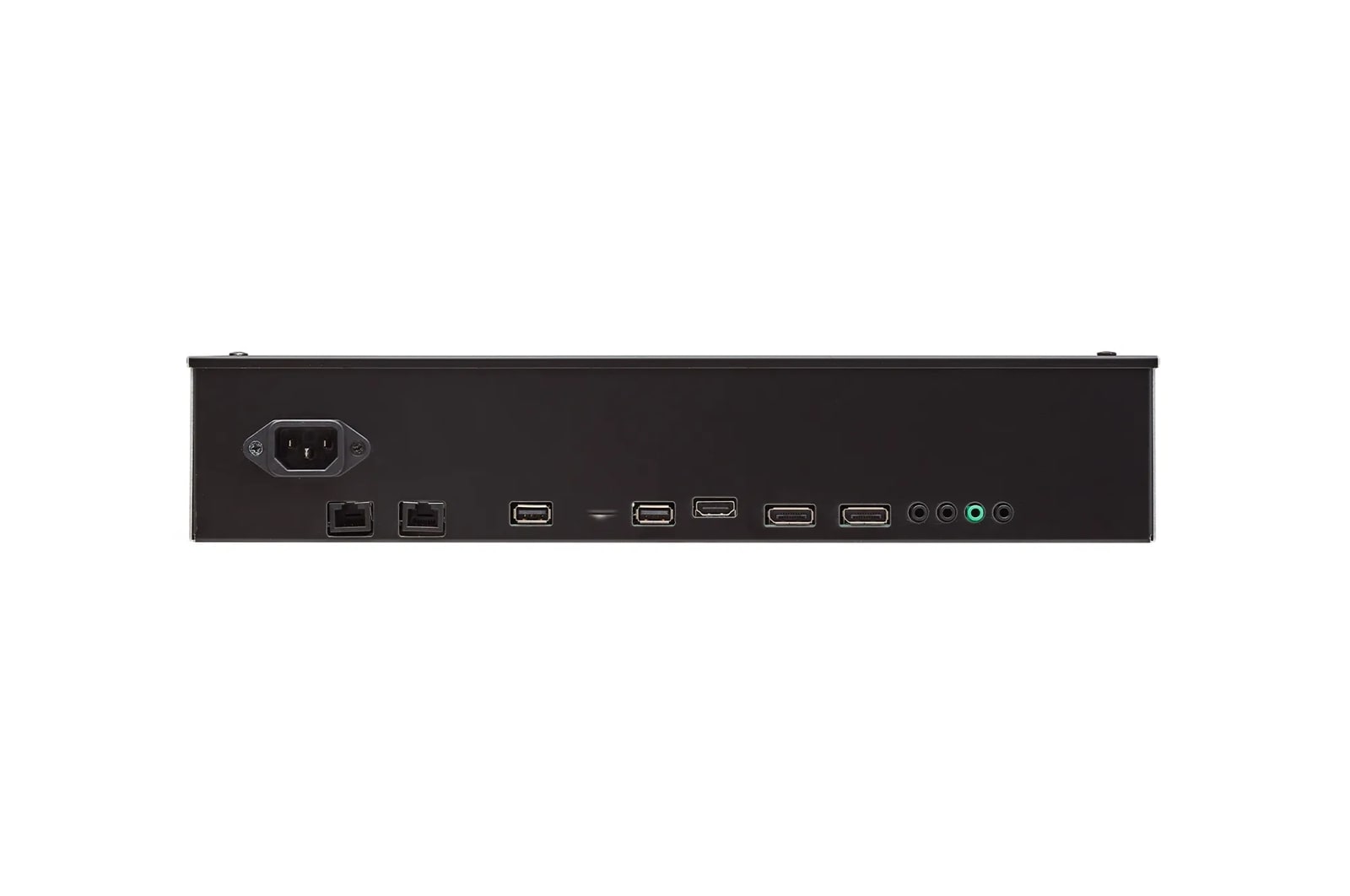

| Connectivity | |
| HDMI In | Yes (x1) HDCP 2.2/1.4 |
| IR In (3.5 mm) | Yes (x1), External IR Receiver |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | No |
| IR Out | Sharing RS-232C Out |
| RJ45 (LAN) Out | Yes (x1) |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | Yes |
| Built-in Wi-Fi | No |
| Panel | |
| Screen Size (Inches) | 55" |
| Panel Technology | OLED |
| Backlight Type | OLED |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 120 Hz |
| Brightness (Typ.) | 200 nits |
| Brightness (Max.) | 600 nits |
| Contrast Ratio | 200000:1 |
| Dynamic Contrast Ratio | No |
| Color Gamut | DCI 90%, BT709 110% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 0.1 ms |
| Moving Picture Response Time | 8 ms |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | 5H |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 18/7 |
| Lifetime | Up to 30,000 hrs. |
| Orientation | Portrait / Landscape |
| Transparency | 43% (Set) |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | No |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | No |
| Play Via URL | No |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Transparent |
| Bezel Width | T/R/L/B: 12.2 mm |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 31.1 lbs / 14.1 kg |
| Weight Signage Box | 5.7 lbs / 2.6 kg |
| Shipping Weight | 66.1 lbs / 30.0 kg |
| Dimensions (W x H x D) | 48.7 x 28.3 x 3.4 in / 1,237.6 x 717.9 x 86.5 mm |

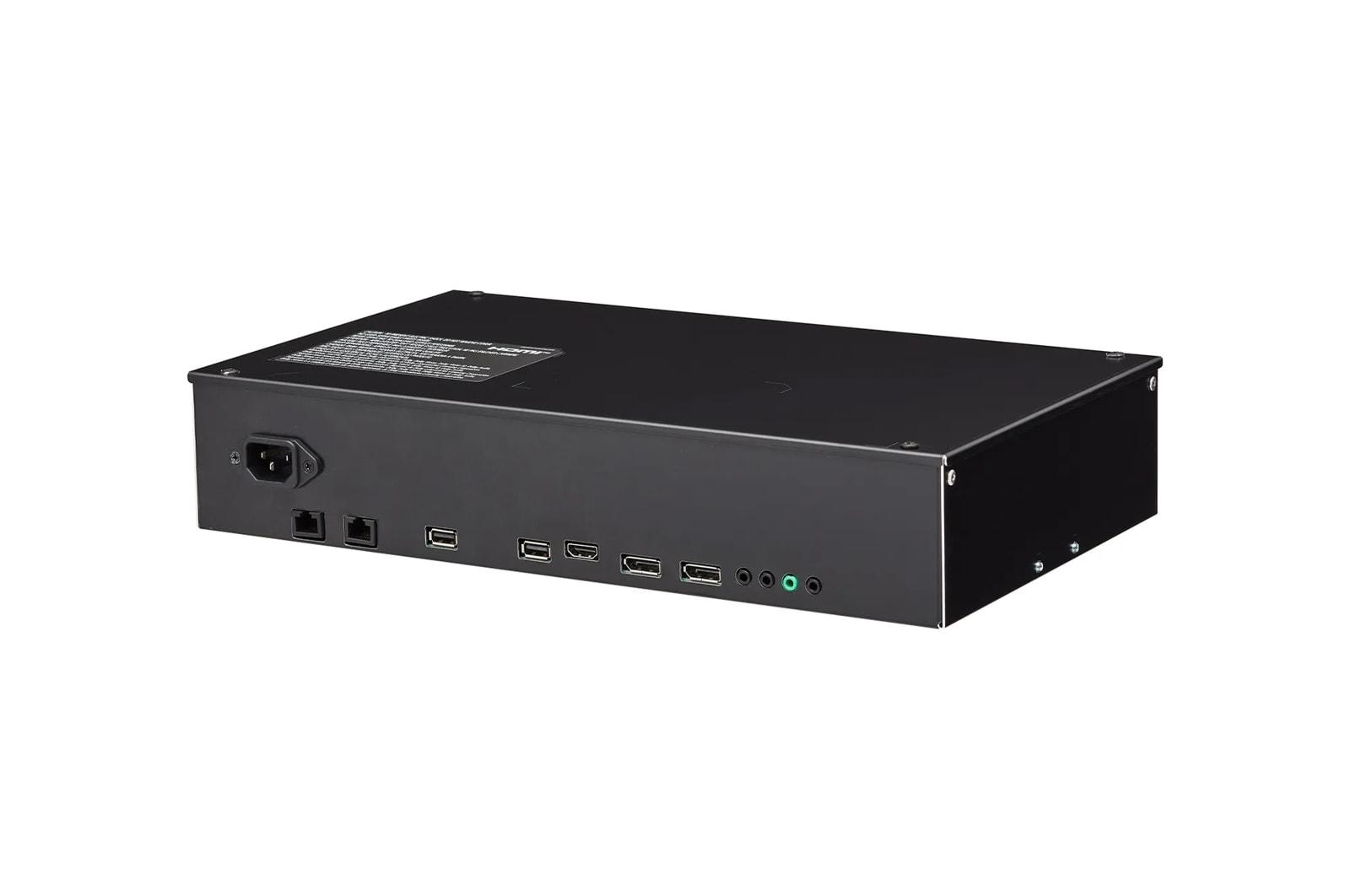

| Dimensions Signage Box (W x H x D) | 15 x 8.6 x 2.9 in / 381.6 x 217.6 x 73.6 mm |
| Shipping Dimensions (W x H x D) | 53.9 x 9.6 x 37.7 in / 1,368 x 245 x 957 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | No |
| VESA™ Standard Mount Interface | No |
| Overlay Touch Compatibility | Not Available |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | No |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| Carbon Trust | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | No |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Turkish |
| UPC | 1 95174 09166 1 |
| Basic Accessories (included) | Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, 3.5mm to RS-232C Adapter, MCX / Harness Cables (x4, 3m / x2, 3m for Connection between Panel and Signage Box), DP Cable (2m), LAN Cable (1.5m), RS-232 Cable (4P-4P, 1.5m), LC Cable (VLC, 3m), Screws (x24, M3 x L5.5 Black / x8, M3 x L5.5 Silver / x14, M3 x L6 Black), Cover Shield Assembly, Cable Accessory (x2), Cable Cap Assembly (x2), Tiling Bracket (x2), Signage Box Wing Bracket (x2) |
| Protective Glass | |
| Thickness | 3.0 mm |
| Degree of Protection | Not Available |
| Tempered / Chemical Strengthening | Chemical Strengthening |
| Anti-Reflective | Yes |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | Yes |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | Yes |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | Not Available |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | No |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | No |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | No |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | Yes |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | No |
| Network Ready | No |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | Yes (x4) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | No |
| Tile Mode Setting | Yes |
| External Input Rotation | Yes |
| No Signal Image | No |
| SNMP | No |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | Not Available |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
