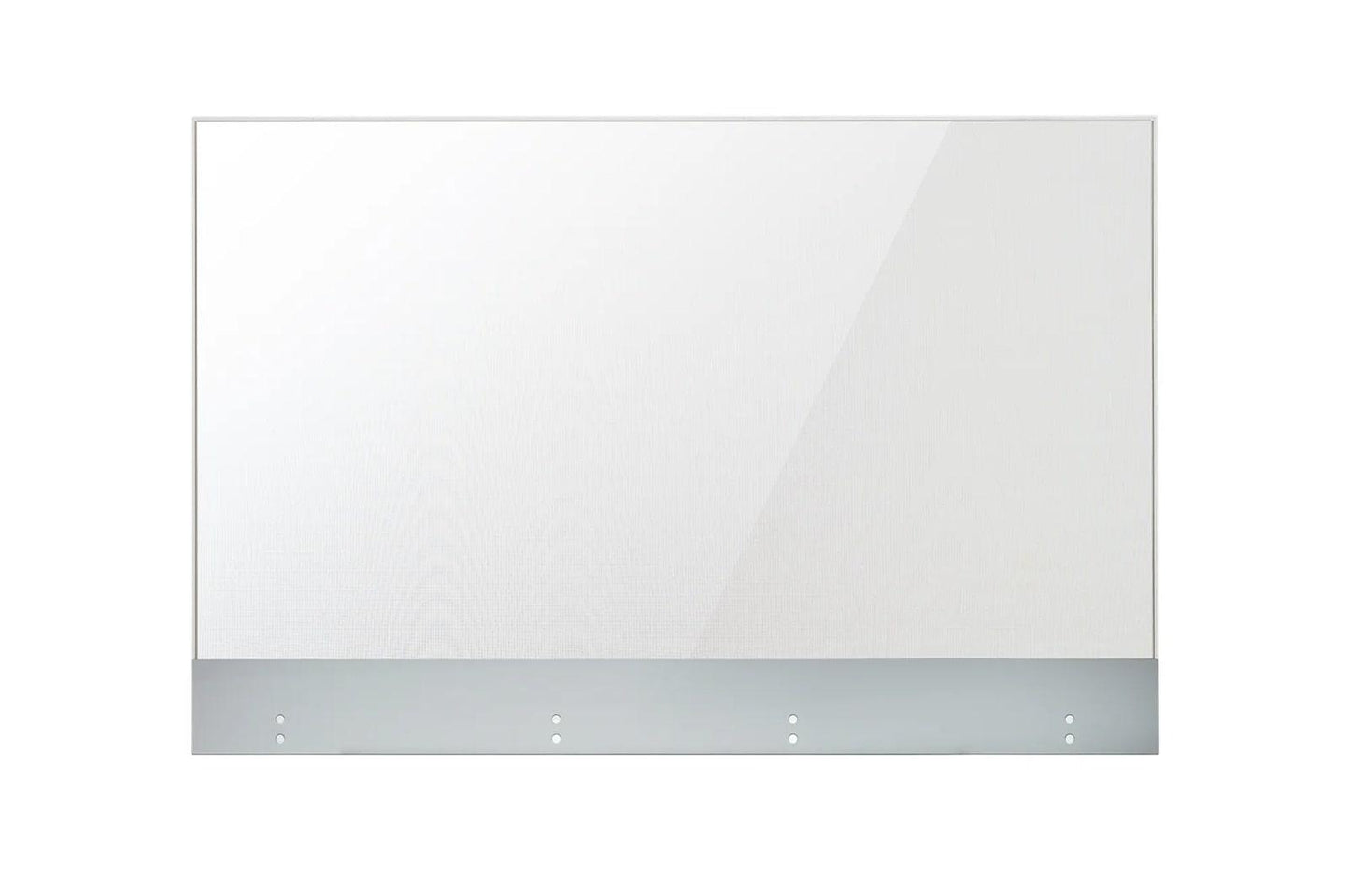

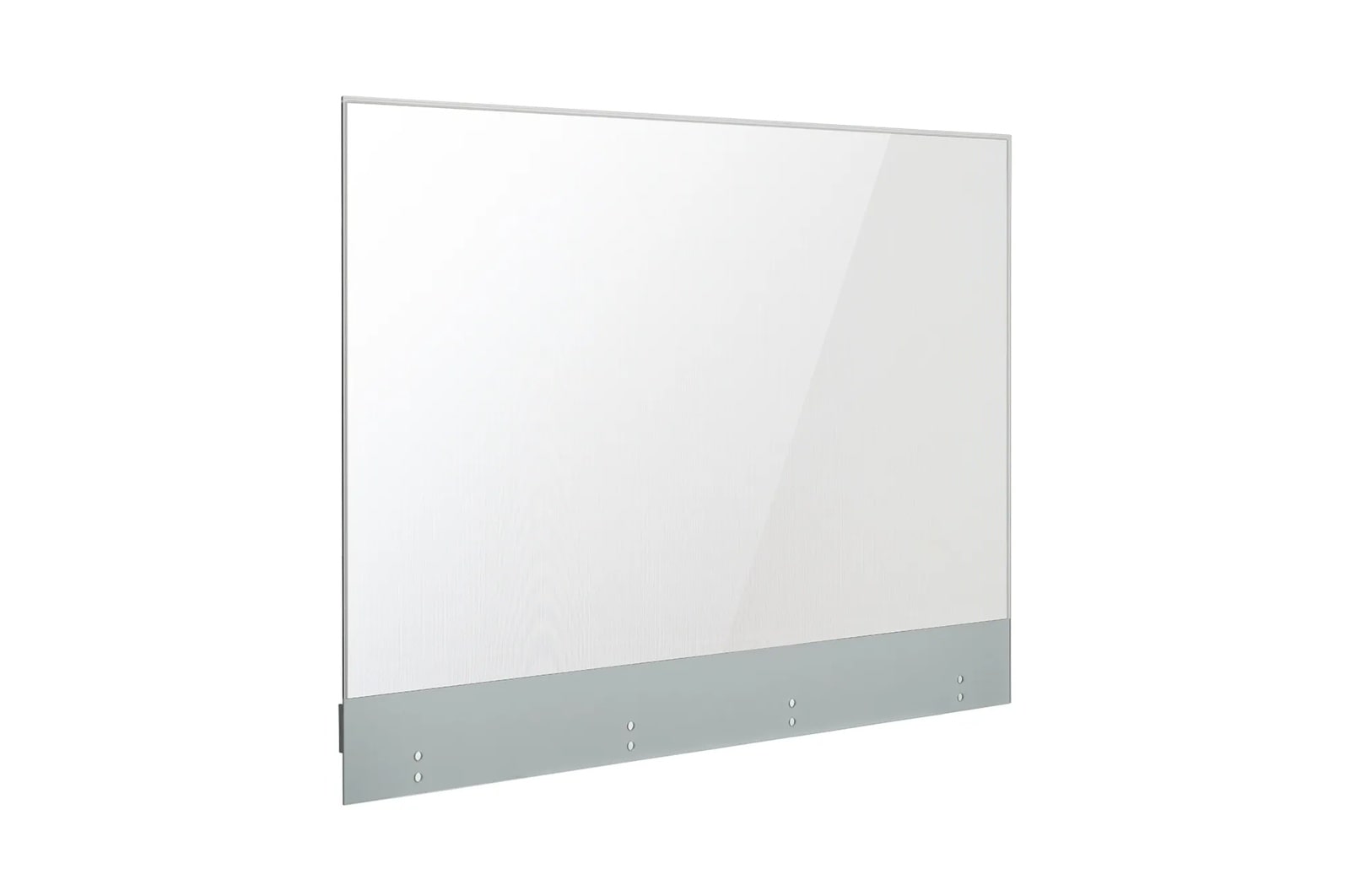

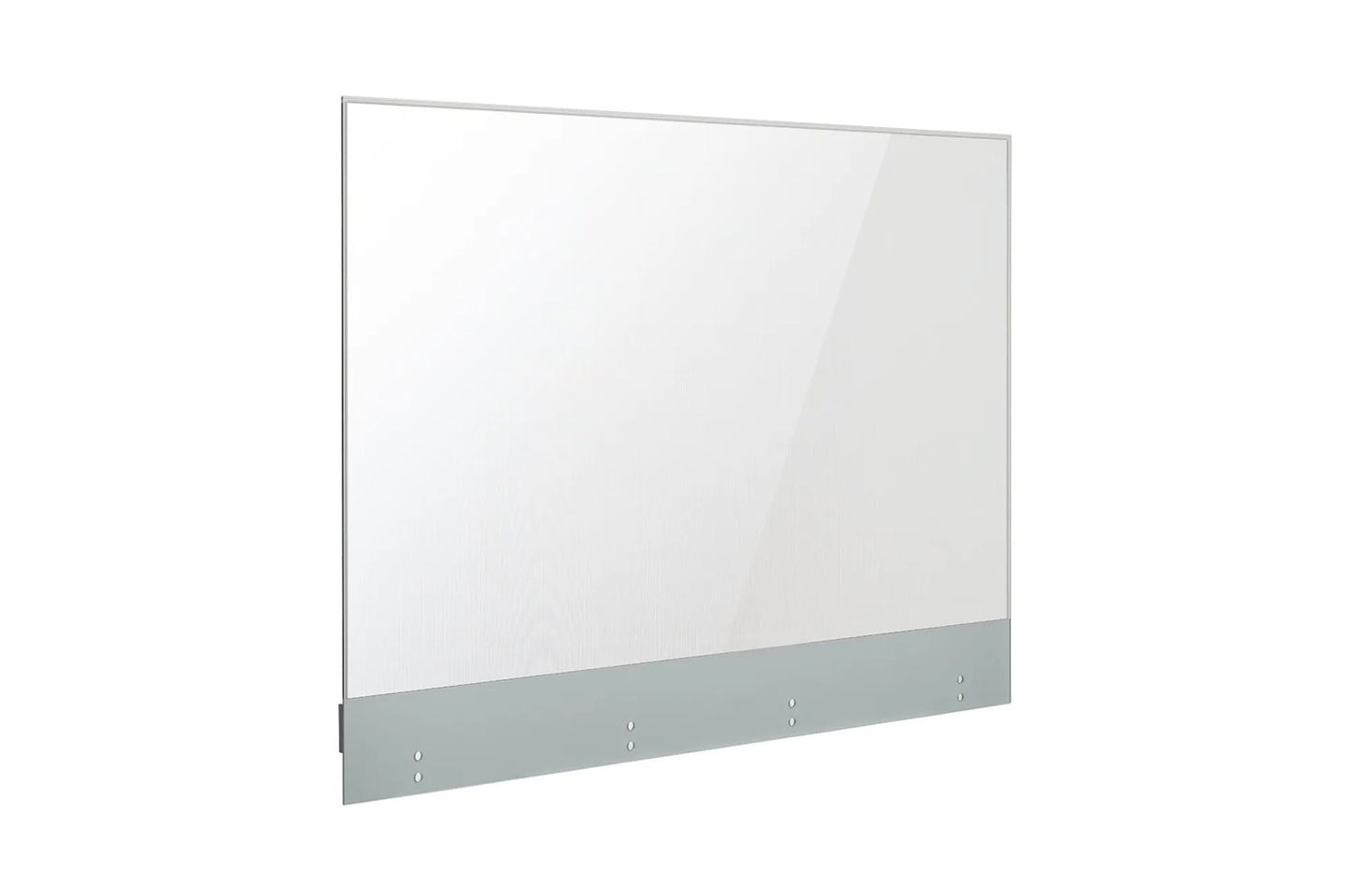

Lg 55EW5QC 55" Transparent OLED
Lg 55EW5QC 55" Transparent OLED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 600 nits brightness
- Native Resolution : 1,920 x 1,080 (FHD)
- Contrast Ratio : 200,000 : 1
55" Transparent OLED
| System | |
| Operating System (OS) | webOS™ 7.5 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 16 GB |
| Electrical | |
| Power Consumption (Max.) | 230W |
| Power Supply | AC 100-240V~, 50/60 Hz |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in Power |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | No |
| BTU Heat Generation (Max.) | 785 BTU/Hr |
| BTU Heat Generation (Typ.) | 239 BTU/Hr |
| Power Consumption (Typ.) | 70 W |
| Connectivity | |
| HDMI In | Yes (x1) v1.4 HDCP 2.2 |
| IR In (3.5 mm) | Yes (x1), External IR Receiver |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x2) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | No |
| IR Out | Sharing RS-232C Out |
| RJ45 (LAN) Out | Yes (x1) |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | Yes (input HDMI, DP / Output DP) |
| Built-in Wi-Fi | No |
| Panel | |
| Screen Size (Inches) | 55" |
| Panel Technology | OLED |
| Backlight Type | OLED |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 120 Hz |
| Brightness (Typ.) | 200 nits |
| Brightness (Max.) | 600 nits |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 200000:1 |
| Dynamic Contrast Ratio | No |
| Color Gamut | DCI 90%, BT709 110% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 0.1 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | 5H |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 18/7 (Moving Content Only) |
| Lifetime | Up to 30,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | 43% (Set) |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | No |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | No |
| Play Via URL | No |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Transparent |
| Bezel Width | .31 / .31 / .31 / 4.79 in / 7.9 / 7.9/ 7.9 / 121.8 mm |
| Bezel Width (On Bezel) | Not Available |
| Bezel Width (Off Bezel) | Not Available |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 25.57 lbs / 11.6 kg |
| Weight Signage Box | 5.73 lbs / 2.6 kg |
| Weight with Stand | Not Available |
| Shipping Weight | 48.28 lbs / 21.9 kg |

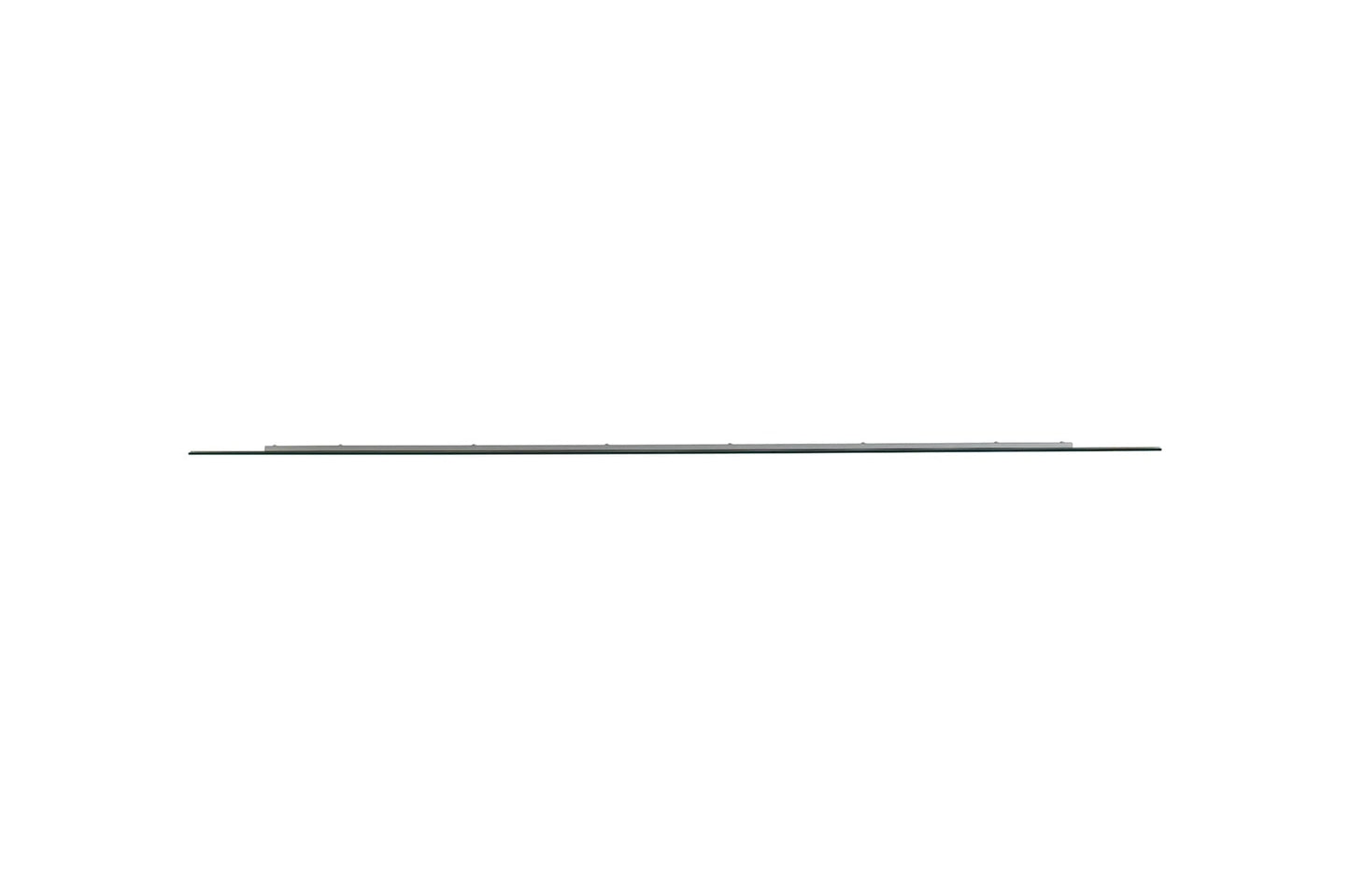

| Dimensions (W x H x D) | 48.24 x 31.89 x .57 in x 1225.5 x 810.1 x 14.6 mm |
| Dimensions with Stand (W x H x D) | Not Available |
| Dimensions with Pemnut (W x H x D) | Not Available |

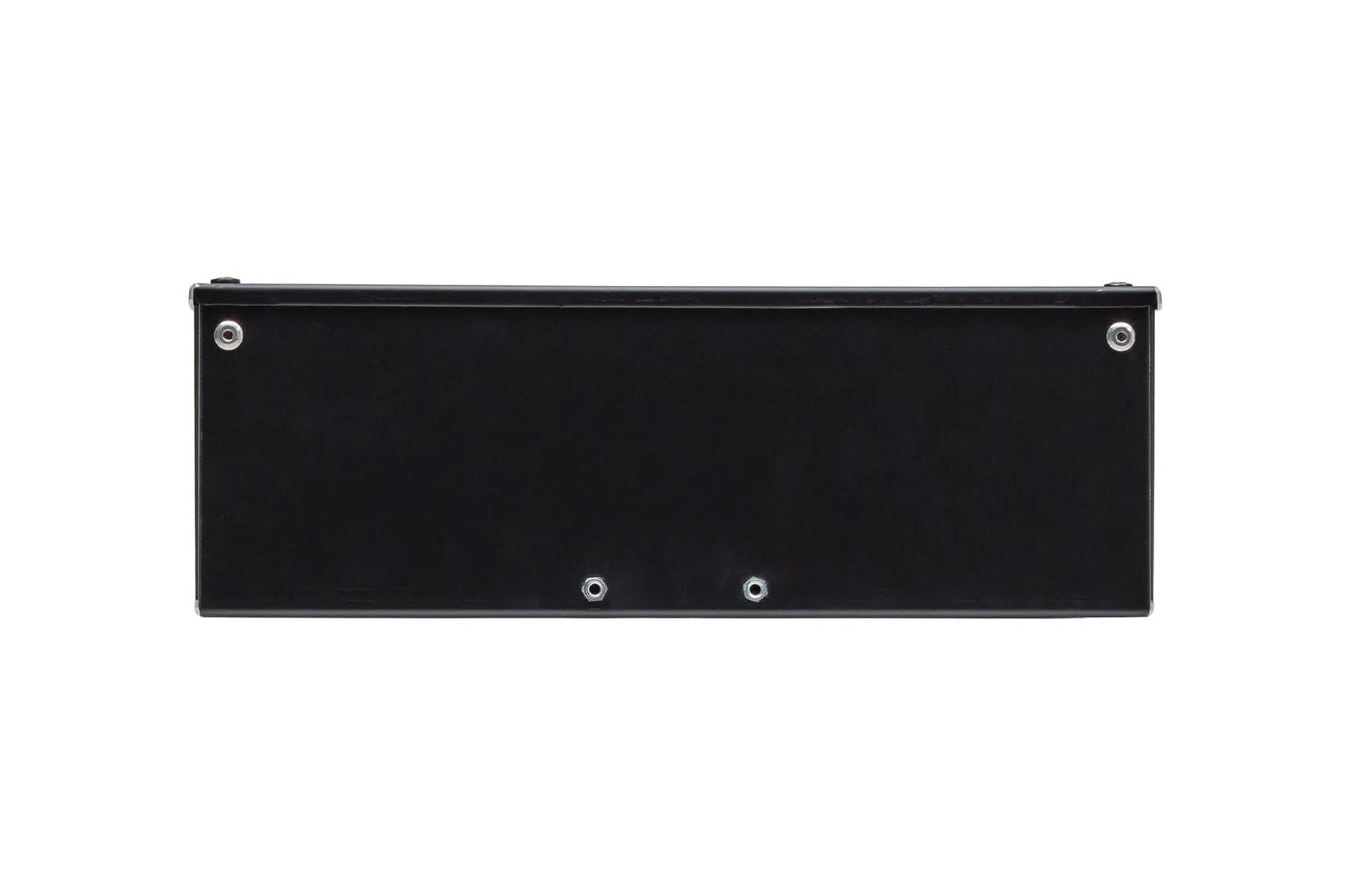

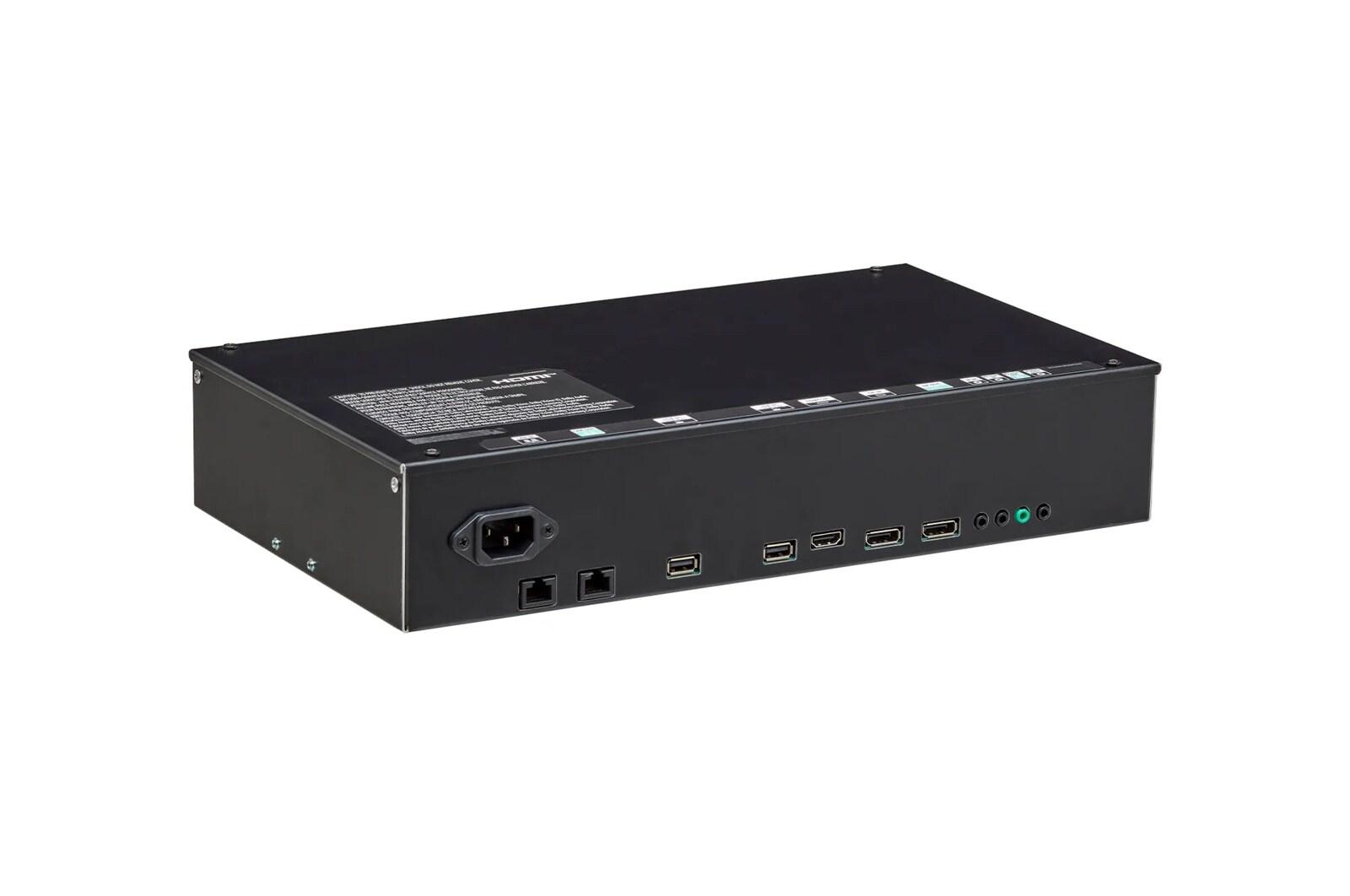

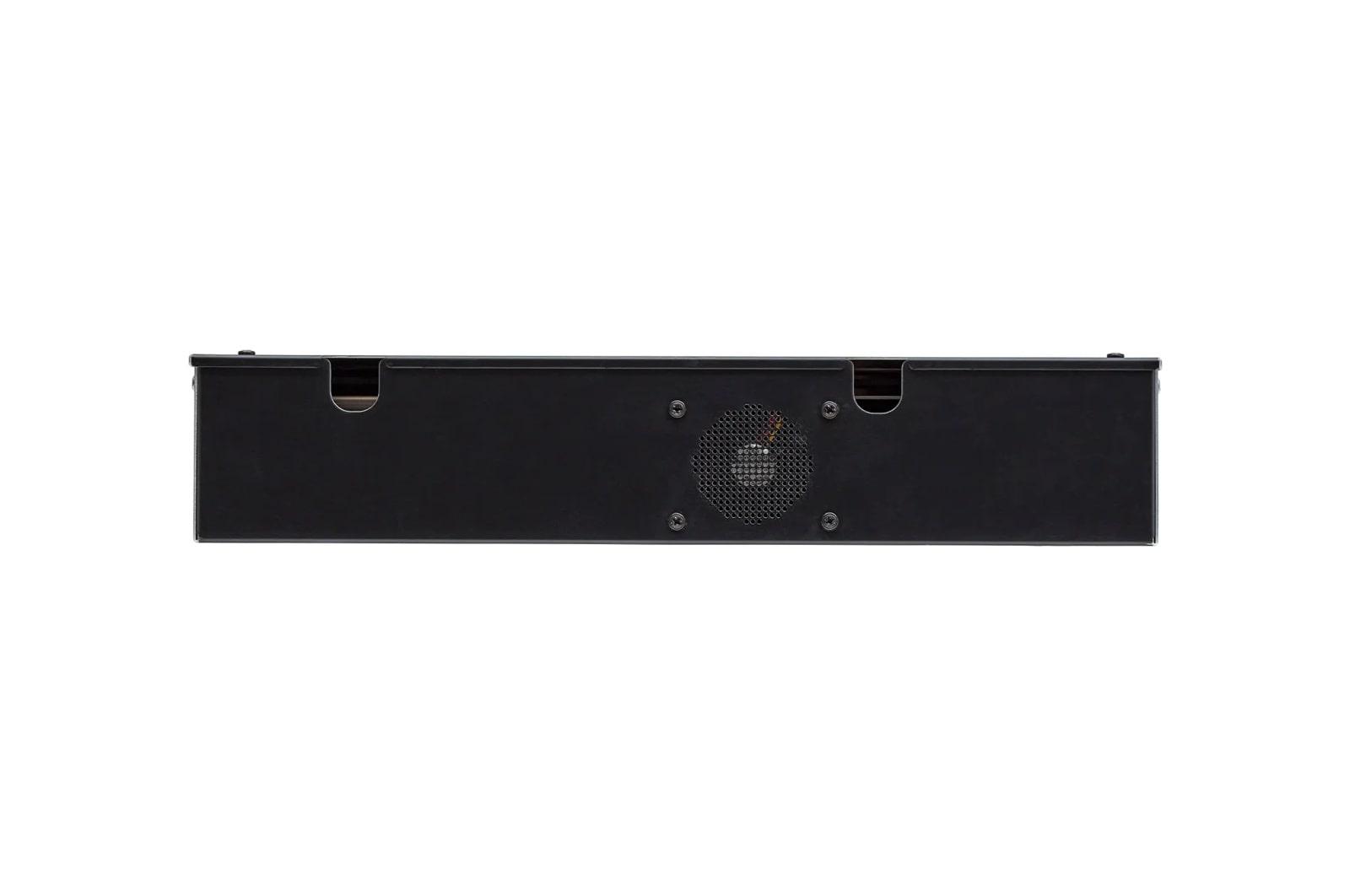

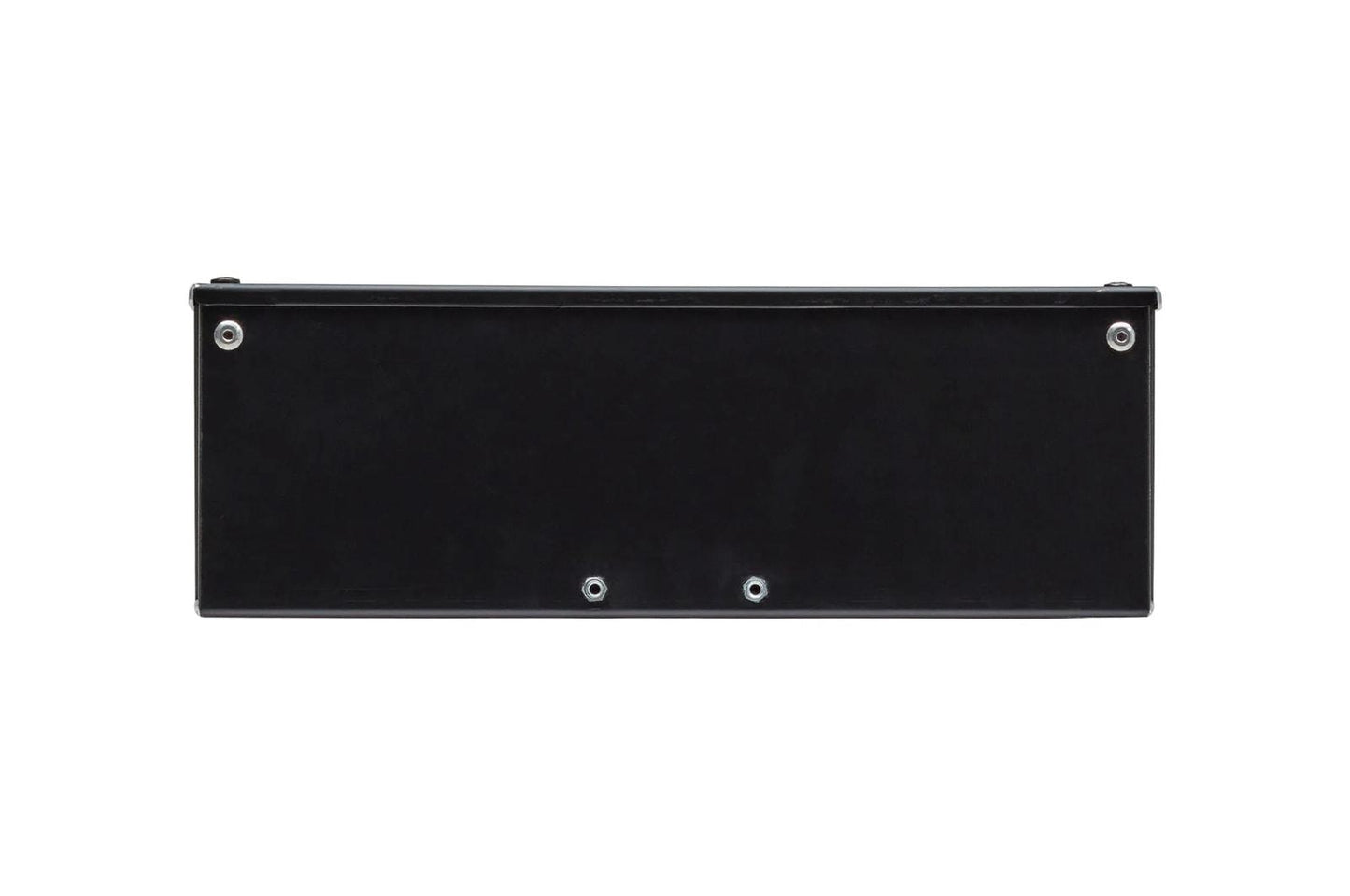

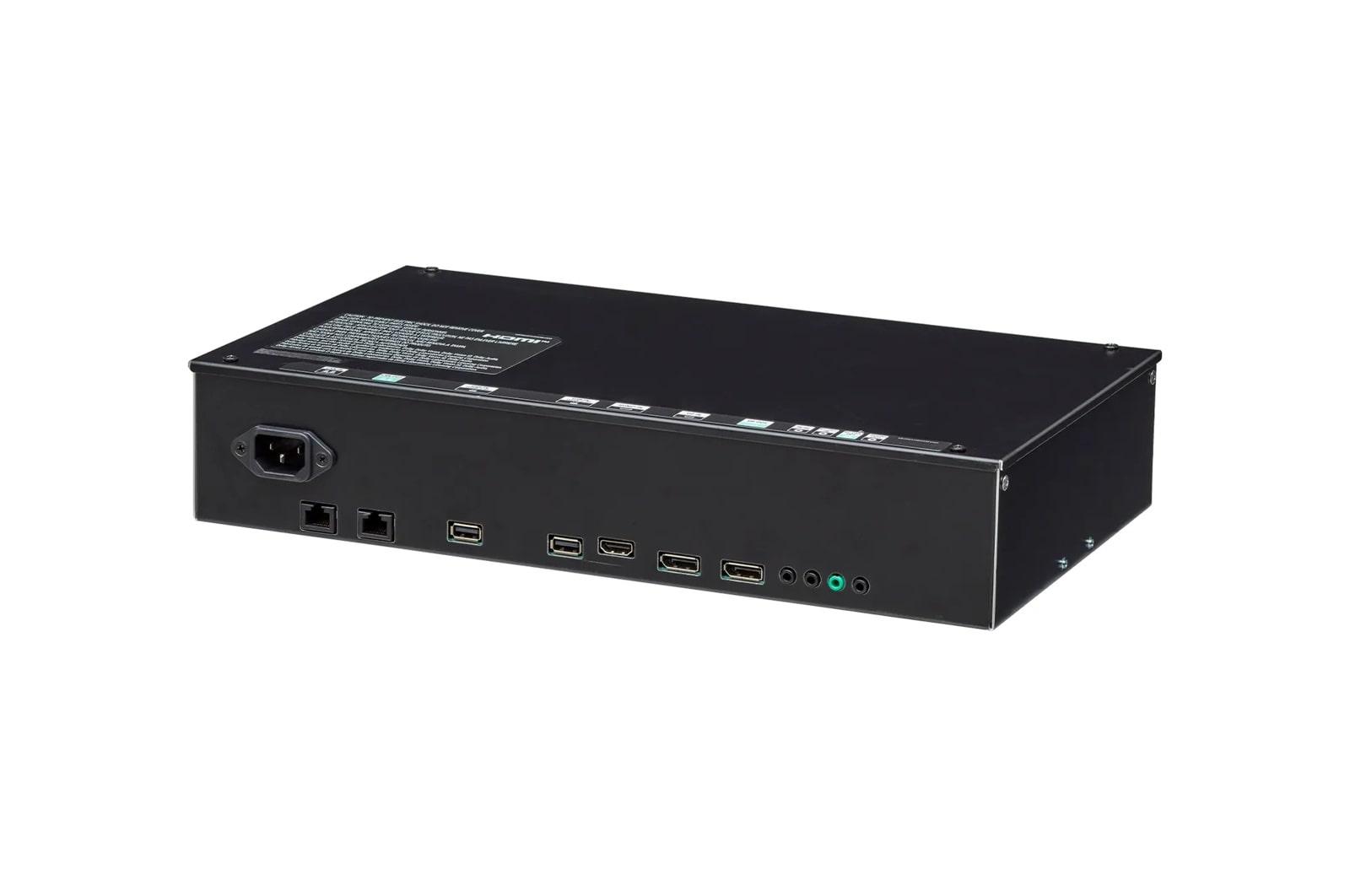

| Dimensions Signage Box (W x H x D) | 15.02 x 8.56 x 2.89 / 381.6 x 217.6 x 73.6 mm |
| Shipping Dimensions (W x H x D) | Not Available |
| Conformal Coating (Power Board) | Yes |
| Handle | No |
| VESA™ Standard Mount Interface | No |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| EN13501-1 | No |
| U.S. ePEAT (Environmental) | Yes |
| Carbon Trust | No |
| FCC (Regulatory) | EMC Class A |
| BS476 Part7 (UK Fire Rating) | No |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | No |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| UPC | 195174130537 |
| Basic Accessories (included) | Remote Controller(include battery 2ea), Power Cord, QSG, nIR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(1000mmx4ea/1000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M3xL5.5 Black,16EA / M3xL3.5 Silver, 20EA / M4xL22 Black, 22EA), Cover Shield Assy 1EA, Cable Rubber 1EA, Rubber Damper 4EA, Cable Holder 4EA, Signage Box Wing Bracket 2EAn |
| Touch Panel | |
| Available Object Size for Touch | No |
| Response Time (PC Win10, Education Mode) | No |
| Touch Response Time (G to G) | No |
| Writing Height | No |
| Accuracy (Typ.) | No |
| Interface | No |
| Active Pen Interface | No |
| Multi Touch Point (Max.) | No |
| Protection Glass Transmission | No |
| Protective Glass Thickness | No |
| Operating System Support | No |
| Protective Glass | |
| Thickness | 3.0 mm |
| Degree of Protection | No |
| Tempered / Chemical Strengthening | Chemical Strengthening |
| Anti-Reflective | Yes |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | Yes |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | Yes |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | No |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | No |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | No |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | Yes |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | No |
| Network Ready | No |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | Yes (x4) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | No |
| Remote Managment | No |
| Tile Mode Setting | Yes |
| External Input Rotation | Yes |
| No Signal Image | No |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | No |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
