LG 55MH5K
Authorized Reseller

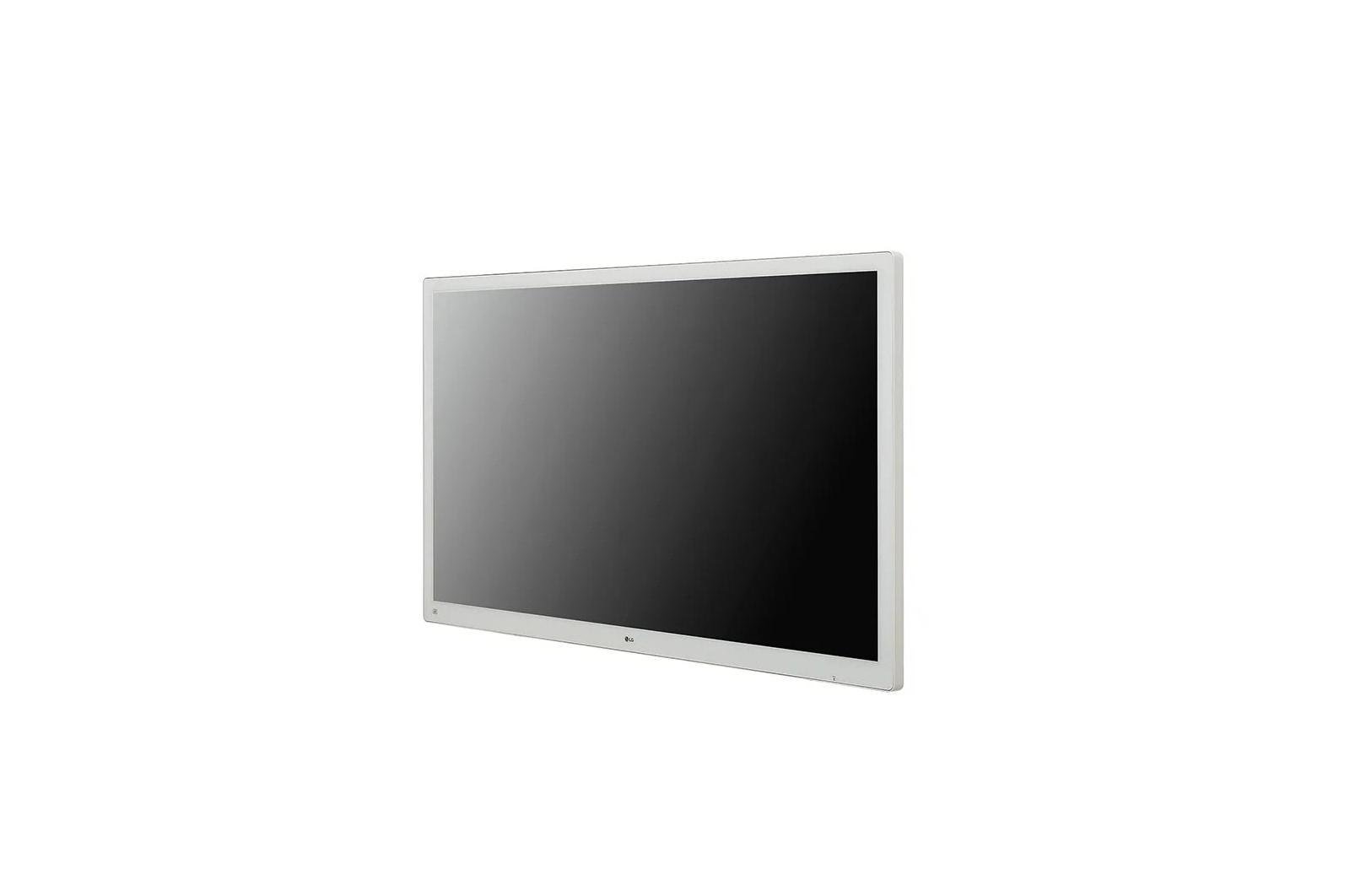

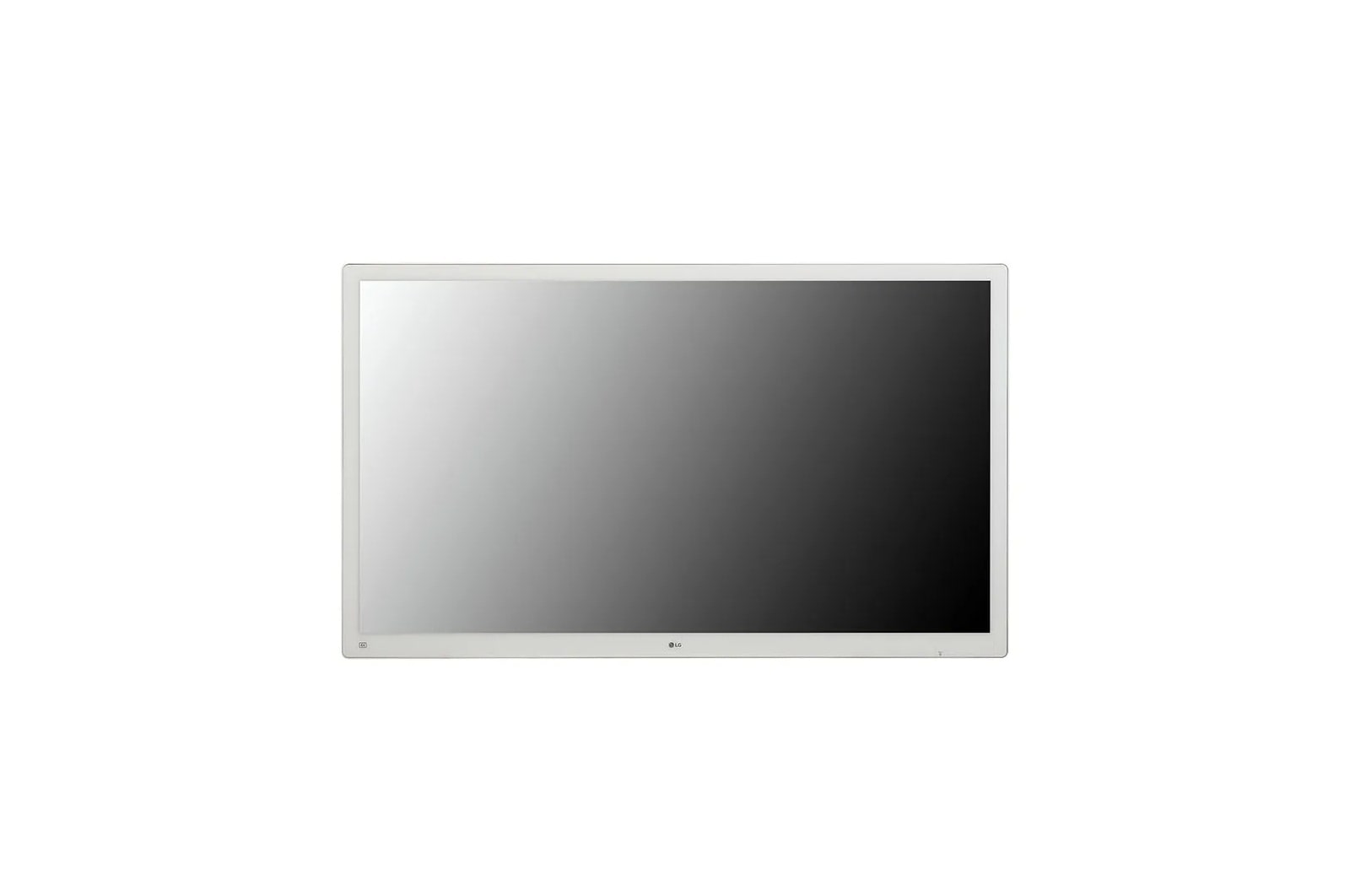

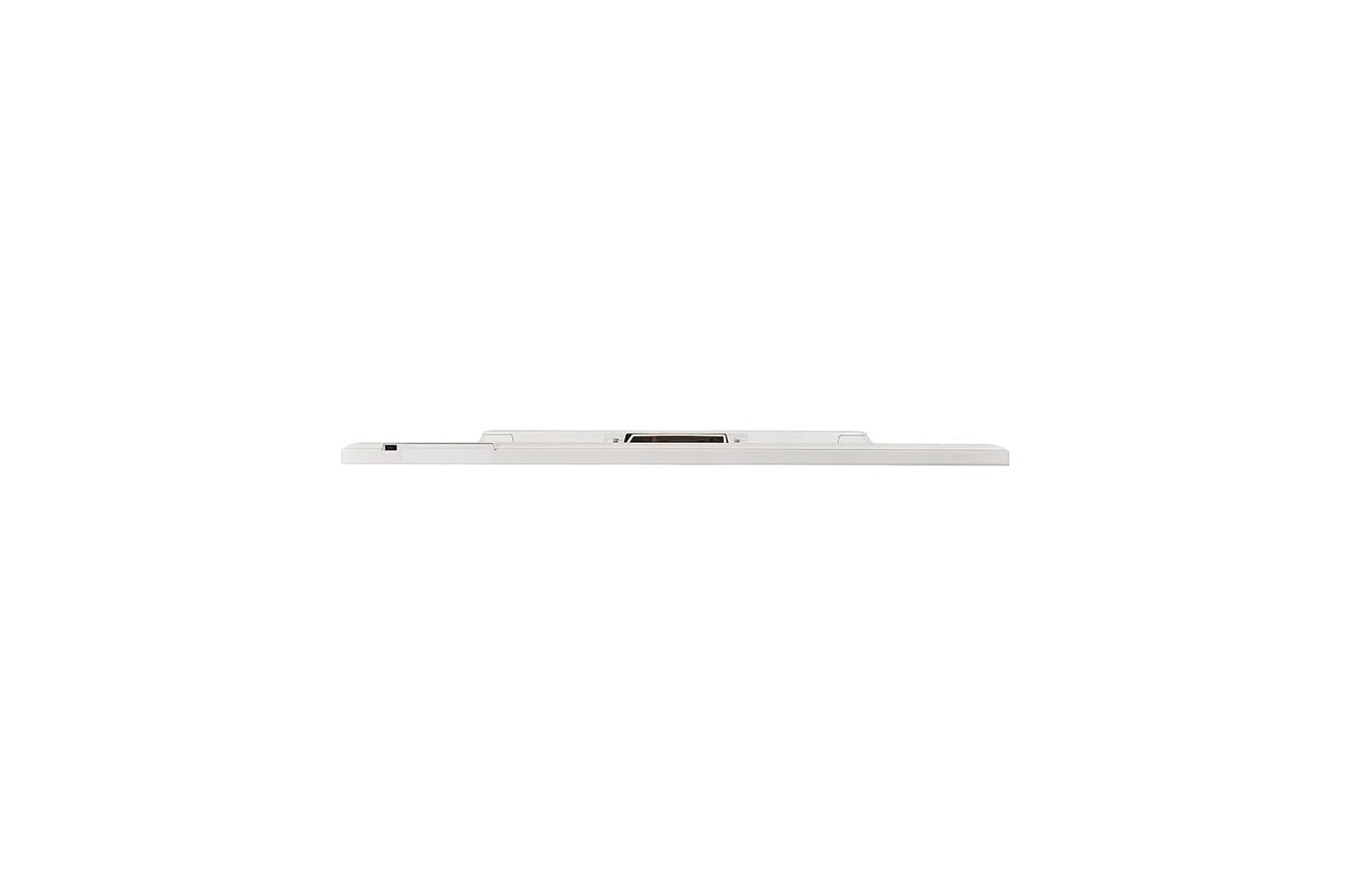

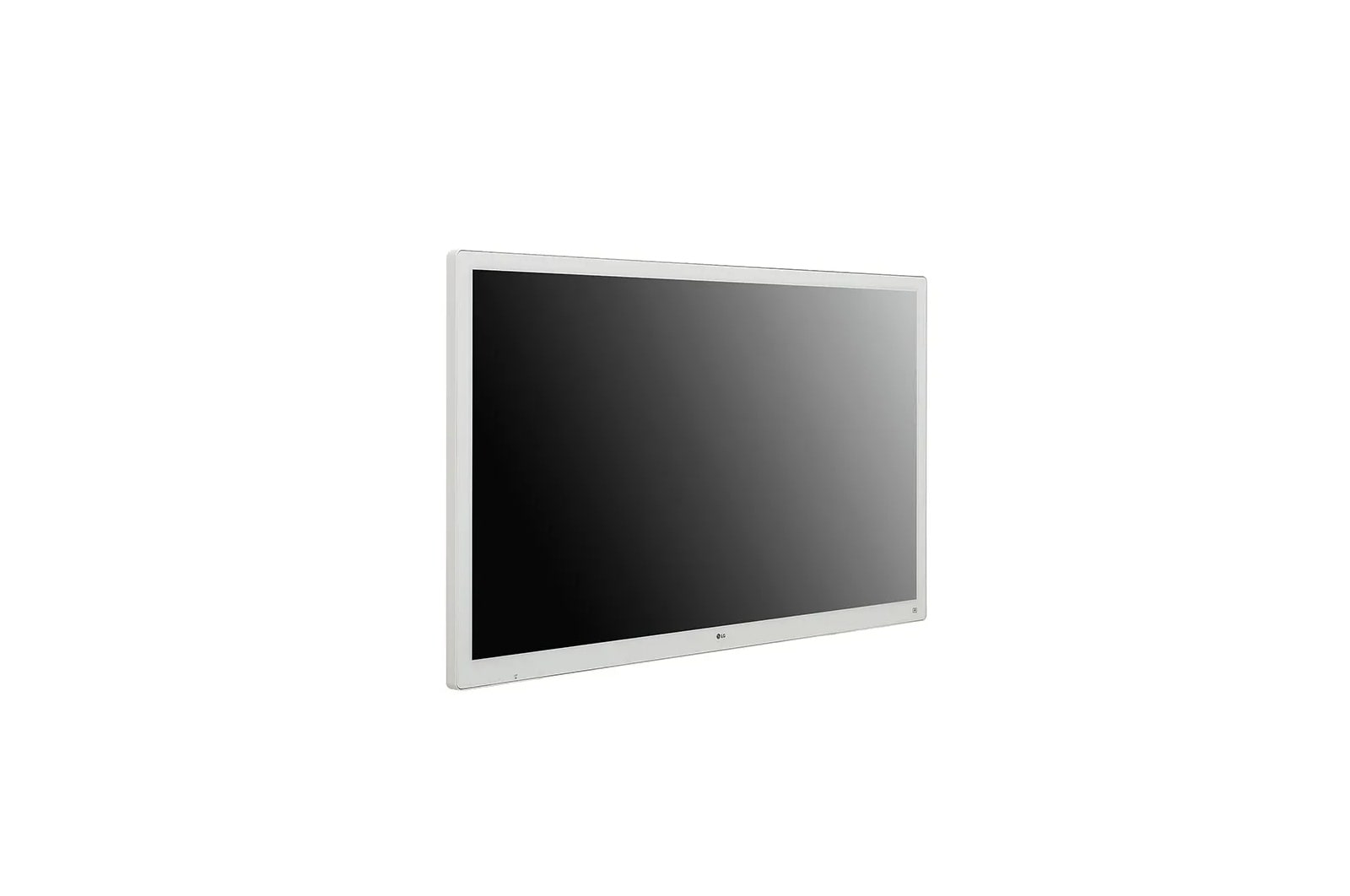

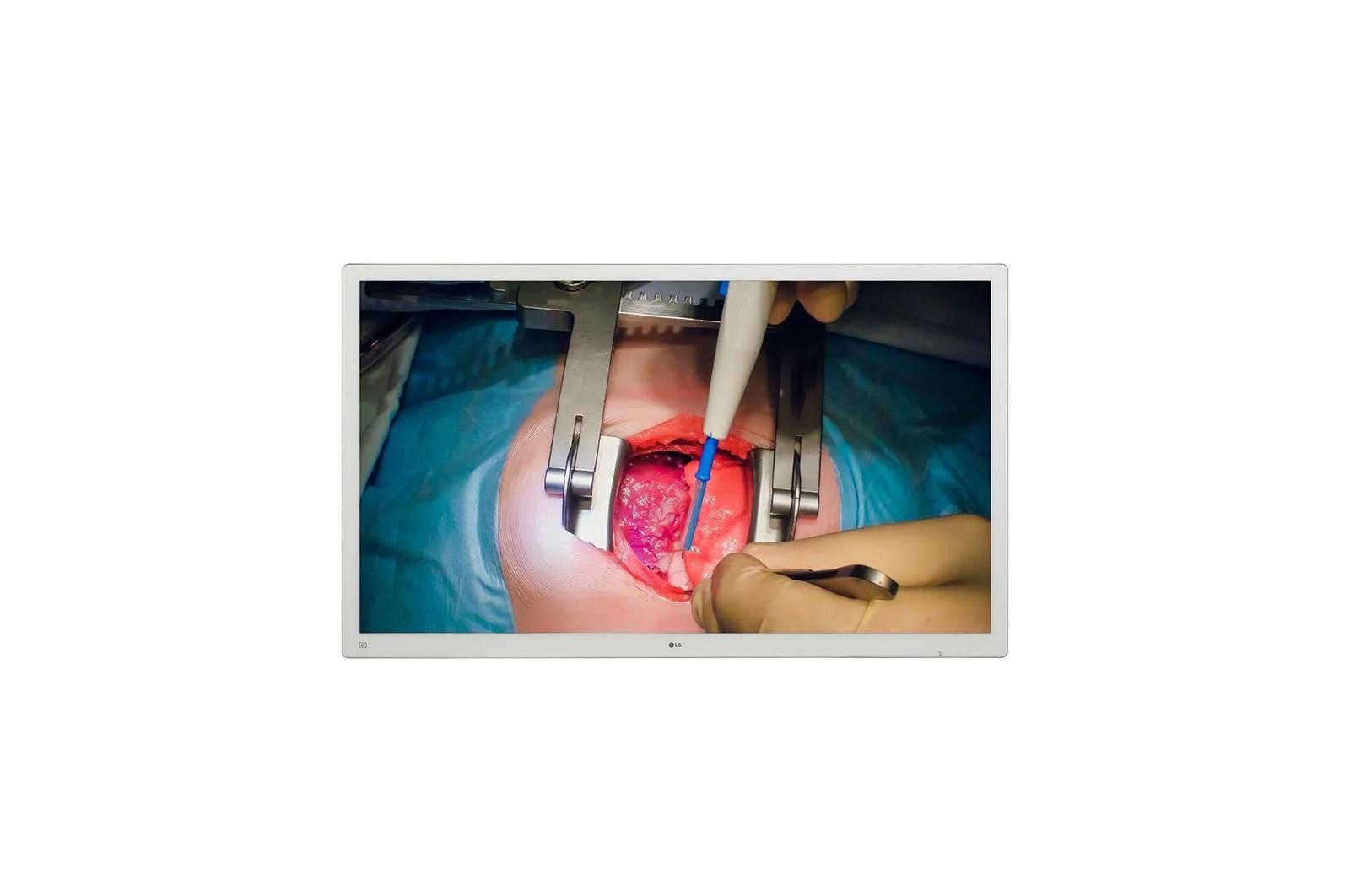

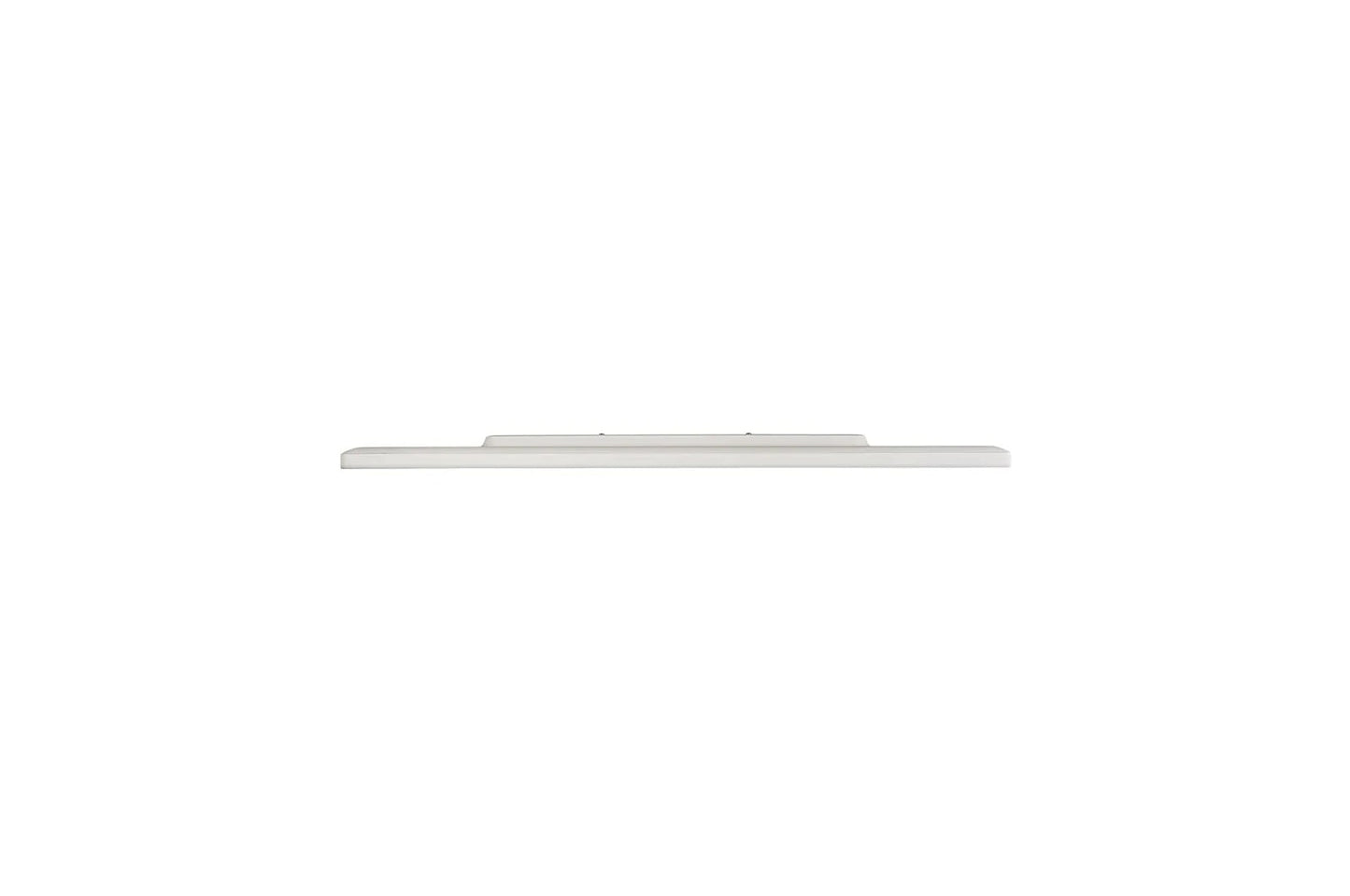

Lg 55MH5K 55" IPS 4K Surgical Monitor with HDR 10, DCI-P3 86%, 12G-SDI Support, Mirror & Rotation Mode, & 4PBP PIP
Lg 55MH5K 55" IPS 4K Surgical Monitor with HDR 10, DCI-P3 86%, 12G-SDI Support, Mirror & Rotation Mode, & 4PBP PIP
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 55" IPS 4K (3,840 x 2,160) Resolution & 16:9 Aspect Ratio
- 178(degree) Wide Viewing Angle
- 12G-SDI Support
- HDR 10 & DCI-P3 86% (CIE 1976) Deliver Crisp, Clear Images
- Mirror & Rotation Mode, Failover Input Switch & PBP (2/3/4PBP) / PIP
- IP45 (Front), IP32 (Except for Front), IK06
55" IPS 4K Surgical Monitor with HDR 10, DCI-P3 86%, 12G-SDI Support, Mirror & Rotation Mode, & 4PBP PIP
| Electrical | |
| Power Consumption (Max.) | 180W |
| Power Consumption (Power Off) | Less than 0.3W |
| Power Type | Built-in Power |
| Power Consumption (Sleep Mode) | Not Available |
| Power Consumption (On Mode) | Not Available |
| AC Input | 100-240 Vac, 50/60 Hz |
| DC Output | PSU output (20.5V , 9A) |

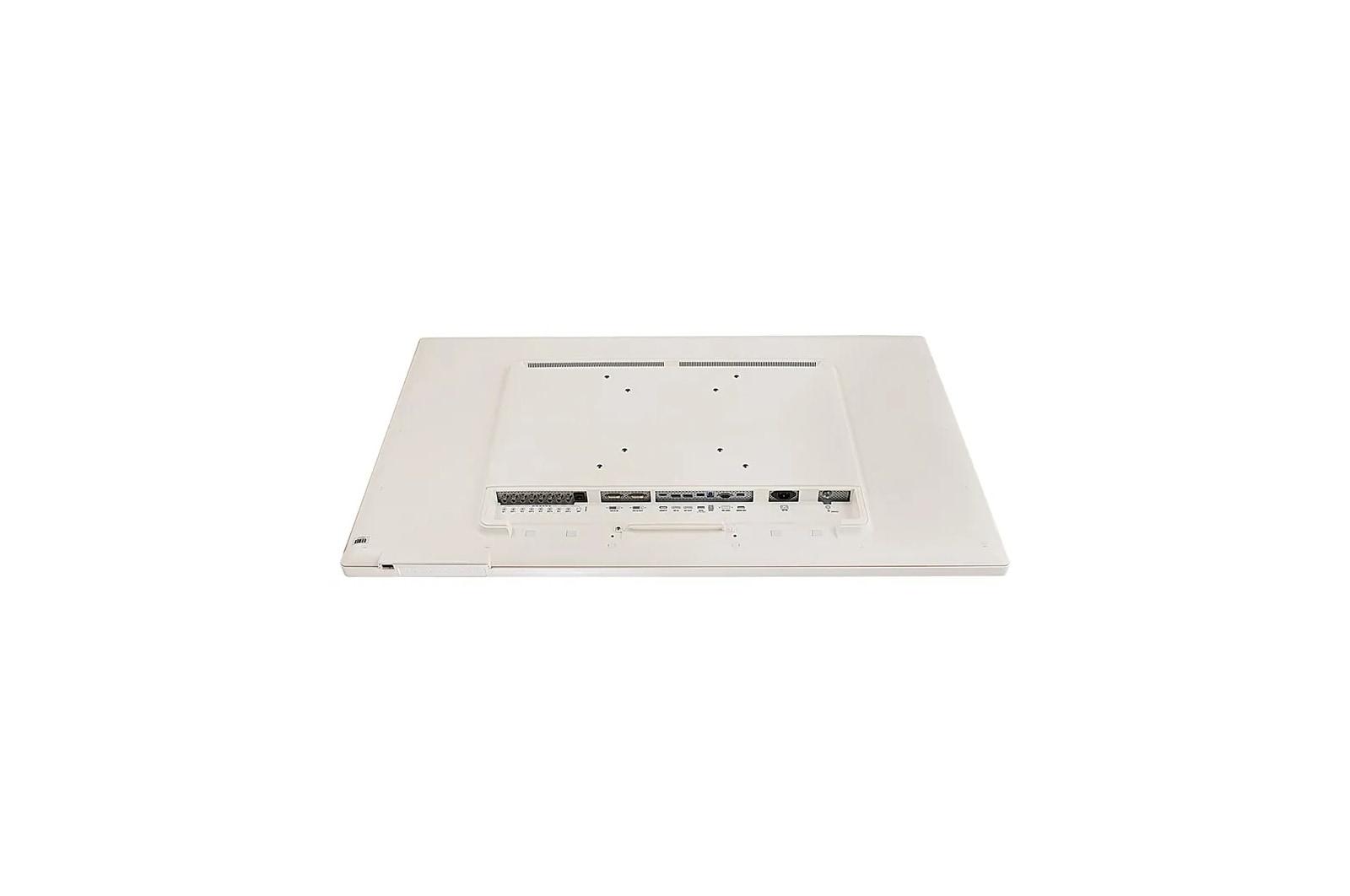

| Connectivity | |
| HDMI In | Yes (x1) v2.0 HDCP 2.2 |
| HDMI (Max. Resolution at Hz) | 3,840 x 2,160 at 60 Hz |
| HDMI (w/o VRR) | 56~61 Hz |
| DVI In | Yes (x1) |
| DVI (V Frequency) | 56~61 Hz |
| DVI (Max Resolution at Hz) | 1,920 x 1,080 at 60 Hz |
| DisplayPort In | Yes (x1) HDCP 2.2 |
| DisplayPort (w/o VRR) | 56~61 Hz |
| DisplayPort (Max. Resolution at Hz) | 3,840 x 2,160 at 60 Hz |
| RS-232C In (D-sub 9-pin) | Yes (x1) |
| USB Type-A (Downstream) | Yes (x1) USB 3.0 |
| USB Type-B (Upstream) | Yes (x1) USB 3.0 |
| S-Video | No |
| 3G-SDI In | No |
| 12G-SDI In (3.5 mm) | Yes (x1) |
| AC In | Yes (x1) |
| DC In (4 pin) | No |
| DisplayPort Out | Yes (x1) |
| Audio Output Jack Location | No |
| DVI Out | Yes (x1) |
| 3G-SDI Out | No |
| 12G-SDI Out (3.5 mm) | Yes (x1) |
| Headphone Out (3.5 mm) | No |
| Digital Scanning Frequency (H/V) | Not Available |
| Daisy Chain | No |
| Signal Input Jack Location | Not Available |
| Panel | |
| Screen Size (Inches) | 55" |
| Diagonal (Inches) | N/A |
| Panel Type | IPS |
| Backlight Type | Edge |
| Aspect Ratio | 16:09 |
| Resolution | 3840 x 2160 (4K UHD) |
| Pixel Pitch | 0.315mm x 0.315mm |
| Brightness (Typ.) | 680 cd/m |
| Contrast Ratio | 1100:1 |
| Color Gamut | DCI-P3 86% (CIE 1976) |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) (Faster-setting) | 5 ms |
| Response Time (G to G) (Off-setting) | 9 ms |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| HDR | HDR 10 |
| HDR Effect | No |
| Features | |
| Screen Flip | Mirror Mode & Rotation Mode |
| Quick Charge | No |
| DDC/CI | No |
| Original Ratio | No |
| Brightness (DICOM Calibrated) | Not Available |
| Focus View Mode | No |
| Uniformity Compensation | No |
| Light Box Mode | No |
| Key Lock | No |
| Calibration Software | LG Calibration Studio |
| DICOM Mode | No |
| DPM | No |
| Failover Input Switch | Yes |
| User Preset Quick Setting | No |
| 4 Screen Split | No |
| Color Temperature | No |
| Uniformity | No |
| Super Resolution+ | No |
| HW Calibration | Yes |
| Automatic Standby | No |
| Brightness Stabilization | No |
| DynaMic Sync Mode (Thru Mode) | No |
| Pathology Mode | No |
| Six Axis Control | No |
| HDCP | No |
| DICOM Calibrated | No |
| Factory Calibration | No |
| DICOM Compliant | Yes |
| Brightness Uniformity Correction | No |
| BLS (ALS) | No |
| Color Calibrated | No |
| Multi-resolution Mode | No |
| Gamma | No |
| Picture Mode | No |
| Mechanical | |
| Color | White |
| Adjustable Stand | N/A |
| Base Detachable | N/A |
| One Click Stand Set-up | N/A |
| Stand Height Range | N/A |
| Tilt (Angle) | N/A |
| Swivel (Angle) | N/A |
| Pivot | N/A |
| Weight | 76.7 lbs / 34.8 kg |
| Weight with Stand | N/A |
| Shipping Weight | 93.5 lbs / 42.3 kg |
| Dimensions (W x H x D) | 50.5 x 30.3 x 2.7 in / 1,283.4 x 768.5 x 68.3 mm |
| Dimension with Stand (W x H x D) | N/A |
| Shipping Dimensions (W x H x D) | 58.7 x 34.6 x 6.8 in / 1,490 x 880 x 172 mm |

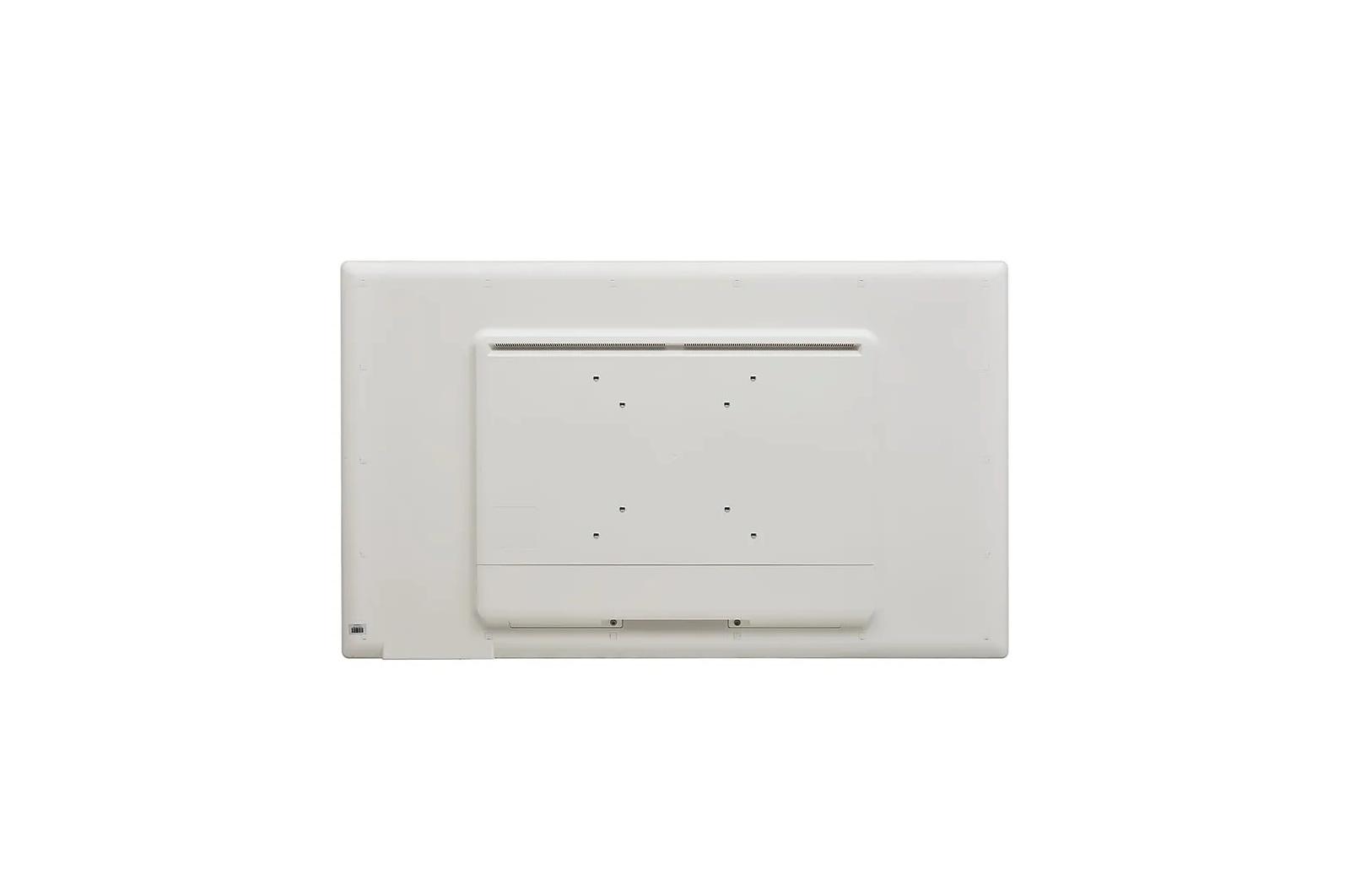

| VESA™ Wall Mount | 200 x 200 mm, 300 x 300 mm |
| LG Software Compatible | |
| On Screen Control | Not Available |
| Dual Controller | Not Available |
| Regulatory & Certifications | |
| Impact Protection | IK06 |
| ICES-003 | No |
| Windows 10 | No |
| EN (EN 60950-1/EN55032, 55024) | Yes |
| MFDS (KR) | No |
| CE MDD (EU) | No |
| CE (Regulatory) | No |
| IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035) | No |
| ANSI/AAMI ES 60601-1 | No |
| FCC (US) | FCC Part 15 Class A |
| CMDR (Canada) | No |
| RoHS (Environmental) | Yes |
| GMP | No |
| IP Rating (Solid / Liquid Ingress) (Front) | IP45 |
| TGA / RCM (Australia) | No |
| IEC (IEC 60601-1 / IEC 60601-1-2) | Yes |
| TAA Compliance | No |
| CE (MDD 93/42/EEC, 2007/47/EC) | No |
| CISPR (Global) | No |
| REACH (Environmental) | Yes |
| CSA (CAN/CSA-C22.2 NO. 60601-1) | Yes |
| WEEE | Yes |
| FDA (US) | FDA (Registration (Class I)) |
| RCM (Australia) | No |
| IEC (IEC 60950-1/IEC 55032, 55024) | Yes |
| CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90) | No |
| KGMP | No |
| ISO13485 | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP32 |
| UL/cUL Certification | ANSI/AAMI ES 60601-1 |
| Warranty & Other | |
| Assembled In | China |
| Warranty | 3 Year Limited |
| OSD Language | 17 Language |
| Accessories Included | Calibration Report, DP cord, HDMI Cord, Power Cord |
| UPC | 1 95174 05385 0 |
| Protective Glass | |
| Thickness | 3.1T |
| Anti-Reflective | Yes |
| Anti-Fingerprint | Yes |
| Software Features | |
| Picture-by-Picture (PBP) | Yes (2PBP / 3PBP / 4PBP) |
| Picture-in-Picture (PIP) | Yes |
| Smart Energy Saving | No |
| Flicker Safe | No |
| Reader Mode | No |
| Black Stabilizer® | No |
| Text Mode | No |
| USB Plug & Play | No |
| User Convenience | |
| Auto Luminance Sensor | No |
| Presence Sensor | No |
| Hot Key | No |
| Lighting | No |
| Control Key | |
| Key Type | Not Available |
| LED Color (On Mode) | Not Available |
| LED Color (Power save mode) | Not Available |
| Key Location | Not Available |
| Key Number (Power Key Included) | Not Available |
