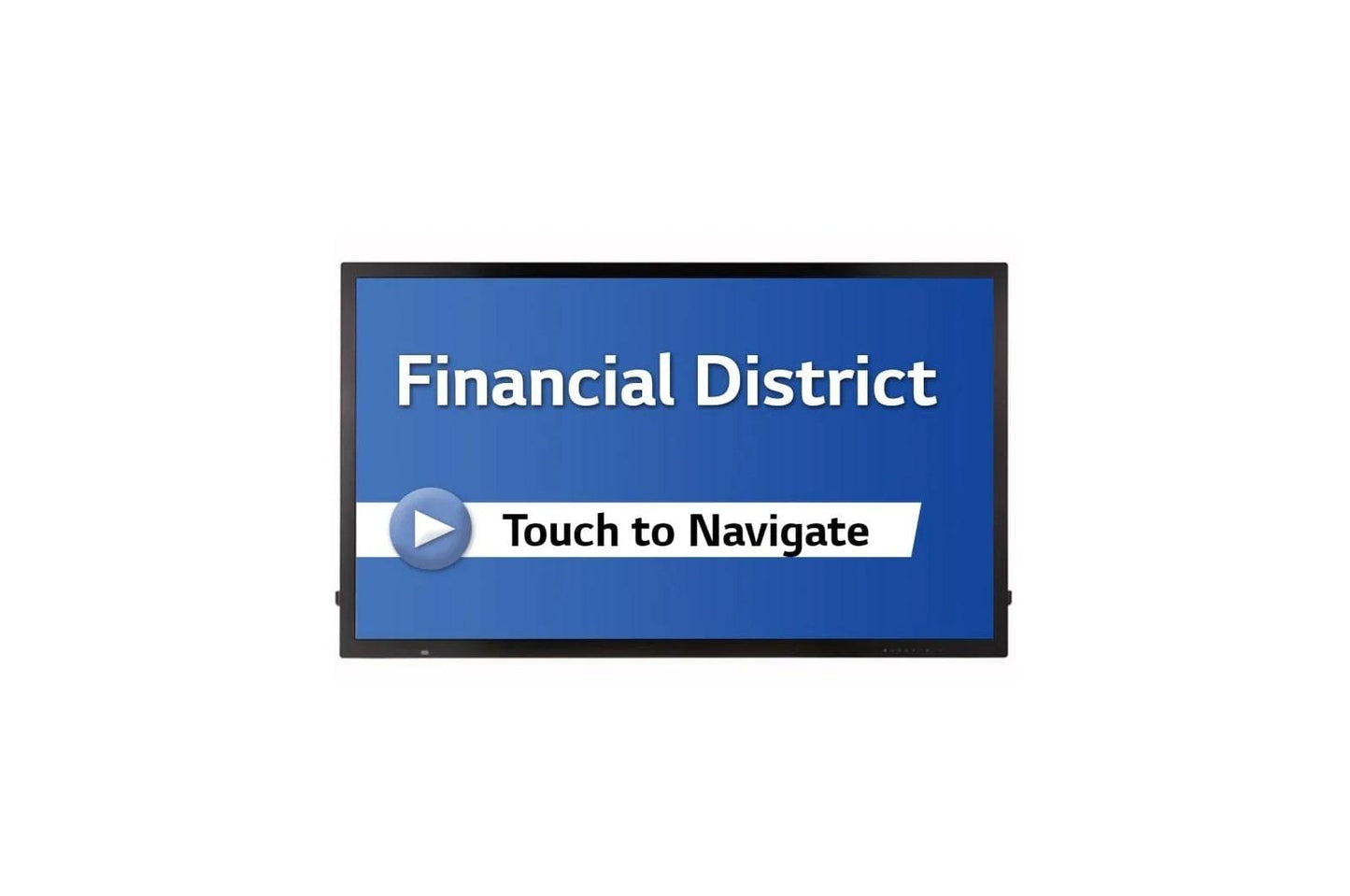

Lg 55TC3CGH 55" IPS UHD Multi Touch Screen Digital Display with webOS 4.1 Smart Signage Platform, Anti-shatter Glass, Conformal Coating & Embedded Group Manager

Item Not Available

Check Delivery:

IPS Display with wide viewing angles
Multi Touch Screen (Up to 40 points)
webOS 4.1 Smart Signage Platform
Anti-shatter Glass & Conformal Coating
SuperSign CMS, Control/Control+

55" IPS UHD Multi Touch Screen Digital Display with webOS 4.1 Smart Signage Platform, Anti-shatter Glass, Conformal Coating & Embedded Group Manager

System
Operating System (OS)	webOS™ 4.1
Processor	No
Graphics	No
Storage	No
Internal Memory	8 GB (System 4 GB + Available 3.6 GB) (eMMC)
Electrical
Power Consumption (Max.)	145W
Power Supply	100-240 Vac, 50/60 Hz
Power Consumption (Power Off)	Less than 0.5W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)	74 W
BTU Heat Generation (Max.)	495 BTU
BTU Heat Generation (Typ.)	358 BTU
Power Consumption (Typ.)	105 W
Connectivity
HDMI In	Yes (x2) HDCP 2.2/1.4
IR In (3.5 mm)	Yes (x1)
IR In (3.5 mm)	Yes
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	No
DisplayPort In	Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x2) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	Yes (x1), input HDMI 1 / 2 / DP / OPS
Audio Out (3.5 mm)	Yes (x1)
Touch USB	Yes (x1) USB 2.0
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	Yes (6 ohm)
Bluetooth	No
Daisy Chain	Yes (input HDMI, DP / Output DP)
Built-in Wi-Fi	No
Panel
Screen Size (Inches)	55"
Panel Technology	IPS
Backlight Type	Edge
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	350 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1000:1
Dynamic Contrast Ratio	500000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	10 bit, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	9 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	28%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	Yes
Beacon	No
Play Via URL	Yes
Cisco Certified Compatibility	Yes
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T: 33.5mm, R/L: 33.4 mm, B: 38 mm
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Not Available
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	78.0 lbs / 34.5 kg
Weight Signage Box	N/A
Weight with Stand	Not Available
Shipping Weight	87.7 lbs / 39.8 kg
Dimensions (W x H x D)	50.3 x 29.6 x 1.8 in / 1276.4 x 751.9 x 44.9 mm
Dimensions with Stand (W x H x D)	Not Available
Dimensions with Pemnut (W x H x D)	N/A
Dimensions Signage Box (W x H x D)	N/A
Shipping Dimensions (W x H x D)	55.5 x 34.6 x 8.1 in / 1410 x 880 x 207 mm
Conformal Coating (Power Board)	Yes
Handle	No
VESA™ Standard Mount Interface	300 x 300 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	No
SuperSign™ Cloud	No
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	Korea
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e
Optional Accessories	Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF), SP-5200
UPC	1 95174 00538 5
Basic Accessories (included)	Power Cord 1.55 M1, USB Cable (Type A-Type B) 1.8 M1, HDMI Cable 3 M*1, User Manual, QSG, Remote Controller (include battery 2ea), RS232C cable (3.5mm), IR Receiver , Magnet Sheet (3ea)
Touch Panel
Available Object Size for Touch	Greater than 6 mm
Response Time (PC Win10, Education Mode)	100 ms
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	2 mm
Interface	USB 2.0
Active Pen Interface	No
Multi Touch Point (Max.)	Max 40 Points
Protection Glass Transmission	83%
Protective Glass Thickness	3.2T (Anti-Glare)
Operating System Support	Win 8.1 / 10, Linux (Kernel v3.0 above)
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	No
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	No
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	Yes (4)
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	No
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (4)
PM mode	Yes
Picture-in-Picture (PIP)	Yes
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	N/A
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	Yes (Piggyback)
