LG 55UH7QE
Authorized Reseller

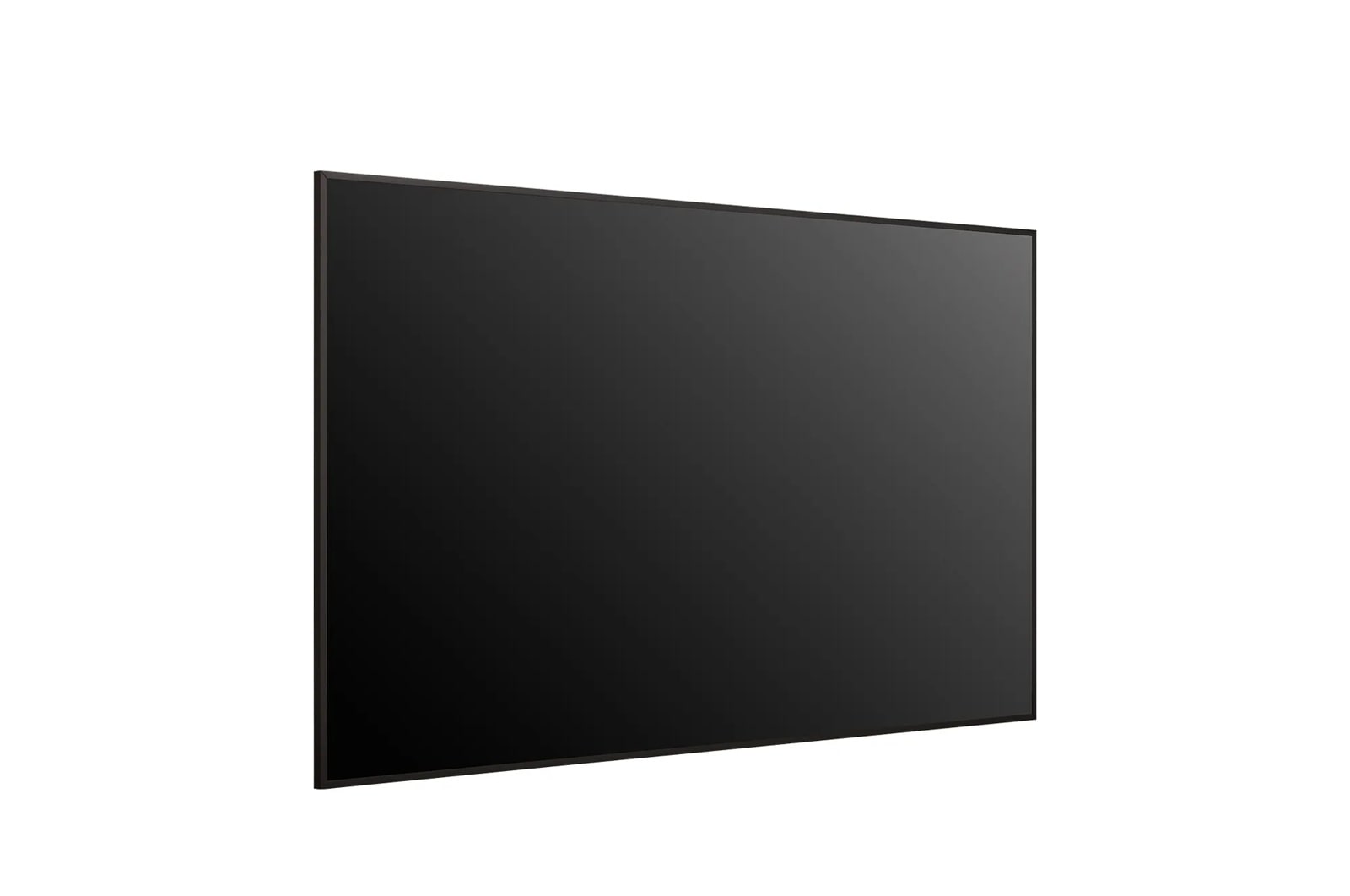

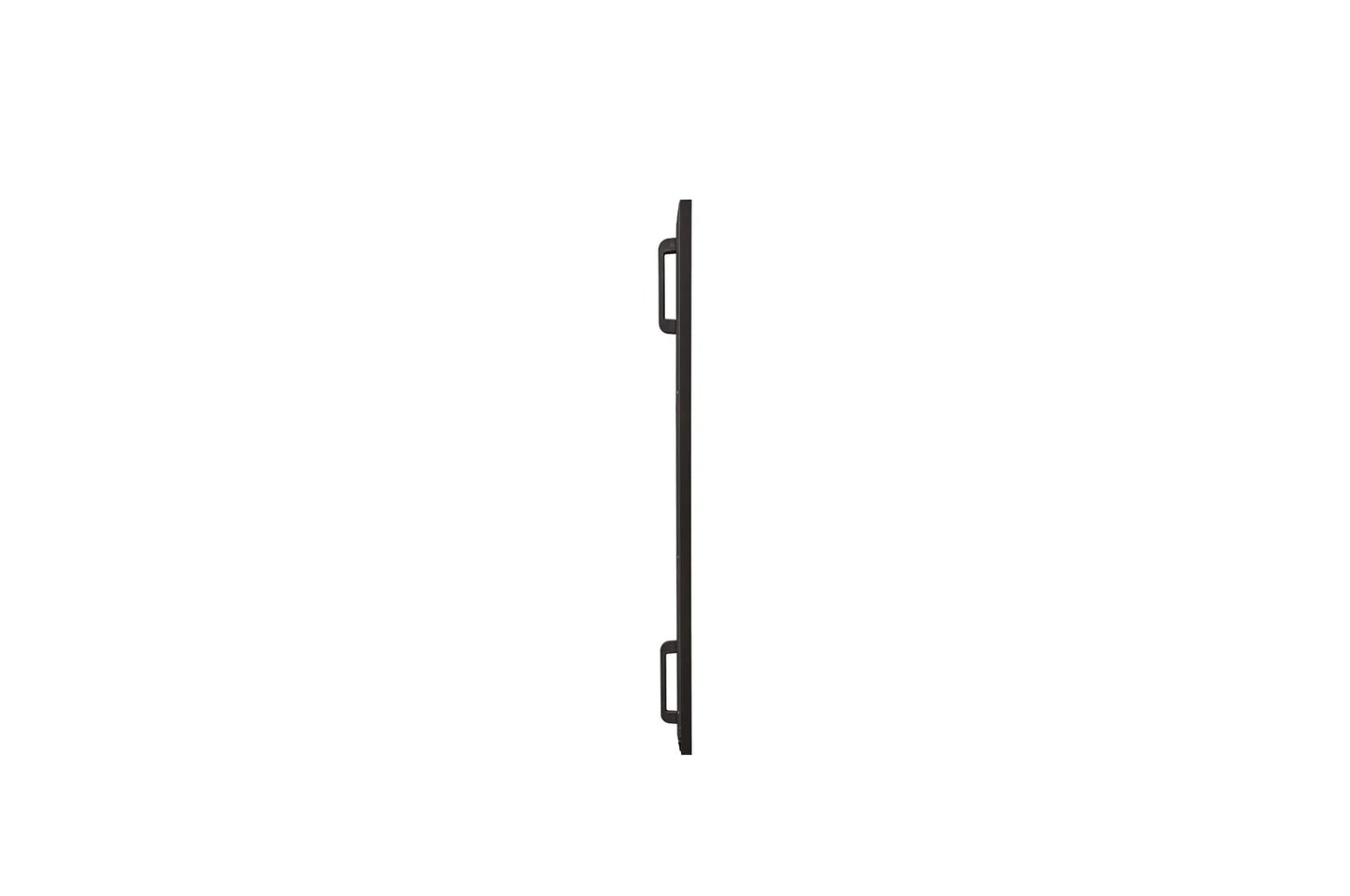

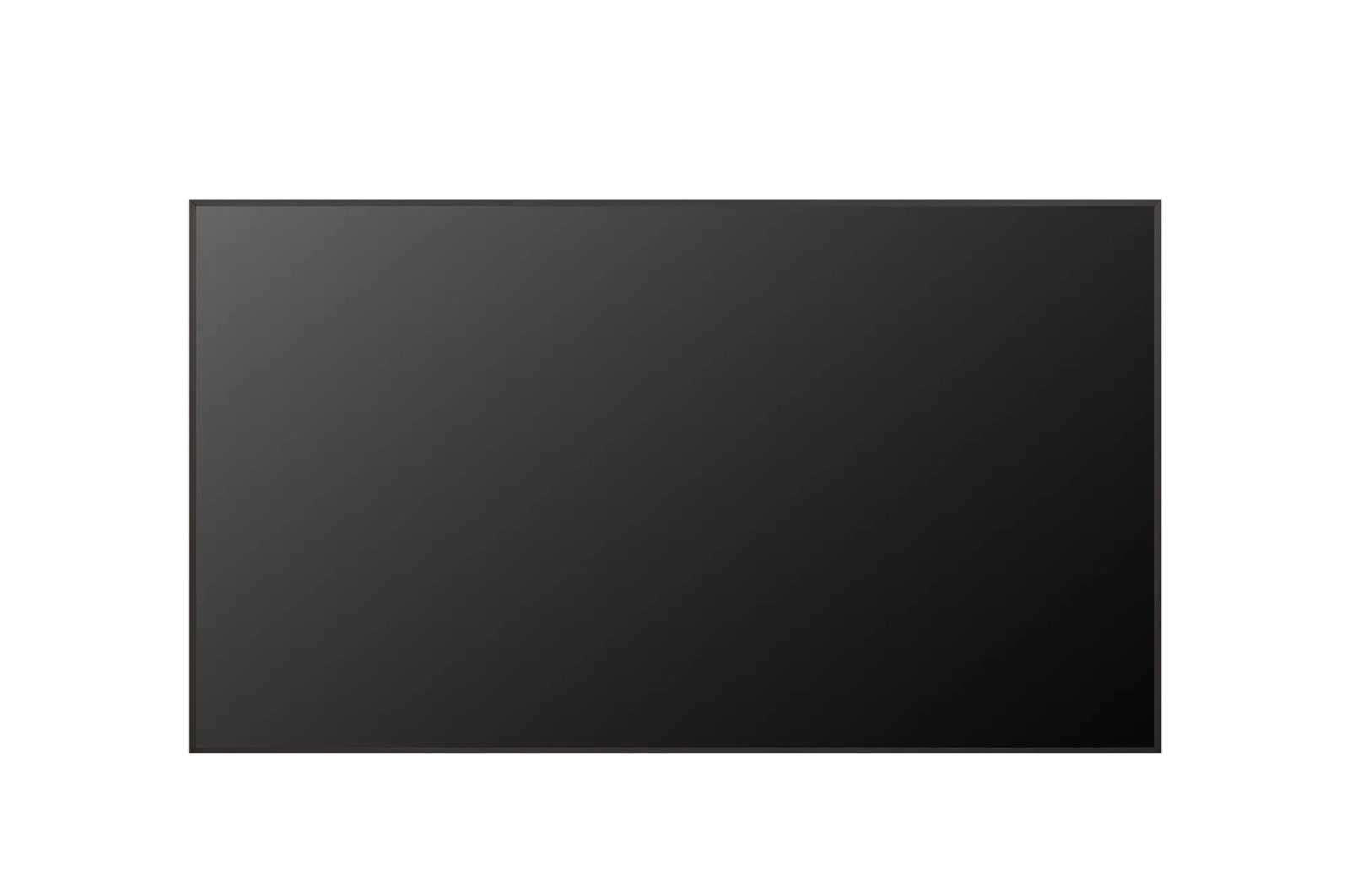

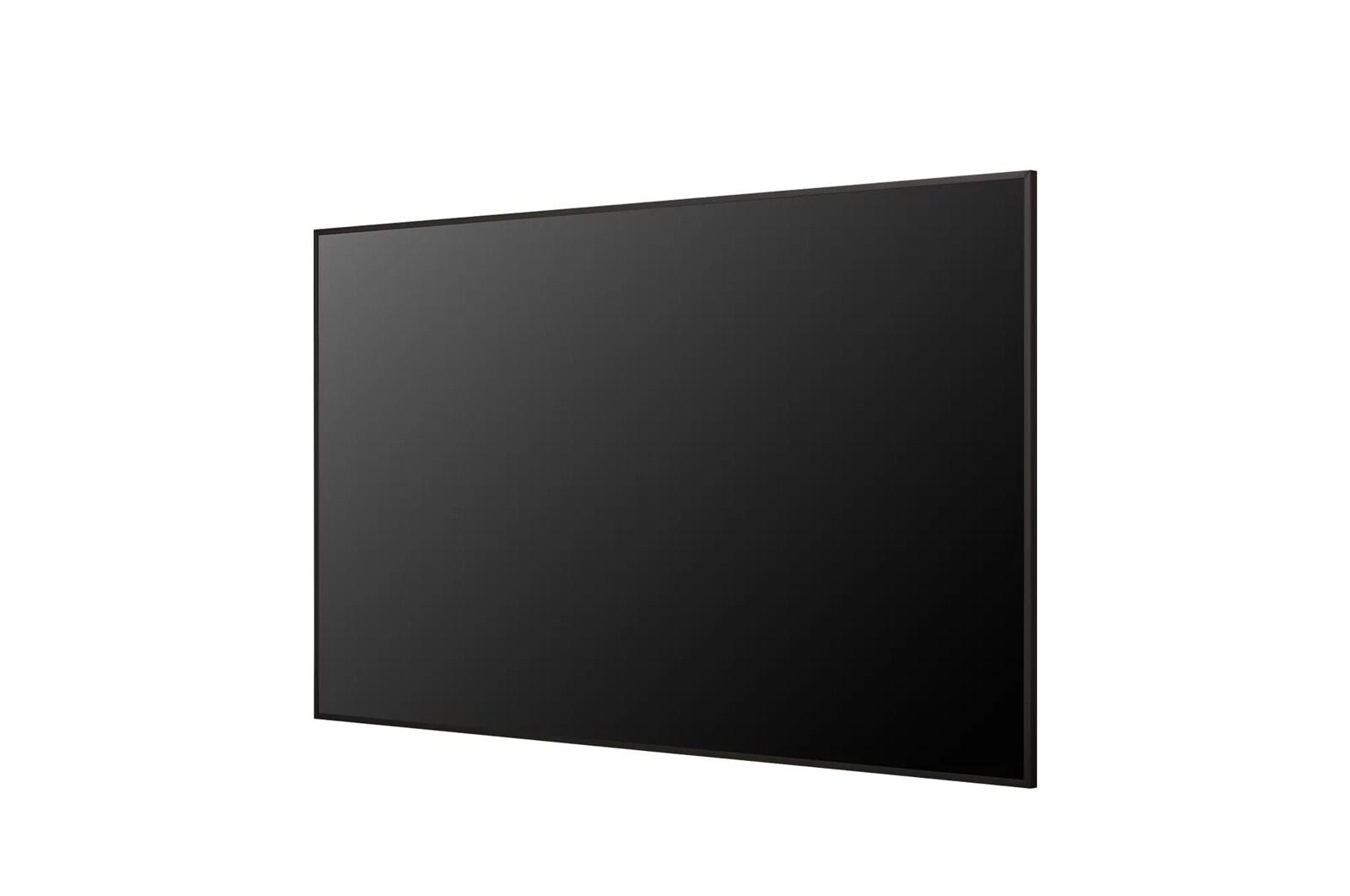

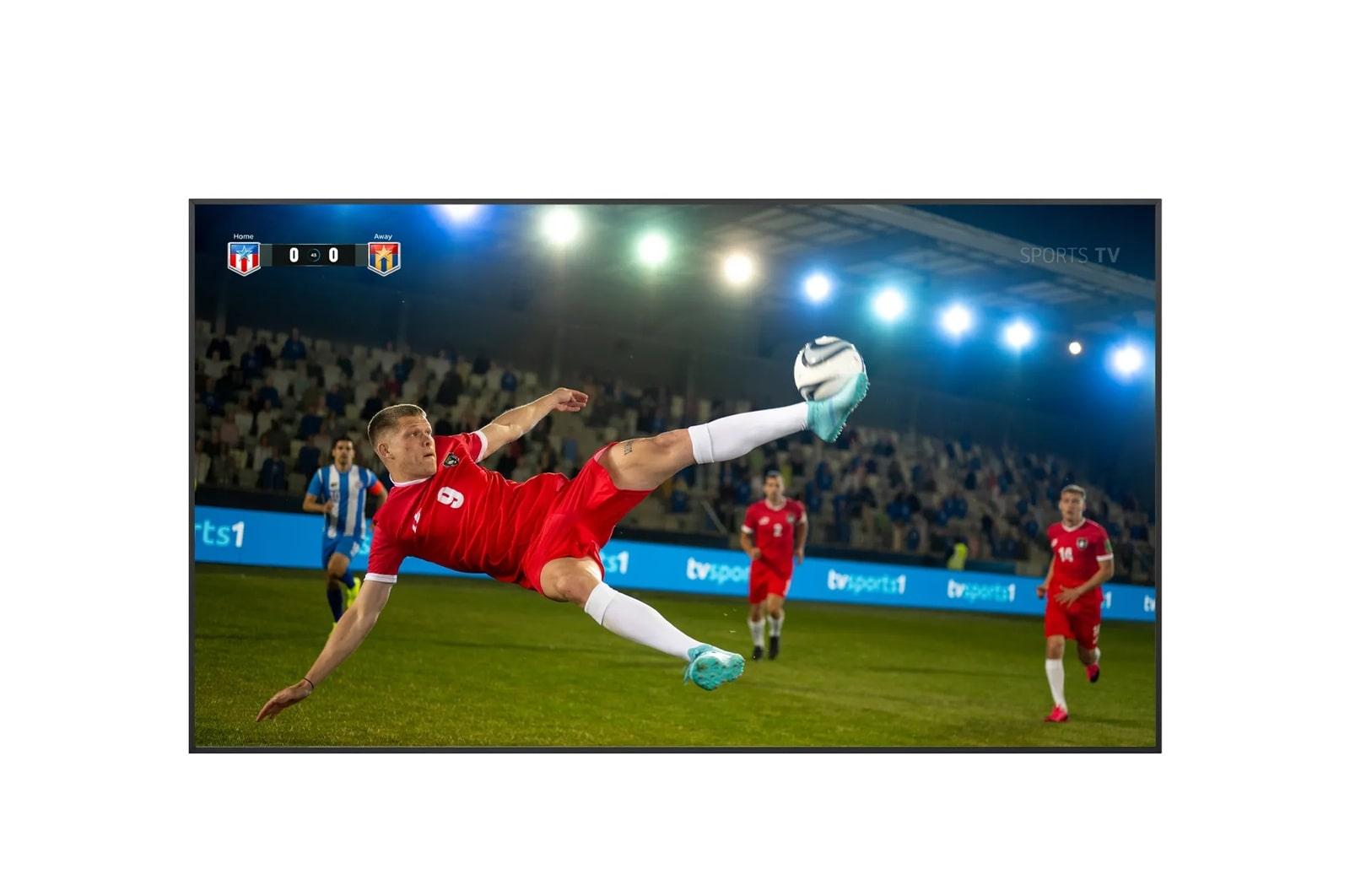

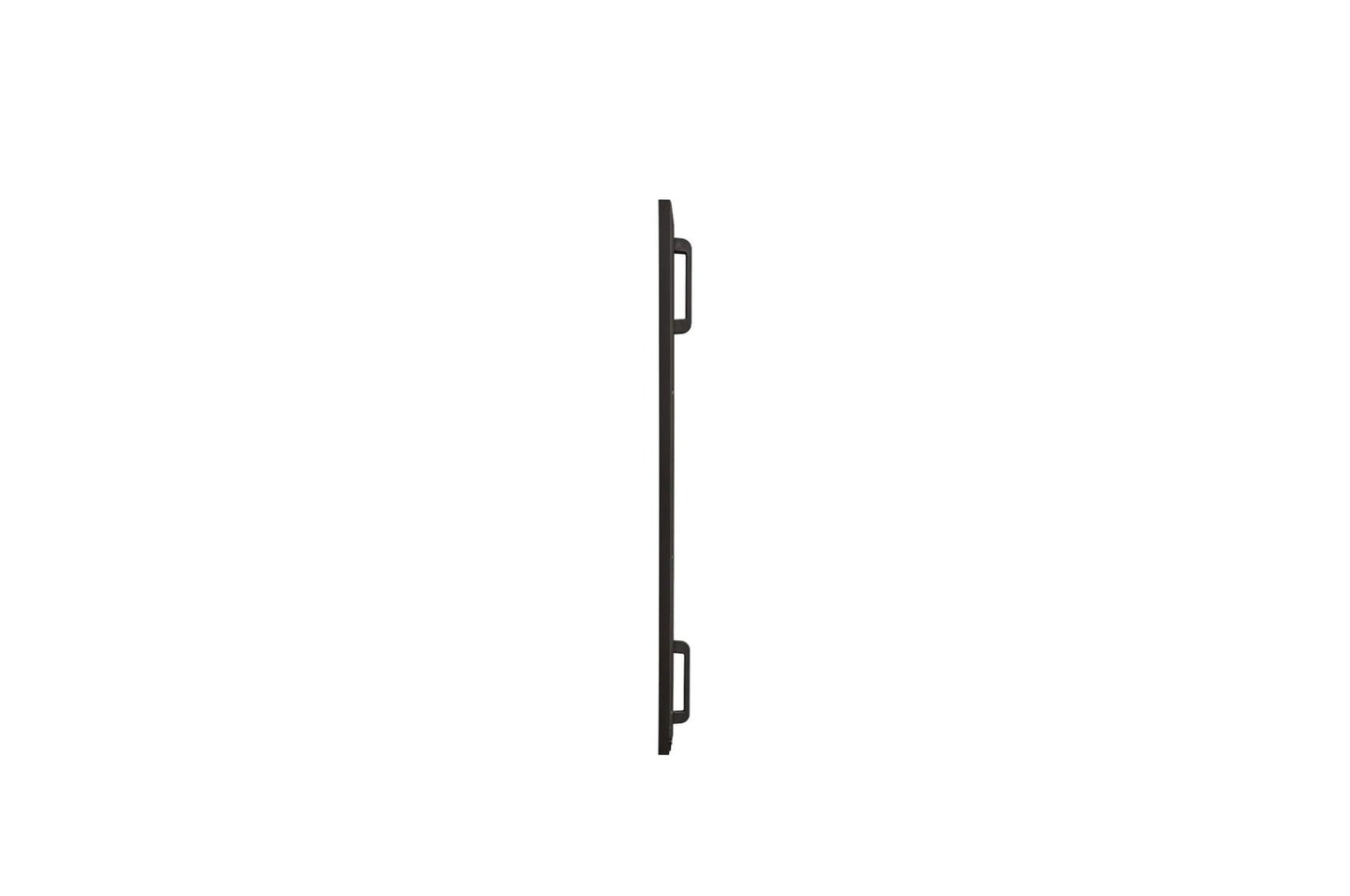

Lg 55UH7QE 55" UH7Q Series UHD Signage Display with webOS and advanced security
Lg 55UH7QE 55" UH7Q Series UHD Signage Display with webOS and advanced security
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 55-inch UHD (3,840 x 2,160) Display: Large ultra-high-definition screen delivers sharp detail and clear visuals for impactful digital content
- 700-nit Brightness: High brightness ensures content remains vivid and easy to see, even in well-lit environments
- 12.9 mm Even Bezel: Slim, uniform bezel design creates a clean, professional look that keeps focus on the content
- webOS Smart Platform: Integrated smart platform enables easy content management, smooth performance, and flexible display control
55" UH7Q Series UHD Signage Display with webOS and advanced security
| System | |
| Operating System (OS) | webOS™ 8.0 |
| Internal Memory | 16 GB |
| Electrical | |
| Power Type | Built-in Power |
| Power Consumption (Max.) | 152W |
| Power Supply | AC 100-240V~, 50/60 Hz |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Power Off) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 71W |
| BTU Heat Generation (Max.) | 520 BTU/Hr |
| BTU Heat Generation (Typ.) | 345 BTU/Hr |
| Power Consumption (Typ.) | 101W |
| Connectivity | |
| HDMI In | Yes (x3) HDCP2.2/1.4 |
| IR In (3.5 mm) | Yes (x1) |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | Yes |
| DisplayPort In | Yes (x1) v1.4 HDCP 2.2 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) |
| USB Type-C In | Yes (x1) USB 2.0 without PD function |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | No |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | N/A |
| IR Out | No (Support IR daisy chain via RS-232C In/Out) |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | Yes |
| Daisy Chain | No |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 55" |
| Panel Technology | ADS |
| Backlight Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 700 nits |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Color Gamut | BT709 95% |
| Color Depth (Number of Colors) | 10 bit (D), 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Surface Treatment (Haze) | 25% |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | 50,000 Hrs (Min.) |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Cisco Certified Compatibility | Yes |
| Failover | Yes |
| Crestron Certified Compatibility | Yes |
| Beacon | Yes |
| Play Via URL | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | 11.4 mm (Even) |
| Tilt (Face Down) | Yes (Max 15 degree, 40 C temperature) |
| Tilt (Face Up) | No |
| Weight | 31.52 lbs / 14.3 kg |
| Shipping Weight | 8.21 lbs / 18.1 kg |
| Dimensions (W x H x D) | 48.82 x 28.02 x 1.16 in / 1,240.1 x 711.9 x 29.7 mm |
| Shipping Dimensions (W x H x D) | 53.54 x 31.88 x 5.98 in / 1,360.0 x 810.0 x 152.0 mm |
| Conformal Coating (Power Board) | Yes (Partial) |
| Handle | No |
| VESA™ Standard Mount Interface | 300 x 300 mm |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ CMS | Yes |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| ERP (Environmental) | Yes |
| U.S. ePEAT (Environmental) | Yes |
| FCC (Regulatory) | EMC Class B |
| IP Rating (Solid / Liquid Ingress) | IP5X |
| Energy Star (Environmental) | Yes |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Mexico |
| Onscreen Display Languages | Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| UPC | 195174138144 |
| Optional Accessories | Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light Sensor Receiver (ACC-L) |
| Basic Accessories (included) | Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender, Cable Holder (For Power Cord), nIR/Light Sensor Receiver (EU/EK Only), Magnetic Sheet (2 ea, EU/EK Only)n |
| Smart Features | |
| Screen Share | Yes |
| Hospitality Features | |
| Pro:Idiom® | Yes |
| Wake on LAN | Yes |
| Hardware Features | |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | Yes |
| Current Sensor | No |
| Local Key Operation | Yes |
| BLU Sensor | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| Gapless Playback | Yes |
| W/B Setting by Grayscale | No |
| Picture-by-Picture (PBP) | Yes |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (x4) |
| Control Manager | Yes |
| PM mode | Yes |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | Yes |
| Status Mailing | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Auto Set ID | Yes |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Brightness Compensation | No |
| Booting Logo Image | Yes |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Compatible | No |
| OPS Power Built-in | No |
