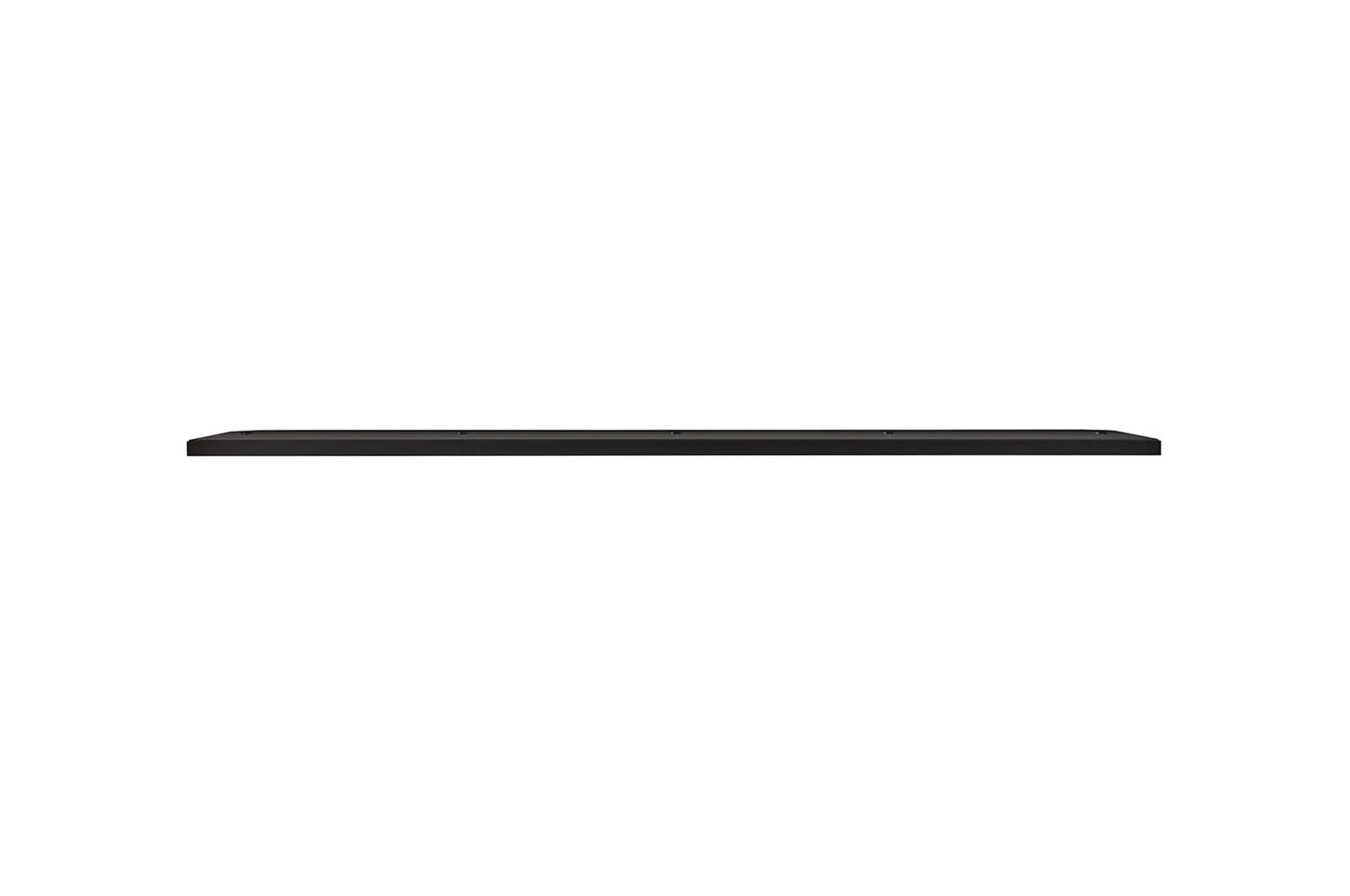

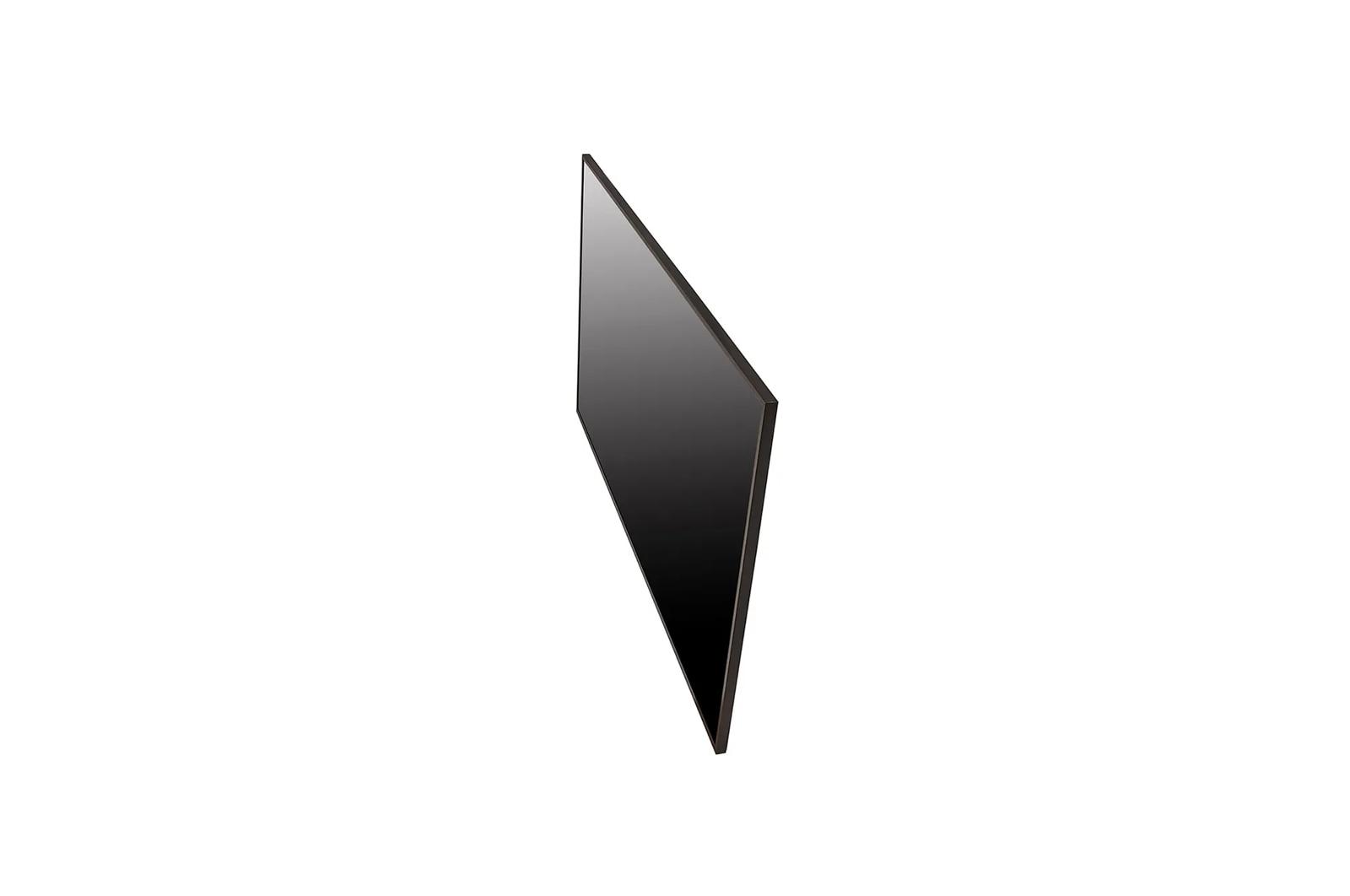

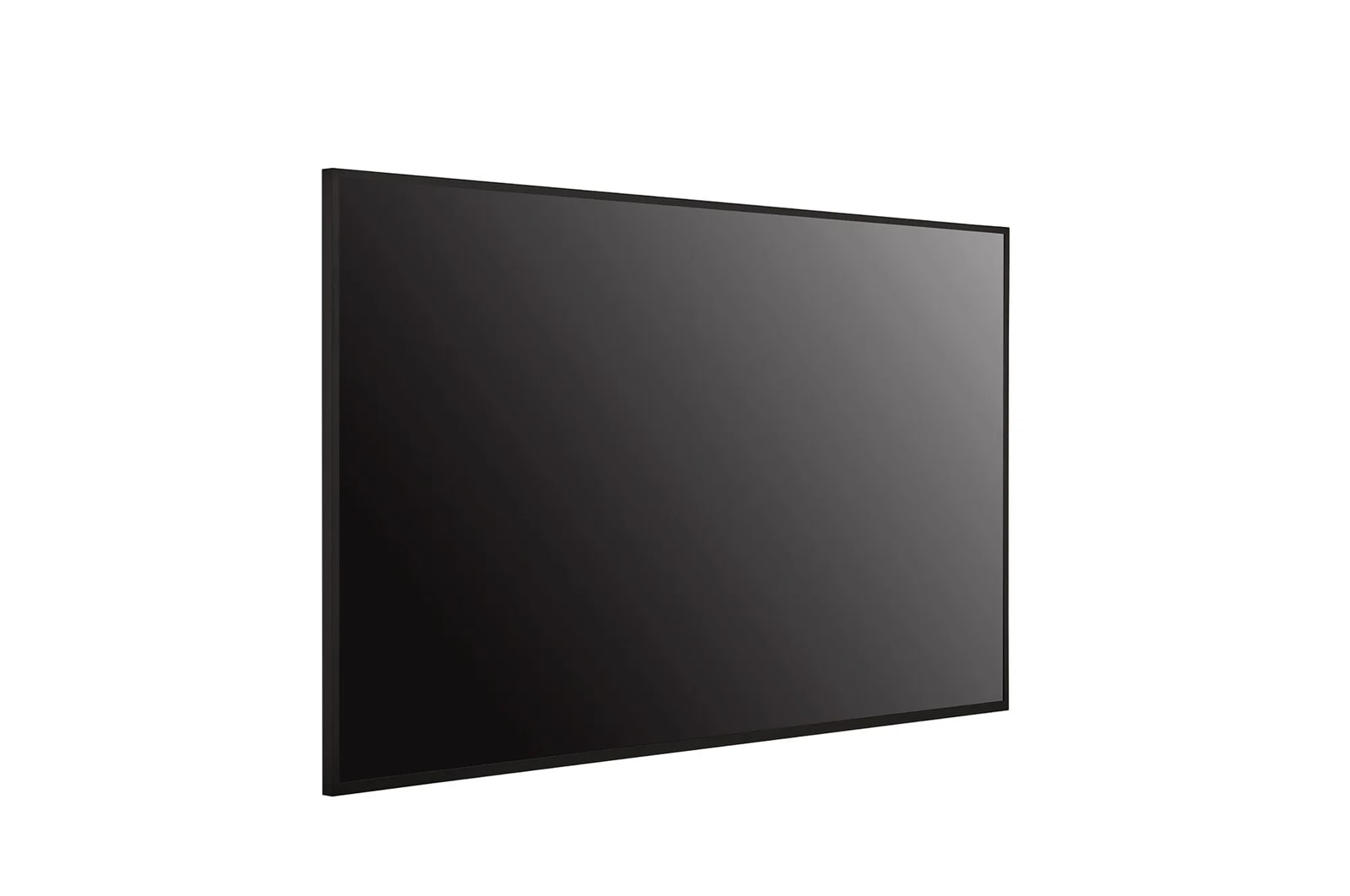

Lg 55UV5NE 55'' UV5N-E UHD Digital Signage with BrightSignOS™
Lg 55UV5NE 55'' UV5N-E UHD Digital Signage with BrightSignOS™
Couldn't load pickup availability
Check Delivery:
- 55" 3840 x 2160 (UHD) IPS Display
- BrightSignOS™ with enhanced security features
- 30(degree) tilt for versitility
- Content scheduling and USB plug & play
- Crestron Connected certified
- Operate 24/7 with Lifetime up to 50,000 hours
- 30(degree) tilt for versatility

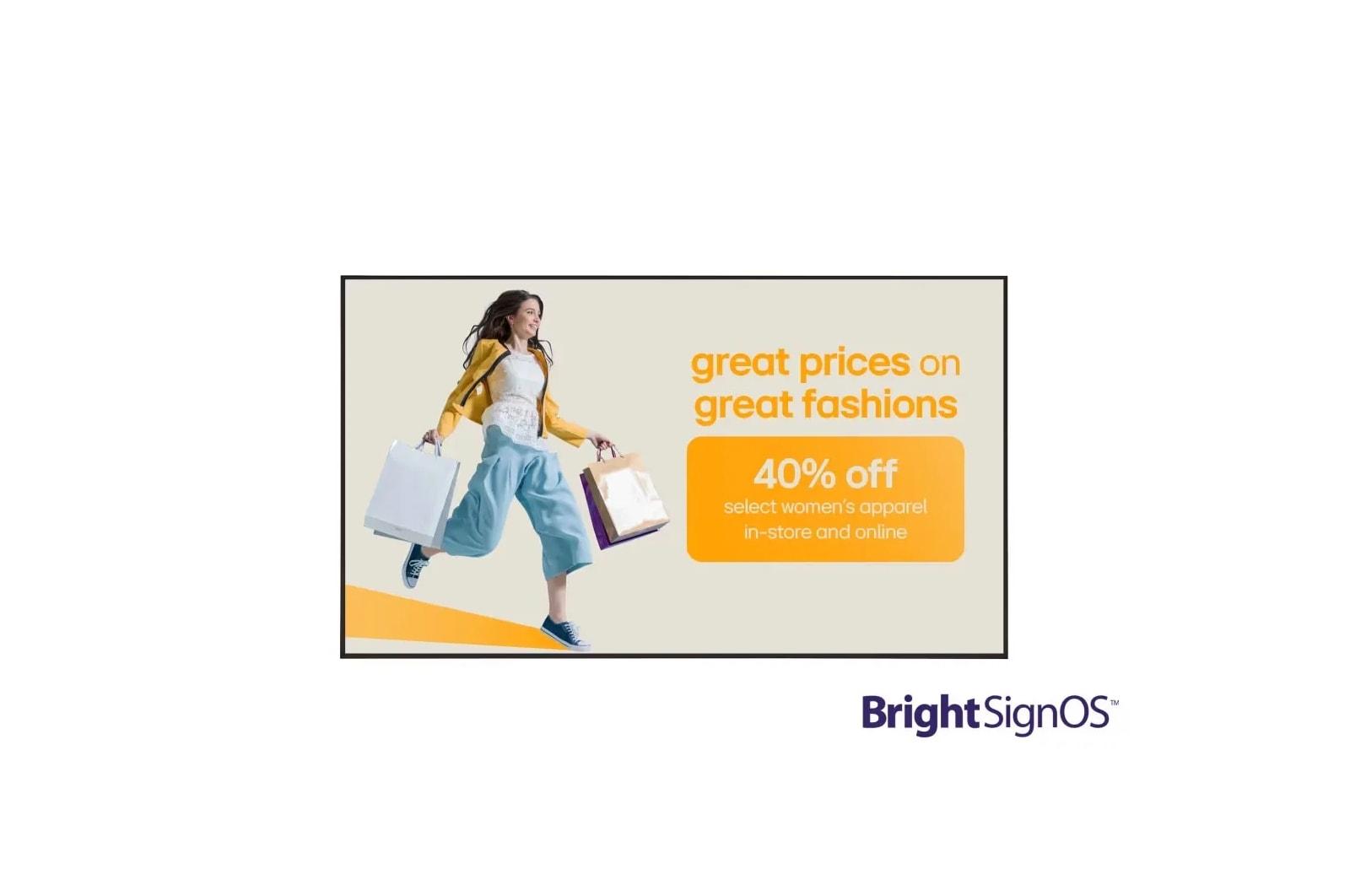

Leading the way in digital signage, the UV5N-E is powered by BrightSignOS, known for its security, reliability, sustainability, and support. Running BrightSignOS also includes a free bsn.Control subscription for remote multidevice monitoring and seamless integration with over 100 CMS solutions.

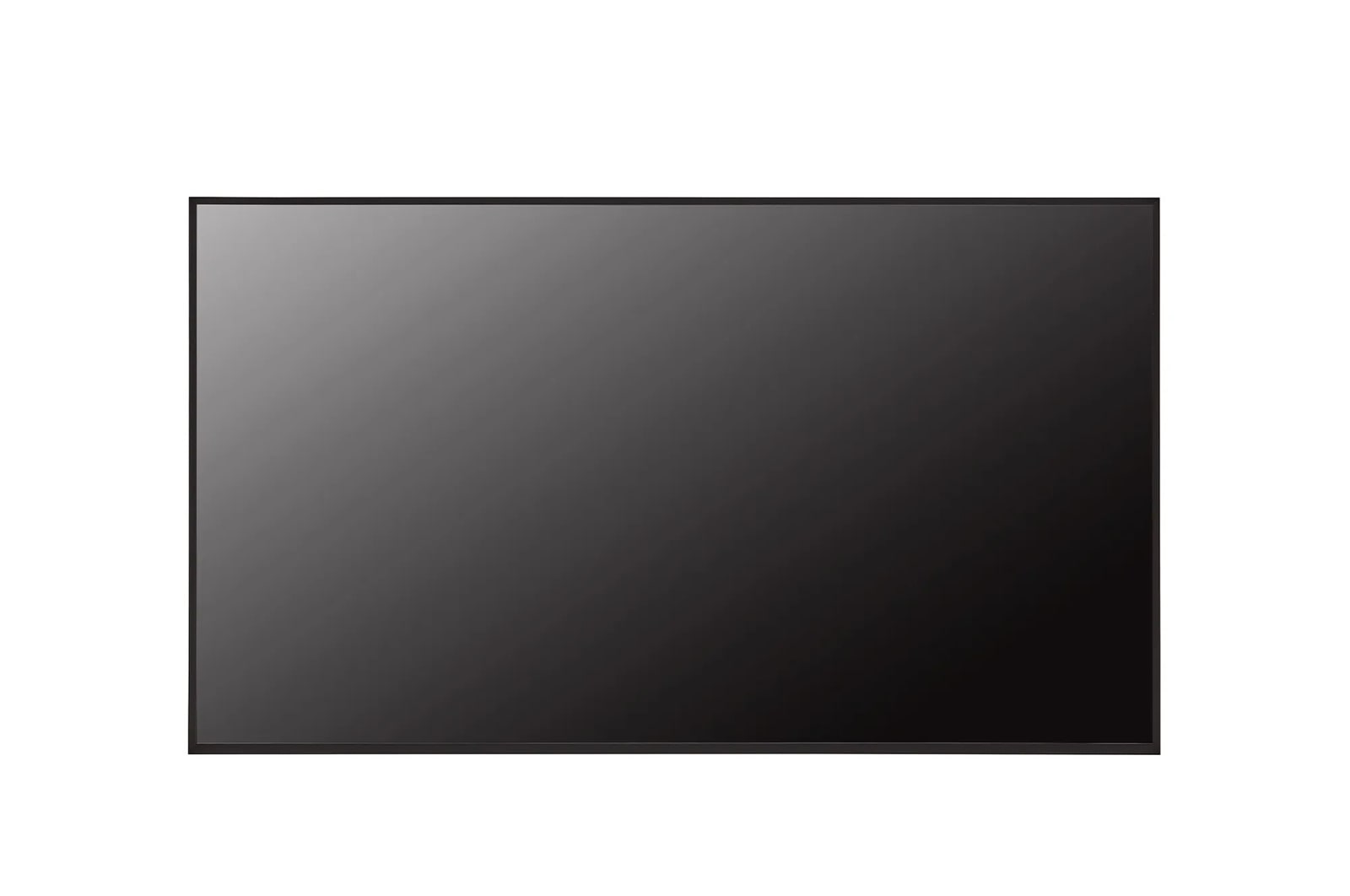

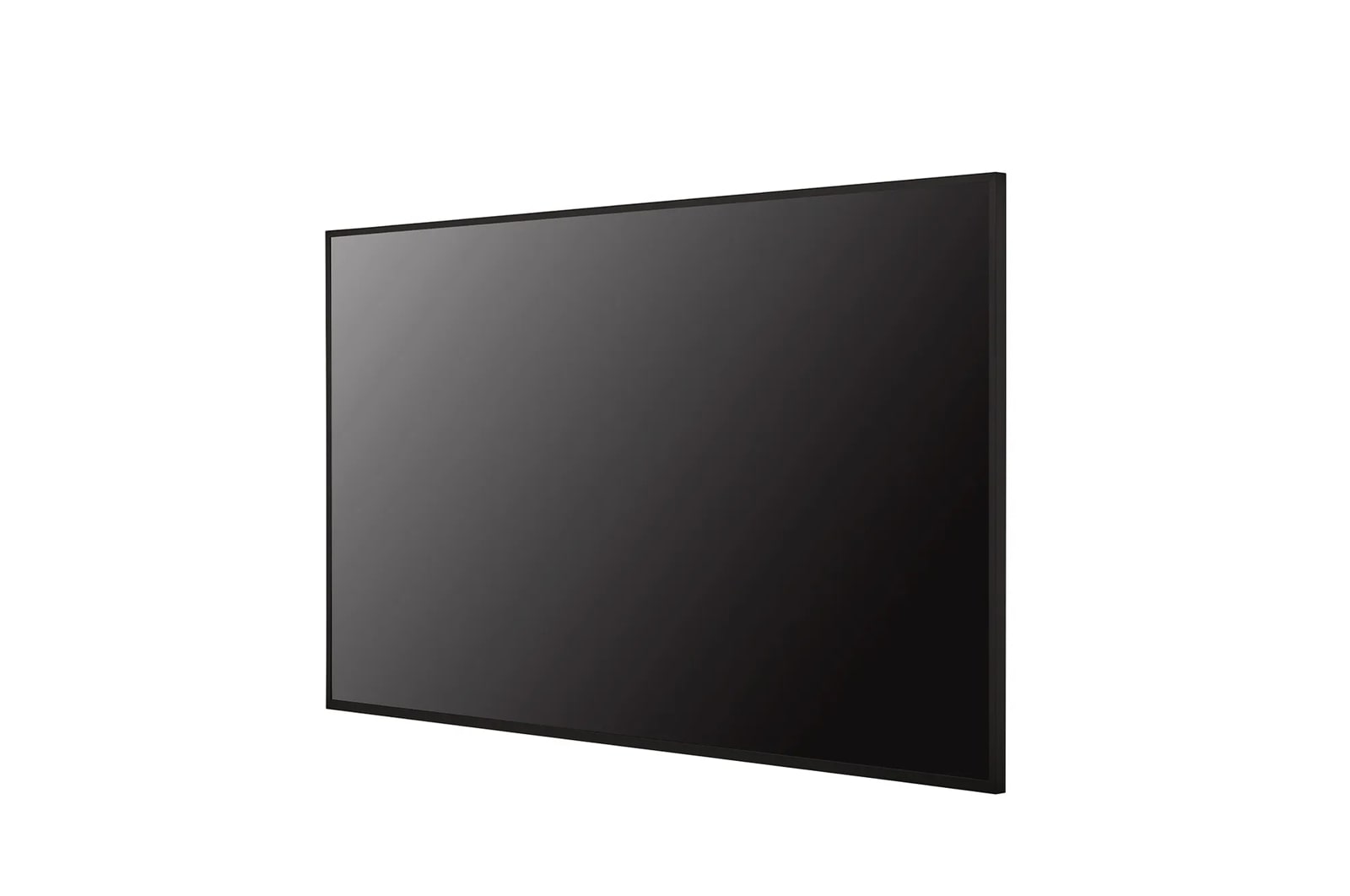

UHD Resolution Display
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.
Enhanced Security Features
Built exclusively for digital signage, BrightSignOS offers a fortified security system that can be configured to any security profile with a secure, signature-verified operating system that runs only approved signage applications. This security extends to integrated CMS solutions and the free bsn.Control remote management service.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and generations to come. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
Design for Space Utilization

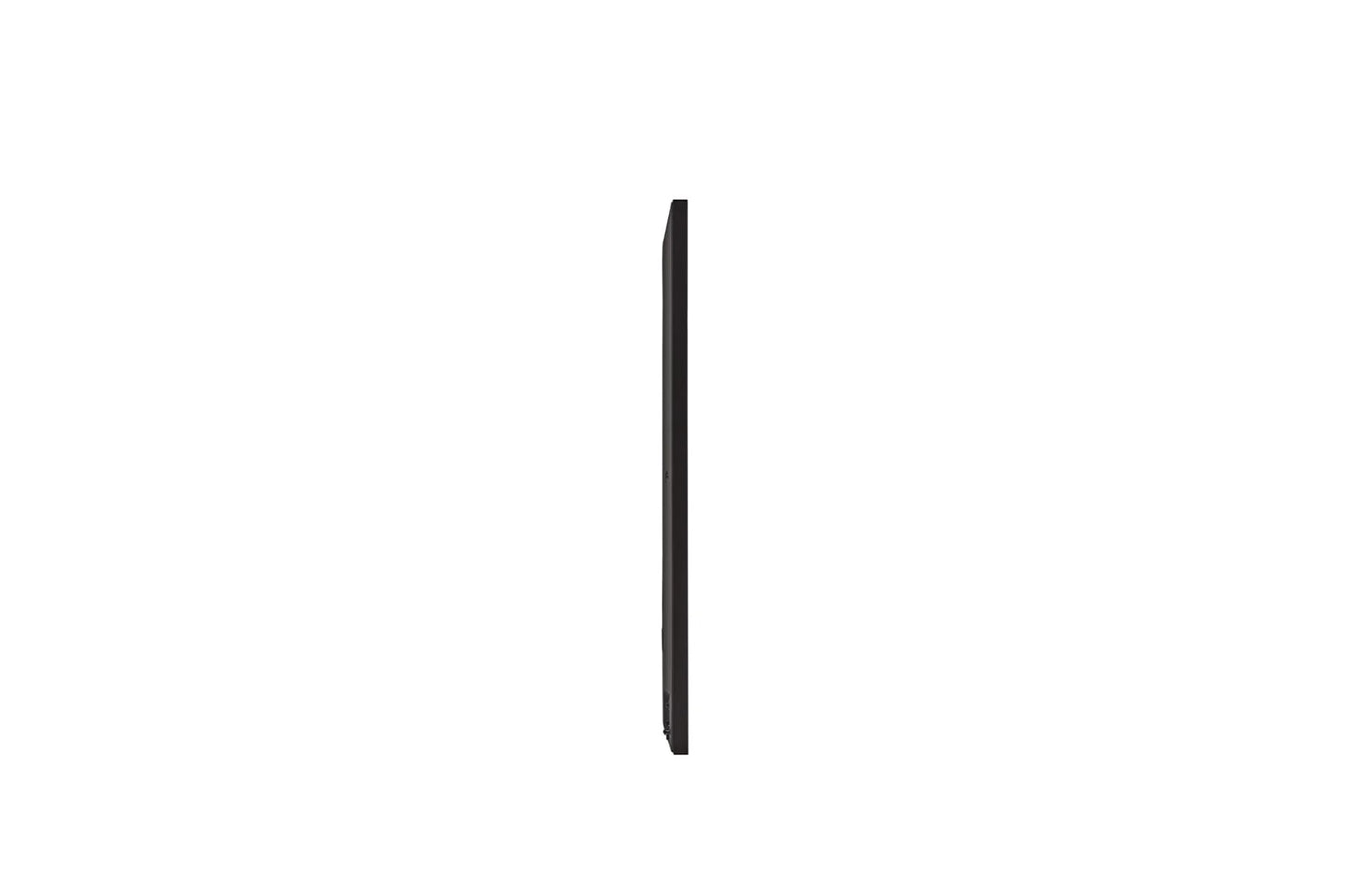

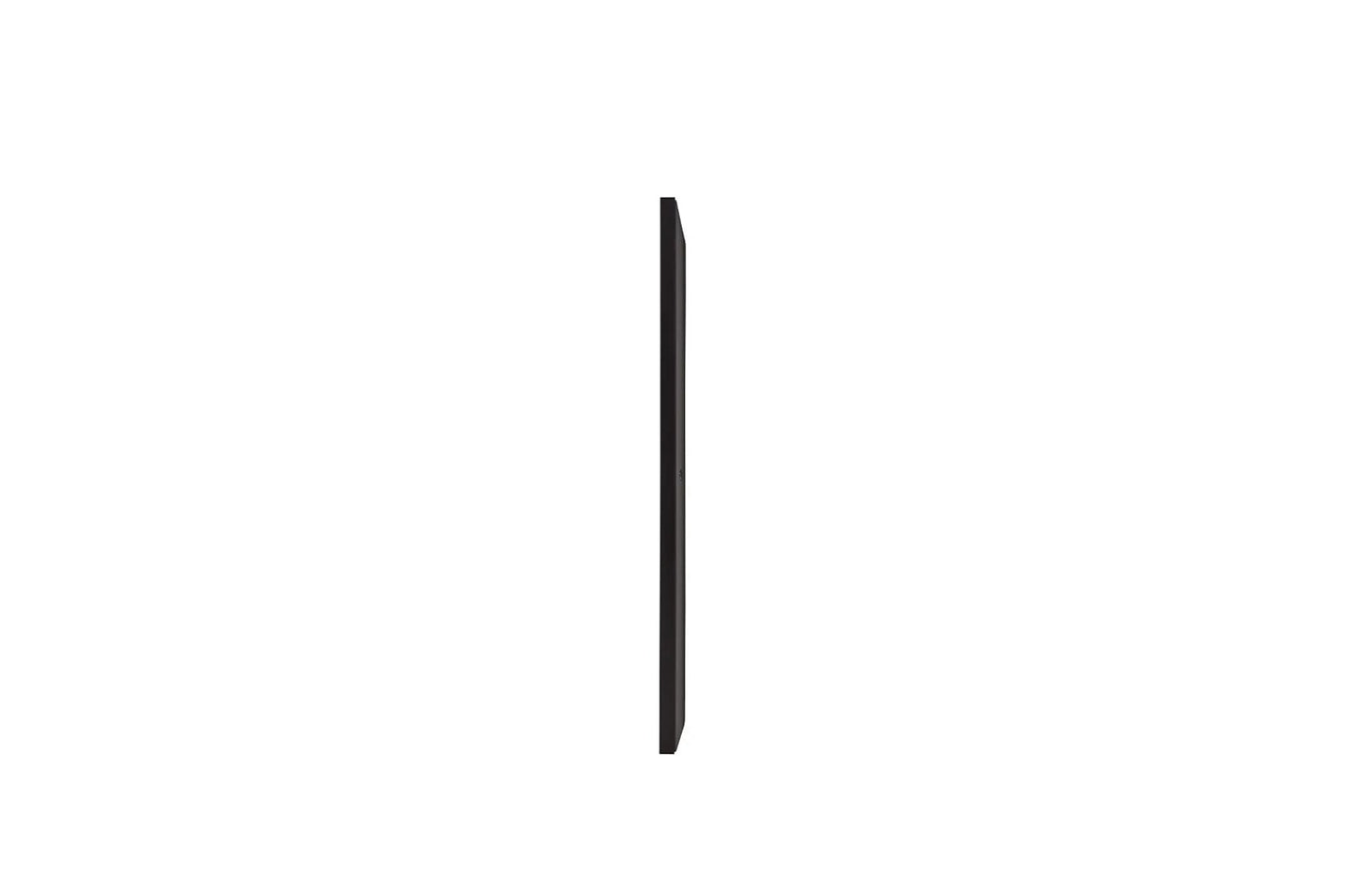

Designed with thin bezels and simple cable management, the UV5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about .5 in (13 mm) of space with the slim bracket.

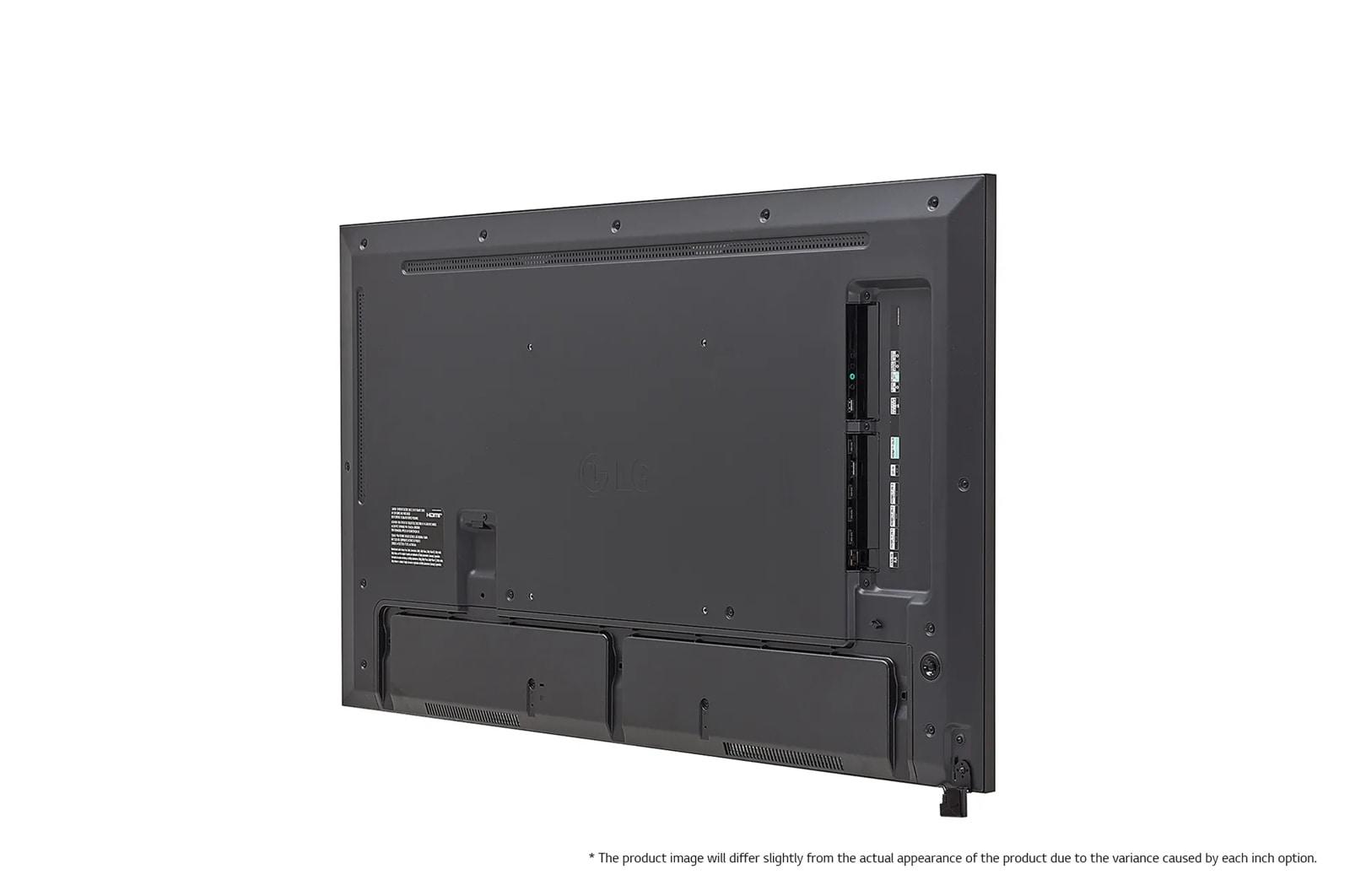

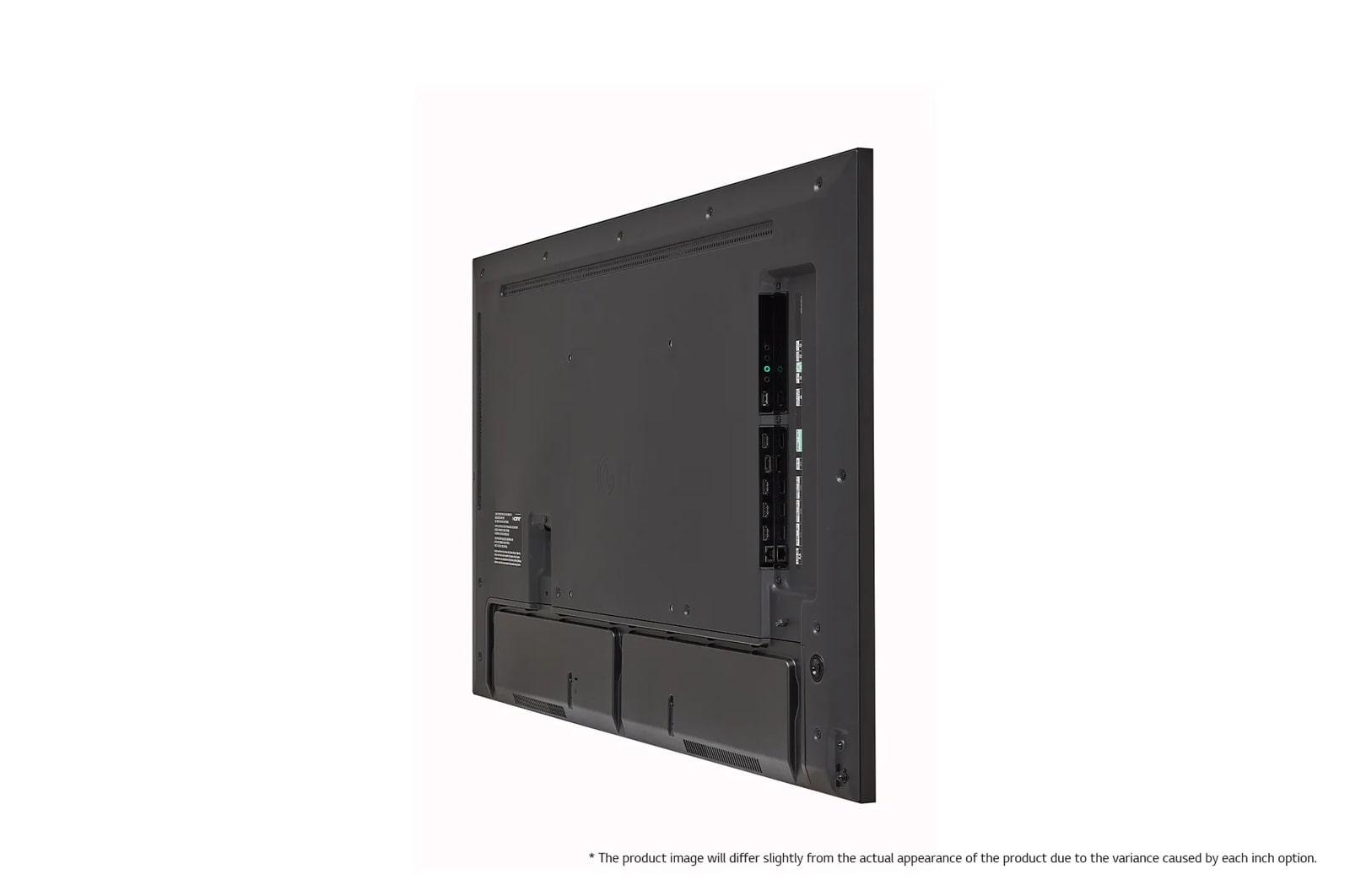

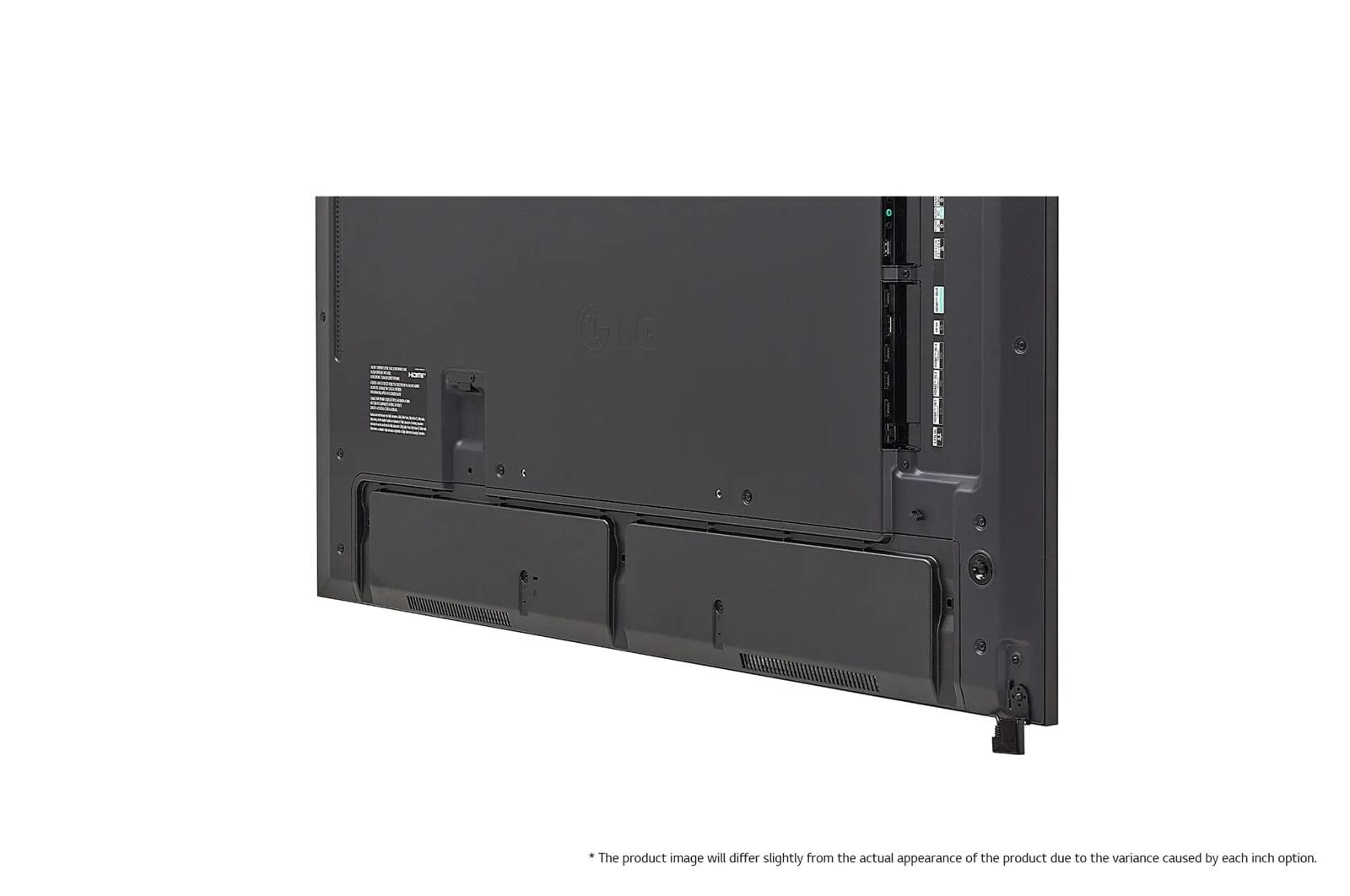

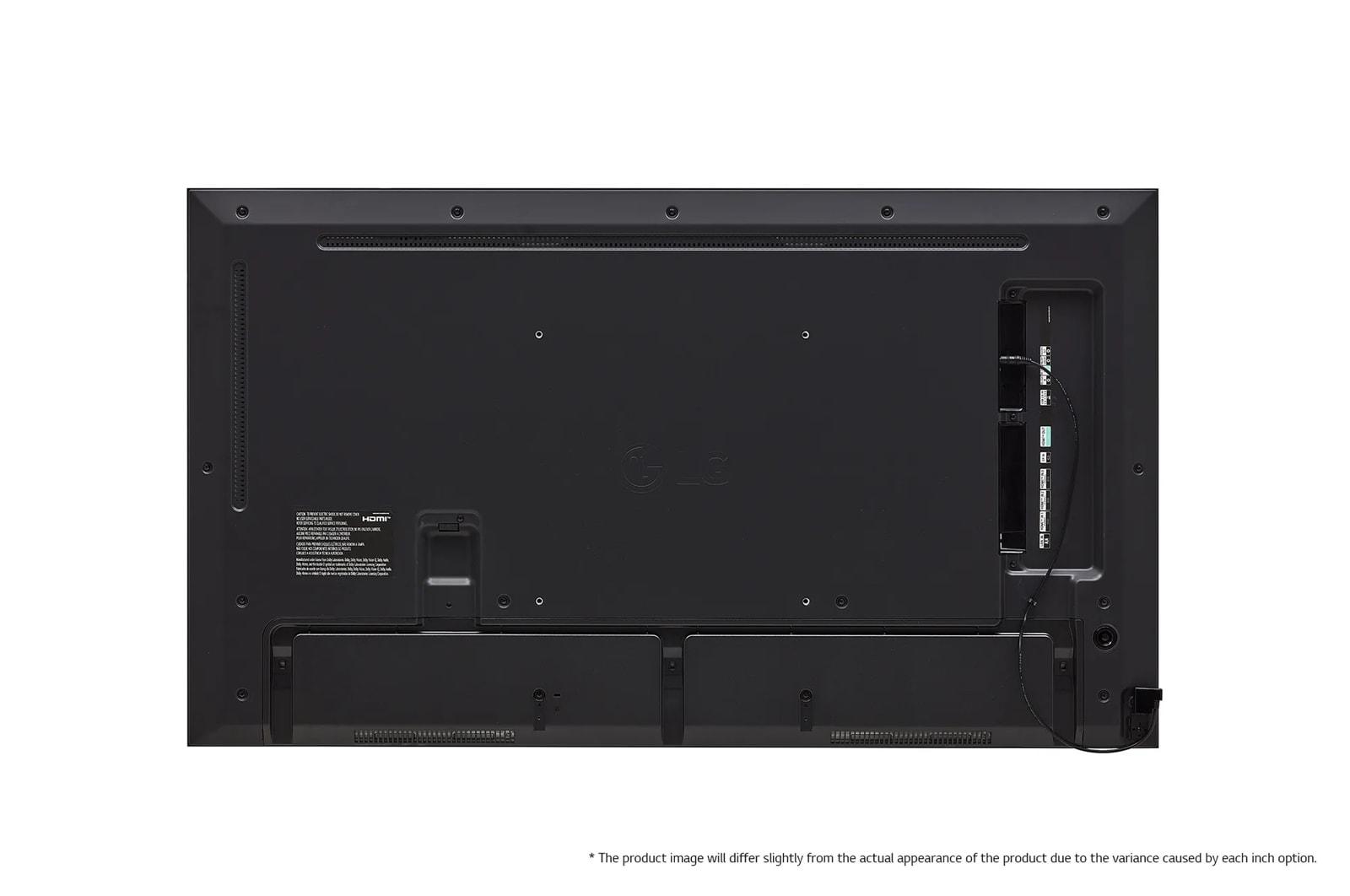

*Images are simulated for illustration purposes only. The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UV5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on the power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and flexibility.
| System | |
| Operating System (OS) | BrightSign OS 6.0 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 16 GB (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 160W |
| Power Supply | 100~240V (50/60 Hz) |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in Power |
| PoE Type | N/A |
| PoE Power Class | N/A |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 77W |
| BTU Heat Generation (Max.) | 546 BTU |
| BTU Heat Generation (Typ.) | 375 BTU |
| Power Consumption (Typ.) | 110W |
| Connectivity | |
| HDMI In | In Process |
| IR In (3.5 mm) | In Process |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | In Process |
| RS-232C In (3.5 mm 4-pin) | In Process |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x1) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | No |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | No |
| IR Out | No |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | In Process |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | In Process |
| Daisy Chain | No |
| Built-in Wi-Fi | In Process |
| Panel | |
| Screen Size (Inches) | 55" |
| Panel Technology | IPS |
| Backlight Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Color Gamut | BT709 95% |
| Color Depth (Number of Colors) | 10 bit, 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 28% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | Up to 50,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | In Process |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | In Process |
| Play Via URL | Yes (bsn.cloud) |
| Cisco Certified Compatibility | No |
| Failover | No |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/R/L: 8.9 mm, B: 12.9 mm |
| Bezel Width (On Bezel) | Not Available |
| Bezel Width (Off Bezel) | Not Available |
| Tilt (Face Up) | N/A |
| Weight | 35.5 lbs / 16.1 kg |
| Weight Signage Box | N/A |
| Weight with Stand | N/A |
| Shipping Weight | 45.2 lbs / 20.5 kg |
| Dimensions (W x H x D) | 48.5 x 27.8 x 1.2 in / 1,231.4 x 707.2 x 29.7 mm |
| Dimensions with Stand (W x H x D) | Not Available |
| Dimensions with Pemnut (W x H x D) | N/A |
| Dimensions Signage Box (W x H x D) | N/A |
| Shipping Dimensions (W x H x D) | 53.5 x 31.9 x 6.0 in / 1,360.0 x 810.0 x 152.0 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | No |
| VESA™ Standard Mount Interface | 300 x 300 mm |
| Overlay Touch Compatibility | N/A |
| Smart Calibration | N/A |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | No |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | No |
| SuperSign™ WB | No |
| SuperSign™ Cloud | No |
| Mobile CMS | No |
| ConnectedCare™ | No |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | Yes |
| FCC (Regulatory) | EMC Class B |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | No |
| CE Marking (Regulatory) | No |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | No |
| Energy Star (Environmental) | Yes |
| Warranty & Other | |
| Assembled In | Mexico |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| UPC | 1 95174 09197 5 |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | No |
| Hardware Features | |
| Local Key Operation | In Process |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | In Process |
| Auto Brightness Sensor | In Process |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | In Process |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | No |
| Control Manager | No |
| SI Server Setting | No |
| Setting Data Cloning | Yes (bsn.cloud) |
| Status Mailing | Yes (bsn.cloud) |
| Auto Set ID | No |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | No |
| Group Manager | Yes (bsn.cloud) |
| Booting Logo Image | No |
| Network Ready | No |
| RS-232C Sync | No |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | Yes (x4) |
| PM mode | No |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | No |
| Screen Rotation | No |
| Smart Energy Saving | Yes |
| CMS App Provisioning | Yes (bsn.cloud) |
| Remote Managment | Yes (bsn.cloud) |
| Tile Mode Setting | No |
| External Input Rotation | No |
| No Signal Image | No |
| SNMP | No |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes (BrightAuthor) |
| HDMI-CEC | In Process |
| USB Plug & Play | Yes (BrightAuthor) |
| Software Compatibility | BrightSign bsn.Content (bsn.cloud), BrightSign bsn.Control (bsn.cloud) |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature | N/A |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
