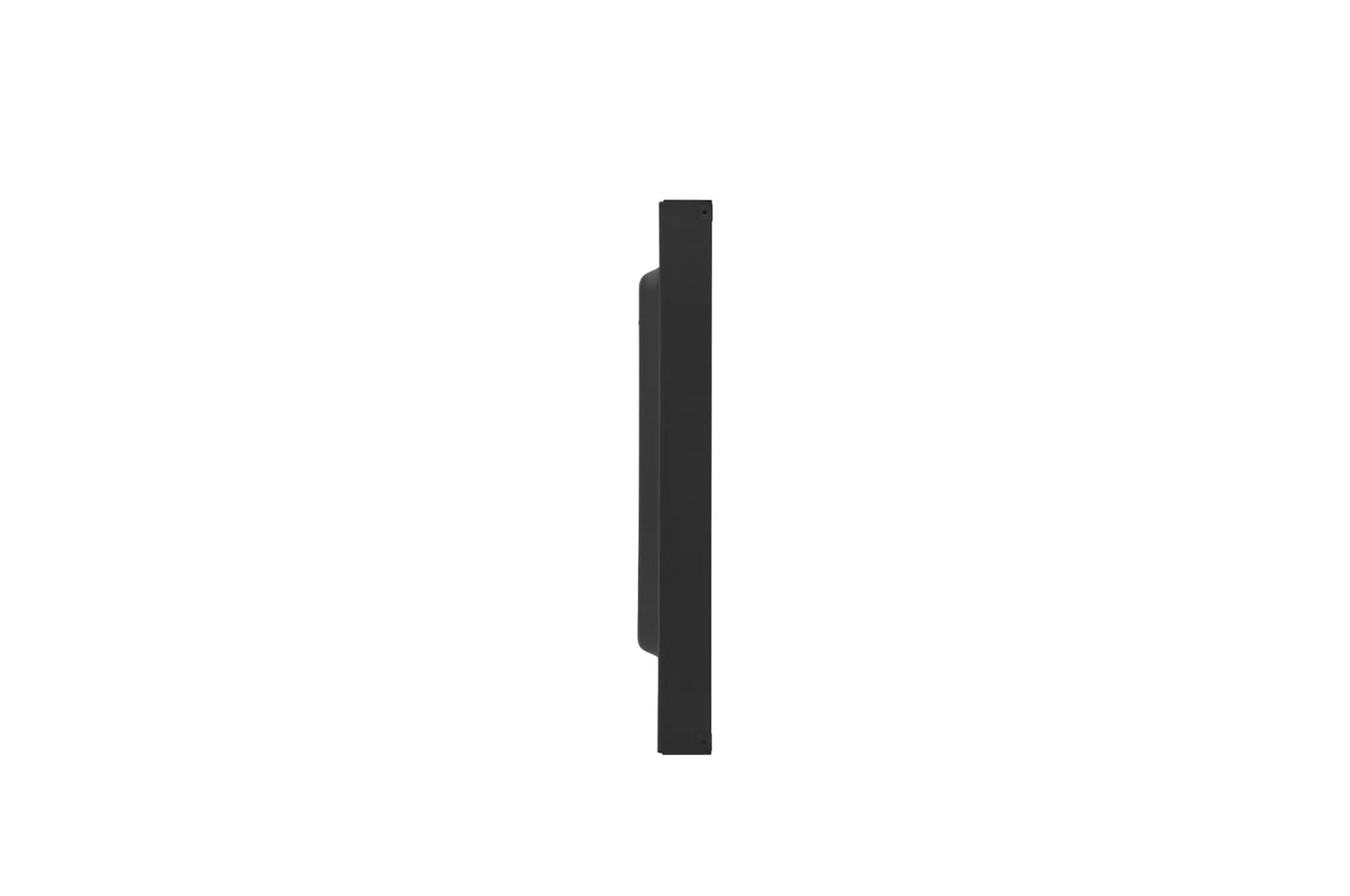

Lg 55XE3PB 55'' FHD IP Rated Outdoor Display with Anti-Discoloration Technology
Lg 55XE3PB 55'' FHD IP Rated Outdoor Display with Anti-Discoloration Technology
Couldn't load pickup availability
Check Delivery:
- 55" 1,920 x 1,080 (FHD) IPS, M+ Display with 3,500 nits brightness
- World's first UL Verified display for anti-discoloration characteristics
- Durable design with IP56 rating, IK10, conformal coating & a wide operating temperature
- Easy maintenace with webOS™ 6.1, Built-in Wi-Fi, & Vandalism Alert
- Easy & Efficient Energy Management
- Compatible with LG Control Manager, ConnectedCare® & SuperSign® Cloud for easy control & management*
- Easy maintenance with webOS™ 6.1, Built-in Wi-Fi, & Vandalism Alert
The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
IK10 Protective Glass
The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
Wide Range of Operating Temperature
The XE3P can be used under a wide range of operatingtemperatures from -22(degree)F to 122(degree)F without direct sunlight, and -22(degree)F to 104(degree)F with direct sunlight.*
Conformal Coating
consists of thin protective films that help shield the circuit board and power board against water vapor and solid debris.
Efficient Energy Management
The XE3P has auto-brightness adjustment based on sensors that detect the ambient light. In bright environments, the brightness is increased in light for better visibility, while it is decreased in dark times for better power management. Also, the XE3P uses an M+ panel that can operate with lower power consumption than a corresponding RGB panel.*
Easy Energy Management
The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power management according to various scenarios.* Manual mode: Max. 95%, Min. 5%Highlight mode: Max. 100%, Min. 20%Basic mode: Max. 70%, Min. 10%Nearby mode: Max. 50%, Min. 10%
Easy Installation
For easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work. * The availability of leveler tool feature may differ by model.
High-performance with webOS 6.1
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.* SoC : System on Chip** GUI : Graphical User Interface
Web Monitoring
The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time* Enabled by wired LAN connection
Professional Content Partners
Pairing the XE3P with LG SW solutions* would enhance its utilization.* Sold separately

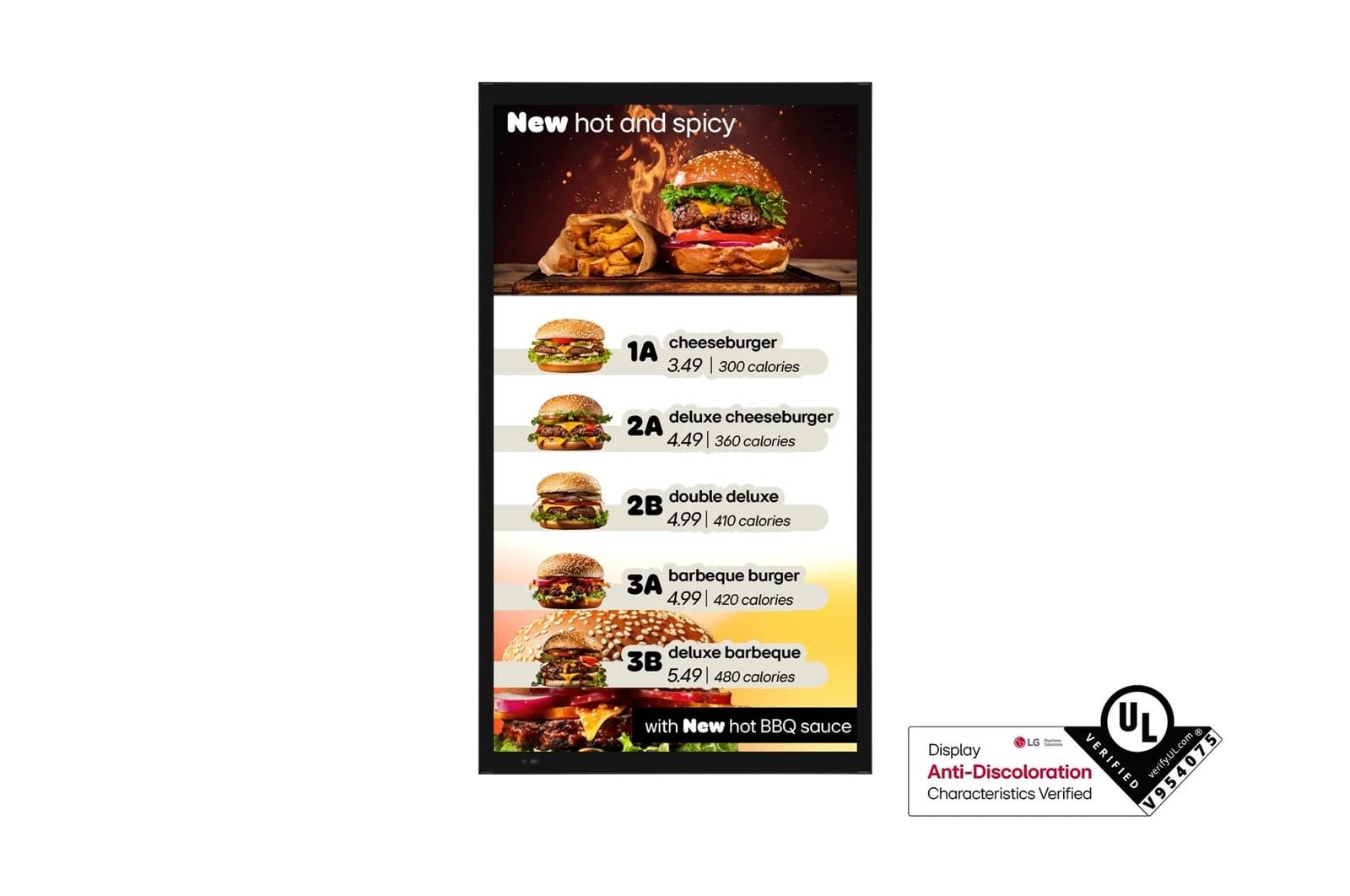

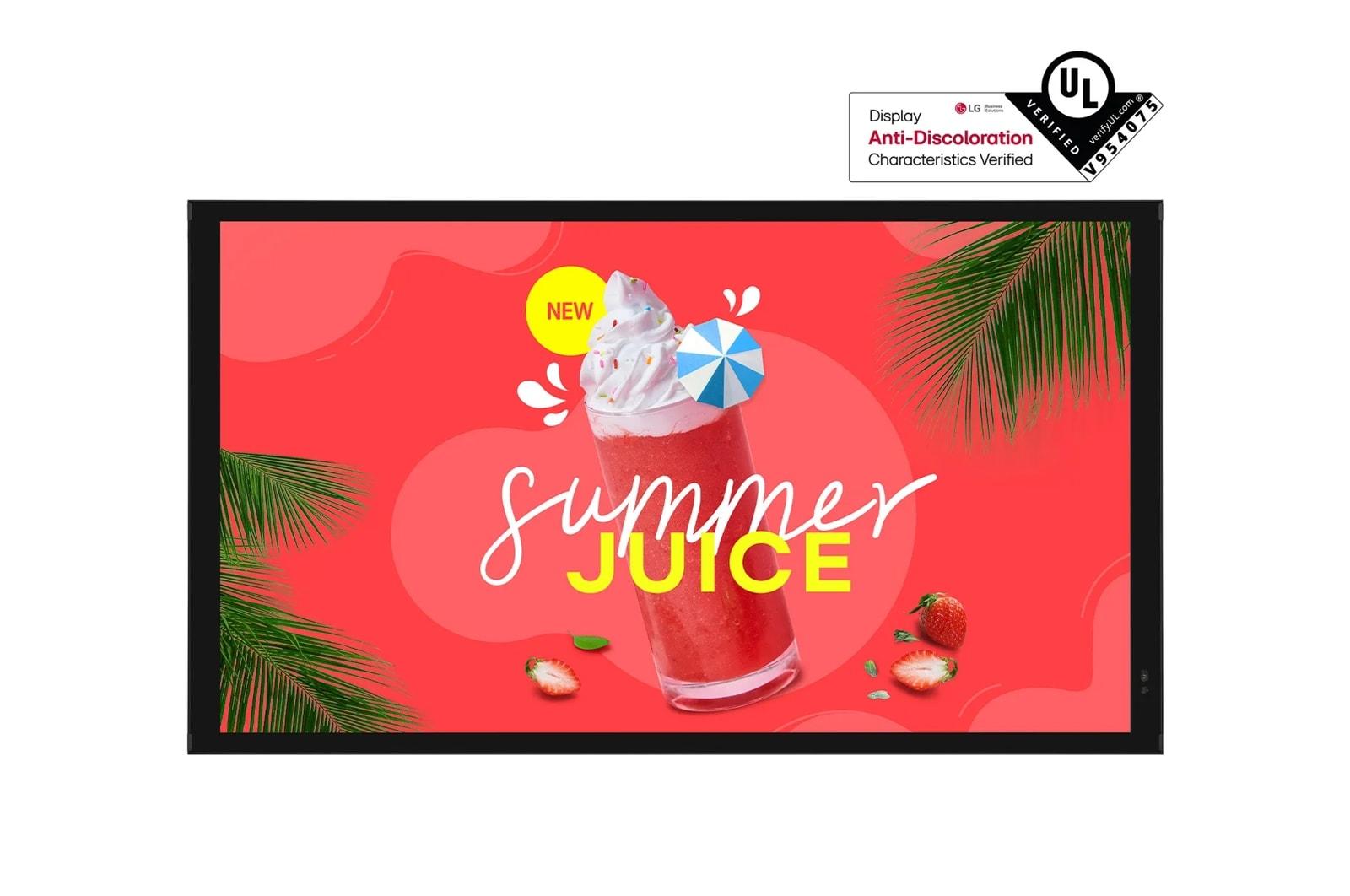

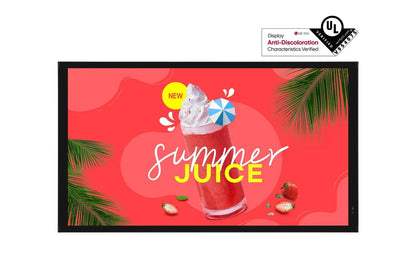

World's First UL Verified Display for Anti-Discoloration Characteristics
The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
*Images are simulated for illustration purposes only. For more details, please visit https://verify.ul.com/verifications/1382. ** World's first UL Verification in the manufacturing industry. Image
LG Anti-Discoloration
Display Anti-Discoloration Characterstics verified
Great for a variety of space
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.
*Image are simulated for illustration purposes only.
High Visibility Under Strong Sunlight
With an outstanding high brightness of 3,500 nits, the XE3P outdoor display delivers content clearly for those passing by. With IPS technology, viewers can engage with the content at wide viewing angles.
*Images are simulated for illustration purposes only.
Built-in Wi-Fi & Bluetooth
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.
*Images are simulated for illustration purposes only.
Vandalism Alert
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
*Images are simulated for illustration purposes only.
| System | |
| Operating System (OS) | webOS™ 6.1 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | No |
| Electrical | |
| Power Consumption (Max.) | 430W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | Less than 0.5W |
| Power Type | Built-in Power |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | Less than 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 180W |
| BTU Heat Generation (Max.) | 1,365 BTU |
| BTU Heat Generation (Typ.) | 1,126 BTU |
| Power Consumption (Typ.) | 380W |
| Connectivity | |
| HDMI In | Yes (x2) 2.0 HDCP 2.2 |
| IR In (3.5 mm) | No |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | Yes (x1) HDCP 2.2 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) LAN, HDbaseT |
| USB Type-A In | Yes (x2) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | No |
| Audio Out (3.5 mm) | No |
| Touch USB | No |
| IR Out | No |
| RJ45 (LAN) Out | Yes (x1) |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | Yes (x1) L/R, 10W+10W |
| Bluetooth | Yes |
| Daisy Chain | No |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 55" |
| Panel Technology | IPS, M+ |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 3,500 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | 2,800 nits |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 500000:1 |
| Color Gamut | NTSC 72% |
| Color Depth (Number of Colors) | 8 bit, 16.7 Million Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 9 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | Up to 50,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | Yes |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | Yes |
| Play Via URL | Yes |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/B: 38.4 mm L/R: 26 mm |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 83.77 lbs / 38 kg |
| Weight with Stand | N/A |
| Shipping Weight | 95.9 lbs / 43.5 kg |
| Dimensions (W x H x D) | 50.88 x 29.03 x 3.46 in / 1,292.5 x 737.4 x 88.0 mm |
| Dimensions with Stand (W x H x D) | N/A |
| Dimensions with Pemnut (W x H x D) | N/A |
| Shipping Dimensions (W x H x D) | 56.92 x 35.03 x 8.14 in / 1,446 x 890 x 207 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | No |
| VESA™ Standard Mount Interface | No |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | Yes |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | No |
| SuperSign™ Cloud | Yes |
| Mobile CMS | No |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | IP56 |
| TAA Compliance | Yes |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arab, Arabic, Chinese (Original), Chinese (Simplified, Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Spanish, Swedish, Turkish |
| UPC | 1 95174 09372 6 |
| Basic Accessories (included) | Remote Controller, Power COrd, Manual (EIG, IG), Regulation Book, Phone to RS-232C Gender, HDMI Cable, Power Cable, Screws |
| Touch Panel | |
| Available Object Size for Touch | N/A |
| Response Time (PC Win10, Education Mode) | N/A |
| Touch Response Time (G to G) | N/A |
| Writing Height | No |
| Accuracy (Typ.) | No |
| Interface | No |
| Active Pen Interface | N/A |
| Multi Touch Point (Max.) | No |
| Protection Glass Transmission | N/A |
| Protective Glass Thickness | N/A |
| Operating System Support | N/A |
| Protective Glass | |
| Thickness | 5 mm |
| Degree of Protection | Yes (IK10) |
| Tempered / Chemical Strengthening | Tempered |
| Anti-Reflective | Yes |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | No |
| Infrared - Resistance (IR) | Yes |
| Shatter-Proof | Yes |
| Heat Dissipation | Heat exchange |
| Heater | No |
| Noise Level | 62 dB |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | Yes |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Built-in Cooling Fan | Yes |
| Acceleration (Gyro) Sensor | Yes |
| Current Sensor | Yes |
| BLU Sensor | Yes |
| Power Indicator | Yes |
| Proximity Sensor | No |
| Humidity Sensor | Yes |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | Yes (2) |
| Control Manager | Yes |
| SI Server Setting | No |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | Yes |
| Backlight Sync | Yes |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | Yes |
| Network Ready | No |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | Yes (4) |
| PM mode | Yes |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | No |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 5% to 100% |
| Operation Temperature (Portrait) | Not Available |
| Operation Temperature | -20°F to 122°F / -30°C to 50°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
