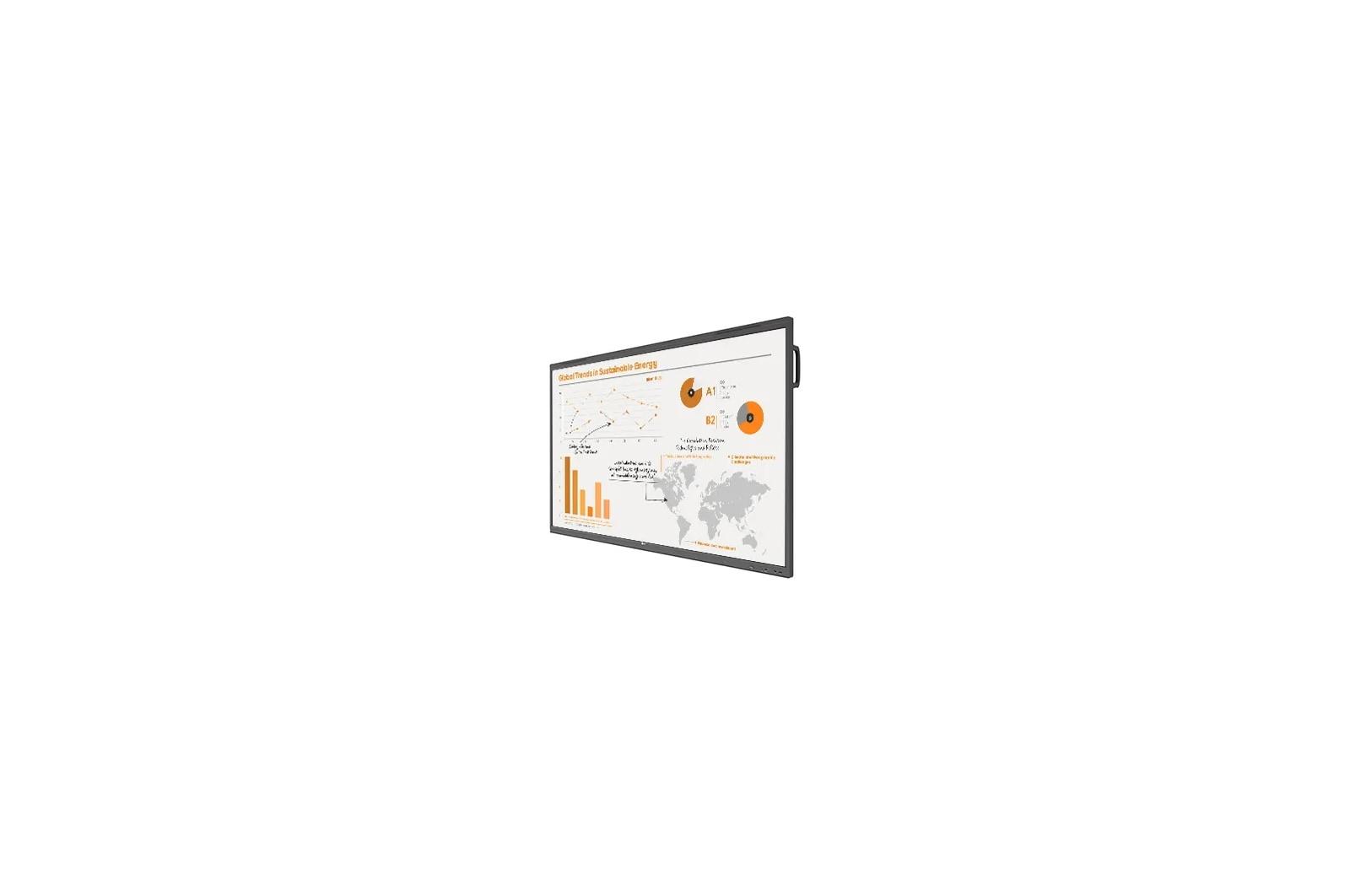

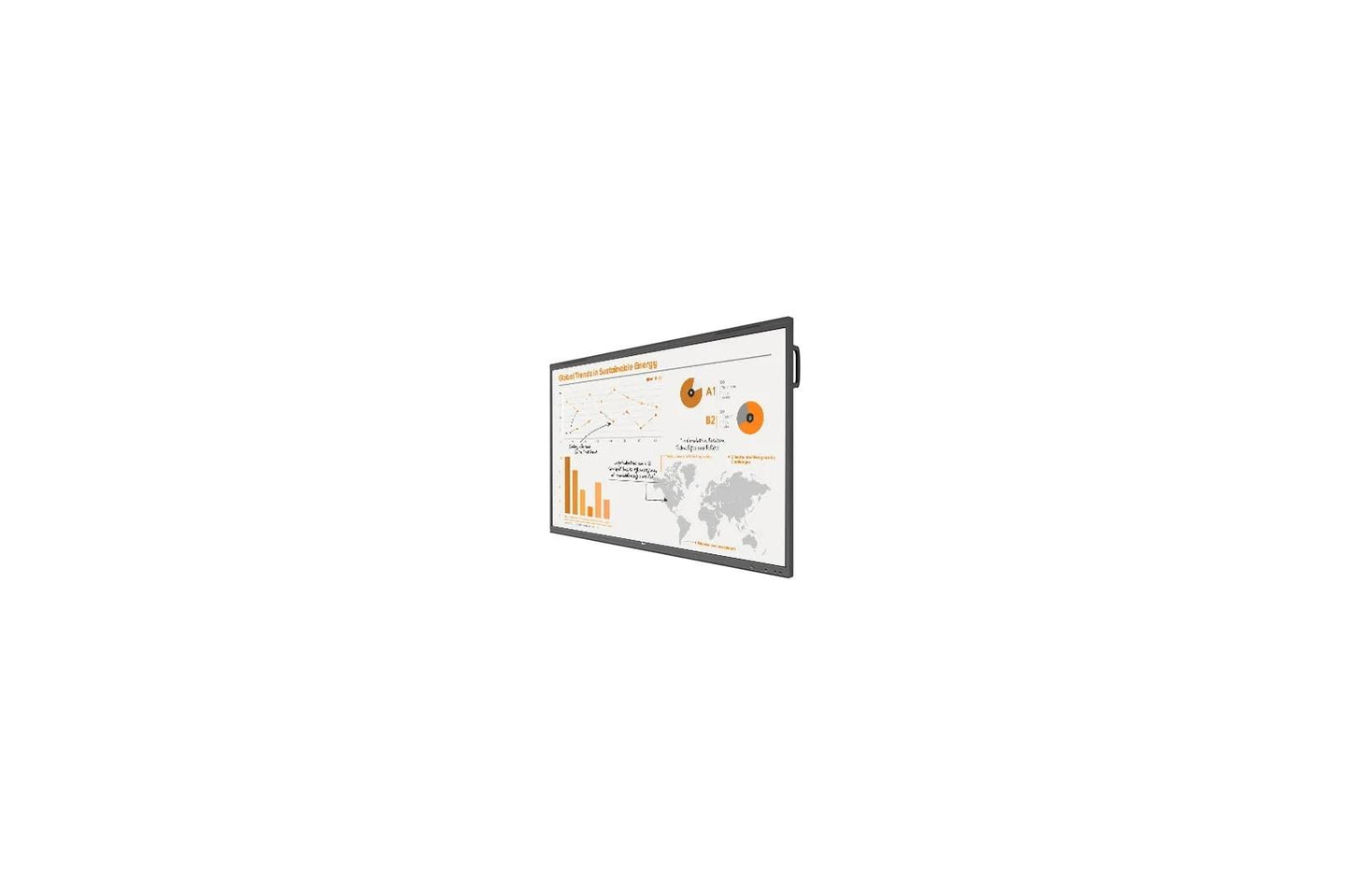

Lg 65TR3PNB 65'' CreateBoard Pro Smart Board with Google Mobile Services and Built-in AI
Lg 65TR3PNB 65'' CreateBoard Pro Smart Board with Google Mobile Services and Built-in AI
Couldn't load pickup availability
Check Delivery:
- Smarter: Built-in AI
- Google Mobile Services Authorized
- Better Sound: Top mounting speakers for better broadcasting
- Smooth Writing: Enhanced writing capability with 50 touch points
- Ready to to create with CreateBoard Lab™ & share with Createboard Share
- Ready to Manage: LG ConnectedCare
- Ready to create with CreateBoard Lab™ & share with CreateBoard Share
The quad speakers provide a three-dimensional clearer and louder sound than traditional 15W display speakers. Whether you're playing a video, music, a pre-recorded lesson or have online students on the other side, the CreateBoard Pro sounds perfect in the classroom environment.
Why LG CreateBoard Pro?

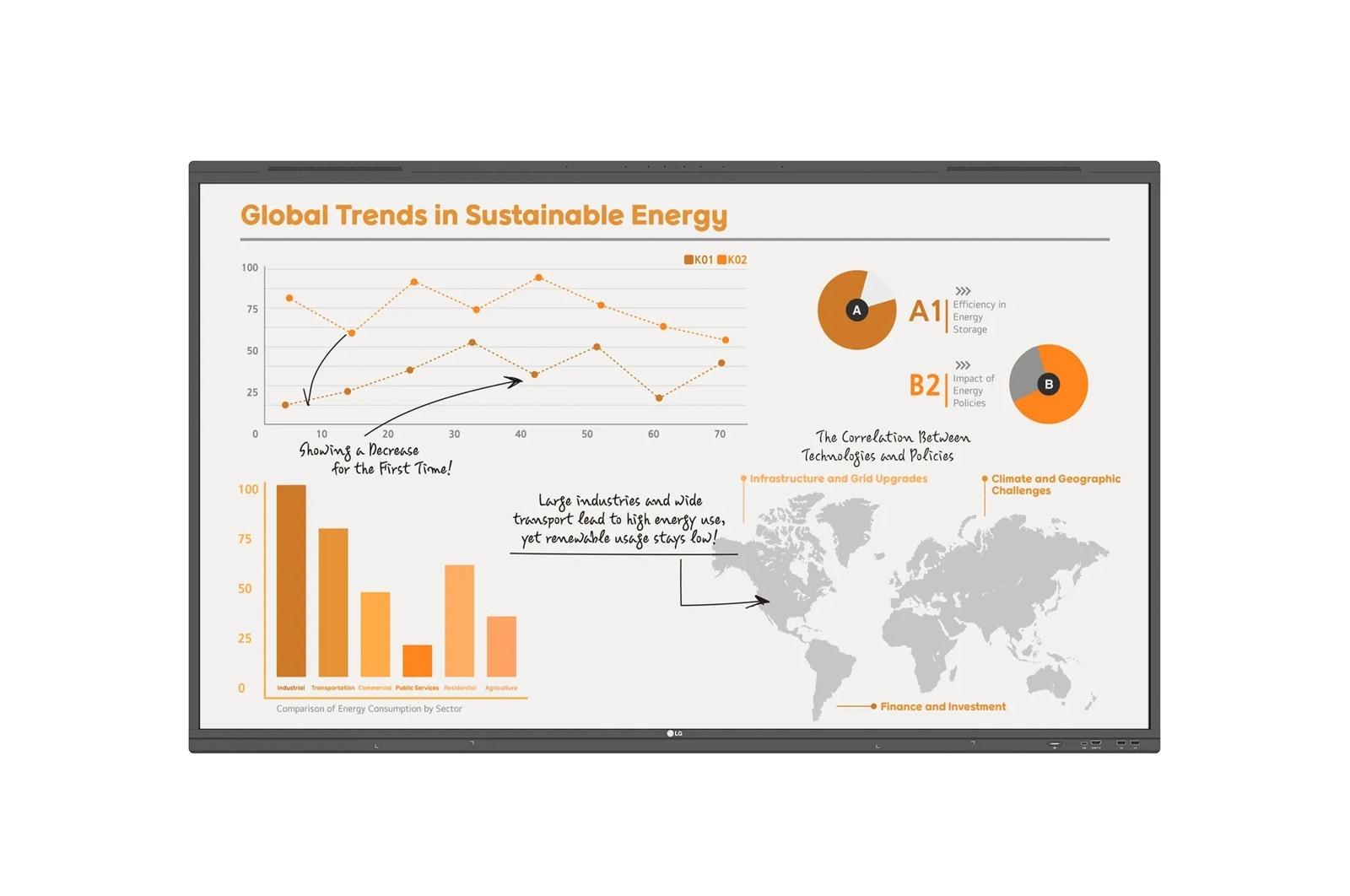

Google Certified - Amazing Sound - Silky Smooth Touch - ELGi AI Helper to Boost Productivity The LG CreateBoard Pro offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using your fingertips. With screen and content sharing, CreateBoard Pro is an effective tool for collaborative projects and presentations. You can even utilize CreateBoard Pro like a giant touch-screen version of the laptop that you're used to. With the ChromeOS OPS or Windows OS OPS, simply sign into your account for access to your custom settings, folders, apps and more.
Microphone Array
CreateBoard Pro is packed with extra features like the built-in microphone array located at the top of the board. Whether you are recording a lecture, teaching to online students or simply taking notes, the CreateBoard Pro microphone is sure to be an everyday feature.
*Images are simulated for illustration purposes only.
LG CreateBoard Lab
™ offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through connected cloud devices.
LG CreateBoard Share
offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own devices, simplifying the process of sharing and collaborating on team projects or presentation materials. LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network. For a more stable connection, LG recommends the installation of a dedicated app (e.g., LG CreateBoard Share).
*Images are simulated for illustration purposes only. LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network. For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share). LG CreateBoard Share app is compatible with Android 5.1 and higher, iOS 12.0 and higher, and MacOS 11.0 and higher.
LG ConnectedCare DMS
is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and signage displays. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
*Images are simulated for illustration purposes only. The availability of the LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.
Dashboard
The LG ConnectedCare DMS dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.
| System | |
| Operating System (OS) | Android™ 13 |
| Processor | Octa-core A76 x 4 + ASS x 4 |
| Graphics | Mali G52MP2 |
| Storage | 64 GB |
| Internal Memory | 8 GB |
| Electrical | |
| Power Consumption (Max.) | 425W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | Less than 0.5W |
| Power Type | Built-in Power |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | Not Available |
| BTU Heat Generation (Max.) | 1,416 BTU |
| BTU Heat Generation (Typ.) | 665 BTU |
| Power Consumption (Typ.) | 180W |
| Connectivity | |
| HDMI In | Yes (x4), HDCP2.3 |
| IR In (3.5 mm) | No |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | Yes (x1) |
| DisplayPort In | Yes (x1) HDCP 2.3/1.3 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x7) USB 3.0 (x4) USB 2.0 (x3) |
| USB Type-C In | Yes (x2) |
| USB Type-C Power Delivery | No |
| HDMI Out | Yes (x1) |
| DisplayPort Out | No |
| Optical Digital Audio Out | No |
| Touch USB | Yes (x2) |
| RJ45 (LAN) Out | Yes (x1) |
| RS-232C Out (3.5 mm) | No |
| External Speaker Out | No |
| Power Delivery Alt | No |
| Bluetooth | Yes (5.0) |
| Built-in Wi-Fi | 802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Panel | |
| Screen Size (Inches) | 65" |
| Panel Technology | IPS |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 400 nits |
| Brightness (Max.) | Not Available |
| Contrast Ratio | 4000:1 |
| Dynamic Contrast Ratio | 5000:1 |
| Color Gamut | NTSC 72% |
| Color Depth (Number of Colors) | 10 bit (8 bit + FRC) |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 6.5 ms |
| Surface Treatment (Haze) | 25% |
| Operation Hours (Hours per Day / Days per Week) | 16/7 |
| Lifetime | Up to 50,000 Hrs |
| Orientation | Landscape |
| Audio/Sound | |
| Built-in Speakers | Yes |
| Camera & Mic | |
| Webcam Resolution | Not Available |
| Built-in Mic | Yes (x8) |
| Built-in Webcam | Yes |
| Features | |
| Crestron Certified Compatibility | No |
| Beacon | No |
| Play Via URL | No |
| Cisco Certified Compatibility | No |
| Failover | No |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T: 34.33 mm, R/L: 15.6 mm, B: 37 mm |
| Weight | 85.09 lbs / 38.6 kg |
| Shipping Weight | 106.26 lbs / 48.2 kg |
| Dimensions (W x H x D) | 58.58 x 35.74 x 3.42 in / 1,488 x 908 x 87 mm |
| Shipping Dimensions (W x H x D) | 64.09 x 39.56 x 8.18 in / 1,628 x 1,005 x 208 mm |
| Conformal Coating (Power Board) | Not Available |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| Overlay Touch Compatibility | No |
| Regulatory & Certifications | |
| UL Certification | No |
| ePEAT US (Environmental) | No |
| CE (Regulatory) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | No |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | No |
| Energy Star (Environmental) | Yes |
| Warranty & Other | |
| Assembled In | China |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Romanian, Russian, Simplified Chinese, Spanish, Swedish, Thai, Turkish |
| Optional Accessories | Wall Mount(WM-L000S), Floor Stand(ST-000F / ST-860F) |
| UPC | 1 95174 08774 9 |
| Basic Accessories (included) | Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module |
| Touch Panel | |
| Available Object Size for Touch | 2 mm |
| Response Time (PC Win10, Education Mode) | Not Available |
| Writing Height | 1 ms |
| Accuracy (Typ.) | 1 mm |
| Interface | USB 2.0 |
| Active Pen Interface | Not Available |
| Multi Touch Point (Max.) | 50 Points (Max.) |
| Protection Glass Thickness | 3.2 mm |
| Protection Glass Transmission | 88% |
| Operating System Support | Windows 10 / 8 / 7 / Android |
| Protective Glass | |
| Thickness | 3.2 mm |
| Degree of Protection | Safety Glass |
| Tempered / Chemical Strengthening | Tempered Strengthening |
| Anti-Reflective | No |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | No |
| Anti-Fingerprint | No |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | No |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | Yes (CreateBoard Share) |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | No |
| Auto Brightness Sensor | Yes |
| Power Indicator | Yes |
| Software Features | |
| Gapless Playback | No |
| Picture-by-Picture (PBP) | No |
| Control Manager | No |
| SI Server Setting | No |
| Setting Data Cloning | No |
| Status Mailing | No |
| Auto Set ID | No |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | No |
| Group Manager | No |
| Booting Logo Image | Yes |
| Network Ready | Yes |
| RS-232C Sync | No |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | No |
| Video Tag | No |
| PM mode | No |
| Picture-in-Picture (PIP) | Yes (x1) external source |
| Local Network Sync | No |
| Screen Rotation | No |
| Smart Energy Saving | Yes (Energy Saving) |
| Tile Mode Setting | No |
| External Input Rotation | No |
| No Signal Image | No |
| SNMP | No |
| Brightness Compensation | No |
| Local Contents Scheduling | No |
| HDMI-CEC | Yes |
| USB Plug & Play | No |
| Built-in Software | |
| LG ConnectedCare™ DMS | Yes |
| OfficeSuite | No |
| LG CreateBoard® Lab, Note 2.0 | No |
| LG CreateBoard® Share | Yes |
| Environmental Conditions | |
| Operation Humidity | 10-90% RH |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Type Compatible | Yes |
| OPS Power Built-in | Yes |
