LG 75TR3BQB
Authorized Reseller

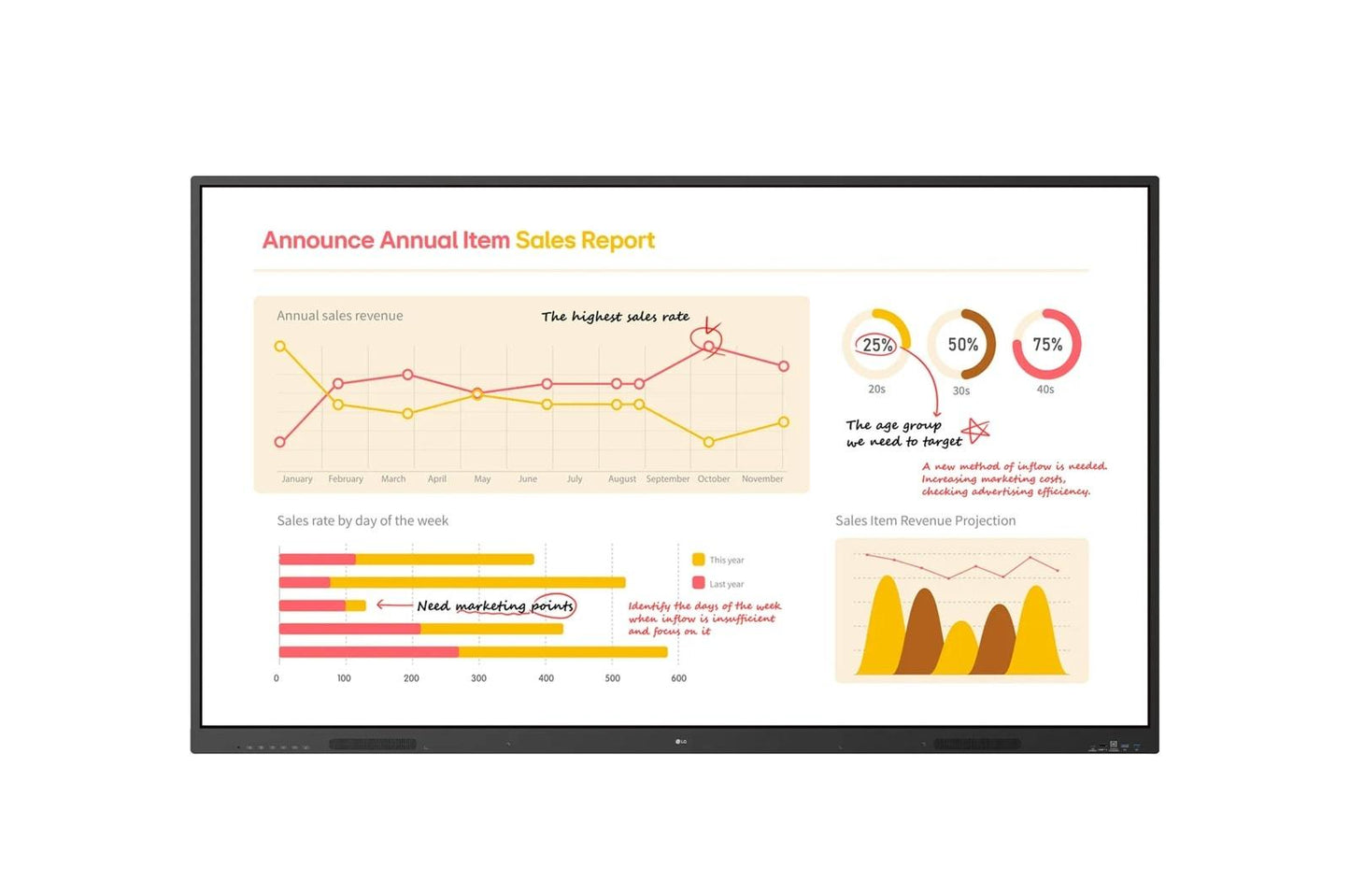

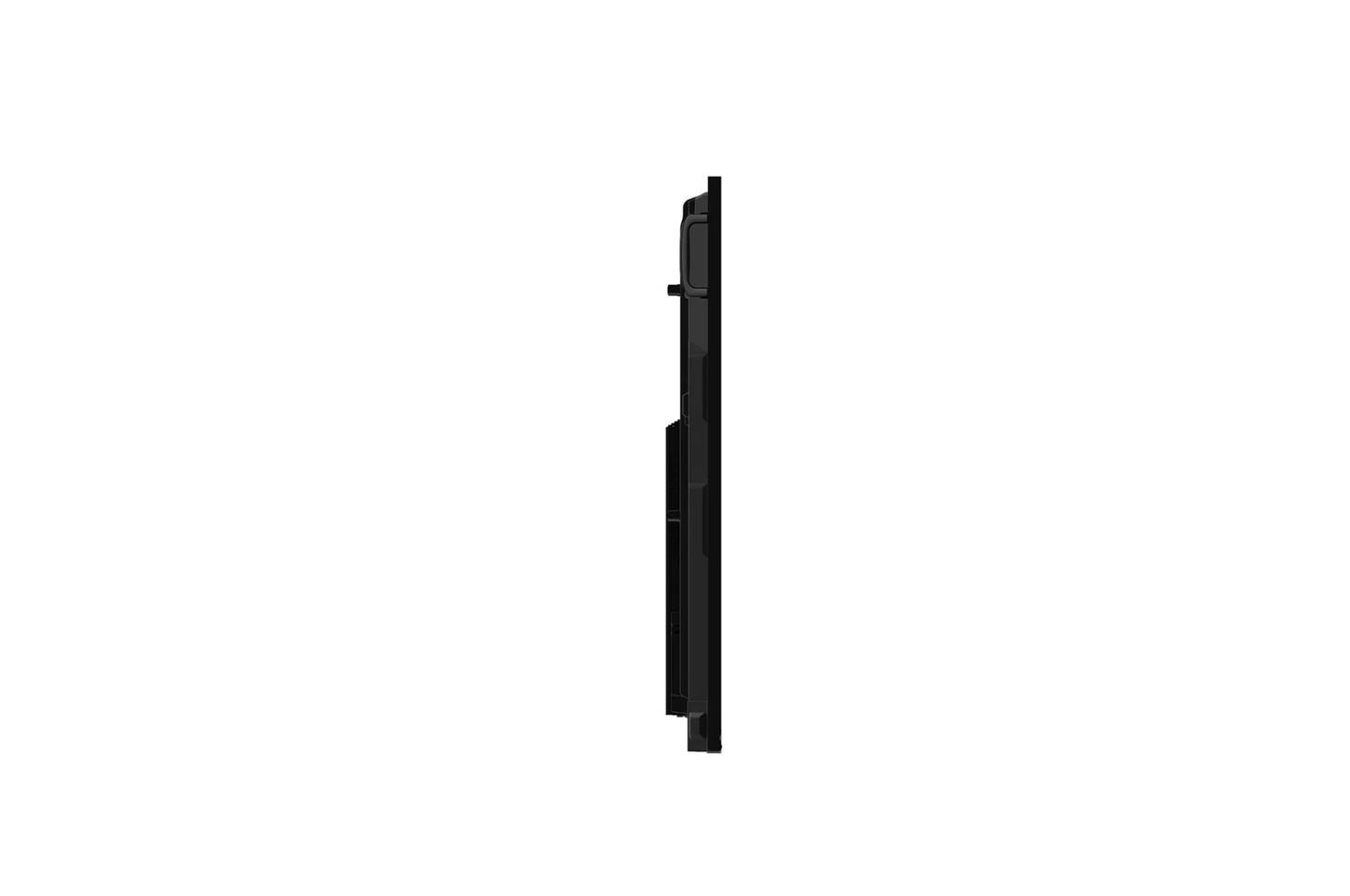

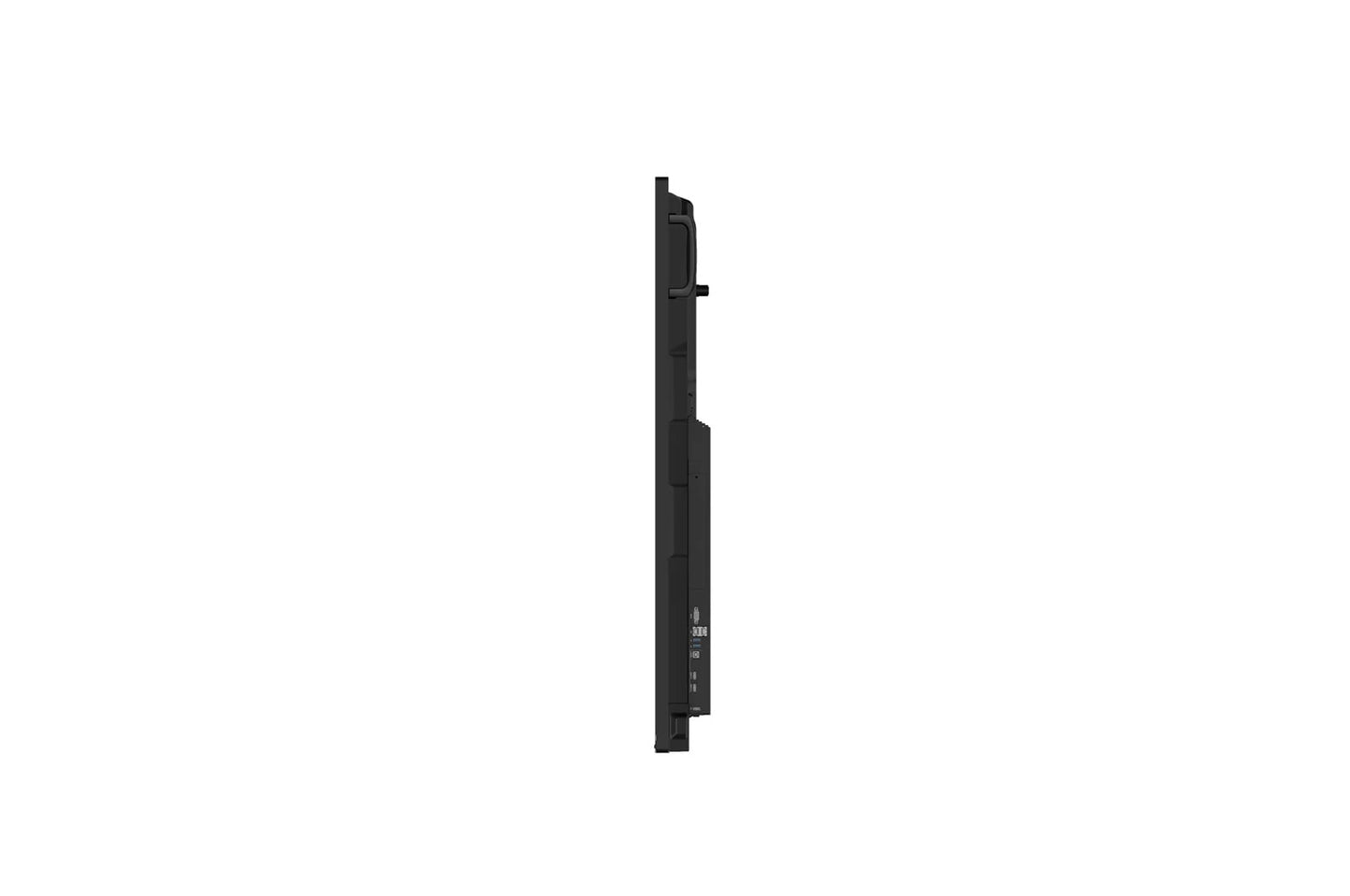

Lg 75TR3BQB 75" Multi Touch CreateBoard Core
Lg 75TR3BQB 75" Multi Touch CreateBoard Core
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Genuine touch & writing experience for creative projects and presentations
- Secure, limited onboard operation
- Built-in annotation tool
- Built-in OPS slot to expand collaboration toolkit
75" Multi Touch CreateBoard Core
| System | |
| Operating System (OS) | Non OS |
| Processor | N/A |
| Storage | No |
| Internal Memory | No |
| Electrical | |
| Power Type | Built-in Power |
| Power Supply | AC 100-240V~, 50/60 Hz |
| BTU Heat Generation (Max.) | 1228 BTU/Hr (Max) |
| BTU Heat Generation (Typ.) | 433 BTU HR (Typ) |
| Power Consumption (Typ.) | 167 W |
| Connectivity | |
| HDMI In | Yes (x2) |
| IR In (3.5 mm) | Yes |
| Audio In (3.5 mm) | Yes |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x4) USB 3.0 |
| USB Type-C In | Yes (x1) |
| USB Type-C Power Delivery | 65W |
| Touch USB | Yes (x2) |
| RJ45 (LAN) Out | Yes (x1) |
| Panel | |
| Screen Size (Inches) | 75" |
| Panel Technology | VA |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 350 nits |
| Dynamic Contrast Ratio | 5000:1 |
| Color Gamut | NTSC 72% |
| Color Depth (Number of Colors) | 10 bit (8 bit + FRC) |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 6.5 ms |
| Surface Treatment (Haze) | 25% |
| Operation Hours (Hours per Day / Days per Week) | 16/7 |
| Lifetime | 50,000 Hrs |
| Orientation | Landscape |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 16W |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/R/L/B: 16.6/16.6/16.6/45mm |
| Weight | 94.35 lbs / 42.8K kg |
| Dimensions (W x H x D) | 67.40 x 40.23 x 3.85 in / 1,712 x 1,022 x 98 mm |
| Shipping Dimensions (W x H x D) | 73.34 x 45.19 x 8.85 in / 1,863 x 1,148 x 225 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | Yes (x2) |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| Regulatory & Certifications | |
| ERP (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | China |
| Onscreen Display Languages | Arabic (Egypt), Catalan, Czech, Denmark, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Netherlands Dutch), Norwegian, Portuguese (Brazil), Portuguese (Europe), Romanian, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, T rk e, Ukrainian |
| UPC | 195174124987 |
| Touch Panel | |
| Available Object Size for Touch | 3 mm |
| Response Time (PC Win10, Education Mode) | 10 ms |
| Writing Height | 2 mm |
| Accuracy (Typ.) | 1.5 mm |
| Interface | USB 2.0 |
| Multi Touch Point (Max.) | 40 Points |
| Protection Glass Thickness | 3.2T (Anti-Glare) |
| Protection Glass Transmission | 88% |
| Operating System Support | Windows10/Windows8/Windows7/Android/Linux/macOS/Chrome |
| Protective Glass | |
| Thickness | 3.2 mm |
| Degree of Protection | Safety Glass |
| Tempered / Chemical Strengthening | Tempered Strengthening |
| Anti-Reflective | Yes |
| Shatter-Proof | Yes |
| Smart Features | |
| Screen Share | No |
| Hospitality Features | |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | Yes |
| Auto Brightness Sensor | Yes |
| Power Indicator | Yes |
| Software Features | |
| HDMI-CEC | Yes |
| Built-in Software | |
| LG CreateBoard® Share | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 90% |
| Operation Temperature | 32°F x 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Type Compatible | Yes |
| OPS Power Built-in | Yes |
