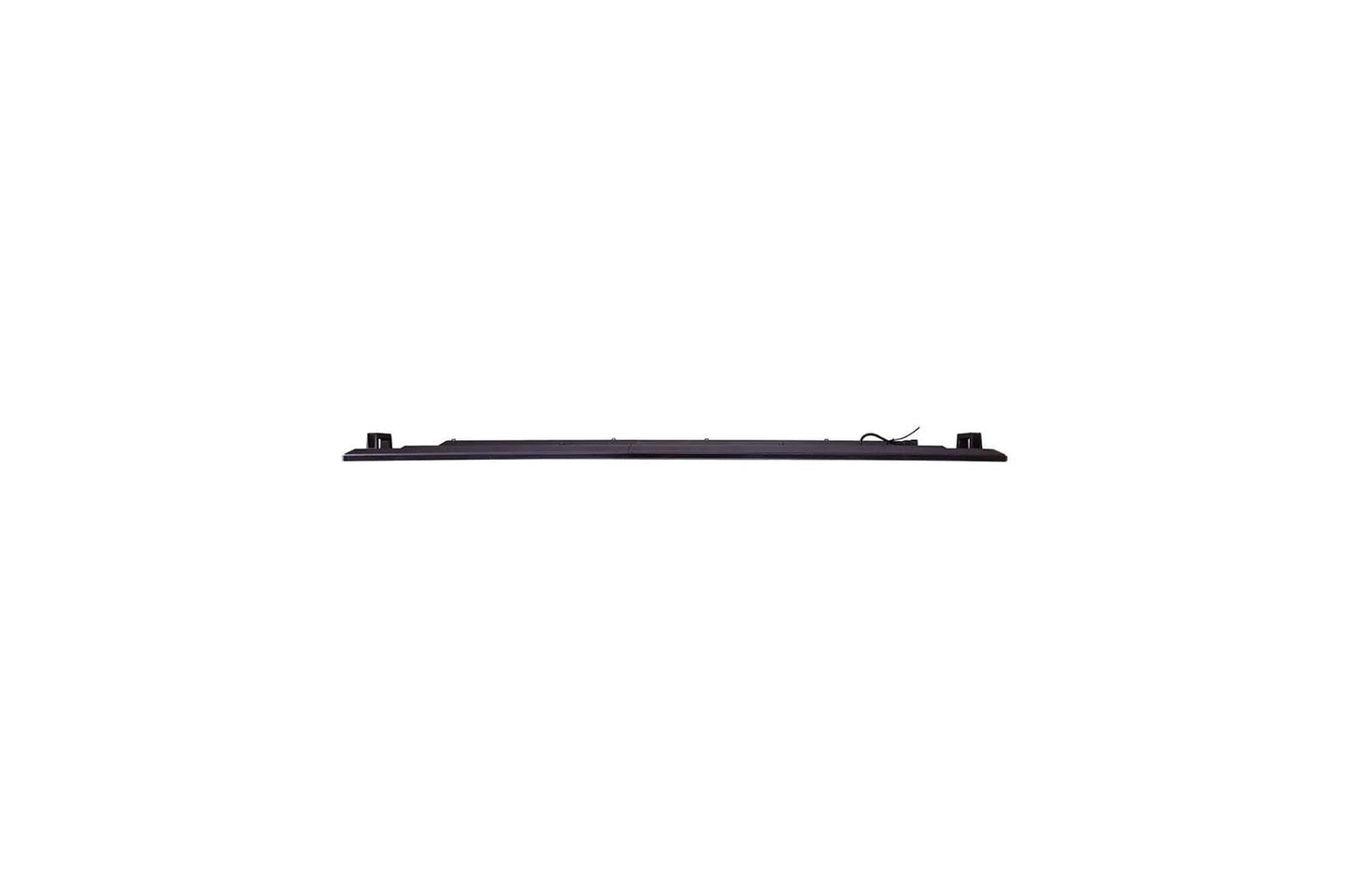

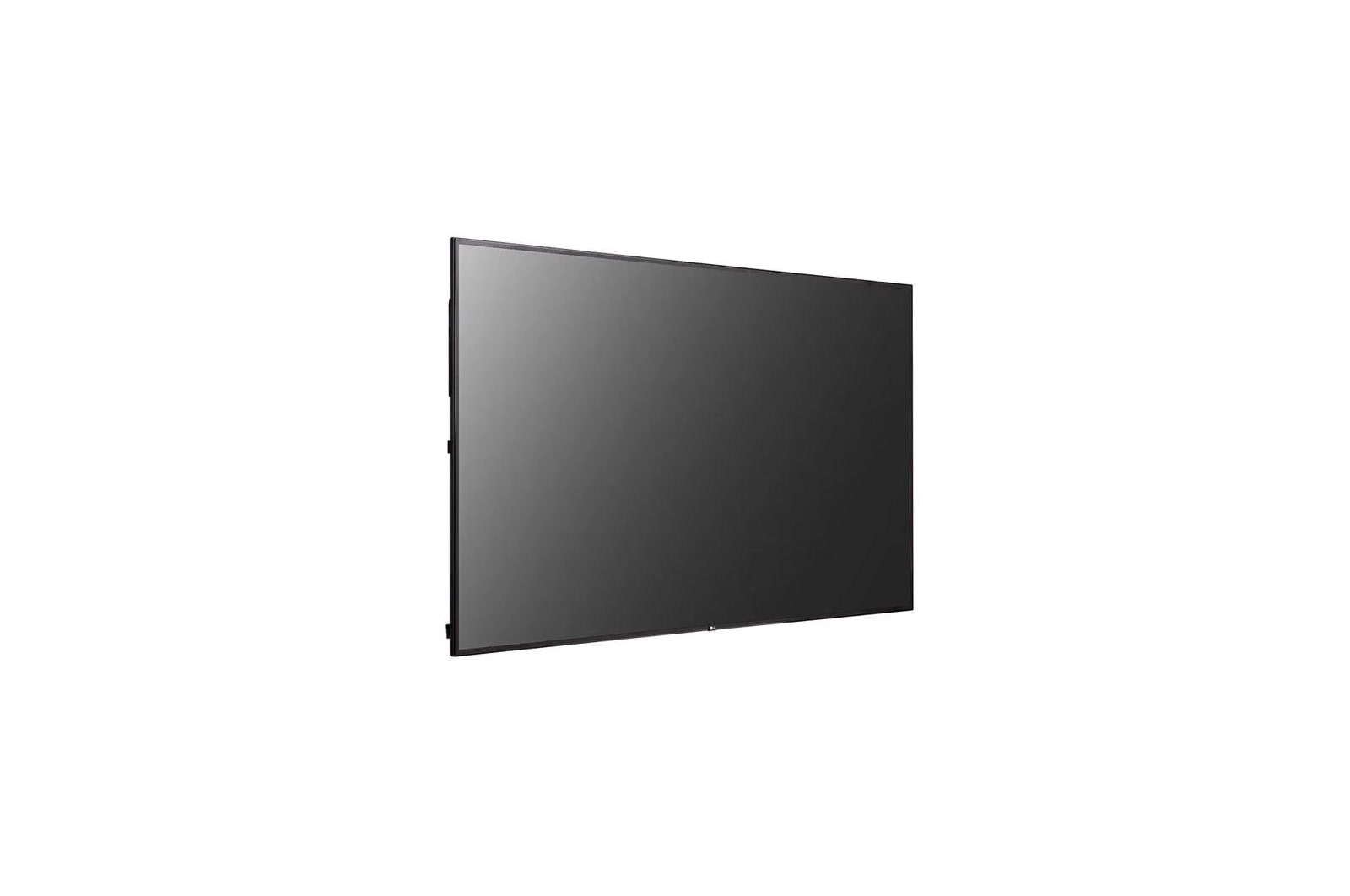

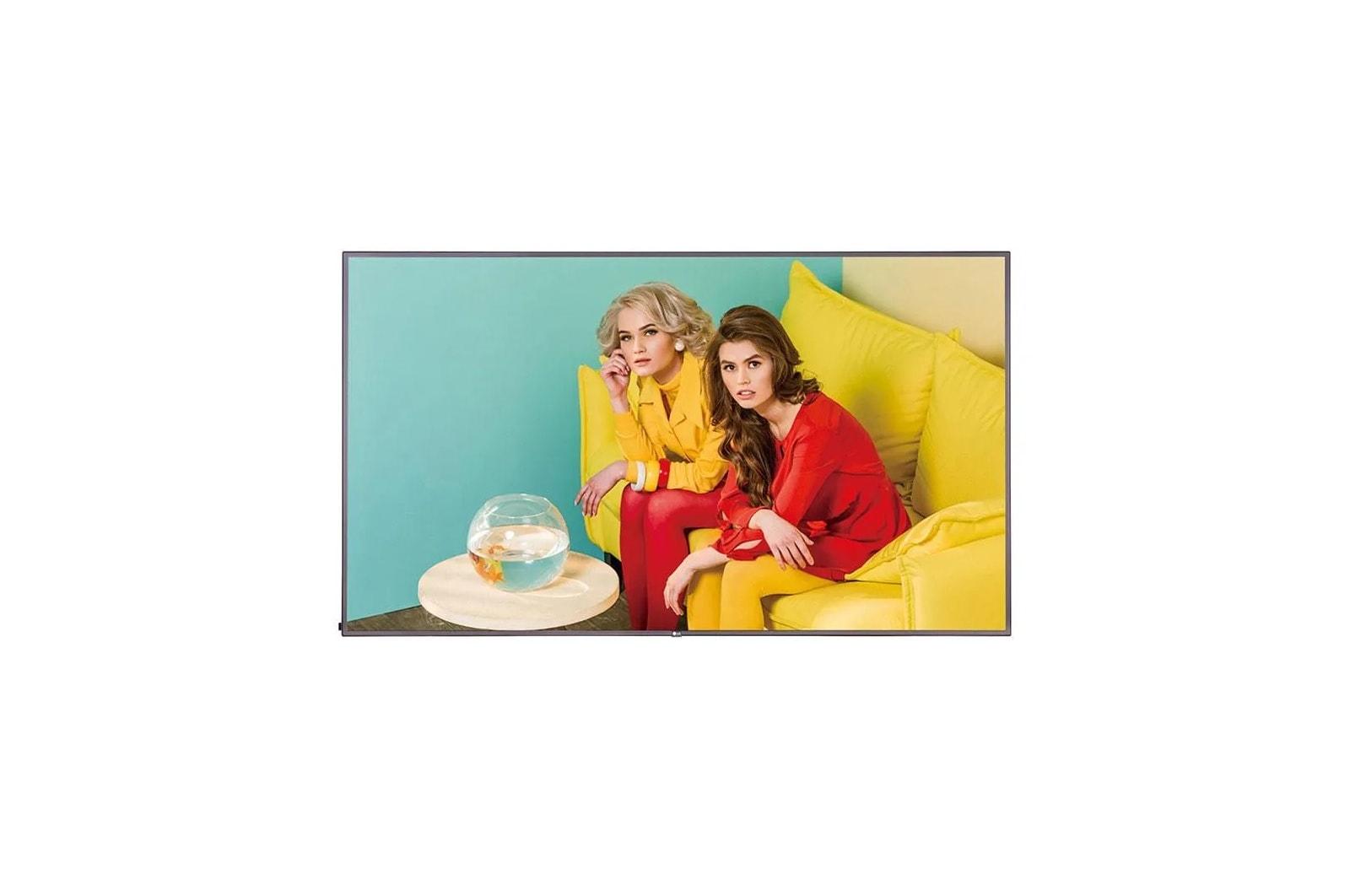

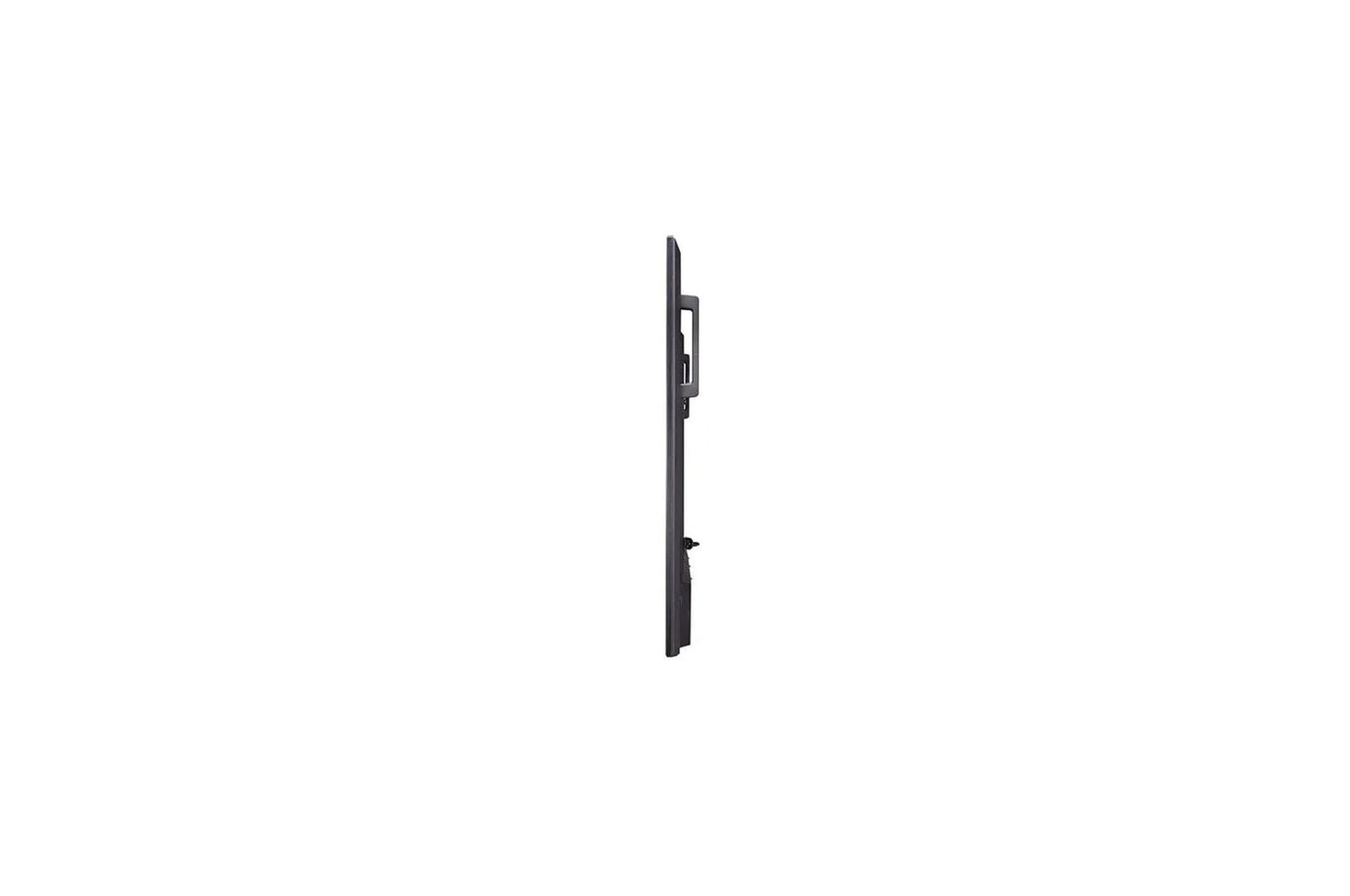

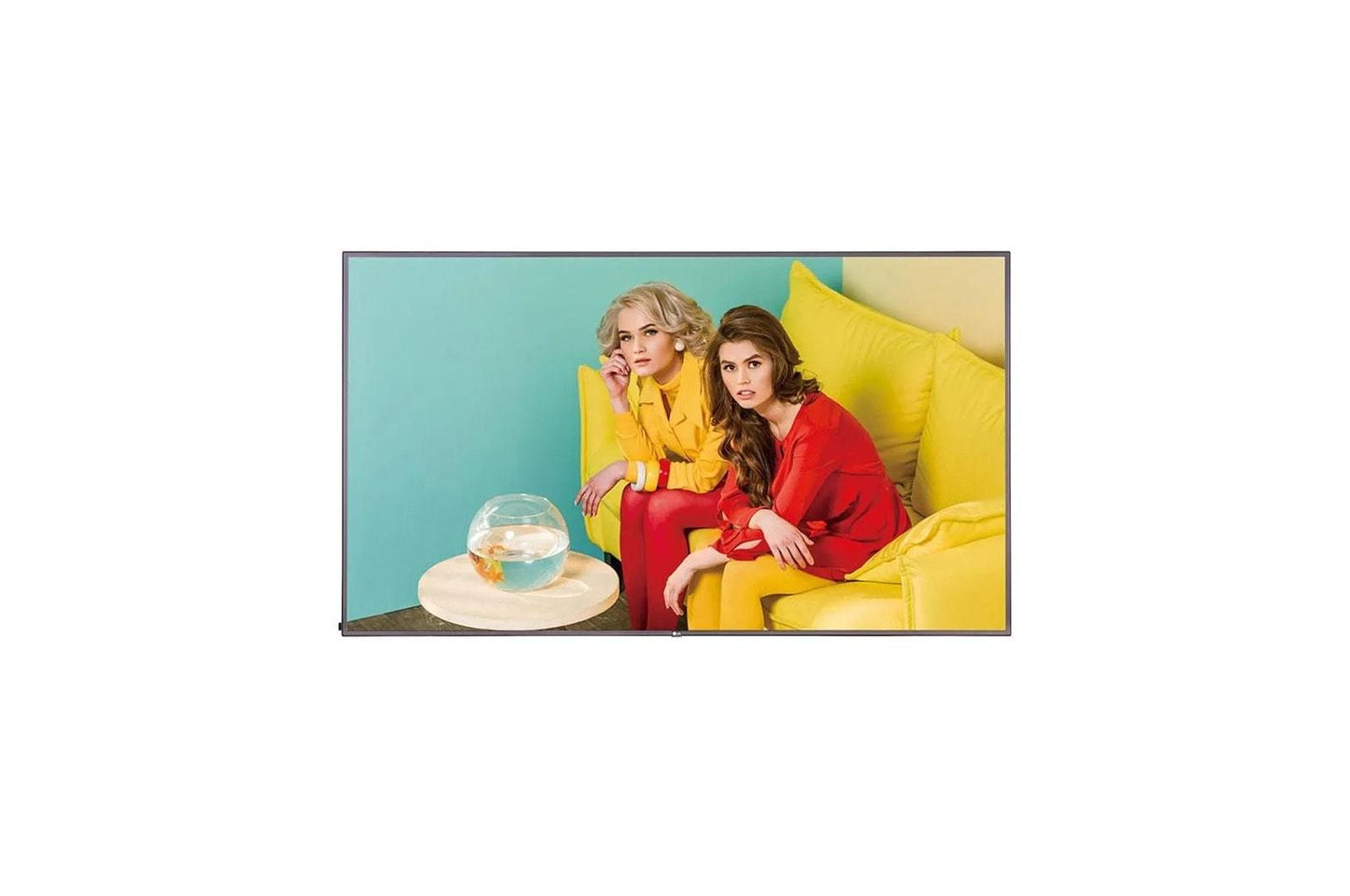

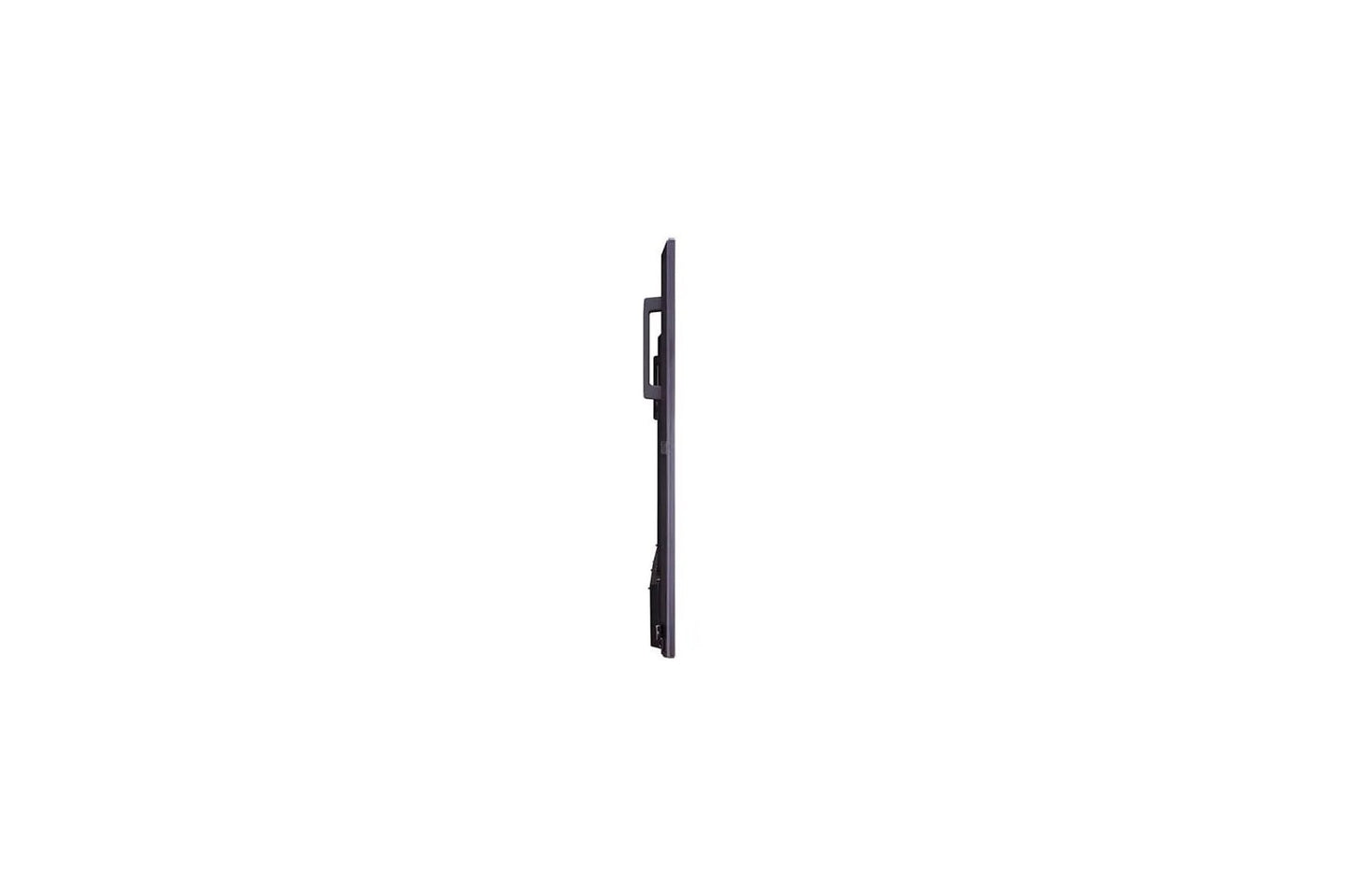

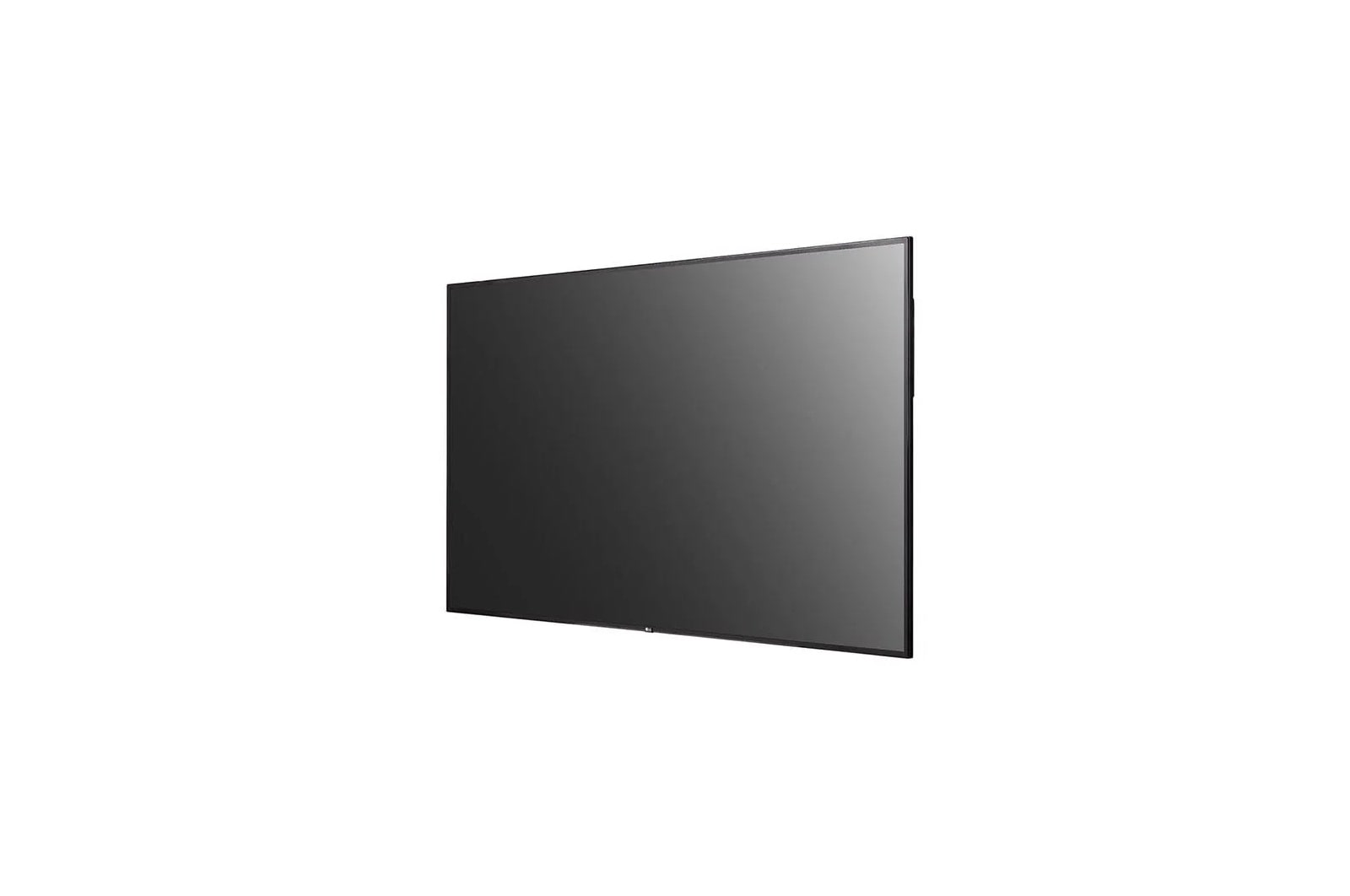

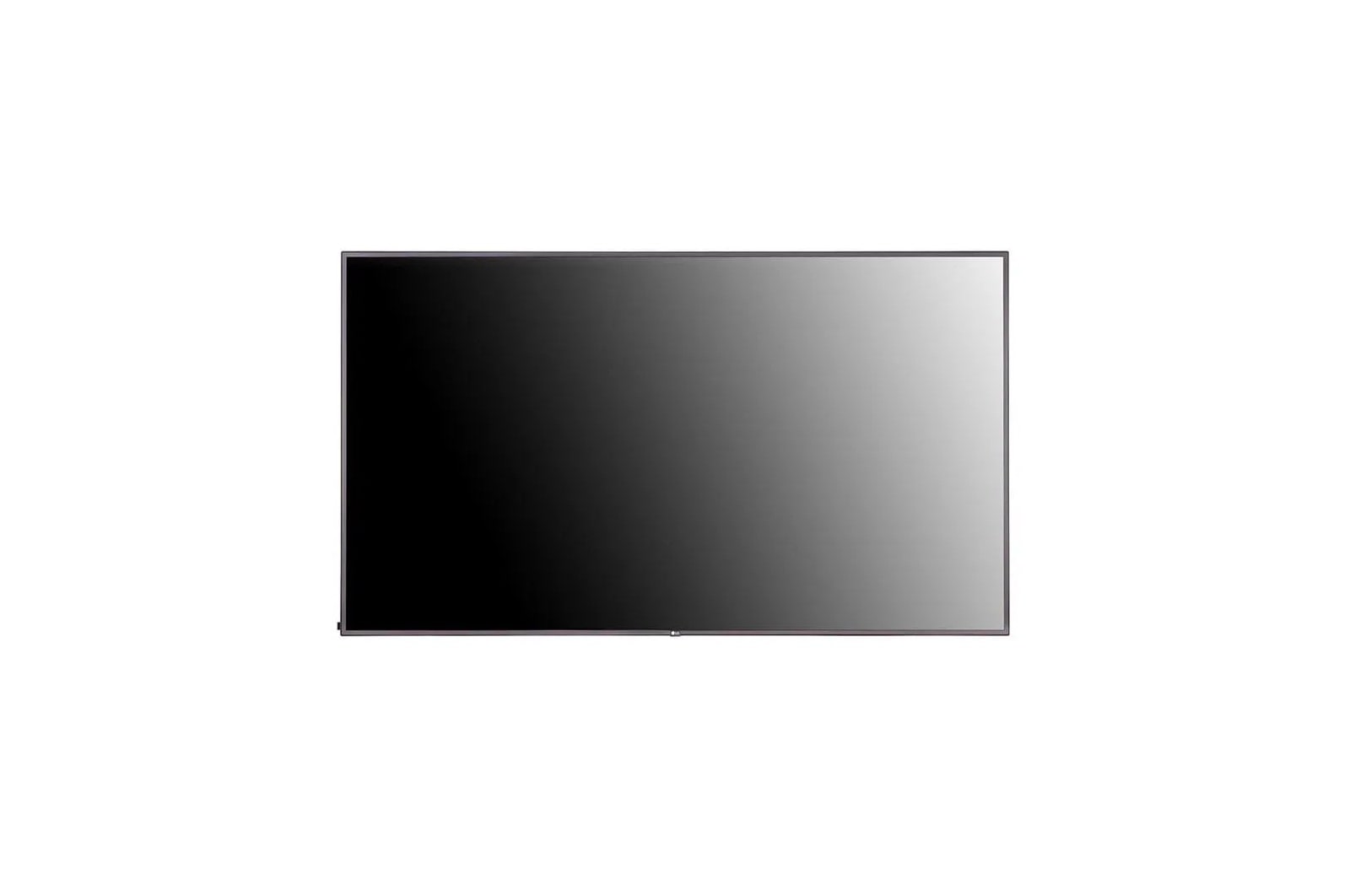

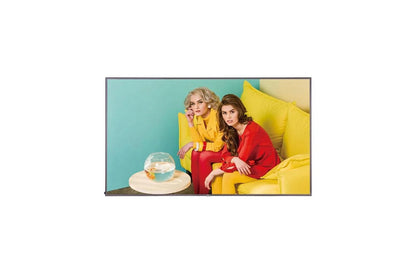

Lg 75UH5EB 75" UHD UH5E-B Series Signage
Lg 75UH5EB 75" UHD UH5E-B Series Signage
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Brightness(Typ.) : 500 cd/m
- Bezel : 14.9 mm (Even, Off-Bezel)
- Depth : 57.9 mm (without Handle and Logo)
- Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W+10W)
75" UHD UH5E-B Series Signage
| System | |
| Operating System (OS) | webOS™ |
| Processor | N/A |
| Internal Memory | 8 GB (System 4 GB + Available 3.6 GB) (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 260W |
| Power Supply | 100-240 Vac, 50/60 Hz |
| Power Consumption (Power Off) | Not Available |
| Power Type | Built-in Power |
| PoE Type | No |
| PoE Power Class | No |
| Power Consumption (Display Power Management - DPM) | Not Available |
| Power Consumption (Smart Energy Saving - 70%) | 126W |
| BTU Heat Generation (Max.) | Not Available |
| BTU Heat Generation (Typ.) | Not Available |
| Power Consumption (Typ.) | 180W |
| Connectivity | |
| HDMI In | Yes (x3) |
| IR In (3.5 mm) | Yes (x1) |
| DVI-D In | Yes (x1) |
| RGB In | No |
| Audio In (3.5 mm) | Yes (x1) |
| DisplayPort In | Yes (x1) |
| RS-232C In (3.5 mm 4-pin) | Yes |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes |
| USB Type-A In | Yes (x2) |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | N/A |
| Power Loop In | No |
| HDMI Out | No |
| DisplayPort Out | Yes (x1) |
| Audio Out (3.5 mm) | Yes |
| Touch USB | No |
| IR Out | No |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | No |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 75" |
| Panel Technology | IPS |
| Backlight Type | Not Available |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 120 Hz |
| Brightness (Typ.) | 500 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | Not Available |
| Color Gamut | Not Available |
| Color Depth (Number of Colors) | Not Available |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 6 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | No |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | 50,000 Hrs |
| Orientation | Portrait / Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | Yes |
| Features | |
| Crestron Certified Compatibility | Yes |
| Beacon | Yes |
| Play Via URL | Yes |
| Cisco Certified Compatibility | Yes |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | T/L/R/B: 14.9 mm |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 91.5 lbs / 41.5 kg |
| Shipping Weight | 109.2 lbs / 49.5 kg |
| Dimensions (W x H x D) | 66.2 x 37.8 x 2.3 in / 1,682.4 x 960.3 x 57.9 mm |
| Shipping Dimensions (W x H x D) | 71.5 x 44.2 x 9.0 in / 1,816 x 1,123 x 228 mm |
| Conformal Coating (Power Board) | No |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | No |
| SuperSign™ Cloud | No |
| Mobile CMS | No |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | Yes |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | N/A |
| Energy Star (Environmental) | Yes |
| Warranty & Other | |
| Assembled In | Korea |
| Warranty | 3 Year Limited |
| Optional Accessories | OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E) |
| UPC | 719192 62394 1 |
| Basic Accessories (included) | Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender |
| Smart Features | |
| Screen Share | Yes |
| Hospitality Features | |
| Pro:Idiom® | No |
| Wake on LAN | No |
| Hardware Features | |
| Local Key Operation | No |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | No |
| Current Sensor | Yes |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | No |
| Picture-by-Picture (PBP) | Yes (4) |
| Control Manager | No |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | No |
| Auto Set ID | No |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | No |
| Network Ready | No |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | Yes |
| Video Tag | No |
| PM mode | No |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Screen Rotation | No |
| Smart Energy Saving | Yes |
| Tile Mode Setting | Yes (Max. 15 x 15) |
| External Input Rotation | No |
| No Signal Image | No |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | No |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | Yes |
