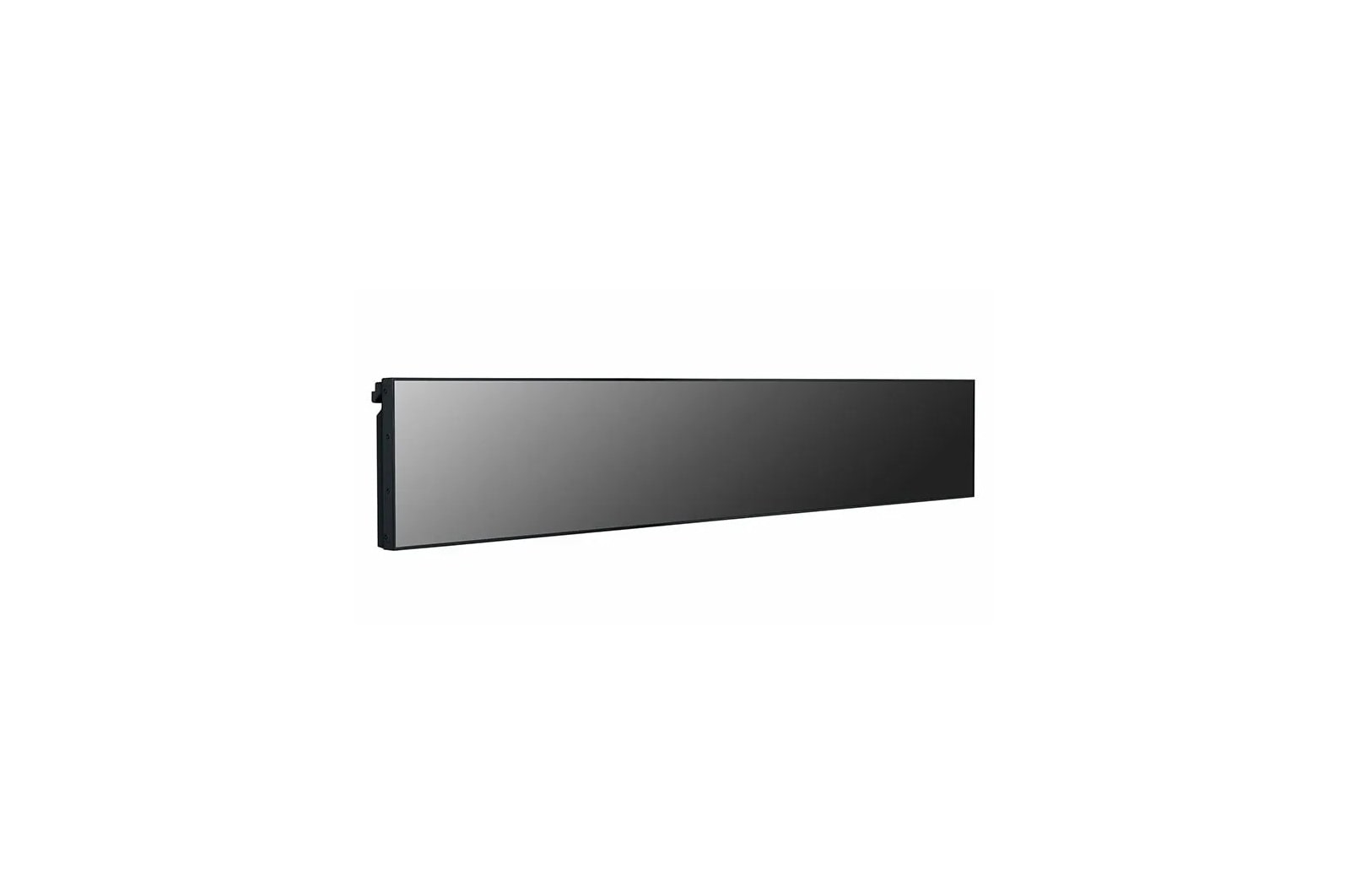

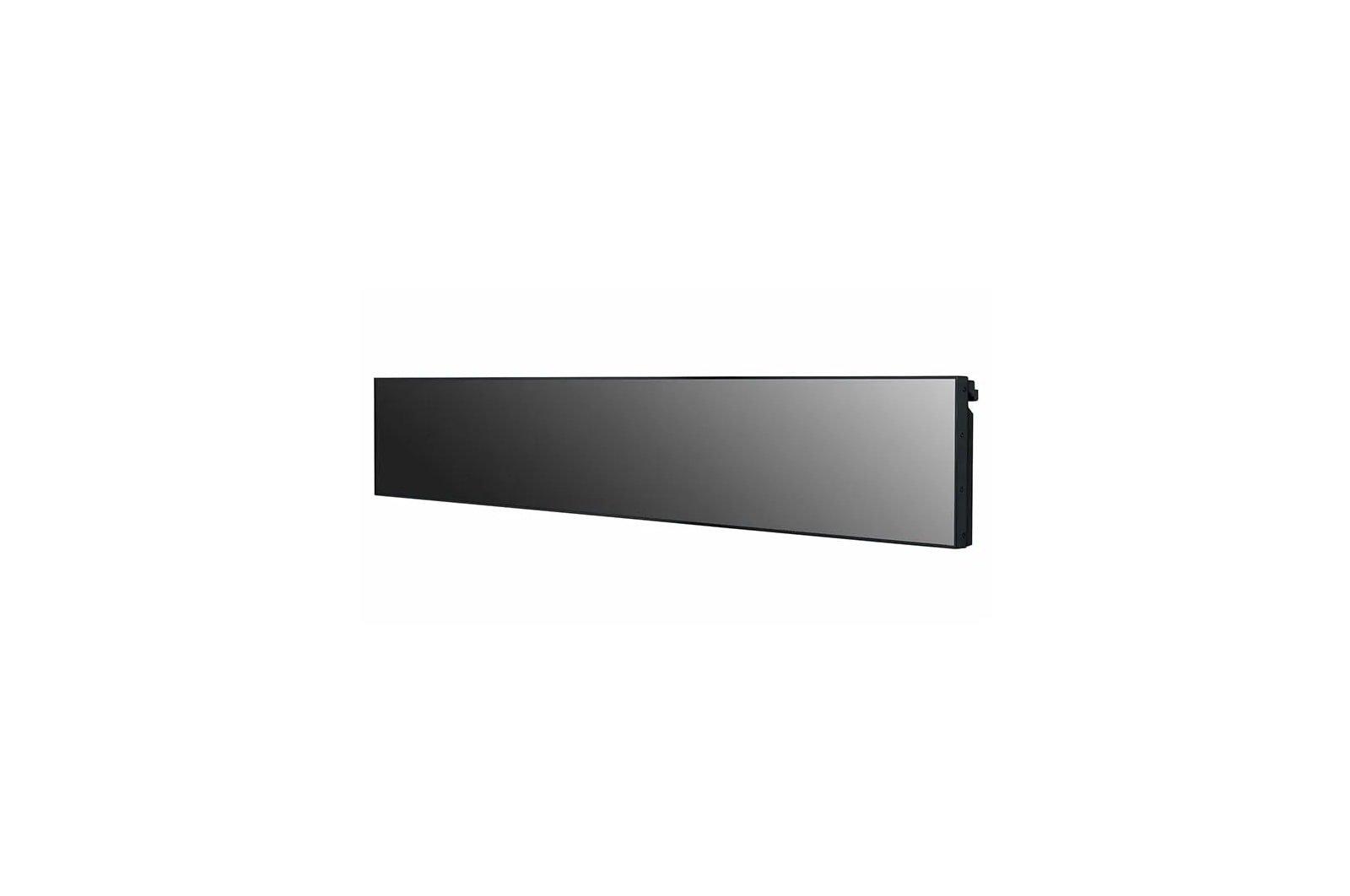

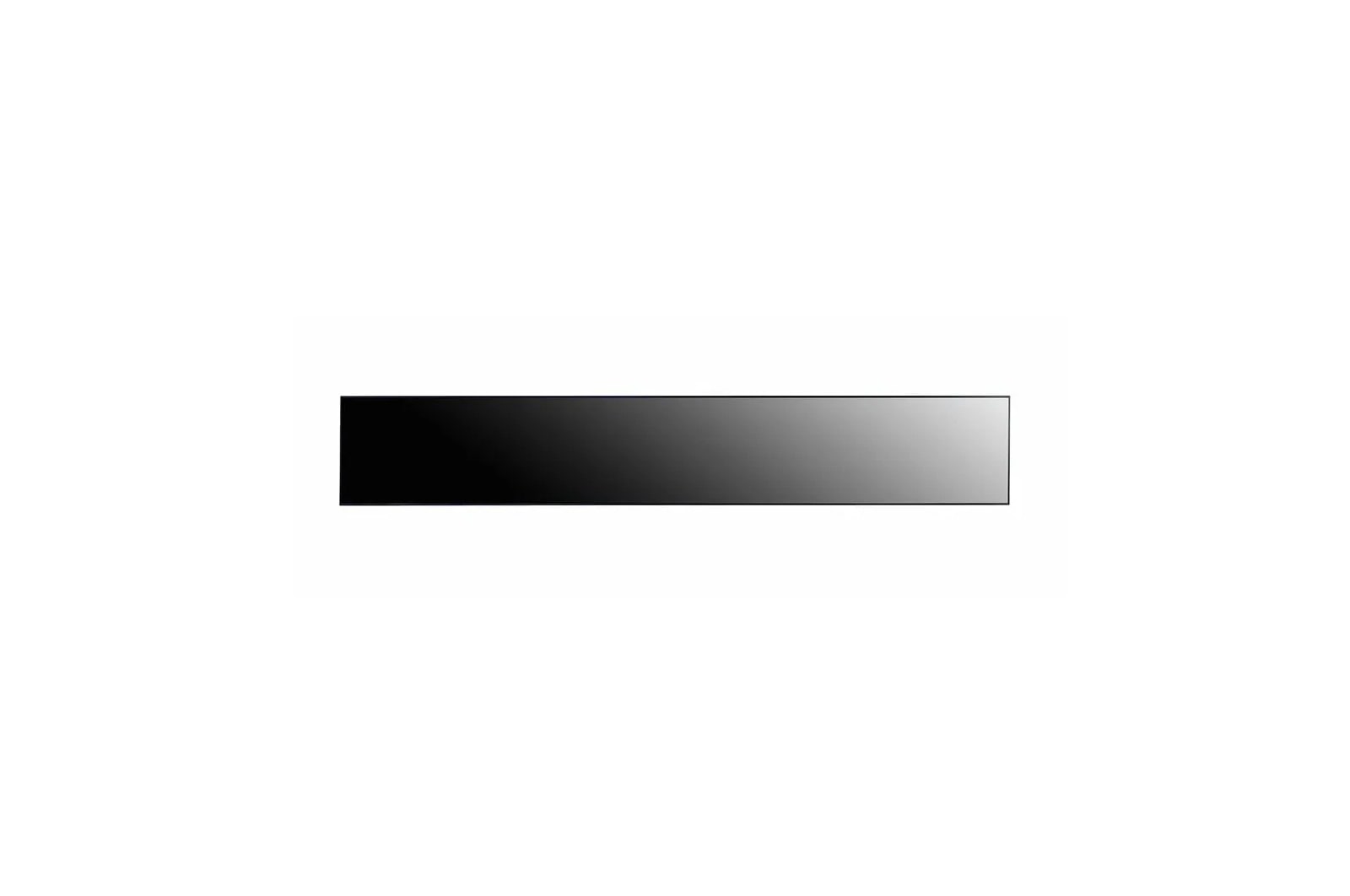

Lg 86BH5FM 86" UHD Ultra Stretch Digital Signage with 58:9 aspect ratio, 500 nits Brightness, Built-in Quad Core SoC and webOS™

Item Not Available

Check Delivery:

IPS Display with wide viewing angle so customers can see from virtually anywhere
Life time of 50,000 hrs. & can operate 24/7
Built-in Wi-Fi
Portrait or landscape, tile mode, 4PBP to create the best customer experience
IP5X Durability Rating
Compatible with LG SuperSign CMS and other LG software

86" UHD Ultra Stretch Digital Signage with 58:9 aspect ratio, 500 nits Brightness, Built-in Quad Core SoC and webOS™

System
Operating System (OS)	webOS™ 4.0
Processor	No
Graphics	No
Storage	No
Internal Memory	8 GB (eMMC)
Electrical
Power Consumption (Max.)	240W
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)	0.5W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	0.5W
Power Consumption (Smart Energy Saving - 70%)	100W
BTU Heat Generation (Max.)	819 BTU
BTU Heat Generation (Typ.)	751 BTU
Power Consumption (Typ.)	220W

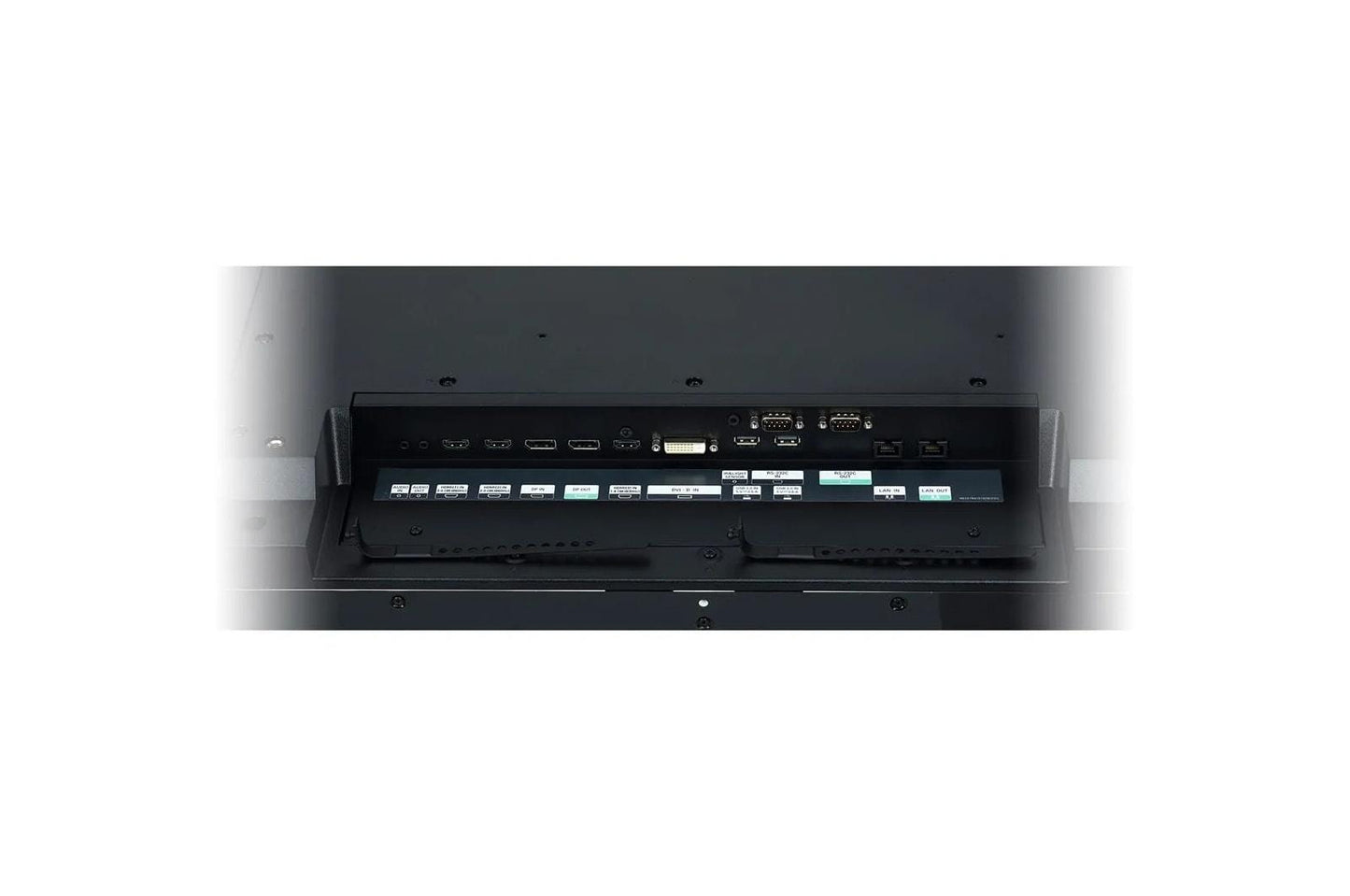

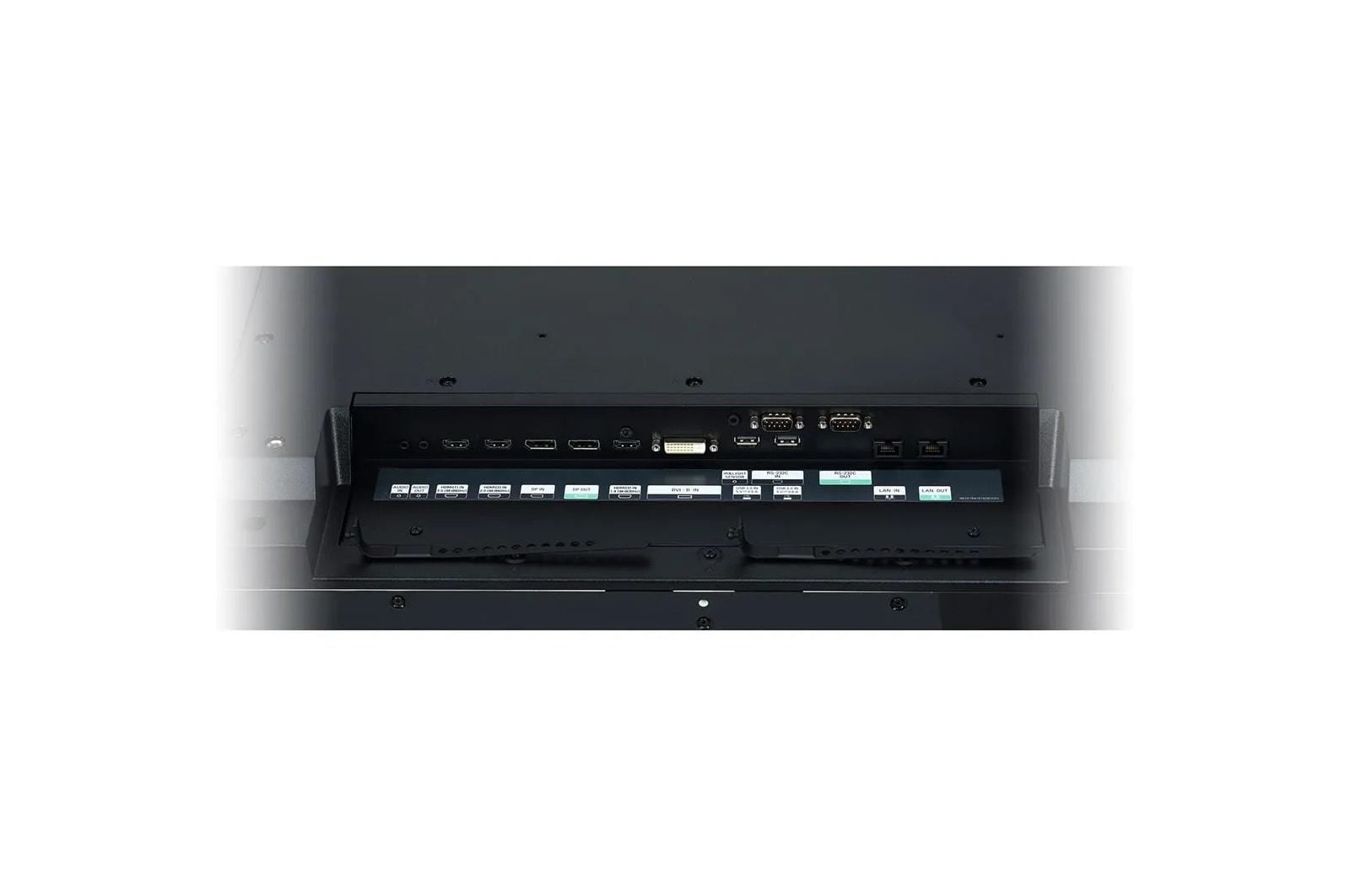

Connectivity
HDMI In	Yes (x3) HDCP 2.2/1.4
IR In (3.5 mm)	Yes
IR In (3.5 mm)	Yes
DVI-D In	Yes (x1) HDCP 1.4
RGB In	No
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x2) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	Yes (x1)
Audio Out (3.5 mm)	Yes (x1)
Touch USB	No
IR Out	No
RJ45 (LAN) Out	Yes (x1)
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Bluetooth	No
Daisy Chain	Yes (input HDMI, DVI-D, DP / Output DP)
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	86"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	58:9
Native Resolution	3840 x 600
Refresh Rate	60 Hz
Brightness (Typ.)	500 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1100:1
Dynamic Contrast Ratio	500000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	10 bit, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	10%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	Yes
Beacon	Yes
Play Via URL	No
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	Not Available
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	T: 5.9 mm, R/L: 4.4 mm, B: 5.9 mm
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	45.2 lbs / 20.5 kg
Weight Signage Box	N/A
Weight with Stand	No
Shipping Weight	84.2 lbs / 38.2 kg
Dimensions (W x H x D)	85.0 x 13.7 x 3.2 in / 2158.3 x 348.5 x 81.7 mm
Dimensions with Stand (W x H x D)	Not Available
Dimensions with Pemnut (W x H x D)	N/A
Dimensions Signage Box (W x H x D)	N/A
Shipping Dimensions (W x H x D)	90.2 x 23.6 x 9.0 in / 2,290 x 599 x 228 mm
Conformal Coating (Power Board)	Yes
Handle	Yes
VESA™ Standard Mount Interface	600 x 200 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	No
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	No
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	IP5X
TAA Compliance	Yes
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	No
Energy Star (Environmental)	No
Warranty & Other
Assembled In	South Korea
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
Optional Accessories	OPS Kit (KT-OPSF)
UPC	1 95174 02795 0
Basic Accessories (included)	Remote Controller (including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual
Touch Panel
Available Object Size for Touch	No
Response Time (PC Win10, Education Mode)	No
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	No
Multi Touch Point (Max.)	No
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	No
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	No
Hospitality Features
Pro:Idiom®	No
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	No
Current Sensor	Yes
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	No
Picture-by-Picture (PBP)	Yes (x4)
Control Manager	Yes
SI Server Setting	No
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	No
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	No
Video Tag	No
PM mode	Yes
Picture-in-Picture (PIP)	No
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	N/A
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	Yes
