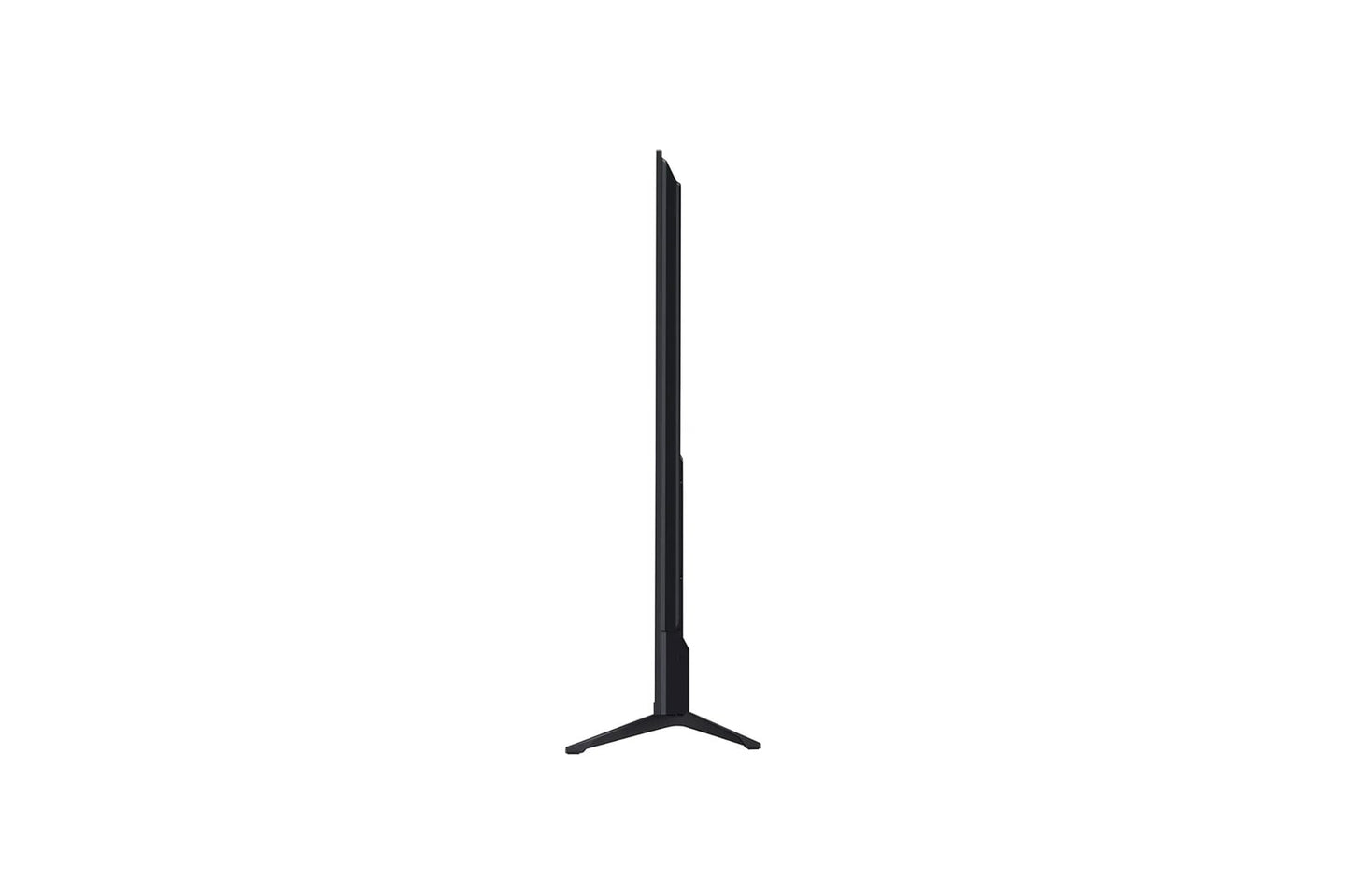

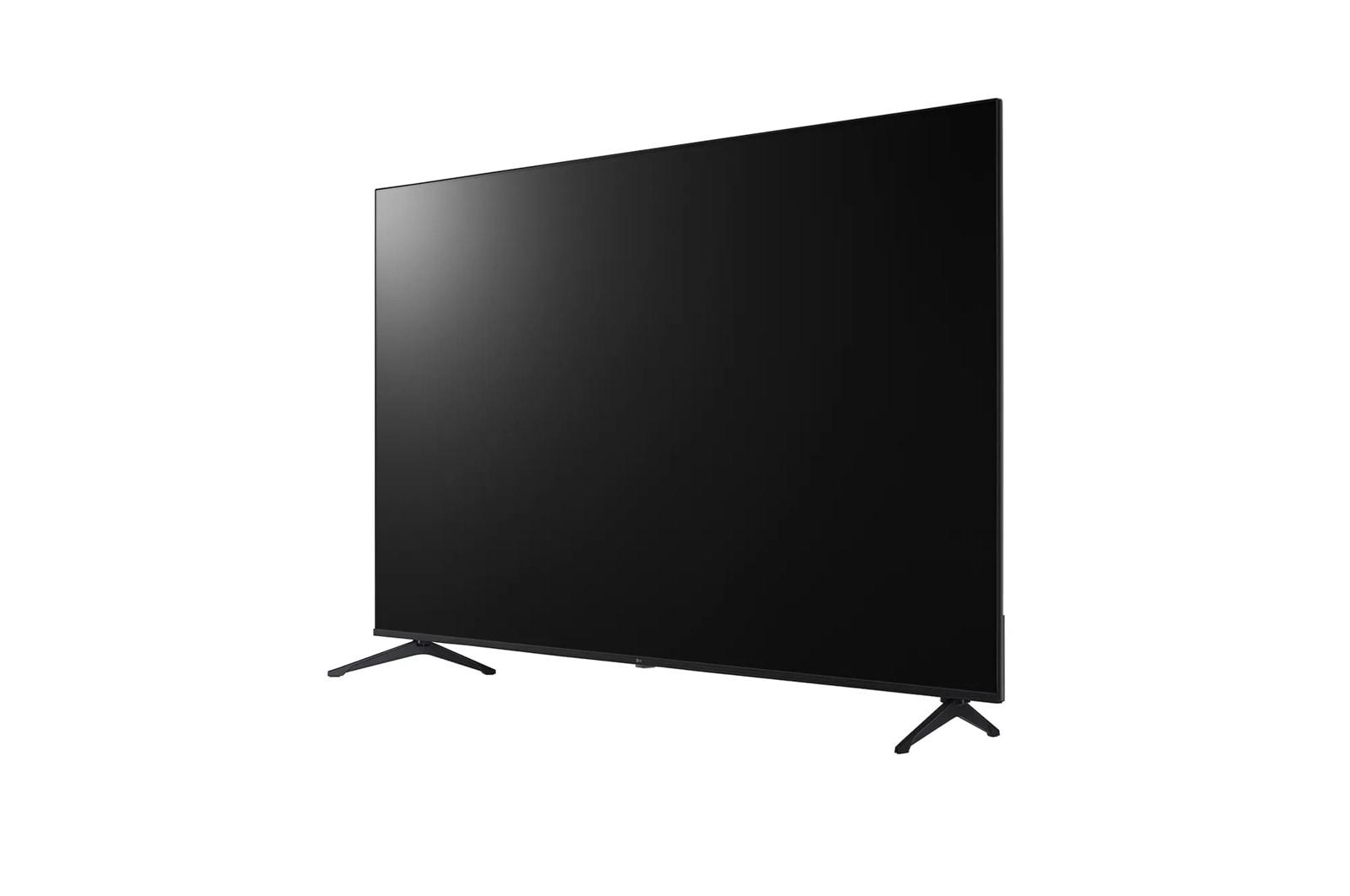

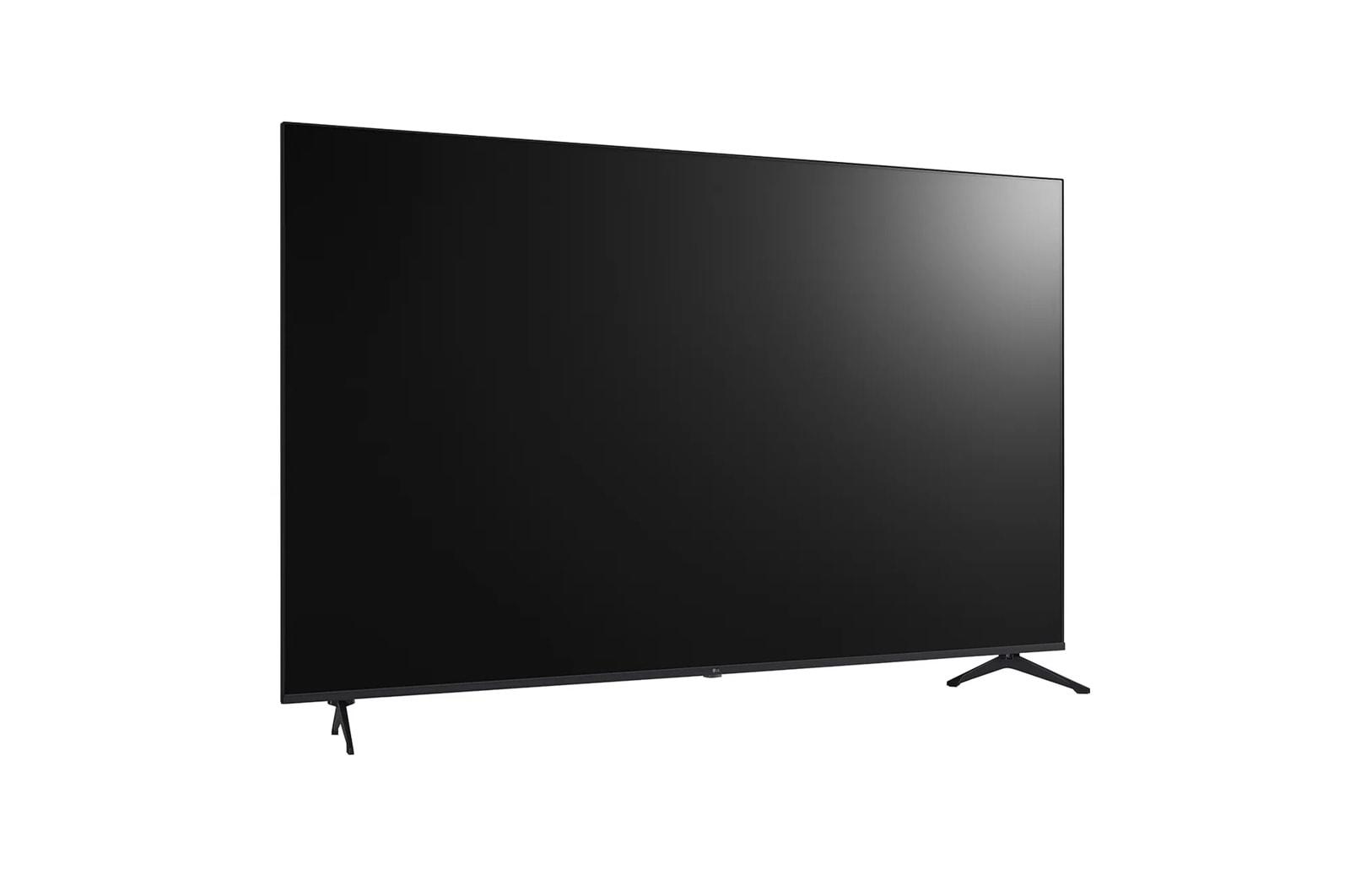

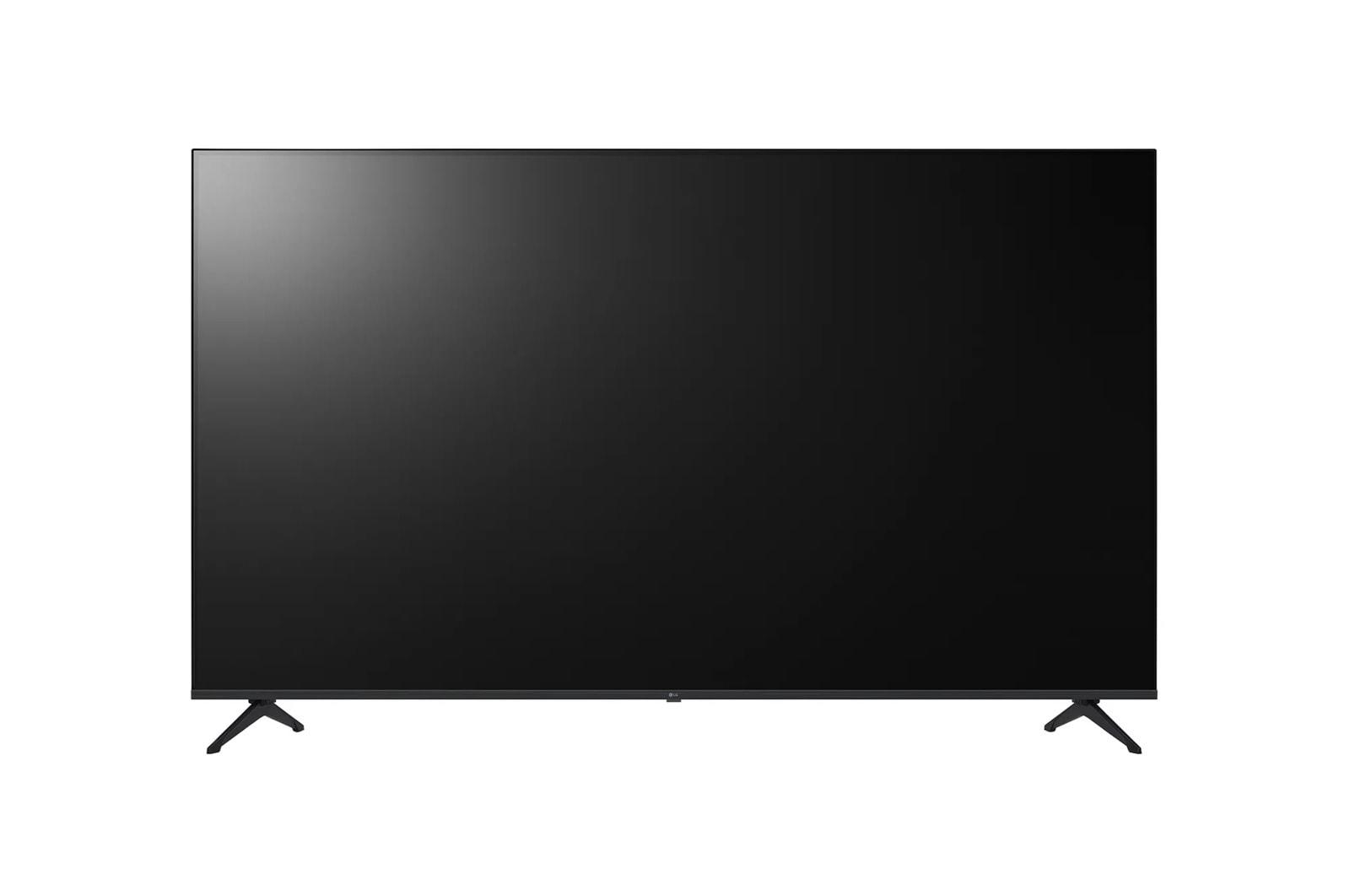

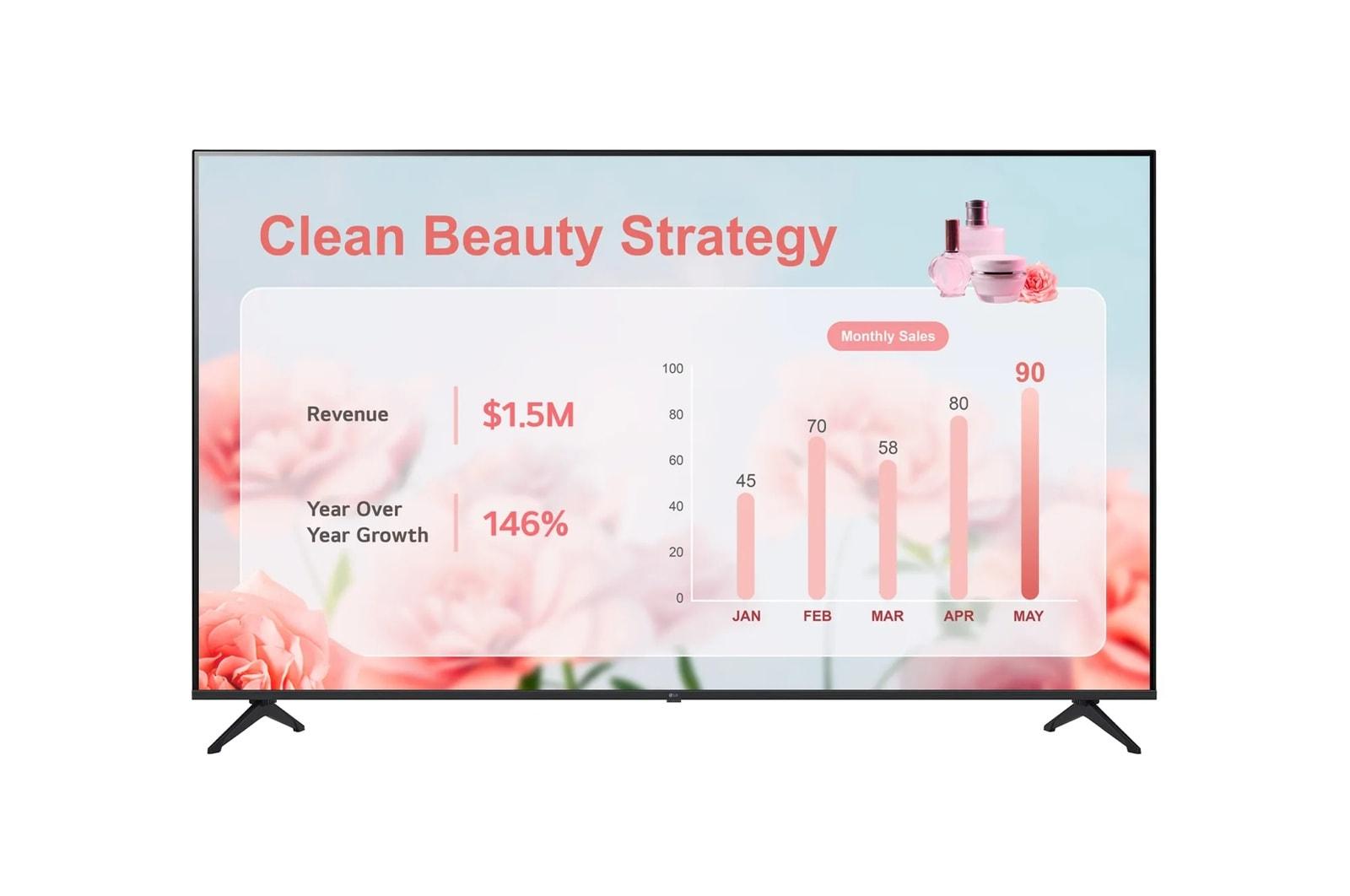

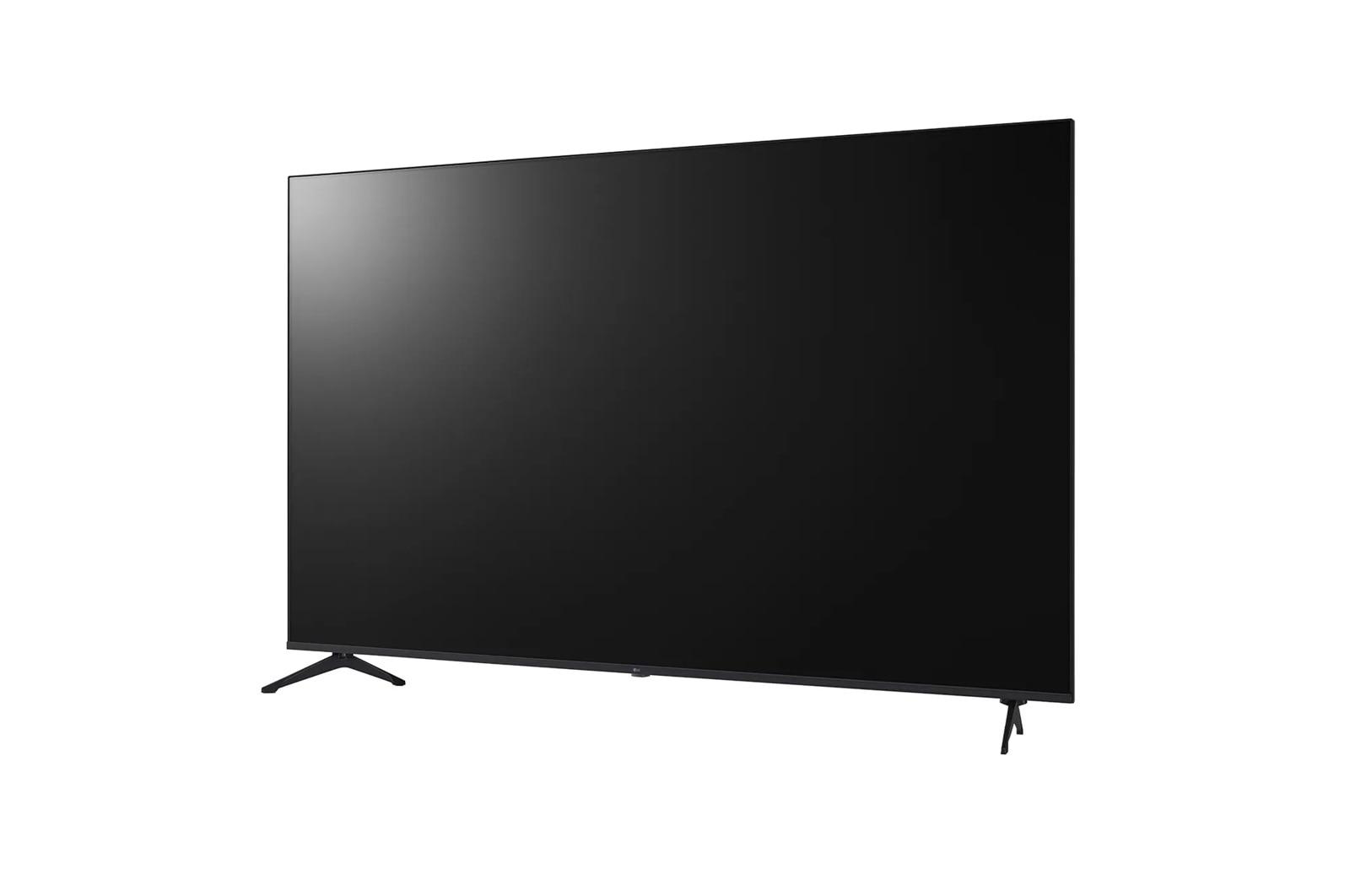

Lg 86PK340S 86" PK340S Series UHD Signage TV with webOS™, Power Management, & SuperSign™ compatible
Lg 86PK340S 86" PK340S Series UHD Signage TV with webOS™, Power Management, & SuperSign™ compatible
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Experience exceptional detail and precision with 4K UHD (3,840 x 2,160) resolution
- Manage energy efficiency with Display Power Management (DPM)
- Customizable Templates, Playlist Setting, Multi Channel Scheduling, External Data Connection with LG SuperSign CM
86" PK340S Series UHD Signage TV with webOS™, Power Management, & SuperSign™ compatible
| System | |
| Operating System | webOS 25 |
| Main Processor (SoC) | K25Lp |
| Electrical | |
| Power Type | Not Available |
| Power Consumption (Max.) | 226W |
| Power Supply | AC 100-240V~, 50/60 Hz |
| Power Consumption (Standby) | Less than 0.5W |
| Power Consumption (Display Power Management - DPM) | Not Available |
| Power Consumption (Power Off) | Not Available |
| Power Consumption (Smart Energy Saving - 70%) | Not Available |
| BTU Heat Generation (Max.) | Not Available |
| BTU Heat Generation (Typ.) | Not Available |
| Power Consumption (Typ.) | 195W |
| Connectivity | |
| HDMI In (Rear) | No |
| HDMI In (Side) | Yes (x2)HDCP 2.0 |
| HDMI-ARC In (Side) | Yes (x1) |
| HDMI-ARC In (Rear) | Yes (x1) |
| HDMI-eARC In (Side) | Yes (x1) |
| RF In (Antenna / Cable) (Rear) | 1 (tuner) |
| RS-232C In (3.5 mm) (Side) | Yes (x1) |
| RS-232C In (3.5 mm) (Rear) | No |
| RS-232C In (D-sub 9-pin) (Side) | Yes |
| RS-232C In (D-sub 9-pin) (Rear) | No |
| RJ45 (LAN) (Side) | No |
| RJ45 (LAN) (Rear) | Yes (x1) |
| RJ45 (AUX LAN) (Side) | No |
| RJ45 (Game Control / M.P.I.) (Rear) | No |
| Service Only (Fiber Optic) (Rear) | No |
| USB Type-A (Side) | Yes (x1) USB 2.0 |
| USB Type-A (Rear) | No |
| PC Audio Input (Rear) | No |
| AV In (Rear) | No |
| TV-Link CFG (Rear) | No |
| LG SVC only (3.5 mm) (Side) | No |
| LG SVC only (3.5 mm) (Rear) | No |
| Update (3.5 mm) (Side) | No |
| Optical Digital Audio Out (Side) | No |
| Optical Digital Audio Out (Rear) | Yes (x1) |
| IR Out | Yes (RS-232C 3.5 mm) |
| Headphone Out | No |
| External Power Out | No |
| External Speaker Out (3.5 mm) (Rear) | Yes (x1) |
| Built-in Wi-Fi | No |
| Line Out (3.5 mm) (Rear) | No |
| Mobile Connection Overlay | No |
| Multi IR Code | Yes |
| Reset (3.5 mm) (Rear) | No |
| Panel | |
| Screen Size (Inches) | 86" |
| Backlight Type | Direct |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 300 nit |
| Contrast Ratio | 5000:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Response Time (G to G) | 8 ms |
| Operation Hours (Hours per Day / Days per Week) | 16/7 |
| Lifetime | Up to 30,000 Hrs. |
| HDR / HDR10 Pro | Yes |
| HDR HLG | Yes |
| HDR Dolby Vision | No |
| Audio/Sound | |
| Built-in Speakers | 10W + 10W |
| Dolby Atmos® | No |
| DTS Virtual:X | No |
| LG Sound Sync | Yes (Optical) |
| One Touch Sound Tuning | No |
| Deep Learning AI Sound | No |
| Features | |
| RTC (Real Time Clock) | No |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Ease Installation | No |
| Mobile CMS | No |
| EzManager | No |
| SI Compatible | Yes (TVLink Tuner) |
| Video Tag | No |
| NTP Server Setting | No |
| Crestron Certified Compatibility | Yes |
| Diagnostics | Yes (Self Diagnostics (USB)) |
| Beacon | No |
| Embedded GM (Group Manager) | Yes |
| Play Via URL | Yes |
| Embedded CM (Contents Manager) | Yes |
| USB Cloning | Yes |
| Vertical Setup | Yes |
| IoT | No |
| Time Scheduler | Yes |
| NTP Sync Timer | Yes (Set the clock to enable NTP) |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width (On Bezel) | T/L/R: 12.4 mm, B: 19.4 mm |
| Bezel Width (Off Bezel) | T/L/R: 10.3 mm, B: 2.5 mm |
| Weight | 73.63 lbs / 33.4 kg |
| Weight with Stand | 74.95 lbs / 34 kg |
| Shipping Weight | 102.51 lbs / 46.5 kg |
| Dimensions (W x H x D) | 75.59 x 43.38 x 2.35 in / 1,920 x 1102 x 59.8 mm |
| Dimensions with Stand (W x H x D) | 75.59 x 46.53 x 16.25 in / 1,920 x 1,182 x 413 mm |
| Shipping Dimensions (W x H x D) | 81.88 x 49.40 x 8.66 in / 2,080 x 1,255 x 220 mm |
| Kensington Lock | No |
| VESA™ Standard Mount Interface | 400 x 400 mm |
| LG Software Compatible | |
| SuperSign™ CMS (Premium) | Yes |
| SuperSign™ Control+ | Yes |
| SuperSign™ Simple Editor | Yes |
| SuperSign™ Control | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | Yes |
| ISTA6 (Packaging) | Yes |
| IP Rating | No |
| ERP (Environmental) | No |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class B |
| Energy Star (Environmental) | No |
| TAA Compliance | No |
| CE Marking (Regulatory) | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Mexico |
| Included Basics | Power Cable (2m), Remote Control (L-Con), RS-232C to Phone Jack Cable |
| UPC | 1 95174 12942 5 |
| Broadcasting | |
| Digital (Terrestrial, Cable, Satellite) | ATSC, Clear QAM |
| Analog (NTSC/SECAM/PAL) | NTSC |
| Teletext (Closed caption) / Auto Teletext | Yes |
| Global IPTV Support (IPStreaming) | Yes |
| Smart Features | |
| Smart Home (Launcher Bar) | Yes |
| Gallery Mode | No |
| Quick Access | Yes |
| Web Browser | Yes |
| Pre-loaded Apps | Yes (YouTube Only) |
| Magic Remote Compatibility | No |
| SW Clock (World Clock / Alarm) | Yes |
| Soft AP | No |
| Bluetooth Audio Playback | No |
| Mood Display | Yes |
| Screen Share (Miracast) | No |
| Smart Share (DLNA) | No |
| SDP Server Compatibility | Yes |
| DIAL | No |
| LG TV Plus App | No |
| Hospitality Features | |
| Insert Image | Yes |
| Mobile Remote | No |
| Instant On | No |
| External Clock Compatibility | No |
| Full Touch Screen | No |
| HTNG-CEC | Yes |
| RJP (Remote Jack Pack) Compatibility | NO |
| Welcome Screen (Splash Image) | Yes |
| Hotel Mode / PDM / Installer Menu | Yes |
| USB Auto Playback / USB Auto Playback+ (playlist) | No / No |
| Lock Mode | Yes (Limited) |
| VLAN Tag | No |
| Wake on WLAN | No |
| Motion Eye Care | Yes |
| One Channel Map | No |
| IP Channel Manager | Yes |
| Smart Energy Saving | Yes |
| Welcome Video | No |
| Moving Picture Playback (SD/HD/Plus HD) | Yes |
| Auto Off / Sleep Timer | Yes / Yes |
| Port Block | Yes |
| Wake on LAN | No |
| Software Features | |
| Wake on RF | No |
| SNMP | Yes |
| HDMI-CEC | Yes (1.4) |
| OPS Compatibility | |
| OPS Compatible | No |
| OPS Power Built-in | No |
