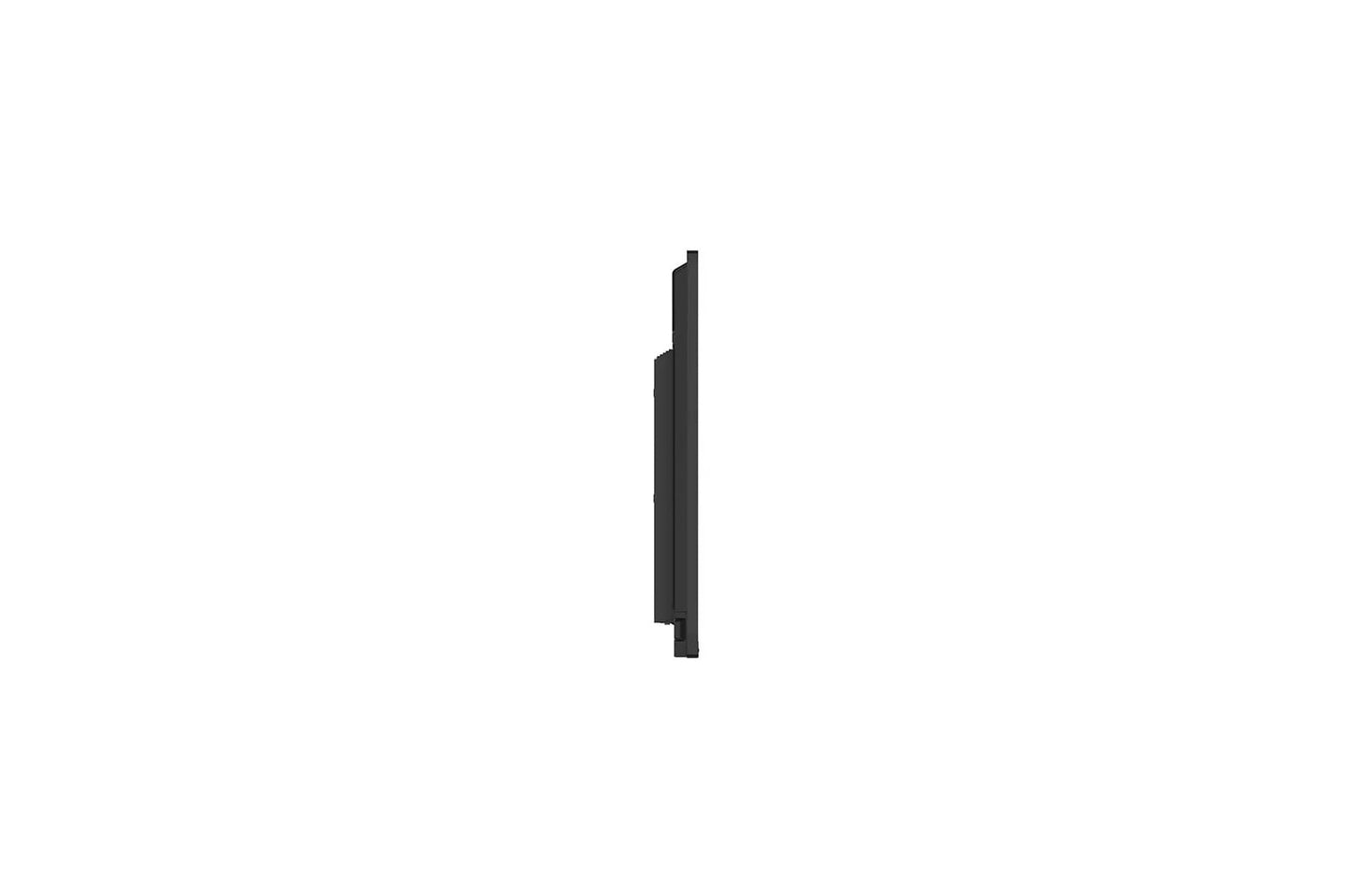

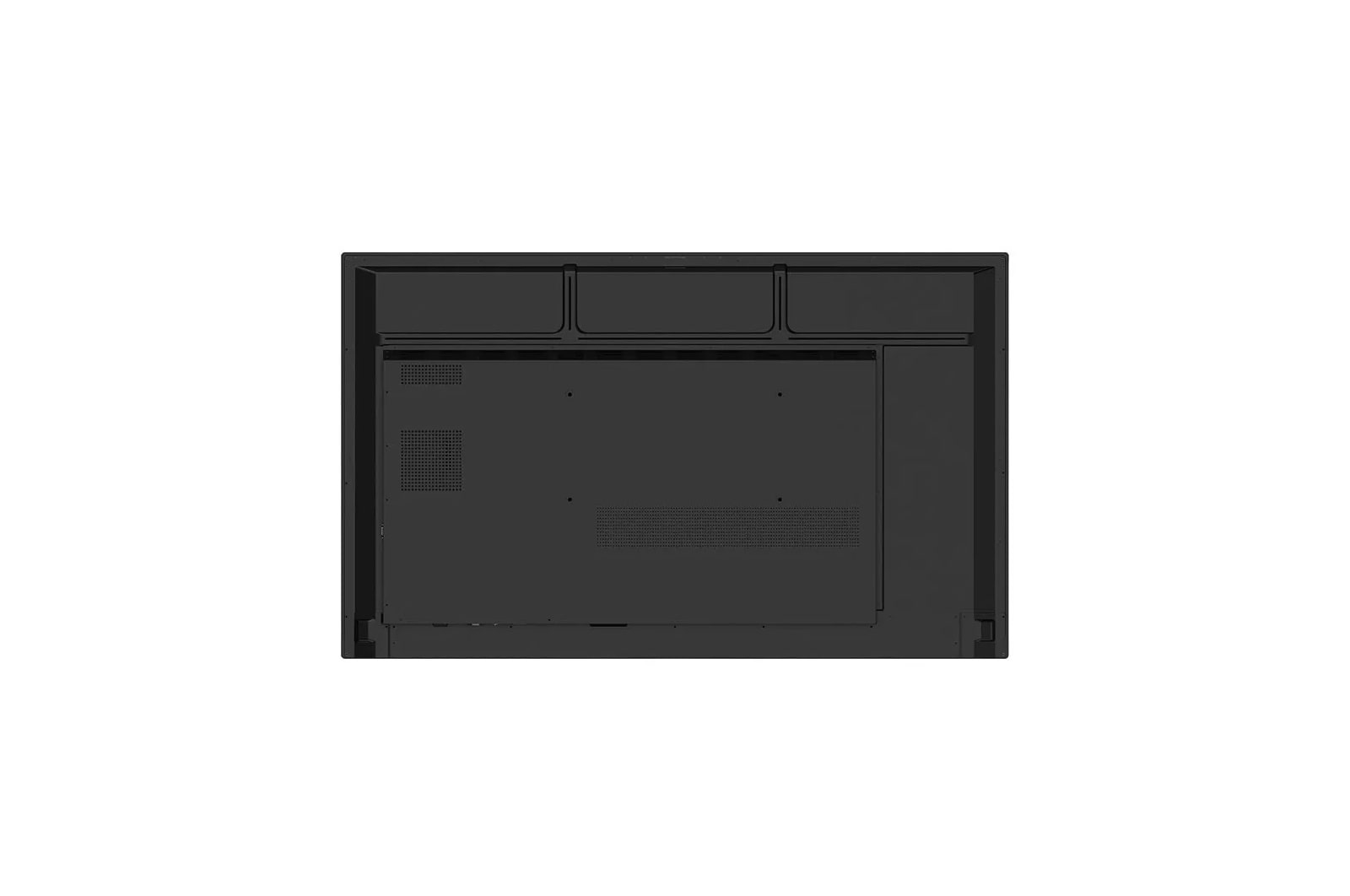

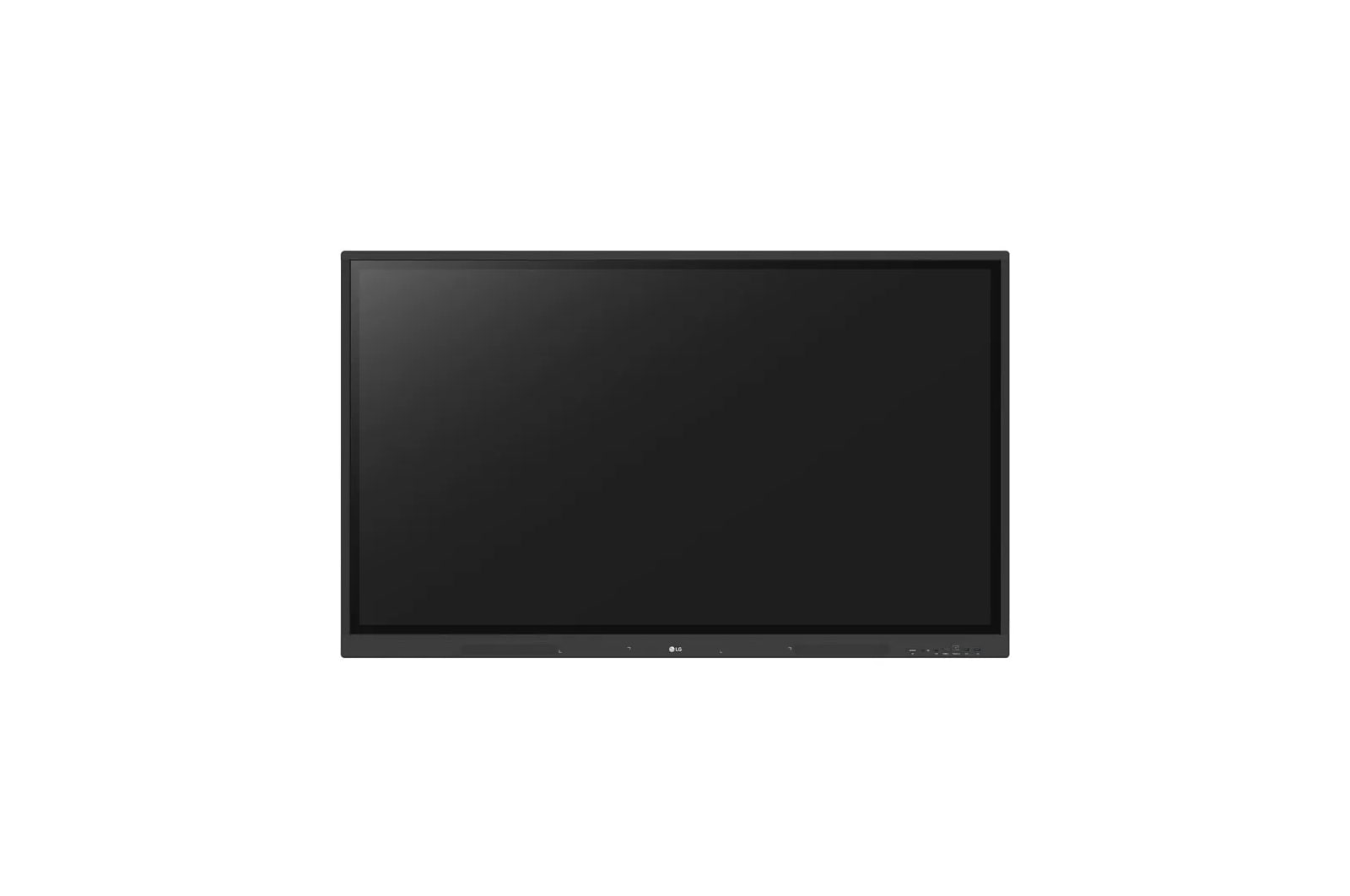

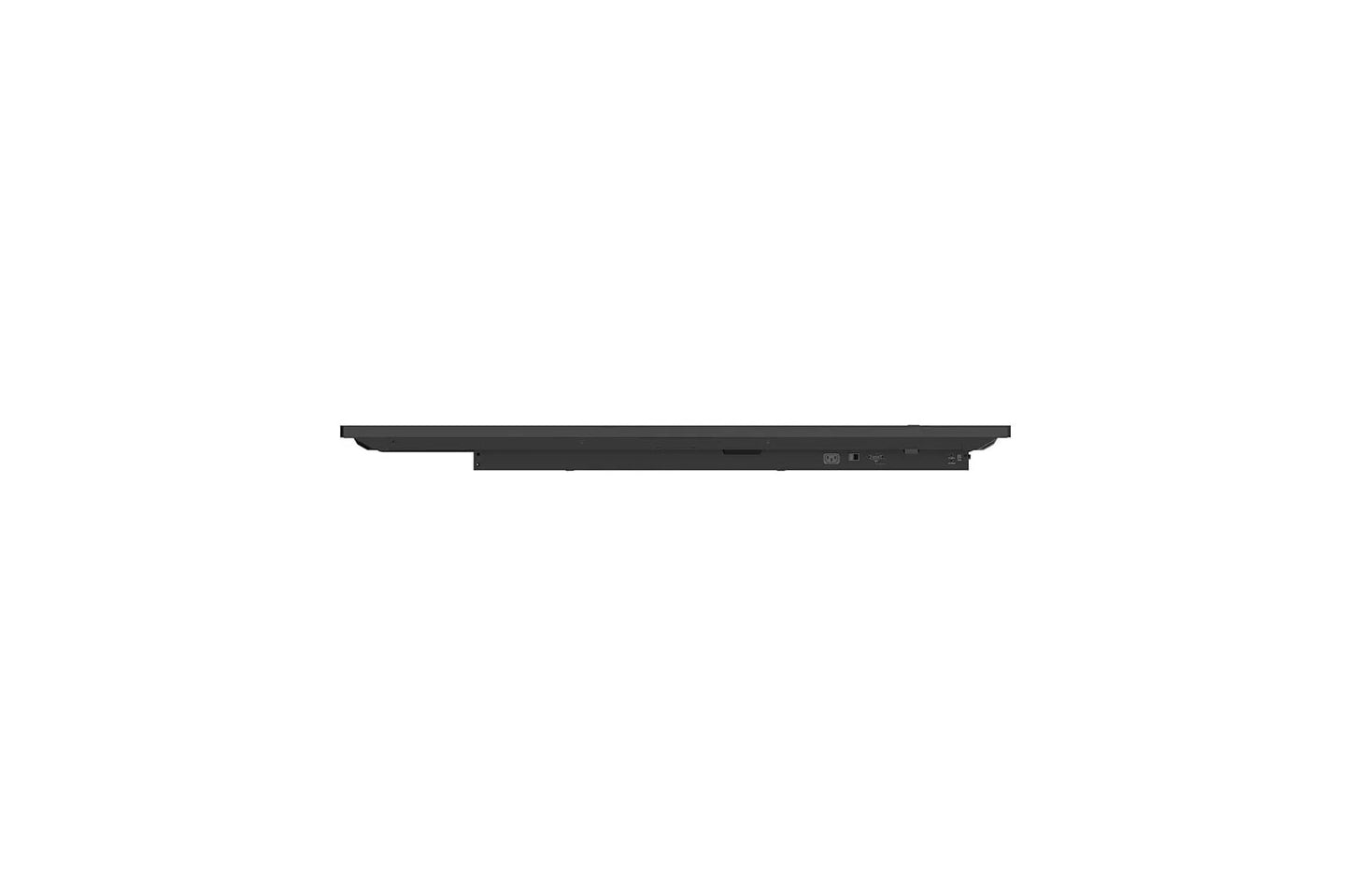

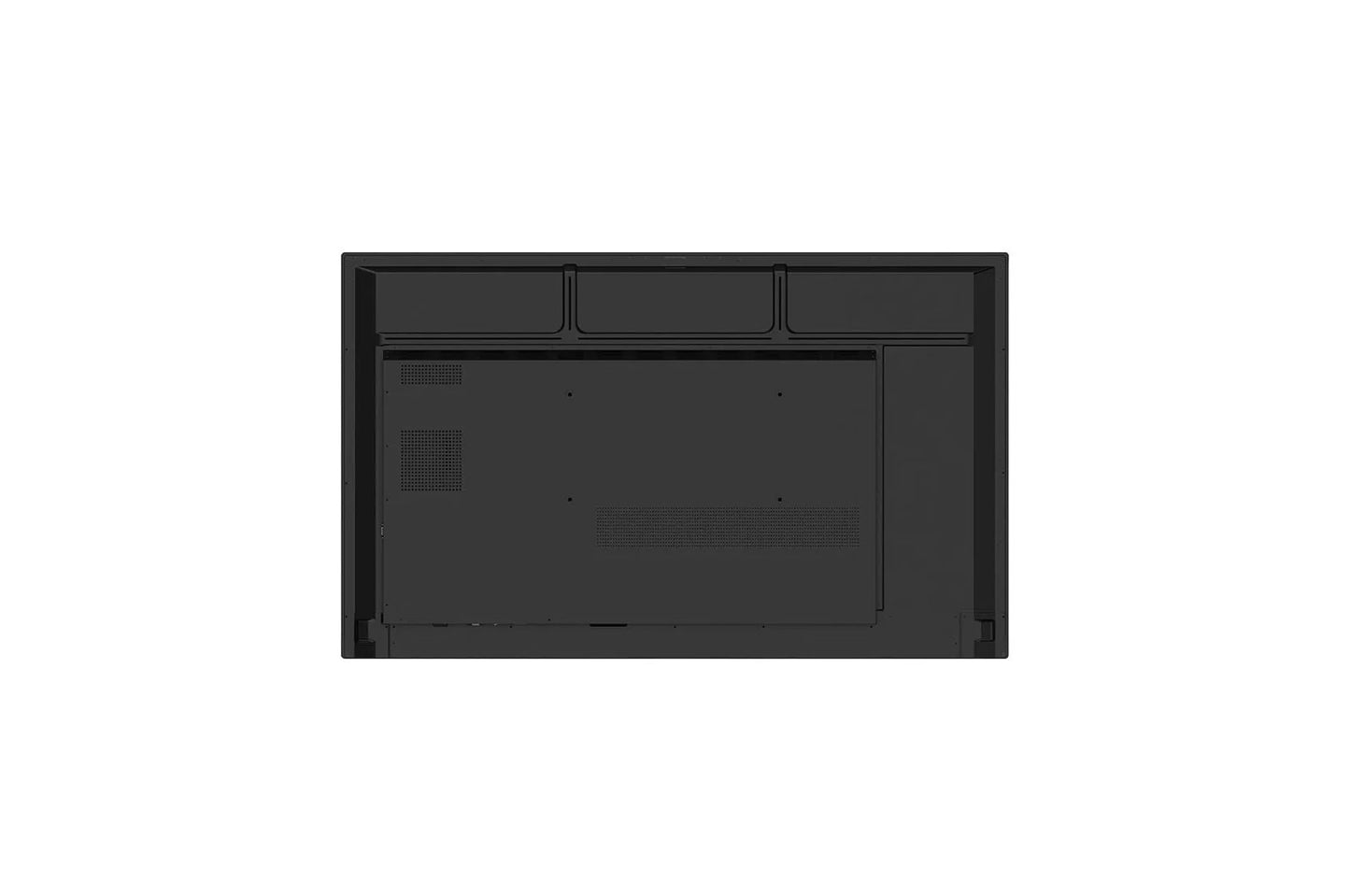

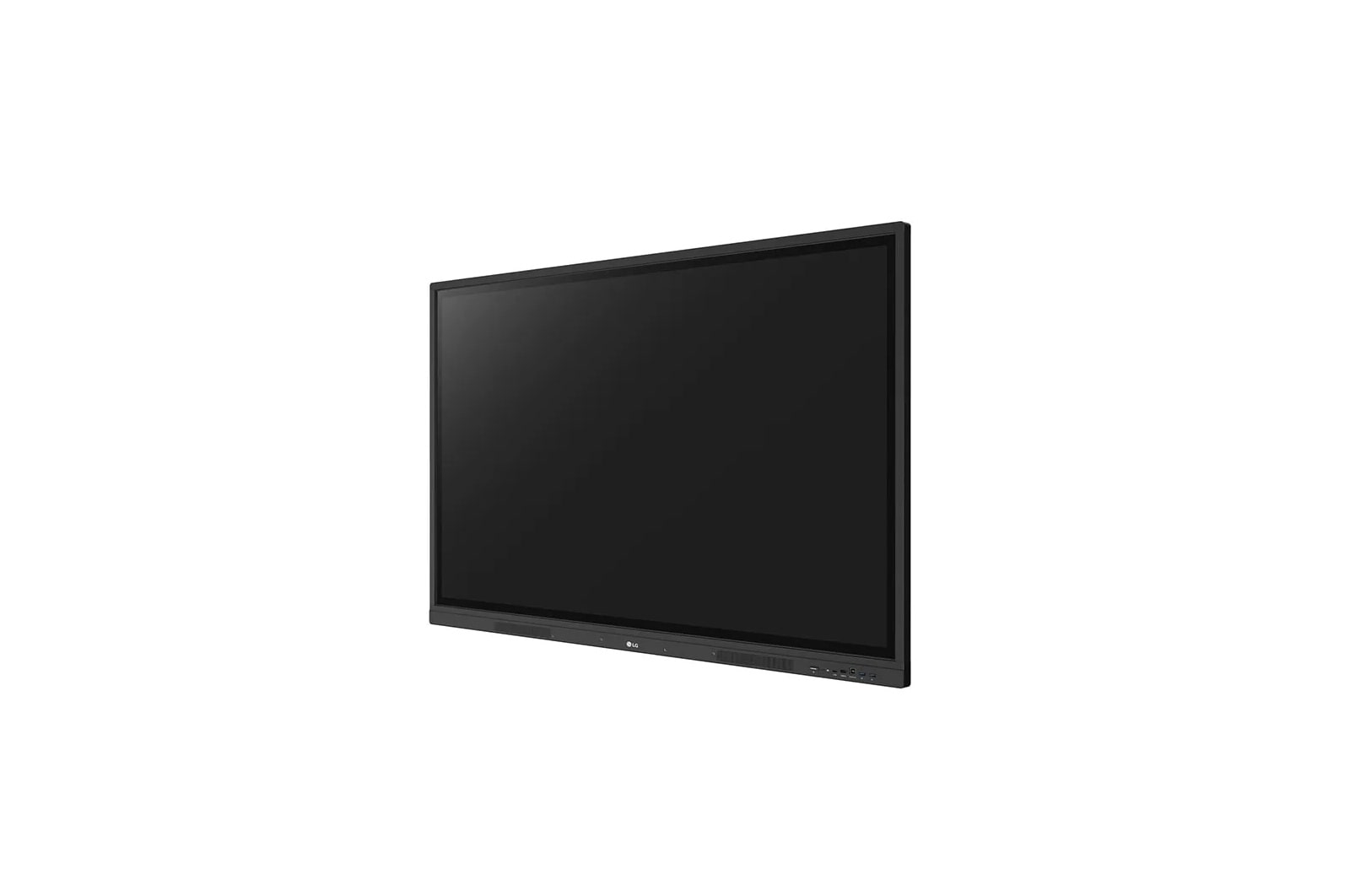

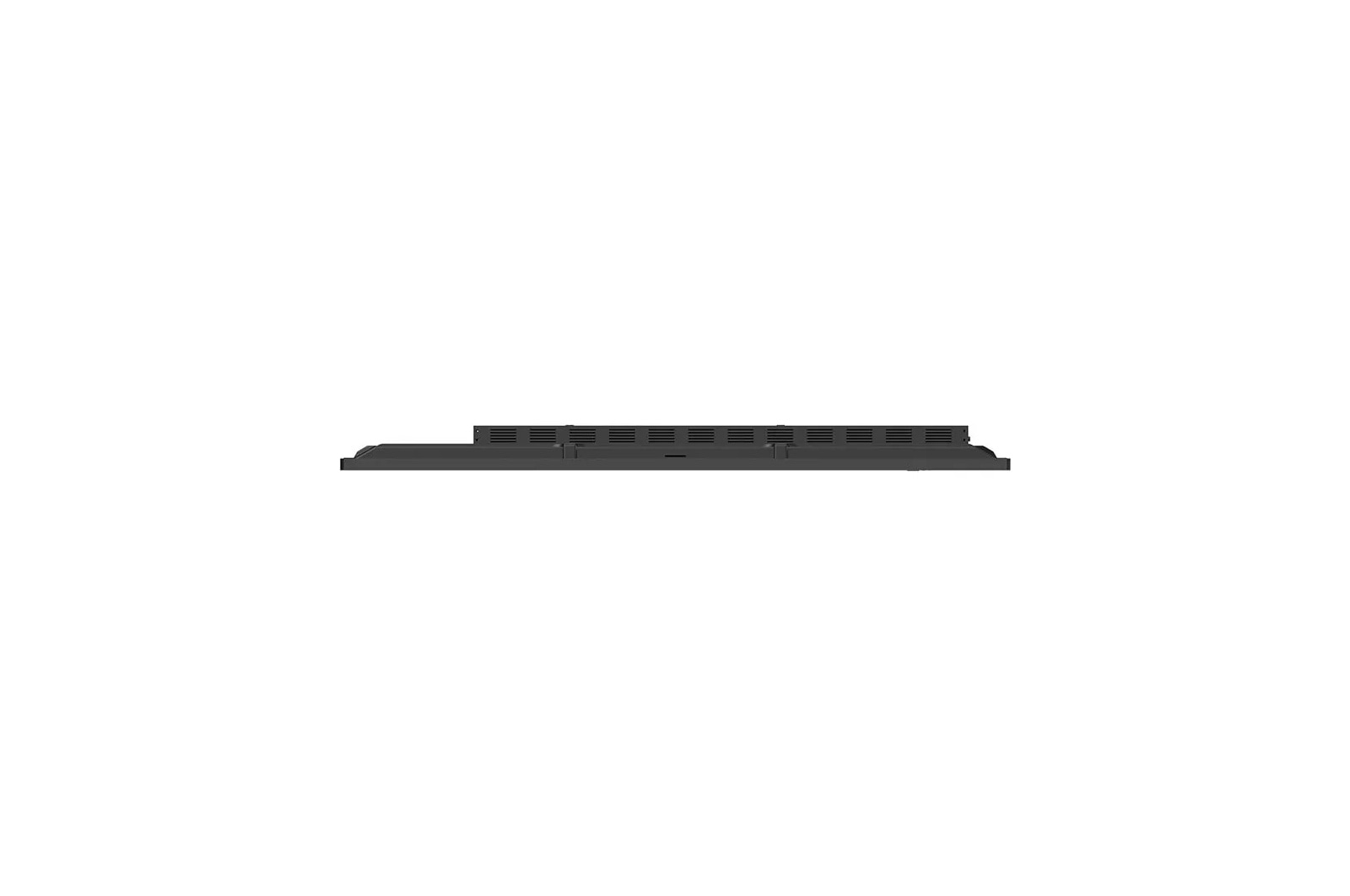

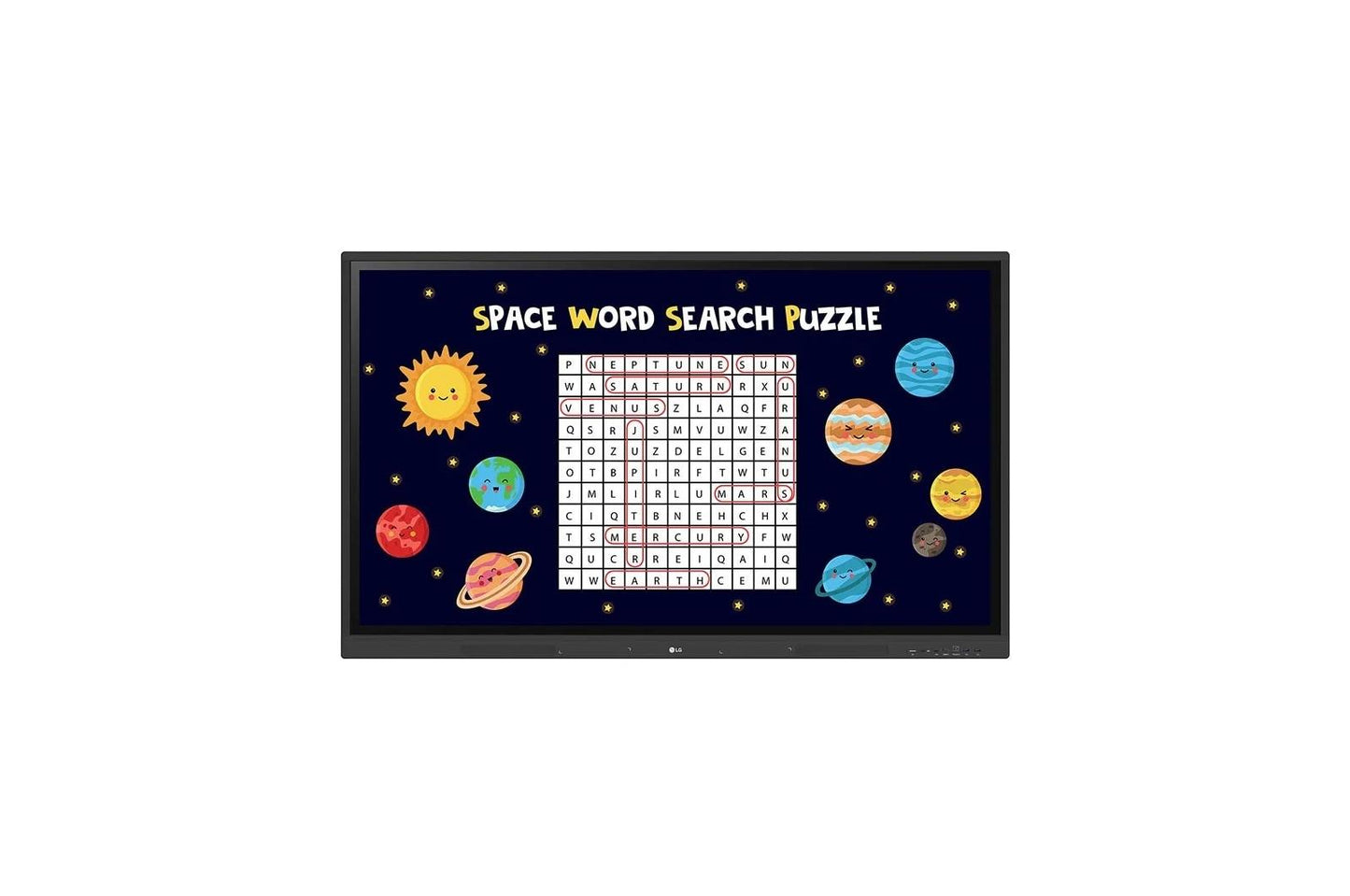

Lg 86TR3DKBYUSQ 86" Multi Touch CreateBoard® Smart Board with Android 13, Google Mobile Services, Wireless Connectivity & Built-in Speakers

Item Not Available

Check Delivery:

40 point multi-touch creates a lifelike experience and allows for multiple users at once

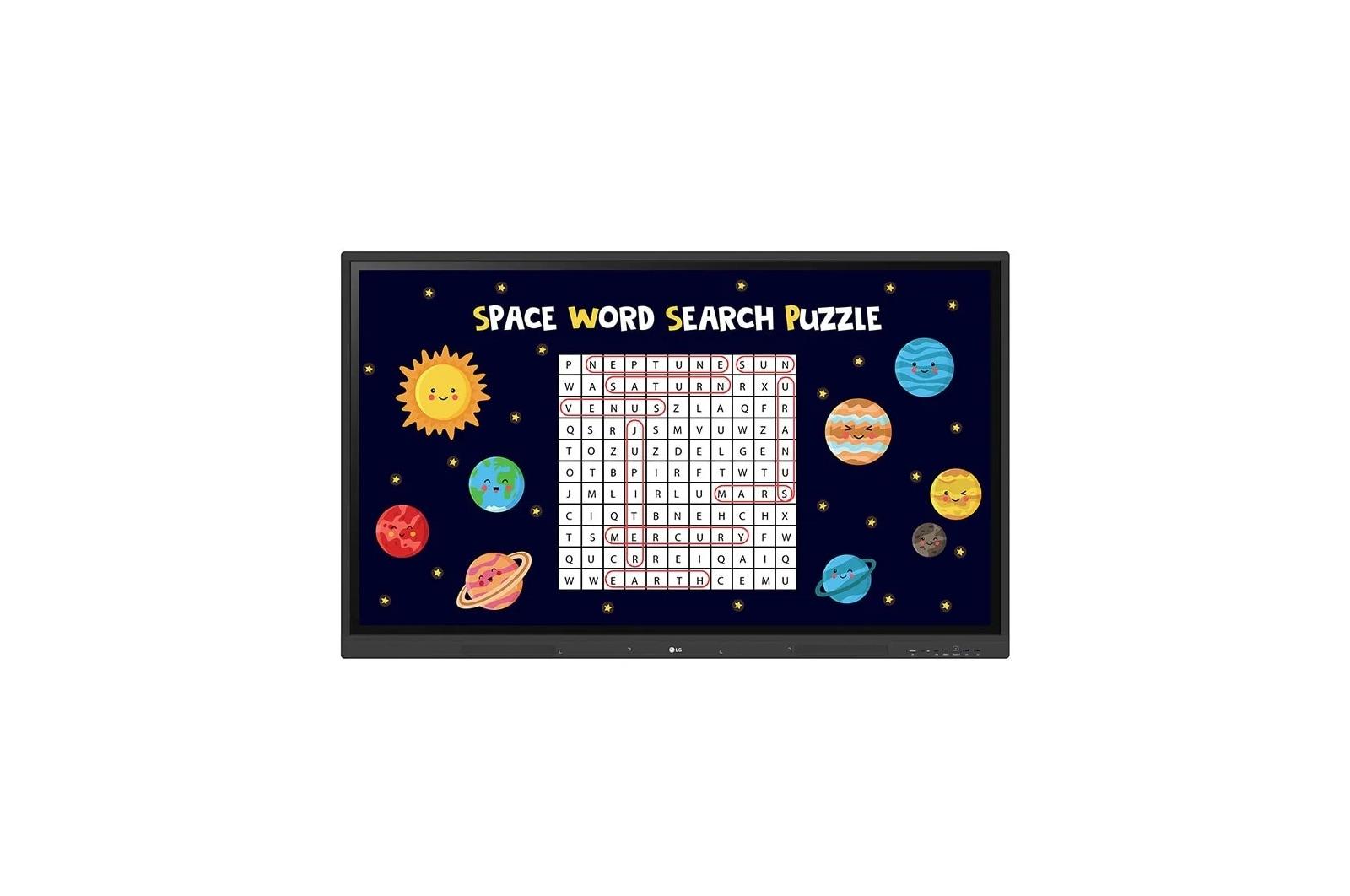

Built-in educational templates & teaching tools to help engage students
Security features to ensure materials & access are protected
Enjoy Google Mobile Service and access to Google Play Store for apps and tools
Wireless ScreenShare in real-time with up to 9 users
Remotely monitor and manage with LG ConnectedCare DMS, which includes things like scheduling and broadcasting

86" Multi Touch CreateBoard® Smart Board with Android 13, Google Mobile Services, Wireless Connectivity & Built-in Speakers

System
Operating System (OS)	Android™ 13
Processor	Quad core A55
Graphics	Mali G52MP2
Storage	64 GB
Internal Memory	8 GB
Electrical
Power Type	Built-in Power
Power Consumption (Max.)	580W
Power Supply	100-240 Vac, 50/60 Hz
Power Consumption (Display Power Management - DPM)	0.5W
Power Consumption (Power Off)	0.5W
Power Consumption (Smart Energy Saving - 70%)	N/A
BTU Heat Generation (Max.)	1979 BTU
BTU Heat Generation (Typ.)	1314 BTU
Power Consumption (Typ.)	385W
Connectivity
HDMI In	Yes (x3) HDCP2.2
IR In (3.5 mm)	No
DVI-D In	No
RGB In	Yes (x1) VGA
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	No
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x5) USB 2.0 (x1) USB 3.0 (x4)
USB Type-C In	Yes (x1)
USB Type-C Power Delivery	Yes
HDMI Out	Yes (x1)
DisplayPort Out	No
Optical Digital Audio Out	Yes (x1)
Touch USB	Yes (x2)
RJ45 (LAN) Out	Yes (x1)
RS-232C Out (3.5 mm)	No
External Speaker Out	No
Power Delivery Alt	Yes
Bluetooth	Yes (5.0)
Built-in Wi-Fi	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Panel
Screen Size (Inches)	86"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	350 nits
Brightness (Max.)	400 nits
Contrast Ratio	1200:1
Dynamic Contrast Ratio	5000:1
Color Gamut	NTSC 68%
Color Depth (Number of Colors)	10 bit, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Surface Treatment (Haze)	28%
Operation Hours (Hours per Day / Days per Week)	16/7
Lifetime	Up to 30,000 Hrs
Orientation	Landscape
Audio/Sound
Built-in Speakers	Yes (x2) 15W
Features
Cisco Certified Compatibility	No
Failover	No
Crestron Certified Compatibility	No
Beacon	No
Play Via URL	No
Mechanical
Bezel Color	Black
Bezel Width	T/R/L: 15 mm, B: 44 mm
Weight	129.2 lbs / 58.6 kg
Shipping Weight	167.3 lbs / 75.9 kg
Dimensions (W x H x D)	77.0 X 45.7 x 3.9 in / 1,957 x 1,160 x 100 mm
Shipping Dimensions (W x H x D)	83.1 x 50.5 x 8.9 in / 2,110 x 1,283 x 225 mm
Conformal Coating (Power Board)	Yes (Partial)
Handle	Yes
VESA™ Standard Mount Interface	800 x 600 mm
Overlay Touch Compatibility	No
Regulatory & Certifications
UL Certification	No
ISTA6 (Packaging)	No
ePEAT US (Environmental)	No
CE (Regulatory)	Yes
ERP (Environmental)	Yes
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
Energy Star (Environmental)	Yes
TAA Compliance	No
Warranty & Other
Warranty	3 Year Limited
Assembled In	China
Onscreen Display Languages	Denmark, English, Finnish, German, Hungarian, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Romanian, Spanish, Swedish, Thai
UPC	1 95174 08017 7
Optional Accessories	Wall Mount (WM-L000S), Floor Stand (ST-000F) (US only)
Basic Accessories (included)	Power Cord 3 M1, USB Cable (Type A-Type B) 5 M1, HDMI Cable 3 M1, Writing Pen2pcs, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
Touch Panel
Available Object Size for Touch	2 mm
Response Time (PC Win10, Education Mode)	5 ms
Writing Height	1 ms
Accuracy (Typ.)	1 mm
Interface	USB 2.0
Active Pen Interface	N/A
Multi Touch Point (Max.)	40 Points
Protection Glass Thickness	3T (Anti-Glare)
Protection Glass Transmission	88%
Operating System Support	Windows 7 / 8 / 10 / Linux / Mac / Android (Linux / Mac Support one point touch)
Smart Features
Screen Share	Yes (CreateBoard Share)
Hospitality Features
Pro:Idiom®	No
Wake on LAN	Yes
Hardware Features
Local Key Operation	No
Auto Brightness Sensor	Yes
Power Indicator	Yes
Software Features
Network Ready	No
RS-232C Sync	No
Gapless Playback	No
W/B Setting by Grayscale	No
Picture-by-Picture (PBP)	Yes (x1) external source
webRTC (Real Time Communication)	No
Video Tag	No
Control Manager	No
PM mode	No
Picture-in-Picture (PIP)	Yes (x1) external source
Local Network Sync	No
Screen Rotation	No
Smart Energy Saving	Yes (Energy Saving)
SI Server Setting	No
Setting Data Cloning	No
Tile Mode Setting	No
External Input Rotation	No
Status Mailing	No
No Signal Image	No
SNMP	No
Auto Set ID	No
Scan Inversion	No
Backlight Sync	No
ISM Method	No
Group Manager	No
Brightness Compensation	No
Booting Logo Image	Yes
Local Contents Scheduling	No
HDMI-CEC	No
USB Plug & Play	No
Built-in Software
LG ConnectedCare™ DMS	Yes
LG CreateBoard® Lab, Note 2.0	Yes
LG CreateBoard® Share	Yes
OfficeSuite	Yes
Environmental Conditions
Operation Humidity	10-90% RH
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Type Compatible	Yes (Slot)
OPS Power Built-in	Yes
