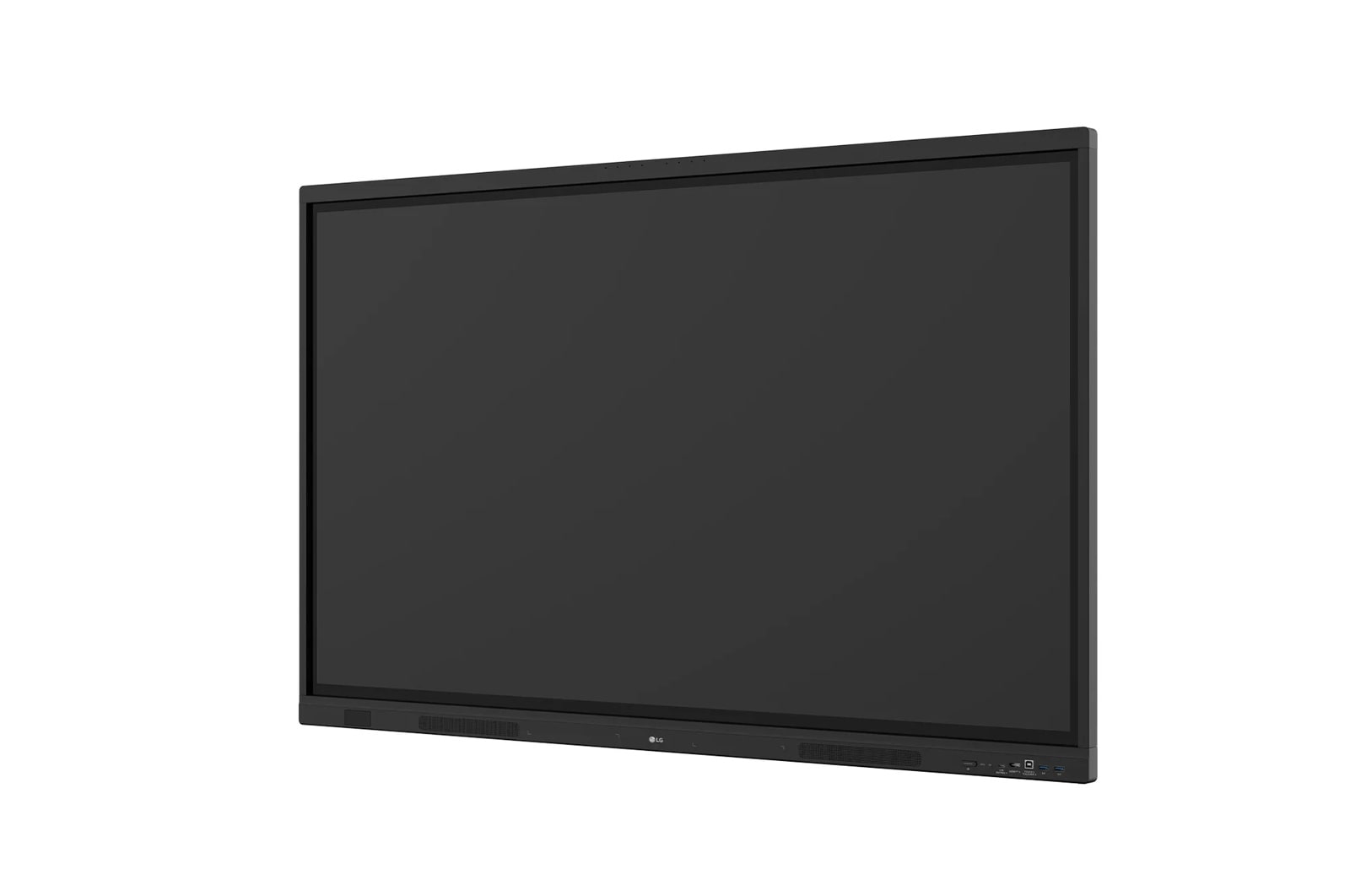

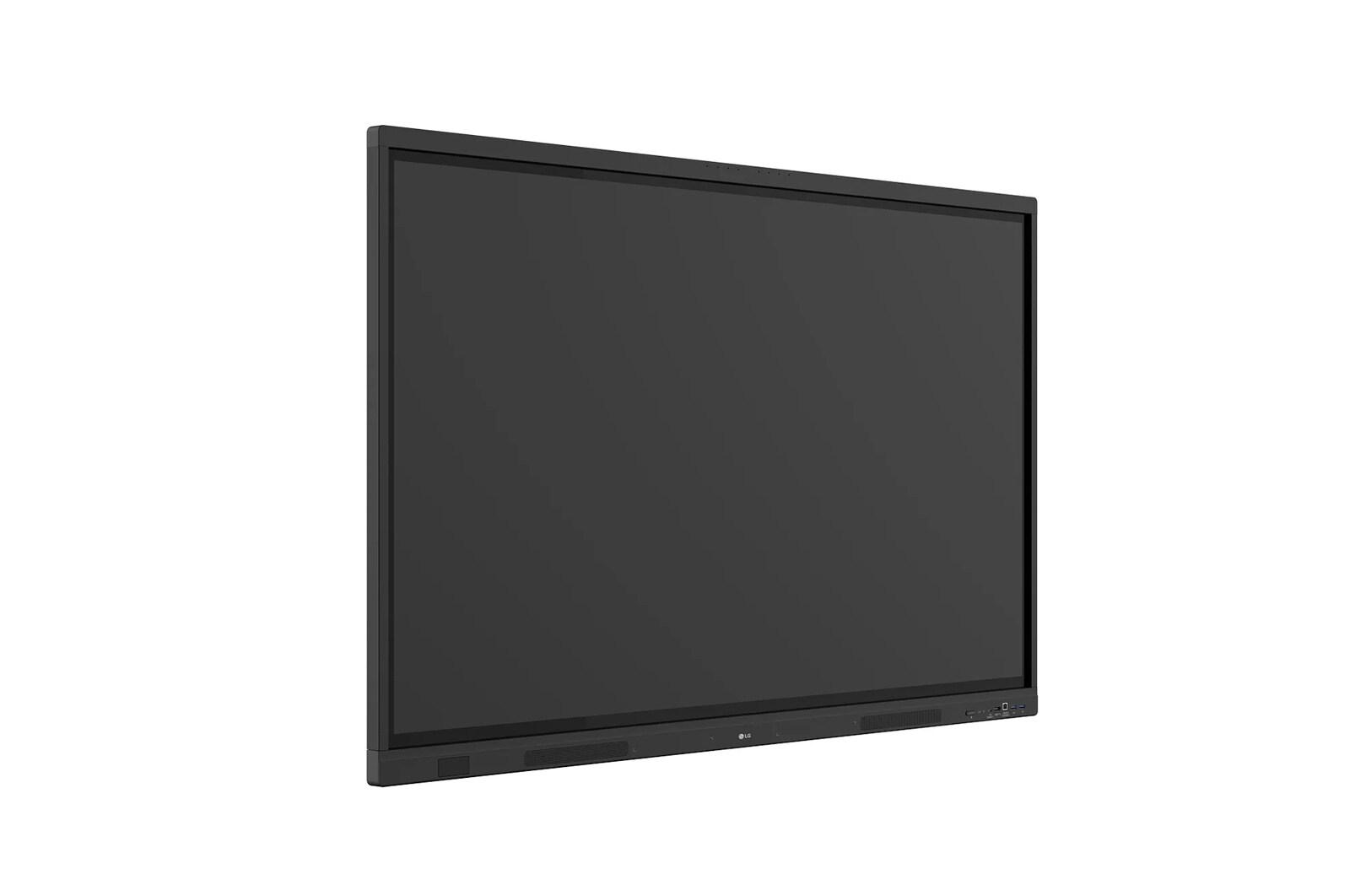

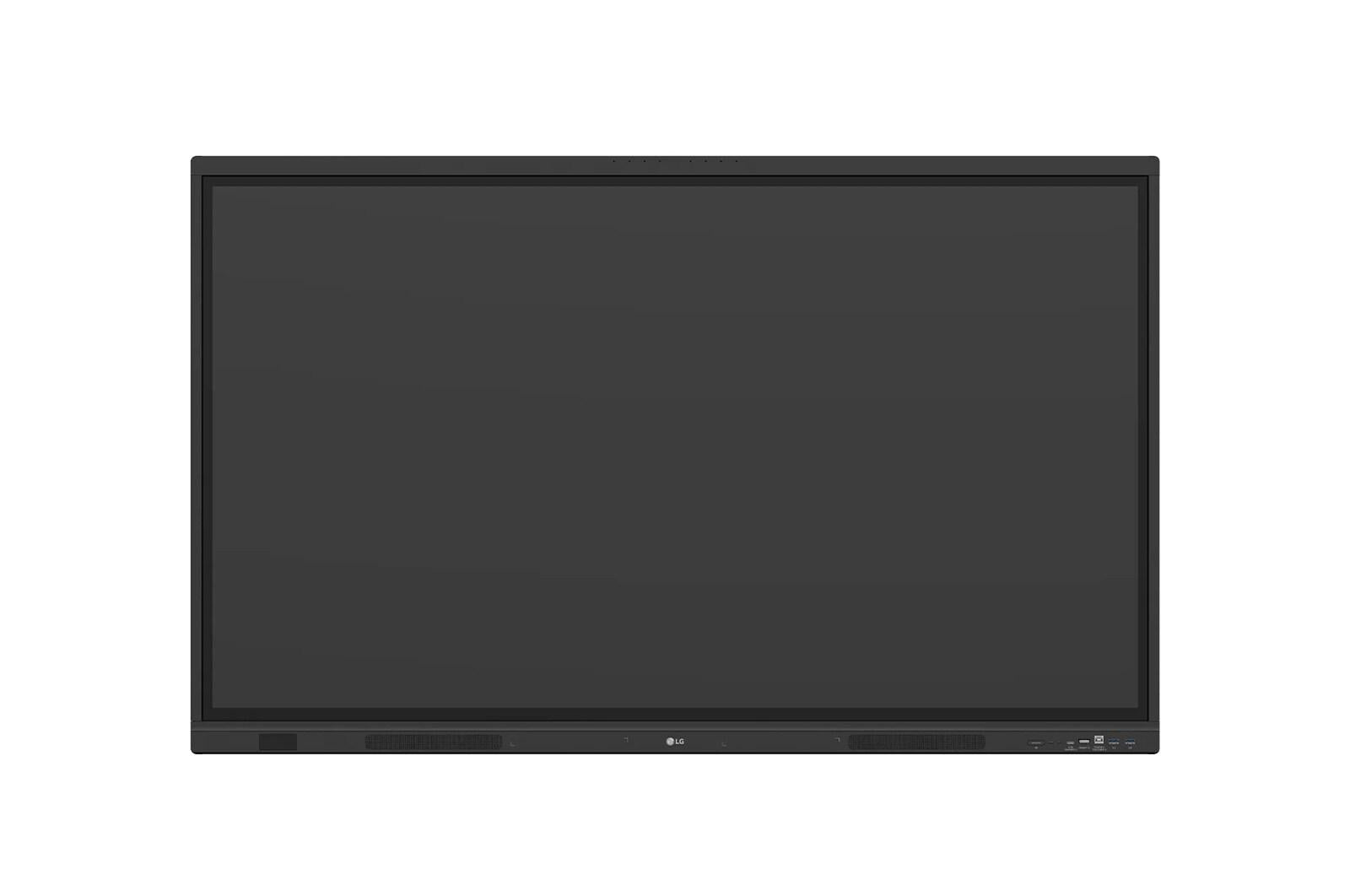

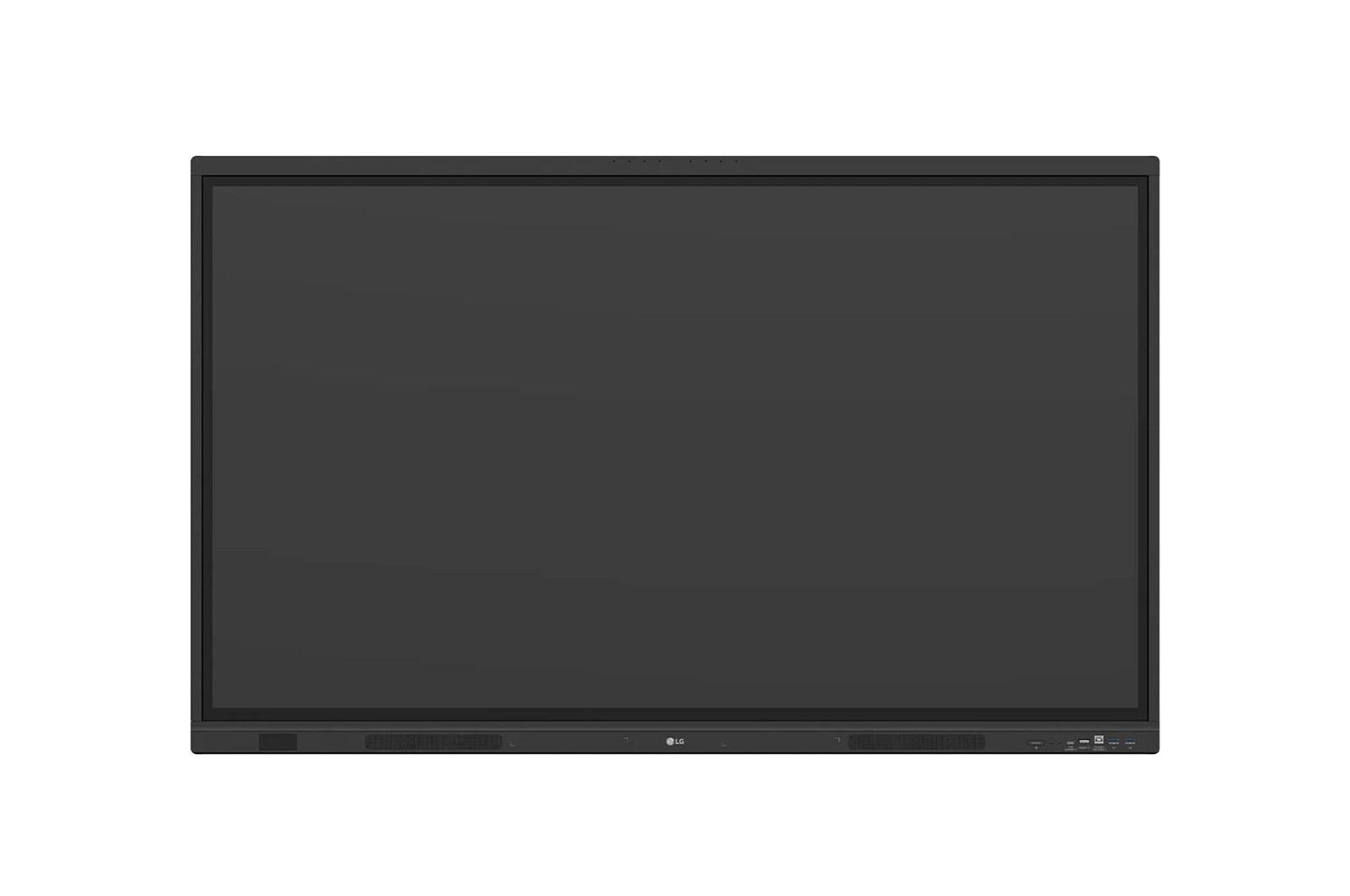

Lg 86TR3DQB 86" Multi Touch CreateBoard® Smart Board with CreateBoard Prep, Google Mobile Services, Wireless Connectivity & Built-in Microphone

Item Not Available

Check Delivery:

Seamlessly integrate with the Google ecosystem with Google certification
Explore unique features, like the built-in microphone array located at the top of the board
Show up to 9 shared screens or a file on a screen in real-time with LG CreateBoard Share
Built-in LG Software Suite offers remote management for device control and issue detection
Featuring a lifelike, multi- touch experience, this powerful smartboard lets you write, draw, and manipulate content with your fingertips

86" Multi Touch CreateBoard® Smart Board with CreateBoard Prep, Google Mobile Services, Wireless Connectivity & Built-in Microphone

System
Operating System (OS)	Android 14 EDLA
Processor	Octa core 2.2 Ghz
Graphics	Mali G52MP2
Storage	64 GB
Internal Memory	8 GB
Electrical
Power Consumption (Max.)	580W
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)	Less than 0.5W
Power Type	Built-in Power
Power Consumption (Display Power Management - DPM)	No
Power Consumption (Smart Energy Saving - 70%)	Yes
BTU Heat Generation (Max.)	Not Available
BTU Heat Generation (Typ.)	Not Available
Power Consumption (Typ.)	385 W
Connectivity
HDMI In	Yes (x3)
IR In (3.5 mm)	No
DVI-D In	No
RGB In	Yes (x1) VGA
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	Yes (x1)
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x6) USB1/USB2/USB3/USB4/USB5: 3.0, USB6: 2.0
USB Type-C In	Yes (x2)
USB Type-C Power Delivery	No
HDMI Out	Yes (x1)
DisplayPort Out	No
Optical Digital Audio Out	No
Touch USB	Yes (x3)
RJ45 (LAN) Out	Yes (x1)
RS-232C Out (3.5 mm)	No
External Speaker Out	No
Power Delivery Alt	No
Bluetooth	Yes (5.3)
Built-in Wi-Fi	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Panel
Screen Size (Inches)	86"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	400 nits
Brightness (Max.)	Not Available
Contrast Ratio	1200:1
Dynamic Contrast Ratio	5000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	8 bit + FRC, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Surface Treatment (Haze)	25%
Operation Hours (Hours per Day / Days per Week)	16/7
Lifetime	Up to 50,000 Hrs
Orientation	Landscape
Audio/Sound
Built-in Speakers	Yes (x2) 20W Forward Facing + Subwoofer
Camera & Mic
Built-in Mic	Yes
Built-in Webcam	No
Features
Crestron Certified Compatibility	Yes
Beacon	No
Play Via URL	Yes
Cisco Certified Compatibility	No
Failover	No
Mechanical
Bezel Color	Black
Bezel Width	Not Available
Weight	129.2 lbs / 58.60 kg
Shipping Weight	167.3 lbs / 75.88 kg
Dimensions (W x H x D)	77.04 x 45.67 x 3.93 in / 1,956.81 x 1,160.01 x 99.82 mm
Shipping Dimensions (W x H x D)	83.07 x 50.51 x 8.86 in / 2,109.97 x 1,282.95 x 225.04 mm
Conformal Coating (Power Board)	Yes
Handle	No
VESA™ Standard Mount Interface	800 x 600 mm
Overlay Touch Compatibility	Yes
Regulatory & Certifications
UL Certification	No
ePEAT US (Environmental)	Yes
CE (Regulatory)	Yes
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	China
Warranty	3 Year Limited
Optional Accessories	WIB6540B
Basic Accessories (included)	Power Cord 3 M1, USB Cable(Type A-Type B) 5 M1, USB Type-C Cable(C to C) 1.8 M1, HDMI Cable 3 M1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Touch Panel
Available Object Size for Touch	2 mm
Response Time (PC Win10, Education Mode)	Not Available
Writing Height	No
Accuracy (Typ.)	1 mm
Interface	USB 2.0
Active Pen Interface	No
Multi Touch Point (Max.)	Max 40 Points
Protection Glass Thickness	3.2 mm
Protection Glass Transmission	88%
Operating System Support	Windows 10/ Windows 8/ Windows 7/ Android/ Linux/ macOS (Linux/ macOS 1 Point )
Protective Glass
Thickness	3.2 mm
Degree of Protection	No
Tempered / Chemical Strengthening	Yes
Anti-Reflective	Yes
Anti-Reflective Coating	No
Anti-Reflective Film	No
Anti-Fingerprint	No
Infrared - Resistance (IR)	No
Shatter-Proof	Yes
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	Yes (CreateBoard Share)
Hospitality Features
Pro:Idiom®	No
Wake on LAN	No
Hardware Features
Local Key Operation	Yes
Auto Brightness Sensor	Yes
Power Indicator	Yes
Software Features
Gapless Playback	No
Picture-by-Picture (PBP)	Yes (4)
Control Manager	No
SI Server Setting	No
Setting Data Cloning	Yes
Status Mailing	No
Auto Set ID	No
Scan Inversion	No
Backlight Sync	No
ISM Method	No
Group Manager	No
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	No
PM mode	No
Picture-in-Picture (PIP)	Yes (x1) external source
Local Network Sync	No
Screen Rotation	No
Smart Energy Saving	Yes (Energy Saving)
Tile Mode Setting	No
External Input Rotation	No
No Signal Image	No
SNMP	No
Brightness Compensation	No
Local Contents Scheduling	No
HDMI-CEC	Yes
USB Plug & Play	No
Built-in Software
DisplayNote	Yes (Additional license fee applies)
LG ConnectedCare™ DMS	Yes
OfficeSuite	No
LG CreateBoard® Prep, Note 2.0	Yes
LG CreateBoard® Lab, Note 2.0	Yes
TSN Content Management	Yes (Additional license fee applies)
LG CreateBoard® Share	Yes
Environmental Conditions
Operation Humidity	10% to 90%
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Type Compatible	Yes (Slot)
OPS Power Built-in	Yes
