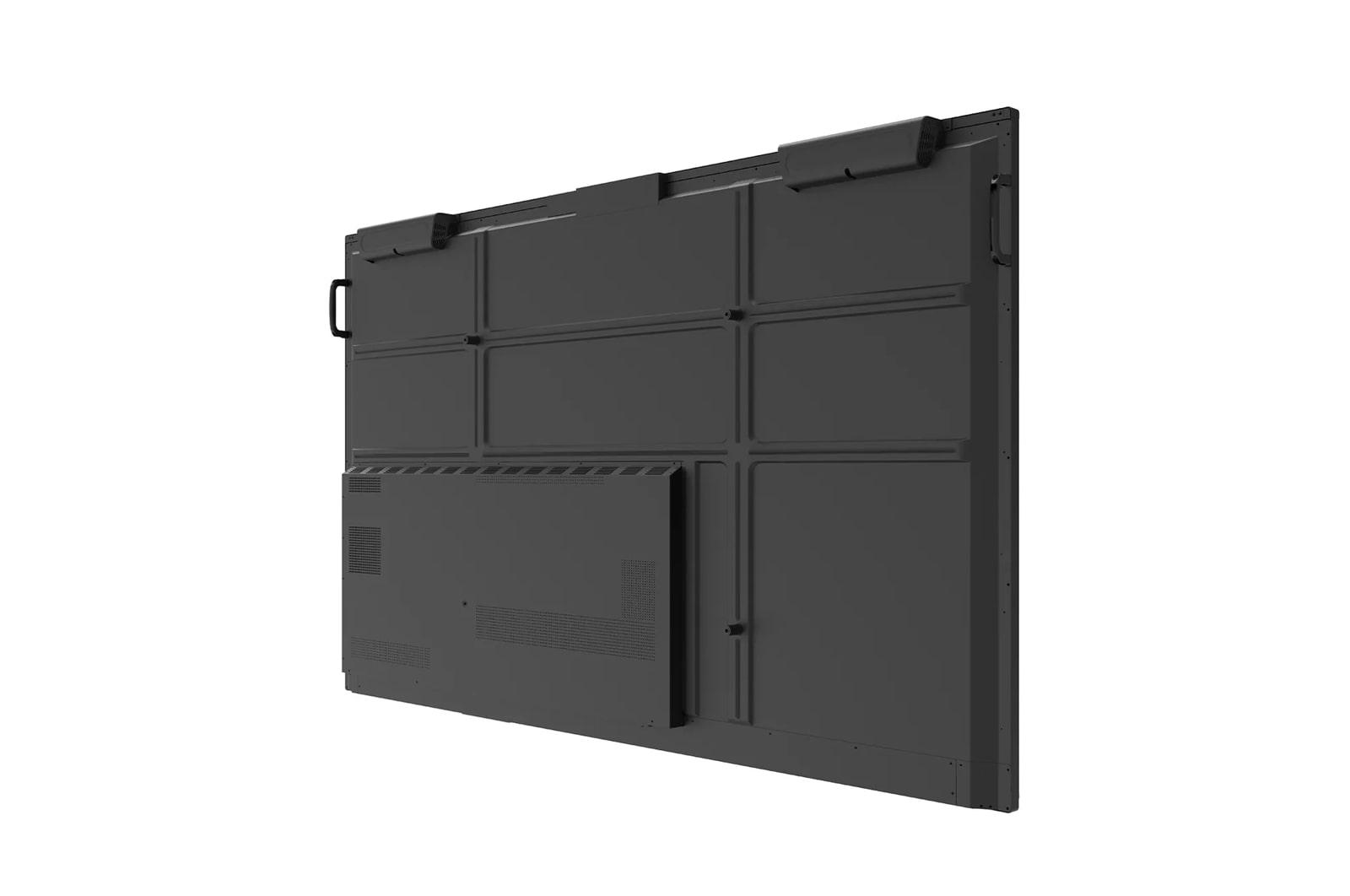

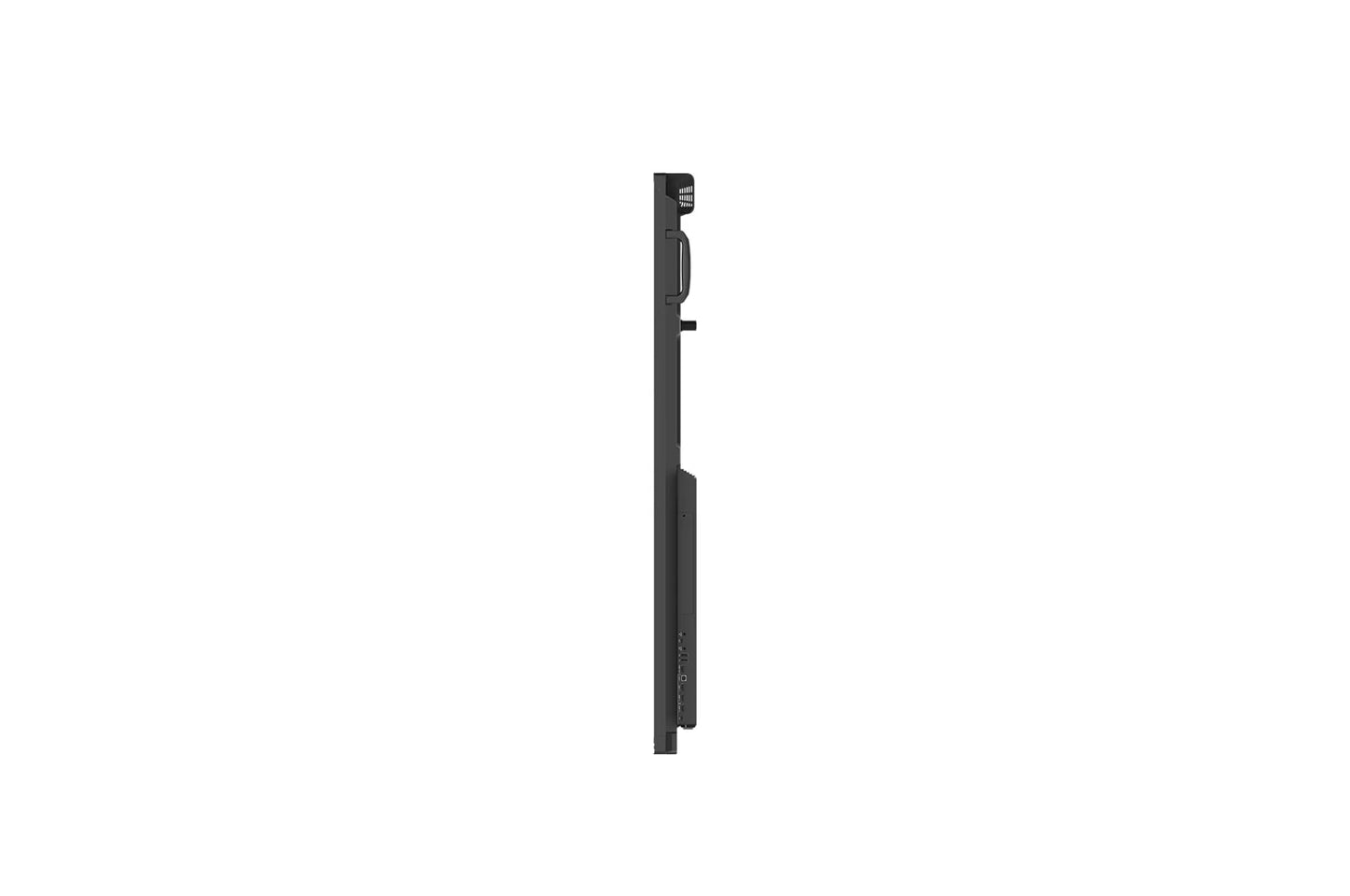

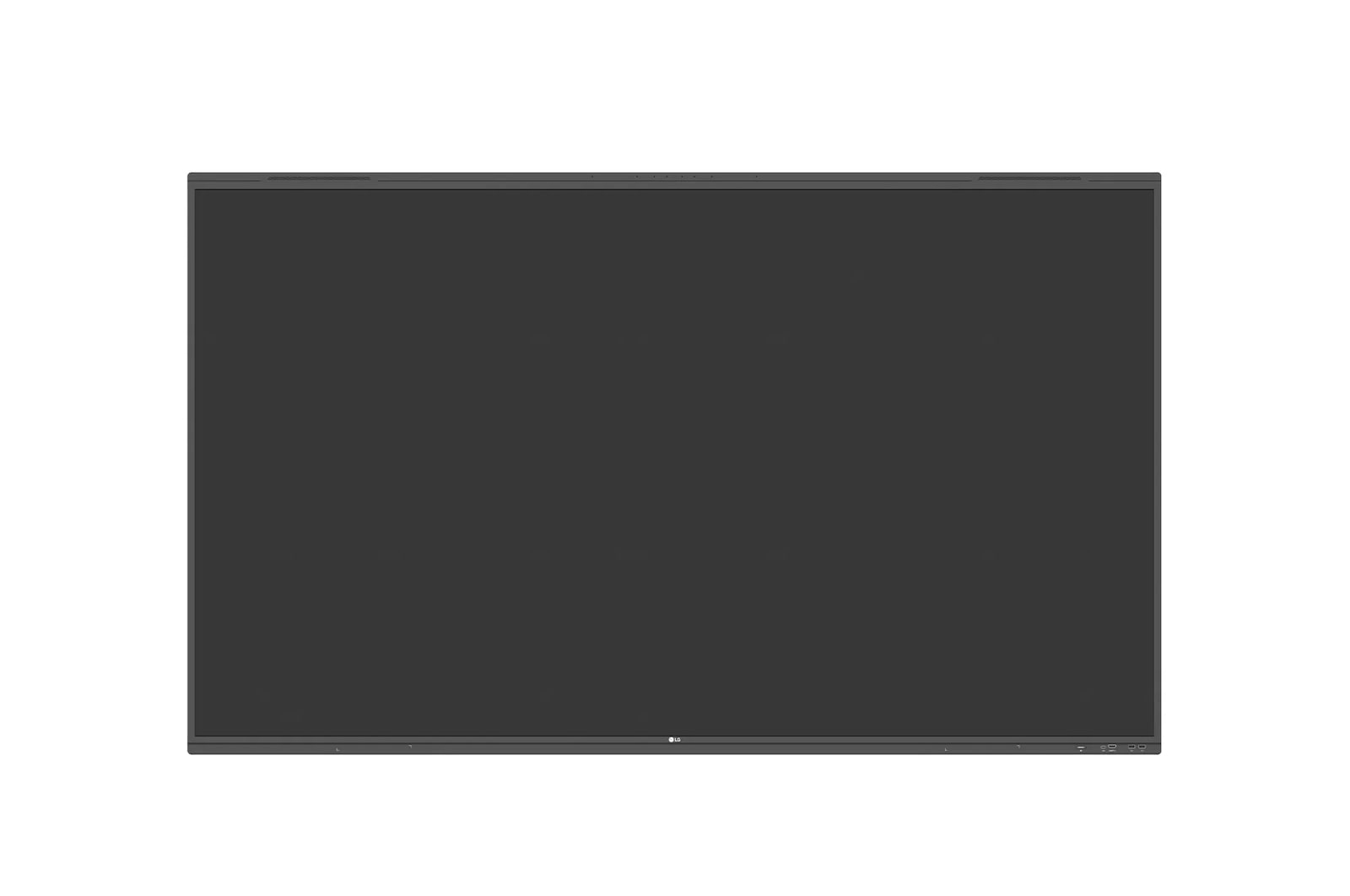

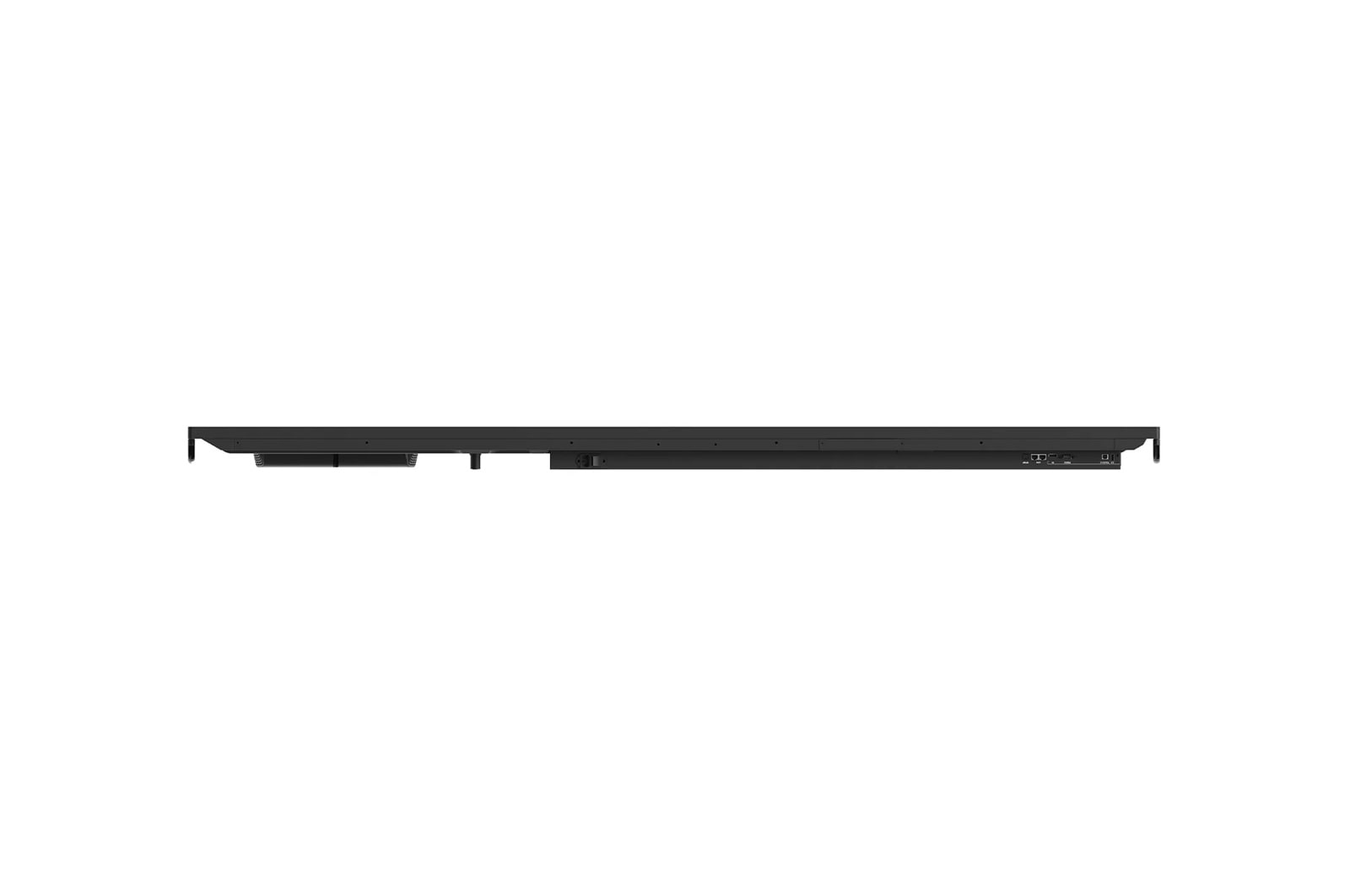

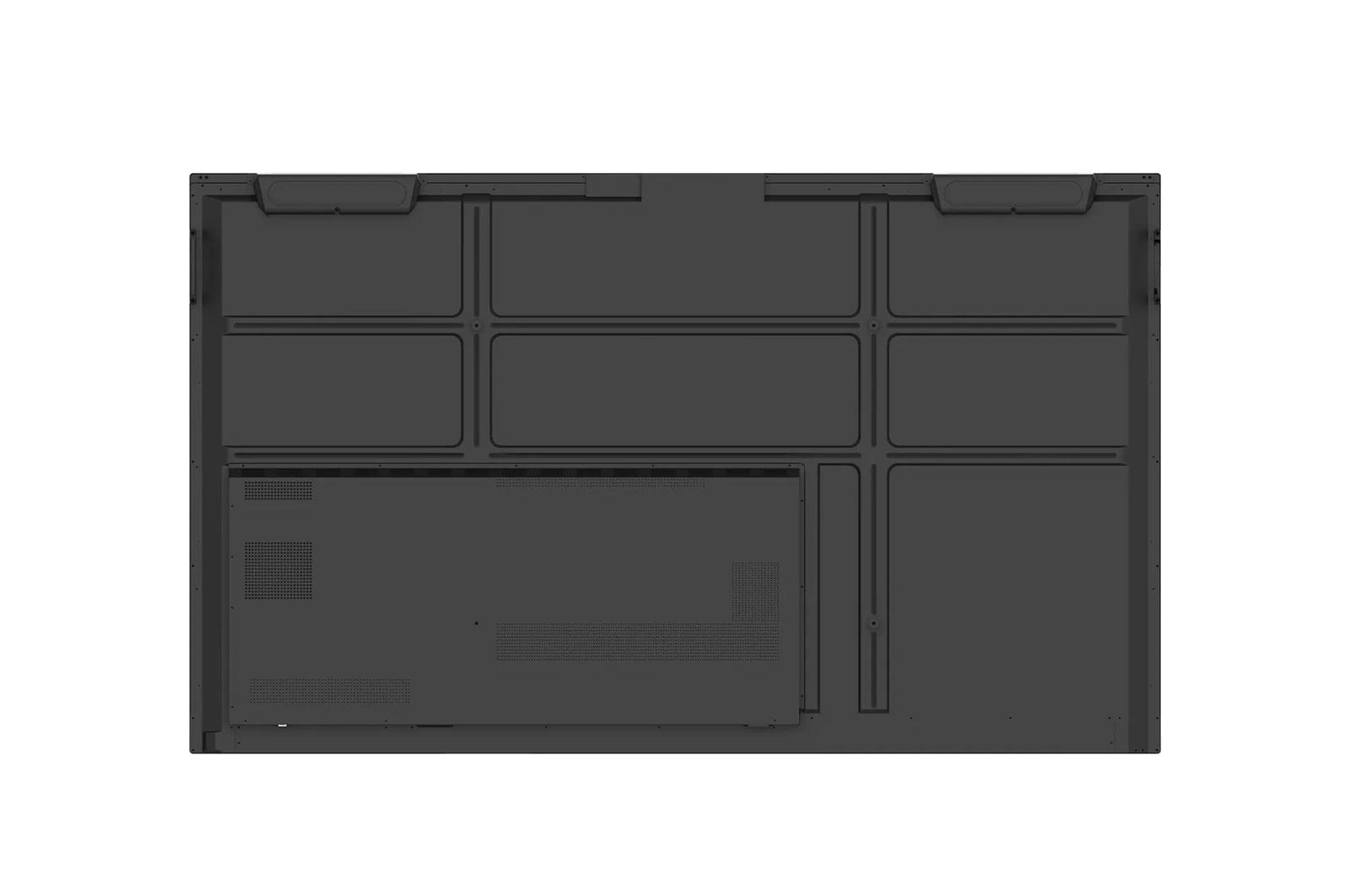

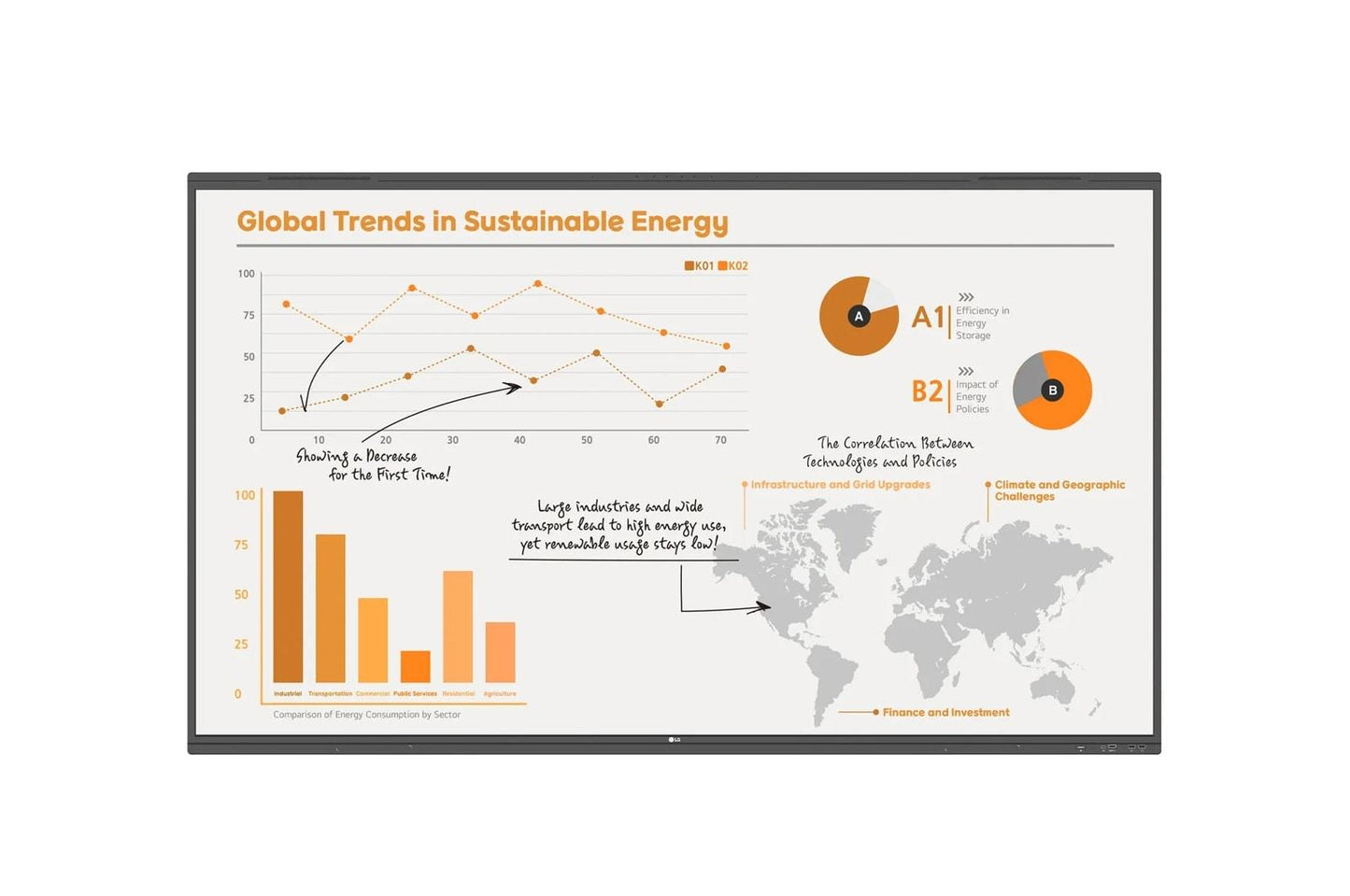

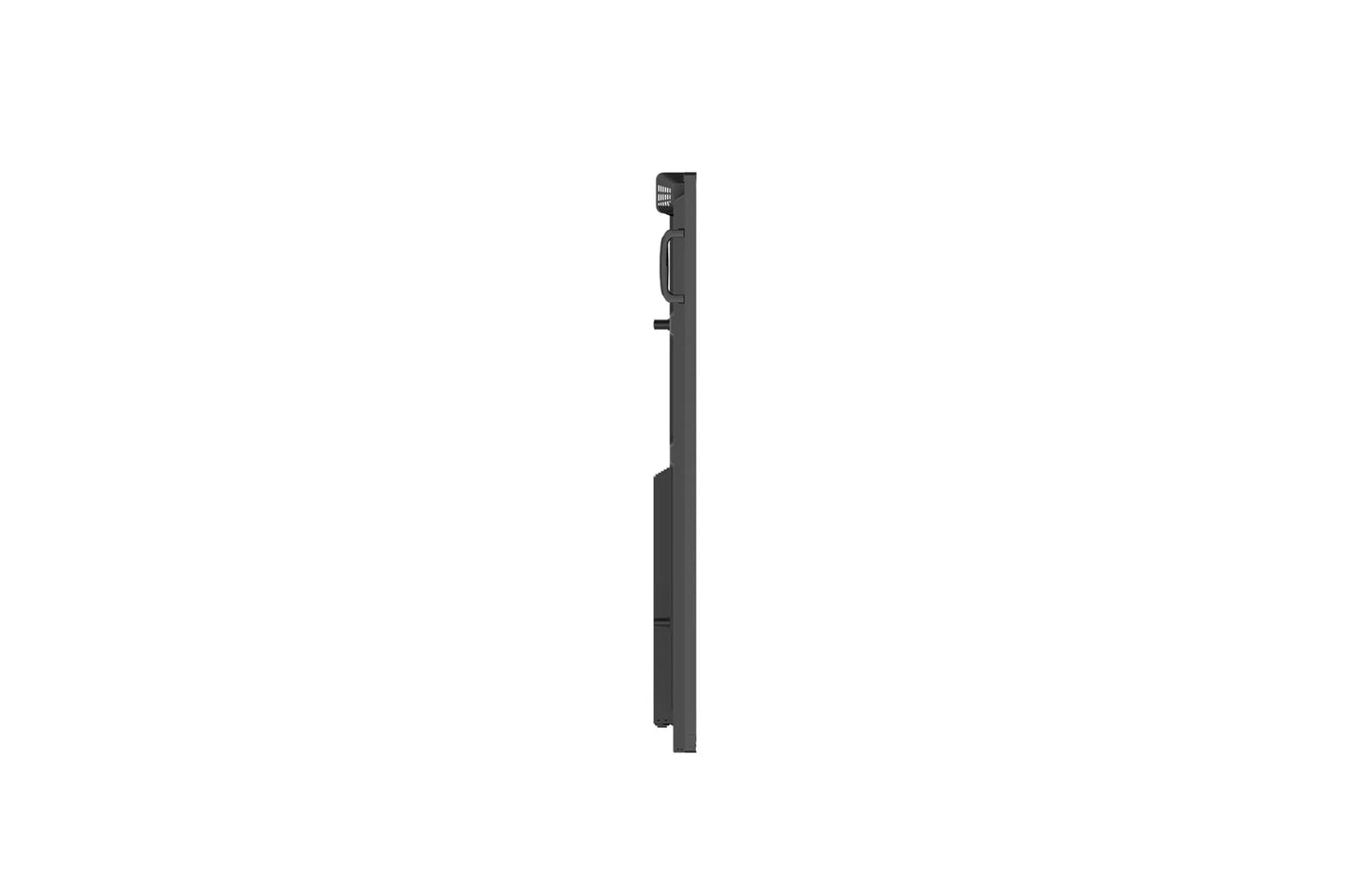

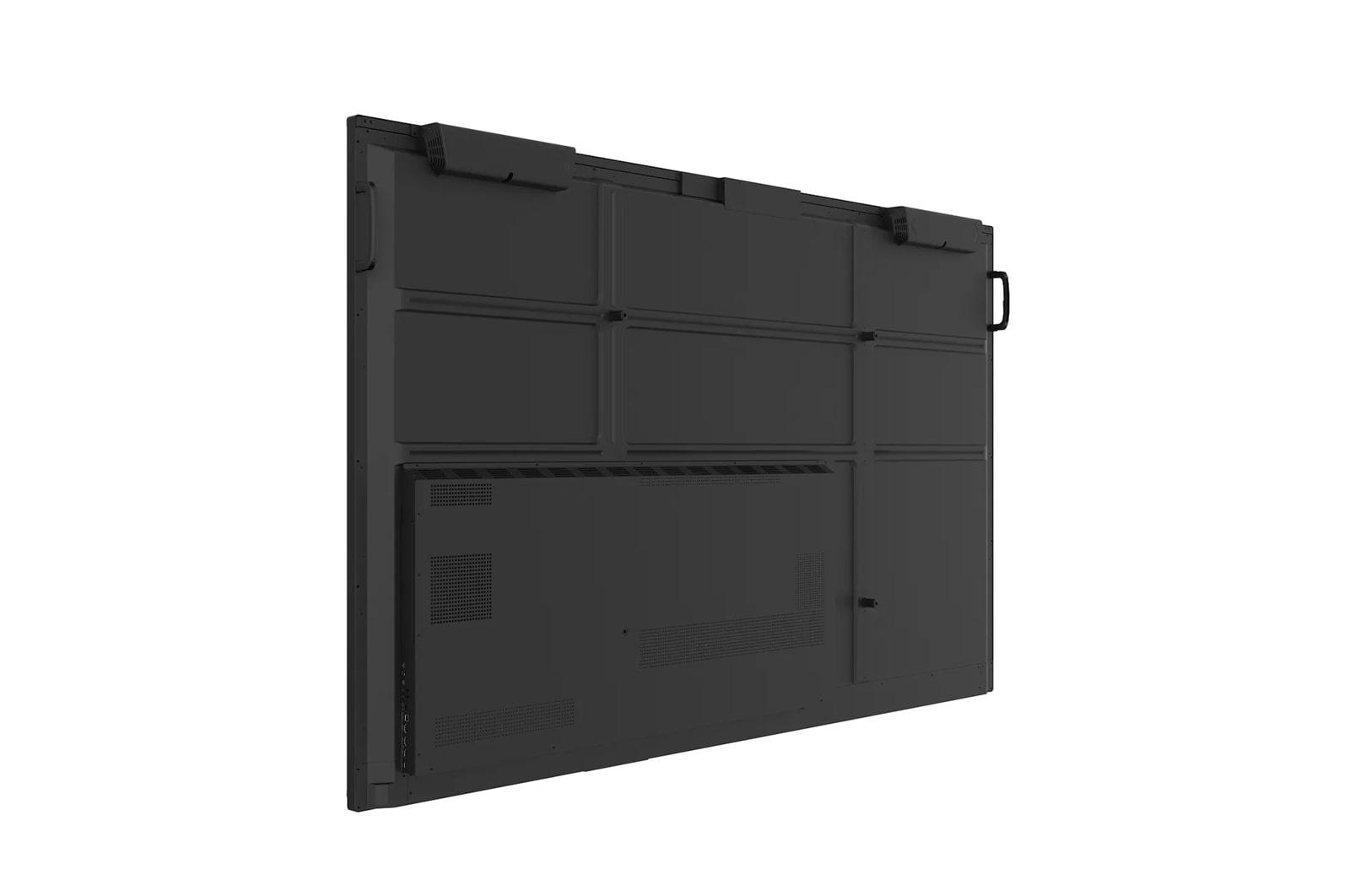

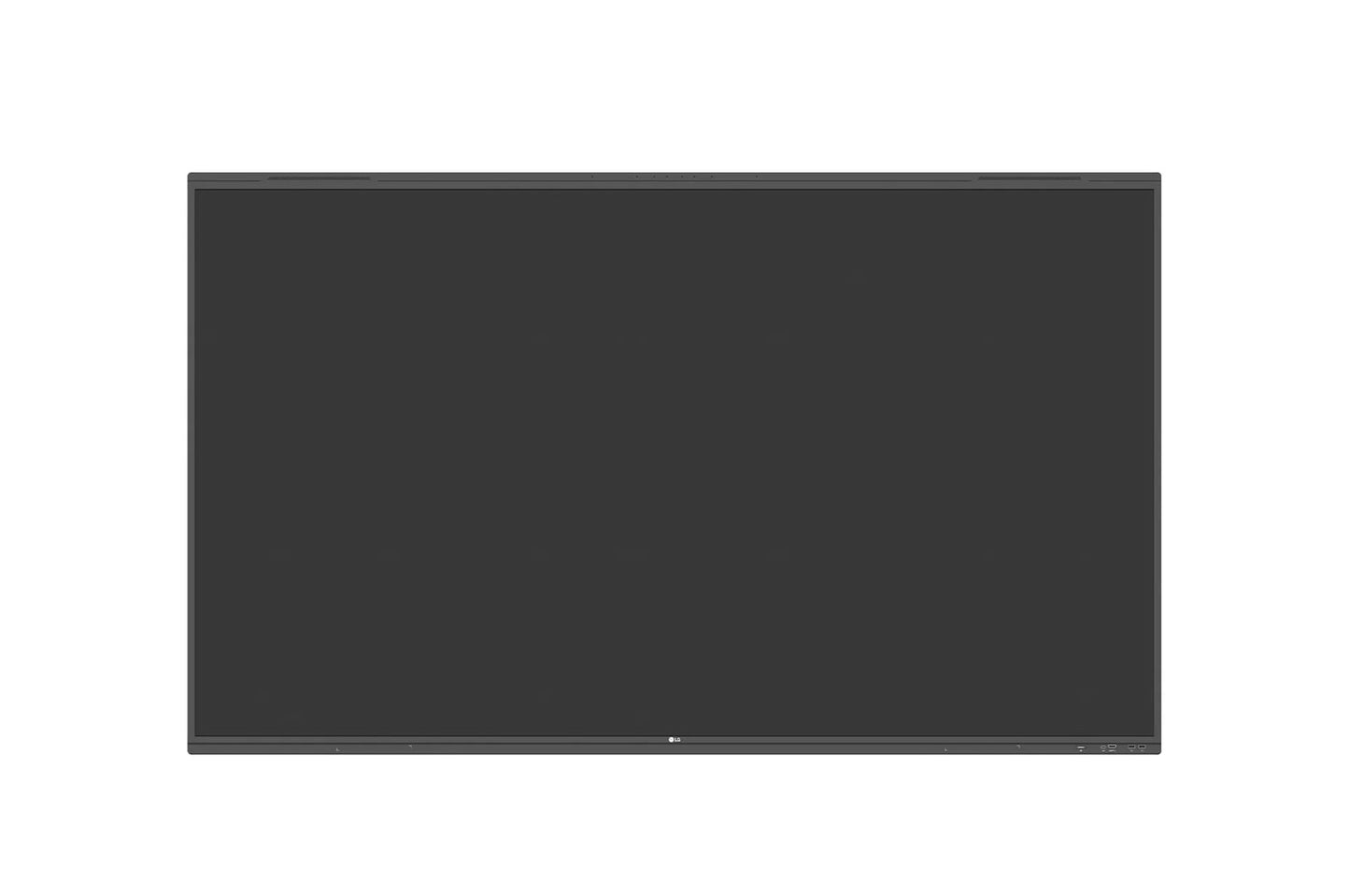

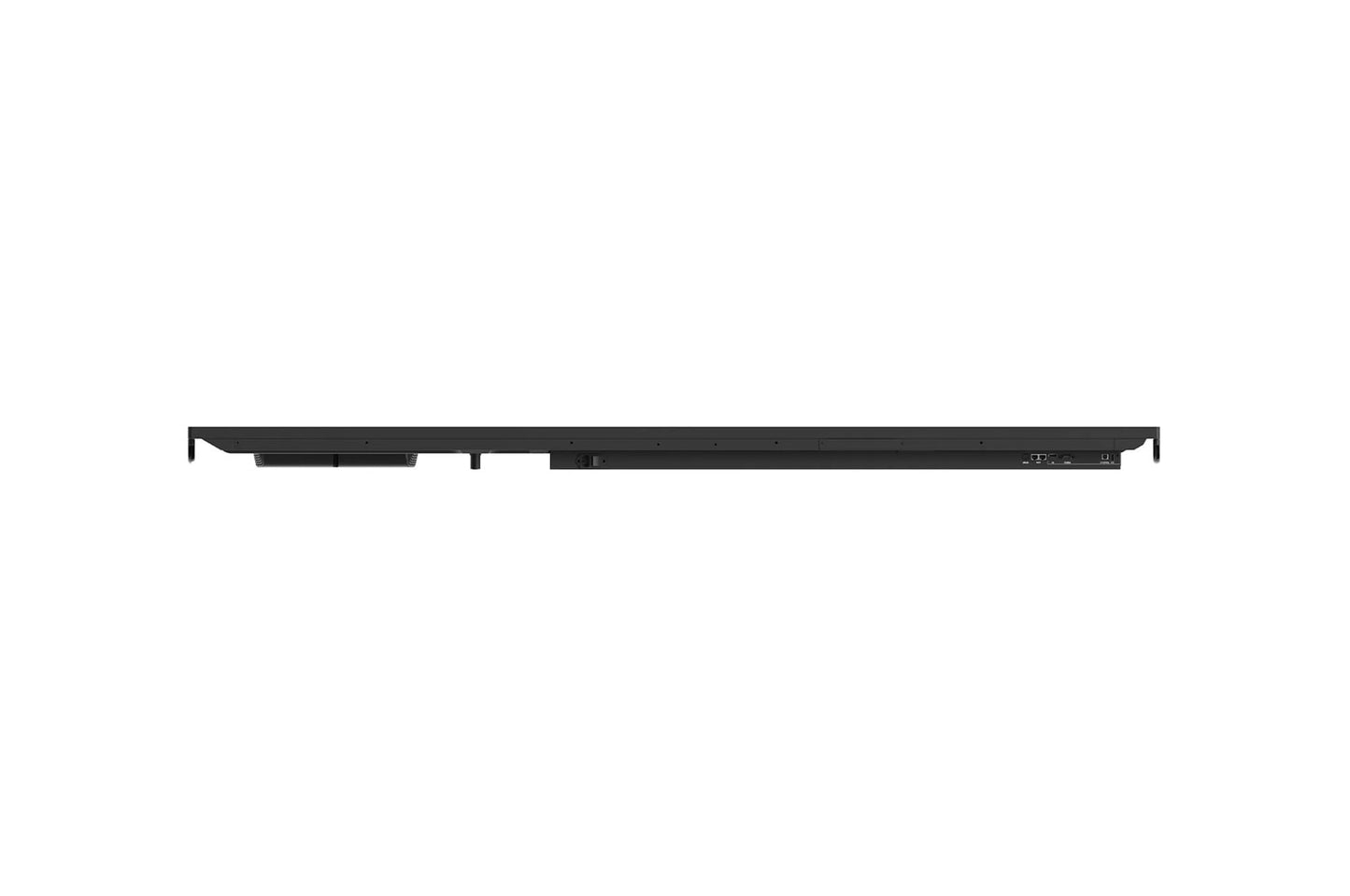

Lg 86TR3PNB 86'' CreateBoard Pro Smart Board with Google Mobile Services and Built-in AI

Item Not Available

Check Delivery:

Smarter: Built-in AI
Google Mobile Services Authorized
Better Sound: Top mounting speakers for better broadcasting
Smooth Writing: Enhanced writing capability with 50 touch points
Ready to create with CreateBoard Lab™ & share with CreateBoard Share
Ready to Manage: LG ConnectedCare

86'' CreateBoard Pro Smart Board with Google Mobile Services and Built-in AI

System
Operating System (OS)	Android™ 13
Processor	Octa-core A76 x 4 + ASS x 4
Graphics	Mali G52MP2
Storage	64 GB
Internal Memory	8 GB
Electrical
Power Consumption (Max.)	530W
Power Supply	100~240V (50/60 Hz)
Power Consumption (Power Off)	Less than 0.5W
Power Type	Built-in Power
Power Consumption (Display Power Management - DPM)	Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)	Not Available
BTU Heat Generation (Max.)	1945 BTU
BTU Heat Generation (Typ.)	1280 BTU
Power Consumption (Typ.)	280W
Connectivity
HDMI In	Yes (x4), HDCP2.3
IR In (3.5 mm)	No
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	Yes (x1) HDCP 2.3/1.3
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x7) USB 3.0 (x4) USB 2.0 (x3)
USB Type-C In	Yes (x2)
USB Type-C Power Delivery	No
HDMI Out	Yes (x1)
DisplayPort Out	No
Optical Digital Audio Out	No
Touch USB	Yes (x2)
RJ45 (LAN) Out	Yes (x1)
RS-232C Out (3.5 mm)	No
External Speaker Out	No
Power Delivery Alt	No
Bluetooth	Yes (5.0)
Built-in Wi-Fi	802.11 a/b/g/n/ac
Panel
Screen Size (Inches)	86"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	400 nits
Brightness (Max.)	Not Available
Contrast Ratio	4000:1
Dynamic Contrast Ratio	5000:1
Color Gamut	NTSC 72%
Color Depth (Number of Colors)	10 bit (8 bit + FRC)
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	6.5 ms
Surface Treatment (Haze)	25%
Operation Hours (Hours per Day / Days per Week)	16/7
Lifetime	Up to 50,000 Hrs
Orientation	Landscape
Audio/Sound
Built-in Speakers	Yes (x4) 18W + 8W
Camera & Mic
Webcam Resolution	Not Available
Built-in Mic	Yes (x8)
Built-in Webcam	Yes
Features
Crestron Certified Compatibility	No
Beacon	No
Play Via URL	No
Cisco Certified Compatibility	No
Failover	No
Mechanical
Bezel Color	Black
Bezel Width	T: 34.33 mm, R/L: 15.6 mm, B: 37 mm
Weight	139.99 lbs / 63.5 kg
Shipping Weight	176.59 lbs / 80.1 kg
Dimensions (W x H x D)	77.04 x 46.01 x 3.38 in / 1,957 x 1,171 x 86 mm
Shipping Dimensions (W x H x D)	83.07 x 50.82 x 8.85 in / 2,110 x1,291 x 225 mm
Conformal Coating (Power Board)	Not Available
Handle	Yes
VESA™ Standard Mount Interface	800 x 600 mm
Overlay Touch Compatibility	No
Regulatory & Certifications
UL Certification	No
ePEAT US (Environmental)	No
CE (Regulatory)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
ISTA6 (Packaging)	No
ERP (Environmental)	No
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	China
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Catalan, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Korean, Norwegian, Polski, Portuguese, Portuguese (Brazil), Portuguese (Europe), Romanian, Russian, Simplified Chinese, Spanish, Swedish, Thai, Turkish, Ukrainian
Optional Accessories	Wall Mount(WM-L000S), Floor Stand(ST-000F / ST-860F)
UPC	195174087725
Basic Accessories (included)	Power Cord 3 M1, USB Cable(Type A-Type B) 5 M1, USB Type-C Cable(C to C) 1.8 M1, HDMI Cable 3 M1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Touch Panel
Available Object Size for Touch	2 mm
Response Time (PC Win10, Education Mode)	Not Available
Writing Height	1 ms
Accuracy (Typ.)	1 mm
Interface	USB 2.0
Active Pen Interface	Not Available
Multi Touch Point (Max.)	50 Points (Max.)
Protection Glass Thickness	3.2 mm
Protection Glass Transmission	88%
Operating System Support	Windows 10 / 8 / 7 / Android
Protective Glass
Thickness	3.2 mm
Degree of Protection	Safety Glass
Tempered / Chemical Strengthening	Tempered Strengthening
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Anti-Fingerprint	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	Yes (CreateBoard Share)
Hospitality Features
Pro:Idiom®	No
Wake on LAN	Yes
Hardware Features
Local Key Operation	No
Auto Brightness Sensor	Yes
Power Indicator	Yes
Software Features
Gapless Playback	No
Picture-by-Picture (PBP)	No
Control Manager	No
SI Server Setting	No
Setting Data Cloning	No
Status Mailing	No
Auto Set ID	No
Scan Inversion	No
Backlight Sync	No
ISM Method	No
Group Manager	No
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	No
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	No
Video Tag	No
PM mode	No
Picture-in-Picture (PIP)	Yes (x1) external source
Local Network Sync	No
Screen Rotation	No
Smart Energy Saving	Yes (Energy Saving)
Tile Mode Setting	No
External Input Rotation	No
No Signal Image	No
SNMP	No
Brightness Compensation	No
Local Contents Scheduling	No
HDMI-CEC	Yes
USB Plug & Play	No
Built-in Software
LG ConnectedCare™ DMS	Yes
OfficeSuite	No
LG CreateBoard® Lab, Note 2.0	No
LG CreateBoard® Share	Yes
Environmental Conditions
Operation Humidity	10% to 90%
Operation Temperature	32°F x 104°F / 0°C to 40°C
OPS Compatibility
OPS Type Compatible	Yes
OPS Power Built-in	Yes
