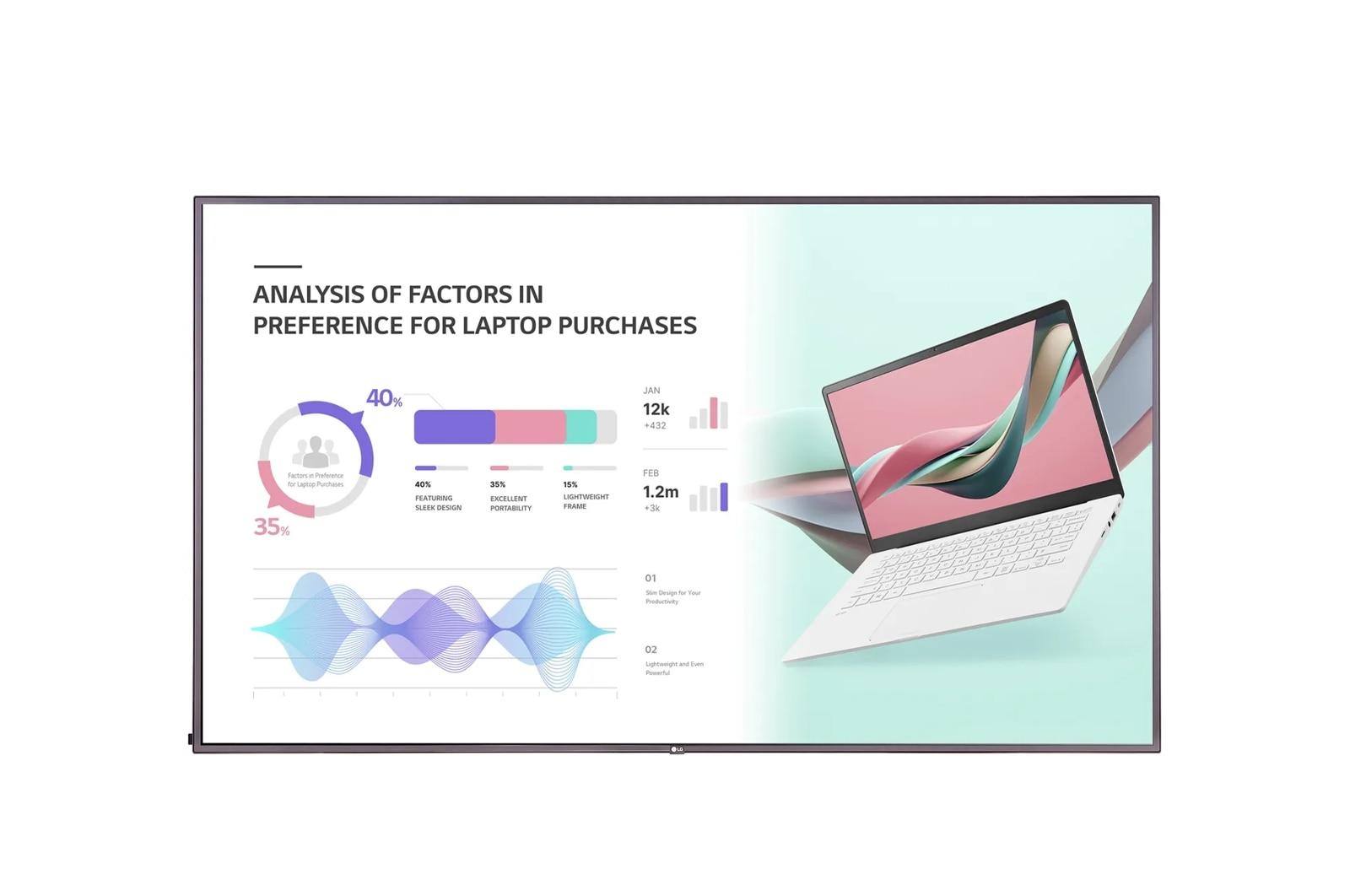

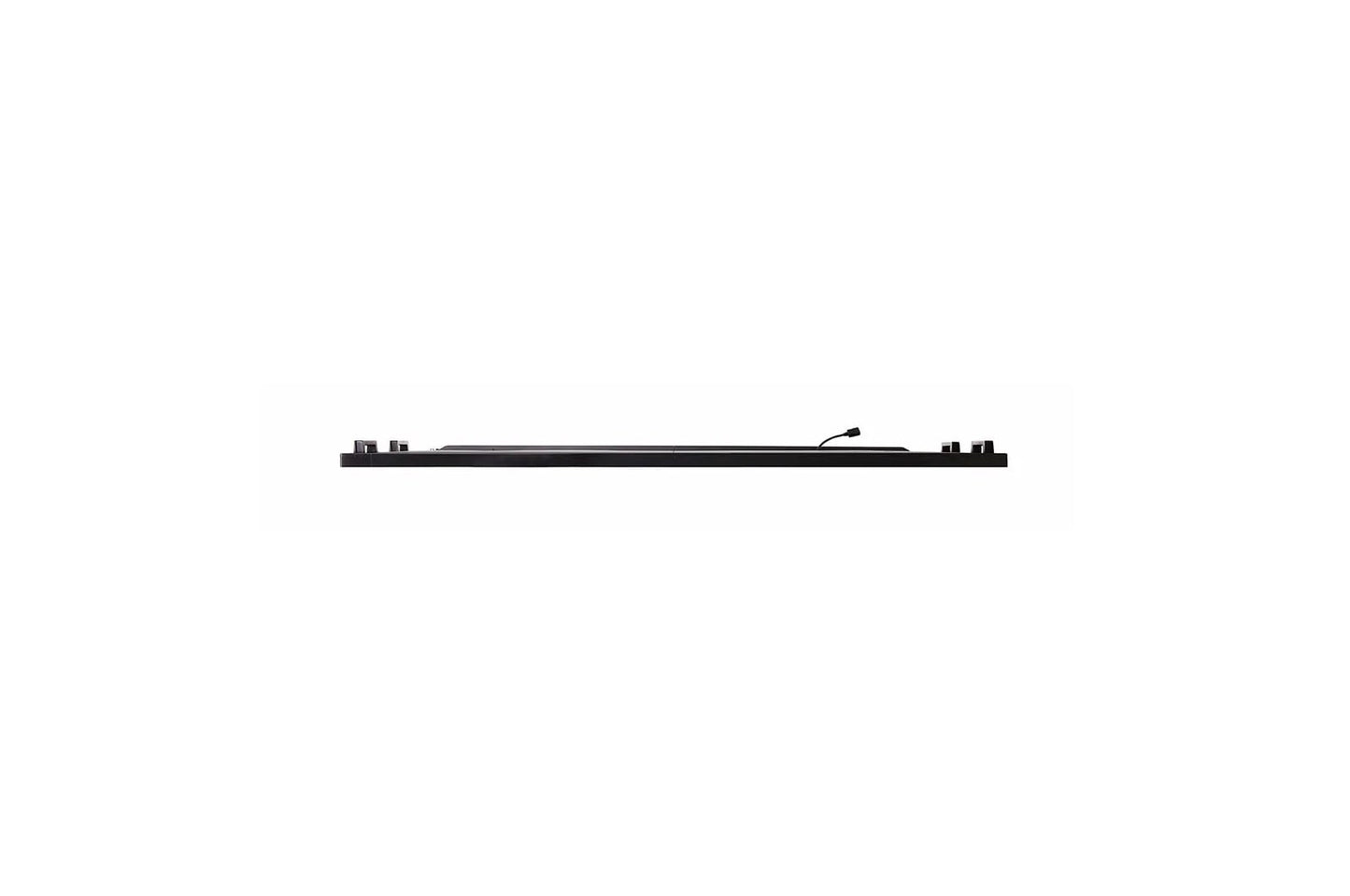

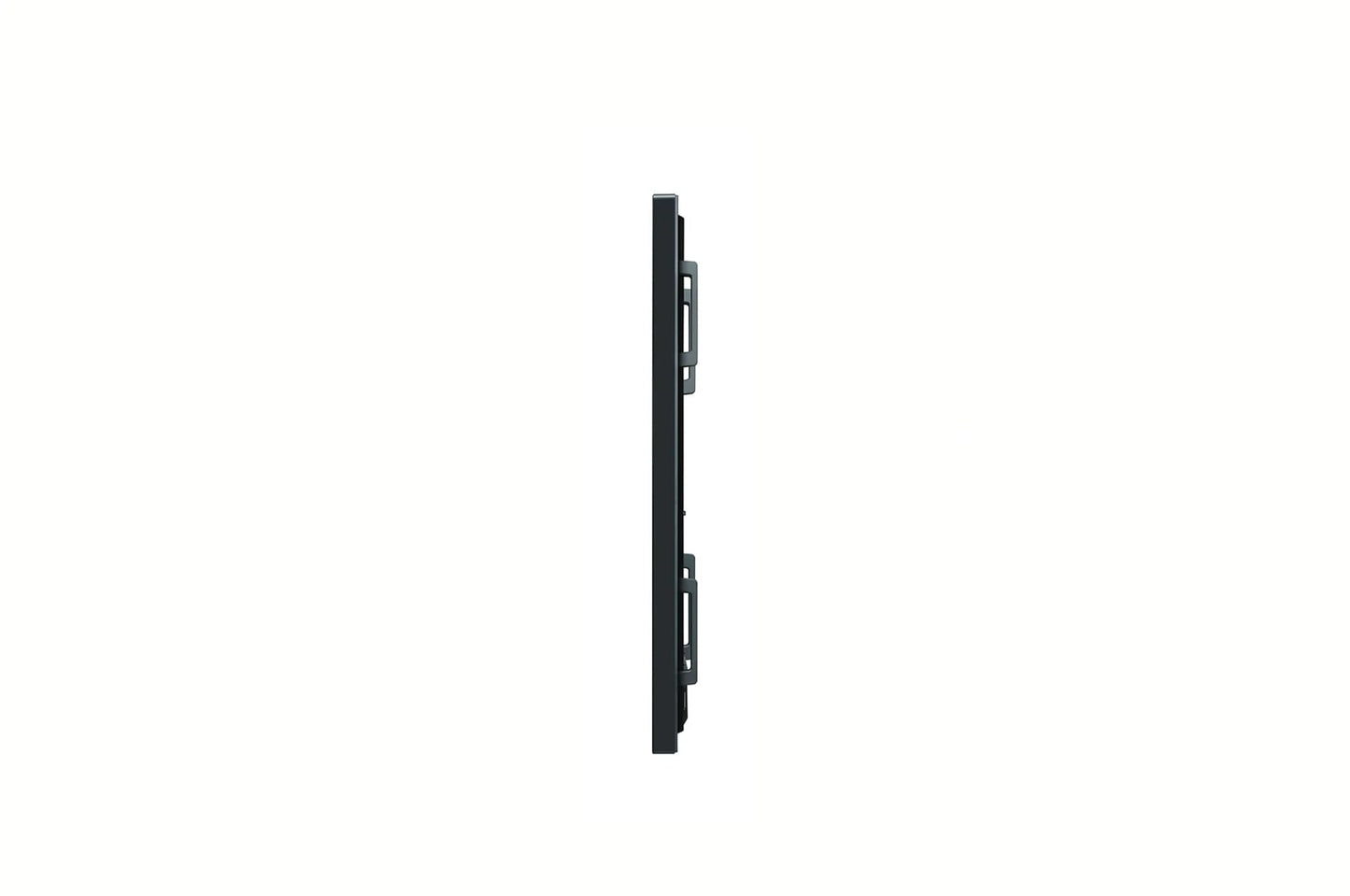

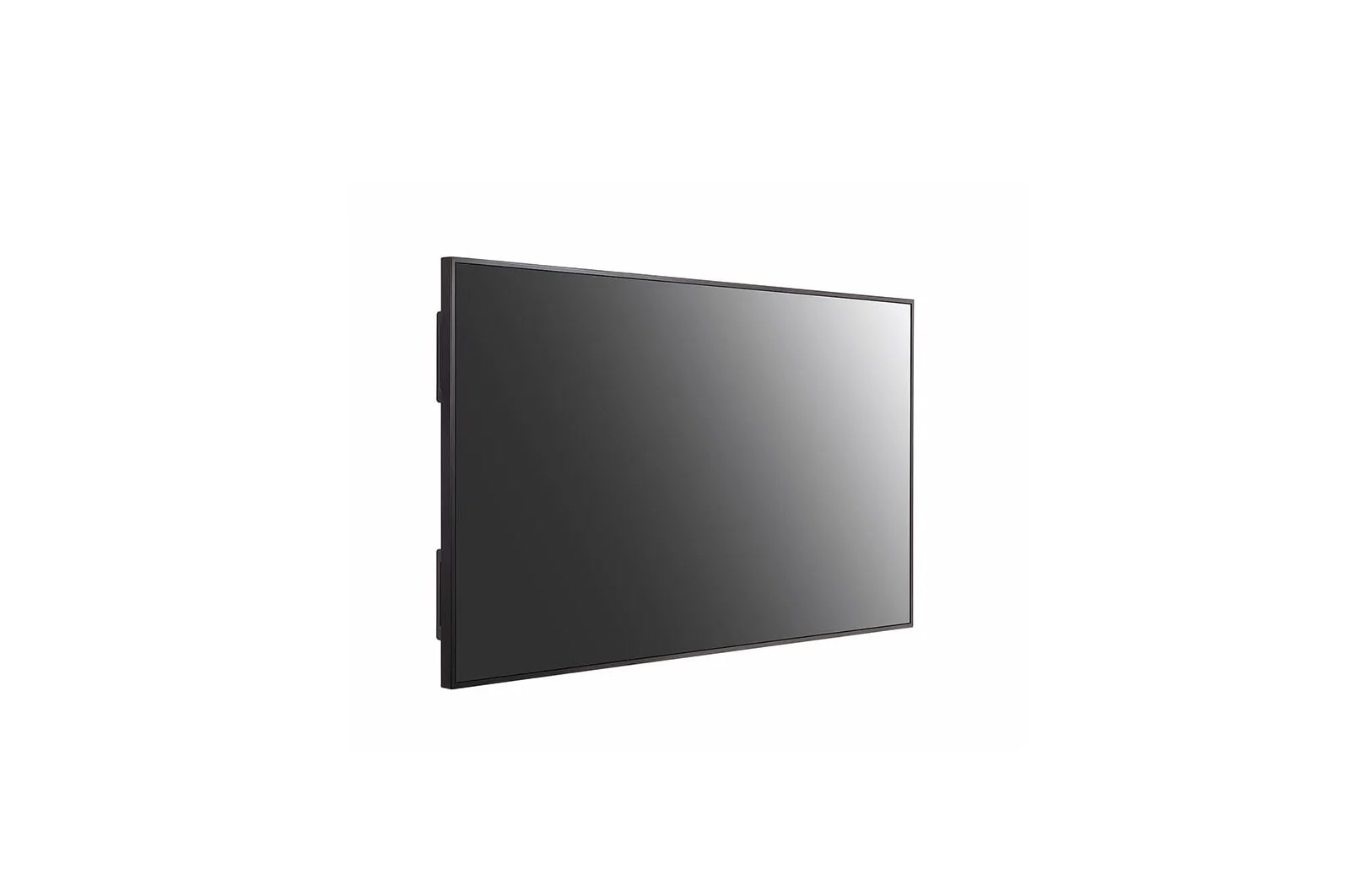

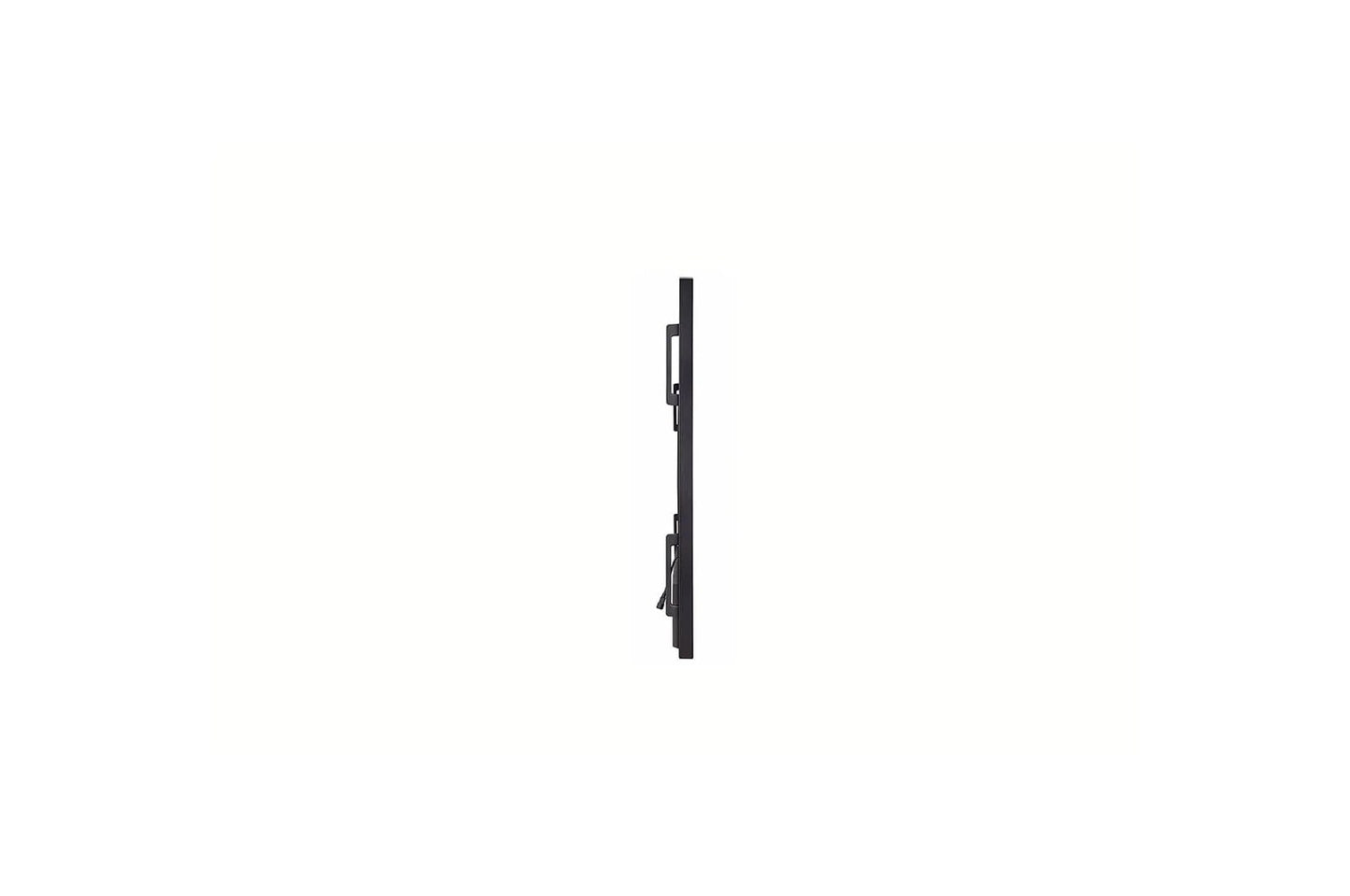

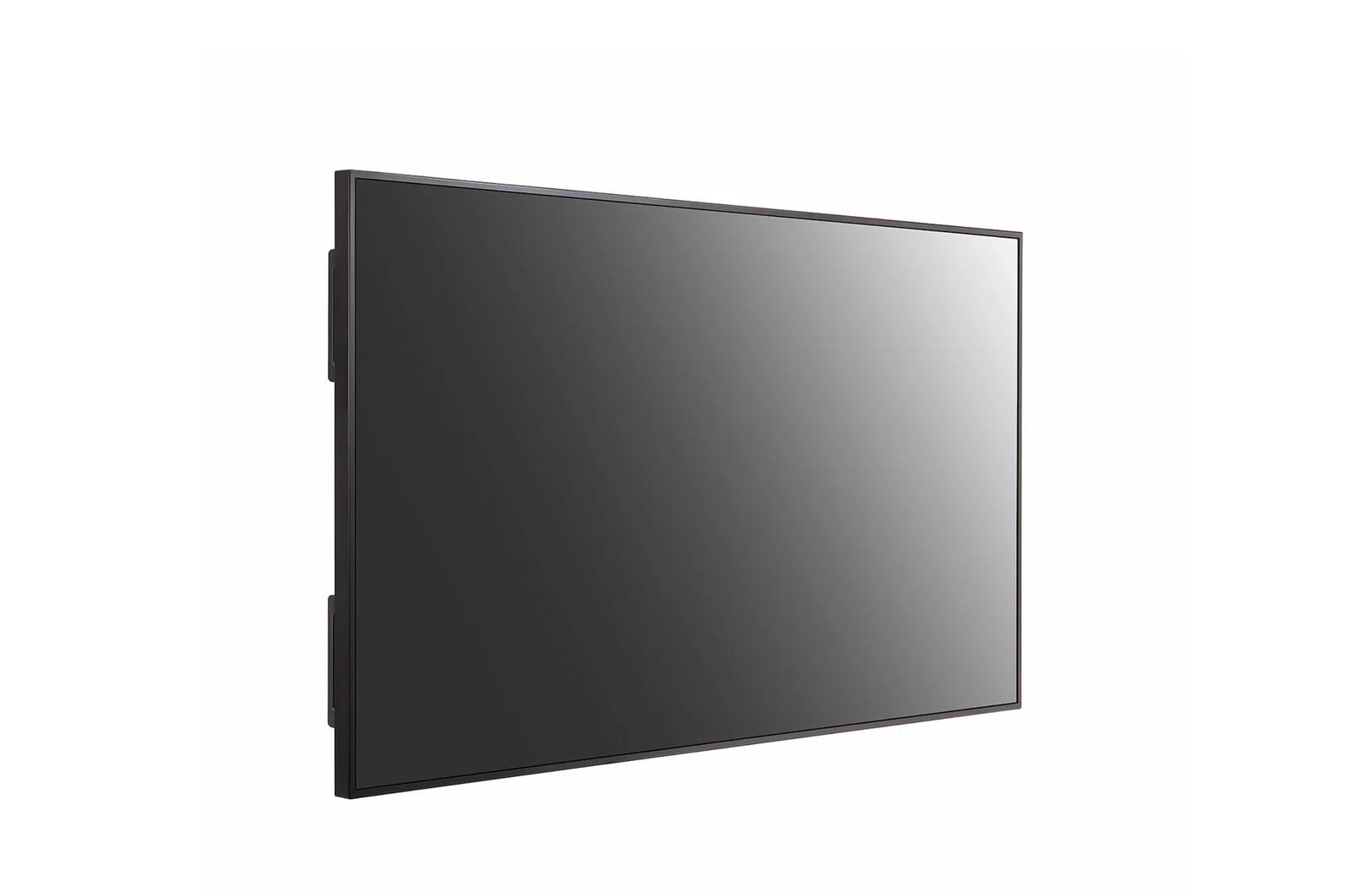

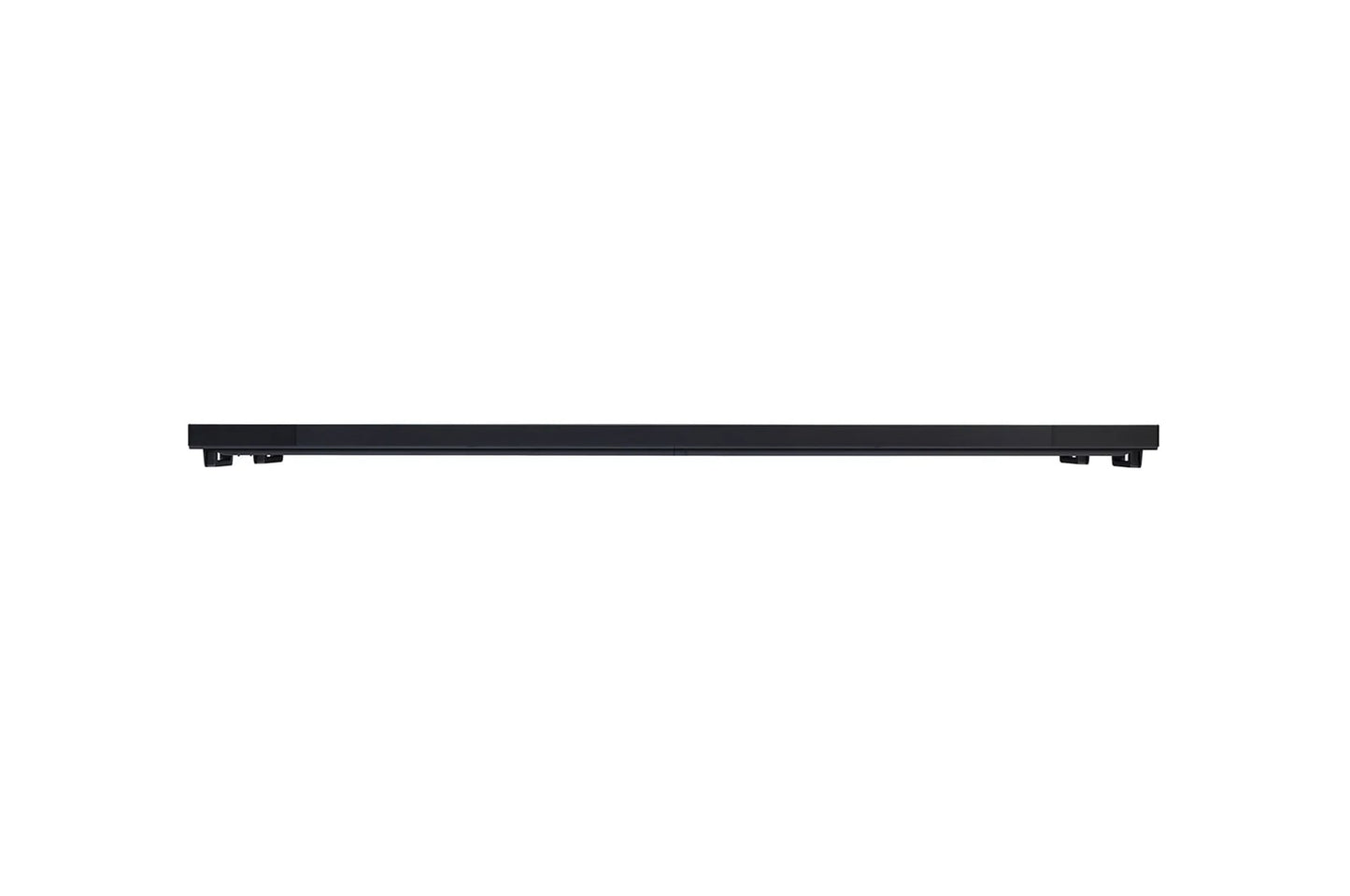

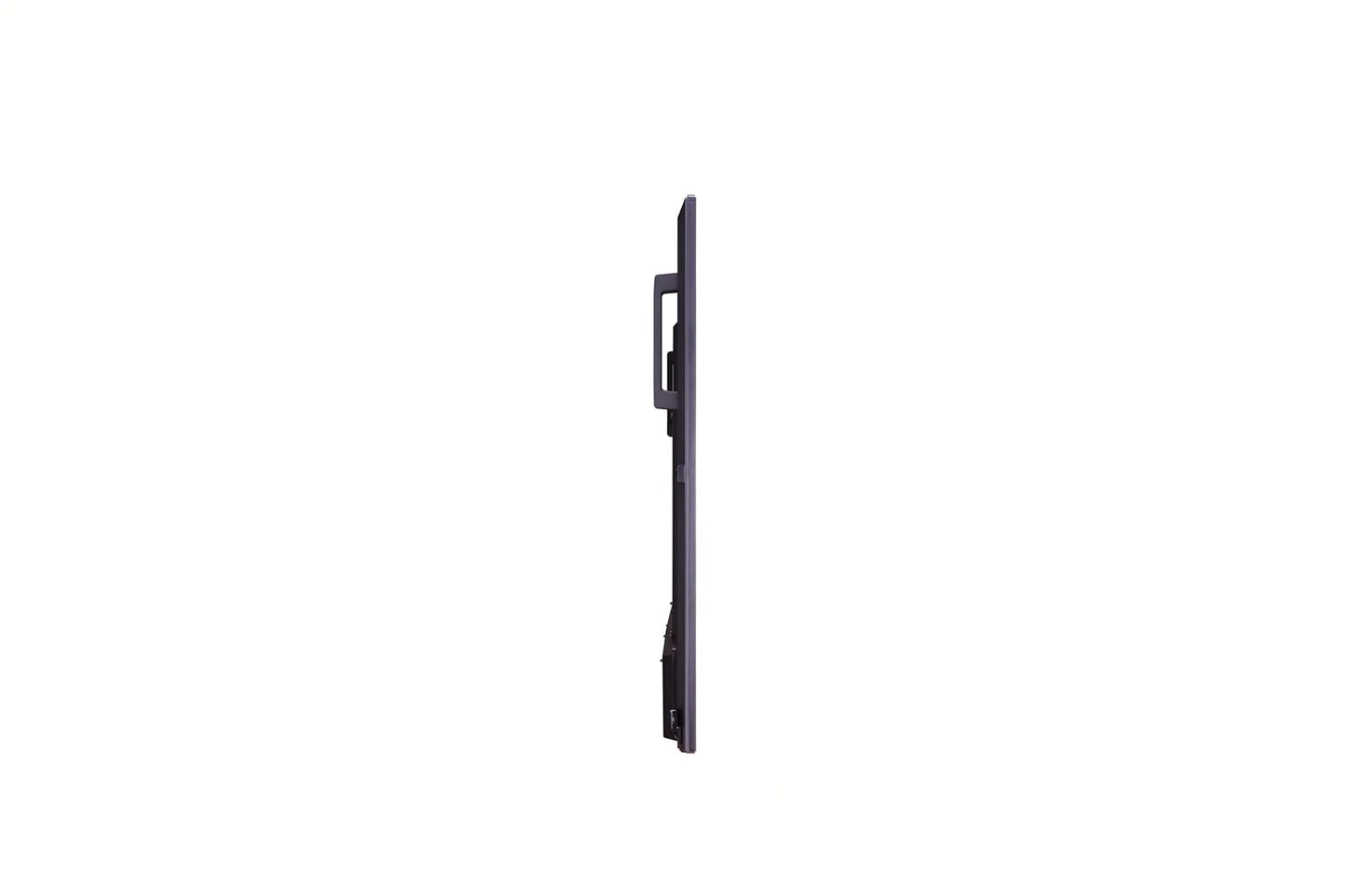

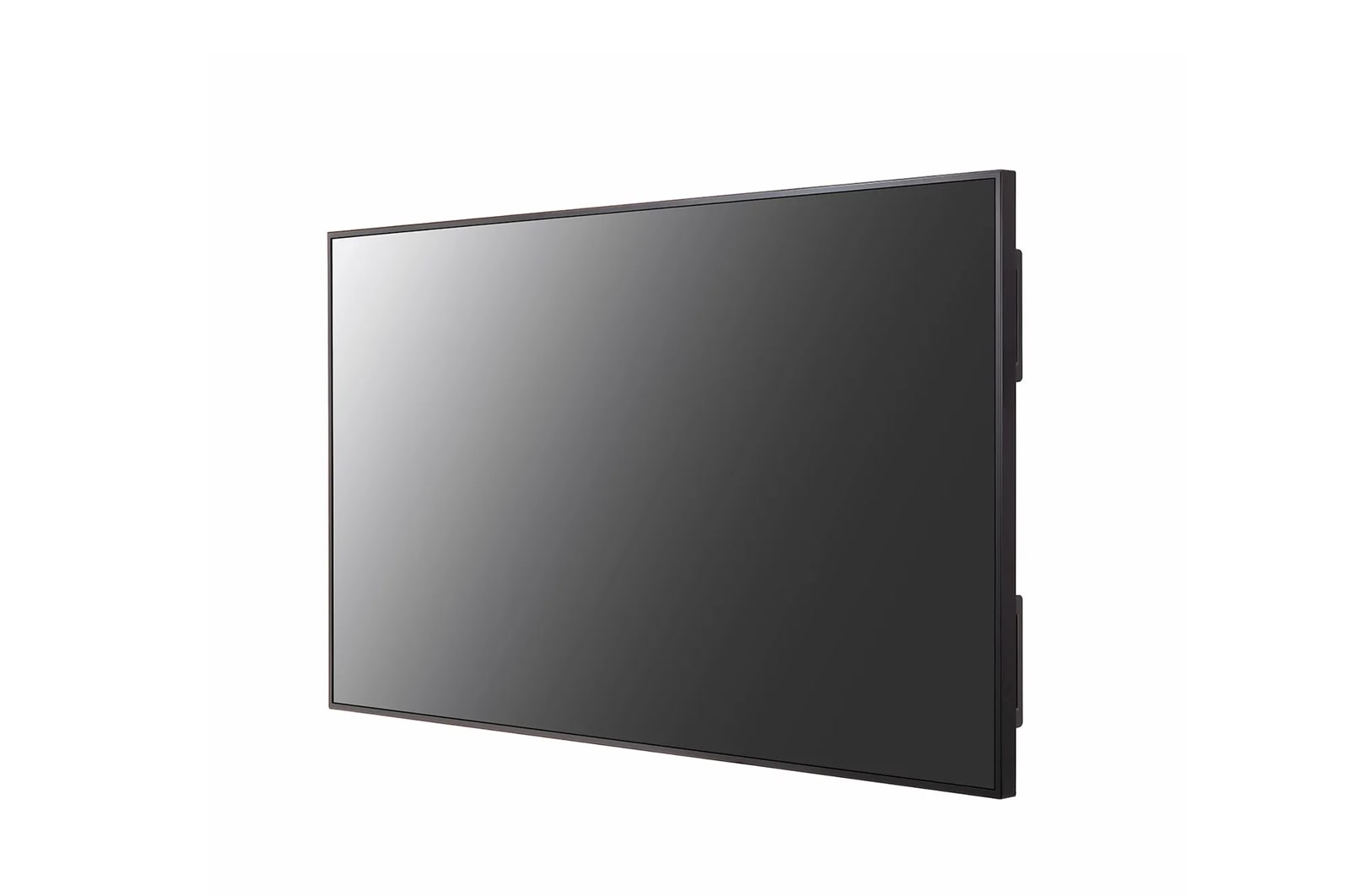

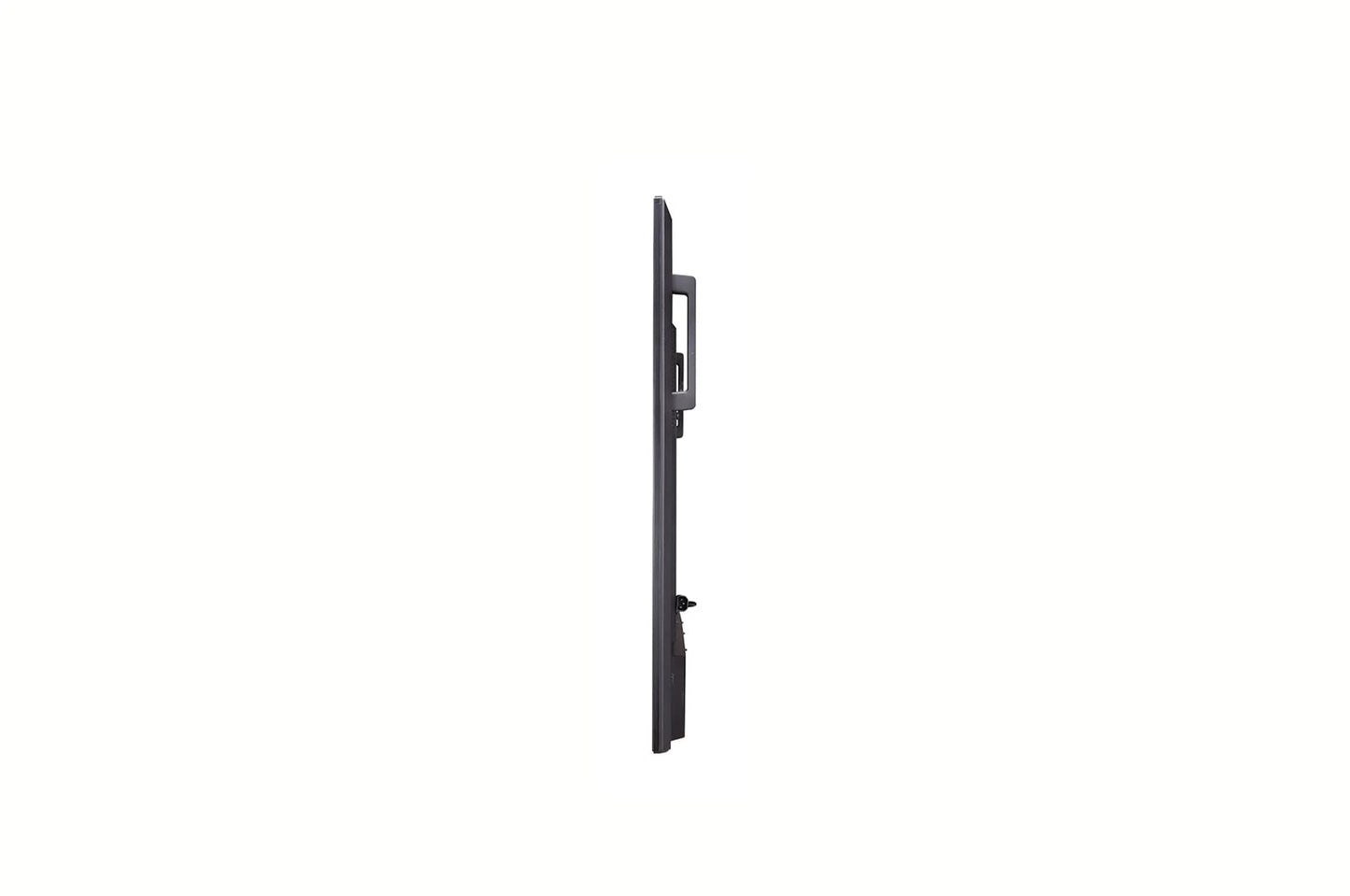

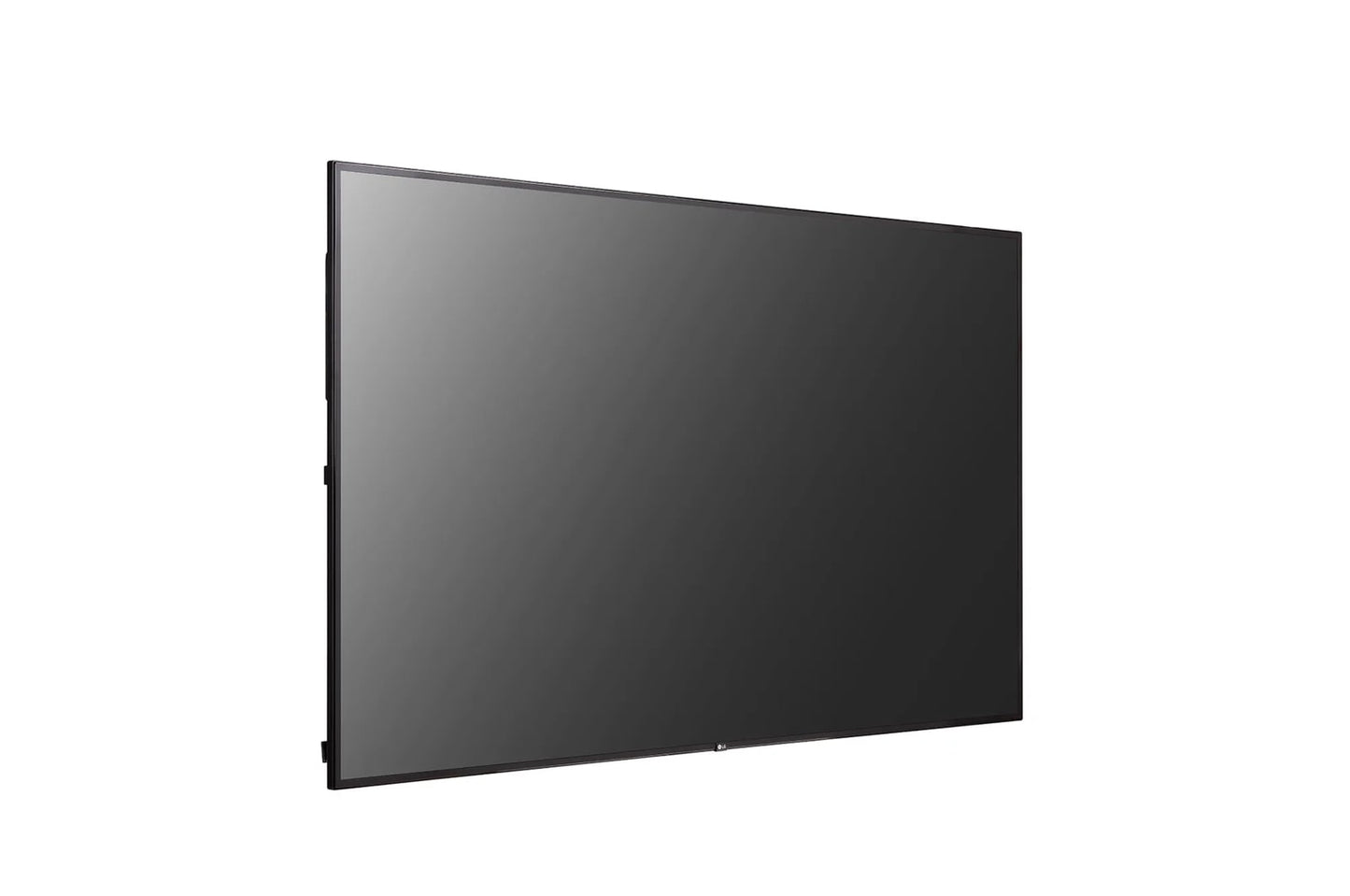

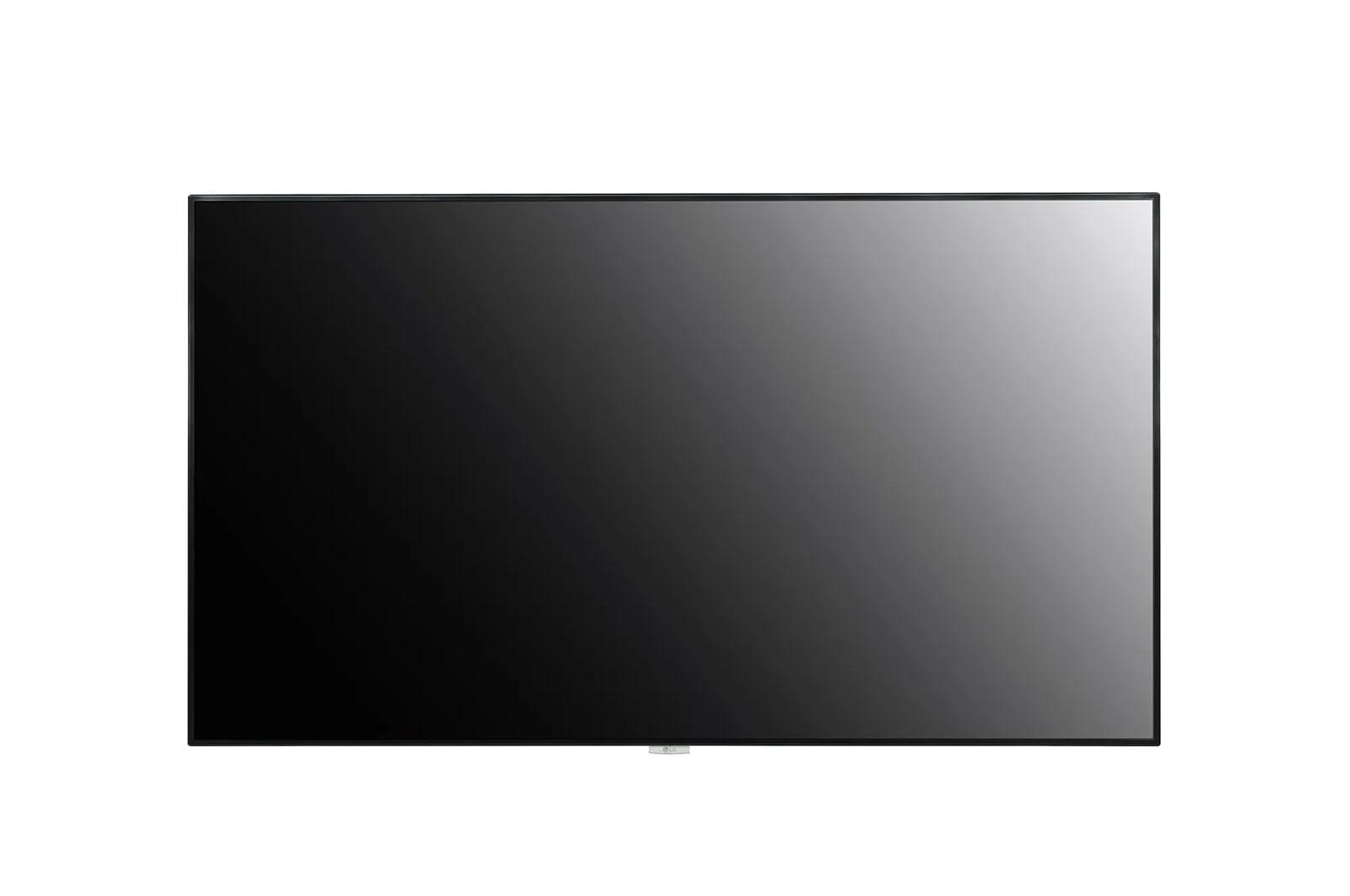

Lg 86UH5JH 86" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Ratingt

Item Not Available

Check Delivery:

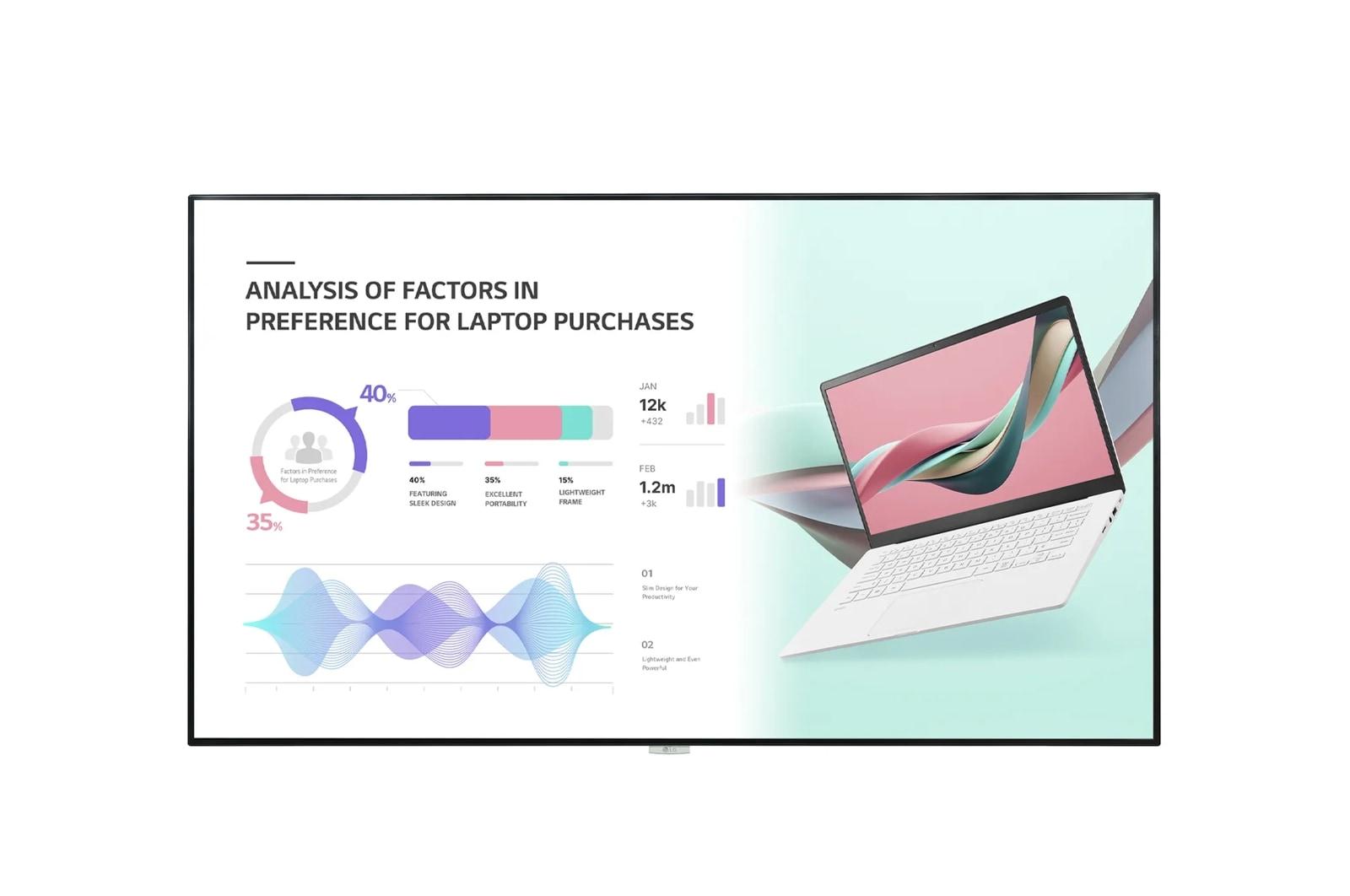

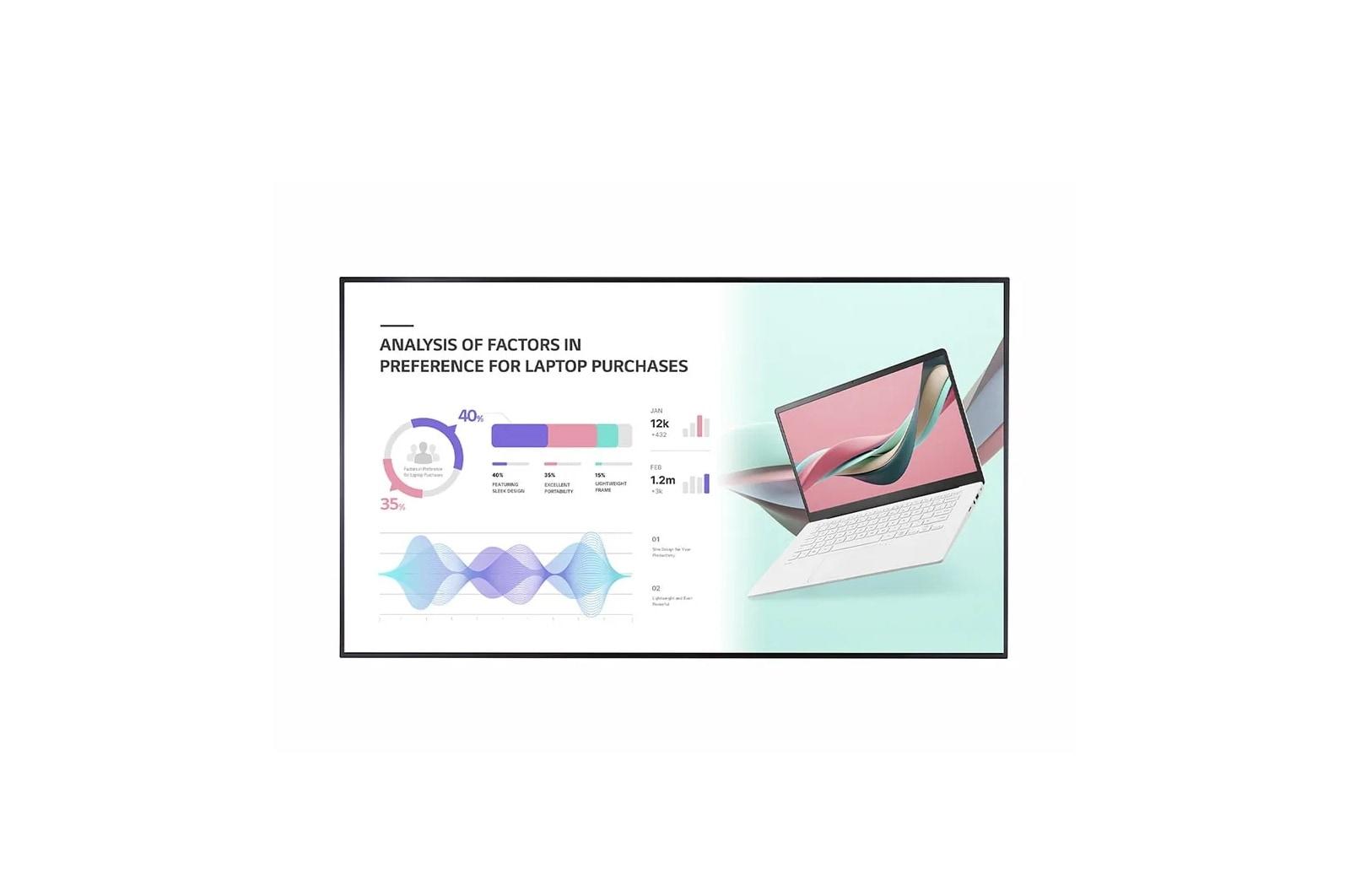

The 16:9 UHD display shows crisp, clear images & in portrait or landscapet

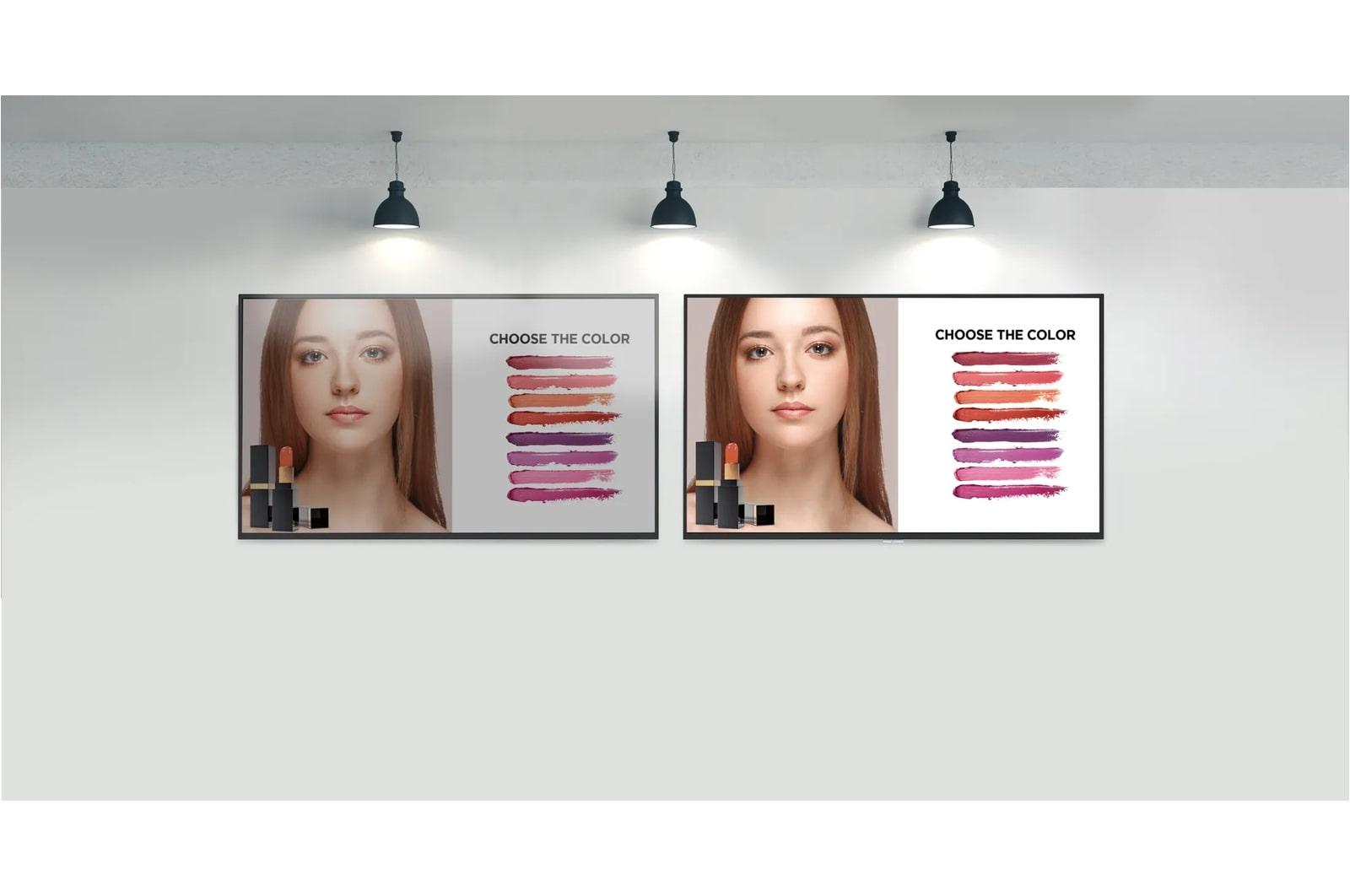

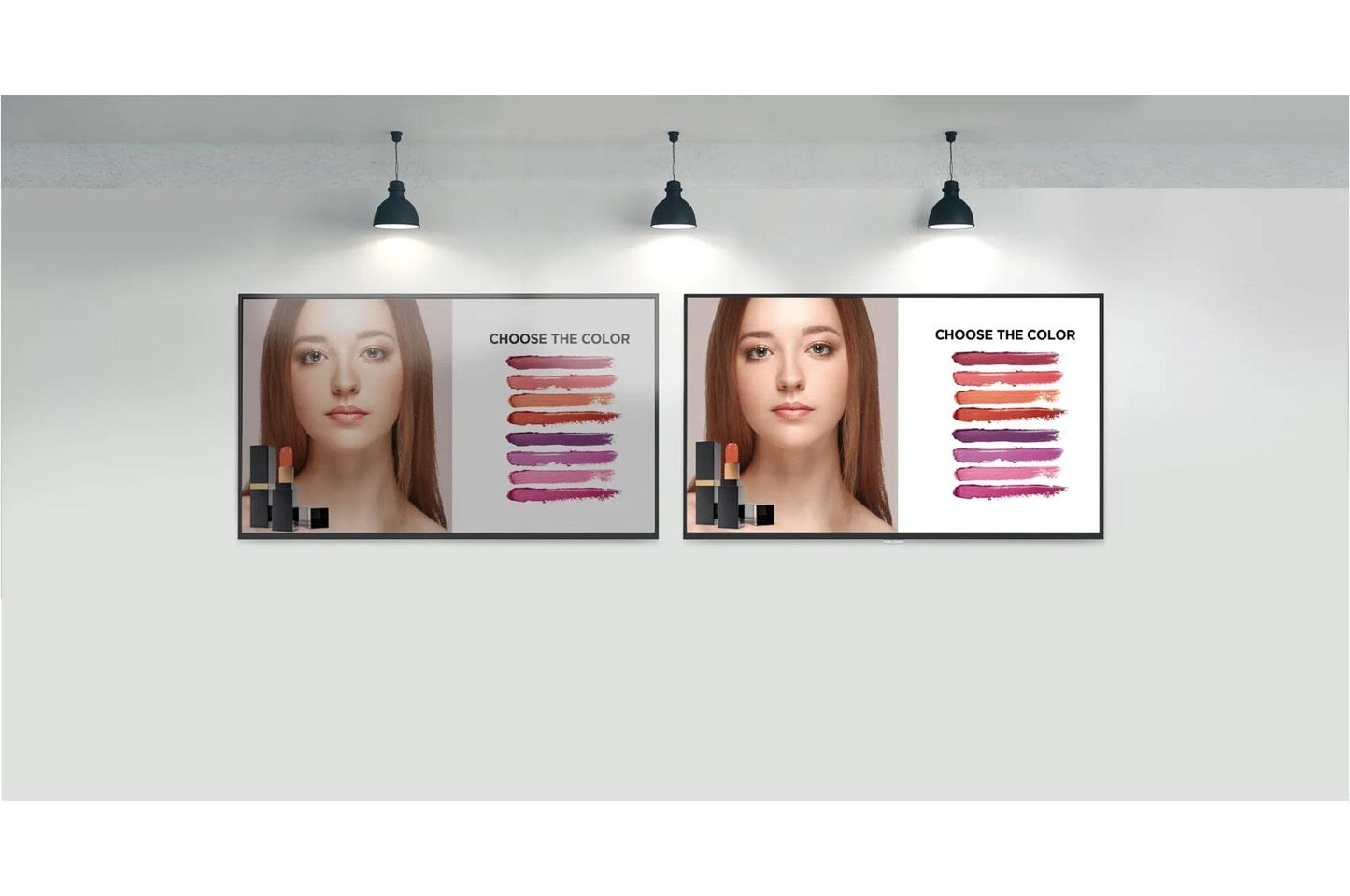

500 nits brightness & 28% (Haze) surface treatment lets your message been seent
webOS™ 6.0 Signage Platform, SuperSign CMS Compatiblet

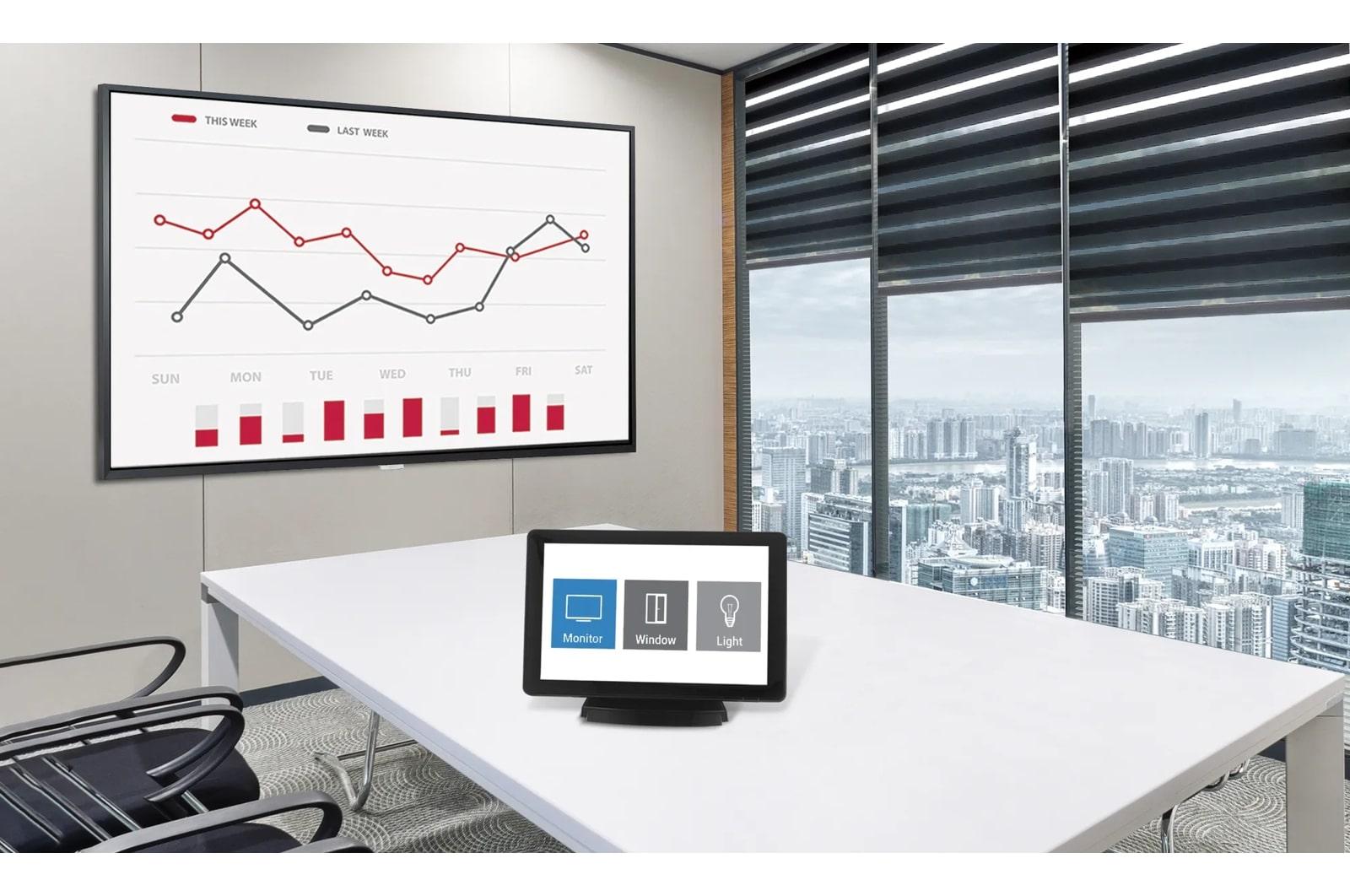

Certified Crestron Connected® and Cisco Certifiedt
Lasts up to 50,000 hours and can be on 24/7t
ENERGY STAR® Certified

86" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Ratingt

System
Operating System (OS)	webOS™ 6.0
Processor	No
Graphics	No
Storage	No
Internal Memory	16 GB (eMMC)
Electrical
Power Consumption (Max.)	260W
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)	0.5W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	0.5W
Power Consumption (Smart Energy Saving - 70%)	140W
BTU Heat Generation (Max.)	888 BTU
BTU Heat Generation (Typ.)	683 BTU
Power Consumption (Typ.)	200W
Connectivity
HDMI In	Yes (x3) HDMI1DMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4
IR In (3.5 mm)	Yes
DVI-D In	Yes (x1) HDCP 1.4
RGB In	No
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x1) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	Yes (x1)
DisplayPort Out	No
Audio Out (3.5 mm)	Yes (x1)
Touch USB	No
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Bluetooth	No
Daisy Chain	Yes (input HDMI, DP / Output HDMI)
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	86"
Panel Technology	IPS
Backlight Type	Edge
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	120 Hz
Brightness (Typ.)	500 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1100:1
Dynamic Contrast Ratio	1000000:1
Color Gamut	BT709 95%
Color Depth (Number of Colors)	10 bit, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	28%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	No
Features
Crestron Certified Compatibility	Yes
Beacon	Yes
Play Via URL	Yes
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	Not Available
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Even bezel: 14.3 mm
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	108.0 lbs / 49 kg
Weight Signage Box	N/A
Shipping Weight	159.8 lbs / 72.5 kg
Dimensions (W x H x D)	75.8 x 43.2 x 2.4 in / 1,926.2 x 1,097.2 x 60.6 mm (without LG Logo)
Dimensions with Stand (W x H x D)	Not Available
Dimensions with Pemnut (W x H x D)	N/A
Dimensions Signage Box (W x H x D)	N/A
Shipping Dimensions (W x H x D)	80.2 x 49.2 x 11.2 in / 2,037 x 1,250 x 285 mm
Conformal Coating (Power Board)	Yes
Handle	Yes
VESA™ Standard Mount Interface	600 x 400 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	No
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
U.S. ePEAT (Environmental)	No
FCC (Regulatory)	EMC Class A
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	Yes
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	Mexico
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e
Optional Accessories	OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)
UPC	1 95174 04283 0
Basic Accessories (included)	Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Touch Panel
Available Object Size for Touch	No
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	No
Multi Touch Point (Max.)	No
Protection Glass Transmission	No
Protective Glass Thickness	No
Operating System Support	No
Protective Glass
Thickness	No
Degree of Protection	No
Tempered / Chemical Strengthening	No
Anti-Reflective	No
Anti-Reflective Coating	No
Anti-Reflective Film	No
Infrared - Resistance (IR)	No
Shatter-Proof	No
Heat Dissipation	No
Heater	No
Noise Level	No
Smart Features
Screen Share	Yes
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	Yes
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	Yes (x4)
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	No
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (x4)
PM mode	Yes
Picture-in-Picture (PIP)	Yes
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	N/A
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	Yes
