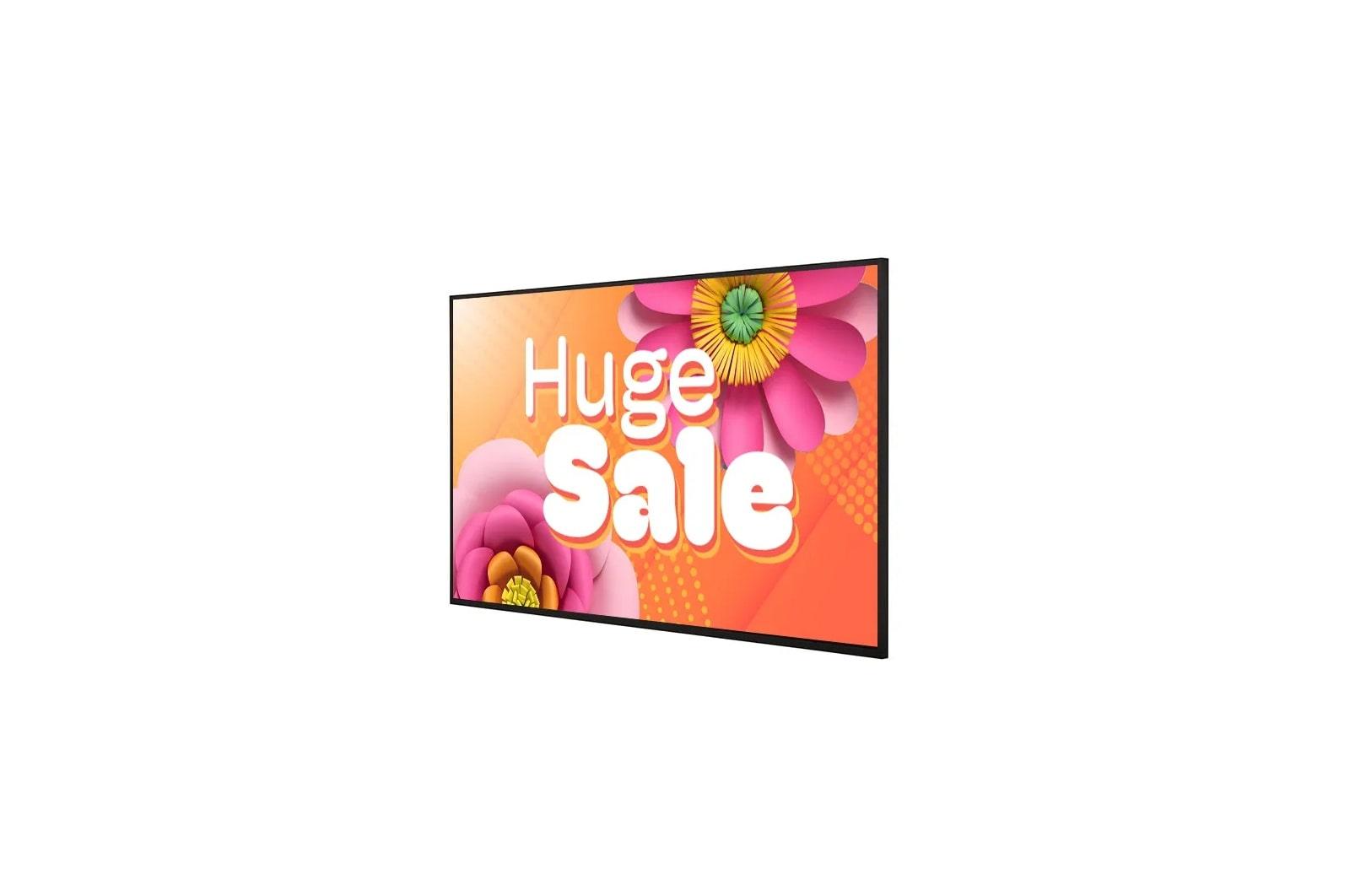

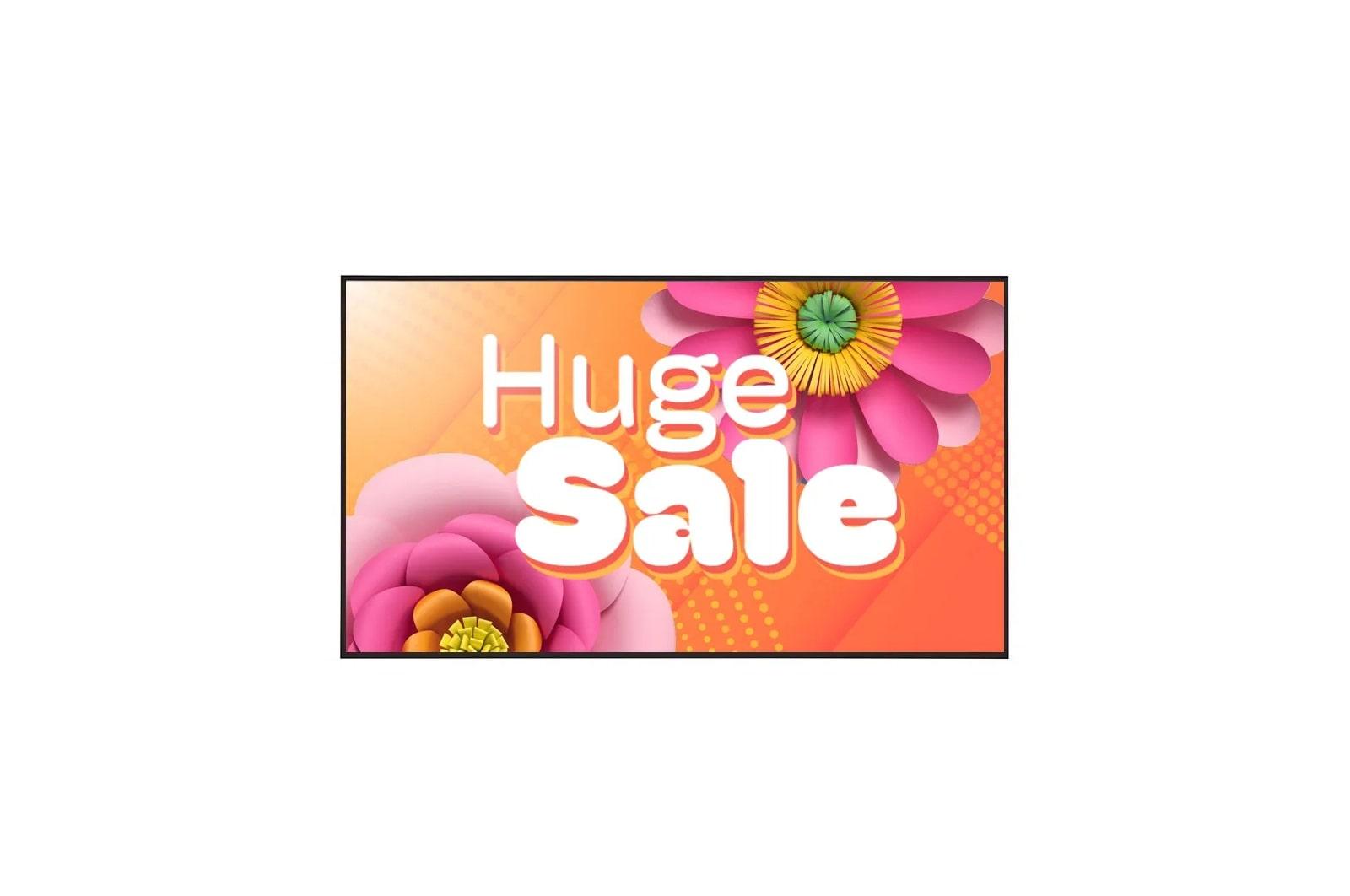

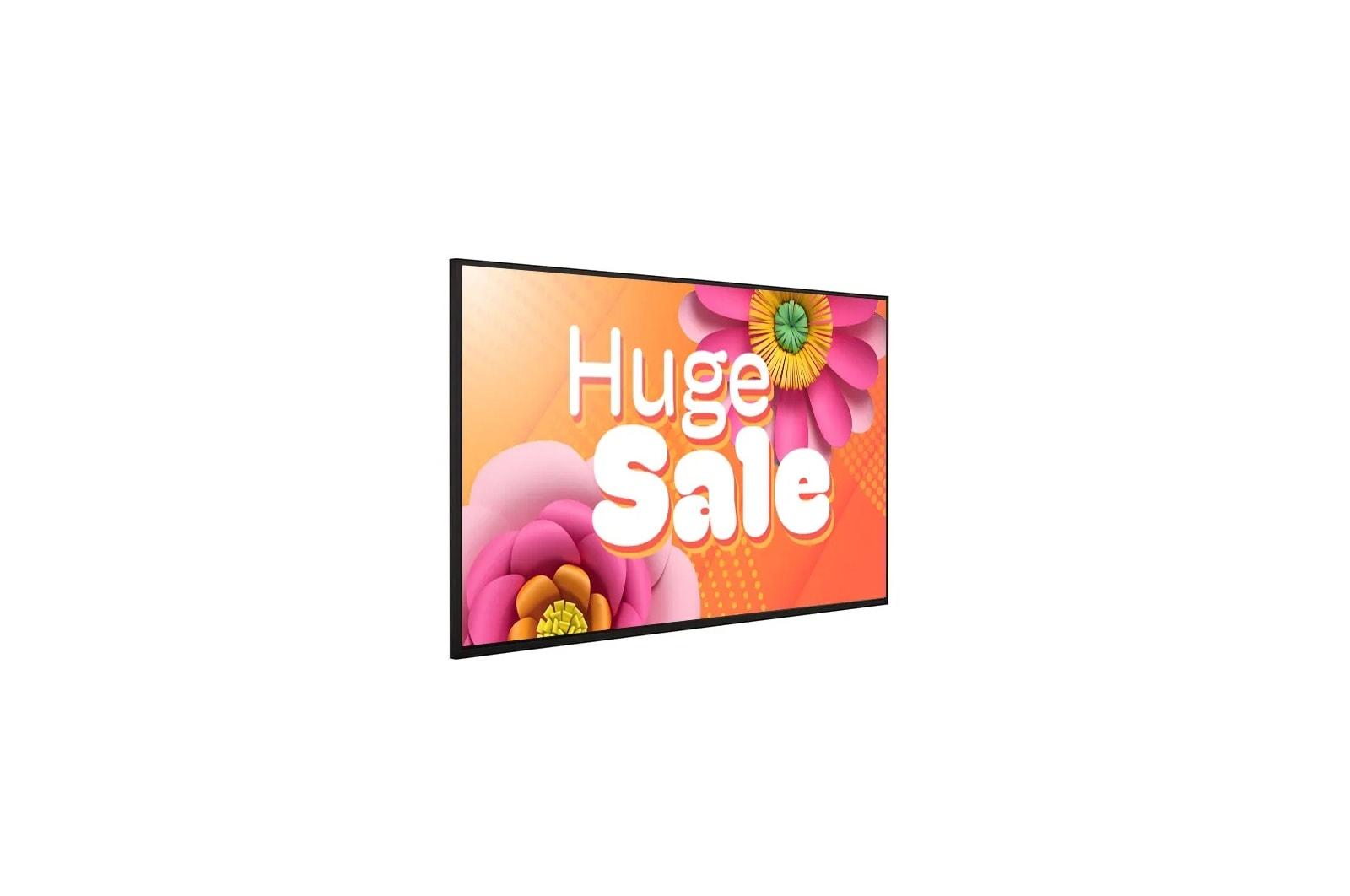

Lg 86UH5NM 86" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security

Item Not Available

Check Delivery:

86 inch UHD (3,840 x 2,160) display with 500 nits brightness creates clear, crisp images

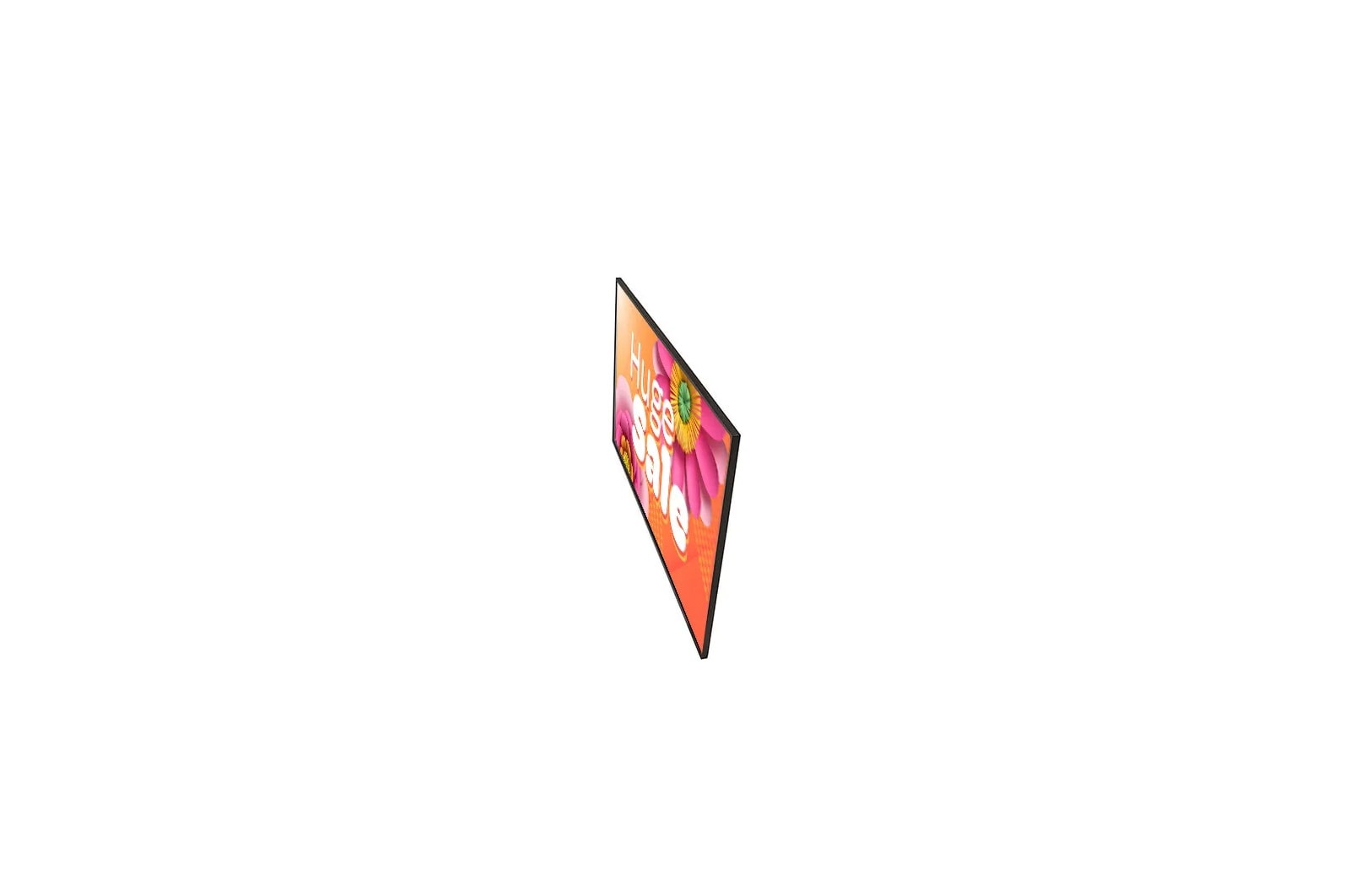

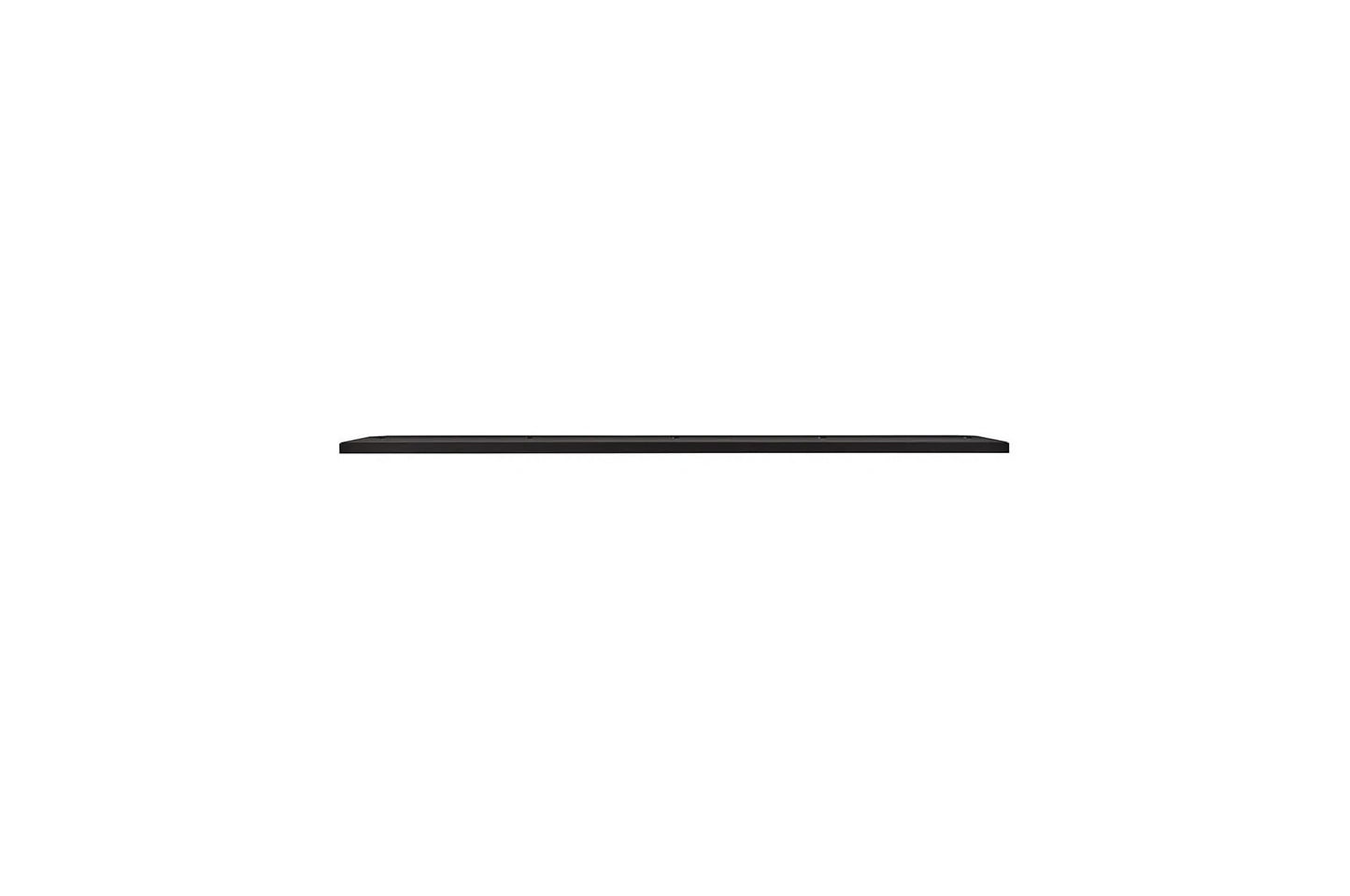

The ultra slim bezel & cable management allows it to sit close to the wall
LG webOS™ 6.0 smart signage platform provides enhanced user convenience with an intuitive GUI
Enhanced security features ensure your customer's data is secure
Compatible with LG SuperSign and ConnectedCare DMS for easy management (Sold separately)
24/7 use with lifetime up to 50,000 hrs

86" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security

System
Operating System (OS)	webOS™ 6.0
Processor	No
Graphics	No
Storage	No
Internal Memory	16 GB
Electrical
Power Consumption (Max.)	297W
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)	0.5W
Power Type	Built-in Power
PoE Type	No
PoE Power Class	No
Power Consumption (Display Power Management - DPM)	0.5W
Power Consumption (Smart Energy Saving - 70%)	144W
BTU Heat Generation (Max.)	1013 BTU
BTU Heat Generation (Typ.)	672 BTU
Power Consumption (Typ.)	205W
Connectivity
HDMI In	Yes (x3)
IR In (3.5 mm)	Yes (x1)
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	Yes (x1)
DisplayPort In	Yes (x1)
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	No
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x1) USB 2.0
USB Type-C In	No
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	No
Audio Out (3.5 mm)	Yes (x1)
Touch USB	No
IR Out	No (Support IR daisy chain via RS-232C In/Out)
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	No
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Bluetooth	Yes
Daisy Chain	No
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	86"
Panel Technology	ADS
Backlight Type	Edge
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	120 Hz
Brightness (Typ.)	500 nits
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1200:1
Dynamic Contrast Ratio	1000000:1
Color Gamut	BT709 95%
Color Depth (Number of Colors)	10 bit (D), 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	25%
Surface Treatment (Anti Glare)	No
Surface Treatment (Hard Coating)	No
Reflectance (Typ.)	No
Operation Hours (Hours per Day / Days per Week)	24/7
Lifetime	Up to 50,000 Hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	Yes (x2) 10W
Features
Crestron Certified Compatibility	Yes
Beacon	Yes
Play Via URL	Yes
Cisco Certified Compatibility	No
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T/R/L/B: 13.4 mm
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Not Available
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	115.74 lbs / 52.5 kg
Shipping Weight	144.40 lbs / 65.5 kg
Dimensions (W x H x D)	75.93 x 43.29 x 1.16 in / 1,928.8 x 1,099.8 x 29.7 mm
Dimensions Signage Box (W x H x D)	82.67 x 49.21 x 9.96 in / 2,100 x 1,250 x 253 mm
Conformal Coating (Power Board)	Yes
Handle	Yes
VESA™ Standard Mount Interface	600 x 400 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	No
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	Yes
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	No
EN13501-1	Yes
U.S. ePEAT (Environmental)	Yes
FCC (Regulatory)	EMC Class B
BS476 Part7 (UK Fire Rating)	Class 1
IP Rating (Solid / Liquid Ingress)	IP5X
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	No
ERP (Environmental)	No
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	Mexico
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e
Optional Accessories	Wall Mount
UPC	1 95174 09742 7
Basic Accessories (included)	Remote Control (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS-232C Gender, Cable Holder (6EA), Cable Holder (7Pin/1EA)n
Smart Features
Screen Share	Yes
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	Yes
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	Yes (4)
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (4)
PM mode	Yes
Picture-in-Picture (PIP)	Yes
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes (Max. 15 x 15)
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	Not Available
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
