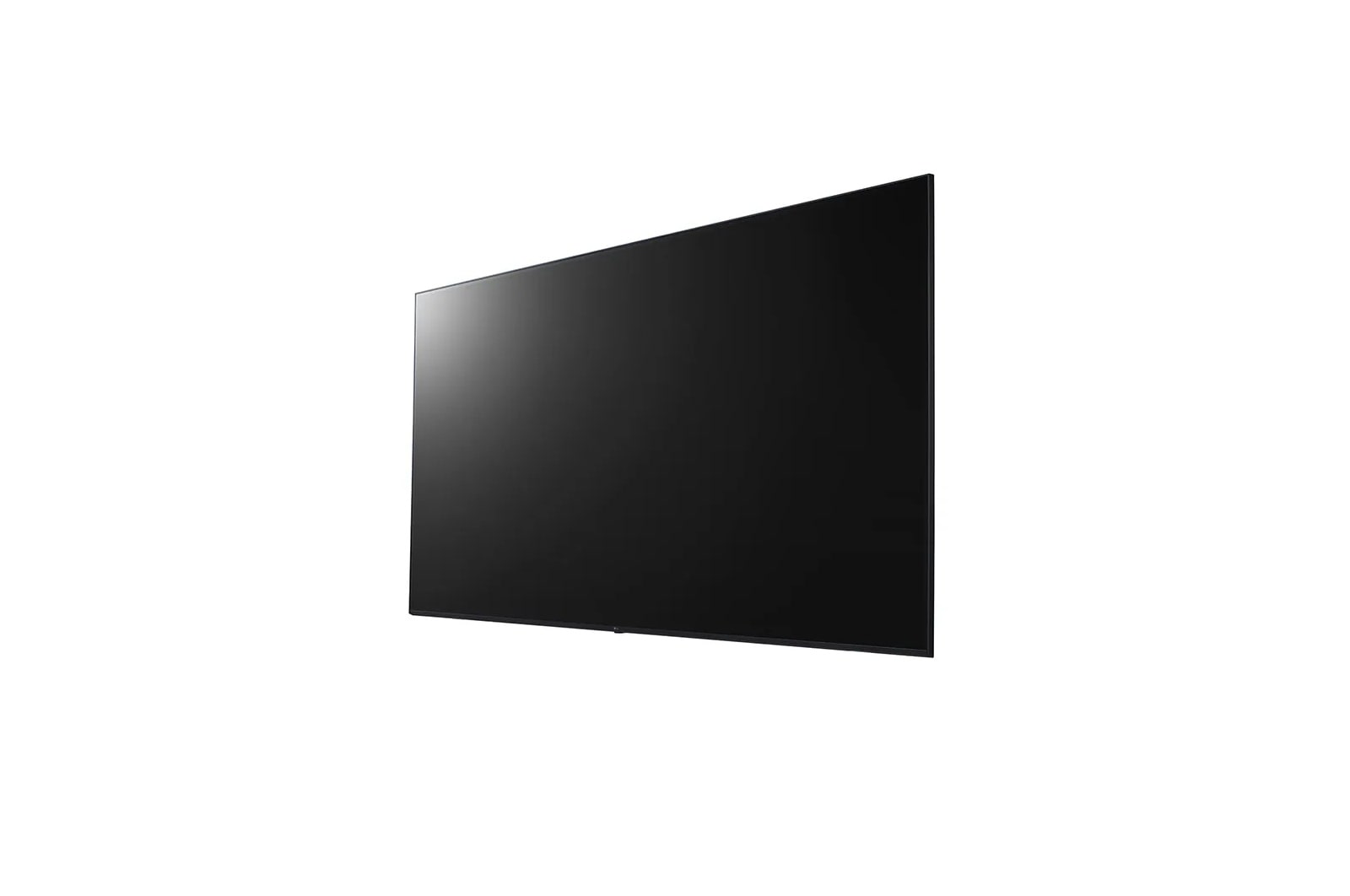

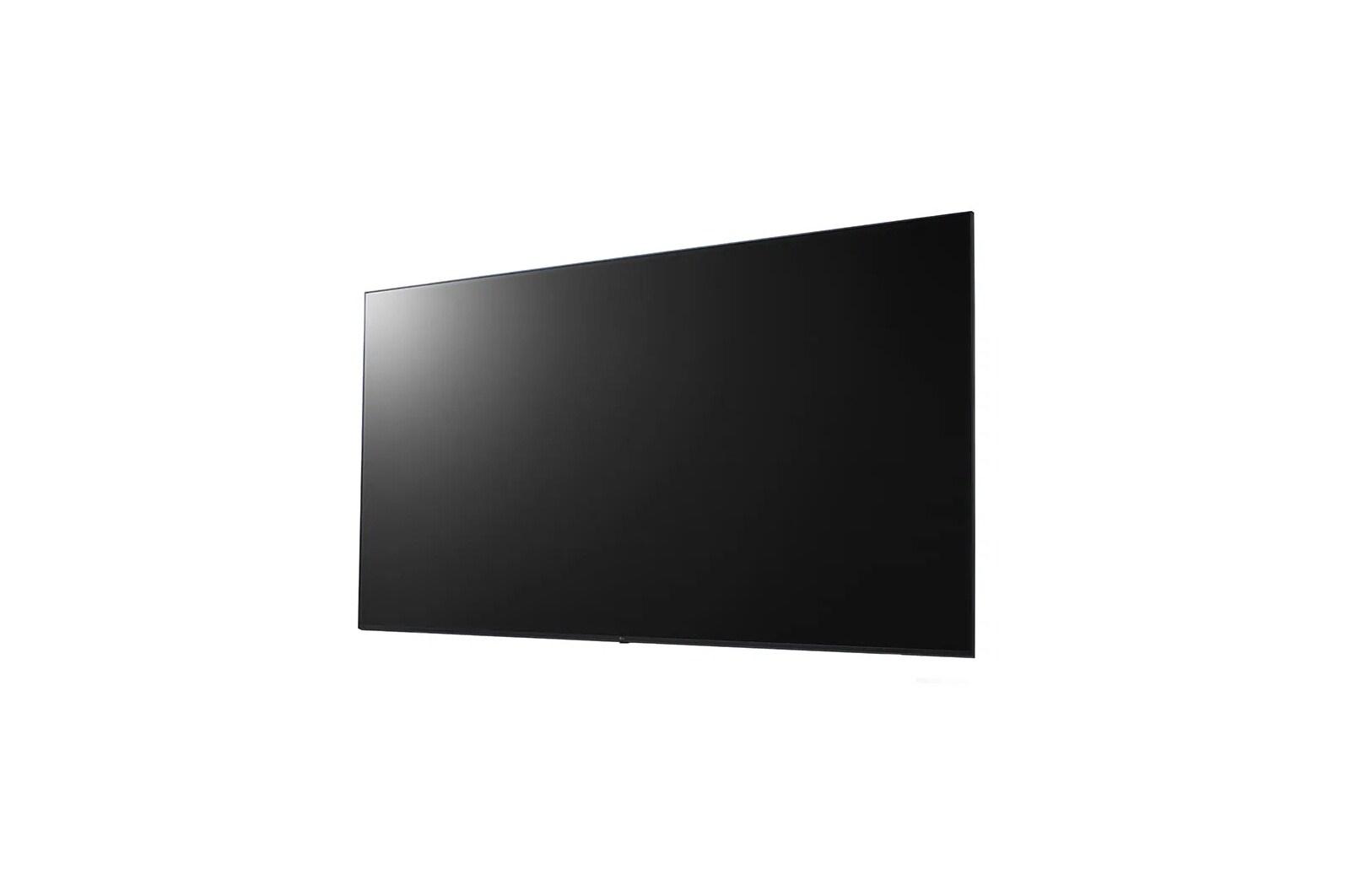

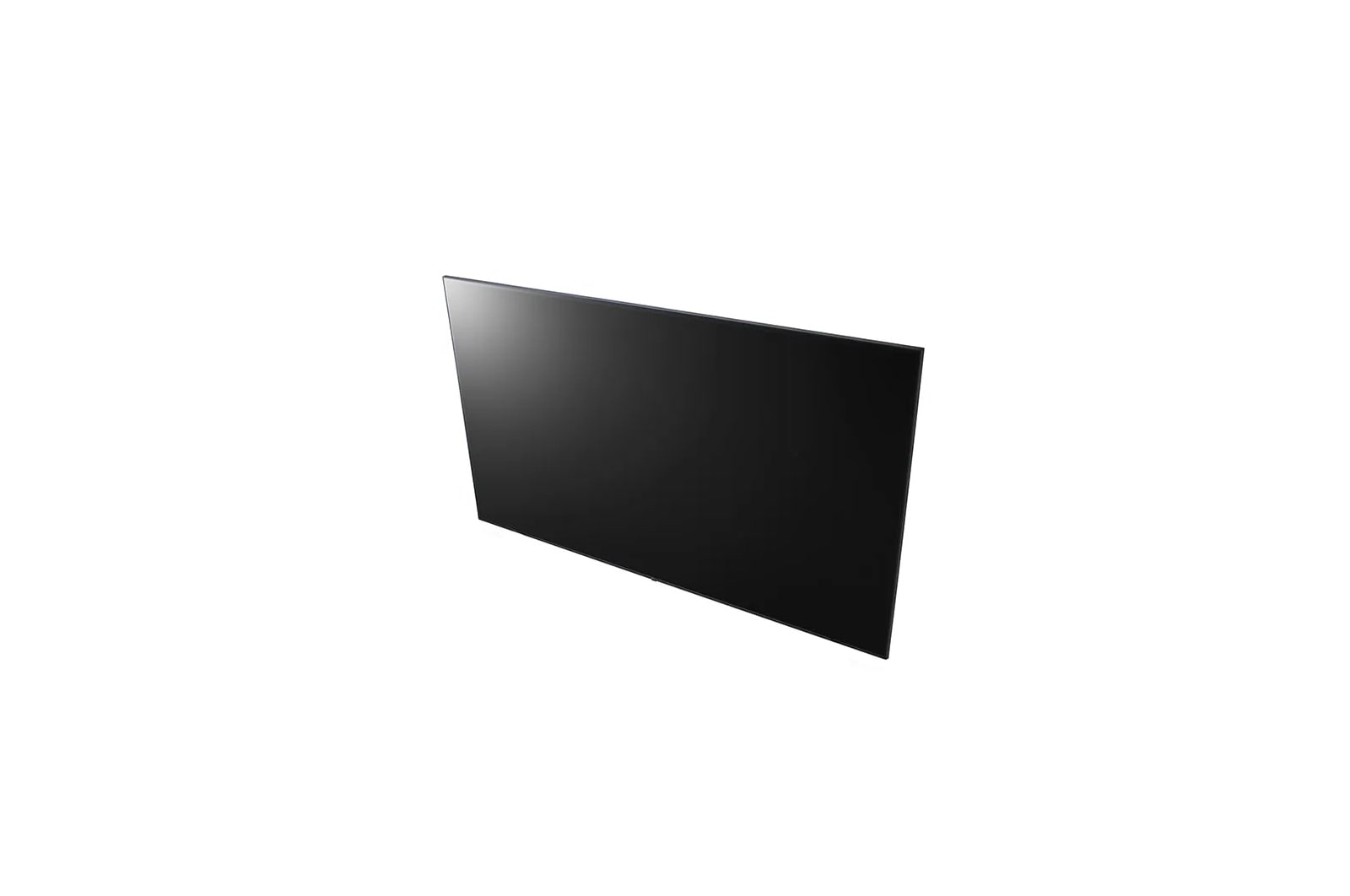

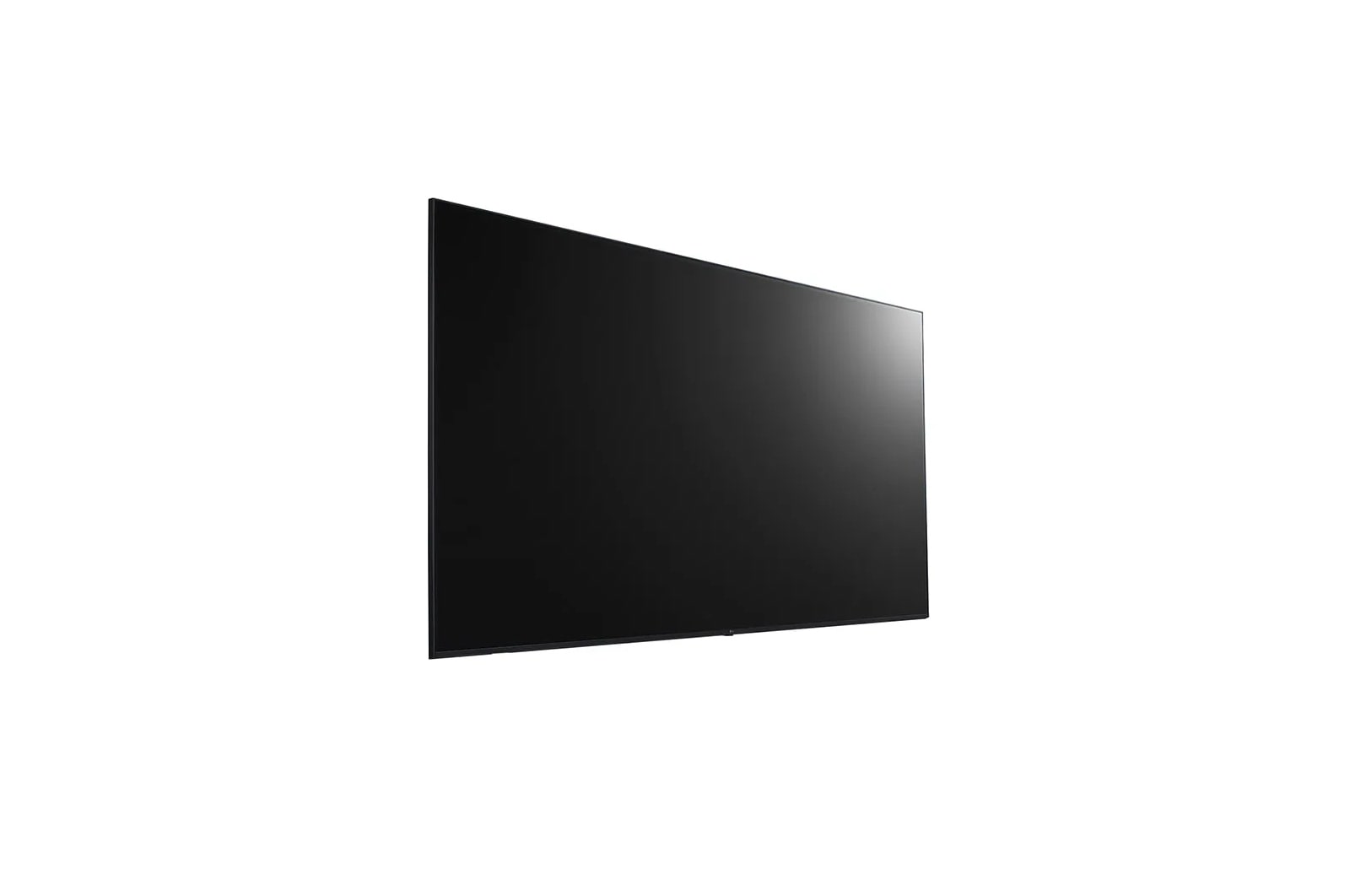

Lg 86UL3JB 86" UL3J-B UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
Lg 86UL3JB 86" UL3J-B UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Resolution : ULTRA HD (3,840 x 2,160)
- High-Performance with LGwebOS TM 6.0
- Built-in Speaker
- Compatible with LG's One:Quick Share
- ENERGY STAR® Certified
86" UL3J-B UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
| System | |
| Operating System (OS) | webOS™ 6.0 |
| Processor | No |
| Graphics | No |
| Storage | No |
| Internal Memory | 8 GB (eMMC) |
| Electrical | |
| Power Consumption (Max.) | 300W |
| Power Supply | AC 100-240V~, 50/60 Hz |
| Power Consumption (Power Off) | 0.5W |
| Power Type | Built-in Power |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 154W |
| BTU Heat Generation (Max.) | 1,024 BTU |
| BTU Heat Generation (Typ.) | 751 BTU |
| Power Consumption (Typ.) | 220W |
| Connectivity | |
| HDMI In | Yes (x3) HDCP 2.2/1.4 |
| IR In (3.5 mm) | No |
| DVI-D In | No |
| RGB In | No |
| Audio In (3.5 mm) | No |
| DisplayPort In | No |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RS-232C In (D-sub 9-pin) | No |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x2) USB 2.0 |
| USB Type-C In | No |
| Power In (DC From External PWR Box) | No |
| Power Loop In | No |
| HDMI Out | Yes (x1) |
| DisplayPort Out | No |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | No |
| IR Out | No |
| RJ45 (LAN) Out | No |
| RS-232C Out (3.5 mm) | Yes (x1) |
| RS-232C Out (D-sub 9-pin) | No |
| Power Loop Out | No |
| External Speaker Out (3.5 mm) | No |
| Bluetooth | No |
| Daisy Chain | No |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 86" |
| Panel Technology | IPS |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 120 Hz |
| Brightness (Typ.) | 330 nits |
| Brightness (Max.) | Not Available |
| Brightness (Min.) | Not Available |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Color Gamut | DCI 80% |
| Color Depth (Number of Colors) | 1.07 Billion Colors, 8 bit |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 5 ms |
| Moving Picture Response Time | N/A |
| Surface Treatment (Haze) | 3% |
| Surface Treatment (Anti Glare) | No |
| Surface Treatment (Hard Coating) | No |
| Reflectance (Typ.) | N/A |
| Operation Hours (Hours per Day / Days per Week) | 16/7 |
| Lifetime | Up to 30,000 Hrs |
| Orientation | Landscape |
| Transparency | No |
| QWP (Quarter Wave Plate) | No |
| Audio/Sound | |
| Built-in Speakers | No |
| Features | |
| Crestron Certified Compatibility | Yes |
| Beacon | Yes |
| Play Via URL | Yes |
| Cisco Certified Compatibility | No |
| Failover | Yes |
| Mechanical | |
| Bezel Color | Ashed Blue |
| Bezel Width | Not Available |
| Bezel Width (On Bezel) | Even bezel: 15.9 mm |
| Bezel Width (Off Bezel) | T/R/L: 6.9 mm, B: 18.4 mm |
| Tilt (Face Down) | No |
| Tilt (Face Up) | No |
| Weight | 99.6 lbs / 45.2 kg |
| Weight Signage Box | N/A |
| Shipping Weight | 127.2 lbs / 57.7 kg |
| Dimensions (W x H x D) | 75.9 x 43.5 x 2.4 in / 1927 x 1104 x 59.9 mm |
| Dimensions with Stand (W x H x D) | Not Available |
| Dimensions with Pemnut (W x H x D) | N/A |
| Dimensions Signage Box (W x H x D) | N/A |
| Shipping Dimensions (W x H x D) | 83.3 x 47.8 x 9 in / 2,115 x 1215 x 228 mm |
| Conformal Coating (Power Board) | Yes |
| Handle | No |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| Overlay Touch Compatibility | No |
| Smart Calibration | No |
| Power Protection | No |
| Direct Sunlight | No |
| LG Software Compatible | |
| SuperSign™ CMS | Yes |
| SuperSign™ Media Editor | No |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ Cloud | No |
| Mobile CMS | No |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | No |
| U.S. ePEAT (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| IP Rating (Solid / Liquid Ingress) | No |
| TAA Compliance | No |
| CE Marking (Regulatory) | Yes |
| ISTA6 (Packaging) | No |
| ERP (Environmental) | Yes |
| Energy Star (Environmental) | No |
| Warranty & Other | |
| Assembled In | Mexico |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| Optional Accessories | No |
| UPC | 1 95174 01289 5 |
| Basic Accessories (included) | Remote Controller (include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
| Touch Panel | |
| Available Object Size for Touch | No |
| Touch Response Time (G to G) | N/A |
| Writing Height | No |
| Accuracy (Typ.) | No |
| Interface | No |
| Active Pen Interface | No |
| Multi Touch Point (Max.) | No |
| Protection Glass Transmission | No |
| Protective Glass Thickness | No |
| Operating System Support | No |
| Protective Glass | |
| Thickness | No |
| Degree of Protection | No |
| Tempered / Chemical Strengthening | No |
| Anti-Reflective | No |
| Anti-Reflective Coating | No |
| Anti-Reflective Film | No |
| Infrared - Resistance (IR) | No |
| Shatter-Proof | No |
| Heat Dissipation | No |
| Heater | No |
| Noise Level | No |
| Smart Features | |
| Screen Share | Yes |
| Hospitality Features | |
| Pro:Idiom® | Yes |
| Wake on LAN | Yes |
| Hardware Features | |
| Local Key Operation | Yes (Power On/Off only) |
| Built-in Microphone | No |
| Built-in Camera | No |
| Pixel Sensor | No |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Built-in Cooling Fan | No |
| Acceleration (Gyro) Sensor | No |
| Current Sensor | No |
| BLU Sensor | No |
| Power Indicator | No |
| Proximity Sensor | No |
| Humidity Sensor | No |
| Software Features | |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | No |
| Control Manager | Yes |
| SI Server Setting | Yes |
| Setting Data Cloning | Yes |
| Status Mailing | Yes |
| Auto Set ID | Yes |
| Scan Inversion | No |
| Backlight Sync | No |
| ISM Method | Yes |
| Group Manager | Yes |
| Booting Logo Image | Yes |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| W/B Setting by Grayscale | No |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (x4) Max One HDMI input |
| PM mode | Yes |
| Picture-in-Picture (PIP) | No |
| Local Network Sync | Yes |
| Screen Rotation | Yes |
| Smart Energy Saving | Yes |
| Tile Mode Setting | Yes |
| External Input Rotation | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Brightness Compensation | No |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature (Portrait) | 32°F to 86°F / 0°C to 30°C |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| OPS Compatibility | |
| OPS Power Built-in | No |
| OPS Compatible | No |
