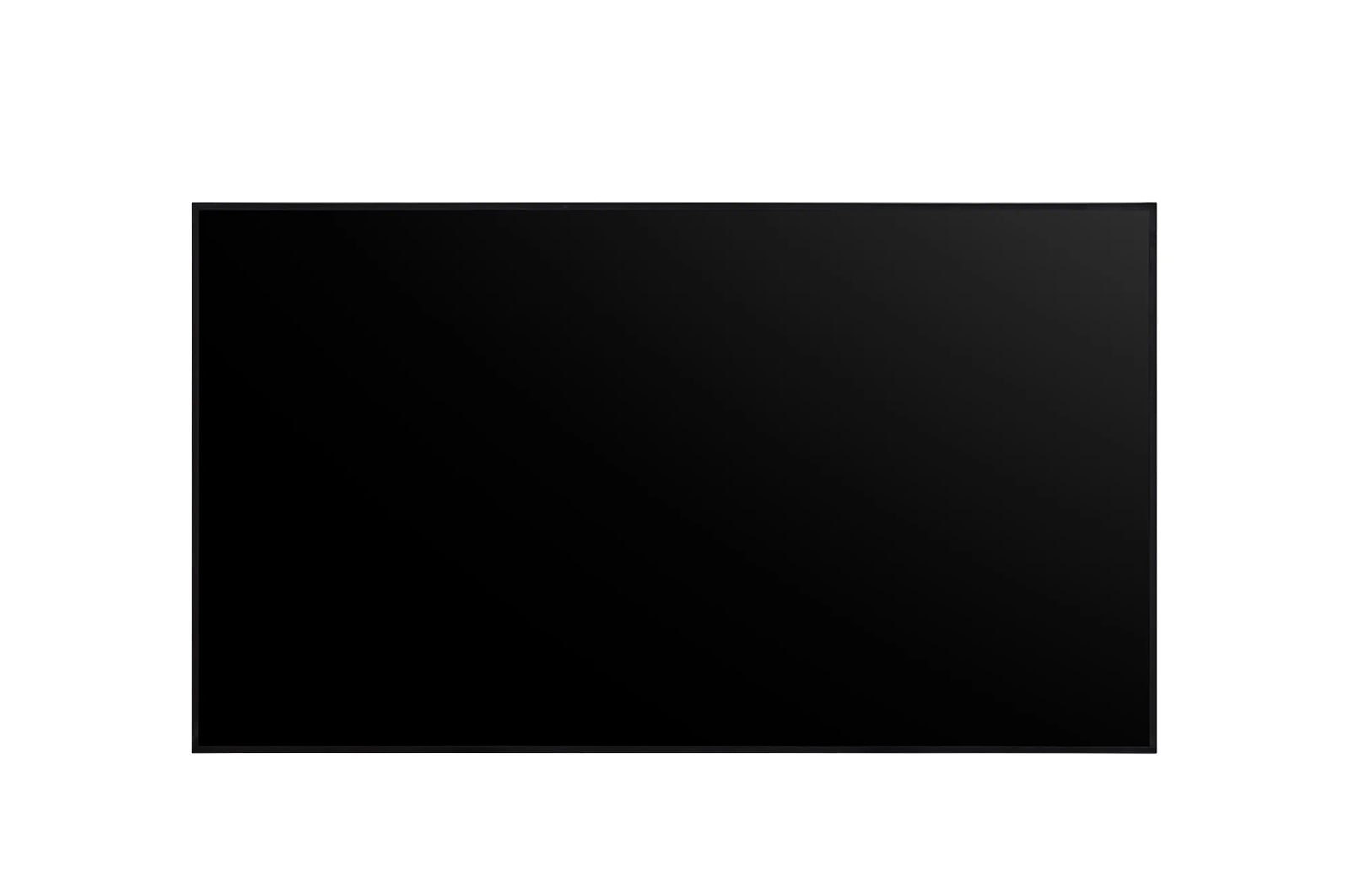

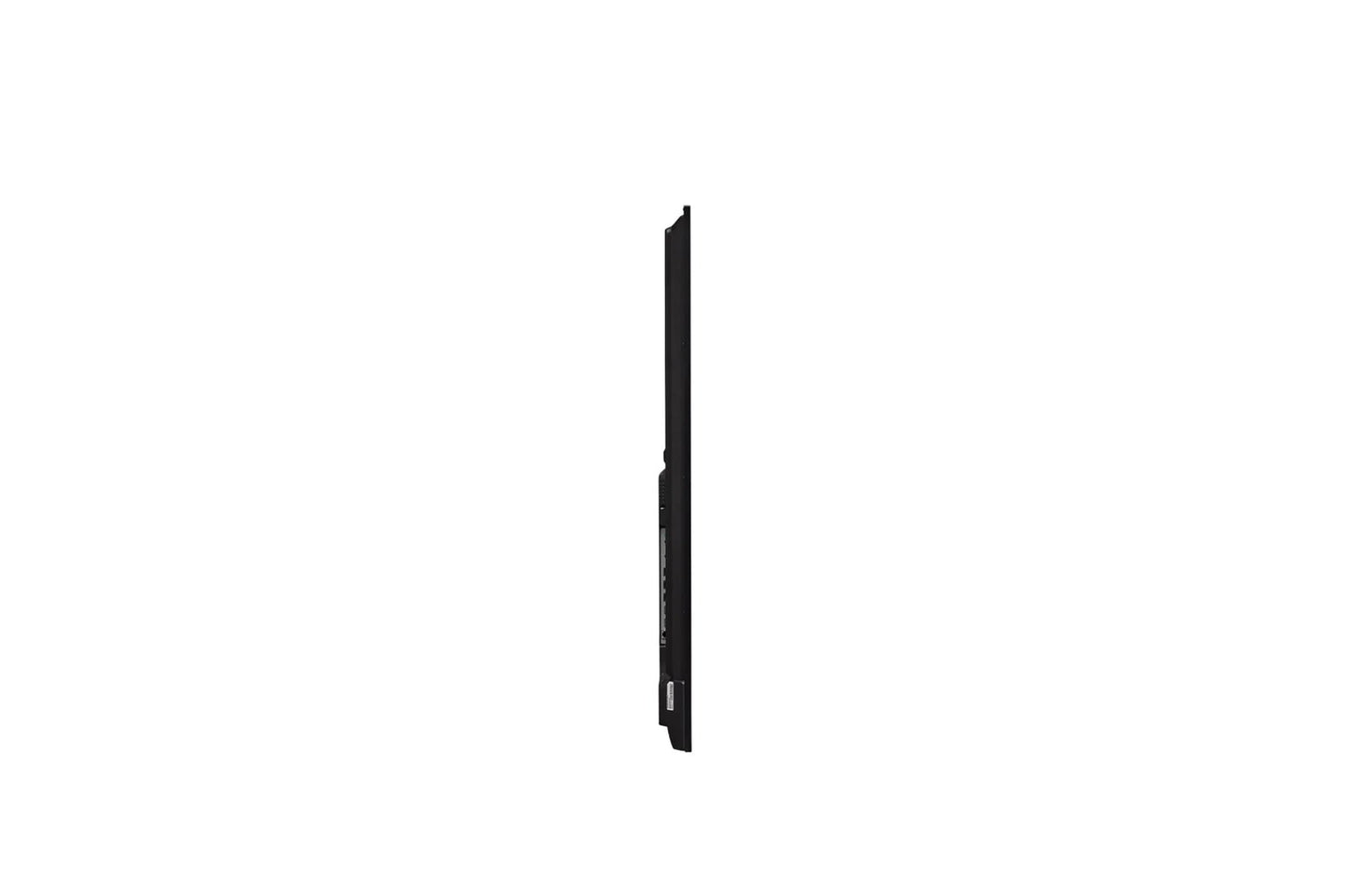

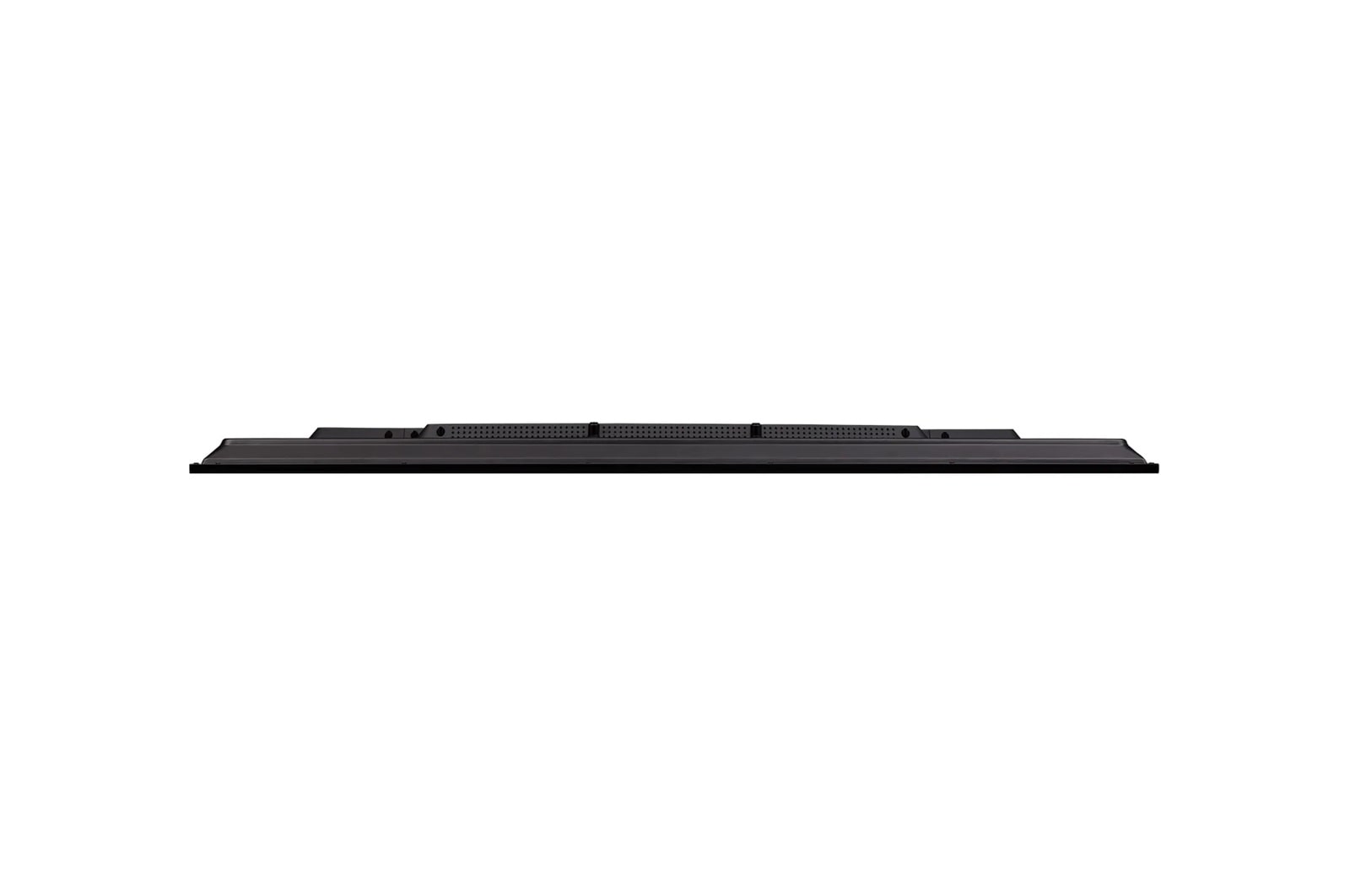

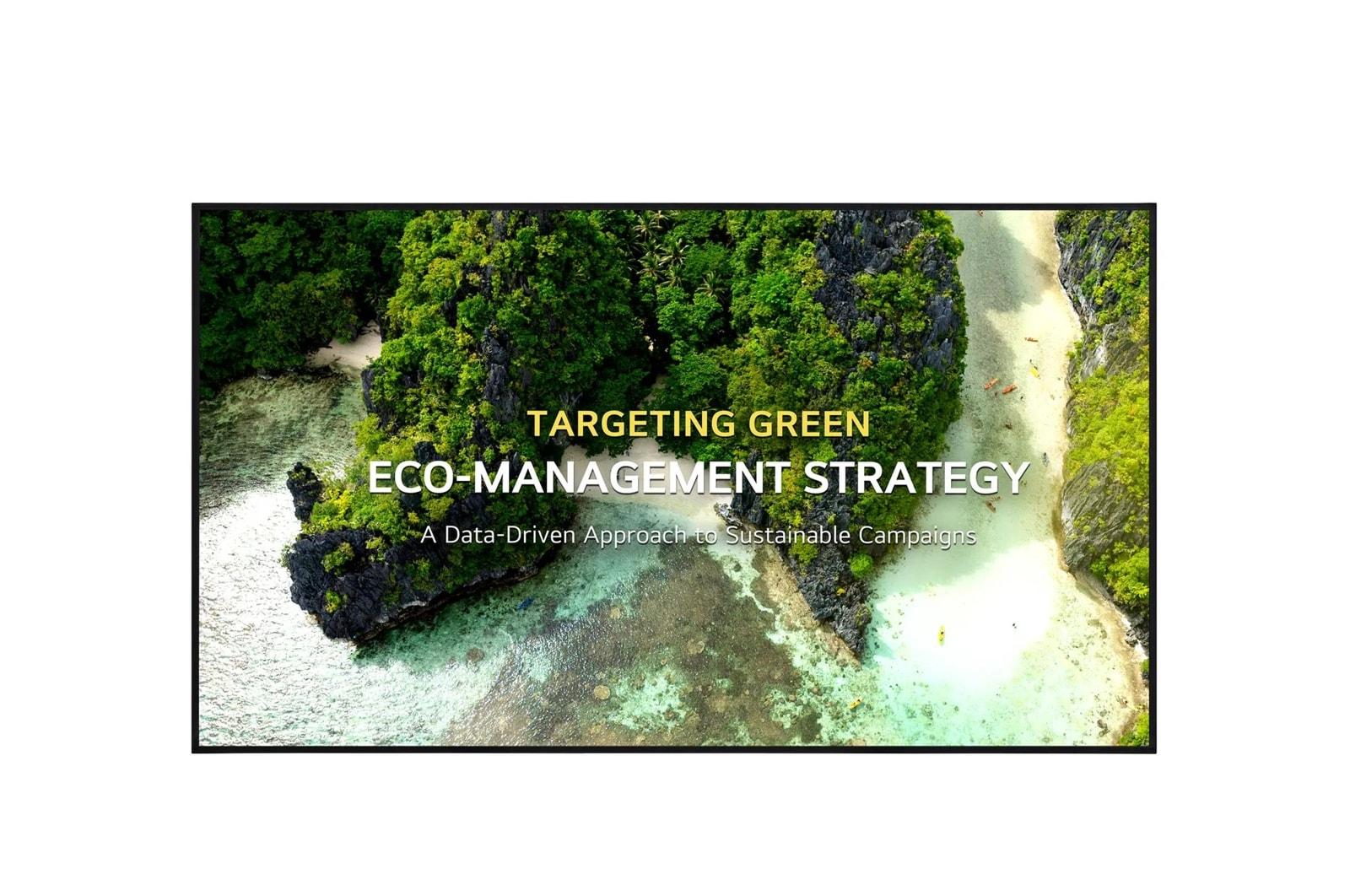

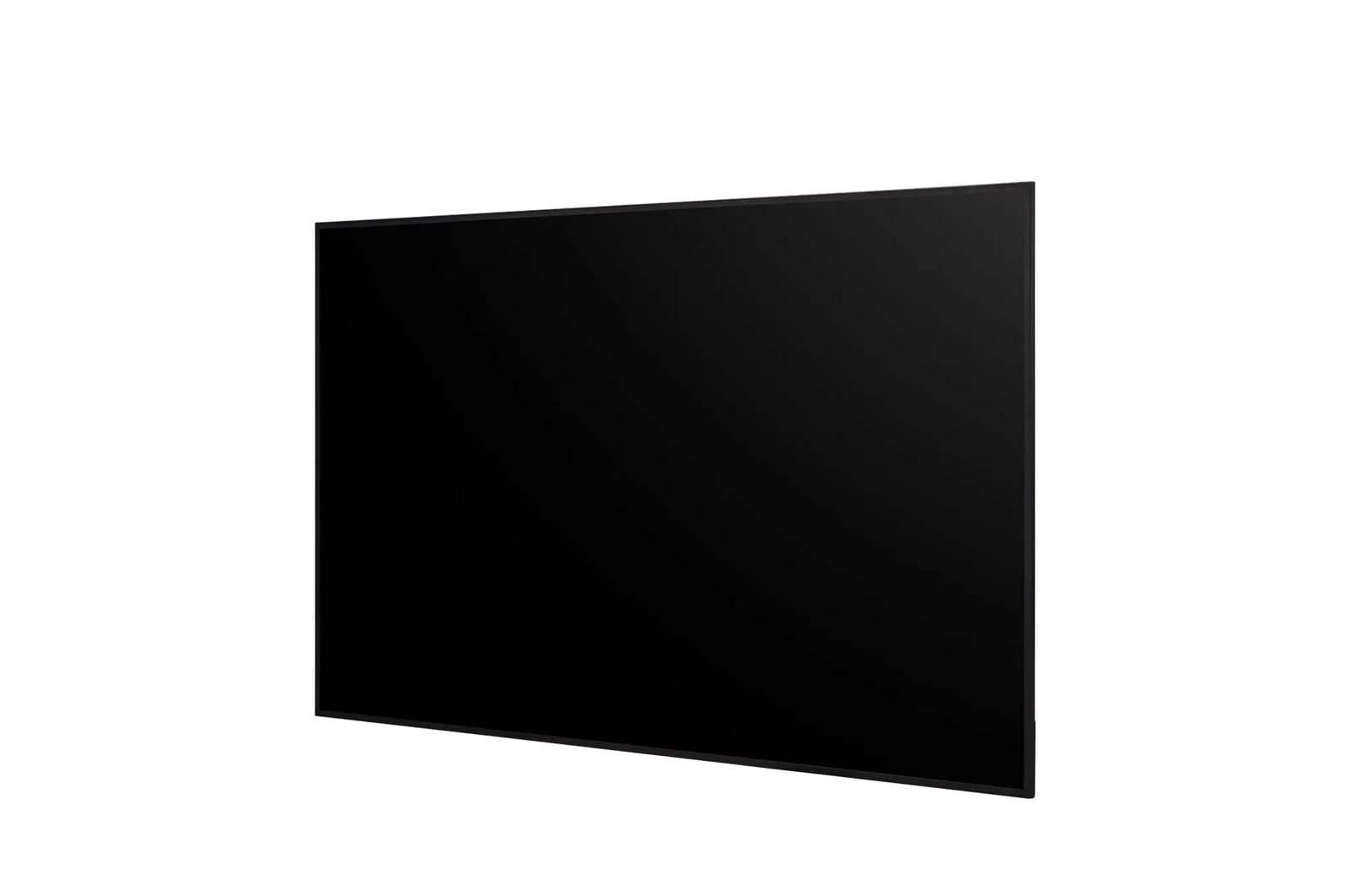

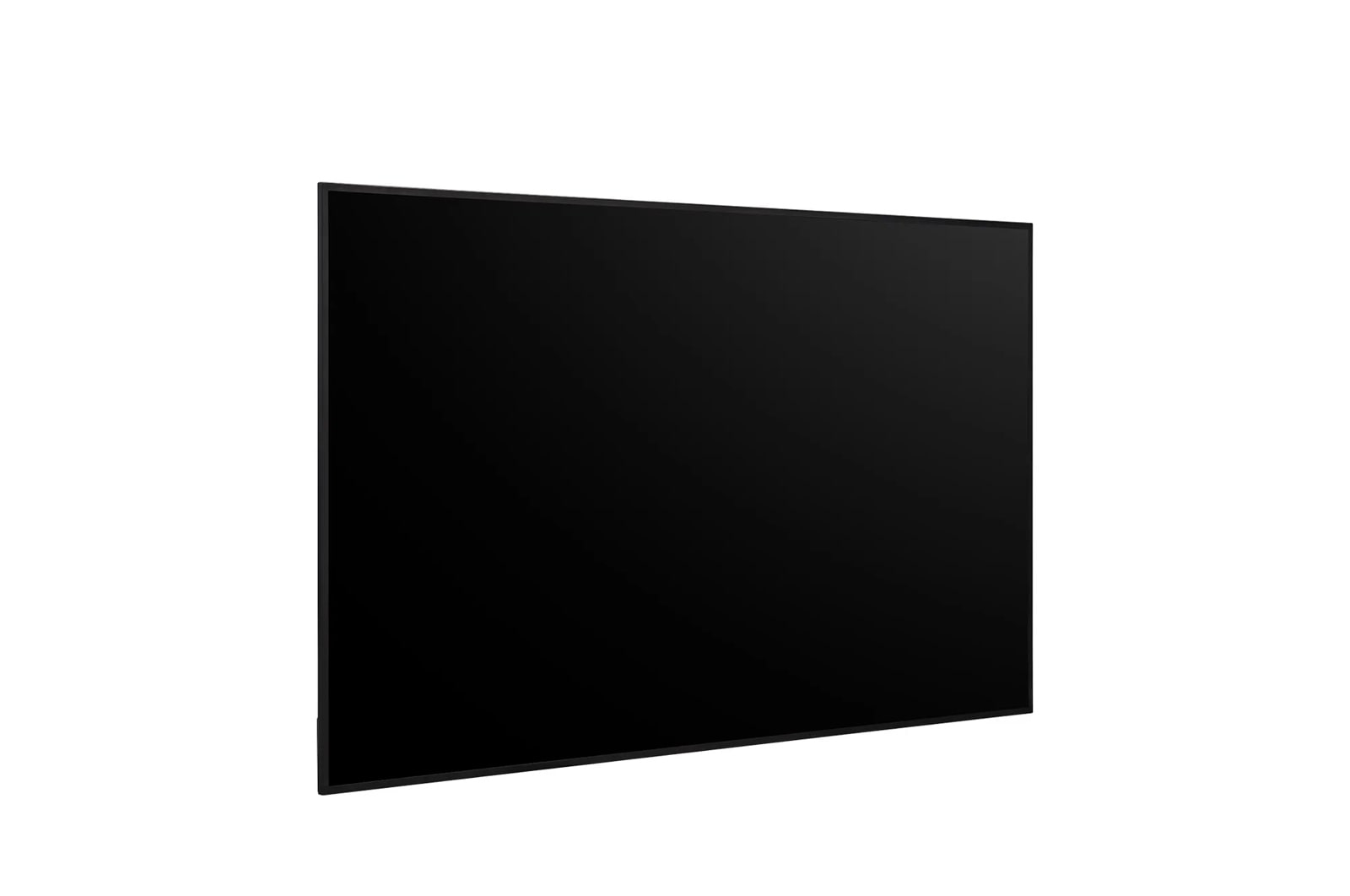

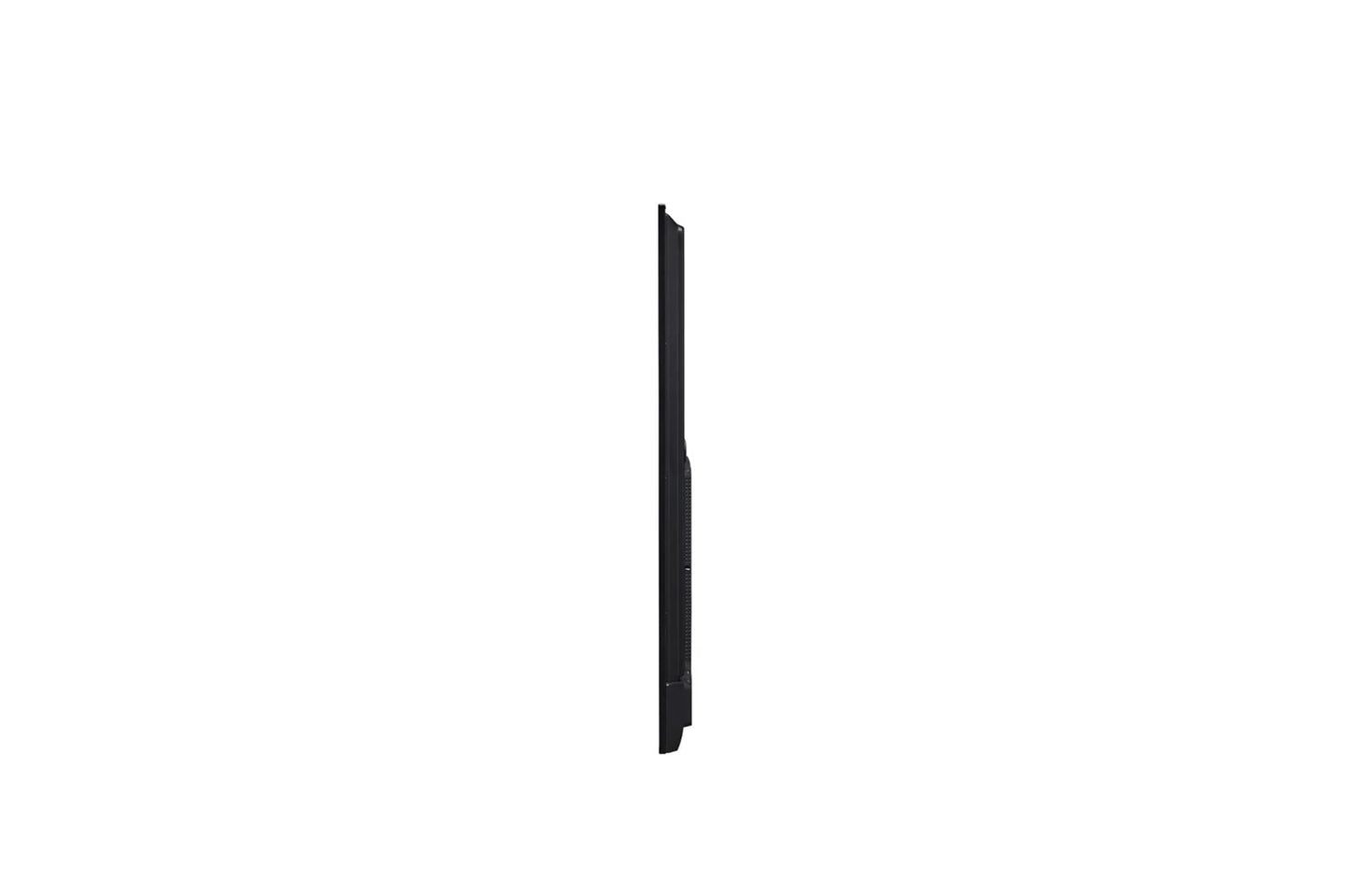

Lg 86UL3QE 86" UL3Q-E Series UHD Signage with webOS™ 6.1, Uniform Bezel Design, and Built-In Brightness Sensor

Item Not Available

Check Delivery:

High resolution display of 3,840 x 2,160 (UHD)
350 Nit Brightness
High-Performance with webOS 6.1
Enhanced Security
Sustainability for ESG

86" UL3Q-E Series UHD Signage with webOS™ 6.1, Uniform Bezel Design, and Built-In Brightness Sensor

System
Operating System (OS)	webOS™ 6.1
Processor	N/A
Graphics	N/A
Storage	N/A
Internal Memory	8 GB
Electrical
Power Consumption (Max.)	280W
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)	0.5W
Power Type	Built-in Power
PoE Type	N/A
PoE Power Class	N/A
Power Consumption (Display Power Management - DPM)	0.5W
Power Consumption (Smart Energy Saving - 70%)	143.5 W
BTU Heat Generation (Max.)	979.284 BTU/Hr
BTU Heat Generation (Typ.)	699.489 BTU/Hr
Power Consumption (Typ.)	205 W

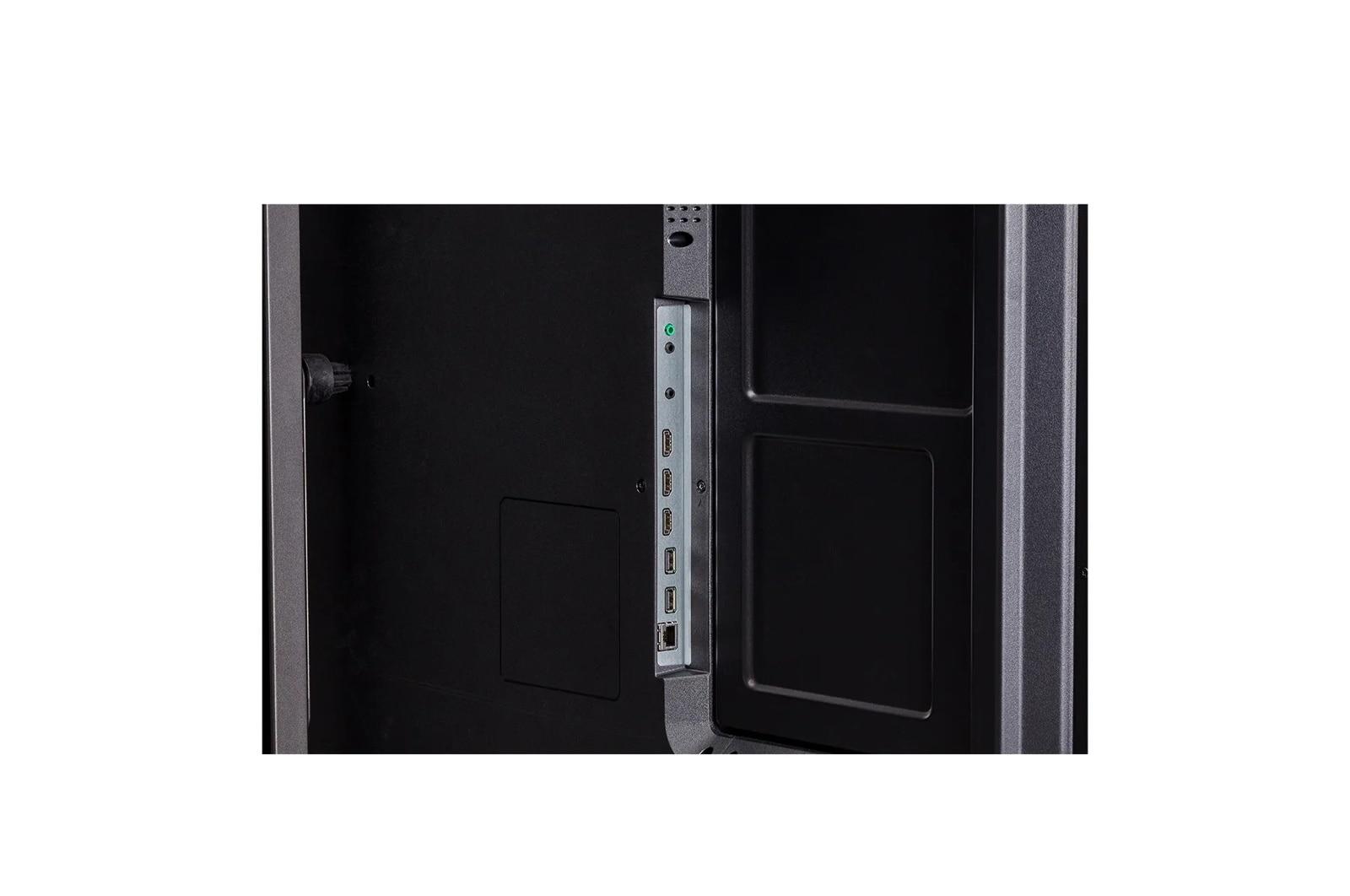

Connectivity
HDMI In	Yes (x3) HDCP2.2/1.4
IR In (3.5 mm)	No
DVI-D In	No
RGB In	No
Audio In (3.5 mm)	No
DisplayPort In	No
RS-232C In (3.5 mm 4-pin)	Yes (x1)
RS-232C In (D-sub 9-pin)	N/A
RJ45 (LAN) In	Yes (x1)
USB Type-A In	Yes (x2) USB 2.0
USB Type-C In	N/A
Power In (DC From External PWR Box)	No
Power Loop In	No
HDMI Out	No
DisplayPort Out	No
Audio Out (3.5 mm)	Yes (x1)
Touch USB	N/A
IR Out	No
RJ45 (LAN) Out	No
RS-232C Out (3.5 mm)	Yes (x1)
RS-232C Out (D-sub 9-pin)	N/A
Power Loop Out	No
External Speaker Out (3.5 mm)	No
Bluetooth	Not Available
Daisy Chain	No
Built-in Wi-Fi	Yes
Panel
Screen Size (Inches)	86"
Panel Technology	ADS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	350 nit
Brightness (Max.)	Not Available
Brightness (Min.)	Not Available
Contrast Ratio	1200:1
Dynamic Contrast Ratio	1000000:1
Color Gamut	DCI 80%
Color Depth (Number of Colors)	10 bit, 1.07 Billion Colors
Viewing Angle (H x V)	178° x 178°
Response Time (G to G)	8 ms
Moving Picture Response Time	N/A
Surface Treatment (Haze)	1%
Surface Treatment (Anti Glare)	Not Available
Surface Treatment (Hard Coating)	Not Available
Reflectance (Typ.)	N/A
Operation Hours (Hours per Day / Days per Week)	16/7
Lifetime	Up to 30,000 hrs
Orientation	Portrait / Landscape
Transparency	No
QWP (Quarter Wave Plate)	No
Audio/Sound
Built-in Speakers	Yes (x2) 10W
Features
Crestron Certified Compatibility	Yes
Beacon	Yes
Play Via URL	Yes
Cisco Certified Compatibility	Yes
Failover	Yes
Mechanical
Bezel Color	Black
Bezel Width	T/L/R/B: 12.9mm
Bezel Width (On Bezel)	Not Available
Bezel Width (Off Bezel)	Not Available
Tilt (Face Down)	No
Tilt (Face Up)	No
Weight	70.10 lbs / 31.8 Kg
Weight Signage Box	Not Available
Weight with Stand	Not Available
Shipping Weight	93.91 lbs / 42.6 Kg
Dimensions (W x H x D)	75.85 X 43.22 X 2.36 in / 1,926.6 X 1,098 X 60 mm
Dimensions with Stand (W x H x D)	Not Available
Dimensions with Pemnut (W x H x D)	Not Available
Dimensions Signage Box (W x H x D)	Not Available
Shipping Dimensions (W x H x D)	81.88 X 8.66 X 49.40 in / 2,080 X 220 X 1,255 mm
Conformal Coating (Power Board)	Yes
Handle	No

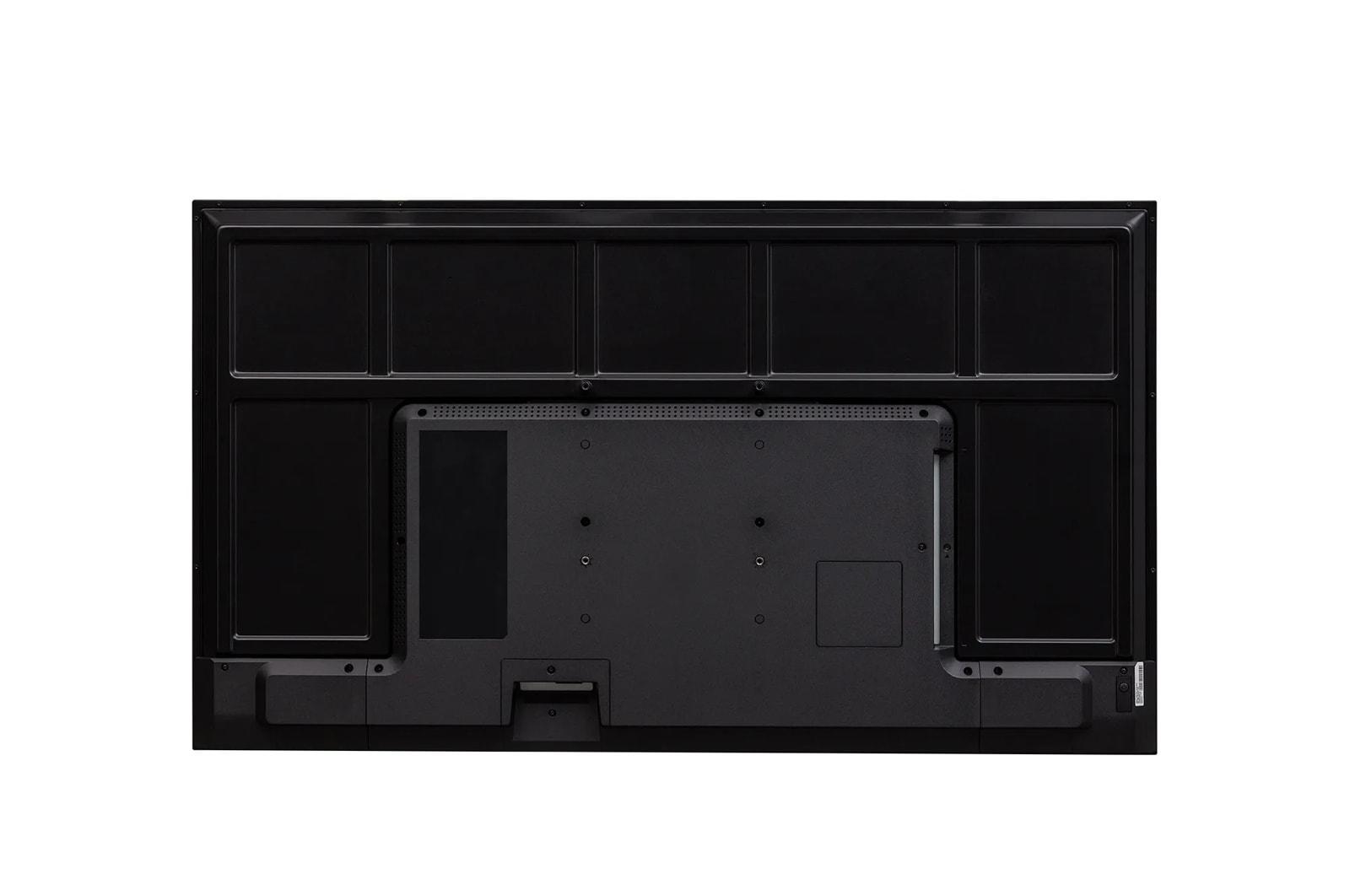

VESA™ Standard Mount Interface	600 x 400 mm
Overlay Touch Compatibility	No
Smart Calibration	No
Power Protection	No
Direct Sunlight	No
LG Software Compatible
SuperSign™ CMS	Yes
SuperSign™ Media Editor	Not Available
SuperSign™ Control+	Yes
SuperSign™ WB	Yes
SuperSign™ Cloud	Yes
Mobile CMS	Yes
ConnectedCare™	Yes
Regulatory & Certifications
UL Certification	Not Available
U.S. ePEAT (Environmental)	Yes
FCC (Regulatory)	Class B
IP Rating (Solid / Liquid Ingress)	No
TAA Compliance	No
CE Marking (Regulatory)	Yes
ISTA6 (Packaging)	Not Available
ERP (Environmental)	N/A
Energy Star (Environmental)	Yes
Warranty & Other
Assembled In	China
Warranty	3 Year Limited
Onscreen Display Languages	Arabic, Chinese (Simplified, Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Spanish, Swedish, T rk e
Basic Accessories (included)	Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender
Touch Panel
Available Object Size for Touch	N/A
Response Time (PC Win10, Education Mode)	N/A
Touch Response Time (G to G)	N/A
Writing Height	No
Accuracy (Typ.)	No
Interface	No
Active Pen Interface	Not Available
Multi Touch Point (Max.)	No
Protection Glass Transmission	Not Available
Protective Glass Thickness	N/A
Operating System Support	N/A
Protective Glass
Thickness	No
Degree of Protection	N/A
Tempered / Chemical Strengthening	N/A
Anti-Reflective	N/A
Anti-Reflective Coating	N/A
Anti-Reflective Film	N/A
Infrared - Resistance (IR)	N/A
Shatter-Proof	N/A
Heat Dissipation	No
Heater	N/A
Noise Level	N/A
Smart Features
Screen Share	Yes
Hospitality Features
Pro:Idiom®	Yes
Wake on LAN	Yes
Hardware Features
Local Key Operation	Yes (Power On/Off only)
Built-in Microphone	No
Built-in Camera	No
Pixel Sensor	No
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Built-in Cooling Fan	No
Acceleration (Gyro) Sensor	Yes
Current Sensor	No
BLU Sensor	No
Power Indicator	No
Proximity Sensor	No
Humidity Sensor	No
Software Features
Gapless Playback	Yes
Picture-by-Picture (PBP)	No
Control Manager	Yes
SI Server Setting	Yes
Setting Data Cloning	Yes
Status Mailing	Yes
Auto Set ID	Yes
Scan Inversion	No
Backlight Sync	No
ISM Method	Yes
Group Manager	Yes
Booting Logo Image	Yes
Network Ready	Yes
RS-232C Sync	Yes
W/B Setting by Grayscale	No
webRTC (Real Time Communication)	Yes
Video Tag	Yes (4, Max One HDMI input)
PM mode	Yes
Picture-in-Picture (PIP)	No
Local Network Sync	Yes
Screen Rotation	Yes
Smart Energy Saving	Yes
Tile Mode Setting	Yes
External Input Rotation	Yes
No Signal Image	Yes
SNMP	Yes
Brightness Compensation	No
Local Contents Scheduling	Yes
HDMI-CEC	Yes
USB Plug & Play	Yes
Environmental Conditions
Operation Humidity	10% to 80%
Operation Temperature (Portrait)	32°F to 95°F / 0°C to 35°C
Operation Temperature	32°F to 104°F / 0°C to 40°C
OPS Compatibility
OPS Power Built-in	No
OPS Compatible	No
