Lg 86XF3SKB 86'' UHD Open Frame Outdoor Signage with Anti-Discoloration Technology
Lg 86XF3SKB 86'' UHD Open Frame Outdoor Signage with Anti-Discoloration Technology
Couldn't load pickup availability
Check Delivery:
- 86" 3,840 x 2,160 (UHD) Display with 3,300 nits brightness
- World's first UL Verified display for anti-discoloration characteristics
- Durable design with conformal coating & a wide operating temperature
- Easy maintenace with webOS™ 6.0
- Smart brightness control
- Electrical safety features

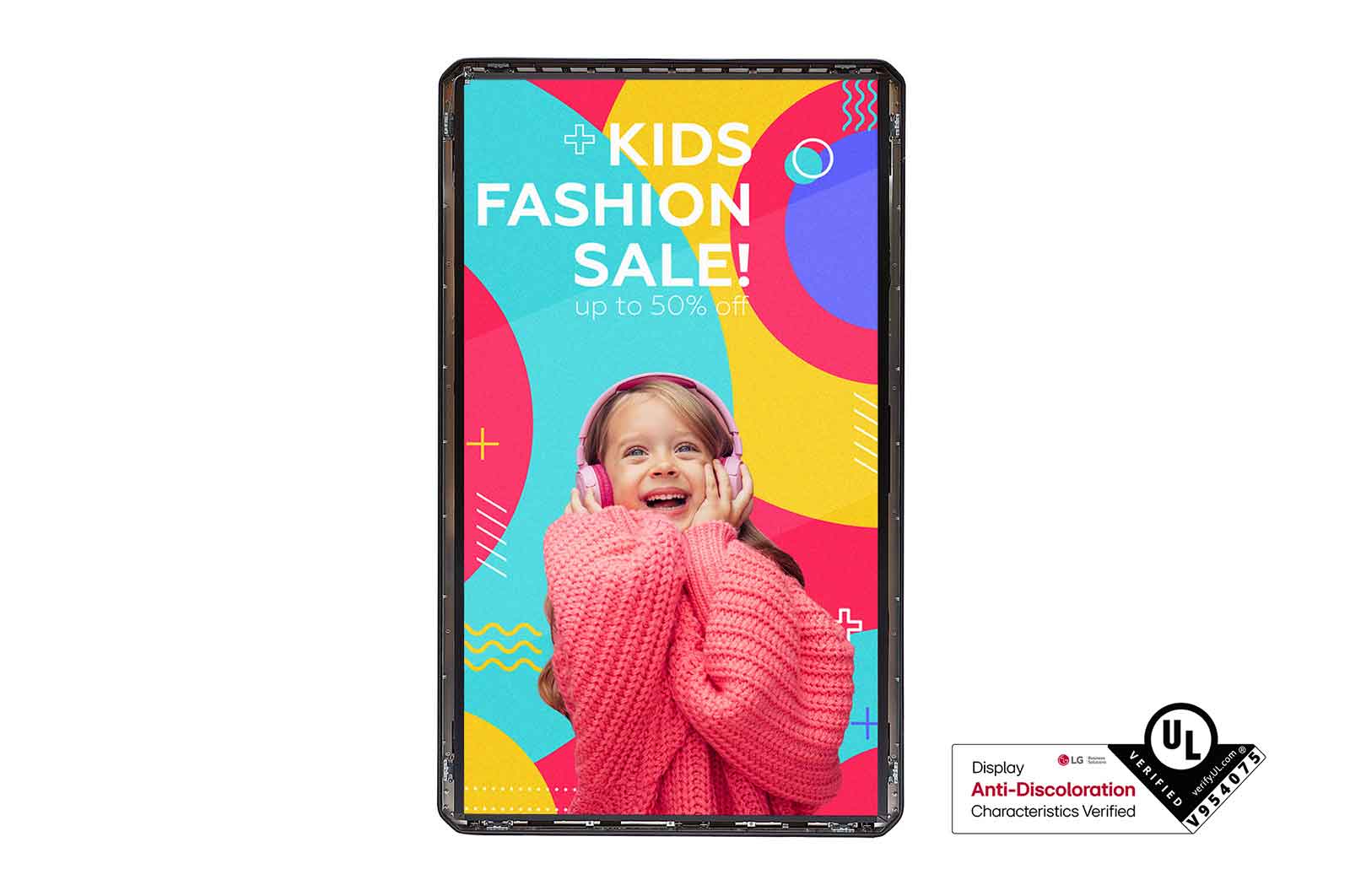

By focusing on the pain points of our customers, we obtained the world's first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent screen-yellowing', while safeguarding display quality and performance stability.
*Images are simulated for illustration purposes only. For more details about UL Verification, please visit https://verify.ul.com/verifications/1382. * World's first UL Verification in the manufacturing industry.
High Visibility Under Strong Sunlight
With outstanding high brightness of 3,300 nits (Typ.), the 86XF3SK outdoor display delivers content clearly for those passing by. With IPS technology, viewers can engage with the content at wide viewing angles.
*Images are simulated for illustration purposes only.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.
Open-frame Type Display
86XF3SK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.
*Images are simulated for illustration purpsoes only.
Wide Range of Operating Temperature
The display has been tested and is capable of operating under a wide range of operating temperatures* typically experienced in direct sunlight.
*Images are simulated for illustration purposes only. 86XF3SK is LG-internally tested based on IEC 60068-2-5, MIL-STD-810G and TTA test standards. This model must be installed inside a casing according to the official LG installation guide to be used safely and appropriately.
Smart Brightness Compensation
The built-in back light unit sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
*Images are simulated for illustration purposes only.
Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
*Images are simulated for illustration purposes only.
Conformal Coating
consists of thin protective films that help shield the circuit board and power board against water vapor.
*Images are simulated for illustration purposes only.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3SK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
*SoC : System On Chip **GUI : Graphical User Interface
Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they're connected to a network to monitor and control the displays remotely in real-time.
*Images are simulated for illustration purposes only.
| PANEL | |
| Screen Size | 86" |
| Panel Technology | IPS, RGB |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 3,300 nits |
| Contrast Ratio | 1,100:1 (Typ.) |
| Dynamic CR | 500,000 : 1 |
| Color Gamut | NTSC 68% |
| Viewing Angle (H x V) | 178° x 178° |
| Color Depth | 1.07 Bi llion Colors, 10 bit |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 3% |
| Operation Hours (Hours/Day) | 24 / 7 |
| Portrait / Landscape | Yes / No |
| QWP (Quarter Wave Plate) | Yes |
| Connectivity(Jack Interface) | |
| Input | HDMI (HDCP 2.2), DP (HDCP 1.4), RS-232C In (4 Pin Phone Jack), RJ45 (LAN), IR In, USB 2.0 Type A |
| Output | RS-232C Out (4 Pin Phone Jack), RJ45 (4, LAN) |
| MECHANICAL | |
| Bezel Width | 66.4 mm (L/R), 51.95 mm (T), 51.95 mm |
| Weight (Head) | 308.7 lbs. / 140 kg |
| Packed Weight | 345.7 lbs. / 156.7 kg |
| Monitor Dimension (W x H x D) | 48.2 x 80.1 x 7.1 in. 1,225 x 2,034.3 x 179.48 mm |
| VESA™ Standard Mount Interface | No |
| KEY FEATURE | |
| HW | Internal Memory (8 GB), Sensor (Temperature Sensor, Auto Brightness Sensor, Pixel sensor, Current Sensor, BLU Sensor, Humidity Sensor, Acceleration (Gyro) Sensor), FAN |
| SW | webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync, Backlight Sync), Video Tag (4), Play via URL (TDB), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC2 , SI Server Setting, webRTC, Pro:Idiom, Brightness Compensation |
| ENVIRONMENT CONDITIONS | |
| Operation Temperature (Direct Sun) | 32 to 104°F / 0 to 40°C |
| Operation Temperature (No Direct Sun) | 32 to 122°F / 0 to 50°C |
| Operation Humidity | 10% to 80% |
| POWER | |
| Power Supply | AC 100-240 V -, 50/60 Hz |
| Power Type | Built-in Power |
| POWER CONSUMPTION | |
| Type. / Max | 1,450 W / 1,800 W |
| SOUND | |
| Speaker | No |
| Regulatory | |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE |
| ErP / Energy Star | Yes / No |
| ePEAT (US only) | No |
| SOFTWARE COMPATIBILITY | |
| Software Compatibility | SuperSign CMS, SuperSign Control / Control+, LG ConnectedCare |
| ACCESSORIES | |
| Basic | Remote Control ler, HDMI Cable (1 ea), USB Cable (2 ea), Manual (IG & EIG), Regulation Book, Phone to RS-232C Gender (1 ea), LAN Extension Cable (2 ea), SMA Cable (2 ea), IR Cable (1 ea), JCD 5P PWR Cable (3 ea), JCD 8P PWR Cable (1 ea), Cord Grip Rubber (5 ea), Screw (6 ea), JCD Corner Bracket (4 ea) |
| SPECIAL FEATURES | |
| Special Features | Power Protection (Circuit Breaker), Direct Sunlight |
| WARRANTY | |
| Warranty | 3 Year Limited (Optional up to 5 Year with LG ExtendedCare) |
