- 7.3 cu ft Ultra Large Capacity

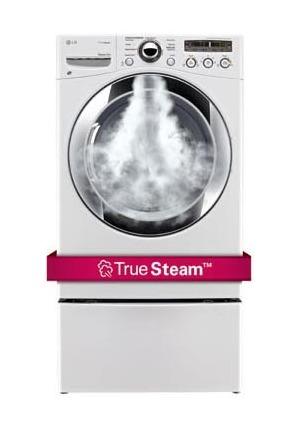

- TrueSteam™ Technology
- SteamFresh™ Cycle
- SteamSanitary™ Cycle

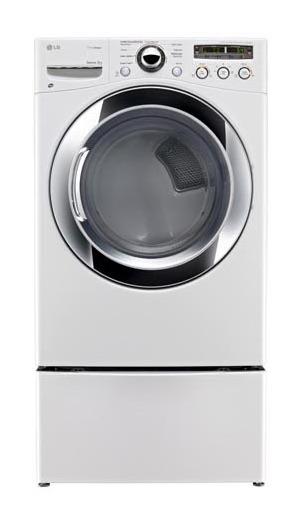

7.3 cu. ft. Ultra Large Capacity SteamDryer™ with Sensor Dry
| DIMENSIONS | |
| Carton (WxHxD) | 29 1/2" x 42 1/4" x 31 1/4" |
| Weight (Product/Carton) | 130.1 Ibs. / 144Ibs. |
| Product (WxHxD) | 27" x 38 11/16" x 29 3/4" (51" D with door open) |
| CAPACITY | |
| Capacity | 7.3 cu. ft. |
| WARRANTY/UPC | |
| Limited Warranty | 1 Year Parts and Labor |
| UPC | 048231014007 |
| APPEARANCE | |
| Design Look | Front Control |

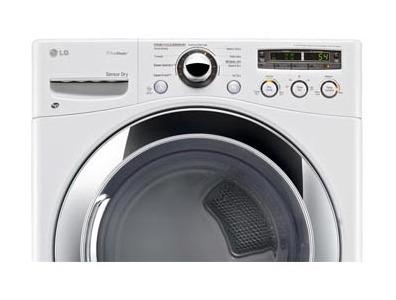

| Intelligent Electronic Controls with Dual LED Display | Yes |
| Dial-A-Cycle™ | Yes |
| FABRIC CARE FEATURES | |
| SteamFresh™ Cycle | Yes |
| SteamSanitary™ Cycle | Yes |
| ReduceStatic™ Option | Yes |
| EasyIron™ Option | Yes |
| Sensor Dry | Yes |
| Precise Temperature Control with Variable Heater | Yes |
| MATERIALS AND FINISHES | |
| Top Plate | Painted Steel |
| Cabinet | Painted Steel |
| Control Panel | Plastic |
| Door Rim | Chrome Rimmed Glass Door |
| Available Colors | White (W), Wild Cherry Red ®, Graphite Steel (V) |
| Aluminized Alloy Steel Drum | Yes |
| Transparent Glass Door | Yes |
| CONVENIENCE FEATURES | |
| Leveling Legs | 4 Adjustable Legs |
| LoDecibel™ Quiet Operation | Yes |
| End of Cycle Signal | Yes |
| Child Lock | Yes |
| Venting Option | Electric: 4 Way Venting / Gas: 3 Way Venting |
| Drum Light | Yes |
| Reversible Door | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
| FlowSense™ Duct Clogging Indicator | Yes |
| Wrinkle Care Option | Yes |
| Drying Rack | Yes |
| SmartDiagnosis™ | Yes |
| 3 Minute Installation Check | Yes |
| OPTIONS | |
| Pedestal | WDP4W, WDP4R, WDP4V |
| Pedestal (WxHxD) | 27" x 13 3/5" x 28 2/5" |
| Stacking Kit | KSTK1 |
| LP Conversion Kit | 383EEL3002D |
| Side Venting Kit | 3911EZ9131X |
| POWER SOURCE | |
| Ratings | CSA Listed |
| Electrical Requirements | 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric) |
| Type | Gas/Electric |
| DRYING PROGRAMS | |
| Options | More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal |
| Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
| No. of Programs | 9 |
| Programs (Sensor Dry) | Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™ |
| Programs (Manual Dry) | Speed Dry, Air Dry |
| No. of Options | 10 |
| Temperature Settings | High, Medium High, Medium, Low, Ultra Low |
| Manual Dry Times | 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time |
