LG DLGX5801V
Authorized Reseller

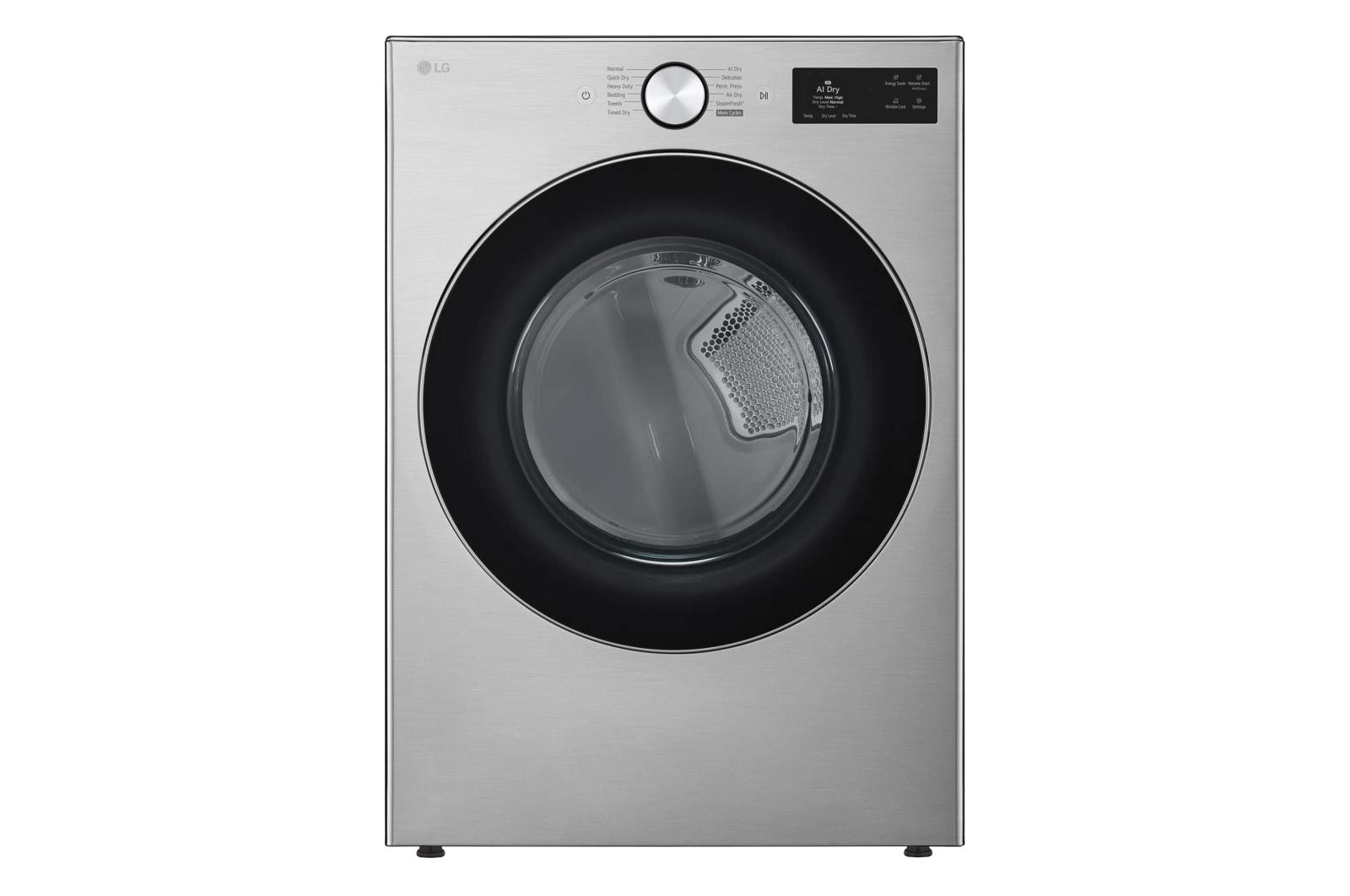

Lg DLGX5801V 7.4 cu. ft. Ultra Large Capacity Smart Front Load Gas Dryer with TurboSteam®, AI Sensing and Hybrid Electronic Controls with LCD Display

Lg DLGX5801V 7.4 cu. ft. Ultra Large Capacity Smart Front Load Gas Dryer with TurboSteam®, AI Sensing and Hybrid Electronic Controls with LCD Display

Item Not Available
When Will I Get My Order?
View full details
  • 7.4 cu.ft. Ultra Large Capacity lets you clean larger loads
  • Built-in intelligence takes out the guesswork-AI Sensor Dry™ selects optimal dry settings
  • SteamFresh™ Cycle with TurboSteam™ Technology refreshes clothes in between washes
  • Pet Care Cycle helps reduce odors in pet clothes, toys and blankets so they come out smelling fresh
  • Dial controls get a modern upgrade with an intuitive touch panel, LCD display and sleek design
  • Get the ThinQ® app to access smart functions, ThinQ Care™ alerts and download new ThinQ UP™ features
  • FlowSense® Duct Clogging and Lint Filter Indicators help keep dryer clean, efficient and safe
7.4 cu. ft. Ultra Large Capacity Smart Front Load Gas Dryer with TurboSteam®, AI Sensing and Hybrid Electronic Controls with LCD Display
Dryer Programs
No. of Dryer Programs 26
Dryer Programs AI Dry, Activewear, Blanket Refresh, Easy Ironing, Jeans, Large Load, Overnight Dry, Power Dry, Quick Dry, SteamFresh™, Timed Dry, Towels, XL Load, Wrinkle Prevention, Air Dry, Rack Dry, Pet Care, Low Temp Dry, Perm Press, SteamSanitary , Super Dry, Bedding, Delicates, Heavy Duty, Normal, Small Load
No. of Dryer Options 11
Dryer Options Damp Signal, Smart Diagnosis, Steam, Low Static, Drum Light, Remote Start, Wi-Fi, Wrinkle Care, Energy Saver, Signal, "More Cycles" Edit
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Dry Modes No
Manual Dry Times 10 min ~ 100 min (5 min incremental)
Temperature Settings High, Med High, Medium, Med Low, Low
Laundry Appliance Capacity
Capacity 7.4 cu. ft.
Summary
Product Color Graphite Steel (V)
Matching Washer WM5800HVA
Dial-A-Cycle™ Yes
Hard Buttons No
Series LG
Steam Yes
Touch Buttons Yes
Type Front Load Dryer
Energy
CEF 3.49
ENERGY STAR® Certified Yes
Fabric Care Features
Precise Temperature Control with Variable Compressor No
TrueSteam® Yes
AI Sensor Dry™ Yes
Precise Temperature Control with Variable Heater Yes
Sensor Dry Yes
Laundry Appliance Convenience Features
3 Minute Installation Check Yes
4 Adjustable Legs Yes
Control Lock Yes
Drum Light Yes
End of Cycle Signal Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
Reversible Door Yes
FlowSense™ Duct Clogging Indicator Yes
Vent Type Vented
Venting Option 3 Way Venting
Laundry Appliance ThinQ® Smart Features
Energy Monitoring Yes
NFC Tag On No
SmartDiagnosis™ (v3.0) Yes
ThinQ Care™ Yes
Wifi Yes
Materials and Finishes
All Available Colors Alpine White (A), Graphite Steel (V)
Aluminized Alloy Steel Drum Yes
Cabinet Painted Steel
Door Cover Tempered Glass Door
NeveRust™ Stainless Steel Drum No
Power Source
Dryer Power Source Type Gas
Dryer BTU Rating 20,000
Dryer Electrical Requirements 120V, 60Hz, 11.5A
Ratings CSA Listed
Options/Accessories
LP Conversion Kit 383EEL3002R
Pedestal WDP6V
Side Venting Kit 383EEL9001B
Dimensions
Carton (WxHxD) 29" x 43 1/4" x 31 1/8"
Depth with Door Open 51 3/8"
Pedestal (WxHxD) 27" x 13 5/8" x 28" (43 7/8" D with door open)
Product (WxHxD) 27" x 39" x 29 3/4"
Weight (Carton) 133.1 lbs
Weight (Product) 125.1 lbs
Warranty & UPC
Drum 3 Years
Parts and Labor 1 Year
UPC 048231349819
