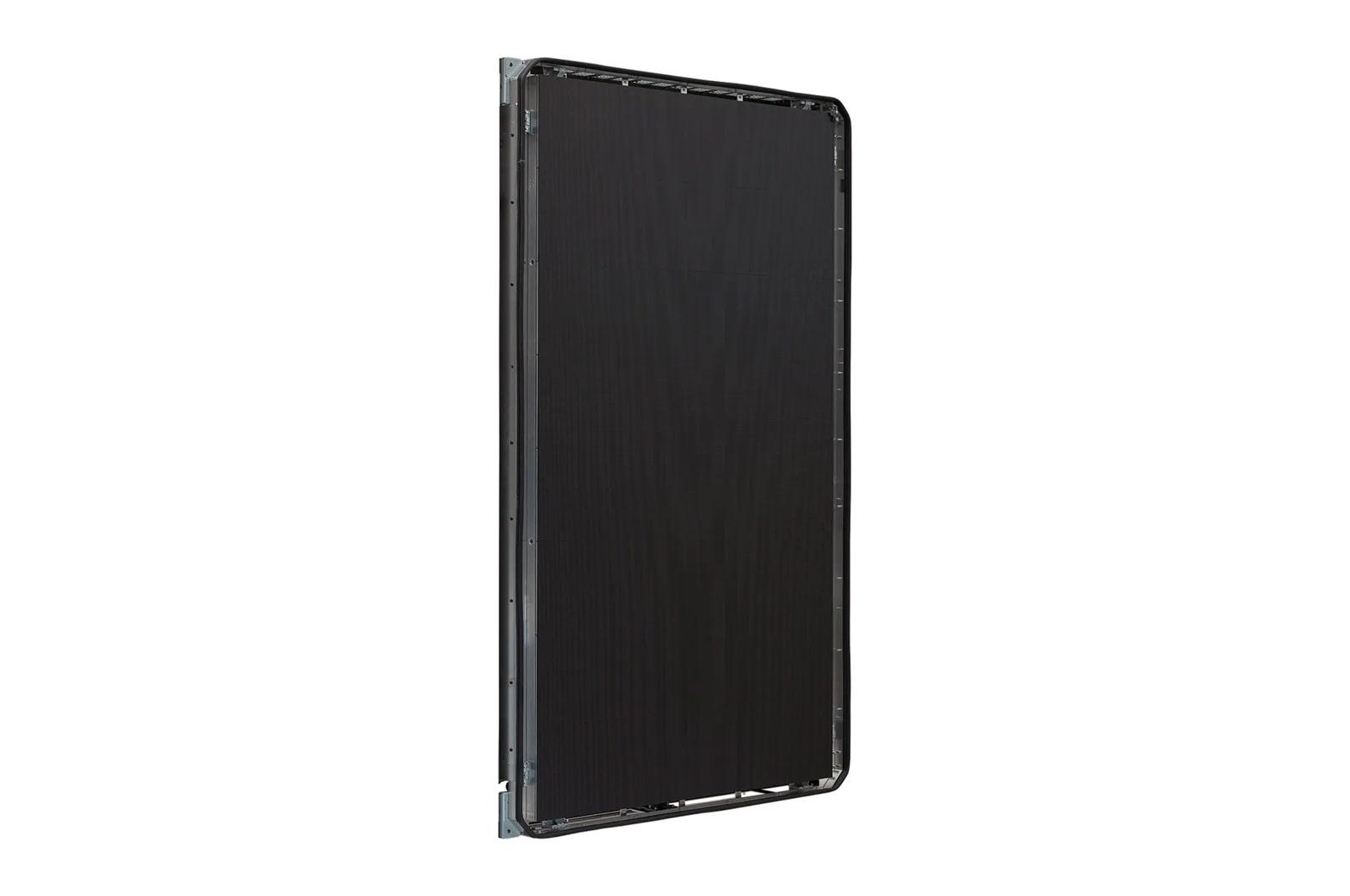

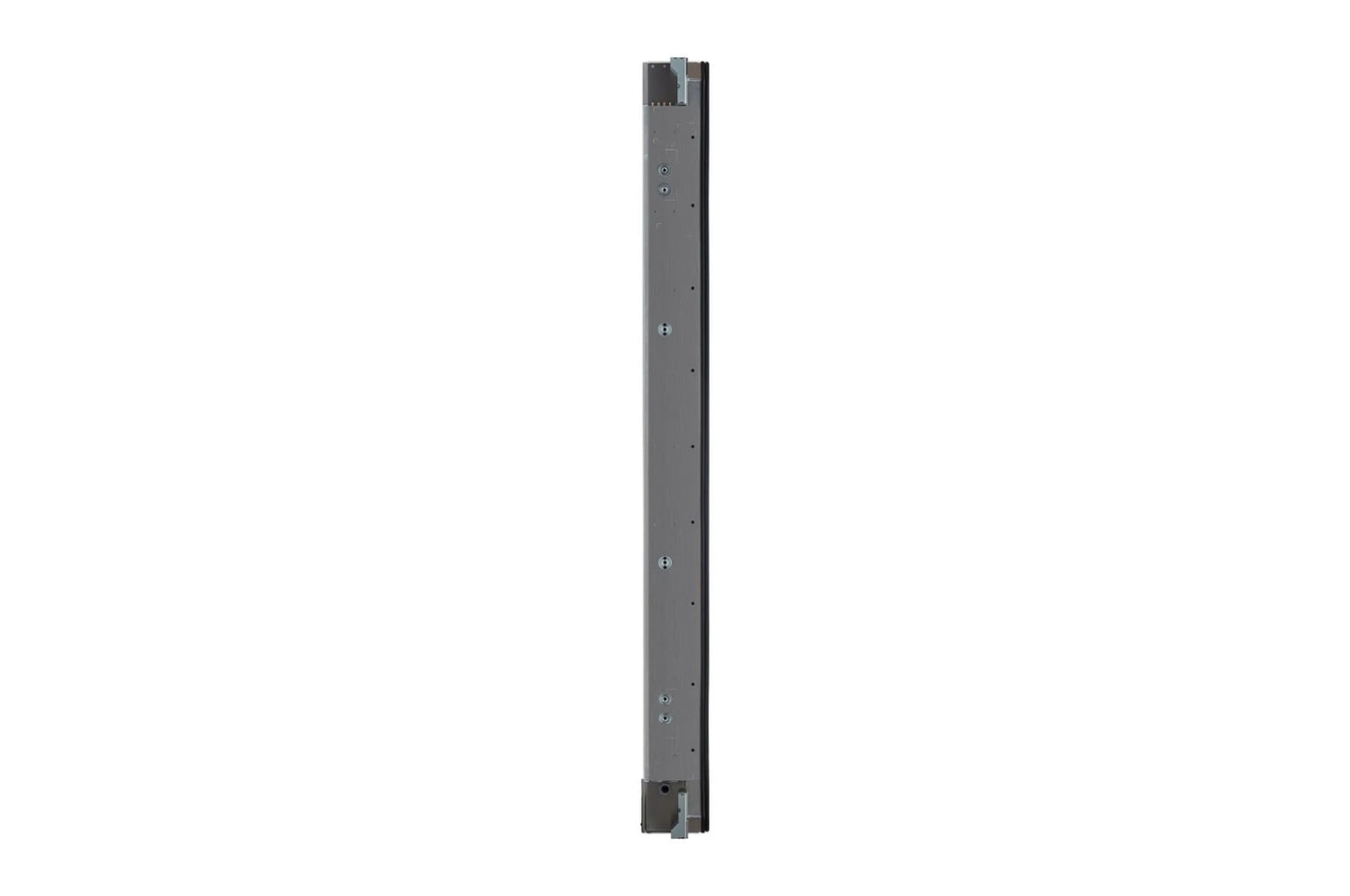

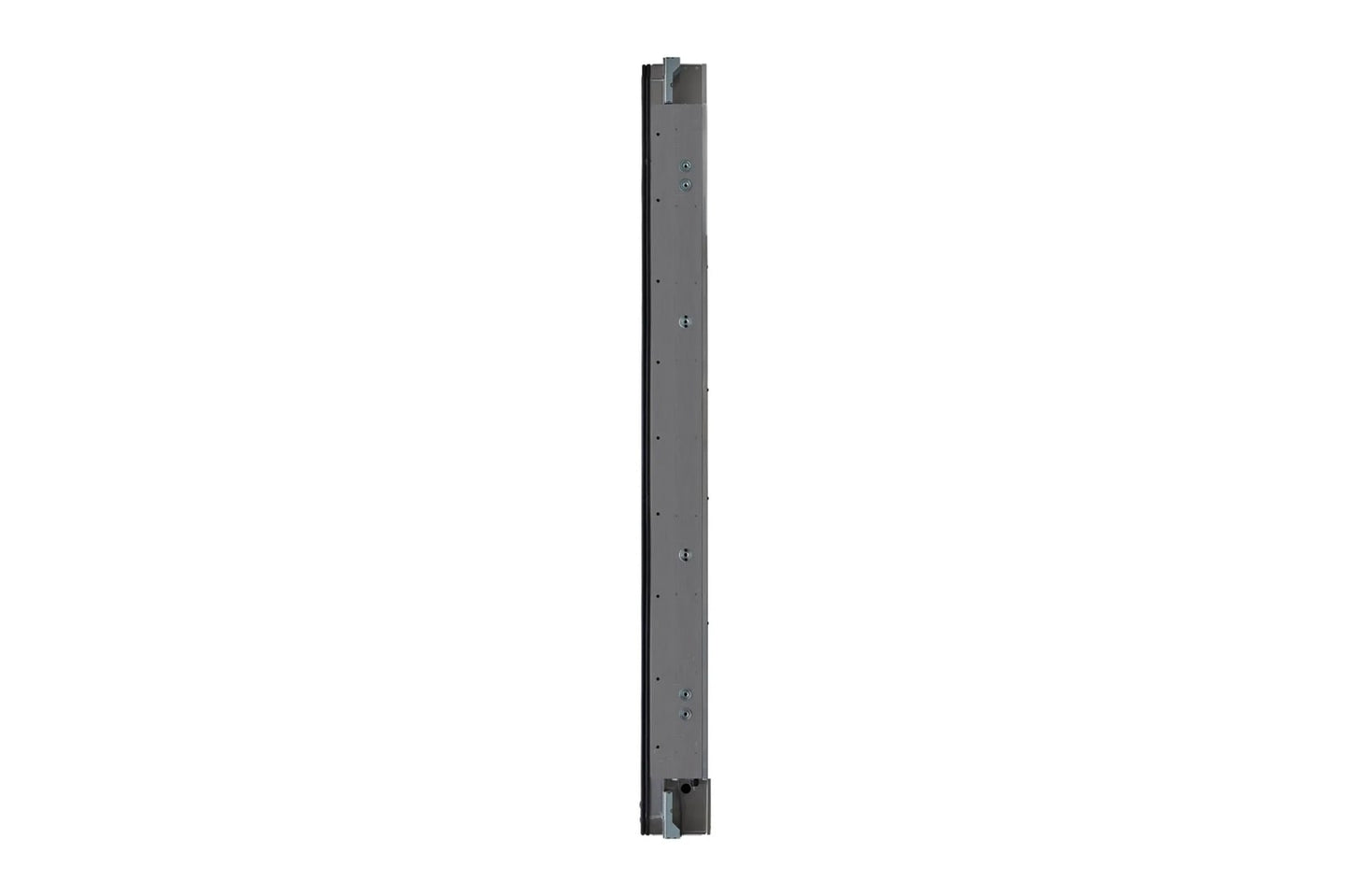

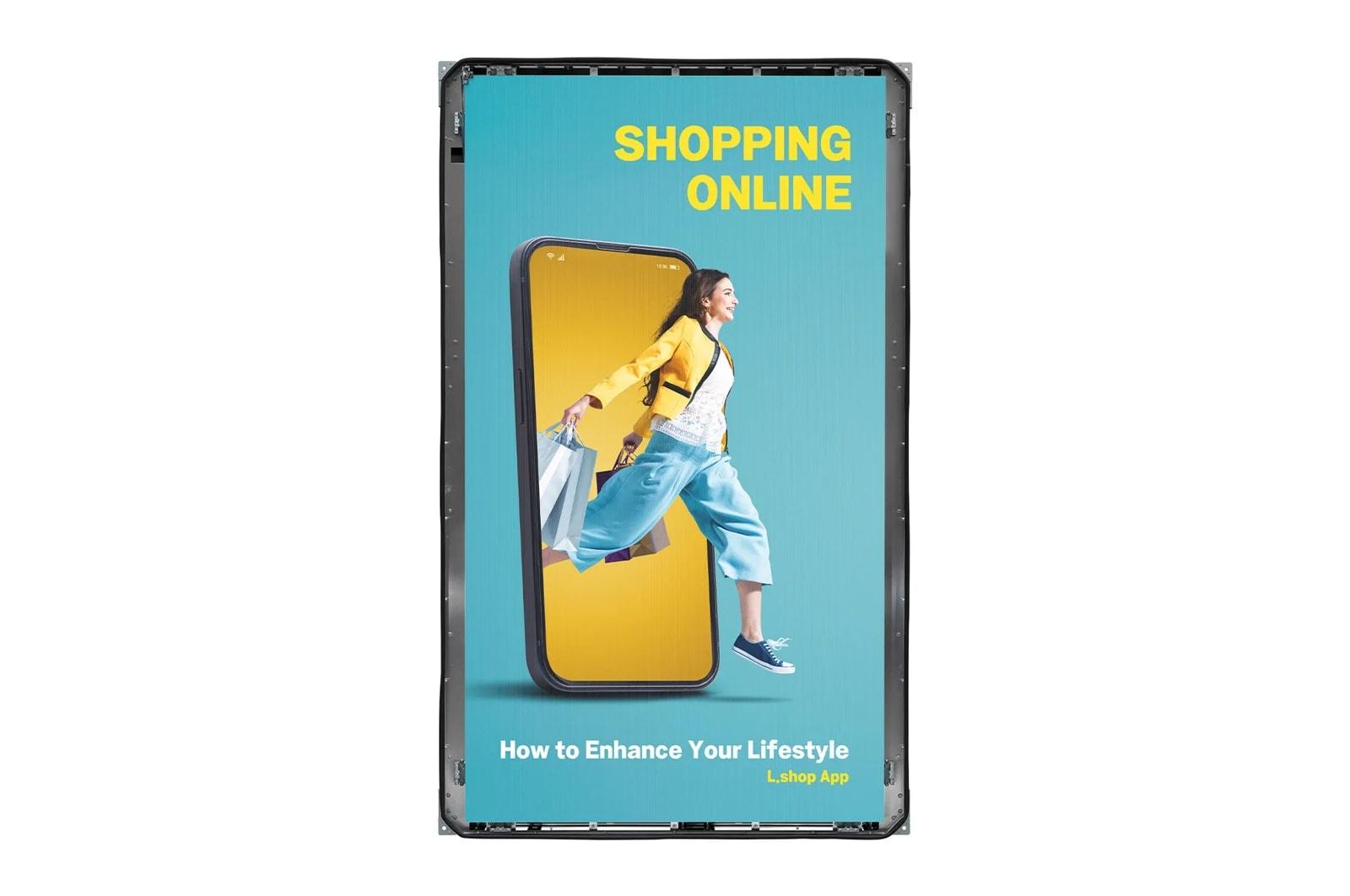

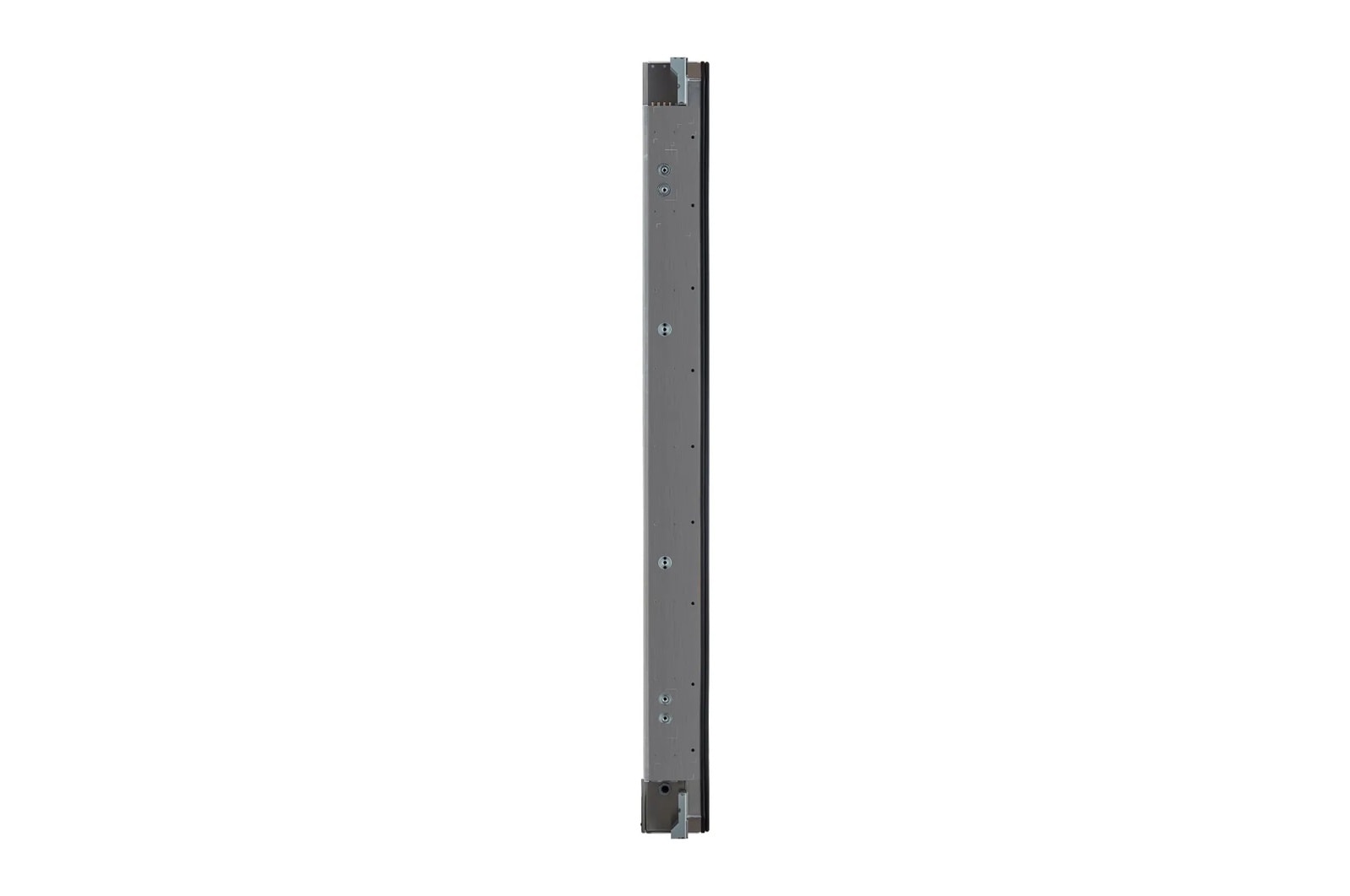

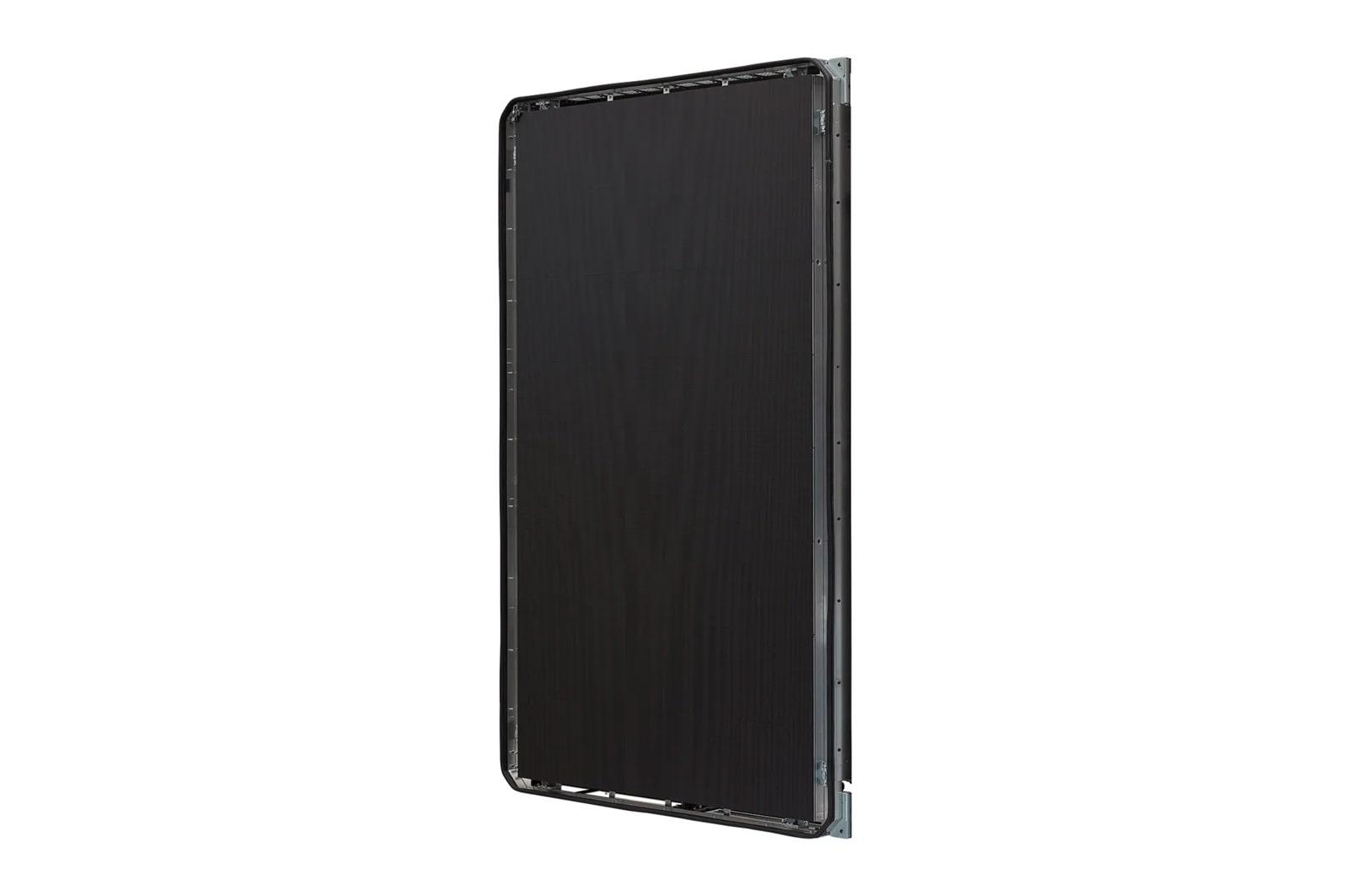

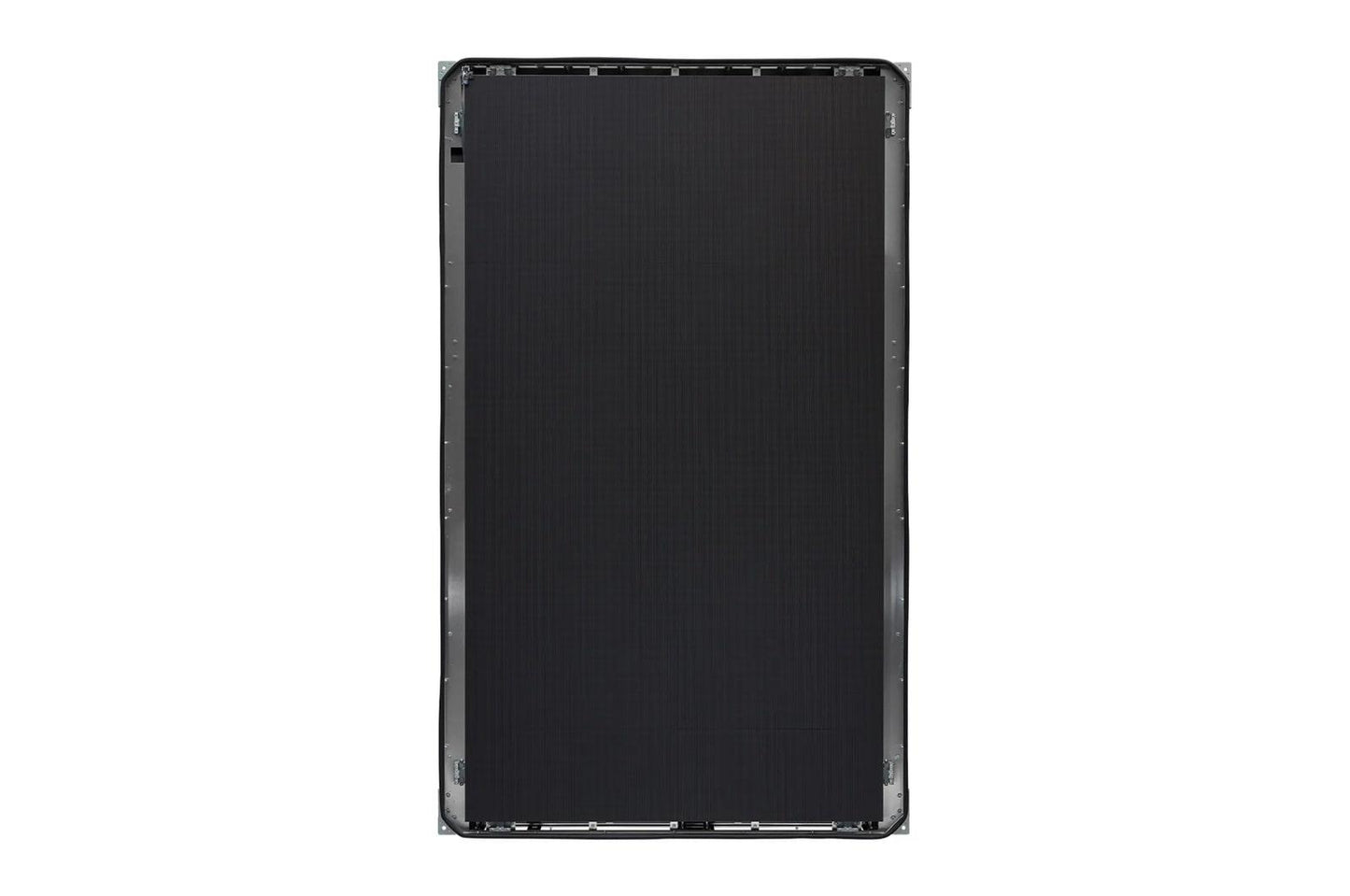

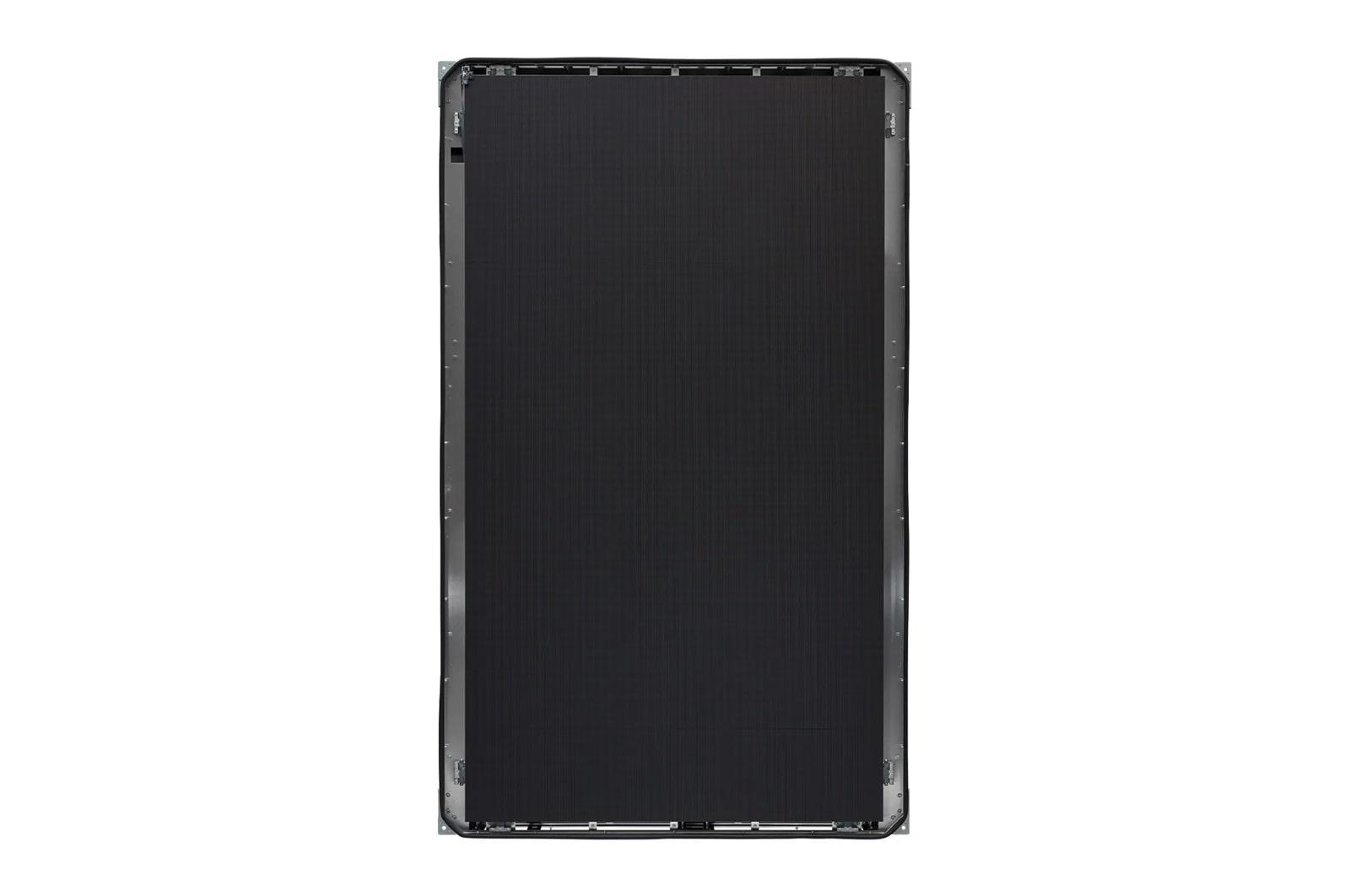

Lg GEAA018 1.88 mm GEAA Series Open-Frame Outdoor LED
Lg GEAA018 1.88 mm GEAA Series Open-Frame Outdoor LED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1.88 mm pixel pitch
- 3,500 nit brightness
- Open-frame type for flexible configuration options

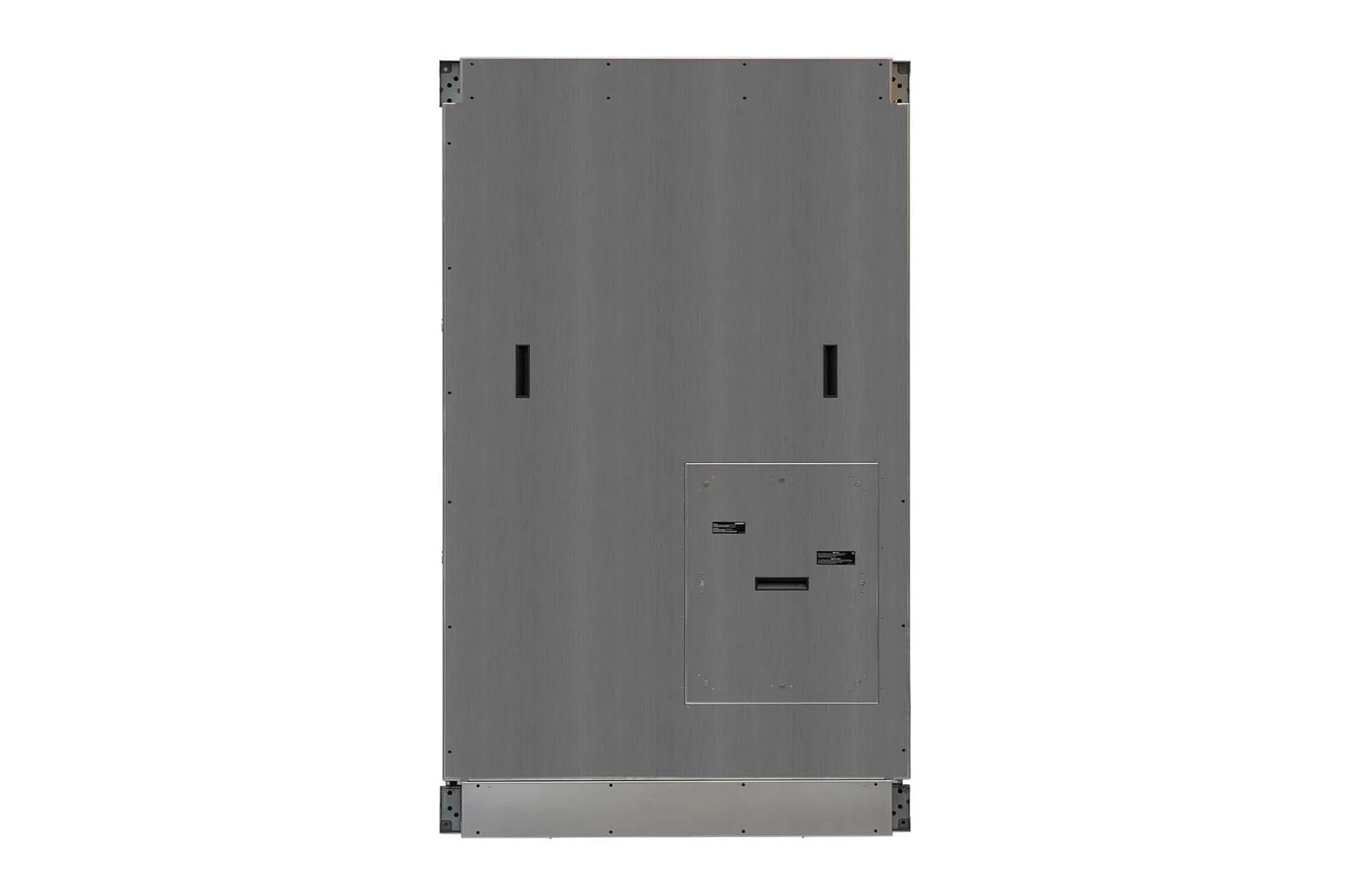

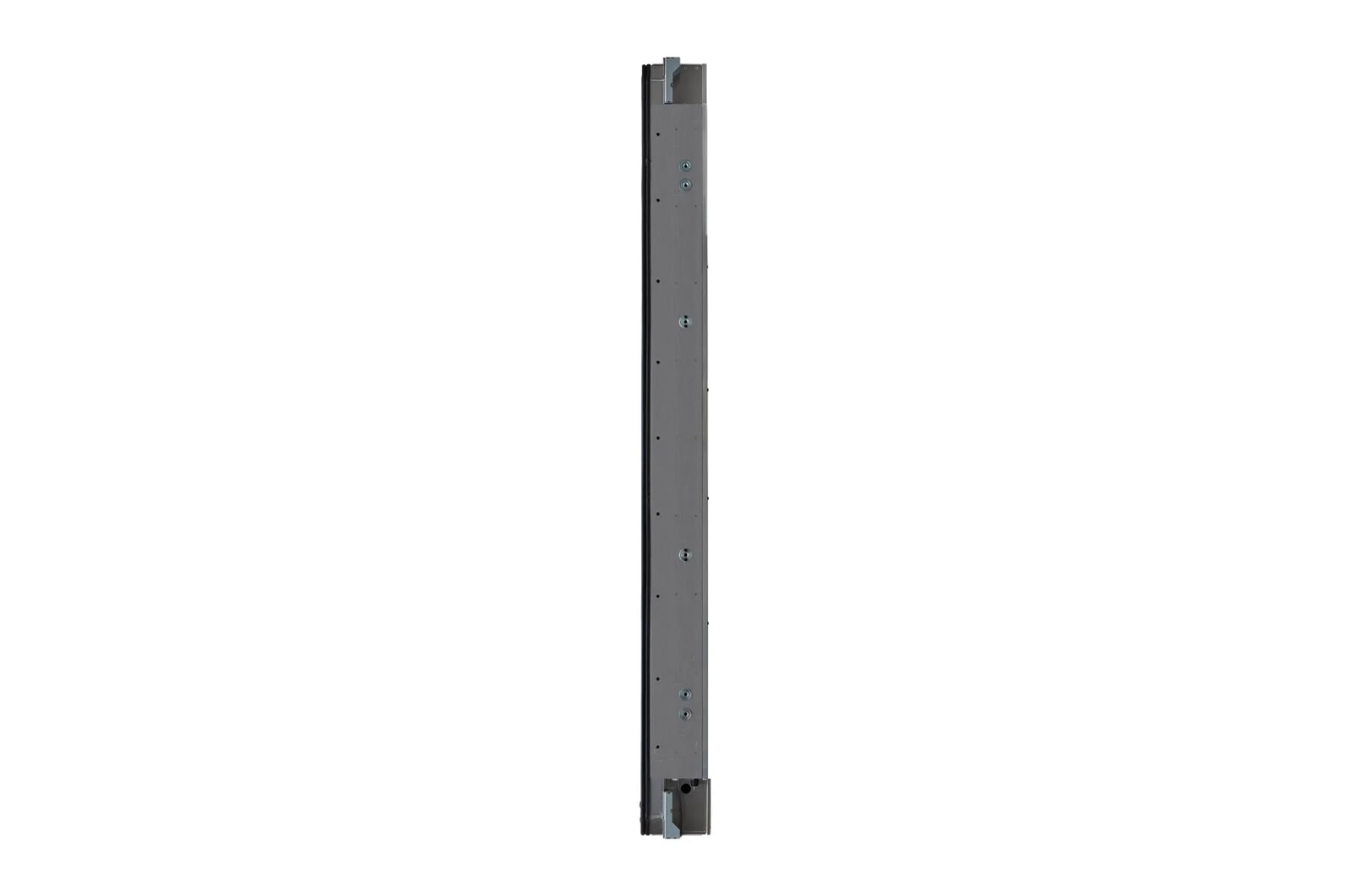

1.88 mm GEAA Series Open-Frame Outdoor LED
| Physical Parameters | |
| Pixel Pitch | 1.88mm |
| Module Resolution (W x H) | 72 X 128 |
| Module Dimensions (W x H) | 5.31 x 9.44 in / 135 x 240mm |
| No. of Modules per Cabinet (W x H) | 4 x 2 |
| Physical Pixel Density | 1,638,400 pixels/m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |
| Service Access | Rear |
| Electrical | |
| Power Supply | 100~240V (50/60 Hz) |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 430 w/Screen |
| Power Consumption per Cabinet (Max.) | 1,650 w/Screen |
| Heat Dissipation per Cabinet (Avg.) | 1,467 BTU/h/Screen |
| Power Consumption per Unit Area (Max.) | 800 w/ |
| Heat Dissipation per Cabinet (Max.) | 5,630 BTU/h/Screen |
| Heat Dissipation per Unit Area (Max.) | 2,730 BTU/h/ |
| Optical | |
| Brightness Uniformity | 95% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 8000:1 |
| Processing Depth | 14 bit |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| RoHS (Environmental) | Yes |
| CB | Yes |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | EMC Class A |
| cTUVus | Yes |
| CE (Regulatory) | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP20 |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 80% RH |
